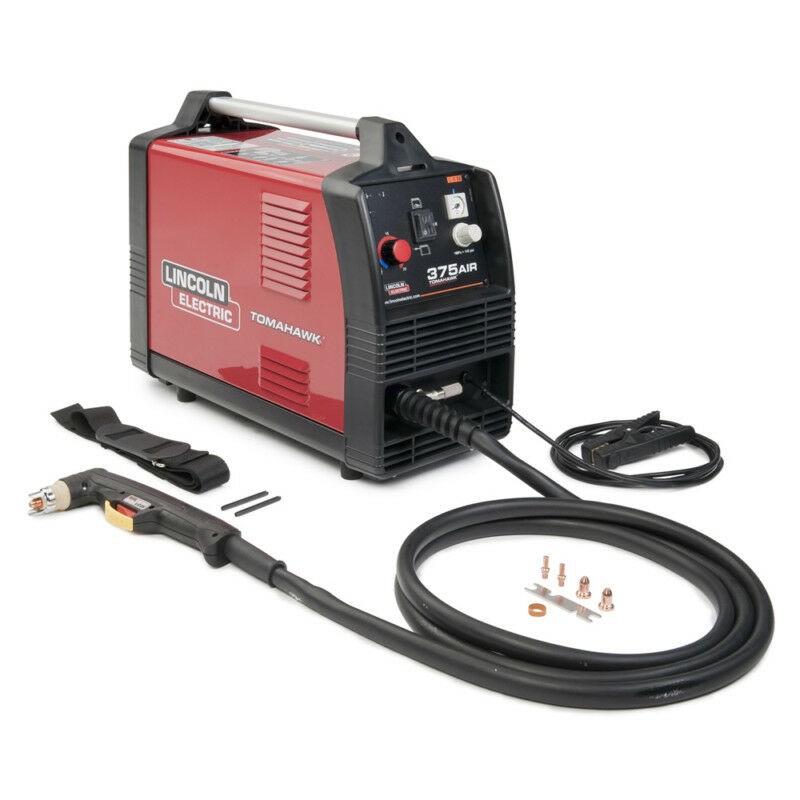

Lincoln U28061 Tomahawk 375 Air Plasma Cutter with 10′ Hand Torch

The  Lincoln U28061 Tomahawk 375 Air Plasma Cutter is a ready to use system for quickly and accurately cutting Mild Steel, Stainless Steel, Aluminum, Brass, and Copper. The Lincoln U28061 is a factory certified and reconditioned K2806-1 plasma cutter. Why pay full price for a Lincoln K2806-1 Tomahawk 375 Air Plasma Cutter when you can have the same product and a vastly reduced price.  The Tomahawk 375 air plasma cutting system will slice through metals faster than oxy-fuel torches and cut quicker and cleaner than grinding discs. Additionally Tomahawk 375 is much safer than using oxy-fuel cutters, as they don’t involve high flammable gas and open flames. If you have never used a plasma cutter, you are in for a treat!

Plasma Cutting – Anywhere, Anytime The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – pick up the torch and cut in seconds.

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Features

• Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
• Continuous Output Control – Focus the arc for different material thickness.
• Touch Start System – Reliable plasma arc initiation without high frequency.
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
• Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.
• Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run.
• Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.
• Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations

Lincoln U28061 Tomahawk 375 K2806-1 Combined With Engine Driven Generators 230 volt auxiliary meets the following conditions.

• The AC Waveform peak voltage is below 400 Volts
• The AC Waveform frequency is between 55 and 65Hz
• The RMS voltage of the AC waveform is always greater than 208VAC

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Typical Applications

• On Site Maintenance
• Air Ducting Installation (HVAC)
• Construction
• Automotive
• General Fabrication
• Demolition Work
• Rental

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Features Works on these Metals

• Mild Steel
• Stainless Steel
• Aluminum
• Brass
• Copper

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Specifications

• Machine Processes: Plasma Cutting
• Max Rating: 25A
• Torch Included: Yes
• Gas Supply: Air or Nitrogen
• Gas Pressure Required: 80 – 110 psi (6 -7.5 Bar)
• Recommended Cutting Capacity ( Mild Steel) ( In/ft): 5/16 in. @22 ipm
• Recommended Cutting Capacity ( Mild Steel) (mm/M): 7.9 mm. @ .56 m/min
• Maximum Cutting Thickness ( Mild Steel) ( In/Ft): 3/8 in. @ 14 ipm
• Maximum Cutting Thickness ( Mild Steel) (mm/M): 9.5 mm. @ .36 m/min
• Maximum Severance ( Mild Steel) ( In/Ft): 1/2 in. @ 5 ipm
• Maximum Severance ( Mild Steel) (mm/M): 12.7 mm. @ .13 m/min
• Output Range: 10-25A
• Air Flow Rate: 70psi @ 125-200SCFH (5 Bar @ 80 Liters/min)
• Air Pressure Required 80-110psi (6-7.5 Bar)

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Inputs & Outputs

• Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 208/230/1/60
• Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) 13A/85.2V/100%
• Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) 18A/87.2V/60%
• Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) 25A/90V/35%
• Phase 1: Input Current at Max Rated Ouput #1 (Current) 21.7A

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Features Included

• Internal air compressor (external air connection also standard)
• LC25 hand torch and 10 ft. (3 m) cable with electrode | nozzle 25A | swirl ring | retaining cap | drag spacer
• Air regulator and pressure gauge
• Internal water separator
• Work clamp and cable
• Spare consumables include (2) electrodes | (2) nozzles 25A | (1) swirl ring
• Shoulder strap
• Input power cord

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Consumable Wear

• It is normal for the electrode and nozzle to wear during operation
• Electrodes should typically be replaced when erosion reaches 0.025 in. (0.65 mm).
• A green and erratic arc will indicate the end of electrode life. The electrode should be immediately replaced.
• It is recommended that the KP2842-1 Electrode and KP2842-2 Nozzle (25A) be replaced as a complete set.

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Consumables

• S28173-1 Replacement Handle
• S28173-2 Replacement Head
• S28173-4 O-Ring
• KP2842-1 Electrode
• KP2842-2 Nozzle
• KP2842-3 Retaining Cap
• KP2842-4 Swirl Ring
• KP2842-5 Spacer

Lincoln U28061 Tomahawk 375 K2806-1 Air Plasma Cutter Product Weight & Dimensions

• Dimensions (H x W x D): 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm)
• Net Weight: 40 lbs (18 kg)
