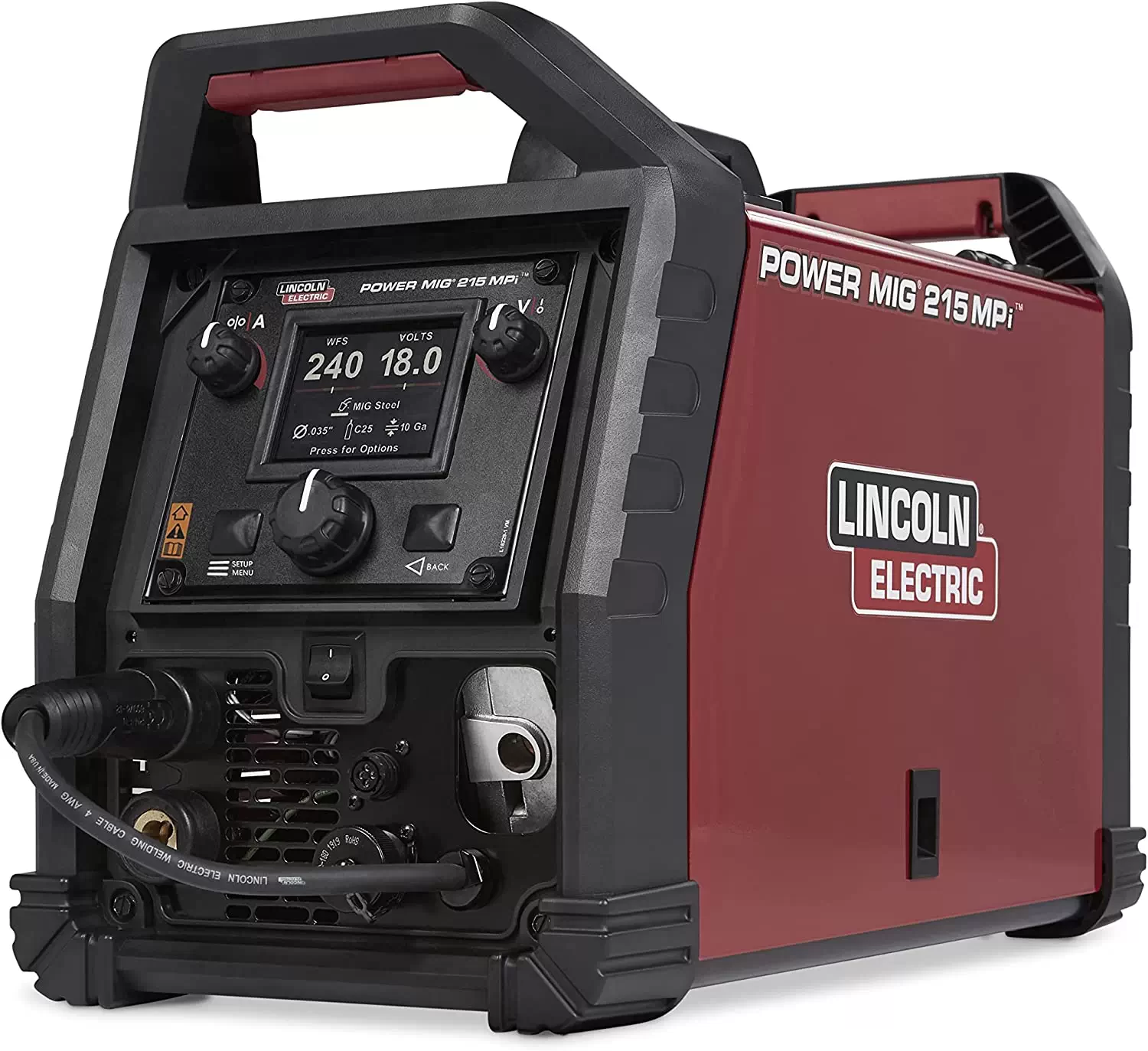

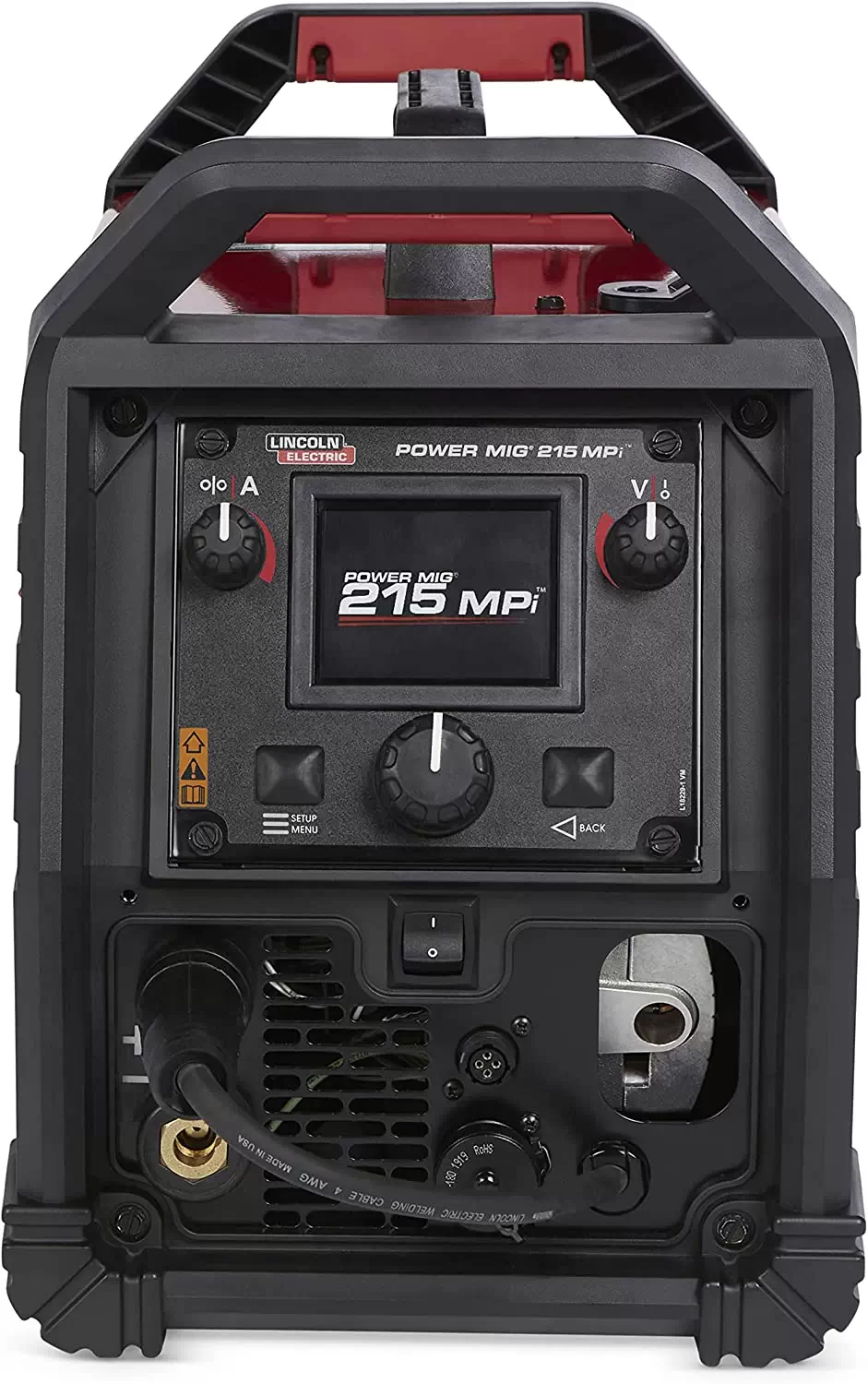

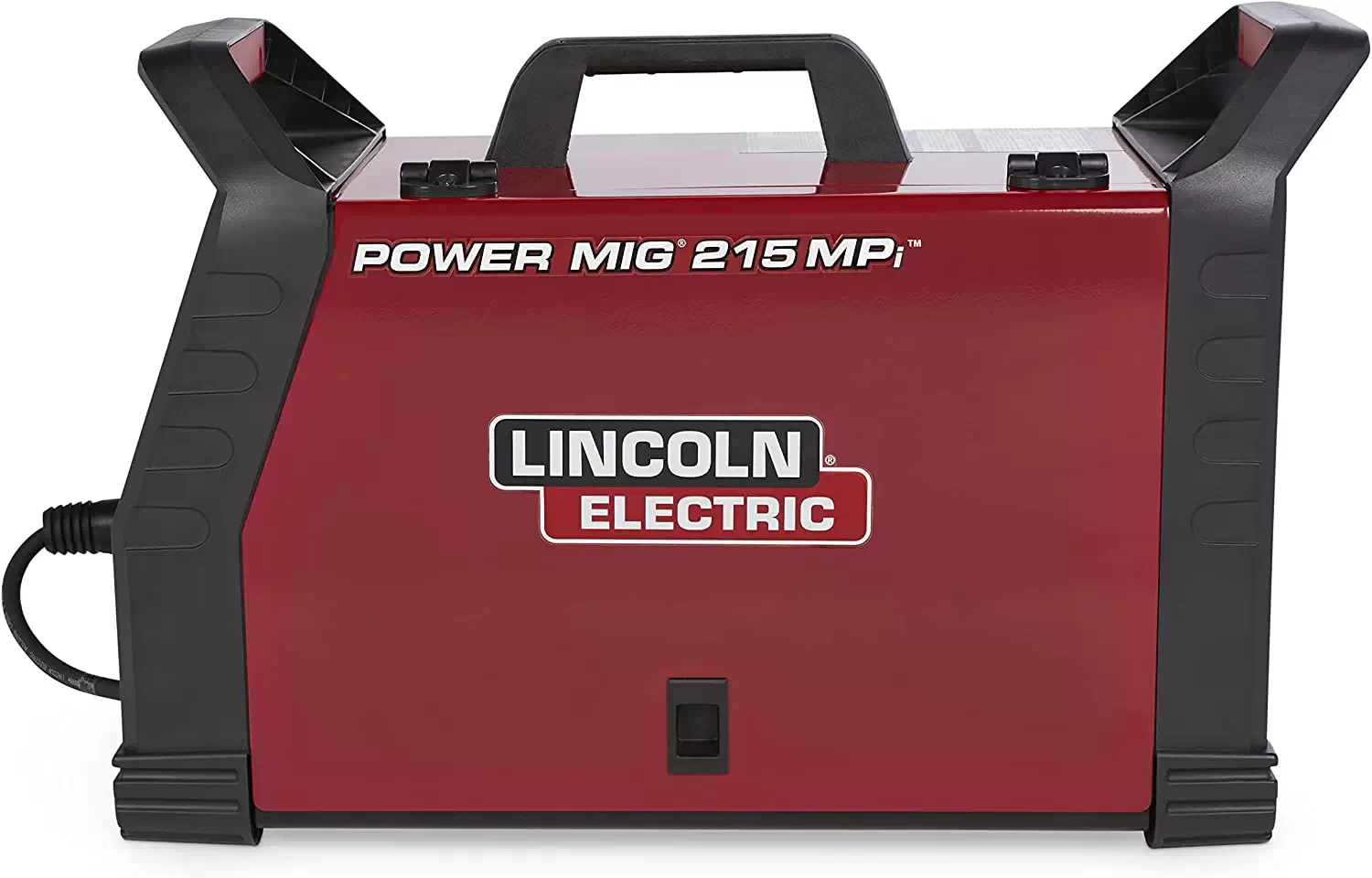

Lincoln U4876-1 (K4876-1) POWER MIG 215 MPi Multi-Process Welder

The Lincoln U4876-1 (K4876-1) POWER MIG 215 MPi Multi-Process Welder is a factory reconditioned and factory certified K4876-1 POWER MIG 215 MPi Multi-Process Welder that is certified to be the same quality as the K4876-1. The Lincoln U4876-1 (K4876-1) POWER MIG 215 MPi Multi-Process Welder is portable for MIG, stick, TIG, and flux-cored welding. The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.

Lincoln U2689-2 (K2689-2) SP-180T 208/230V MIG Welder Features

• Multi-Process Capable – Welds MIG, Flux-Cored, Stick, and DC TIG.
• Dual Input Voltage – 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case – Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Built in TIG Solenoid and Foot Pedal Adapter The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.

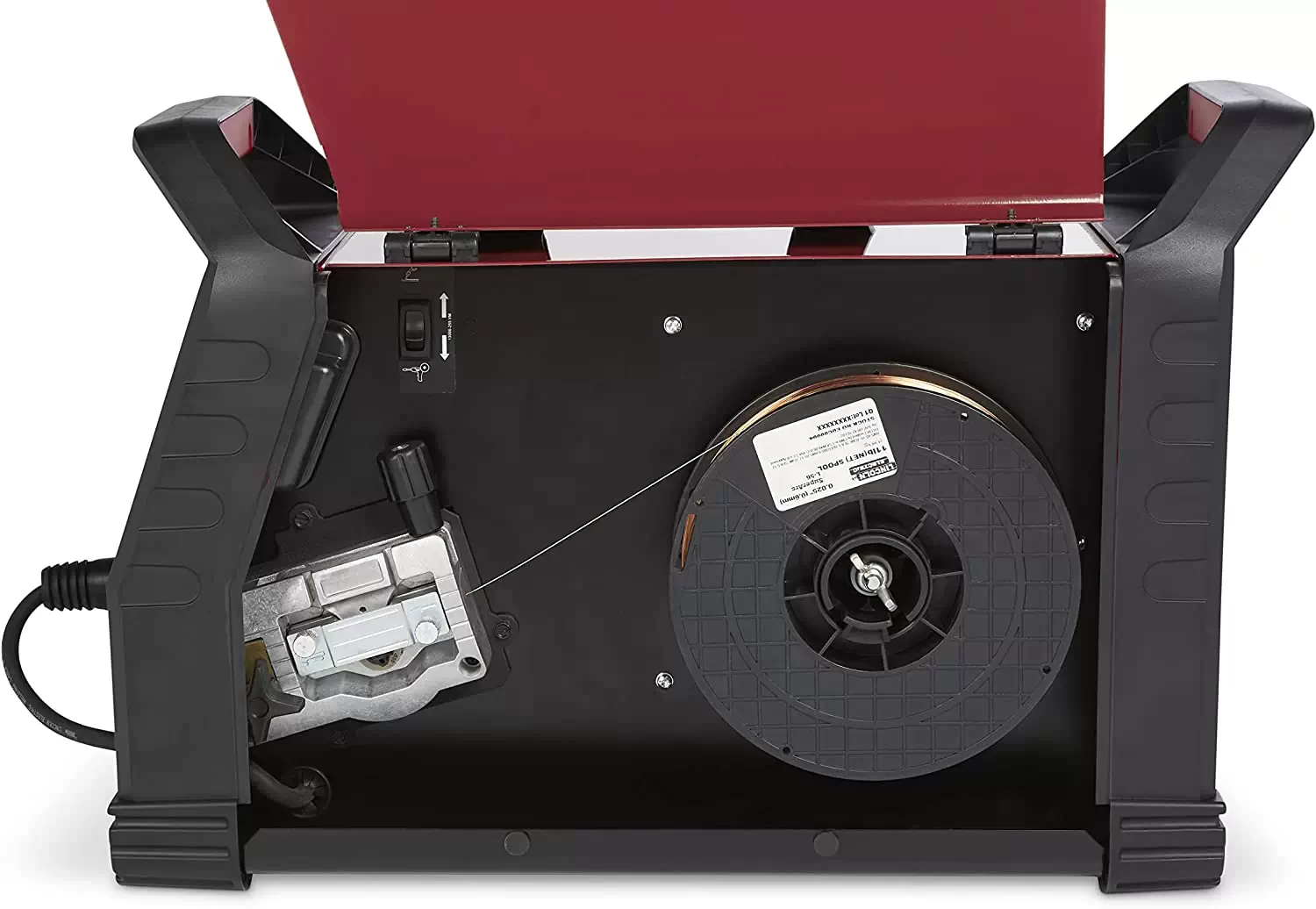

• Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
• Ready.Set.Weld® Technology – Simplifies setup by recommending optimal welding parameters for each welding procedure.
• ArcFX® Technology – Provides instant visual feedback on how settings affect the weld outcome.

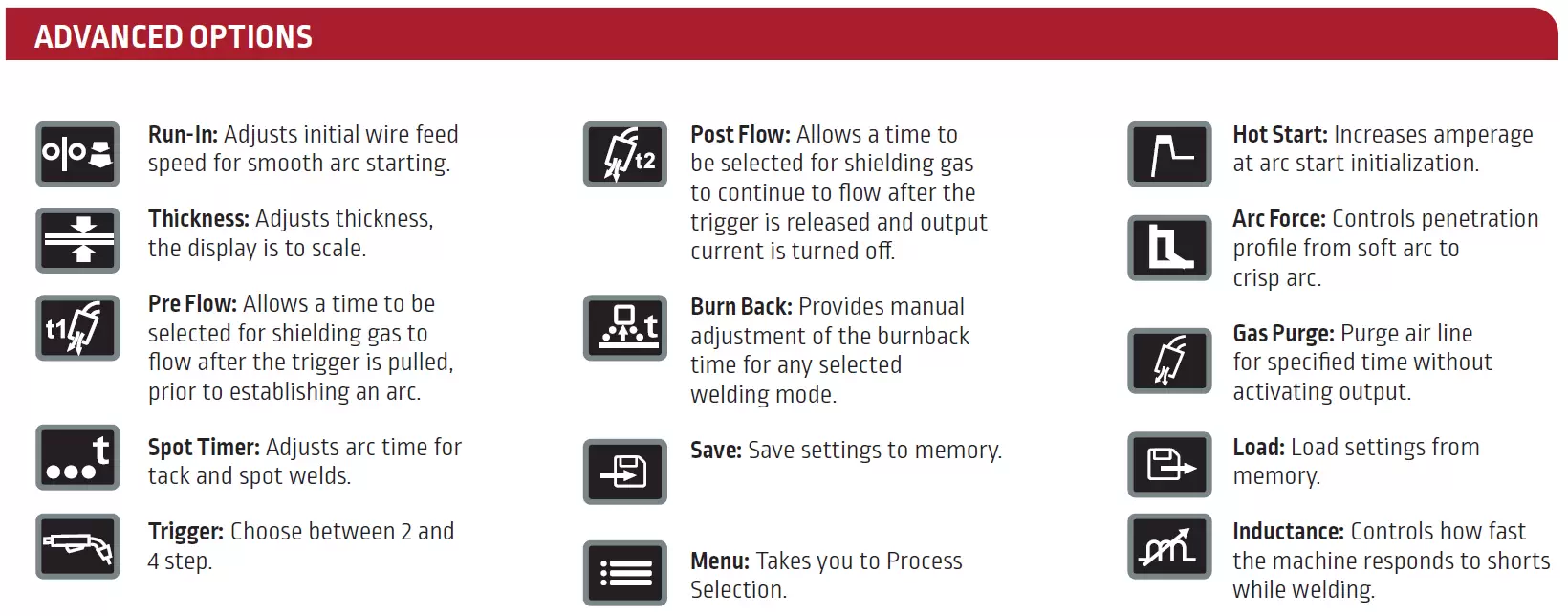

•  Memory Capability – Easily recall saved settings to get welding faster.
• Lightweight and Portable – Only 48 lbs.

Lincoln U2689-2 (K2689-2) SP-180T 208/230V MIG Welder  Specifications

• Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
• Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) MIG: 105A/19.25V/40% 80A/18V/100%
• Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) TIG: 130A/15.2V/40% 100A/14V/100%
• Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) Stick: 85A/23.4V/40% 60A/22.4V/100%
• Phase 1: Input Current at Max Rated Ouput #1 (Current) 22A
• Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
• Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) MIG: 215A/24.8V/30% 120A/20V/100%
• Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) TIG: 175A/17V/30% 110A/14.4V/100%
• Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) Stick: 175A/27V/30% 110A/24.4V/100%
• Phase 1: Input Current at MAX Rated Output #2 (Current) 29A
• Dimensions (H x W x D) 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm)
• Net Weight 48 lbs (21.8 kg)
• Machines Processes Stick (SMAW): Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
• IEC Rating IP21S
• Max Rating 220A
• Output Range by Mode MIG: 20-220A
• Number of Operators per Machine 1
• Machines Communication Technology digital
• Work Lead Connector Type Dinse
• Welding Gun Cable Assembly Length Magnum PRO 175L
• Work Cable Length 10 FT
• Spool Gun Compatible (Duty) Light

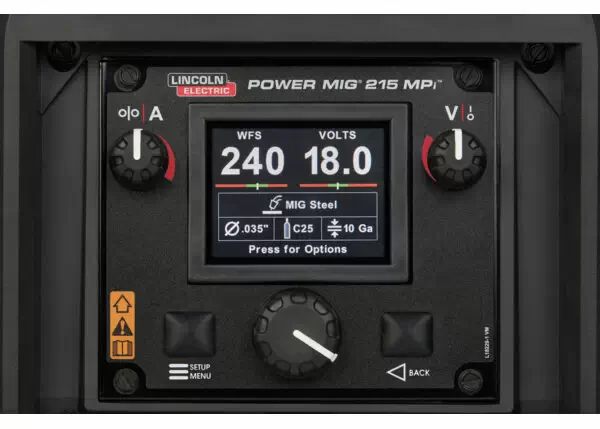

• UI type TFT – Graphic
• Wire Feeders Processes MIG
• Flux Cored
• Contact Tips Included Yes
• Maximum Wire Thickness 0.045 in (1.1 mm)
• Minimum Wire Thickness 0.025 in (0.6 mm)
• Sample MIG Wire Included Yes
• Input Voltage 120/230
• Input Current 120V: 15A, 230V: 15.9A
• Input Hertz 60
• Input Power 120/230/1/60
• Input Phase 1
• Mode Icon CC/CV
• Output Range 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V
• Polarity DC
• Rated Output 120V: 105A/19.3/40% 230V: 215A/24.8V/30%

Lincoln U2689-2 (K2689-2) SP-180T 208/230V MIG Welder Applications

• Metal Fabrication
• Maintenance & Repair
• Autobody / Automotive
• Farm / Agricultural
• Light Industrial
• Brewery
• Distillery
• General Fabrication
• Repair Welding

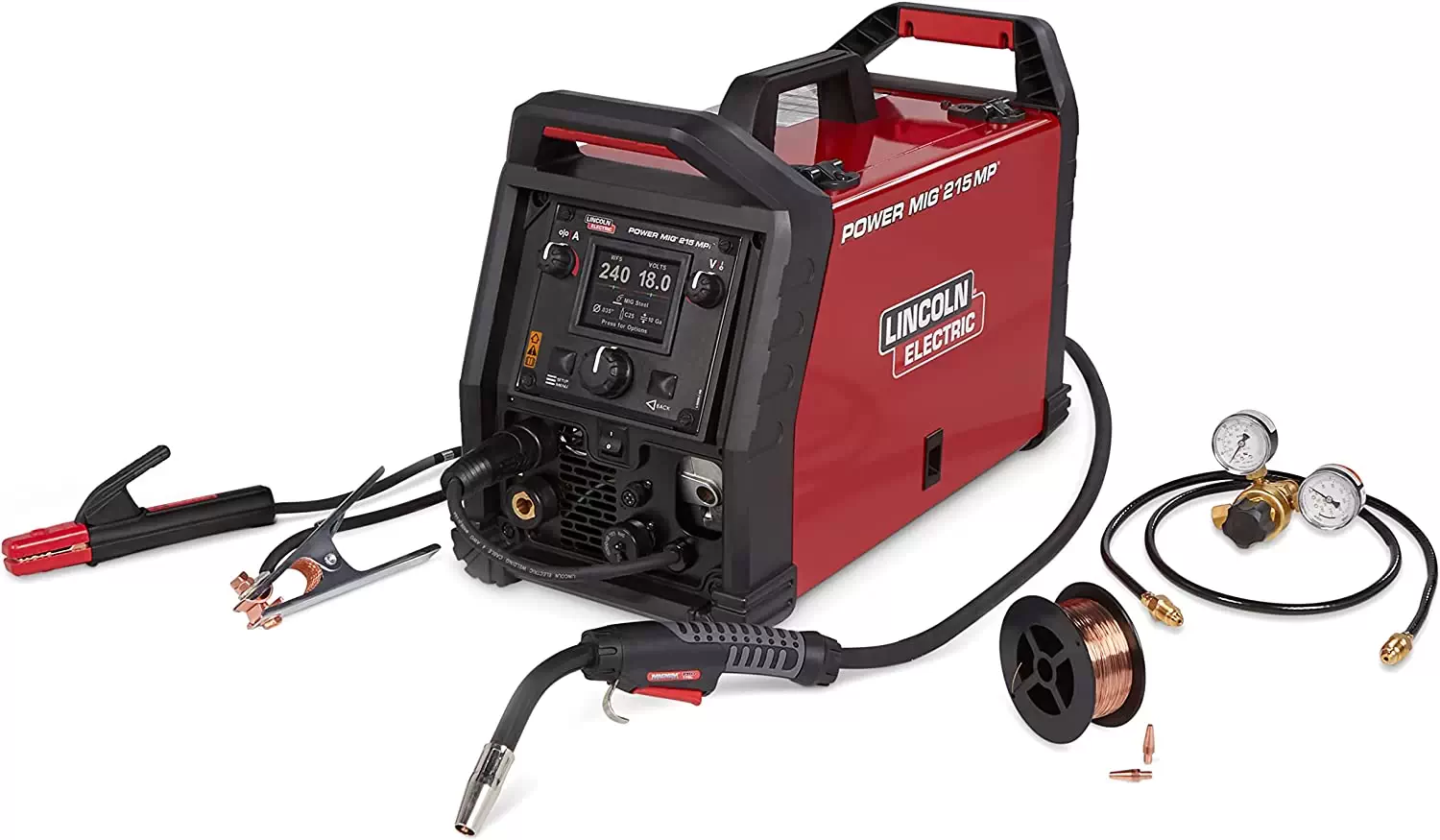

Lincoln U2689-2 (K2689-2) SP-180T 208/230V MIG Welder Includes

• U4876-1 MIG Welder
• Magnum® PRO 175L Gun 10 ft. (3.0 m) (K4529-1)
• 230V to 120V power cord adapter
• Work Cable and Clamp
• Electrode Holder and Lead Assembly
• Adjustable Gas Regulator and Hose
• Gas and Gasless Nozzles
• Gun Cable Liner (pre-installed in gun)
• Spindle Adapter
• Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631)
• 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips
• 0.025 – 0.030 in. (0.6 – 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
• 0.030 – 0.045 in. (0.8 – 1.1 mm) Knurled Drive Rolls
• 0.025 – 0.035 in. (0.6 – 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides
• Manual
