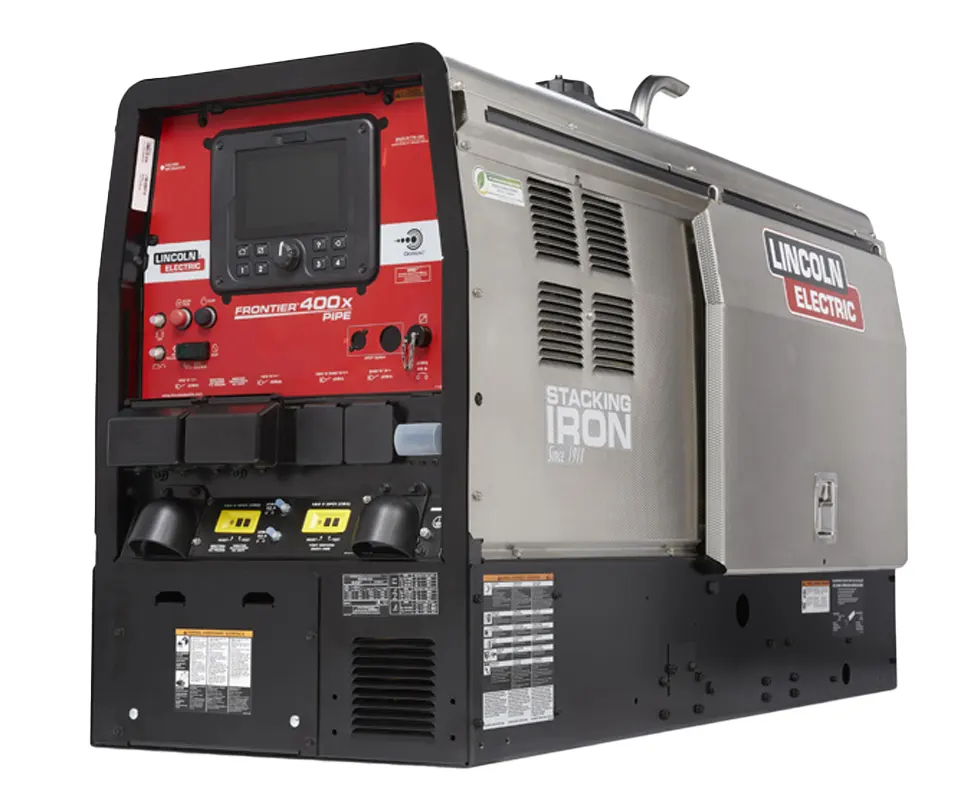

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator

The Lincoln U3485-1 Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator is a factory certified and factory reconditioned Lincoln Electric K3485-1 machine.  The Lincoln U3485-1 (K3485-1) is an excellent pipeline-focused welder/generator capable of up to 400 amps of DC multi-process welding, 120/240 VAC single phase, and 240 VAC three phase auxiliary power. Integrates a bright, durable 7″ digital user interface screen for advanced features. The Lincoln U3485-1 (K3485-1) is powered by a 24.7 hp Perkins® 403F-15T diesel engine and includes patented Chopper Technology® and CrossLinc® Technology. The Frontier® 400X Pipe is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. Included only in the Frontier 400X Pipe is a new, specialized Pipe mode made to produce the classic DC-style arc for downhill pipe applications.

The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine, along with CrossLinc® Technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. Experience the latest in welding innovation!

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator Features

• Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding.
• All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
• Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control – Save and recall memories, receive maintenance reminders, and enable PIN authorization.
• CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
• Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
• Field-Proven Diesel Engine – Powered by a 24.7 hp, turbocharged Perkins® diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance.
• Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator Applications

• Construction
• Mining
• Railroad Maintenance
• Cross Country Pipeline
• Construction & Field Erection
• Maintenance & Repair
• Offshore
• Oil & Gas
• Pipeline & Offshore
• Power Generation
• Shipbuilding
• Structural Fabrication
• Structural Welding

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator Engine Driven Welders Specifications

• Single Phase Auxiliary Output 10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
• Three Phase Auxiliary Output 11,000 Watts Continuous / 12,500 Watts Peak, 240V
• Auxiliary Output Frequency 60 Hz
• Receptacle Types NEMA 5-20R
• NEMA 14-50R
• NEMA 15-50R
• Engine Brand & Model Perkins® 403F-15T
• Engine Description 3 Cylinder Turbocharged Water Cooled Diesel Engine
• Engine Horsepower 24.7 hp (18.4 kW)
• Engine Block Size & Displacement 91 cu. in (1.5 L)
• Bore x Stroke – 3.3 in x 3.5 in (84 mm x 90 mm)
• Emissions Rating US EPA Tier 4 Final
• High Idle Operating Speed @ Rated Output 1800
• Low Idle Operating Speed 1440
• Sound Rating @23 ft. (7m) 67 dBA at Low Idle
• 71 dBA at High Idle
• Fuel Tank Size (US gal.) 20 US gal.
• Fuel Tank Size (L) 75.7 L
• Oil Capacity (qts.) 6.4 qts.
• Oil Capacity (L) 6.0 L
• Coolant Capacity (US gal.) 1.8 US gal.
• Coolant Capacity (L) 6.8 L

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator Machine Specifications

• Machines Processes Stick (SMAW)
• Gouging (CAC-A)
• TIG (GTAW)
• MIG (GMAW)
• Pulsed MIG (GMAW-P)
• Flux-Cored Self-Shielded (FCAW-S)
• Flux-Cored Gas-Shielded (FCAW-G)
• Orbital MIG
• IEC Rating 325A / 33V / 100% @ 104°F (40°C)
• Max Rating 400A / 26V / 60% @ 104°F (40°C)
• Output Range by Mode Stick/Pipe (SMAW): 30 – 400 Amps
• CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts
• DC TIG (GTAW): 5 – 400 Amps
• Arc Gouging (CAC-A): 60 – 400 Amps
• Open Circuit Voltage 71 Peak OCV at 1800 RPM
• Rated Gouging Carbon Diameter 5/16″ (8.0 mm)
• Machines Communication Technology CrossLinc

Lincoln U3485-1 (K3485-1) Frontier 400X Pipe (Perkins) Pipeline-Focused Welder/Generator Product Specifications

• Dimensions (H x W x D) 35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
• Net Weight 1035 lbs (469 kg)
