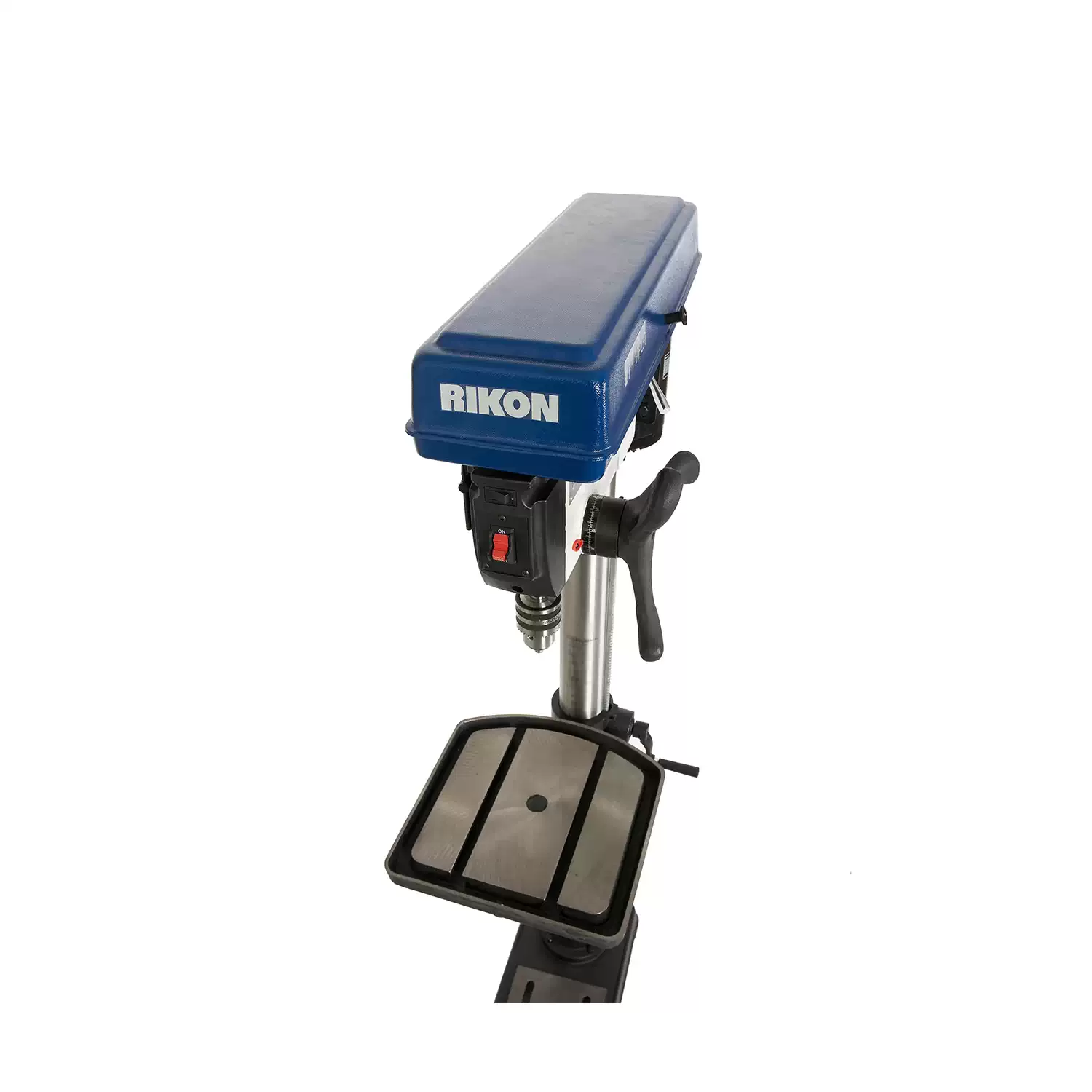

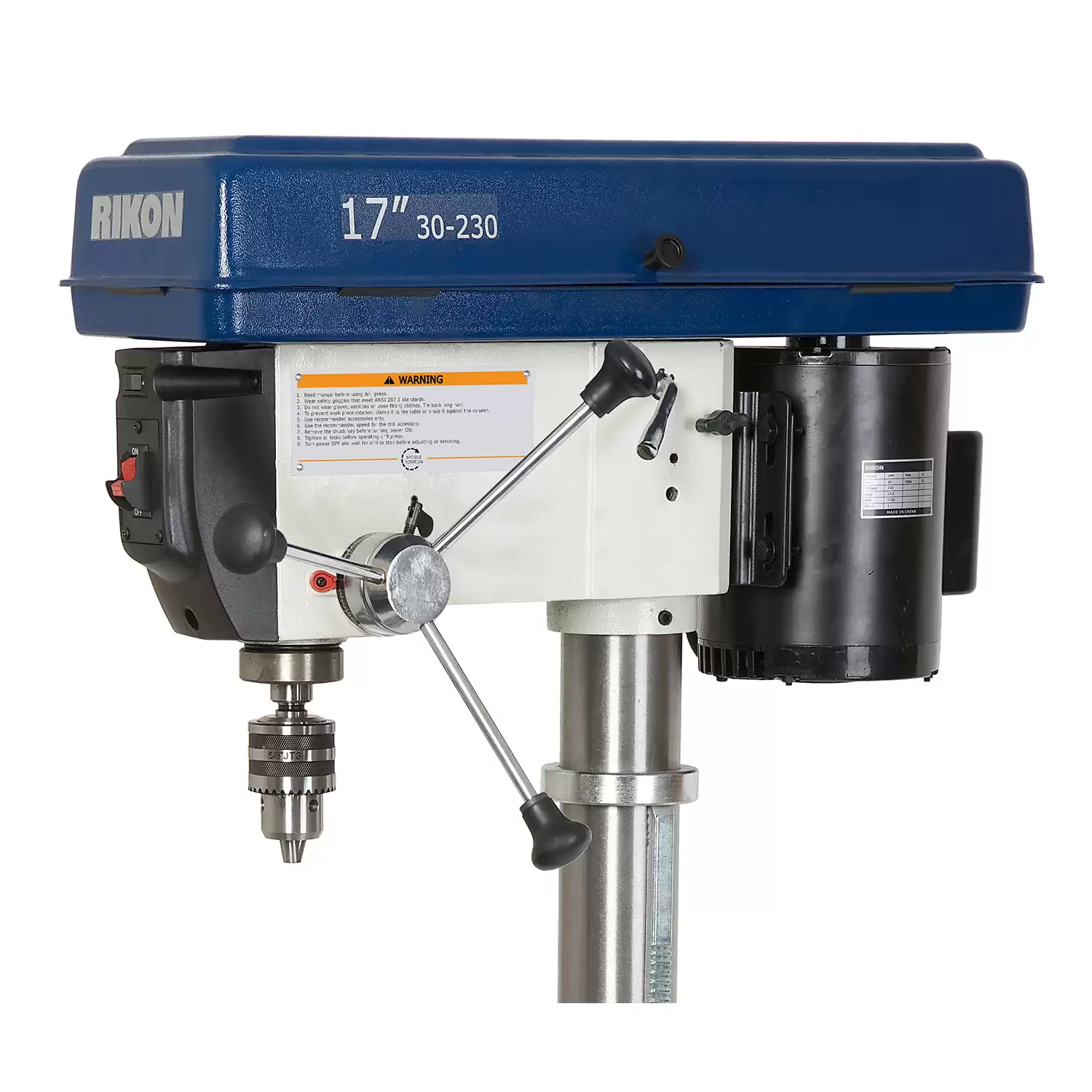

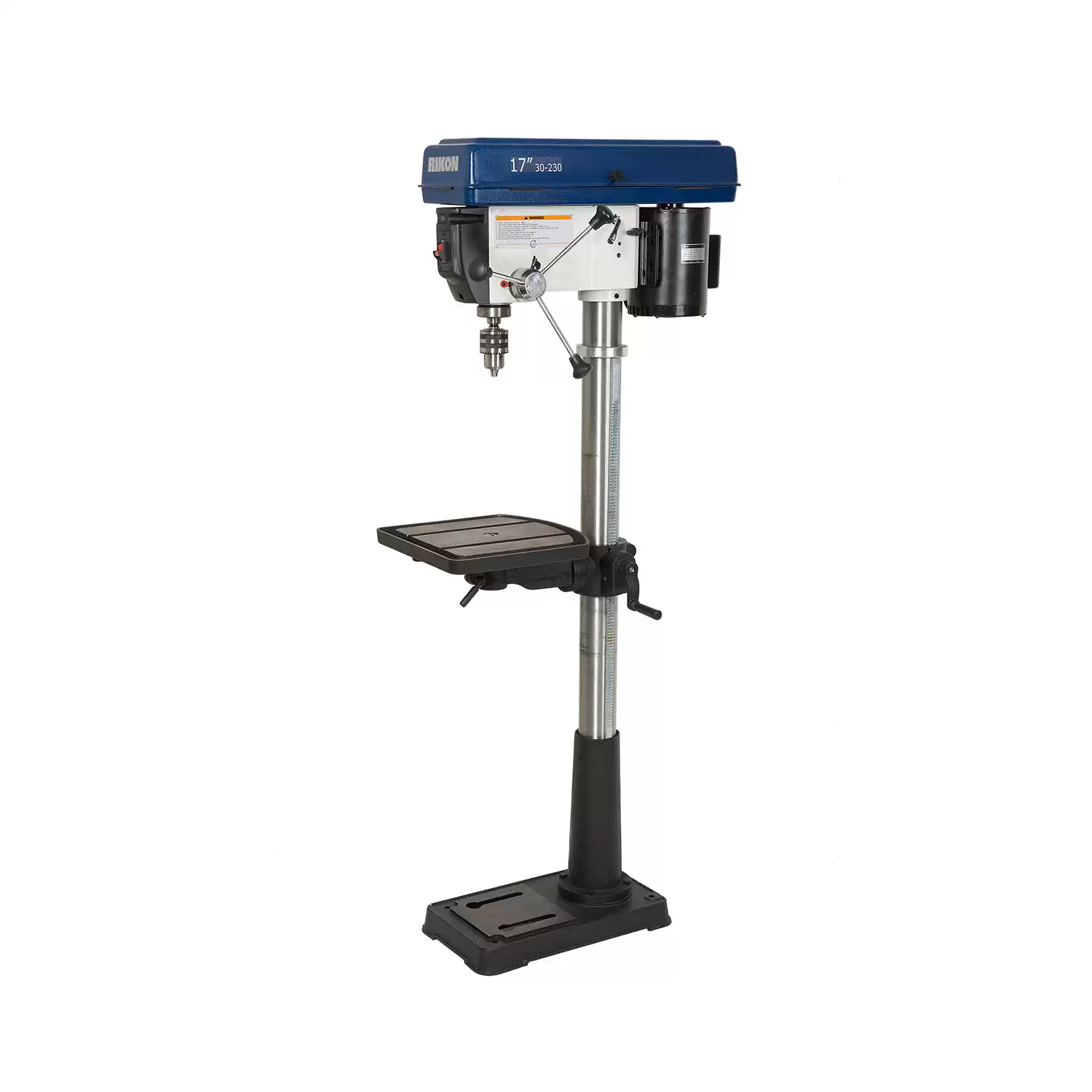

Rikon 30-230 16 Speed 17″ Floor Drill Press, 1HP 13.5A

The Rikon 30-230 17-inch floor drill press is a heavy-duty drilling machine built for accurate, repeatable drilling in wood, plastics, composite materials, and metal. It features a 1 HP TEFC motor, 16 spindle speeds, 5/8-inch chuck capacity, 1-inch drilling capacity, MT2 spindle taper, and a cast iron table with 360° rotation and 90° left and right tilt.

The Rikon 30-230 is built for shops that need a floor drill press with the power and range to handle more than routine light-duty drilling. Its 1 HP TEFC motor, 16-speed setup, and 200 to 3,630 RPM range give users the flexibility to match spindle speed to different materials, bit styles, and hole sizes. With a 17-inch swing, 5/8-inch chuck, 1-inch drilling capacity, and MT2 spindle taper, this machine is set up for twist drills, Forstner bits, hole saws, circle cutters, and other common drilling accessories used in woodworking and general shop work.

This floor model also includes several practical setup features that matter in everyday use. The cast iron table rotates 360 degrees and tilts 90 degrees left and right for angle drilling and repositioning, while the clutch depth stop supports consistent repeat drilling. The spindle can also be locked at a set depth, which is useful for setup and controlled boring operations. For shops that want a larger drill press with solid capacity, cast iron support, and broad speed coverage, the 30-230 fits well in woodworking, maintenance, fabrication, and training environments.

Rikon 16 Speed 17″ Floor Drill Press At a Glance

• 1 HP TEFC Motor: Provides the power needed for larger drill bits and a wider range of drilling tasks.
• 16 Spindle Speeds: Covers a broad speed range for wood, plastics, and metal drilling.
• 200 to 3,630 RPM Range: Gives flexibility for different materials and cutter sizes.
• 5/8″ Chuck Capacity: Accepts common larger-shank drill bits and accessories.
• 1″ Drilling Capacity: Supports larger hole work within the machine’s intended use.

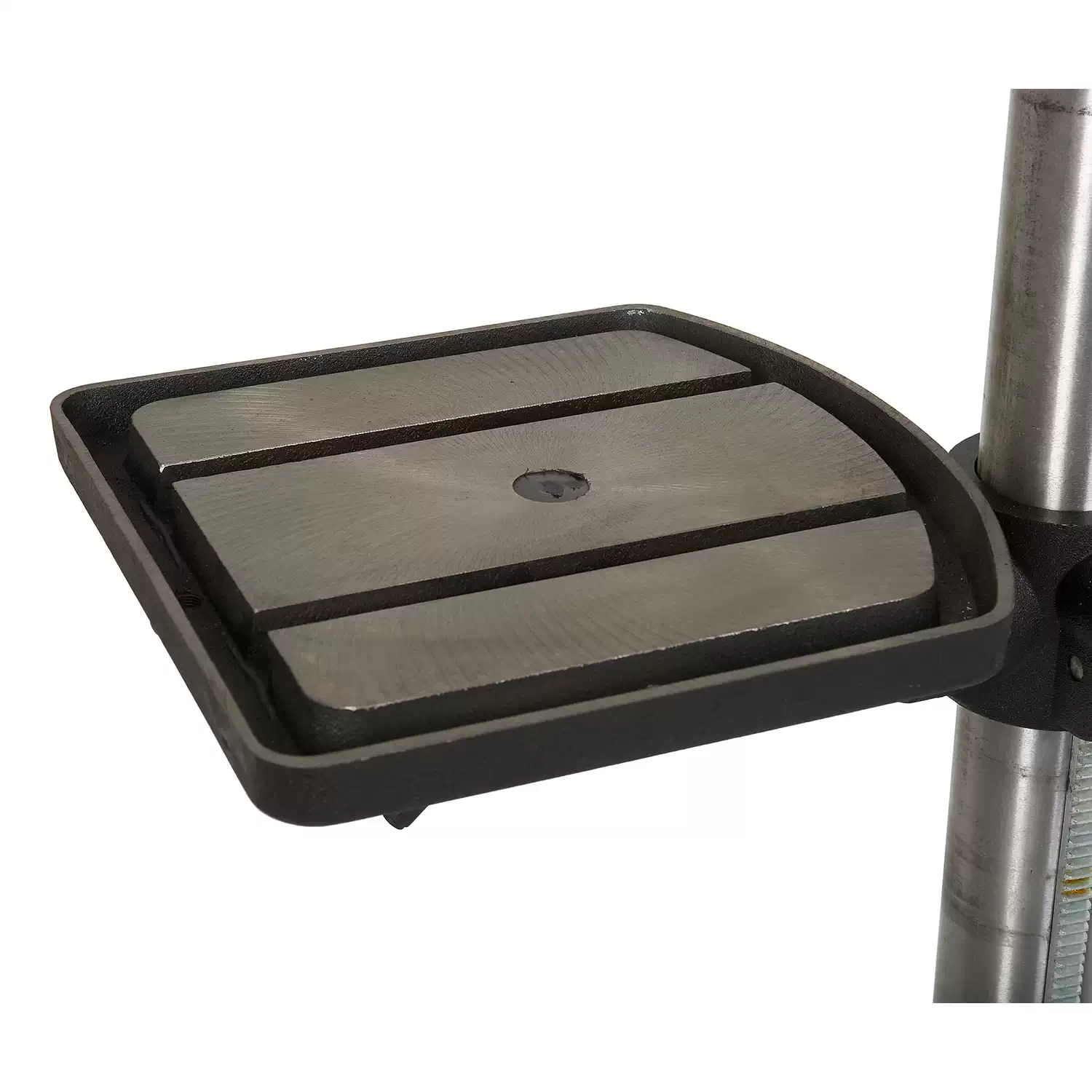

• Cast Iron Table: Provides solid support for workpieces during drilling.
• 360° Rotating Table: Makes it easier to position work for different setups.
• 90° Left and Right Table Tilt: Allows angle drilling without extra fixtures.
• Clutch Depth Stop: Helps with repetitive drilling to a set depth.
• Spindle Lock Function: Lets the spindle be held at a set depth during setup.

Quick Specs

• Brand: RIKON
• Manufacturer Part Number: 30-230
• UPC: 856489000426
• Power Source: Corded electric
• Voltage: 120V, 60Hz
• Amperage: 13.5A
• Motor: 1 HP TEFC
• Chuck Capacity: 5/8″
• Drilling Capacity: 1″
• Speed Range: 200 to 3,630 RPM
• Weight: 188 lbs net

Markets

• Woodworking Shops: Good fit for drilling joinery parts, jigs, fixtures, and furniture components.
• Maintenance Departments: Useful for repair drilling, bracket work, and repeatable shop tasks.
• Metalworking and Fabrication: Built to handle ferrous and non-ferrous metals within its drilling limits.
• School and Training Shops: Strong feature set for learning drilling setup and controlled operation.
• Advanced Home Workshops: A solid option for users stepping up from a benchtop drill press.
• General Repair Shops: Wide speed range supports a broad mix of bits and materials.

The Rikon 30-230 is a practical choice for buyers who want a full-size floor drill press with broad speed coverage and enough power for larger drilling tasks. The 1 HP TEFC motor, 16-step speed range, and 17-inch swing make it a strong fit for shops that regularly move between wood, plastics, and metal. Instead of a lighter bench model, this machine gives you more working height, more reach from chuck to table and base, and a heavier platform for better support on larger workpieces.

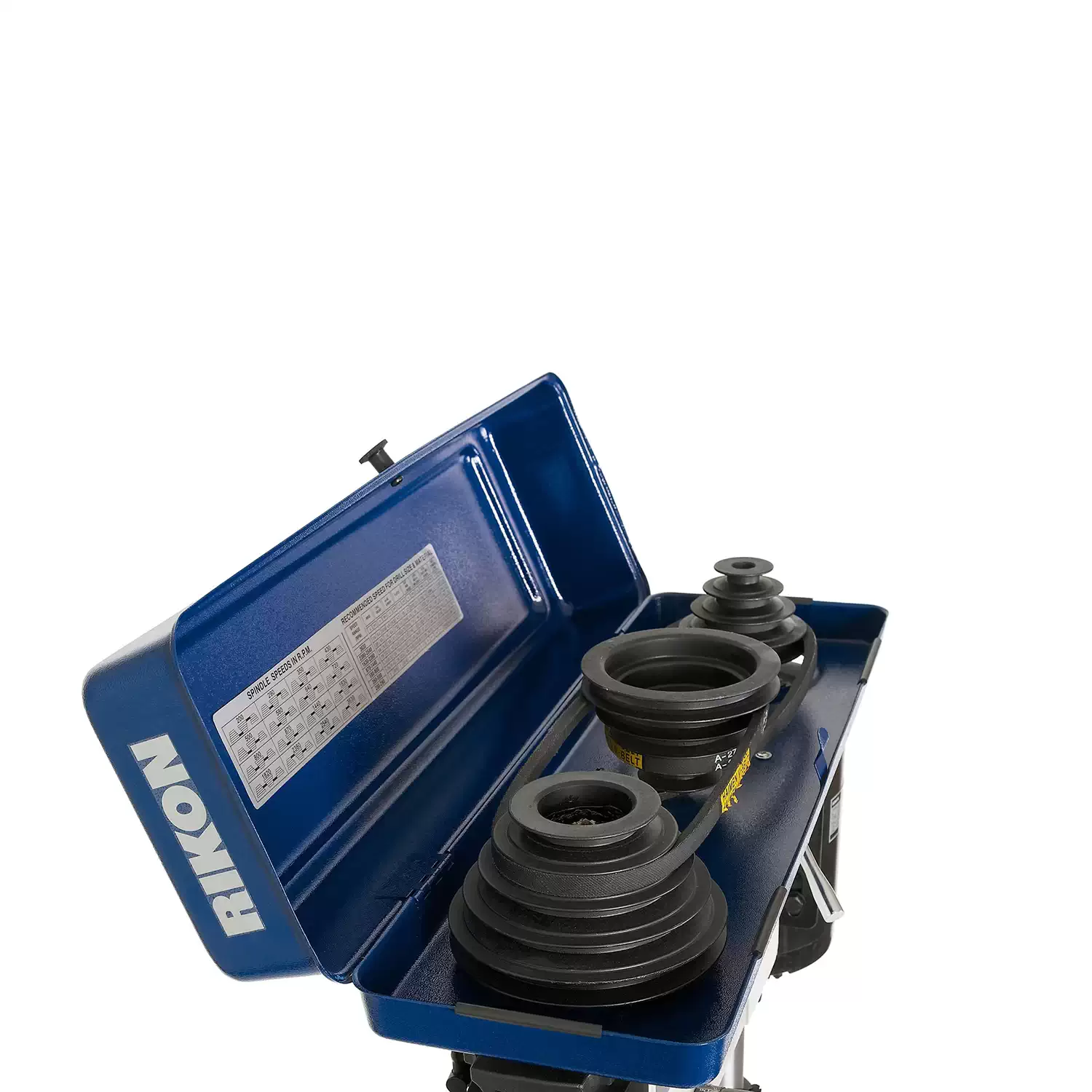

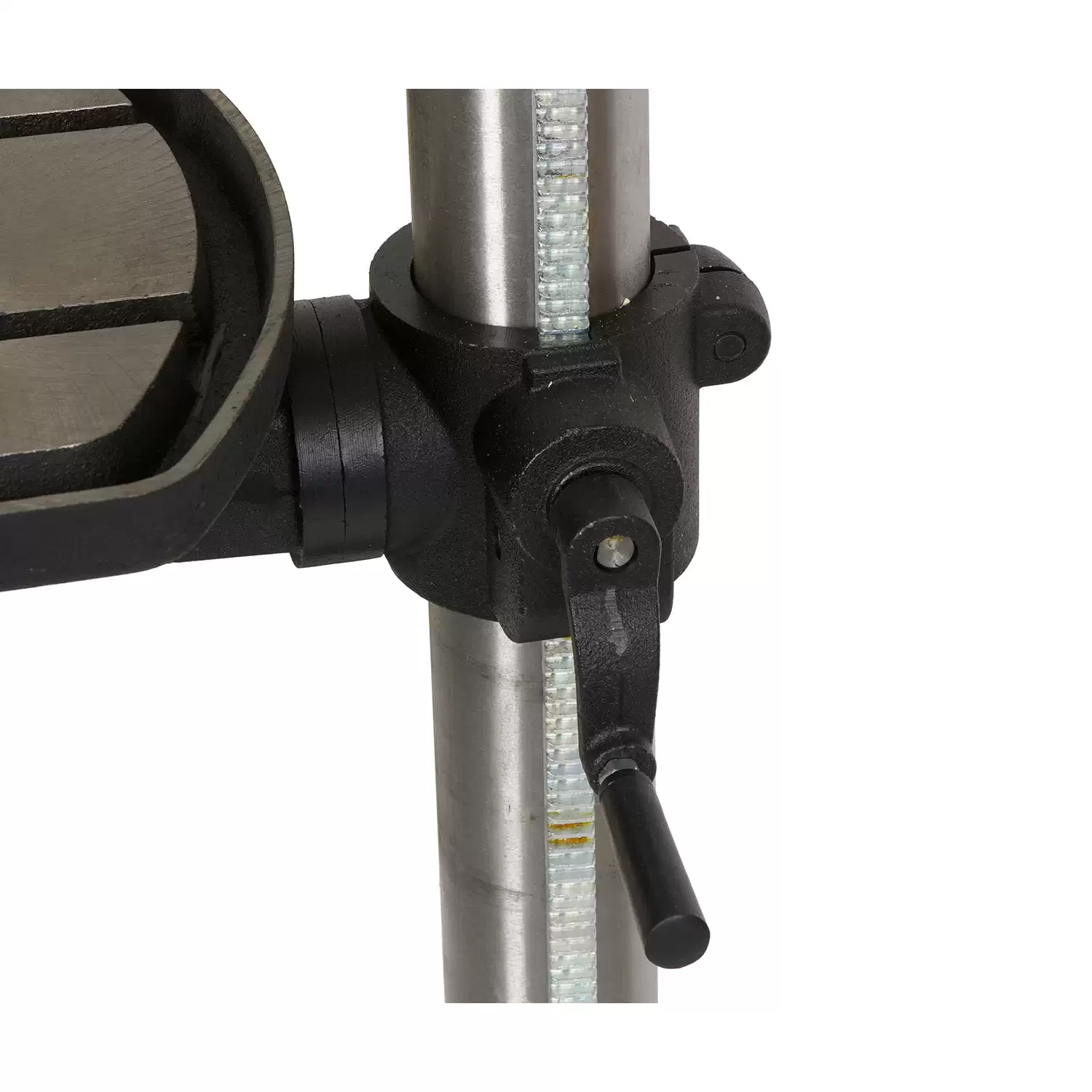

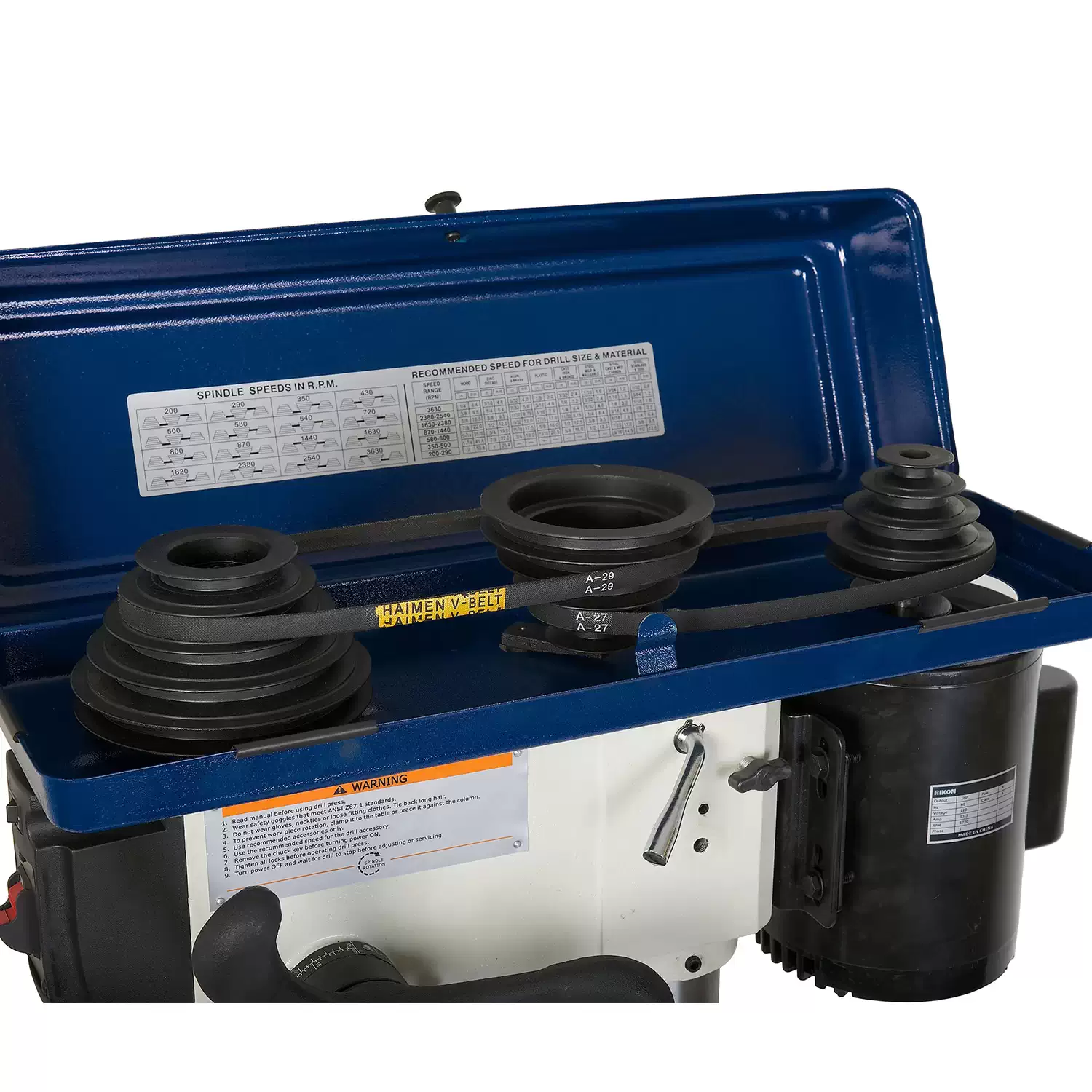

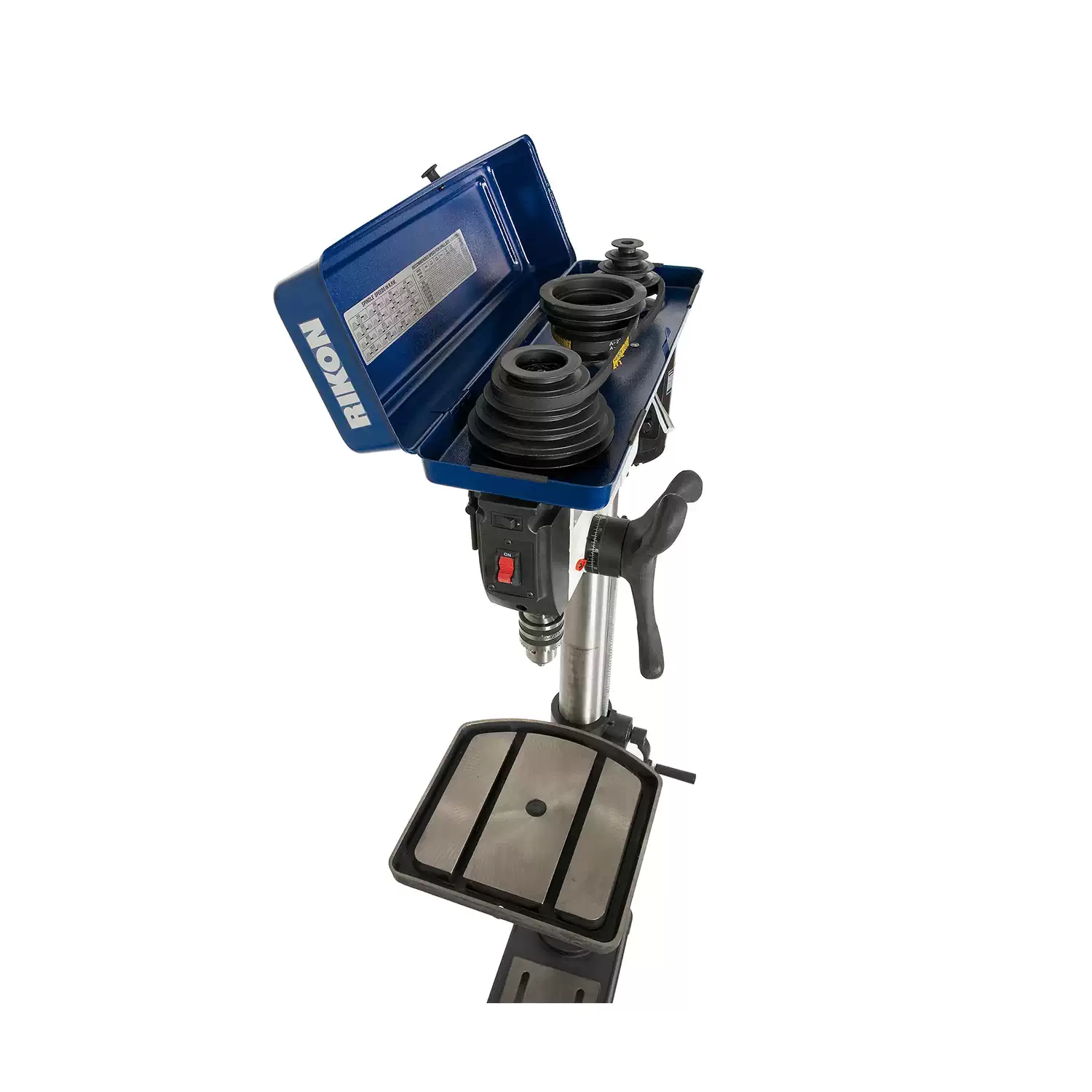

It also has a few practical details that add value in day-to-day use. The cast iron table rotates 360 degrees, tilts left and right to 90 degrees, and can be raised or lowered by crank. The clutch depth stop and spindle lock help with repetitive drilling and controlled setup work, while the 16-speed belt-and-pulley system gives users access to low and high RPM options for different materials and cutters. For shops that want a durable, shop-ready drill press rather than a light-duty unit, the 30-230 is easy to place.

Rikon 30-230 16 Speed 17″ Floor Drill Press, 1HP 13.5A Features

• Powerful 1 HP TEFC Motor: Supplies the power needed for larger drilling applications.
• 16 Spindle Speeds: Gives the machine a broad operating range for different materials and bit sizes.
• 200 to 3,630 RPM Speed Range: Supports slower and faster drilling setups across a wide range of work.
• Clutch Depth Stop: Allows repeat drilling to a set depth.
• Spindle Lock: Holds the spindle at a chosen depth for setup and depth control.
• Cast Iron Table: Adds solid support and stability under the workpiece.
• 360° Rotating Table: Allows repositioning around the column for different setups.
• 90° Left and Right Table Tilt: Supports angular drilling applications.
• 5/8″ Chuck Capacity: Accepts larger-shank drilling accessories commonly used in shop work.
• MT2 Spindle Taper: Provides compatibility with MT2 tooling setups.
• 3-1/8″ Spindle Travel: Gives useful drilling depth for larger projects and thicker materials.
• Floor-Standing Design: Offers greater working height and capacity than smaller benchtop units.

Compatible Accessories / Works Well With

• RIKON 29-202 Mortising Attachment Kit: Mortising attachment as a compatible accessory for drill press use.
• RIKON 93-010 Drill Press Vise: 3-inch vise option for holding smaller workpieces securely.
• RIKON 93-020 Drill Press Vise: 4-inch vise option for repeat drilling setups.
• RIKON 93-030 Drill Press Vise: 5-inch vise for larger work support.
• RIKON 93-040 Drill Press Vise: 6-inch vise for larger clamping needs.
• 5/8″ Shank Drill Bits and Cutters: Machine is sized for bits and accessories up to 5/8-inch chuck capacity.

Rikon 30-230 16 Speed 17″ Floor Drill Press, 1HP 13.5A Includes

• (1) Drill Press Head Assembly
• (1) Table
• (1) Base
• (2) Drive Belts
• (1) Column Assembly
• (1) Chuck
• (1) Chuck Arbor

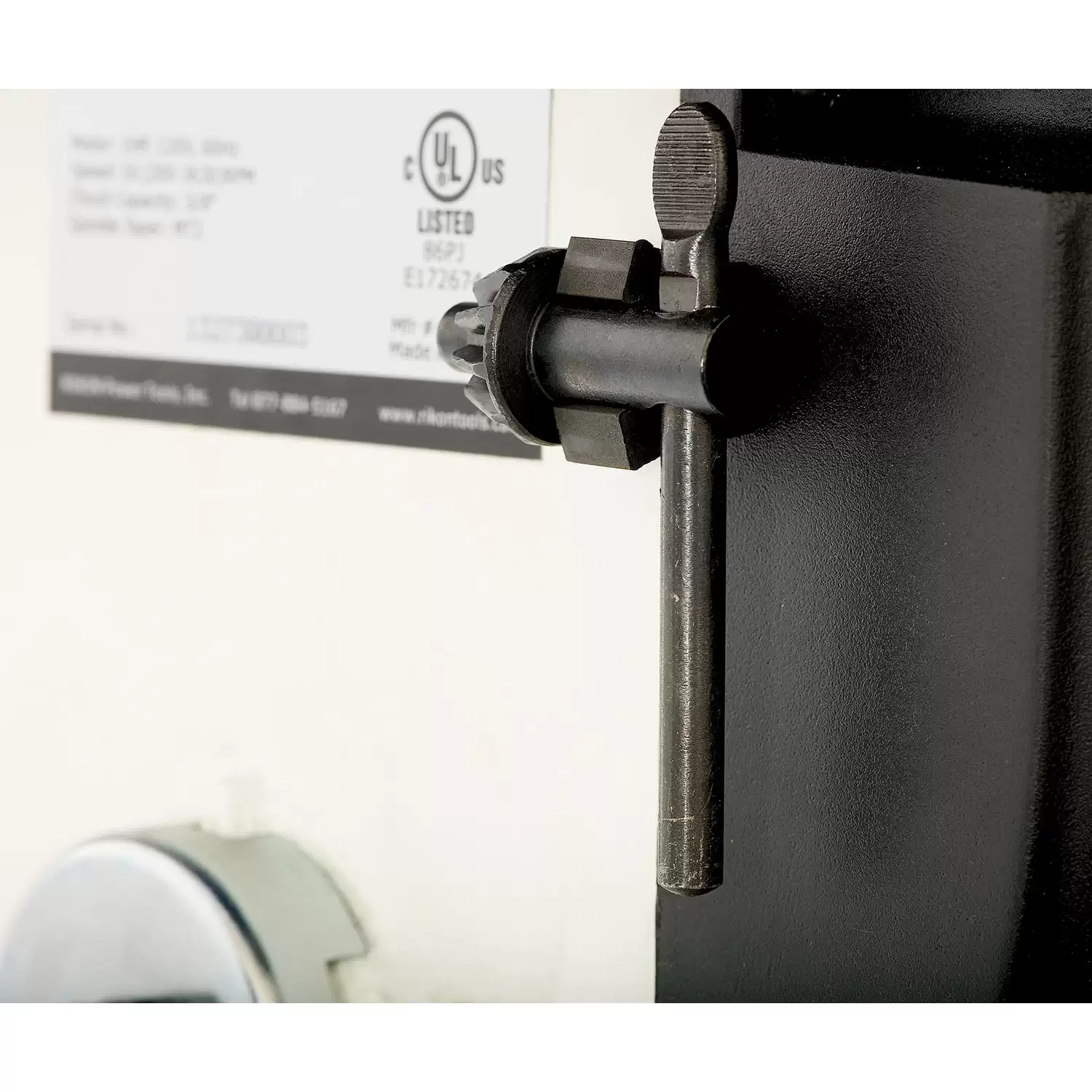

• (1) Chuck Key
• (1) Drift Key
• (3) Feed Handles
• (1) Lid Knob
• (4) Mounting Bolts
• (1) Manual

Rikon 30-230 16 Speed 17″ Floor Drill Press, 1HP 13.5A Specifications

• Brand: RIKON
• Manufacturer Part Number: 30-230
• UPC: 856489000426
• Product Type: Floor drill press
• Motor: 1 HP TEFC
• Motor Speed: 1,720 RPM no load
• Voltage: 120V, 60Hz
• Amperage: 13.5A
• Swing: 17″
• Chuck Size: 5/8″
• Chuck Taper: JT3
• Drilling Capacity: 1″
• Spindle Travel: 3-1/8″
• Spindle Taper: MT2
• Head Rotation: 360°
• Speeds: 16
• Speed Range: 200 to 3,630 RPM on the specifications page
• Quill Diameter: 66mm (2-19/32″)
• Table Size: 13-3/4″ x 13-3/4″
• Table Tilt: 90° left and right
• Table Rotation: 360°
• Maximum Chuck to Table: 25-1/4″
• Maximum Chuck to Base: 44-13/16″
• Column Diameter: 80mm (3-1/8″)
• Overall Height: 64-3/8″

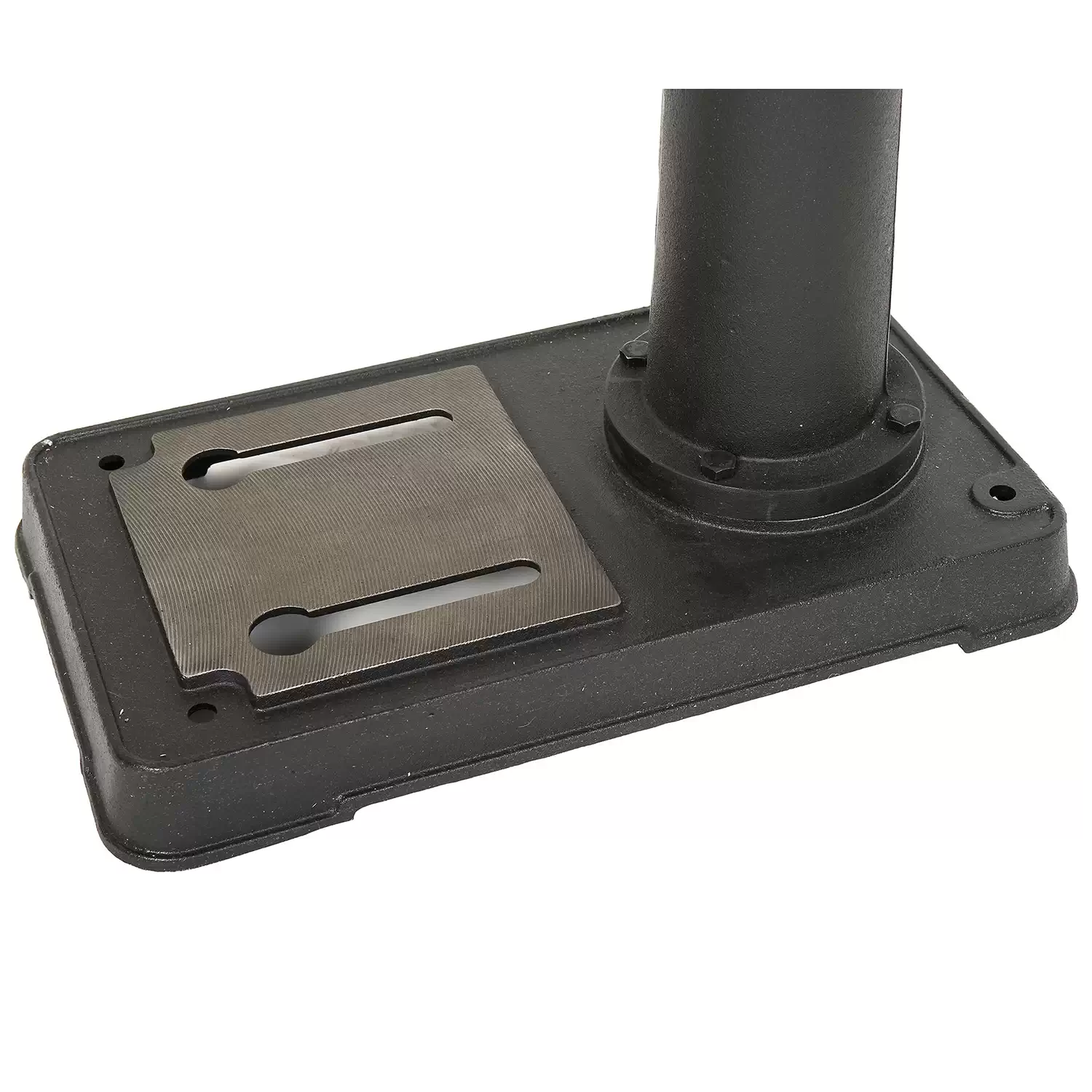

• Overall Base Size: 22-1/2″ x 17-1/2″
• Net Weight: 188 lbs

Rikon 30-230 16 Speed 17″ Floor Drill Press, 1HP 13.5A Warranty

• Rikon’s 5 Year Limited Warranty or 2 Year Limited Warranty for commercial, industrial, or educational use.

Why Customers Choose the Rikon 16 Speed 17″ Floor Drill Press

Customers choose the Rikon 30-230 because it gives them the capacity and stability of a true floor drill press with a speed range broad enough for everyday shop work. The 1 HP motor, 17-inch swing, 5/8-inch chuck, and 16-speed setup make it useful for wood drilling, metal drilling, larger-hole boring, and repetitive drilling where a smaller bench machine can feel limited.

It also stands out for practical shop features rather than extra complexity. The cast iron table rotates and tilts, the clutch depth stop supports repeat work, and the spindle lock function adds control during setup. For buyers looking for a floor drill press that covers a wide range of common shop drilling tasks without stepping into a more specialized industrial machine, the 30-230 is a strong fit.
