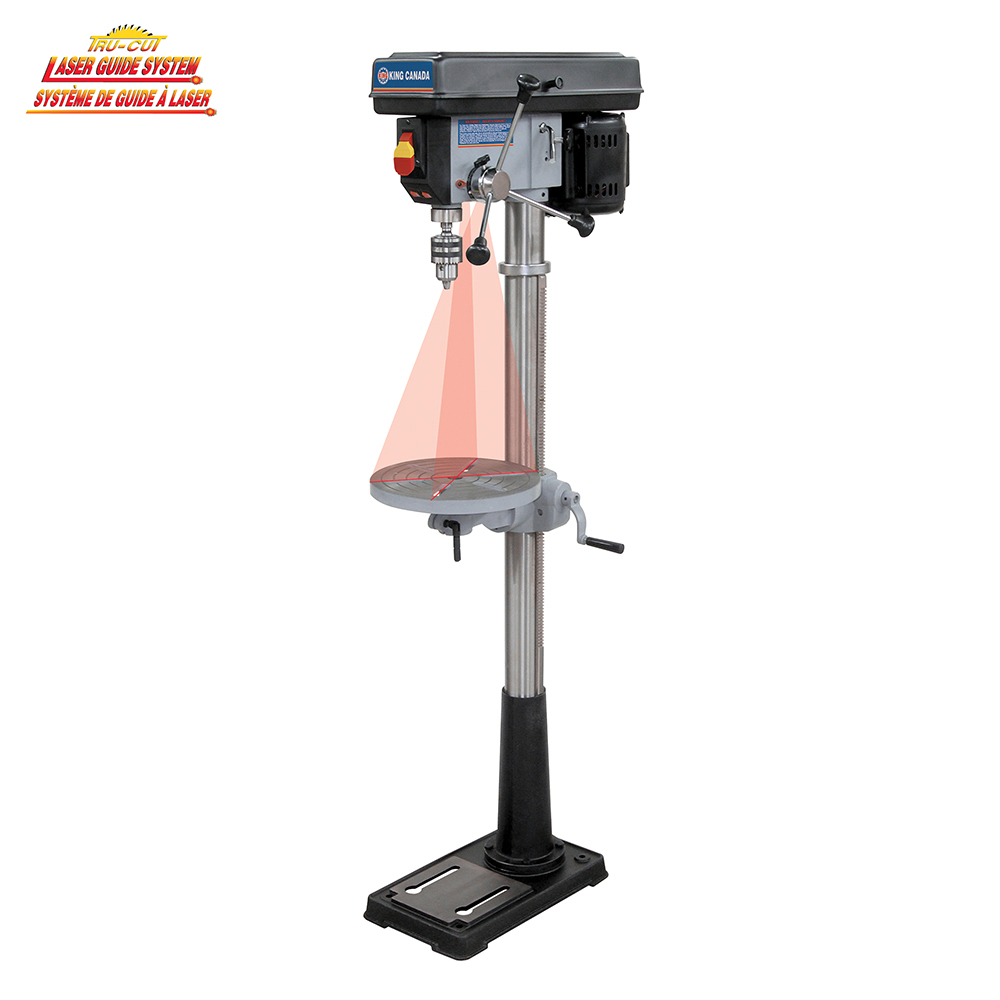

KING CANADA KC-116FN 16 Speed 13″ Floor Model Drill Press with Dual Laser Guide System

The KING CANADA KC-116FN 13″ Floor Model Drill Press is an essential tool for professionals in woodworking, metalworking, and construction industries, as well as for enthusiastic DIYers who demand precision and reliability in their drilling tasks. Engineered to tackle a wide range of materials, this drill press combines power, versatility, and innovation to enhance productivity and deliver outstanding results.

KING CANADA KC-116FN 13″ Floor Model Drill Press At a Glance

• Powerful Performance: Equipped with a robust 7.5 Amp motor, the KC-116FN offers substantial power to handle various drilling applications with ease. Whether drilling through wood, metal, or other materials, this machine maintains consistent performance even under load.
• Dual Laser Guide System: Precision is paramount in drilling, and the dual intersecting adjustable laser guides ensure your drill marks are accurate every time. This feature significantly reduces errors and enhances the quality of your work.
• Enhanced Visibility: A built-in halogen light illuminates the work area, providing clear visibility even in low-light conditions. This ensures that you can work with precision and safety, focusing on your drilling without strain.
• Versatile Chuck and Speed Options: The drill press accepts up to 5/8″ shanked drill bits, catering to a variety of bit sizes and types for different materials and tasks. With 16 speed settings ranging from 220 to 3,600 RPM, you can adjust the spindle speed to match the specific requirements of your project.
• Durable Construction: The heavy-duty cast-iron table and base not only provide stability during operation but also contribute to the machine’s longevity. The quality of materials ensures that the drill press can withstand rigorous use in a professional setting.
• Adjustable and User-Friendly Design: The table tilts up to 45° for angular drilling, expanding the machine’s versatility. A positive depth stop allows for quick and easy adjustment, making repetitive drilling simple and efficient.
• Specifications: With a 5/8″ chuck size, 13″ swing, and a maximum distance of 23-1/2″ from chuck to table, the KC-116FN is designed to accommodate a wide range of projects. It operates at 120V, ensuring compatibility with standard North American electrical outlets.

• Powerful 7.5 Amp. Motor
• 13″ floor drill press with dual intersecting adjustable laser guides
• Halogen light incorporated into head (halogen light bulb included)
• Accepts up to 5/8″ shanked drill bits
• Heavy-duty cast-iron table and base
• 16 Speed (220-3,600 spindle RPM)
• Spindle is supported by high quality ball bearings
• 45° tilting table for angular drilling
• Positive depth stop for quick and easy adjustment
• Comes with 5/8″ drill chuck, chuck key and chuck key holder

KING CANADA KC-116FN 13″ Floor Model Drill Press Specifications

• Model: KC-116FN
• Chuck Size: 5/8″
• Swing: 13″
• Stroke: 3-1/8″
• Maximum Distance from Chuck to Table: 23-1/2″
• Maximum Distance from Chuck to Base: 45″
• Table Size: 11-3/4″
• Spindle Taper: MT #2
• Quill Diameter: 55 mm
• Speeds: 16 settings, ranging from 220 to 3,600 RPM
• Motor: 7.5 Amp
• Voltage: 120V, 1 phase, 60 Hz
• Assembled Dimensions (L x W x H): 11-3/4″ x 24″ x 62-1/2″
• Weight: 120 lbs

KING CANADA KC-116FN 13″ Floor Model Drill Press Warranty

• King Canada’s 2 Year Limited Warranty
