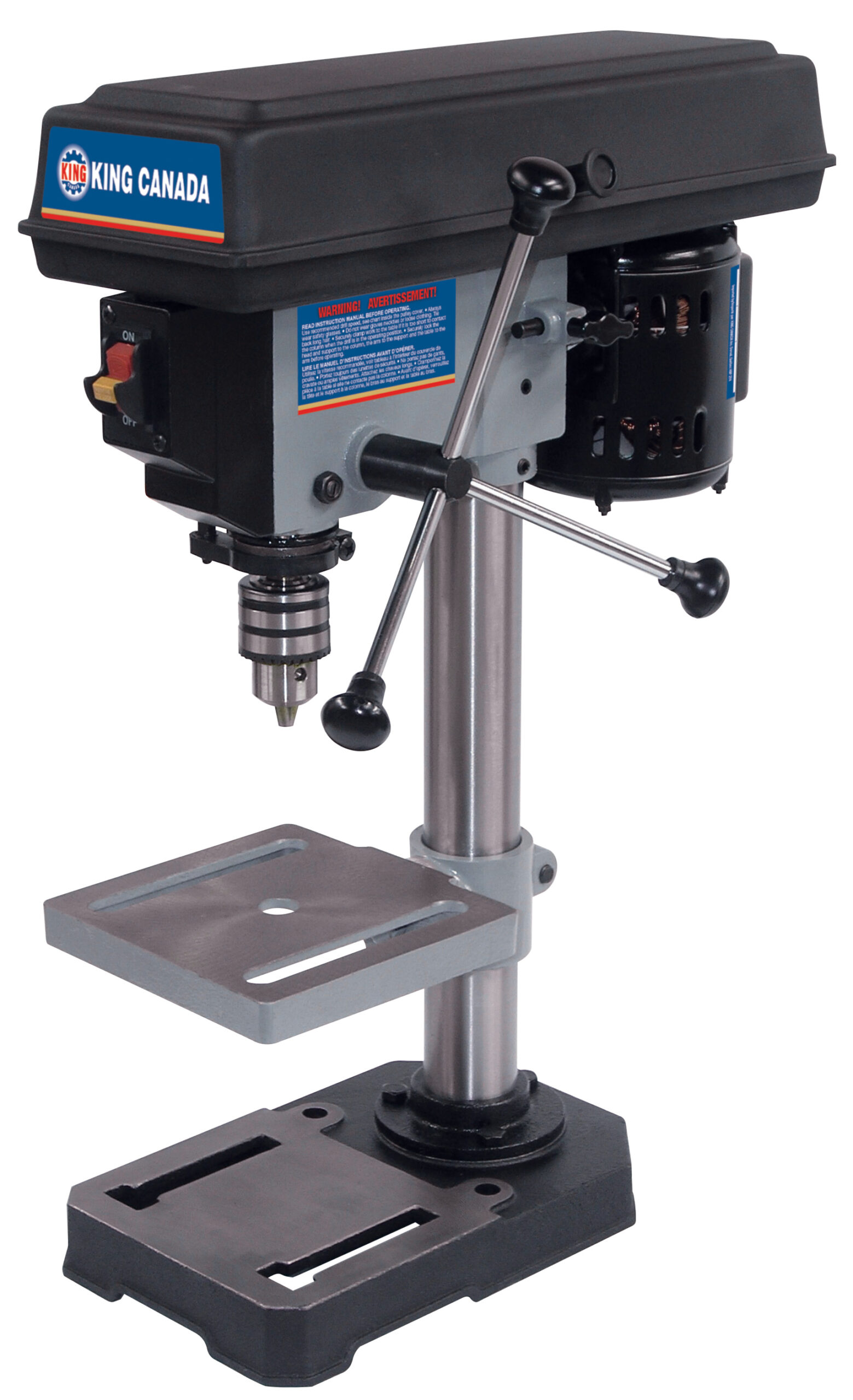

KING CANADA KC-108N 8″ Bench Top Drill Press

The King Canada KC-108N 8-inch bench top drill press is a compact benchtop drilling machine built for accurate, repeatable drilling in wood, metal, and general shop materials. It features a 2.5 amp motor, 5 spindle speeds from 620 to 3,100 RPM, a 45° tilting table, 1/2-inch chuck capacity, and a positive depth stop for controlled drilling.

The King Canada KC-108N 8-inch bench top drill press is designed for shops that need a compact drilling solution without giving up basic capacity and control. King Canada lists this model with a 2.5 amp motor, 8-inch swing, 2-inch stroke, and a 1/2-inch chuck capacity, making it a practical fit for light fabrication, woodworking, maintenance work, and general repair tasks. Its 5-speed pulley system gives users spindle speeds from 620 to 3,100 RPM, which helps match drilling speed to different bit sizes and materials.

For buyers looking for a small benchtop drill press for accurate hole drilling, the KC-108N also includes features that improve day-to-day usability. King Canada specifies a heavy-duty cast-iron table and base, a spindle supported by high-quality ball bearings, a 45° tilting table for angle drilling, and a positive depth stop for repeatable hole depth. The machine comes ready to use with a 1/2-inch drill chuck and key, making it suitable for home shops, maintenance benches, and light-duty professional use where space is limited.

King Canada 8″ Bench Top Drill Press At a Glance

• 2.5 Amp Motor: Provides steady power for light-duty drilling tasks.
• 5 Spindle Speeds: Offers 620 to 3,100 RPM for different materials and drill bit sizes.
• 1/2″ Chuck Capacity: Accepts up to 1/2-inch shank drill bits.
• 8″ Swing: Supports drilling on a range of small to mid-size workpieces.
• 45° Tilting Table: Allows angular drilling when the job calls for it.
• Positive Depth Stop: Helps produce accurate, repeatable hole depths.
• Cast-Iron Table and Base: Adds stability and durability on the bench.
• Ball Bearing Supported Spindle: Supports smoother spindle operation.
• Chuck and Key Included: Ships ready for setup and use.

Quick Specs

• Brand: King Canada
• Manufacturer Part Number: KC-108N
• UPC: 772995000142
• Power Source: Corded electric
• Voltage: 120V, 1 phase, 60Hz
• Amperage: 2.5 Amp
• Chuck Capacity: 1/2″
• Swing: 8″
• Spindle Speed: 5 speeds, 620 to 3,100 RPM
• Stroke: 2″
• Weight: 33 lbs assembled

Markets

• Home Workshops: Good fit for routine drilling, repair work, and project building.
• Maintenance Benches: Useful for repeatable hole drilling in light-duty service work.
• Woodworking Shops: Suitable for drilling accurate holes in jigs, fixtures, and wood parts.
• Light Metalworking: Can handle lighter drilling tasks when matched with the proper bit and speed.
• Schools and Training Areas: Compact size and straightforward controls make it practical for instructional use.
• DIY and Hobby Use: A practical option for buyers who need a space-saving benchtop drill press.

The King Canada KC-108N is a compact bench top drill press built for buyers who need accurate drilling without giving up valuable bench space. Its 5-speed setup, 1/2-inch chuck capacity, and positive depth stop make it useful for repeatable drilling in wood, plastics, and light metal applications. The 45-degree tilting table also gives the machine more flexibility for angled drilling and small project work.

This model is a good fit for users who want more control than a handheld drill can provide but do not need a large floor-standing drill press. The cast-iron table and base help keep the unit stable, while the ball-bearing-supported spindle supports smoother operation over time. For workshops, maintenance areas, and serious DIY users, the KC-108N offers practical drilling capacity in a compact footprint.

KING CANADA KC-108N 8″ Bench Top Drill Press Features

• 2.5 Amp Motor: Supplies power for controlled drilling in general shop materials.
• Accepts Up to 1/2″ Shank Bits: Gives the drill press compatibility with common drill bit sizes.
• Heavy-Duty Cast-Iron Table and Base: Improves machine stability and long-term durability.
• 5-Speed Drive System: Provides spindle speed options from 620 to 3,100 RPM.
• Ball Bearing Supported Spindle: Helps support smooth drilling performance.
• 45° Tilting Table: Allows drilling at angles for more varied shop work.
• Positive Depth Stop: Makes depth adjustment quicker and helps with repeatable holes.
• 1/2″ Drill Chuck and Key Included: Comes ready for assembly and use.

Compatible Accessories / Works Well With

• 1/2″ Shank Drill Bits: Designed to accept drill bits with shanks up to 1/2 inch.
• Bench Mounting Hardware: Suitable for secure installation on a workbench or equipment stand.
• Drill Press Vise: Useful for securing small parts during repeat drilling. This

King Canada KC-108N 8″ Bench Top Drill Press Includes

• (1) King Canada KC-108N 8″ Bench Top Drill Press
• (1) 1/2″ Drill Chuck
• (1) Chuck Key

KING CANADA KC-108N 8″ Bench Top Drill Press Specifications

• Brand: King Canada
• Manufacturer Part Number: KC-108N
• UPC: 772995000142
• Product Type: Bench top drill press
• Power Source: Corded electric
• Motor: 2.5 Amp
• Voltage: 120V, 1 phase, 60Hz
• Chuck Capacity: 1/2″
• Swing: 8″
• Stroke: 2″
• Max Distance from Chuck to Table: 7″
• Max Distance from Chuck to Base: 10″
• Table Size: 6-1/2″ x 6-1/4″
• Spindle Taper: JT #33
• Speeds: 5
• Spindle Speed Range: 620 to 3,100 RPM
• Table Tilt: 45°
• Assembled Dimensions: 8-1/2″ x 16-1/2″ x 23″
• Assembled Weight: 33 lbs
• Packaging Dimensions: 17″ x 9″ x 13″
• Packaging Weight: 37 lbs

KING CANADA KC-108N 8″ Bench Top Drill Press Warranty

• KING CANADA’s 2 Year Limited Warranty

Why Customers Choose the King Canada 8″ Bench Top Drill Press

Customers choose the King Canada KC-108N because it gives them a compact benchtop drill press with the core features needed for accurate, repeatable drilling. The 5-speed range, 1/2-inch chuck capacity, and positive depth stop make it more useful than a basic handheld drill when the job calls for controlled hole placement and consistent depth.

It also appeals to buyers who need a small drill press that fits limited shop space. The cast-iron table and base help support stability, while the 45-degree tilting table adds flexibility for angle drilling. For home workshops, repair benches, and light-duty shop use, this bench top drill press offers practical capacity in a compact machine.
