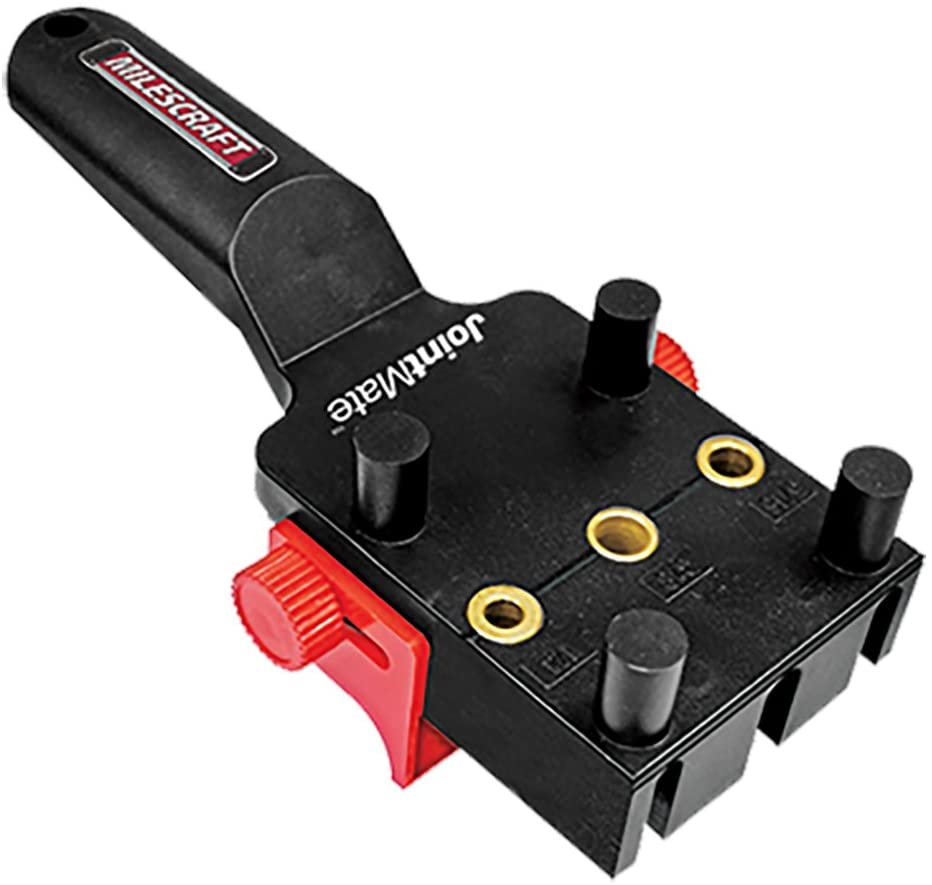

Milescraft 1319 JointMate Project Kit Dowling Jig for Easy Dowelled Joints

The Milescraft 1319 JointMate can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints. The Milescraft 1319 JointMate allows for quick and accurately doweled corner, edge or surface joints. With minimal set-up, and no exposed or covered mechanical fasteners, JointMate™ makes doweling easy.

Milescraft 1319 JointMate Project Kit Dowling Jig Self-Centering Post

• Accurate, one-handed alignment for maximum joint strength and precise dowel alignment

Milescraft 1319 JointMate Project Kit Dowling Jig Hardened Steel Bushings

• Ensure accurate alignment when drilling for perfectly positioned dowels
• For longer doweling life

Milescraft 1319 JointMate Project Kit Dowling Jig Adjustable Guide Fence

• Easily adjust to the depth of the board so that each hole will be precise from one to the next

Milescraft 1319 JointMate Project Kit Dowling Jig Board Thickness Guide

• Board Thickness 1/2″ – 5/8″: Dowel Pin/Drill Bit
• Board Thickness 5/8″ – 3/4″: Dowel Pin/Drill Bit
• Board Thickness 3/4″ – 1-1/2″: Dowel Pin/Drill Bit

Milescraft 1319 JointMate Project Kit Dowling Jig Specifications

• Bushing Sizes: 1/4”, 5/16”, 3/8”
• Minimum Board Width (not thickness) for 1/4″ & 5/16″ bushing: 2″
• Minimum Board Width (not thickness) for 3/8″ bushing: 3-1/4″
• Closest distance for dowel from board end (for 1/4″ and 5/16″ bushing): 1-1/8″
• Closest distance for dowel from board end (for 3/8″): 1-5/8″
• Bushing Material: Metal
• JointMate Body Material: ABS Plastic
