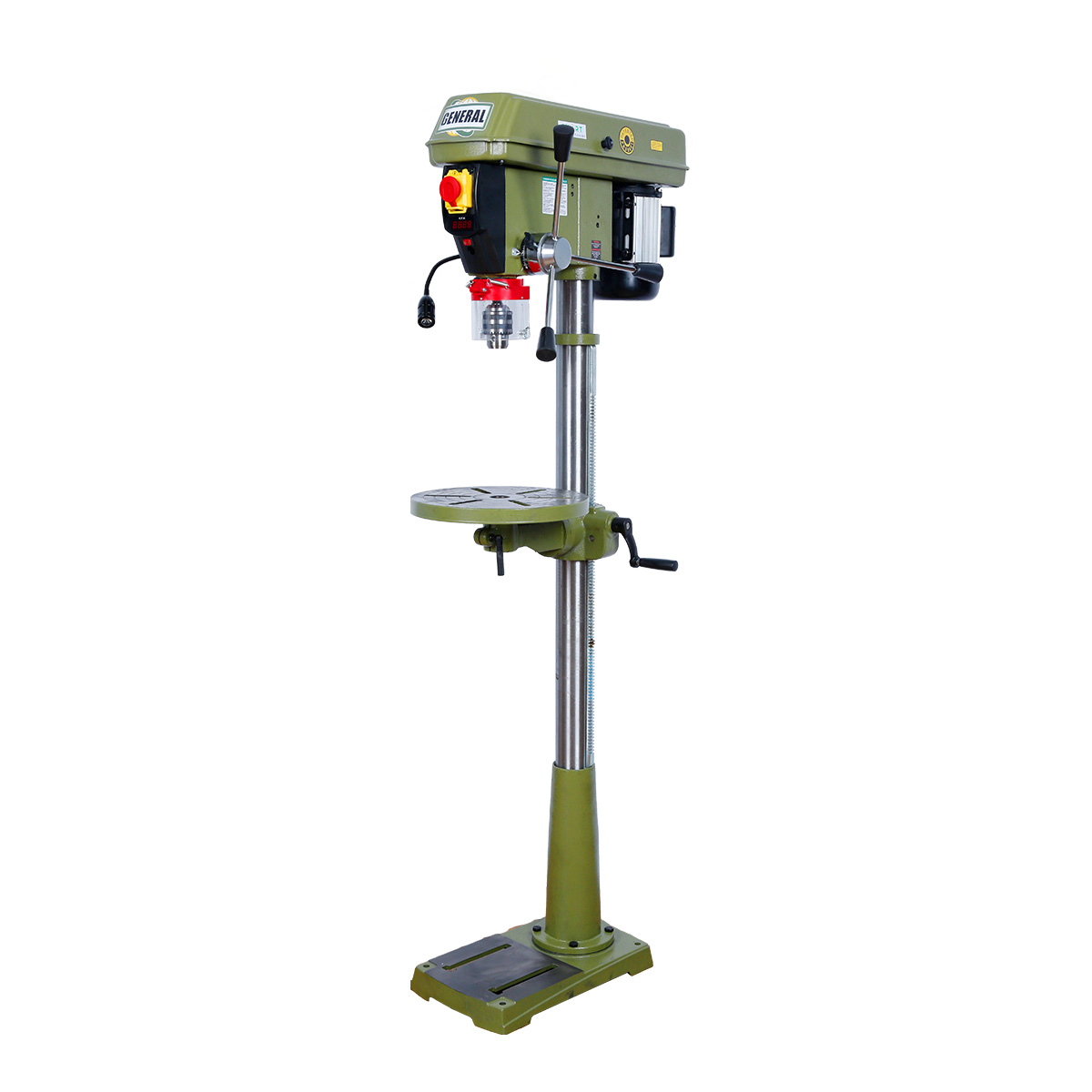

General 75-155M1 15″ Variable Speed Drill Press 1/2HP 120V 5A

General International 75-155M1 15″ Variable Speed Floor Drill Press is a woodworkers dream. The General 75-155M1 drill press is loaded with all the features you need. The 75-155M1 is mechanical variable speed with digital read-out (DRO) for drilling or sanding. It also has a global patented “X” crosshair laser pointer for drilling with precision. The 3-1/8” spindle travel provides maximum depth cutting along with a sturdy depth stop with an adjustable spindle return spring for repetitive drilling to the same depth. The General International 75-155M1 15″ drill press features a 12 3/8″ (315 mm) diameter table with T-slots which allows it to be outfitted with a vise or clamps.

General International 75-155M1 15″ Variable Speed Drill Press Features

• Forced opening line interrupter switch, requires machine restart in case of power failure or circuit interruption
• Global patented laser Pointer with “X” crosshairs for drilling accuracy
• Digital spindle speed display
• Simple hand lever controlled mechanical variable speed from 280 to 2100 rpm.
• Adjustable spindle tension return spring.
• Easy to use see-through flip-chuck guard
• High-quality bearings for smooth vibration- free operation
• ½ HP motor
• Equipped with easy to adjust dual depth stop for complete control of both down stroke depth and upstroke travel
• Industrial 5/8″ chuck with key & convenient onboard chuck key holder
• Crank-operated rack and pinion table height adjustment
• Sturdy design with cast-iron head, base and table
• ETL (Electrical Testing Laboratories) Certified

General International 75-155M1 15″ Variable Speed Drill Press Specifications

• Swing 15″ (390 mm)
• Drilling capacity / Chuck size 3/4″ (20 mm) / 5/8″ (16 mm) – # 75-155
• Spindle travel 3 1/8″ (80 mm) – # 75-155
• Spindle distance to table / to base 29 3/8″ (745 mm) / 48 1/2″ (1230 mm) – # 75-155
• Table size (Diameter) 12 3/8″ (315 mm) – # 75-155
• Column diameter 2 3/4″ (70 mm) – # 75-155
• Spindle speeds (Variable speed) 280 to 2100 rpm
• Spindle taper MT 2
• Overall height 63 3/8″ (1610 mm) – # 75-155
• Base size 17″ x 10 1/2″ (430 x 265 mm) – # 75-155
• Motor 1/2 HP, 120 V, 5A – # 75-155
• Weight 136 lbs (62 kg) – # 75-155

General International 75-155M1 15″ Variable Speed Drill Press Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
