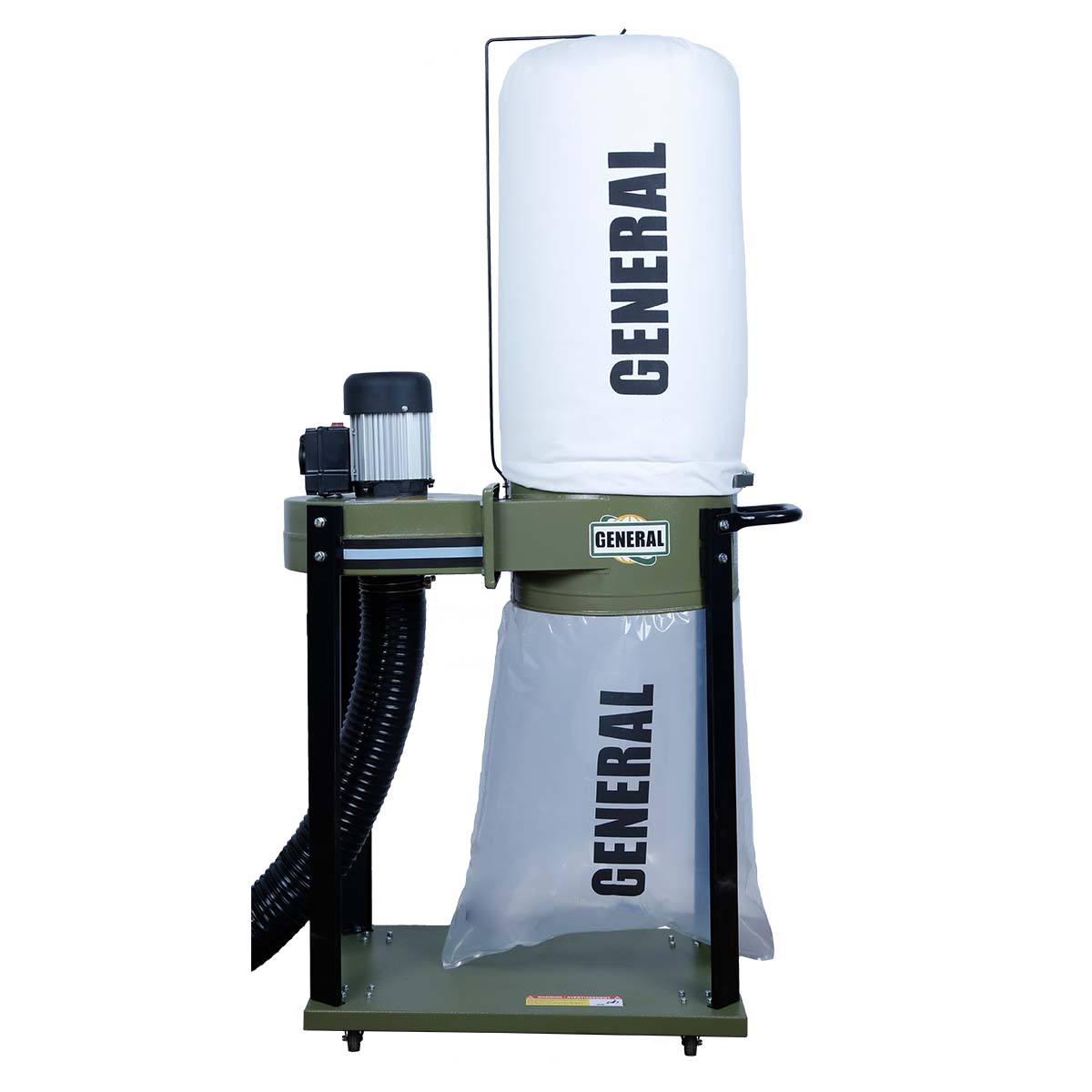

General 10-030 M1 1 HP 506 CFM Dust Collector has been designed for small to medium shops applications and can help eliminate the clean-up after wood projects. Made for the woodworker in a small shop looking for an easy to move dust collection system. Generals’ 1 HP Dust Collection system has a powerful motor with a re-usable dust collecting bag that’s easy to remove for quick clean-up. “SMART” cone technology built in.
General 10-030 M1 1 HP 506 CFM Dust Collector Features
- Heavy duty base, mounted on two precision swivel casters & two 7” wheels with handle, allowing total mobility & stability while moving from machine to machine
- Powerful 1 HP Motor
- Totally enclosed fan cooled (TFEC), permanently lubricated motor. Designed for small shop applications with a continuous duty rating
- “SMART” cone design improves chip separation and clogging the bag/canister
- 506 CFM
- Precision aluminum finned spin-balanced impeller for smooth operation & minimal noise
- 4” Inlet port
- Collector body mounted on three (3) heavy-duty support brackets
- 2 Micron Filter Bag
- Re-useable heavy-duty collection bag made from extra thick, transparent, recyclable plastic
- Quick release bag clamps with metal straps makes emptying and re-attaching easy
- Safety On/Off switch
- ETL (Electrical Testing Laboratories) Certified
General 10-030 M1 1 HP 506 CFM Dust Collector Specifications
- INLET DIAMETERS: 4” (102 mm)
- AIRFLOW CAPACITY: 506 CFM
- SOUND RATING: 80 to 85 dB
- STATIC PRESSURE: 6-3/4″ OF WATER
- BLOWER WHEEL DIAMETER: 10″ (254 mm)
- MOTOR: 1 HP, 110 V, 7 A
- OVERALL DIMENSIONS: (L X W X H) 31 1/8” x 18 7/8” x 47 5/8”(790 x 480 x 1210 mm)
- WEIGHT: 67 LBS (31 Kg)
General 10-030 M1 1 HP 506 CFM Dust Collector Warranty
- General’s 3 Year Limited Warranty Without Registration
- General’s 5 Year Limited Warranty When Registered within 60 Days
