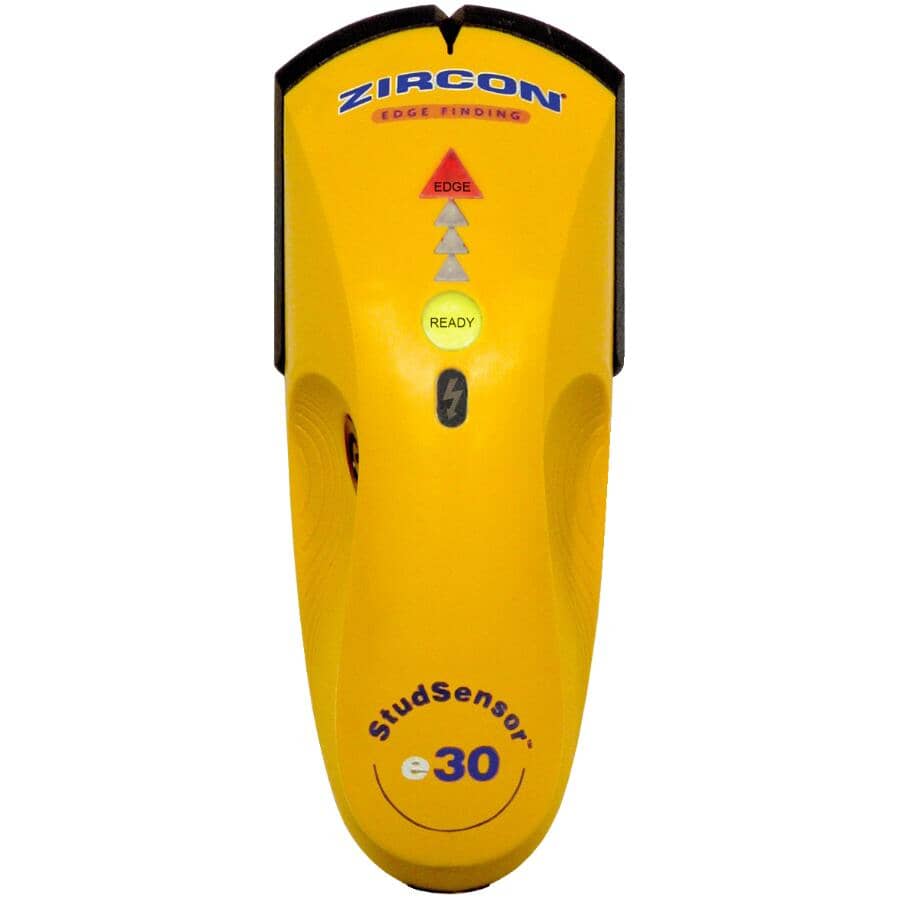

Zircon E30 63825 Stud Sensor, 3/4″ (19 mm) Depth

• Makes stud finding fast and simple
• Stud Scan mode locates the edges of wood or metal studs up to 19 mm (3/4″) deep
• WireWarning(TM) detection indicates the presence of live, unshielded electrical wiring up to 51 mm (2″) deep
• Should scanning begin over a stud, “over-the-stud” indicator alerts the user to start the scan in a new location
• TruCal(TM) technology calibrates to any wall’s density and the TruCal(TM) icon indicates when the tool is ready and calibrated
• Updated SpotLite® Pointer shines an arrowshaped light on the wall to mark the target
• Red arrows light up sequentially as the stud finder nears a target
• “Ready” light indicates when calibration has completed successfully
• “Edge” light indicates when the tool is over a stud edge

Zircon E30 63825 Stud Sensor Locates

• Wood Studs
• Metal Studs
• Wiring Detection

Zircon E30 63825 Stud Sensor Specifications

• Dimensions 6.03 in. H x 2.39 in. W x 1.58 in. D (153 mm x 61 mm x 40 mm)
• Weight 3.0 oz. (84.5 g) without battery
• Battery Type 9V alkaline (not included)
• Position Accuracy Wood studs: Typically within 1⁄8 in.  (3 mm) using the dual scan and mark procedure
• Position Accuracy Metal studs: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
• WireWarning® Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning® Depth:  In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep
• Operating Temperature:  20° to 105°F (-7° to 41°C)
• Temperature Storage: -20° to 150°F (-29° to 66°C)
• Temperature Humidity 5 – 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, ** not waterproof **
