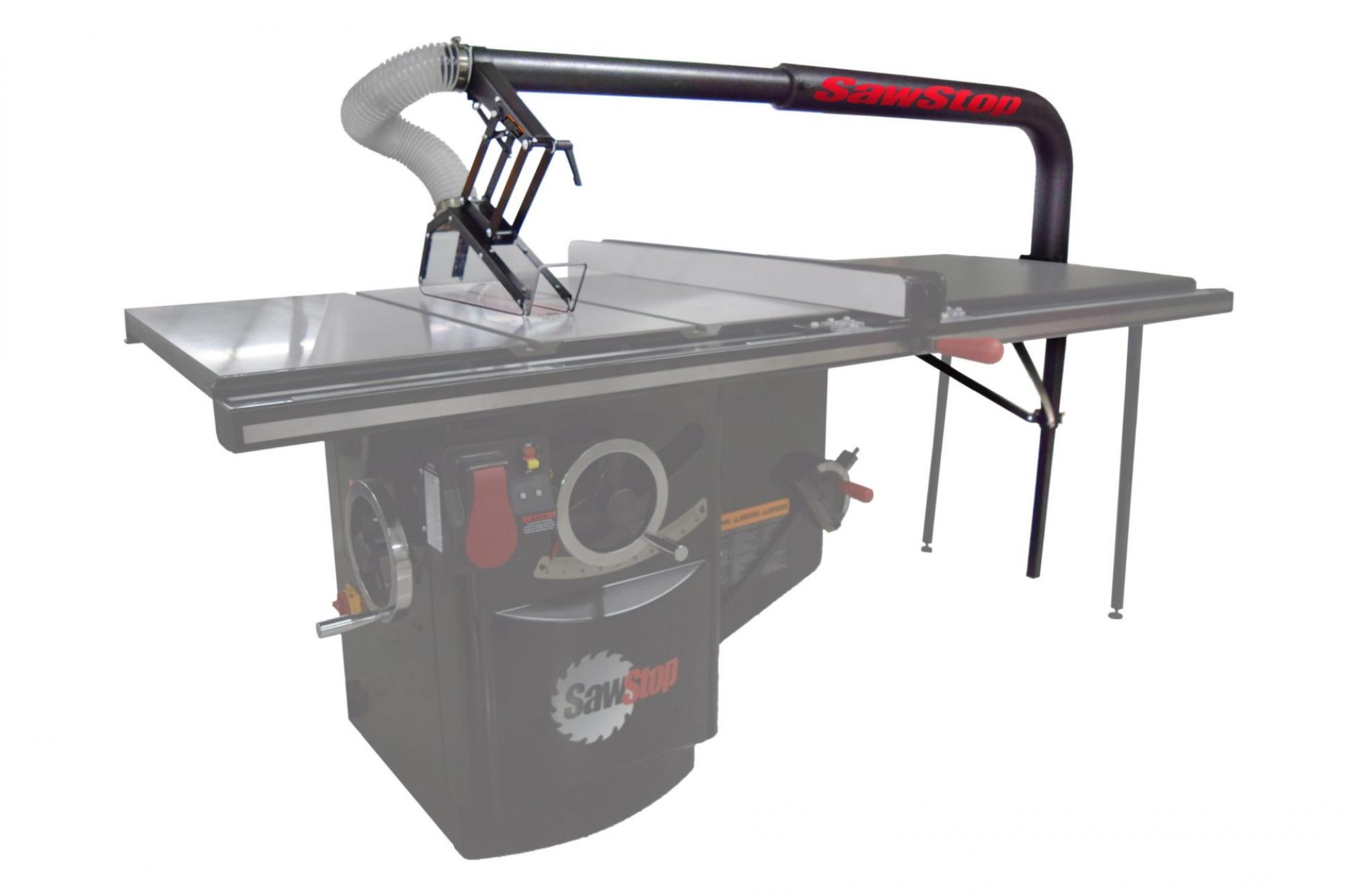

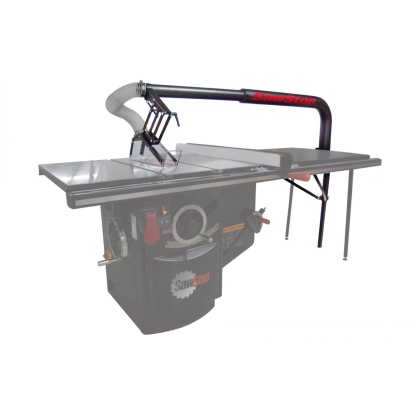

This heavy-duty 4″ overarm is designed to provide operator protection while removing table-top dust in both standard and non-through cuts. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position. The wide pipe allows for high air volume collection.
- Blade Guard Dimensions: 3 1/2″ x 18 1/2″
- Distance between blade and end of extenion table: 35 3/4″ to 68″
- Inner Dust Tube Diameter: 3″
- Outer Dust Tube Diameter: 4″
- Outer Dust Tube height above table: 13 1/2″
- Outer Dust Tube height above floor:33 1/2″ to 50″
