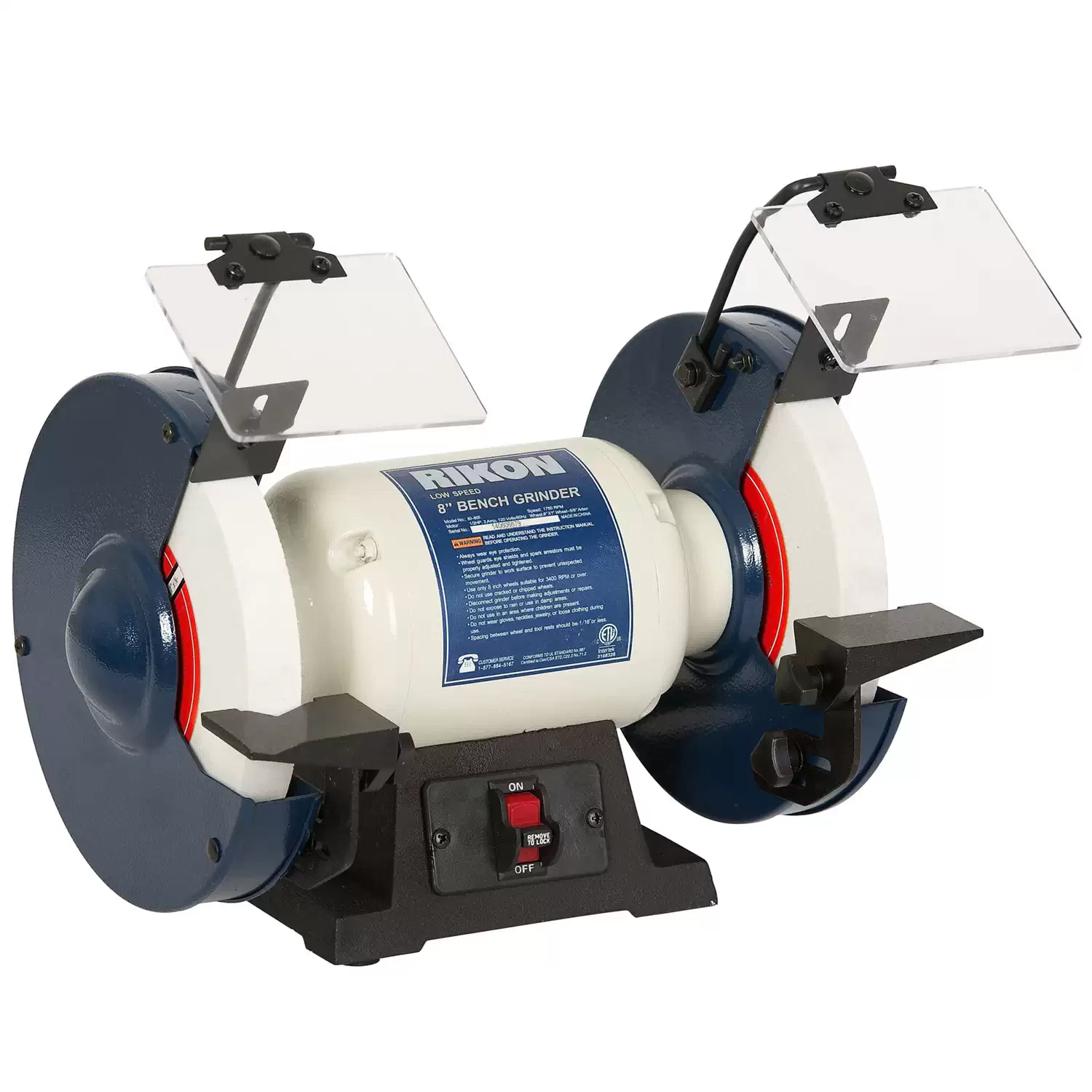

Rikon 80-805 8″ x 1″ Wide Stone Low Speed Bench Grinder

The Rikon 80-805 8-inch low speed bench grinder is built for sharpening and general grinding in woodworking shops, maintenance areas, and small metalworking setups. It features a 1/2 HP motor, 1,750 RPM low-speed operation, two 8″ x 1″ grinding wheels in 60 and 120 grit, adjustable tool rests, eye shields, spark arrestors, and an included diamond wheel dressing tool.

The Rikon 80-805 is designed for users who want a sharpening bench grinder with better control than a high-speed general-purpose grinder. RIKON’s current product page lists a 1/2 HP motor and 1,750 RPM low-speed operation, which makes this model a practical fit for sharpening chisels, turning tools, carving tools, plane irons, and other hand tools where heat control matters. Its two 8-inch grinding wheels include 60 grit for more aggressive stock removal and 120 grit for finer sharpening work.

This grinder also includes a few details customers usually care about before buying. The left tool rest has a groove for sharpening drill bits, the wheel flanges are stamped, and the grinder includes a diamond faced wheel dressing tool. The manual also shows a removable safety key on the power switch, two mounting holes in the base for bench or stand mounting, and a compact footprint that works well in smaller shops.

Rikon 8″ x 1″ Wide Stone Low Speed Bench Grinder At a Glance

• 1/2 HP Motor: Provides enough power for sharpening and general bench grinding in smaller shops.
• Low Speed 1,750 RPM: Helps reduce heat build-up and gives better control at the wheel.
• Two 8″ x 1″ Wheels: Includes 60 grit and 120 grit wheels for rough grinding and finer sharpening.
• Drill Bit Sharpening Groove: Left tool rest includes a groove for sharpening drill bits.

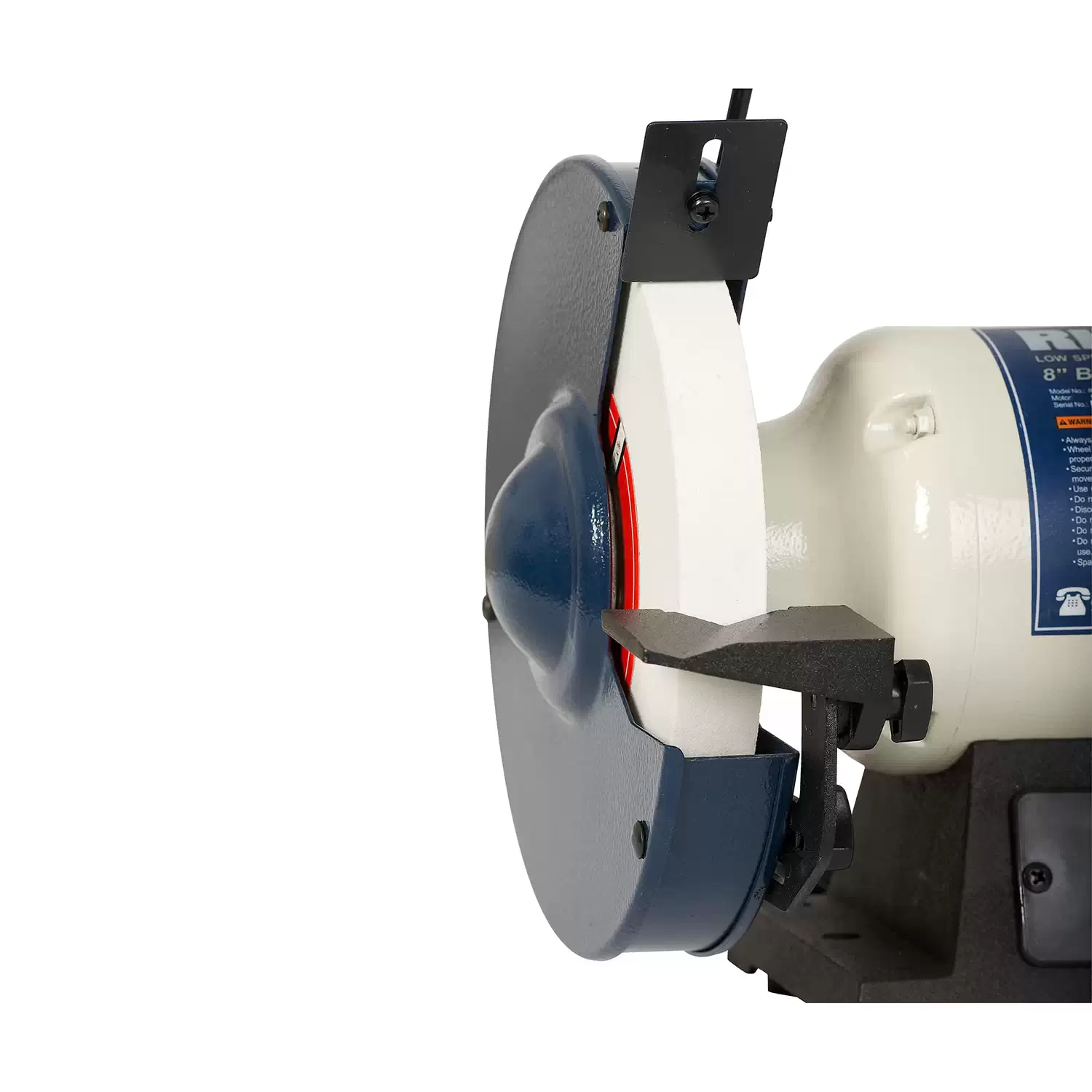

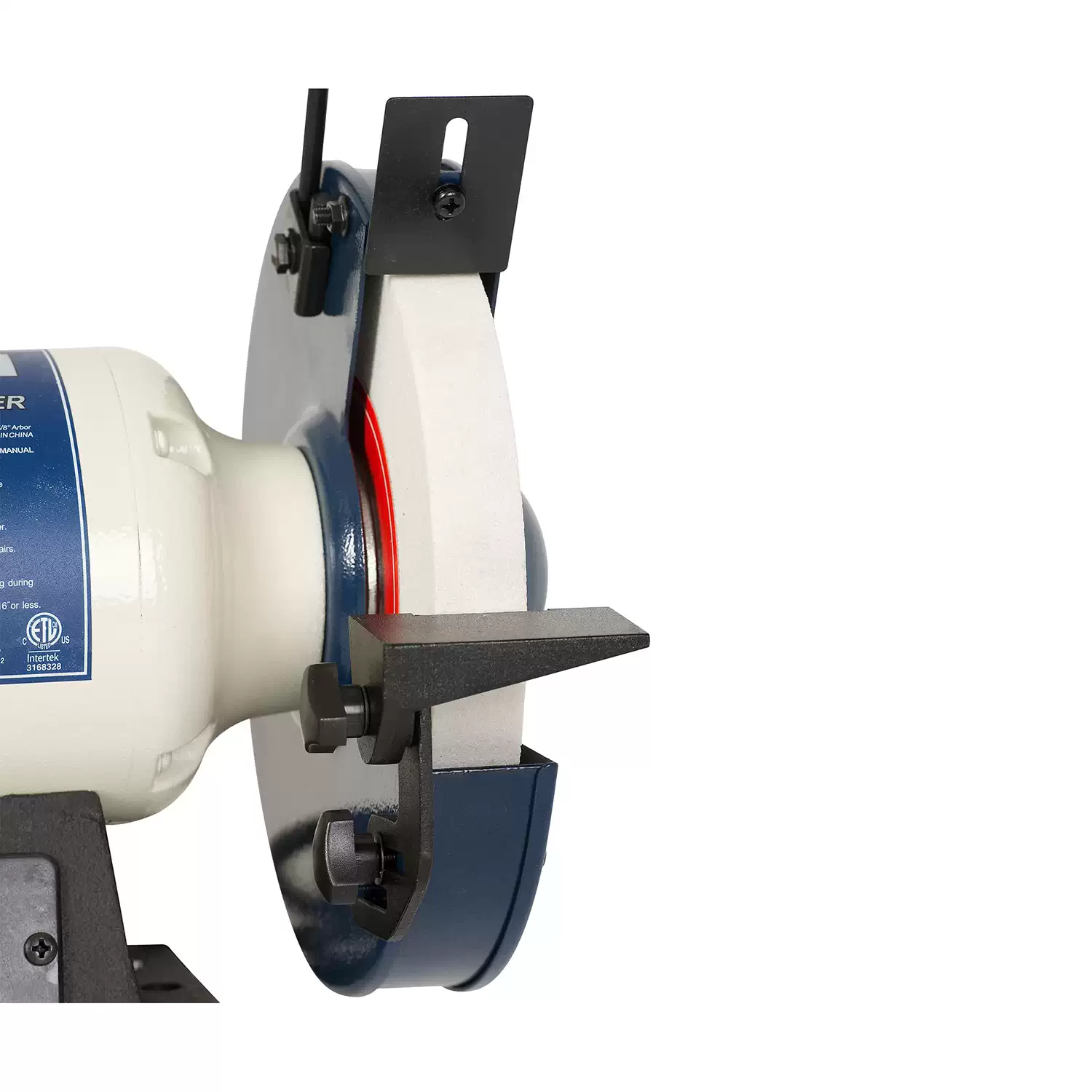

• Adjustable Tool Rests: Supports steadier angles and better control during sharpening.

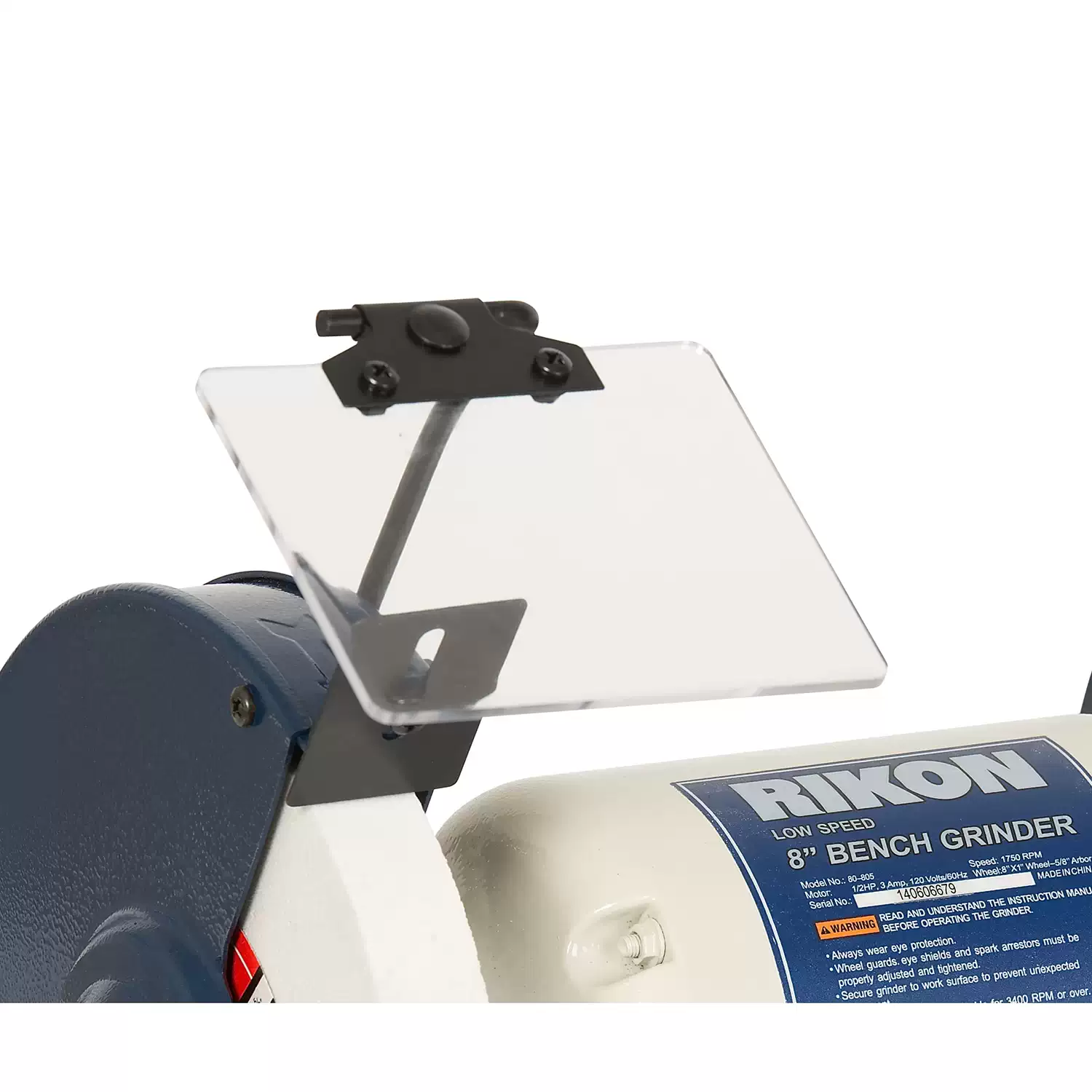

• Adjustable Eye Shields and Spark Arrestors: Adds visibility and safety at the wheel.
• Diamond Faced Wheel Dresser Included: Lets users dress the wheel surface and keep it working properly.
• Bench Mount Capability: Base includes two mounting holes for secure installation.

Quick Specs

• Brand: RIKON
• Manufacturer Part Number: 80-805
• UPC: 814463011417
• Power Source: Corded electric
• Voltage: 120V, 60 Hz, 1Ph
• Amperage: 3A
• Motor: 1/2 HP induction
• Wheel Size: 8″ x 1″
• Wheel Grits: 60 and 120
• Arbor Size: 5/8″
• Speed: 1,750 RPM no load
• Weight: 34.2 lbs net

Markets

• Woodworking Shops: Good fit for sharpening chisels, plane irons, and turning tools.
• Carpenters and Finish Trades: Useful for keeping edge tools in working condition.
• Turners and Carvers: Built with the slower wheel speed many hand-tool users want.
• Small Maintenance Shops: Practical for general grinding and light shaping work. This is a reasonable use inference based on the wheel setup, motor size, and grinder format.
• Home Workshops: Compact footprint and bench-mount design work well where space is limited.

The Rikon 80-805 is a practical choice for buyers who want a dedicated low speed grinder for sharpening rather than a faster general-purpose grinder that can overheat edges more easily. Its 1,750 RPM speed, 60 and 120 grit wheel combination, and drill-bit sharpening groove make it especially useful for woodworkers and hand-tool users who want a straightforward sharpening setup without moving into a more specialized sharpening system.

It also includes the core features buyers expect in a shop grinder at this size. Adjustable rests, eye shields, spark arrestors, a removable safety key, and an included diamond dresser make it easier to set up and maintain. For buyers searching for a slow speed bench grinder, woodworking bench grinder, or sharpening grinder, the 80-805 stays focused on the features that matter most.

Rikon 80-805 8″ x 1″ Wide Stone Low Speed Bench Grinder Features

• Powerful 1/2 HP Motor: Built for small workshop sharpening and general grinding.
• Low Speed 1,750 RPM: Improves control and helps reduce overheating at the edge.
• 8″ x 1″ Grinding Wheels: Uses two full-size wheels for sharpening and shaping work.
• 60 Grit and 120 Grit Wheels: Covers both rough grinding and finer sharpening.
• Left Tool Rest with Drill Bit Groove: Adds support for sharpening drill bits.
• Adjustable Tool Rests: Helps support more consistent bevels and control.
• Adjustable Safety Eye Shields: Provides eye-level protection from debris.
• Adjustable Spark Arrestors: Helps control spark direction during grinding.
• Diamond Faced Wheel Dressing Tool Included: Lets users true and clean the grinding wheel surface.
• Stamped Wheel Flanges: Current product page specifically notes stamped wheel flanges on this model.

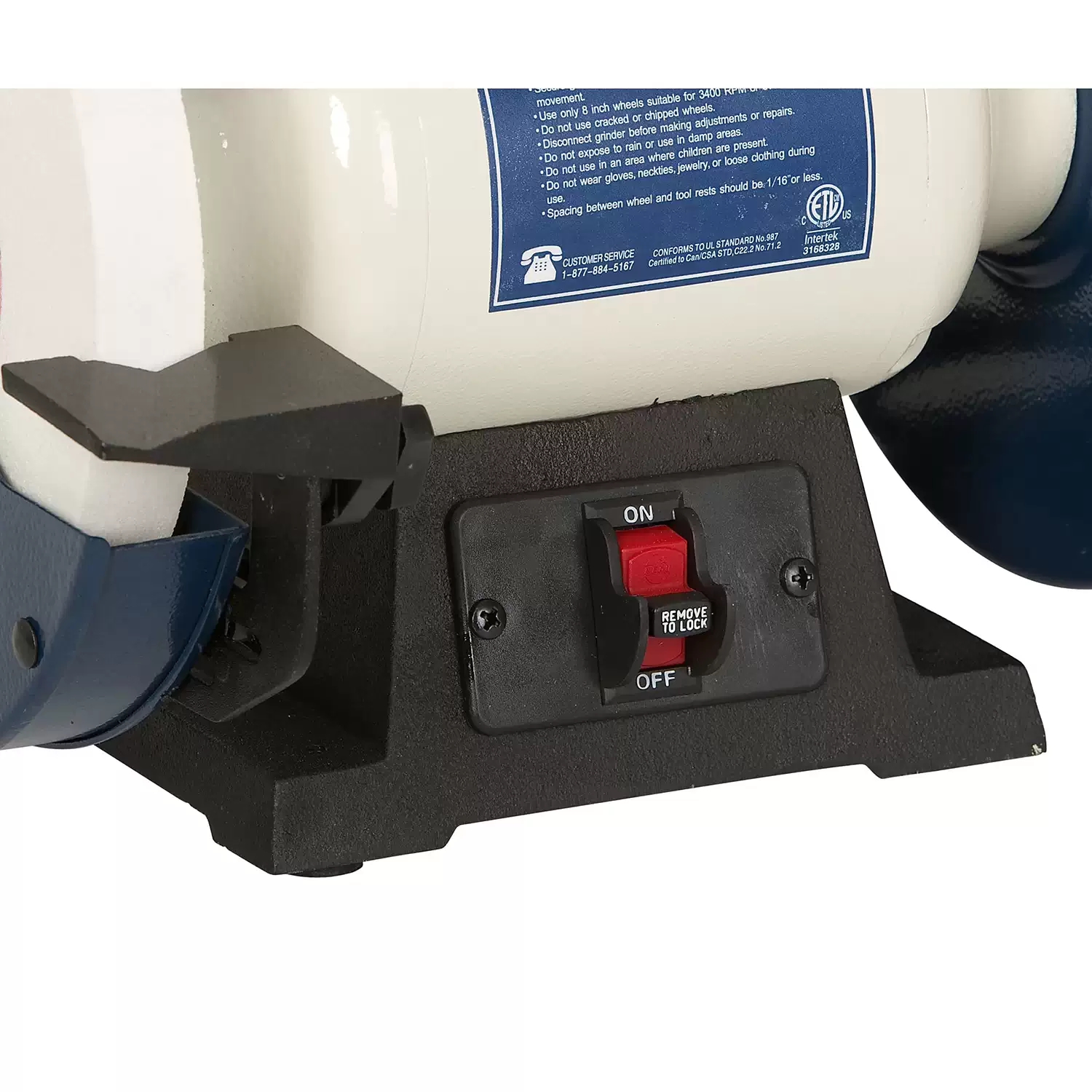

• Safety Lock Switch: Toggle switch uses a removable safety key.

Compatible Accessories / Works Well With

• RIKON P80-805-49 60 Grit Replacement Wheel: Official replacement grinding wheel option.
• RIKON P80-805-5 120 Grit Replacement Wheel: Official finer-grit replacement wheel option.
• RIKON P80-805-54 Diamond Wheel Dresser: Official replacement dresser.
• RIKON 80-901 Magnifying Eye Shield: Official accessory listed for this grinder family.
• RIKON 80-902 Left Hand Flat Tool Rest: Optional replacement flat tool rest.

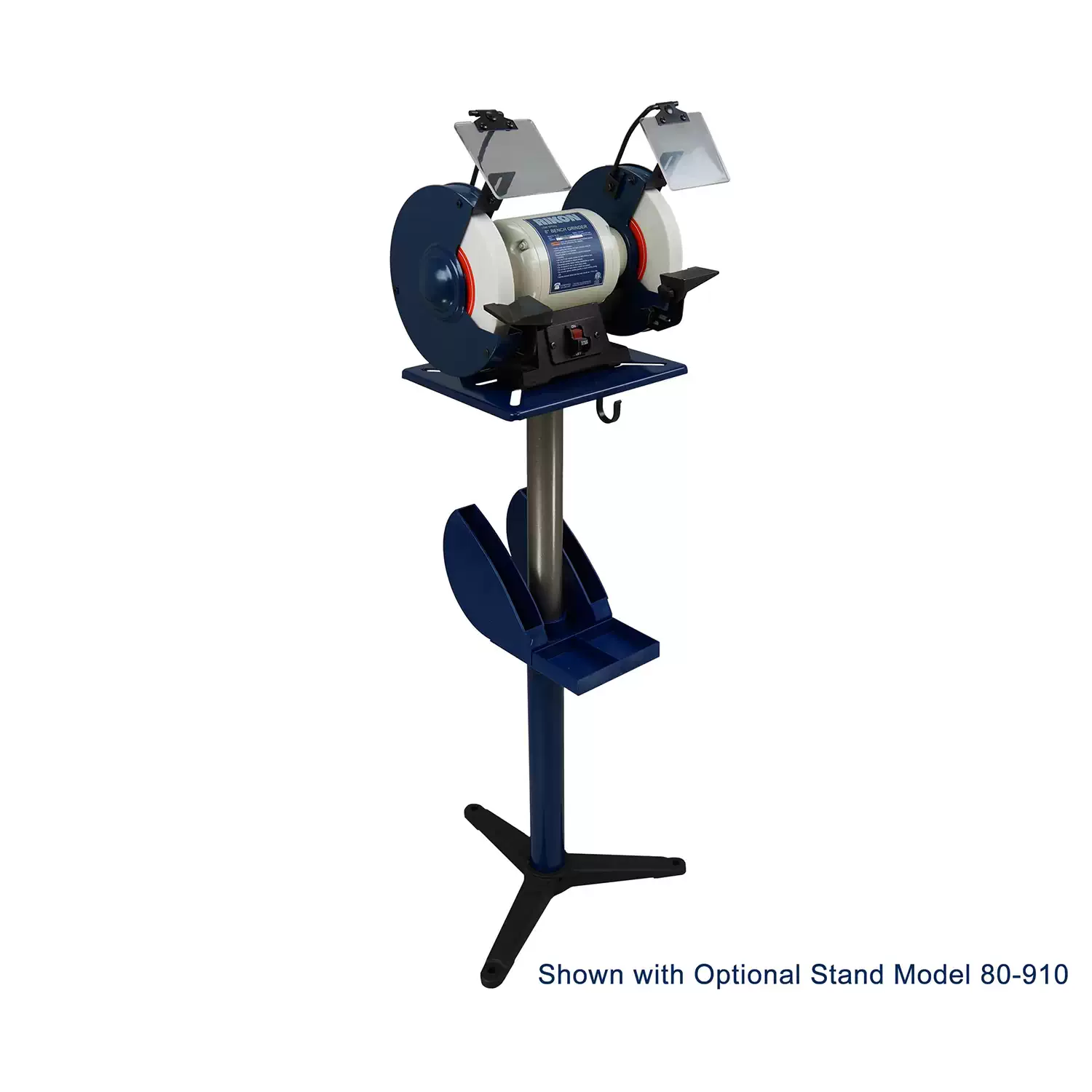

• RIKON 80-910 Bench Grinder Stand: Optional stand shown by RIKON for this grinder family.
• RIKON 80-899 Wheel Flange: Official replacement flange for the 80-805.
• Wire Wheel or Buffing Wheel: The wire wheel or buffing wheel can be used with proper spacers and the supplied flanges.

Rikon 80-805 8″ x 1″ Wide Stone Low Speed Bench Grinder Includes

• (1) 8″ x 1″ 60 Grit Grinding Wheel
• (1) 8″ x 1″ 120 Grit Grinding Wheel
• (2) Tool Rests
• (2) Eye Shields
• (2) Spark Arrestors
• (1) Diamond Faced Wheel Dressing Tool
• (1) Owner’s manual

Rikon 80-805 8″ x 1″ Wide Stone Low Speed Bench Grinder Specifications

• Brand: RIKON
• Manufacturer Part Number: 80-805
• UPC: 814463011417
• Product Type: Low speed bench grinder
• Motor Power: 1/2 HP, 120V, 3A, 60Hz, 1Ph, induction
• Motor RPM: 1,750 RPM no load

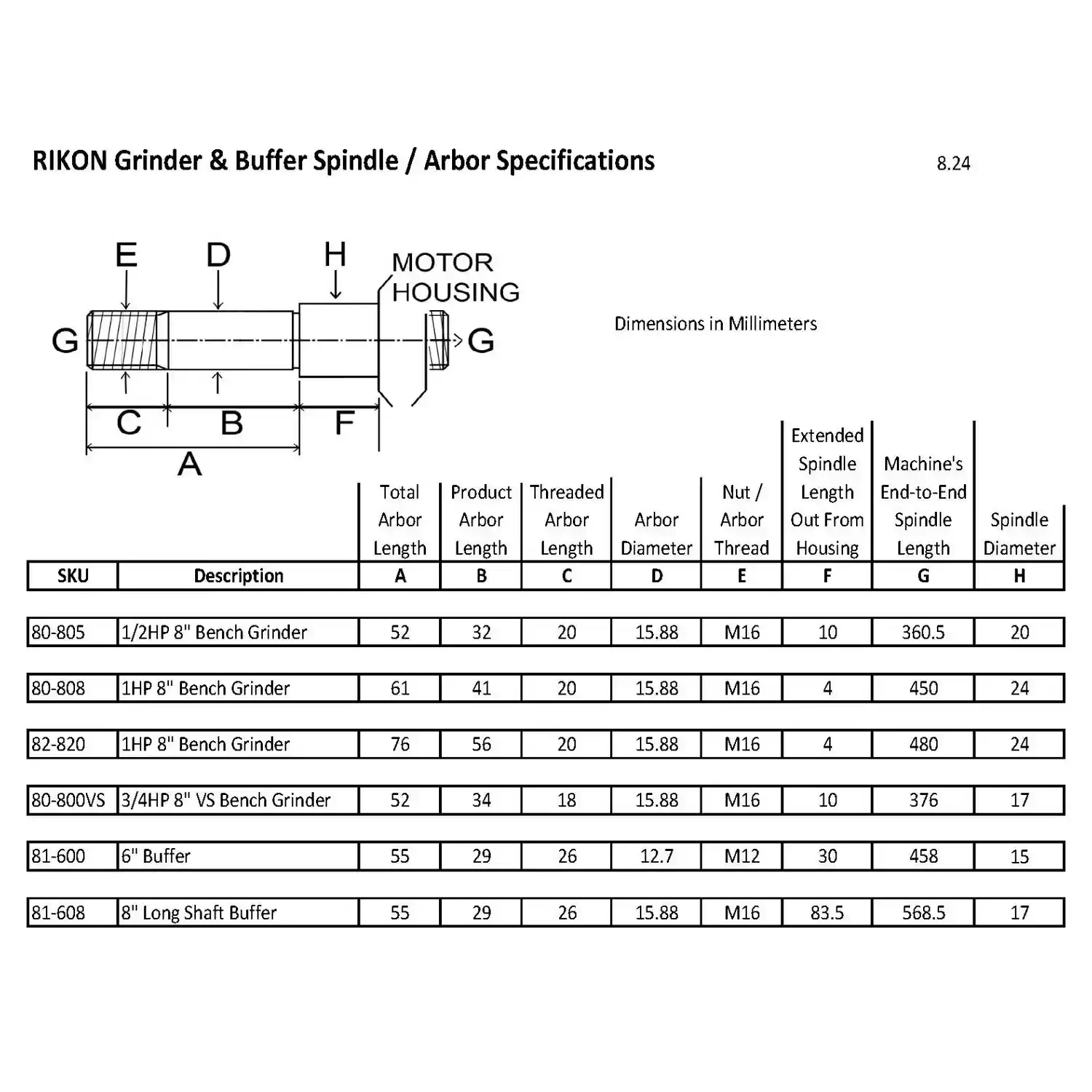

• Motor Arbor: 5/8″
• Arbor Threading: M16LH / M16RH
• Grinding Wheel Size: 8″ diameter x 1″ wide x 5/8″ bore
• Grinding Wheel Grits: 60 grit and 120 grit
• Tool Rests: 2-3/4″ x 1-11/16″
• Eye Shields: Clear plastic
• Spark Arrestors: Left and right
• On/Off Switch: Toggle with safety lock
• Cord Length: 6 ft

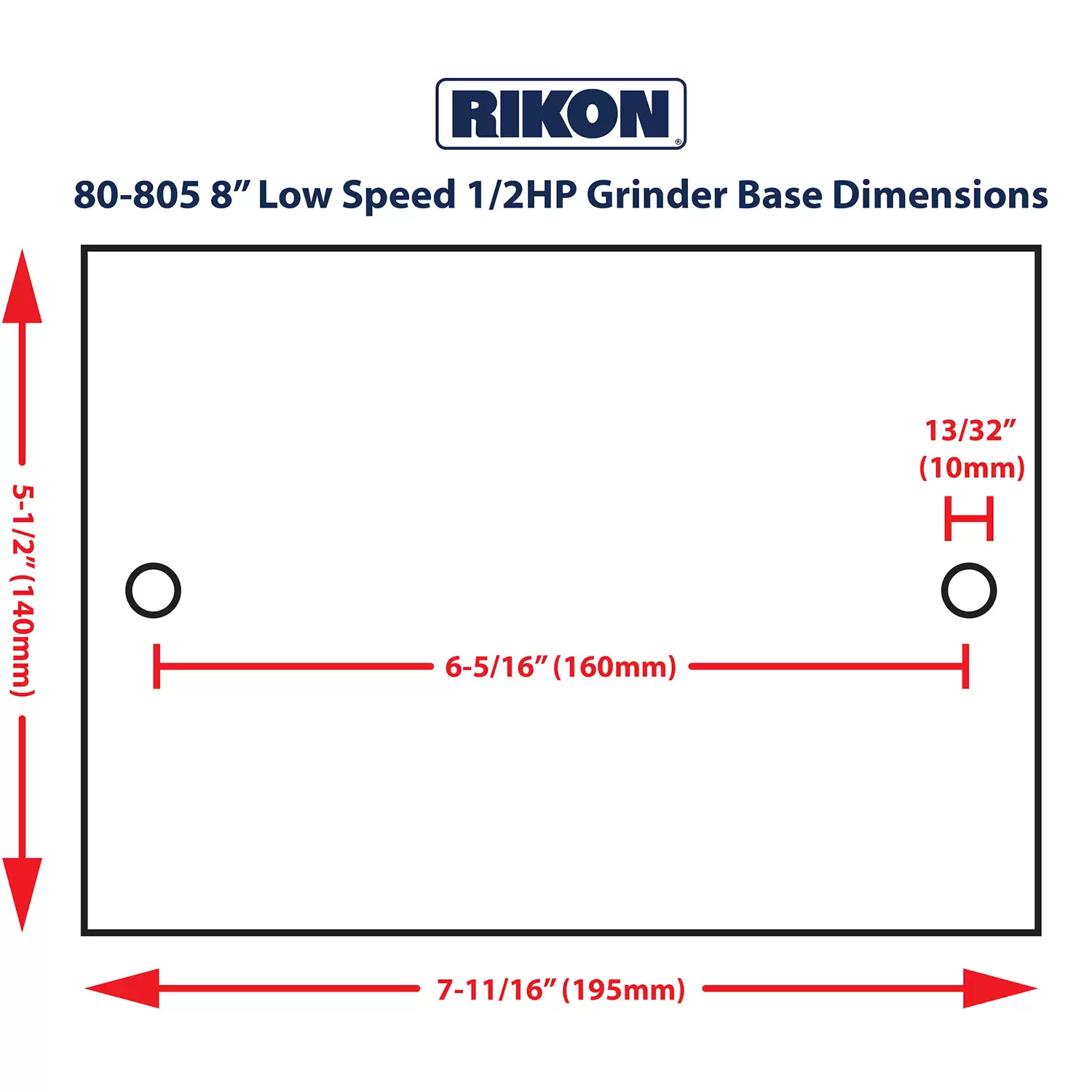

• Base Size: 7-5/8″ x 5-1/2″
• Mounting Holes: 7/16″ diameter, 6-5/16″ apart
• Approx. Base Footprint Drawing: 7-11/16″ x 5-1/2″, dimensions approximate for pre-drilling reference
• Overall Size: 16-3/8″ x 10-3/4″ x 11-1/4″
• Net Weight: 34.2 lbs

Rikon 80-805 8″ x 1″ Wide Stone Low Speed Bench Grinder Warranty

• Rikon’s 5-Year Limited Warranty or 2-Year Limited Warranty for commercial, industrial, or educational use.

Why Customers Choose the Rikon 8″ x 1″ Wide Stone Low Speed Bench Grinder

Customers choose the Rikon 80-805 because it is built around sharpening control instead of maximum speed. The 1,750 RPM motor speed, dual-grit wheel setup, and drill-bit sharpening groove make it a good fit for users who want a slow speed grinder for woodworking tools, carving tools, and general hand-tool upkeep.

It also stands out because it keeps the setup simple. The grinder includes the core sharpening features buyers expect, plus a diamond dresser and secure bench-mount base, without moving into a larger or more complicated machine. For buyers searching for an 8-inch low speed grinder, sharpening bench grinder, or woodworking bench grinder, the 80-805 is easy to place.
