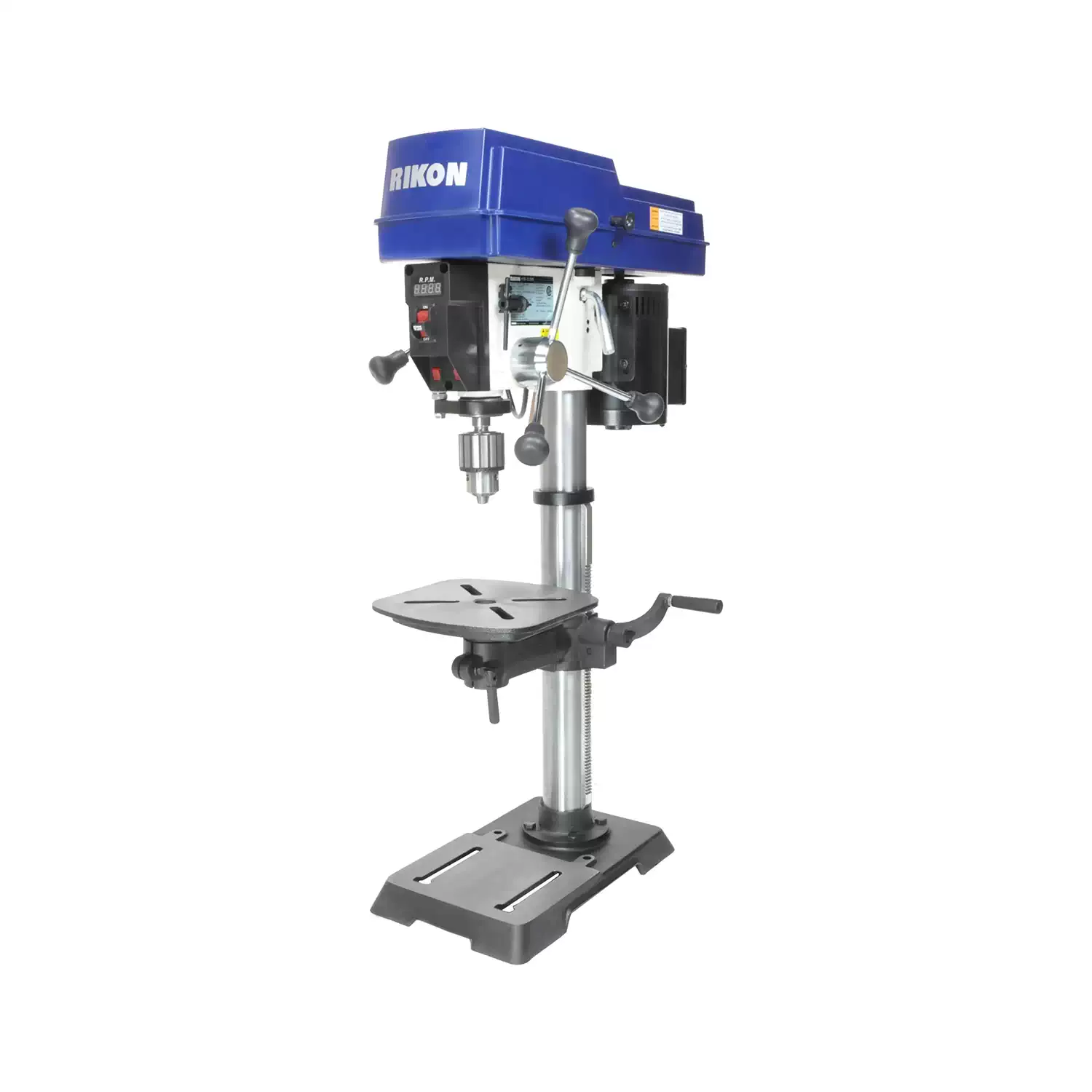

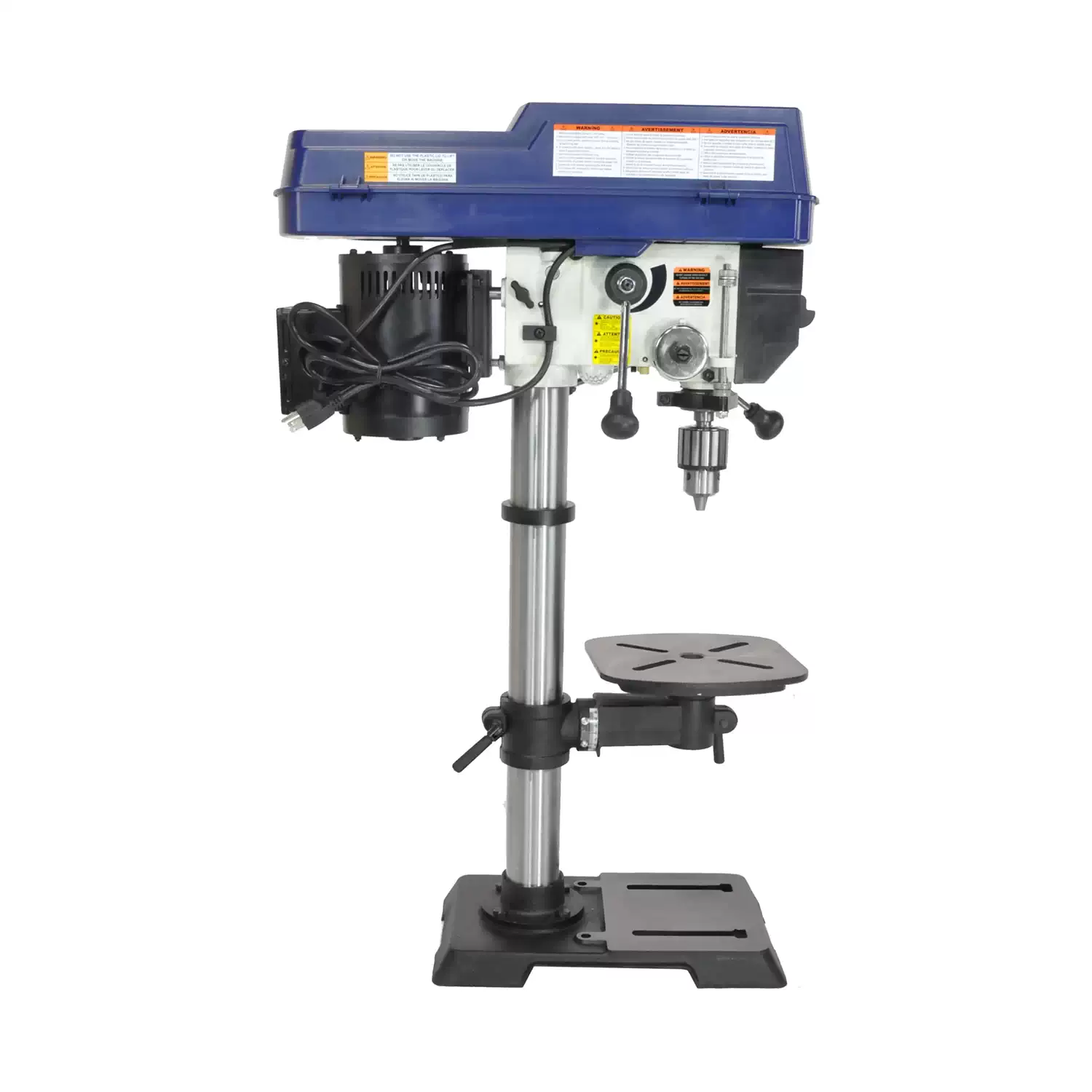

Rikon 30-212VS Variable Speed 12″ Bench Top Drill Press, 3/4HP 5A

The Rikon 30-212VS 12-inch variable speed bench top drill press is a compact benchtop drilling machine built for accurate hole drilling in wood, plastics, composite materials, and metal. It features a 3/4 HP motor, variable speed control, digital RPM display, LED work light, laser X-Y guides, 5/8-inch chuck capacity, and a rotating, tilting table for more flexible setup.

The Rikon 30-212VS is designed for buyers who want more adjustability and feedback than a basic benchtop drill press. RIKON’s current product page lists a 3/4 HP motor, variable speed control, digital RPM readout, LED work light, laser X-Y drilling guides, and a 5/8-inch chuck. The manual confirms a speed range of 150 to 700 RPM and 600 to 2,800 RPM, a 1-inch drilling capacity, 3-5/32-inch spindle travel, and MT2 spindle taper, giving the machine useful range for woodworking, plastics, composite materials, and light metal drilling.

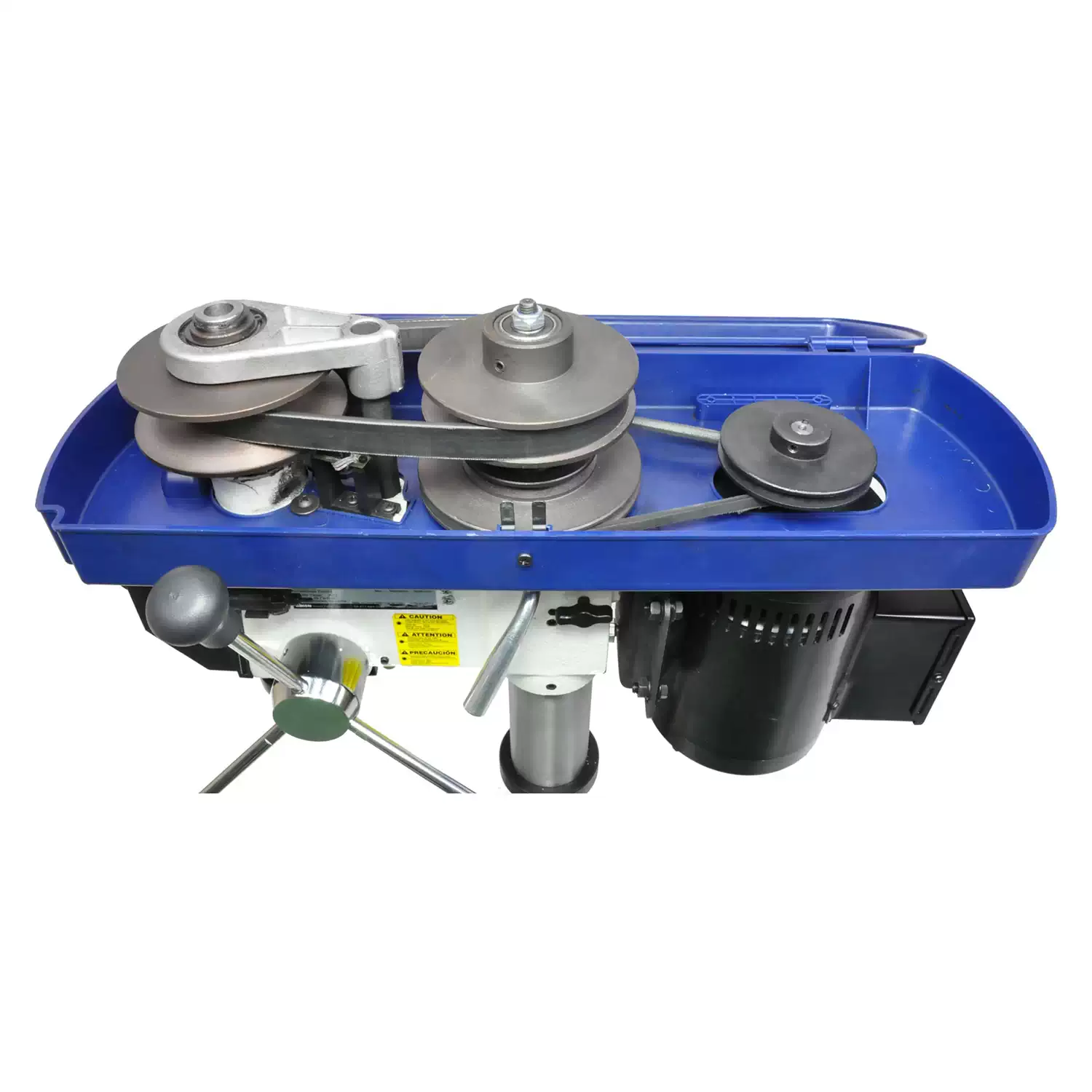

A few details from the manual are worth calling out because customers usually care about them. The head rotates 360 degrees, the table also rotates 360 degrees, and the table tilts 90 degrees left and right for angle drilling or special setups. The speed system is variable by lever, but the machine uses two variable-speed ranges, so switching between low and high ranges requires repositioning the rear drive belt. The manual also notes the drill press should be securely fastened to a bench or stand, and it includes a removable switch key to help prevent unauthorized use.

Rikon Variable Speed 12″ Bench Top Drill Press At a Glance

• 3/4 HP Motor: More power than light-duty hobby drill presses for routine shop drilling.
• Variable Speed Control: Adjust chuck speed by lever instead of fixed-step pulley changes for routine speed changes.
• Digital RPM Display: Lets users see spindle speed on the front of the machine.
• LED Work Light and Laser X-Y Guides: Helps improve visibility and drilling alignment at the table.
• 5/8″ Chuck Capacity: Accepts larger shank sizes than many small benchtop drill presses.
• 1″ Drilling Capacity: Supports a wider range of shop drilling work.
• 360° Rotating Head: Adds setup flexibility for specialized drilling positions.
• 360° Rotating Table: Makes it easier to position work and clamps.
• 90° Left and Right Table Tilt: Useful for angled drilling setups.
• Bench-Mount Base: Base includes mounting points for  securing it to a stand or bench.

Quick Specs

• Brand: RIKON
• Manufacturer Part Number: 30-212VS
• UPC: 814463013855
• Power Source: Corded electric
• Voltage: 120V, 60Hz
• Amperage: 5A
• Motor: 3/4 HP
• Chuck Capacity: 5/8″
• Drilling Capacity: 1″
• Speed Range: 150 to 2,800 RPM in two variable ranges
• Weight: 102.5 lbs net

Markets

• Woodworking Shops: Good fit for accurate drilling in jigs, fixtures, joinery parts, and furniture components.
• Cabinet and Millwork Shops: Variable speed and depth-stop control support repeat drilling work.
• Maintenance Benches: Useful for repair work, brackets, hardware drilling, and small shop fabrication.
• Advanced DIY Workshops: Strong option for buyers wanting more than a basic homeowner drill press.
• School and Training Shops: Practical feature set for demonstration and setup work, though RIKON’s warranty limits coverage for educational use to two years.
• Light Metalworking: Manual states the machine is intended for wood, composites, plastics, ferrous, and non-ferrous metals within its capacity limits.

The Rikon 30-212VS is a good choice for buyers who want a bench top drill press with more control, better visibility, and easier speed adjustment than a standard fixed-speed unit. The variable-speed lever, LED RPM display, work light, and laser crosshair system all make day-to-day drilling more manageable, especially when moving between different bit sizes and materials.

It also offers some setup flexibility that customers often overlook when comparing drill presses. The rotating head, rotating table, left-and-right table tilt, MT2 spindle taper, and 5/8-inch keyed chuck give it a broader working range than many small benchtop models. One thing worth noting is that it uses two variable-speed ranges, so while routine speed changes are made with the lever, changing from the low range to the high range still requires moving the rear belt. That is useful context for buyers comparing this machine to fully electronic variable-speed drill presses.

Rikon 30-212VS Variable Speed 12″ Bench Top Drill Press, 3/4HP 5A Features

• Powerful 3/4 HP Motor: Provides the power needed for general shop drilling.
• Variable Speed Control Lever: Adjusts spindle speed with a simple turning of a lever.

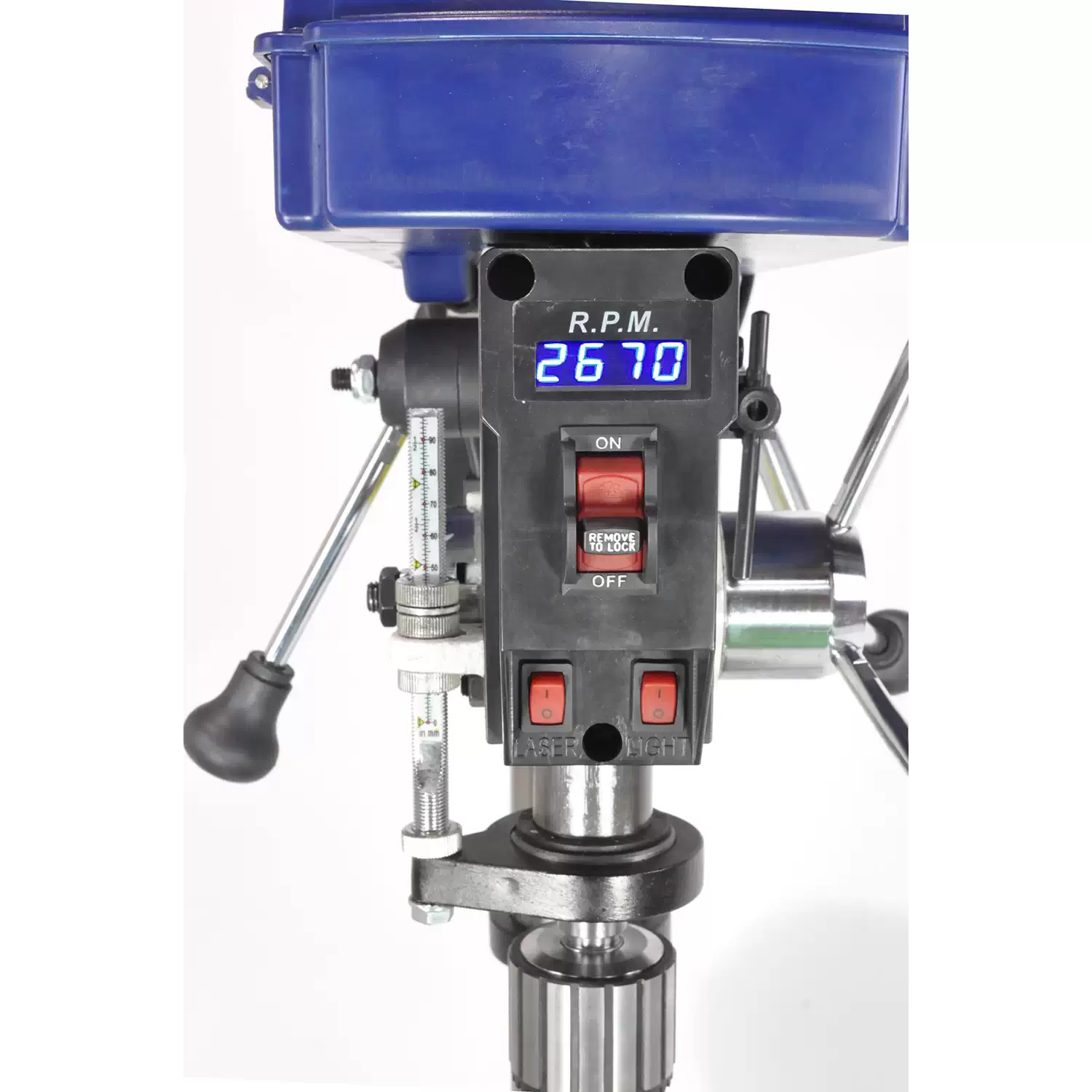

• LED Digital Display: Shows spindle RPM on the front panel.
• LED Work Light: Lights the work area from behind the spindle area to reduce shadowing.

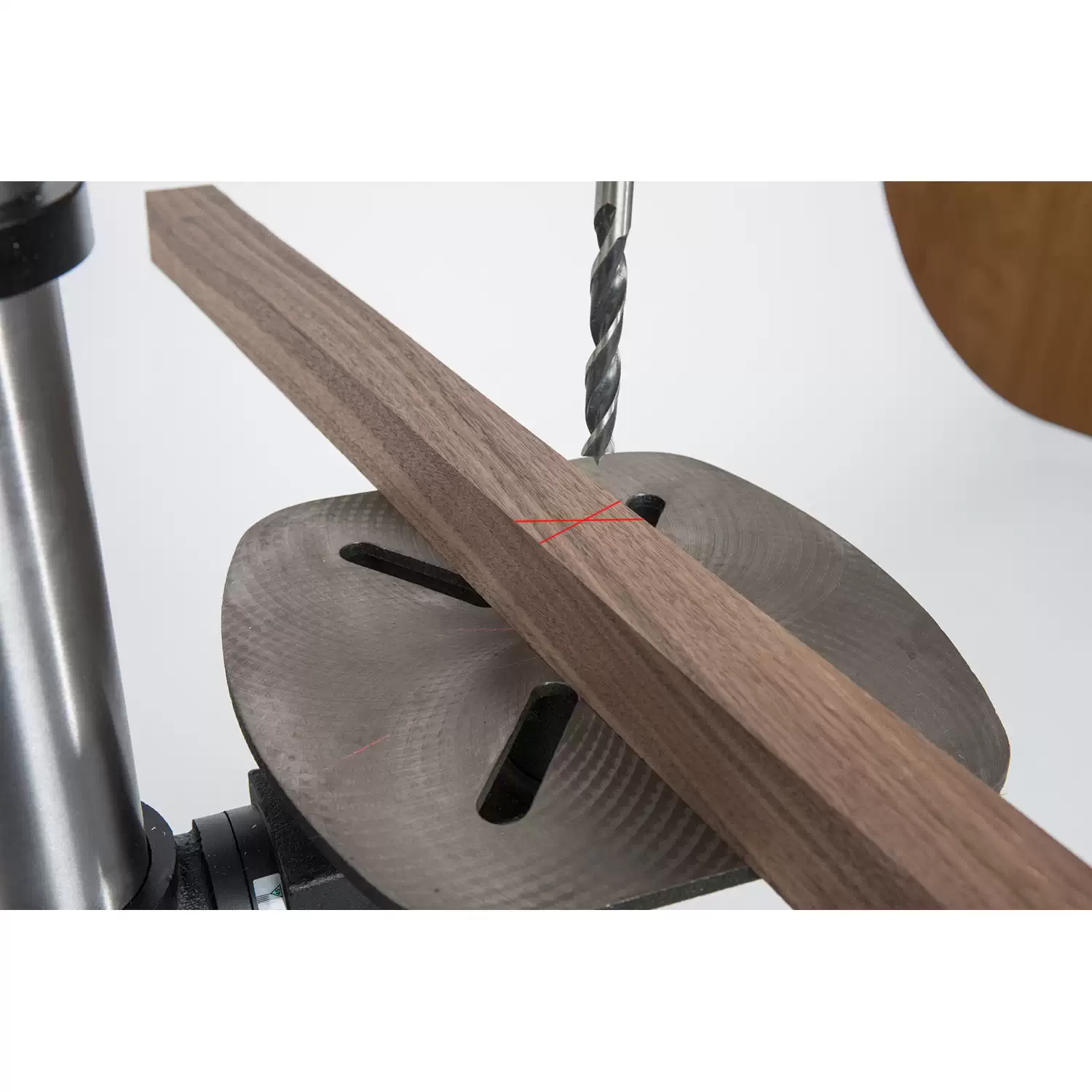

• Laser X-Y Guides: Projects intersecting crosshairs to indicate the drilling center point.
• 5/8″ Keyed Chuck: Accepts drill bits with shanks from 1/32 inch to 5/8 inch.
• 1″ Drilling Capacity: Supports larger hole work within machine limits.
• 3-5/32″ Spindle Travel: Gives useful depth capacity for repeated drilling operations.
• 360° Rotating Head: Allows broader positioning options for certain drilling setups.
• 360° Rotating Table: Helps reposition work and clamps around the column.
• 90° Left and Right Table Tilt: Supports angled drilling applications.
• Depth Stop with Quick-Set Nut: Helps repeat holes at the same depth.
• Removable Safety Switch Key: Helps prevent unauthorized startup when the machine is not in use.

Compatible Accessories / Works Well With

• RIKON 29-202 Mortising Attachment Kit: Accessory for the drill press family
• 5/8″ Shank-Compatible Drill Bits and Cutters: Machine accepts bits and accessories with shanks up to 5/8 inch.
• Drill Press Vise and Clamping Jigs: The table includes slots for mounting clamps and jigs for clamping work securely.
• Bench or Stand Mounting Hardware: RIKON recommends fastening the drill press securely to a bench or stand.

Rikon 30-212VS Variable Speed 12″ Bench Top Drill Press, 3/4HP 5A Includes

• (1) Drill Press Head Assembly
• (1) Base
• (1) Column Assembly
• (1) Table
• (1) 5/8″ Chuck
• (1) Arbor JT3-MT2
• (1) Chuck Key
• (1) Speed Handle
• (3) Feed Handles
• (1) Crank Handle
• (1) Table Bracket Lever Handle
• (1) Table Arm Lever Handle
• (4) Hex Head Bolts
• (2) Hex Wrenches
• (1) Special Wrench
• (1) 16mm Wrench
• (1) Drift Wedge

Rikon 30-212VS Variable Speed 12″ Bench Top Drill Press, 3/4HP 5A Specifications

• Brand: RIKON
• Manufacturer Part Number: 30-212VS
• UPC: 814463013855
• Product Type: Bench top drill press
• Motor: 3/4 HP
• Motor Speed: 1,130 RPM no load
• Voltage: 120V
• Amperage / Frequency: 5A, 60Hz
• Swing: 11-13/16″
• Chuck Size: 1/32″ to 5/8″
• Chuck Taper: JT3
• Drilling Capacity: 1″
• Spindle Travel: 3-5/32″
• Spindle Taper: MT2
• Head Rotation: 360°
• Speed Range: Variable 150-700 and 600-2,800 RPM
• Quill Diameter: 1-9/16″
• Table Size: 9-1/2″ x 9-1/2″
• Table Tilt: 90° left and right
• Table Rotation: 360°
• Maximum Chuck to Table: 12-13/16″
• Maximum Chuck to Base: 19-1/2″
• Column Diameter: 2-9/16″
• Overall Height: 38-3/16″
• Overall Base Size: 16-9/64″ x 9-7/8″
• Net Weight: 102.5 lbs

Rikon 30-212VS Variable Speed 12″ Bench Top Drill Press, 3/4HP 5A Warranty

• Rikon’s 5 Year Limited Warranty or 2 Year Limited Warranty for commercial, industrial, or educational use.

Why Customers Choose the Rikon Variable Speed 12″ Bench Top Drill Press

Customers choose the Rikon 30-212VS because it combines bench top size with features that are usually more important in real shop use than raw swing alone. The variable speed control, digital RPM display, LED work light, and laser crosshairs all make setup easier and help users work with better consistency on repeated holes and layout-sensitive drilling.

It also stands out for flexibility. The 5/8-inch chuck, 1-inch drilling capacity, rotating head, rotating table, and left-right table tilt give this bench top drill press more setup range than many compact models. For buyers searching for a benchtop drill press for woodworking, maintenance work, and general shop drilling, this machine offers a practical balance of capacity, visibility, and control without moving up to a floor-standing unit.
