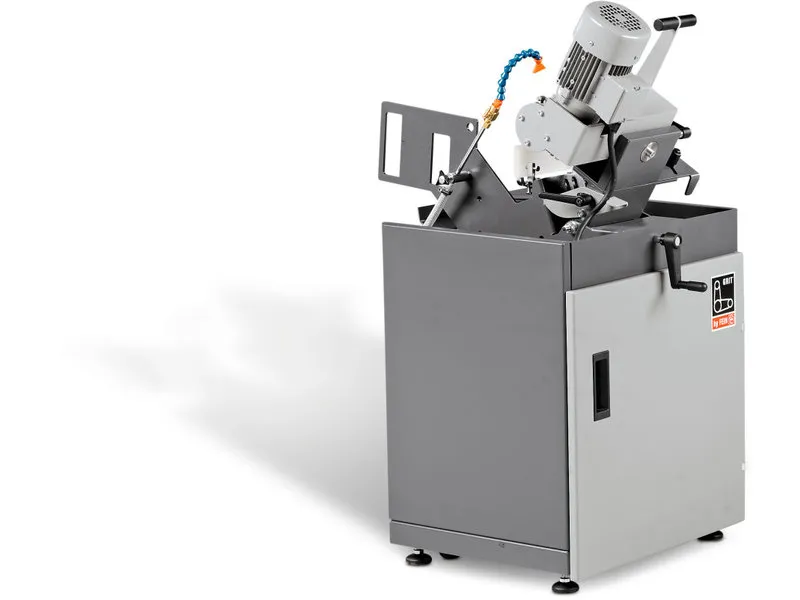

FEIN 79021209573 Cylindrical grinding module|GIC

Cylindrical grinding module|GIC|Cylindrical grinding module for industrial volume production

FEIN 79021209573 Cylindrical grinding module|GIC Features

• For industrial cylinder grinding of pipe up to 19.8 ft [6 m] in length with optional pipe guide.
• Flexible processing of pipe from 3/8 – 5-1/8 in [10 – 130 mm] diameter.
• Cool surfaces and extended grinding belt service life by means of wet grinding in combination with the cooling lubricant module GXW.
• Optional combination with GI 75 (2H) and GI 150 (2H) belt grinders.
• Quick-release attachment for easy, tool-free changes.
• Continuously variable feeder speed from 0 – 78-3/4 in/min [0 – 2 m/min].

FEIN 79021209573 Cylindrical grinding module|GIC Includes

• 1 Guide rail nylon
• 1 Guide rail brass
• 1 CEE plug (16A)

FEIN 79021209573 Cylindrical grinding module|GIC Specifications

• Power consumption: 0.18 kW
• Current/Voltage: 3 x 575V 60Hz
• Pipes up to ?: 1/2 [10] – 5 [130] in[mm]
• Belt dimension: 3 [75] /6 [150] x 78-3/4 [2,000] in[mm]
• Advance: 0 – 7 [2] ft/min[m/min]
• Weight: 143.3 [65] lbs[kg]
