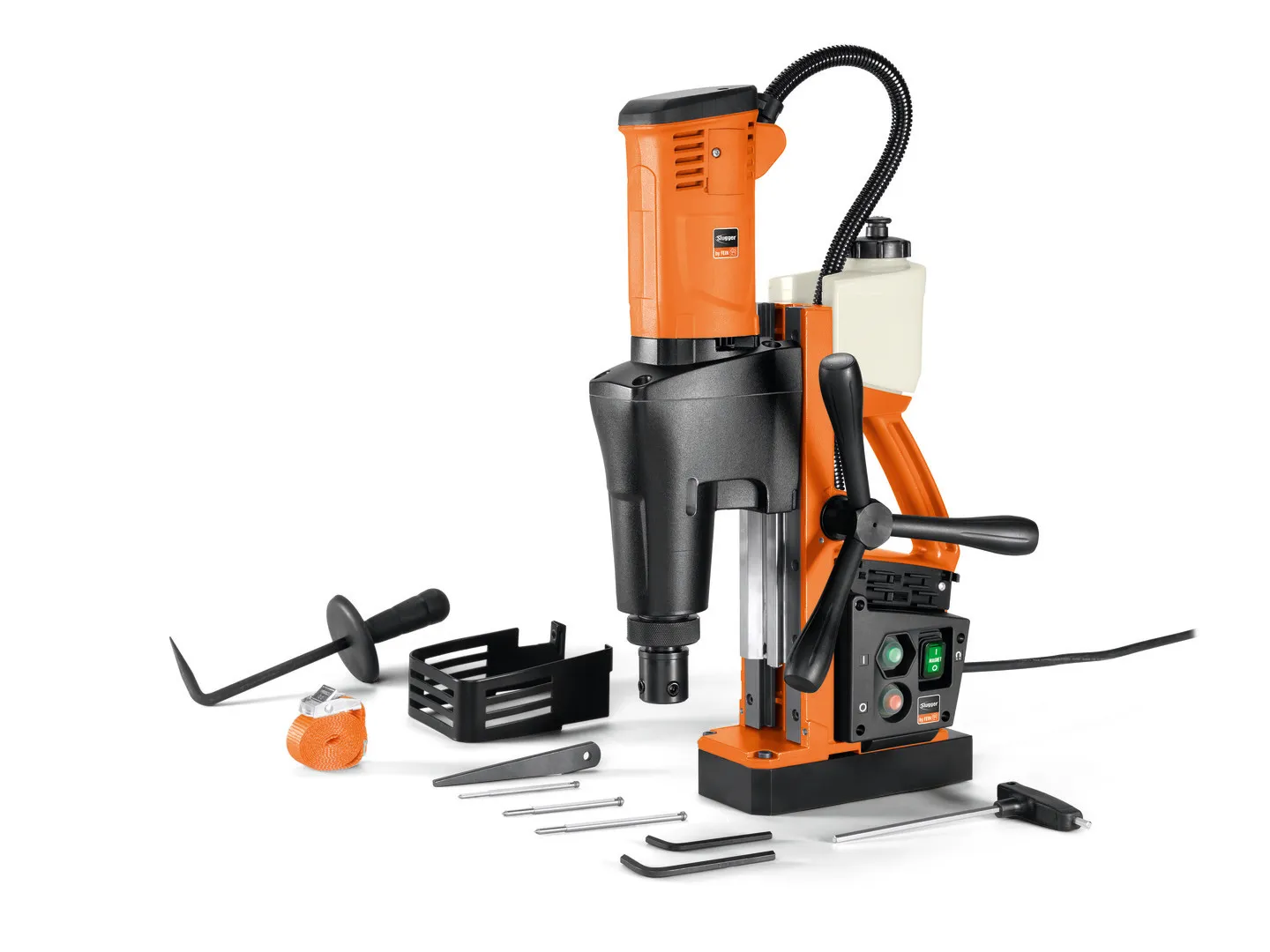

FEIN 72706961090 Endurance magnetic core drill up to 2 [50] in[mm]|JME USA 202 M

Endurance magnetic core drill up to 2 [50] in[mm]|JME USA 202 M|Lightweight and powerful 2-speed Endurance magnetic base drill with MT3 tool mounting and basic functionality for core drilling and twist drilling in the workshop and at the construction site.

FEIN 72706961090 Endurance magnetic core drill up to 2 [50] in[mm]|JME USA 202 M Features

• For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
• Slugger by FEIN high-performance motor with high torque for use with carbide and HSS core drills and extra-large stroke range for twist drilling.
• Uncompromising service life and work progress for an excellent price/performance ratio.
• Mechanical 2-speed gearbox.
• Higher RPM for optimal use with carbide cutters.
• MT3 tool mounting.
• High magnetic holding force.
• Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
• Optimum power-to-weight ratio.
• Integrated coolant tank.
• Hand feed wheel can be mounted either side.
• Integrated hexagon socket holder.
• * optional using accessory.

FEIN 72706961090 Endurance magnetic core drill up to 2 [50] in[mm]|JME USA 202 M Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 centering pin dia. 1/4 x 4 [6.35 x 100] in[mm]
• 1 centering pin dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
• 1 centering pin dia. 3/16 x 3-1/8 [4.75 x 80] in[mm]
• 1 chip guard
• 2 hexagonal socket keys, 5 and 6 mm
• 1 hexagonal socket key with T-grip, 5 mm
• 1 drift
• 1 case

FEIN 72706961090 Endurance magnetic core drill up to 2 [50] in[mm]|JME USA 202 M Specifications

• Power consumption: 1,280 W
• Power output: 616 W
• Full load speed: 260 / 520 rpm
• No load speed: 350 / 680 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 2 [50] in[mm]
• Cutter max. drilling depth: 2 [50] (3 [75] *) in[mm]
• Twist drill max. dia.: 7/8 [23] in[mm]
• Cutter holder: 3/4″ Weldon
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2810 [12,500] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 3-9/16 [90] in[mm]
• Cable with plug: 9.8 [3] ft[m]
• Weight: 30.86 [14.00] lbs[kg]
