FEIN 72704761120 Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U

Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U|High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.

FEIN 72704761120 Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U Features

• Stable speed, even in the toughest applications.
• Fine drill spindle adjustment for convenient machine alignment.
• Double drill motor guides enable use of the longest annular cutters.
• Reversible
• Electronic speed control.
• MT3 interface.
• High magnetic holding force.
• Convenient magnetic holding force display.
• Integrated coolant tank.

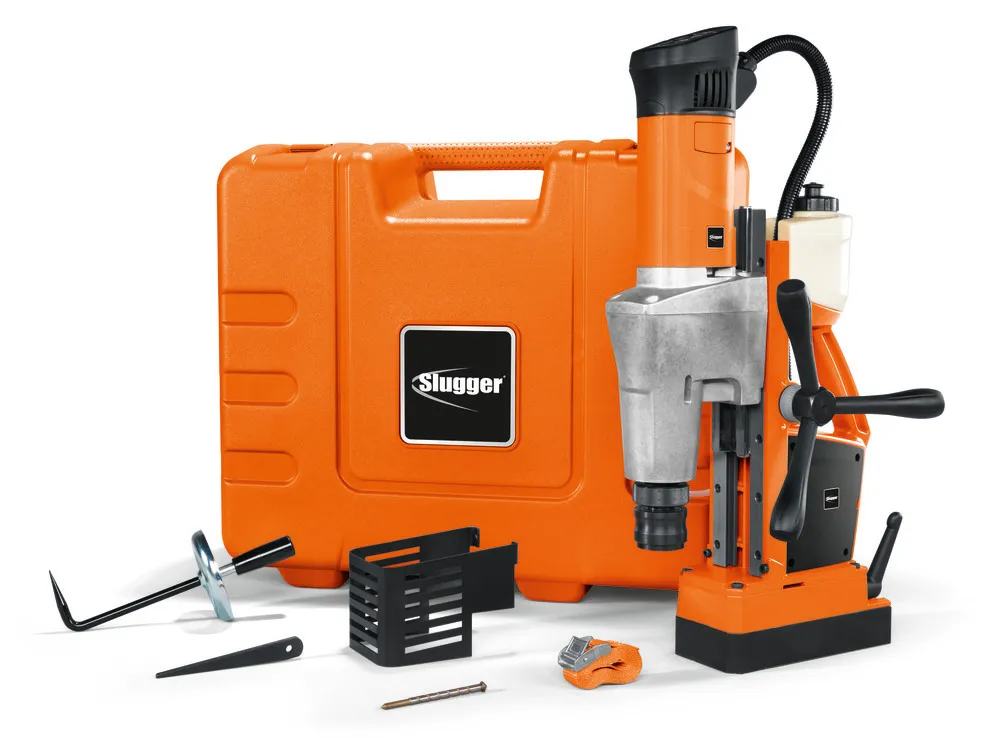

FEIN 72704761120 Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U Includes

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 pilot pin 4 1/8 in (105 mm)
• 1 chip guard
• 1 drift
• 1 case

FEIN 72704761120 Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U Specifications

• Power consumption: 1,300 W
• Power output: 730 W
• Load speed: 1st gear: 120 – 240 rpm
• Load speed: 2nd gear: 260 – 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2-1/2 [65] in[mm]
• HSS cutter max. dia.: 1-3/4 [45] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 1 [25] in[mm]
• Tapping: M 20
• Max. countersinking dia.: 2 [50] in[mm]
• Reaming max. dia.: 1 [25] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Drill stand adjustment range: 1/4 [6] in[mm]
• Drill stand angular adjustment: 7?
• Magnetic holding force: 3147 [14,000] lbs[N]
• Magnetic base dimensions: 8-1/16 [205] x 3-3/4 [95] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 35.05 [15.90] lbs[kg]
