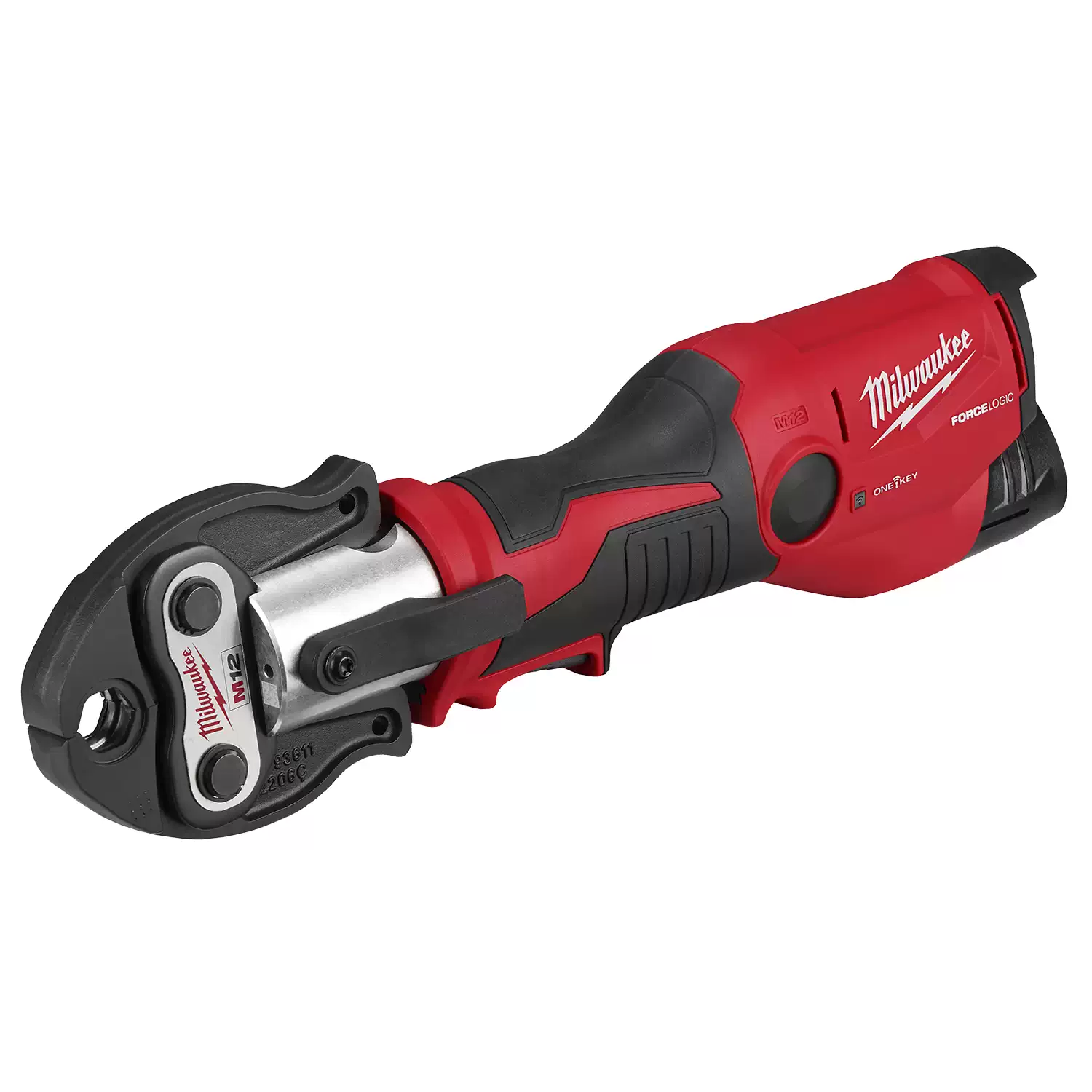

Milwaukee 2573-22 M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY (2) 2AH

The Milwaukee 2573-22 M12 FORCE LOGIC Press Tool Kit with ONE-KEY is a 12V cordless press tool kit for professional plumbing, mechanical, and HVAC work. This kit includes the M12 press tool, 1/2 in., 3/4 in., and 1 in. CTS-V copper press jaws, two M12 REDLITHIUM CP2.0 batteries, charger, and carrying case for compact press connections on installed pipe.

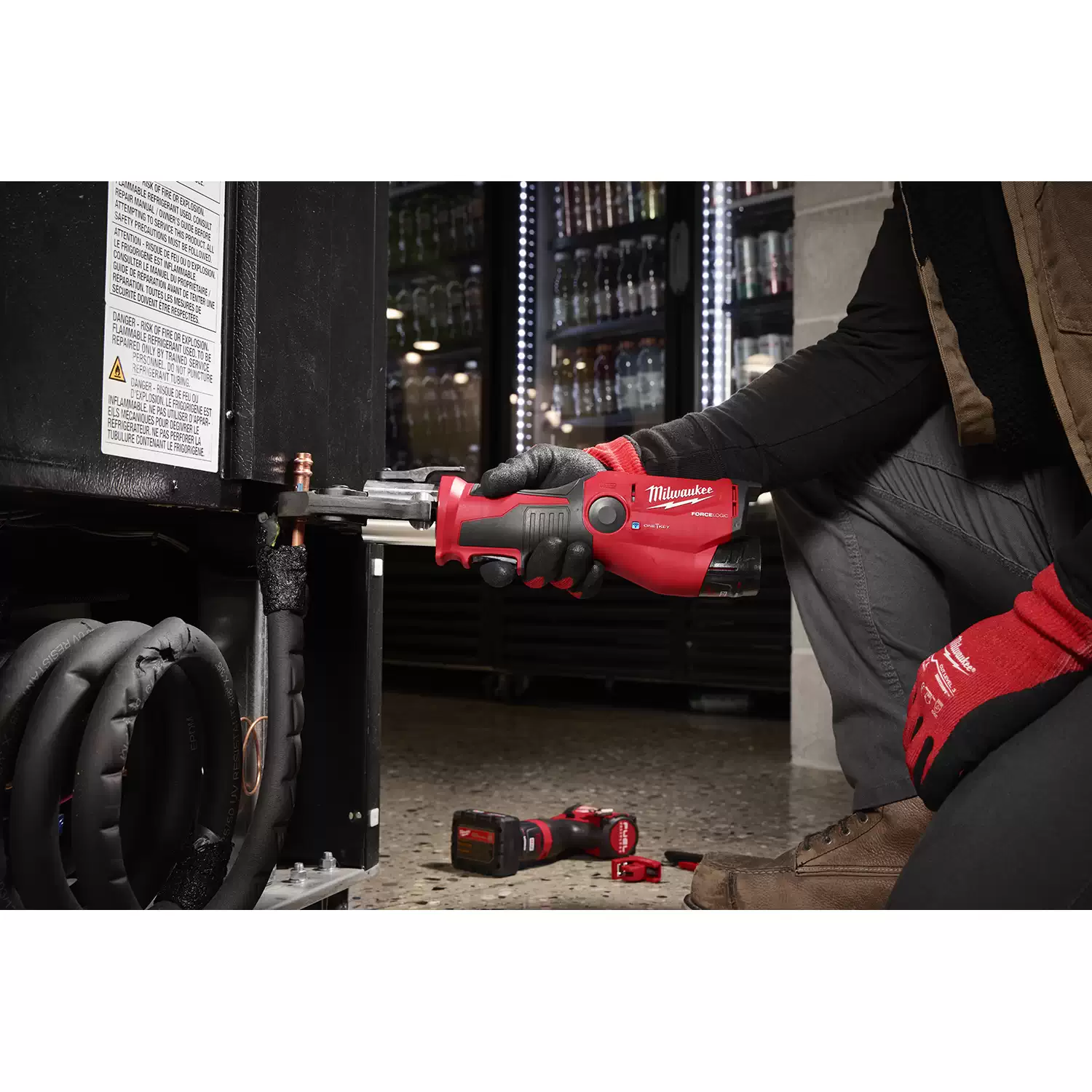

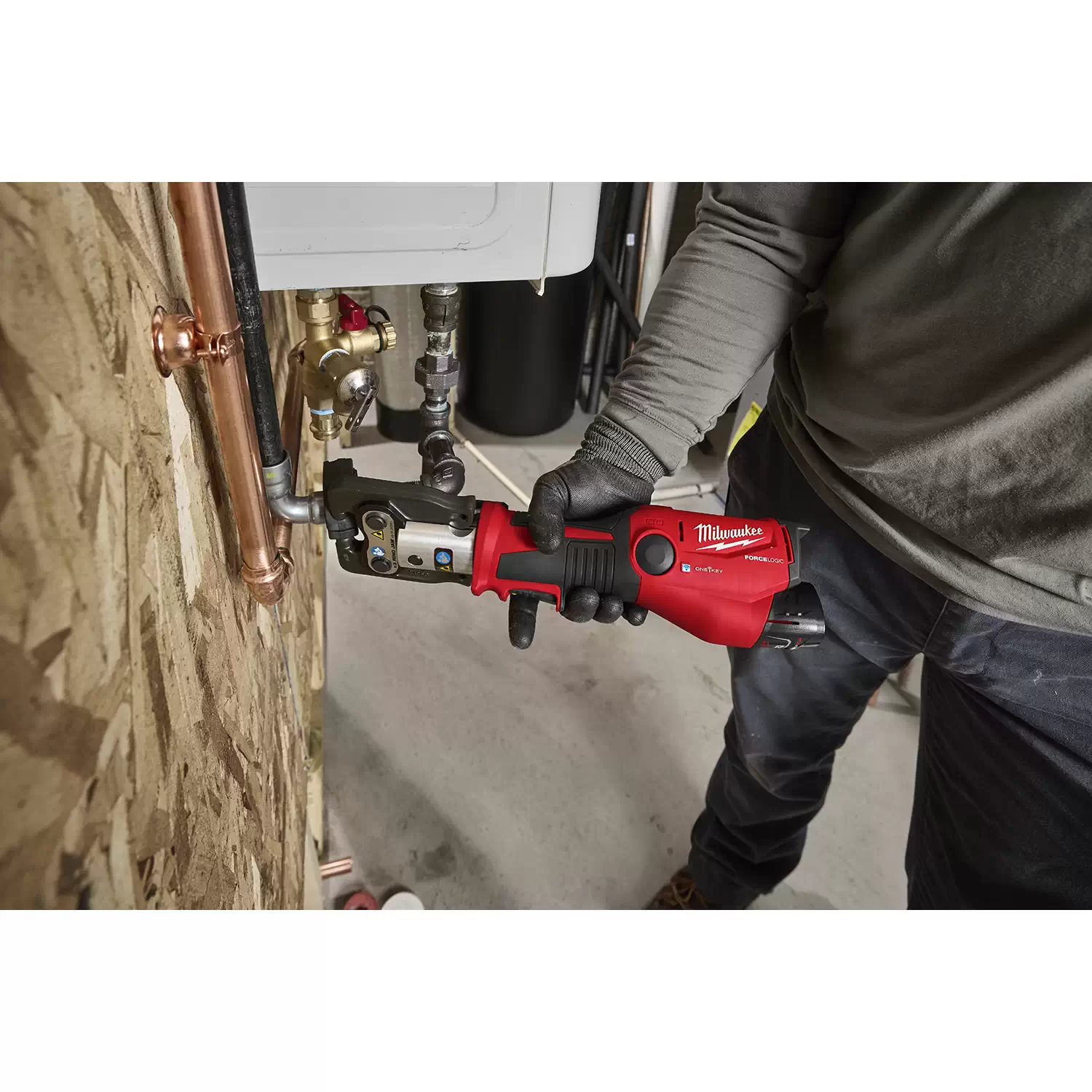

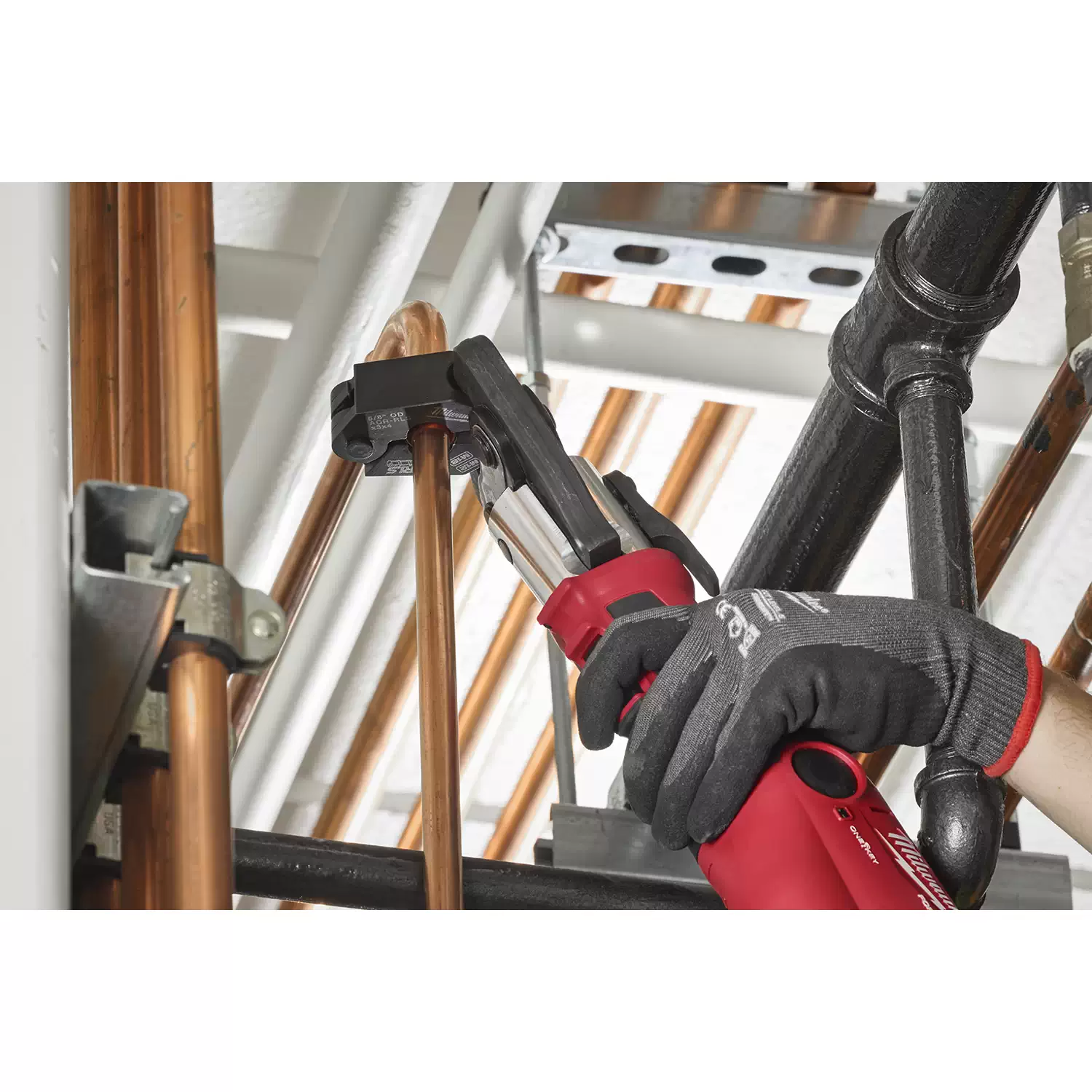

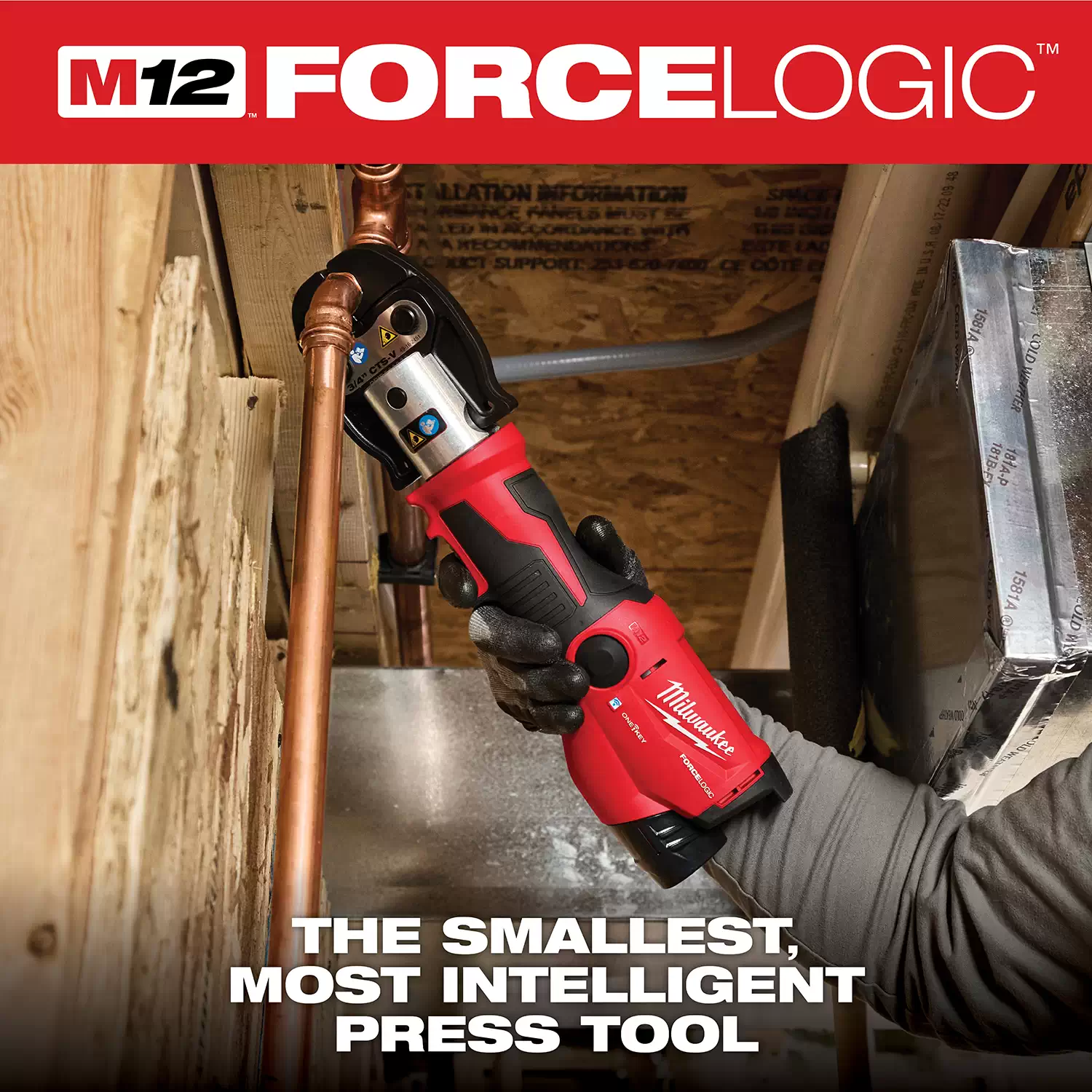

The Milwaukee 2573-22 M12 FORCE LOGIC Press Tool Kit with ONE-KEY is built for contractors who need a compact cordless press tool for tight access around installed piping. Its one-handed in-line design helps users work in confined mechanical rooms, wall cavities, service areas, and retrofit spaces where larger press tools may be difficult to position. The tool is powered by Milwaukee M12 REDLITHIUM batteries and works on the M12 cordless system.

With the proper Milwaukee press jaws, this M12 press tool supports connections on copper, PEX, black iron, stainless steel, and ACR pipe systems. The included jaws are CTS-V copper jaws in 1/2 in., 3/4 in., and 1 in. sizes. Auto-Cycle helps complete each press cycle, while the Prepress Battery Check helps prevent the tool from starting a press it cannot finish. ONE-KEY support allows tracking, management, lockout, and time-stamped reporting for job documentation.

Milwaukee M12 Cordless FORCE LOGIC Press Tool Kit At a Glance

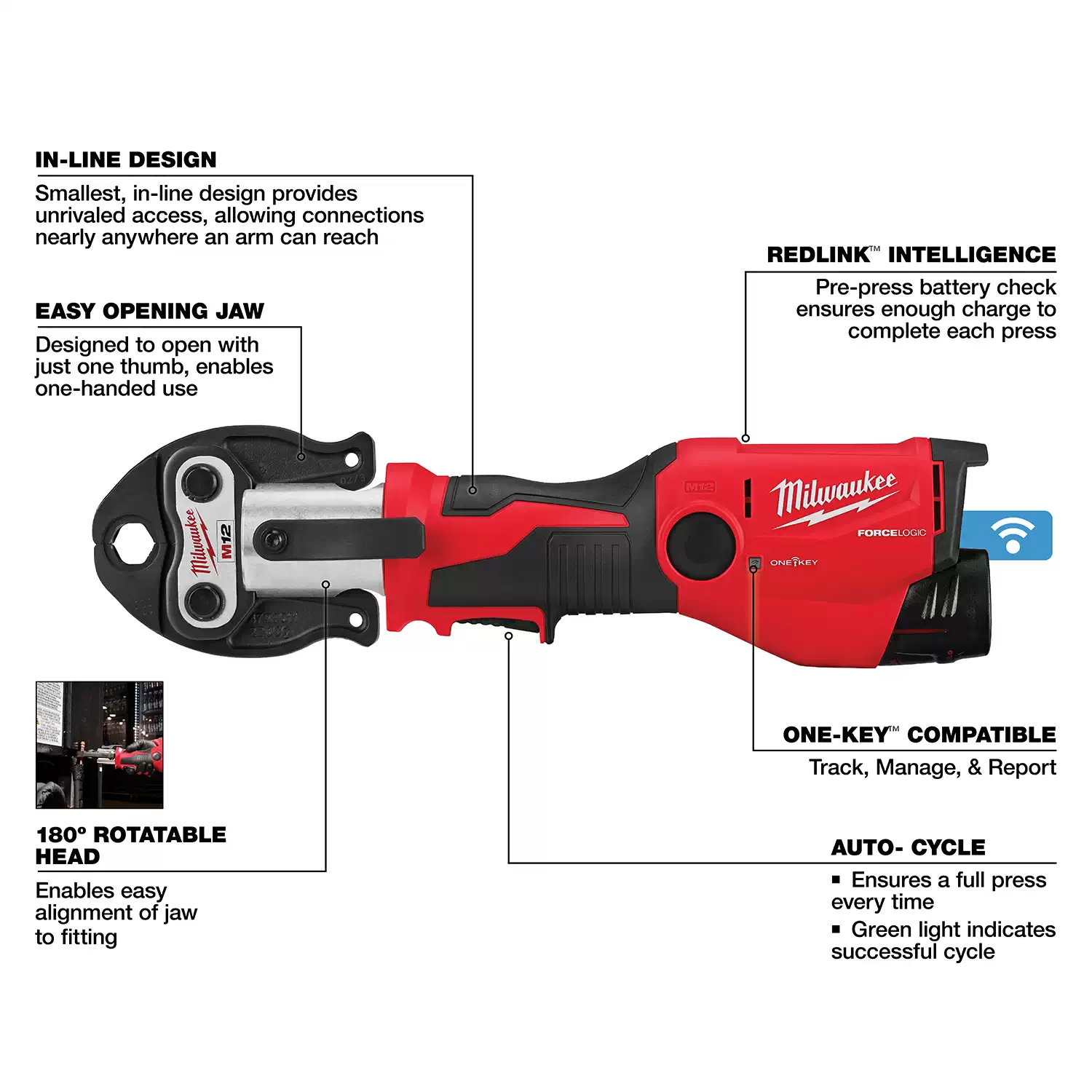

• Compact In-Line Design: Helps reach installed pipe in tight plumbing and mechanical spaces.
• ONE-KEY Enabled: Supports tool tracking, management, lockout, and time-stamped data logs.
• Auto-Cycle Function: Helps complete the full press cycle with each use.
• Prepress Battery Check: Helps prevent the tool from starting a press it cannot complete.
• 37,000-Cycle Service Interval: Reduces downtime between required service inspections.
• Copper Jaw Kit Included: Comes with 1/2 in., 3/4 in., and 1 in. CTS-V press jaws.
• Multi-Material Capability: Supports copper, PEX, black iron, stainless steel, and ACR with correct jaws.
• M12 Battery Platform: Compatible with Milwaukee M12 batteries and chargers.
• Professional Warranty Coverage: Includes 5-year tool, 2-year battery, and 2-year jaw warranty.

Quick Specs

• Brand: Milwaukee Tool
• Manufacturer Part Number: 2573-22
• UPC: 045242617142
• Power Source: Cordless
• Voltage: 12V
• Battery Platform: Milwaukee M12 REDLITHIUM
• Included Battery Type: M12 REDLITHIUM CP2.0
• Force: 5,400 lbs / 24 kN
• Maximum Copper Pipe Size: 1-1/4 in.
• Maximum Black Iron Pipe Size: 1 in.
• Maximum PEX Pipe Size: 1-1/2 in.
• Maximum ACR Pipe Size: 1-3/8 in.
• Service Interval: 37,000 press cycles
• Tool Weight: 3.69 lb
• Operating Mode: Cordless hydraulic press
• ONE-KEY Enabled: Yes

Markets

• Plumbing Contractors: For copper press connections and service work around installed pipe.

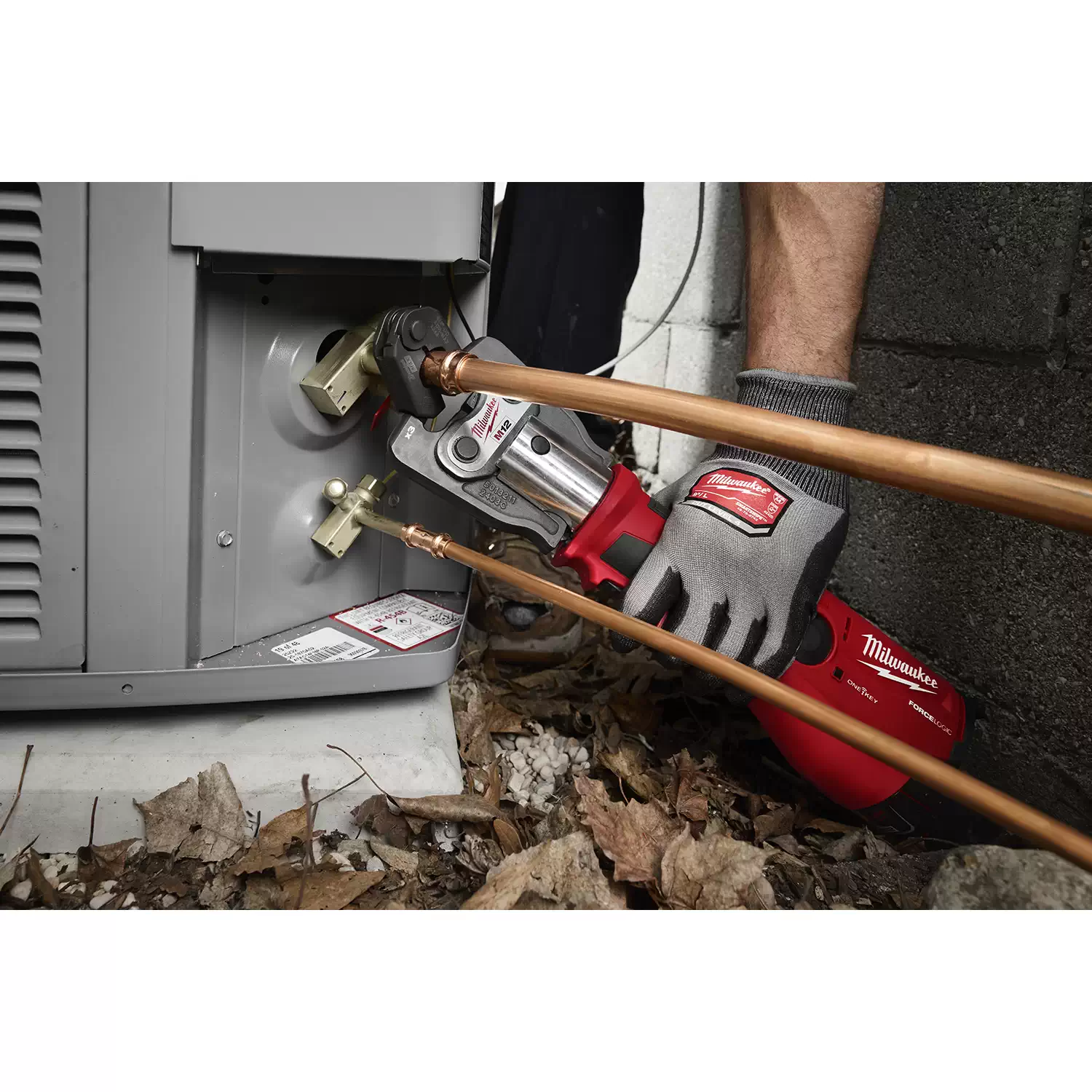

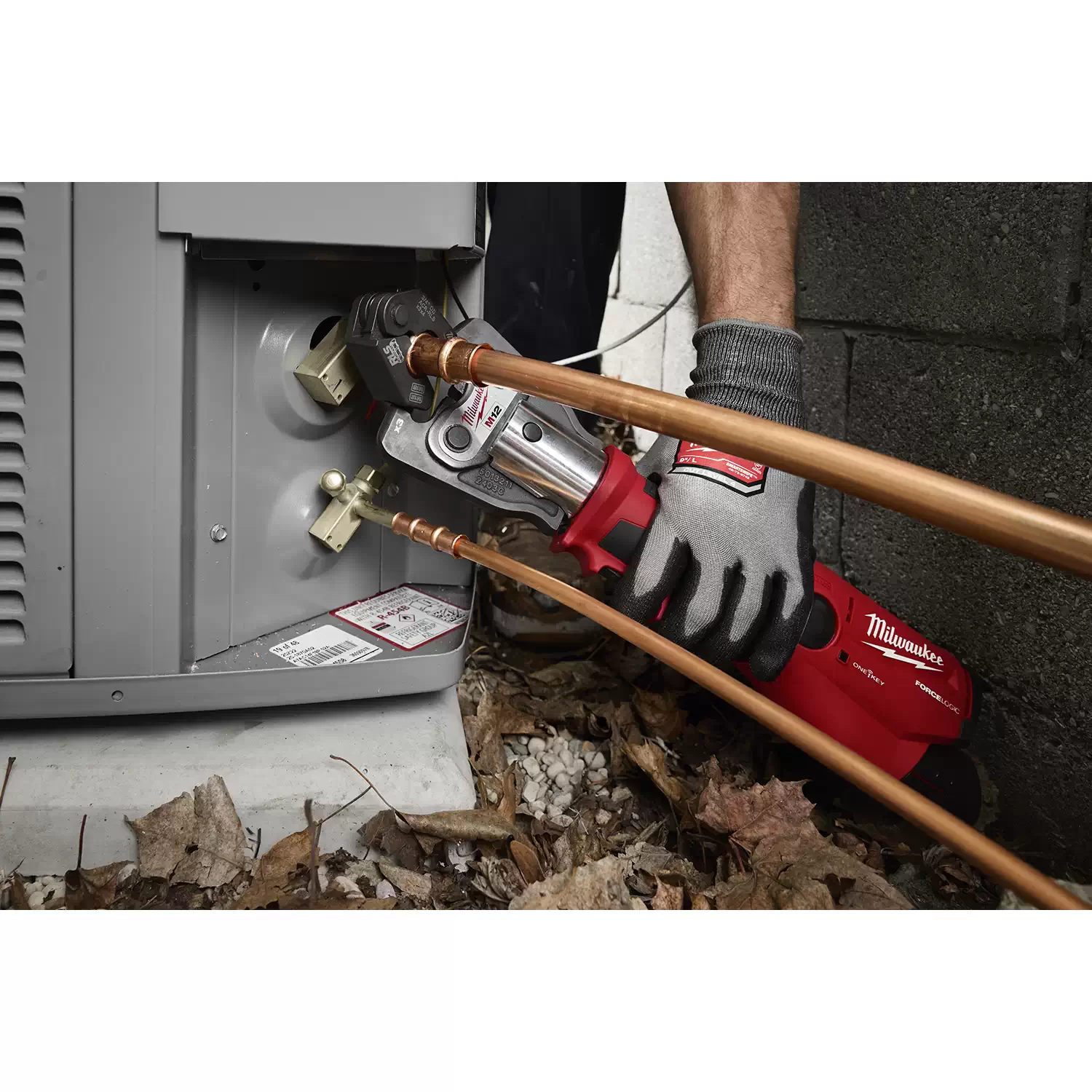

• HVAC Contractors: Useful for ACR copper applications when paired with the correct jaws.
• Mechanical Contractors: Supports press work in mechanical rooms, utility spaces, and retrofit projects.
• Commercial Maintenance Teams: Helps facilities teams complete pipe repairs with less open-flame work.
• Municipal Maintenance: Suitable for water, facility, and building maintenance departments.
• Schools and Institutions: Practical for maintenance teams supporting campus plumbing systems.
• Residential Service Contractors: Compact size supports service work in tight locations.
• Pipefitting and Heating Trades: Works with material-specific jaws for supported pipe systems.

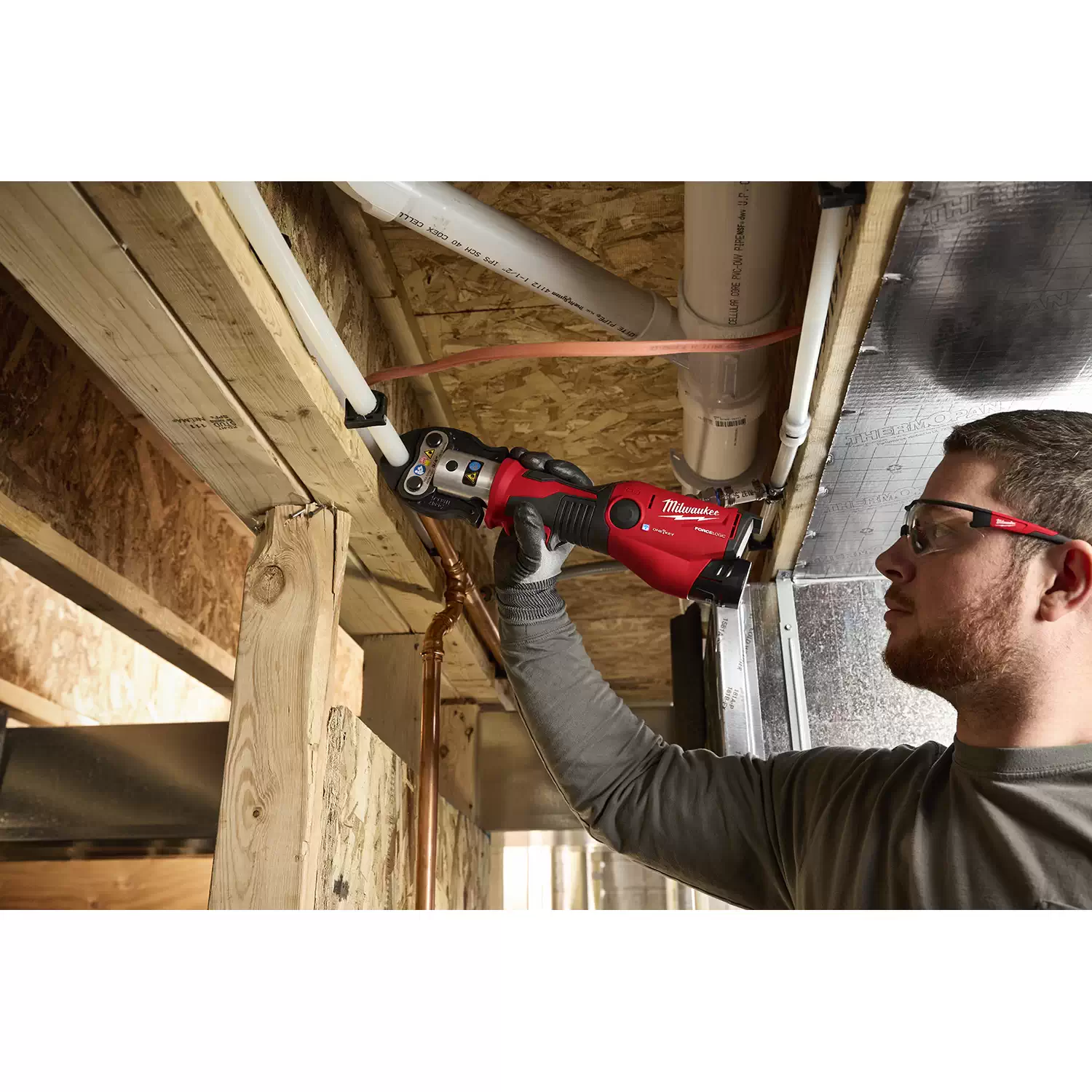

The Milwaukee 2573-22 M12 FORCE LOGIC Press Tool Kit gives plumbing and HVAC professionals a compact press tool setup for everyday service, repair, and installation work. Its M12 platform makes it easier to carry than larger press systems, while the in-line body helps users work around studs, joists, pipe racks, and installed lines. The included CTS-V jaws cover common 1/2 in., 3/4 in., and 1 in. copper press applications.

For contractors who need documentation and tool control, ONE-KEY adds tracking, management, lockout, and time-stamped data logs. Auto-Cycle and visual press feedback support consistent operation, while the 37,000-cycle service interval helps reduce interruptions on busy jobs. This kit is a strong fit for service vans, commercial maintenance departments, and plumbing crews that already use Milwaukee M12 cordless tools.

Milwaukee 2573-22 M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY (2) 2AH Features

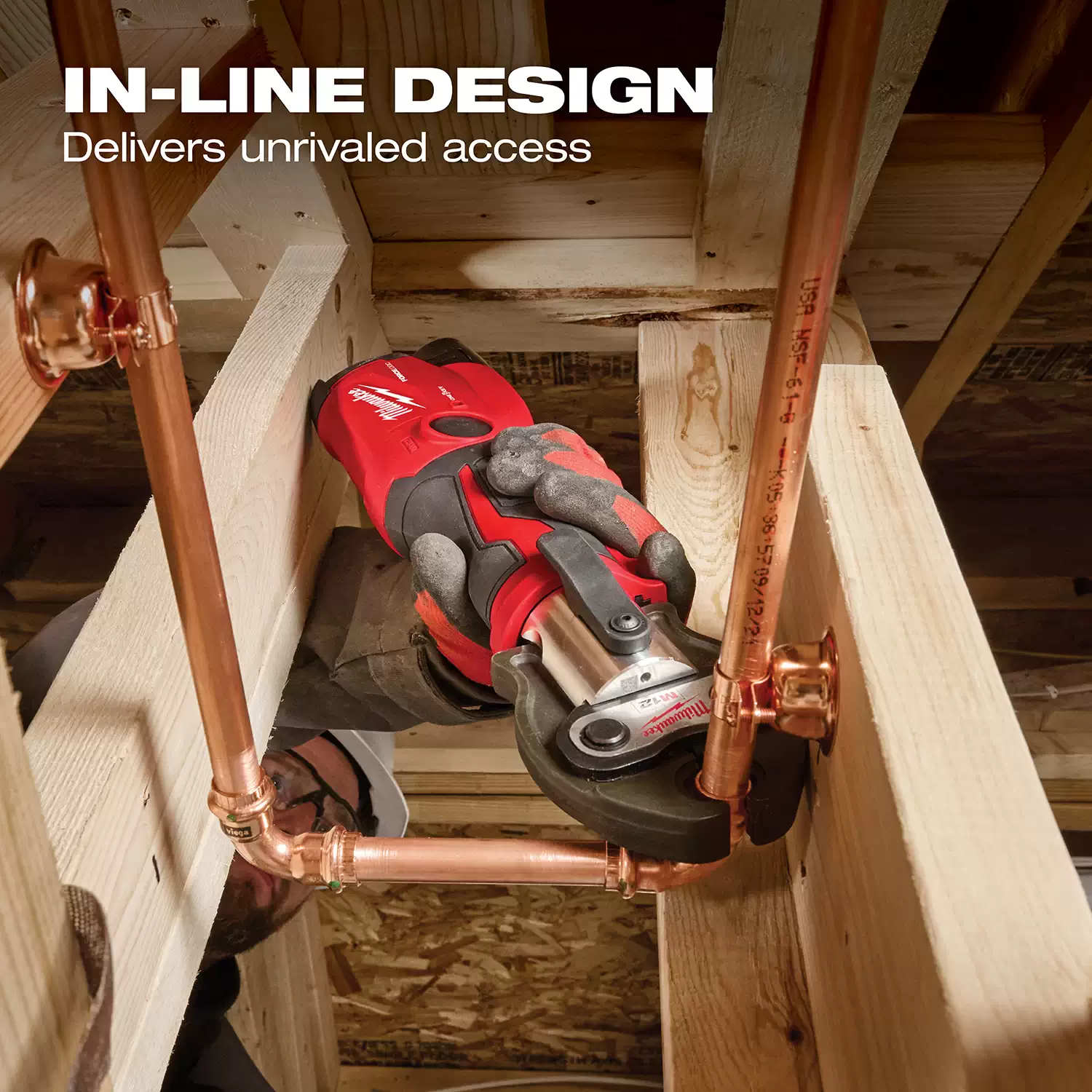

• In-Line Tool Design: Provides better access around installed pipe and tight work areas.
• One-Handed Operation: Helps improve control when working overhead, near walls, or in confined spaces.

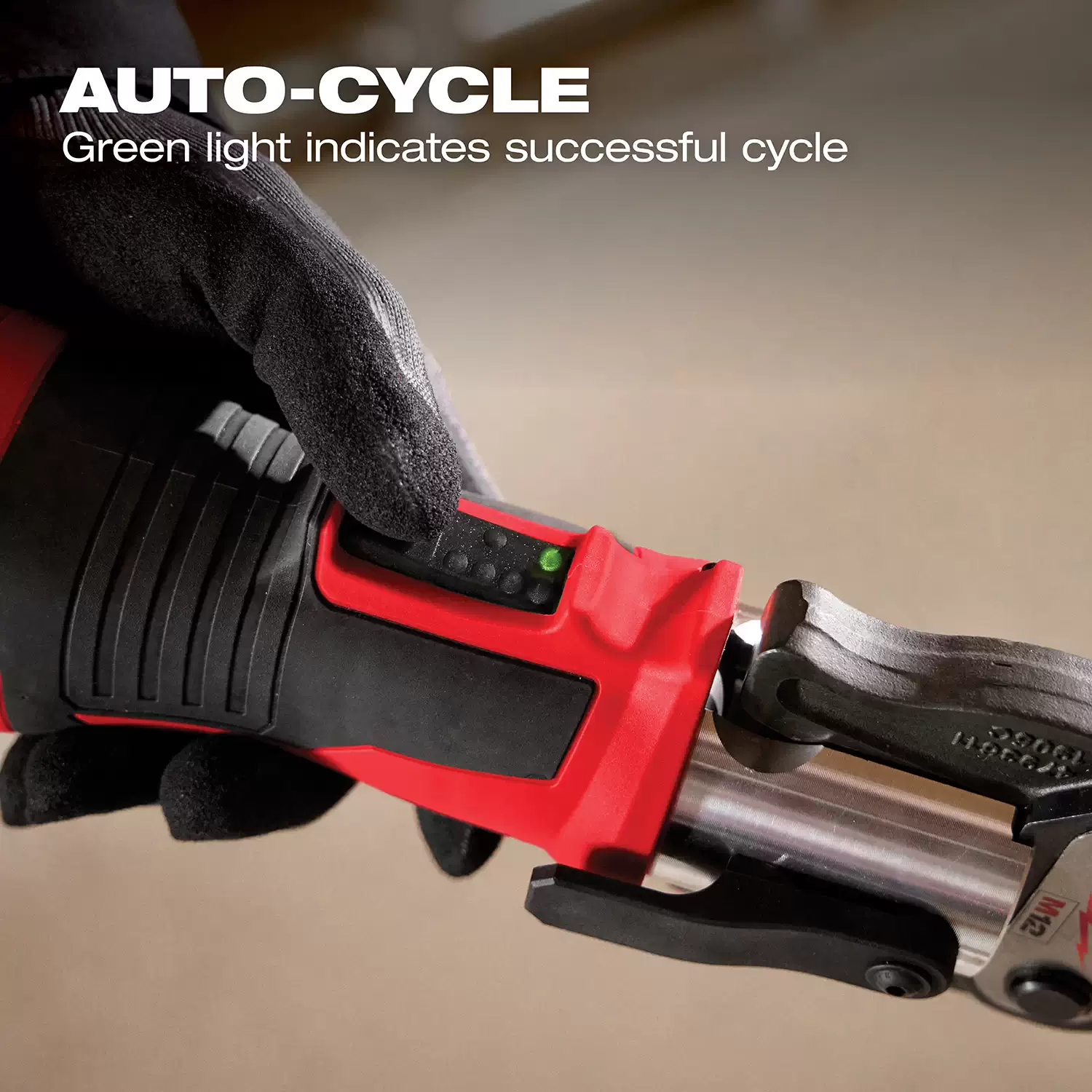

• Auto-Cycle Pressing: Completes the press cycle and provides visual feedback when the cycle is achieved.
• Prepress Battery Check: Helps prevent incomplete presses caused by insufficient battery charge.

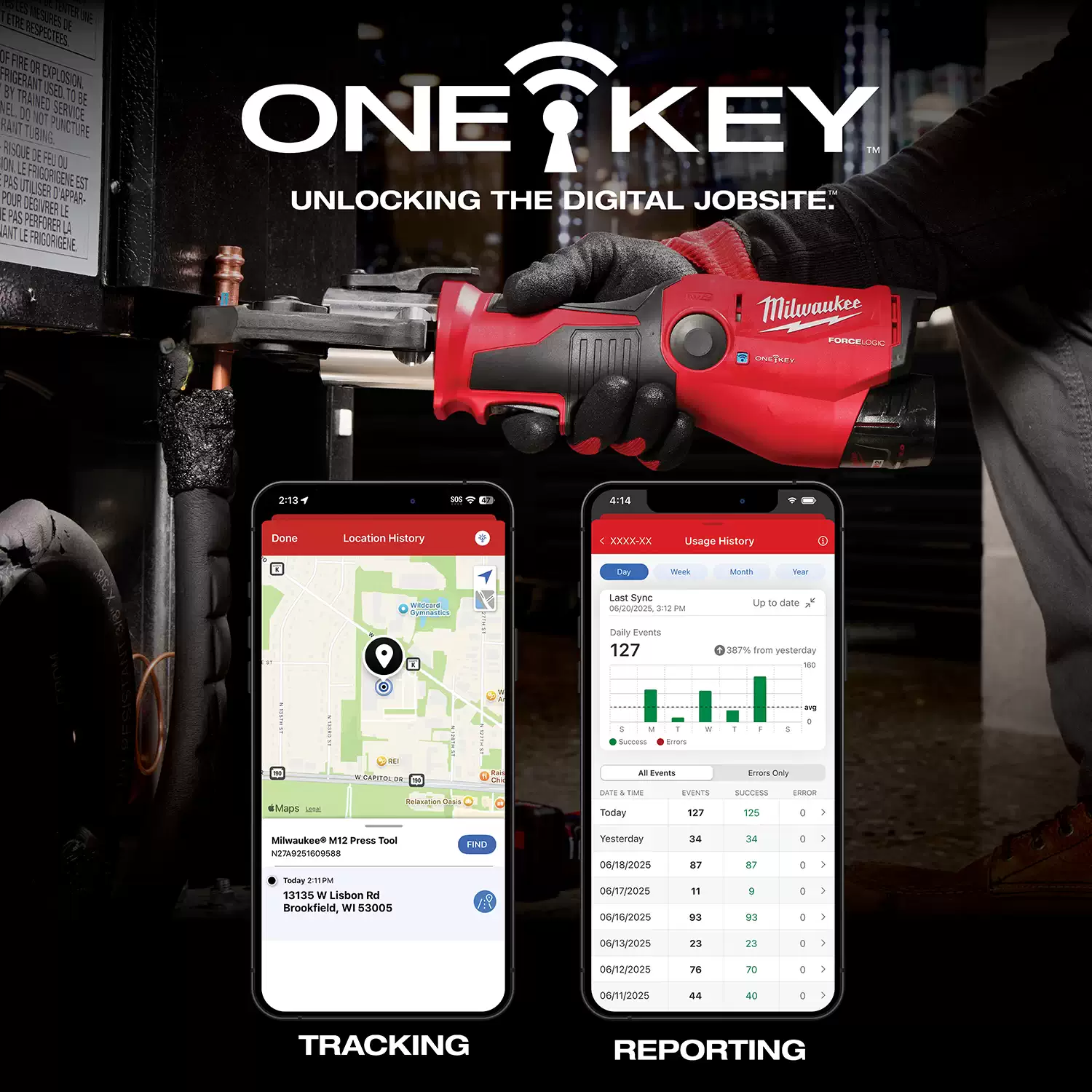

• ONE-KEY Tool Management: Allows tracking, management, reporting, and remote lockout.
• Time-Stamped Data Logs: Supports press reporting for documentation and job records.
• Performance Monitoring: Helps provide confidence in completed press connections.
• 37,000 Press Cycles Between Service Inspections: Reduces calibration and service downtime.
• M12 System Compatibility: Works with Milwaukee M12 batteries and chargers.
• Material Flexibility: Supports copper, PEX, black iron, stainless steel, and ACR with the correct jaws.
• Warranty Coverage: Backed by Milwaukee’s 5-year tool, 2-year battery, and 2-year jaw warranty.

Compatible Accessories / Works Well With

• Milwaukee M12 Batteries and Chargers: Compatible with Milwaukee M12 batteries and chargers.
• Milwaukee 49-16-2450 CTS-V Press Jaw: 1/2 in. copper jaw included with the kit.
• Milwaukee 49-16-2451 CTS-V Press Jaw: 3/4 in. copper jaw included with the kit.
• Milwaukee 49-16-2452 CTS-V Press Jaw: 1 in. copper jaw included with the kit.
• Milwaukee 49-16-2496 IPS-P Press Jaw Kit: Optional 1/2 in. to 1 in. jaw kit for black iron, stainless steel, and other supported IPS press fittings.
• Material-Specific M12 FORCE LOGIC Press Jaws: Separate jaws are required for PEX, black iron, stainless steel, ACR, and other non-copper applications.
• Milwaukee ONE-KEY App: Supports tool tracking, lockout, management, and reporting.

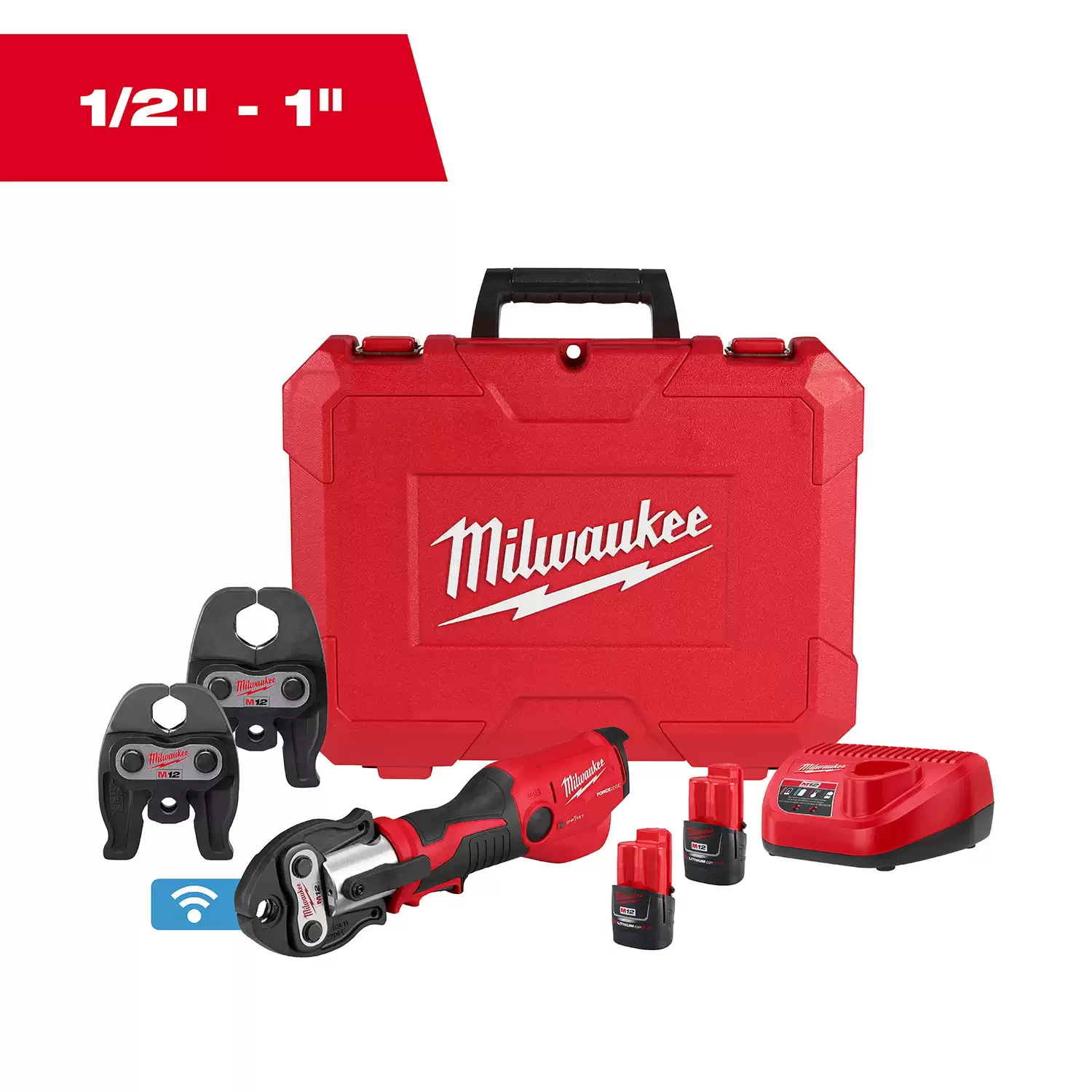

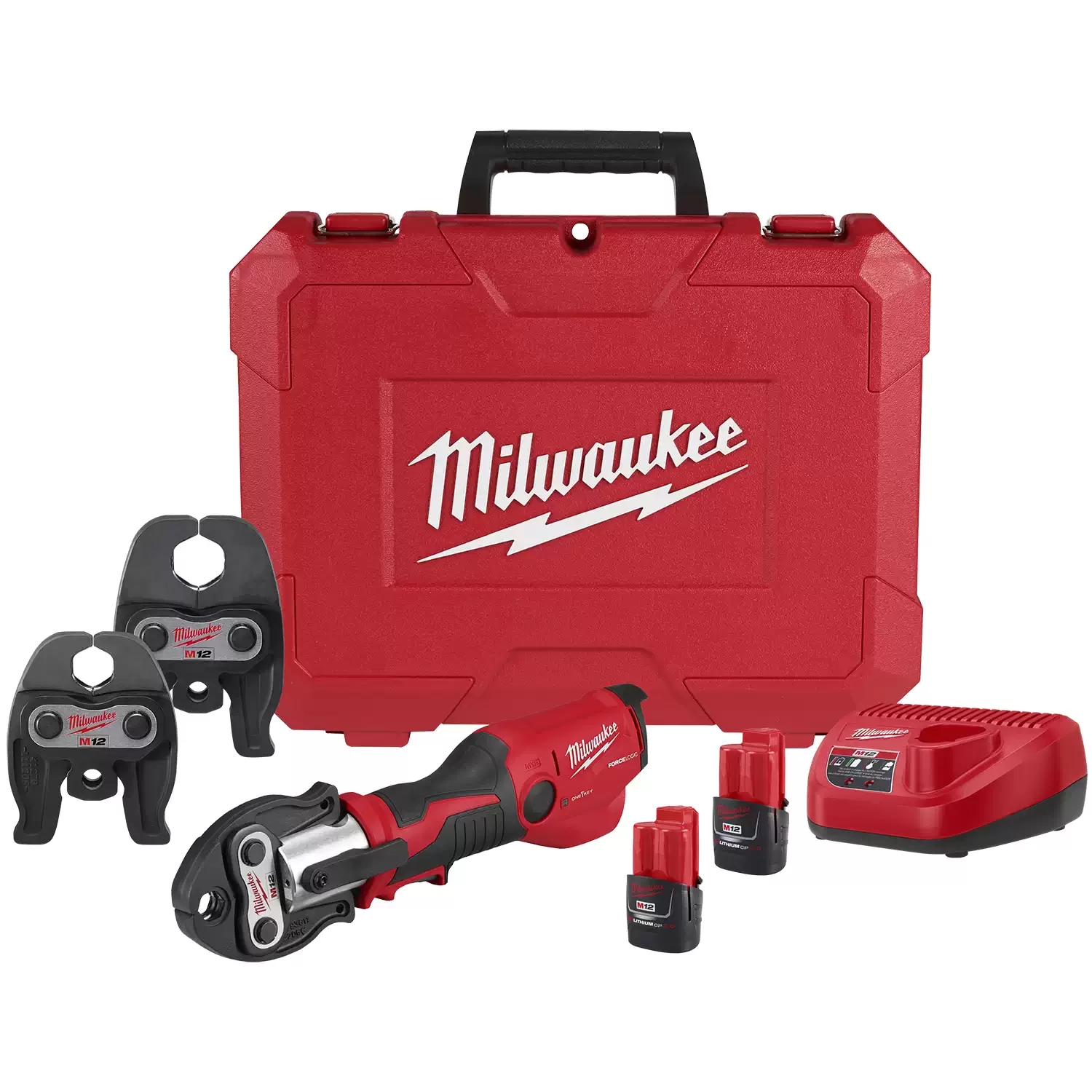

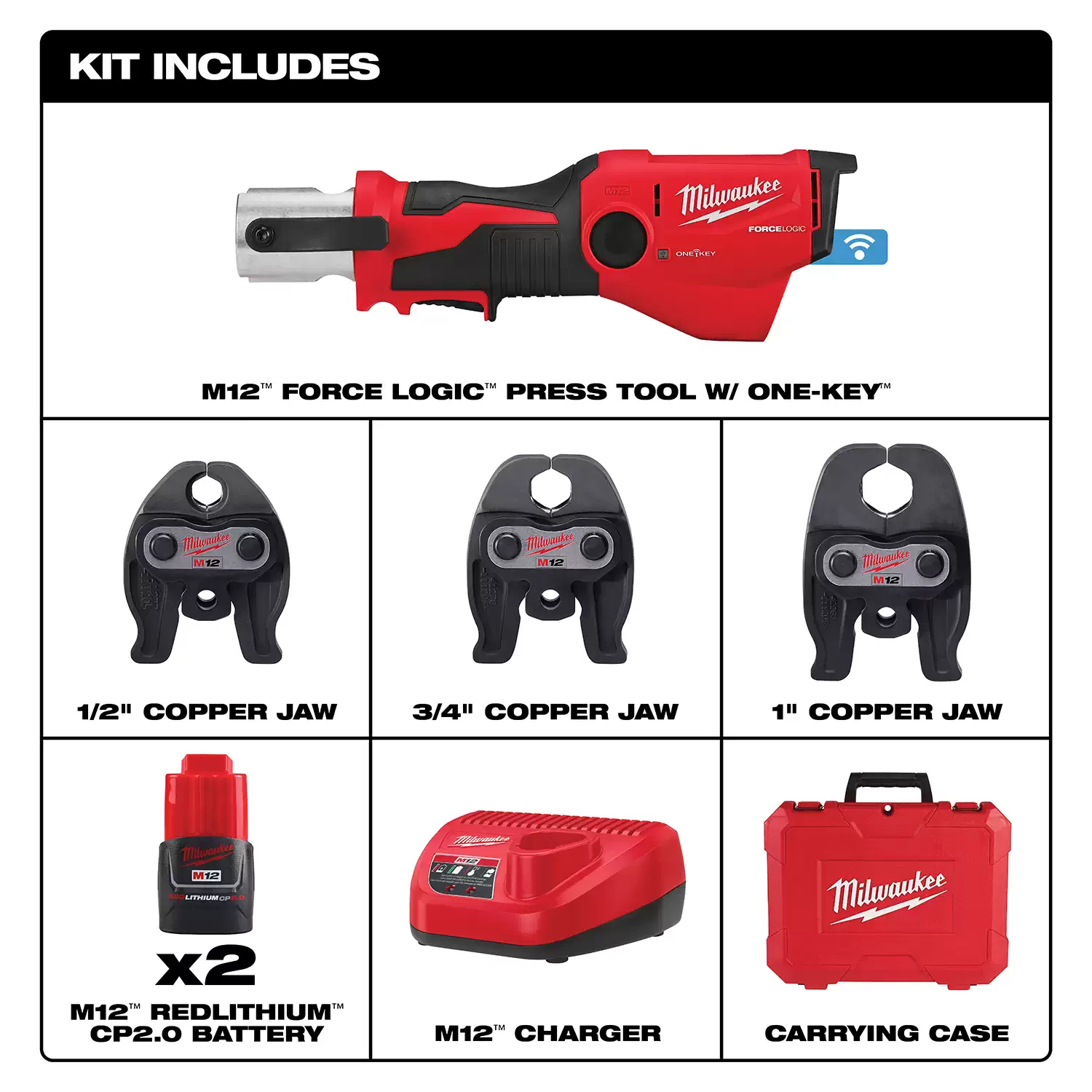

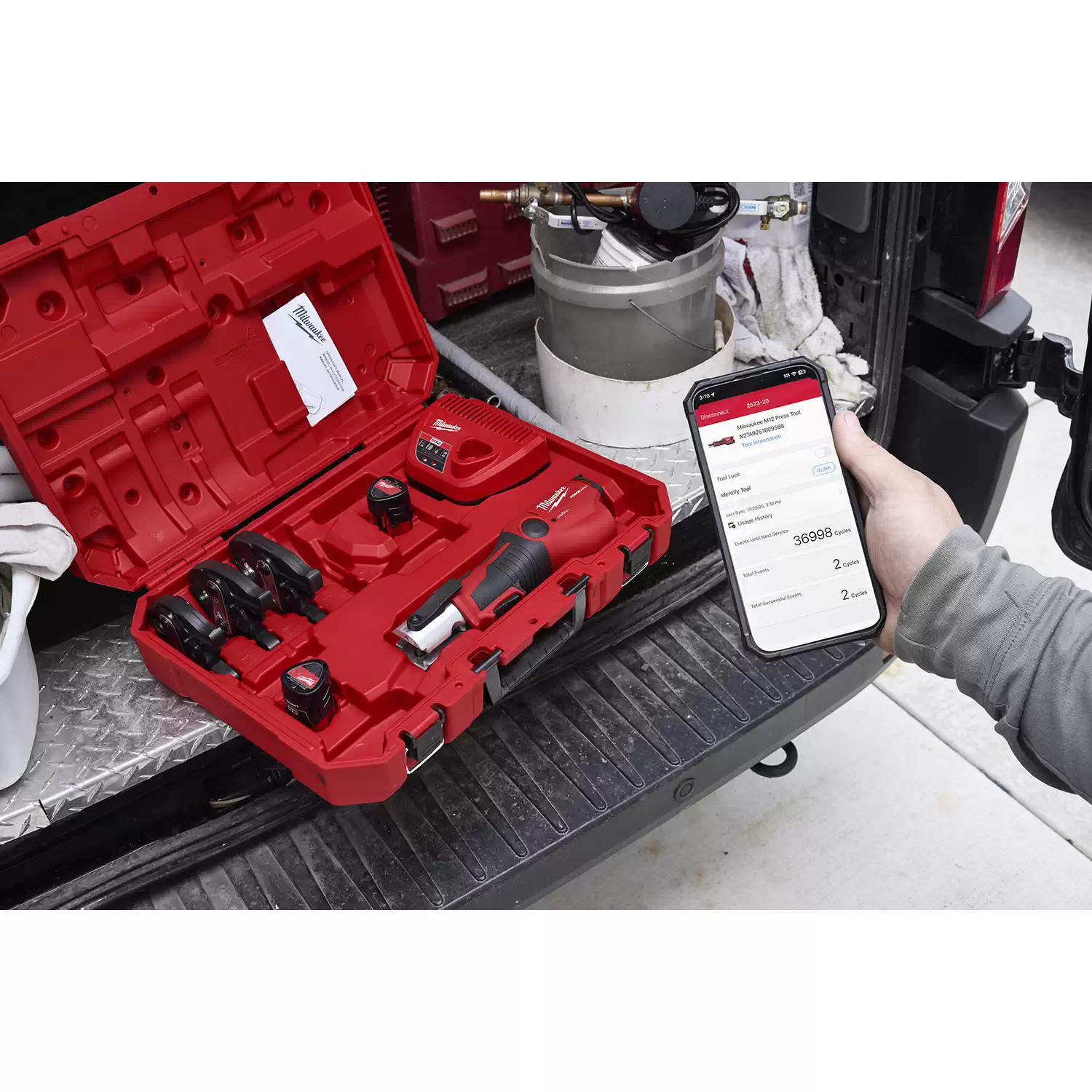

Milwaukee 2573-22 M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY (2) 2AH Includes

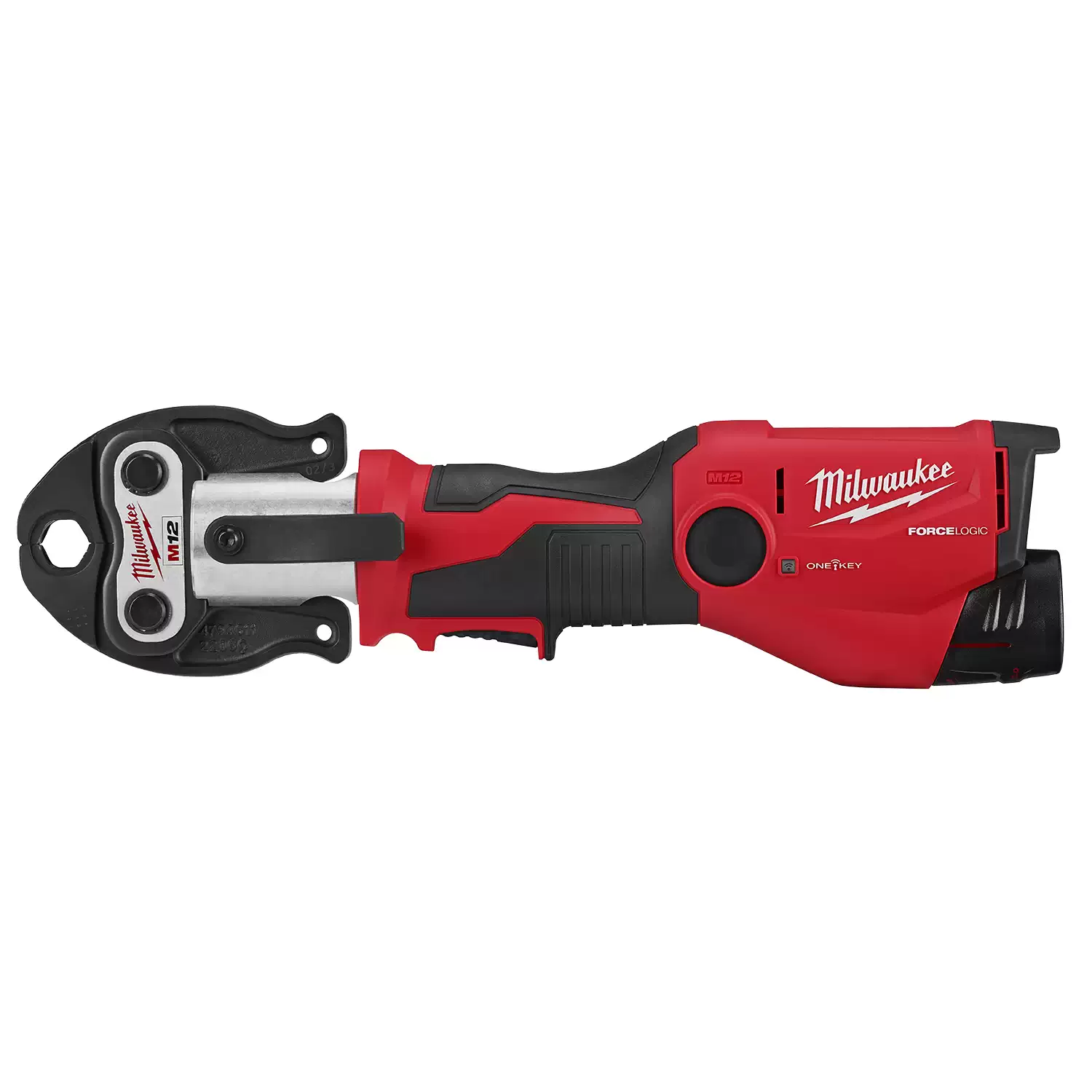

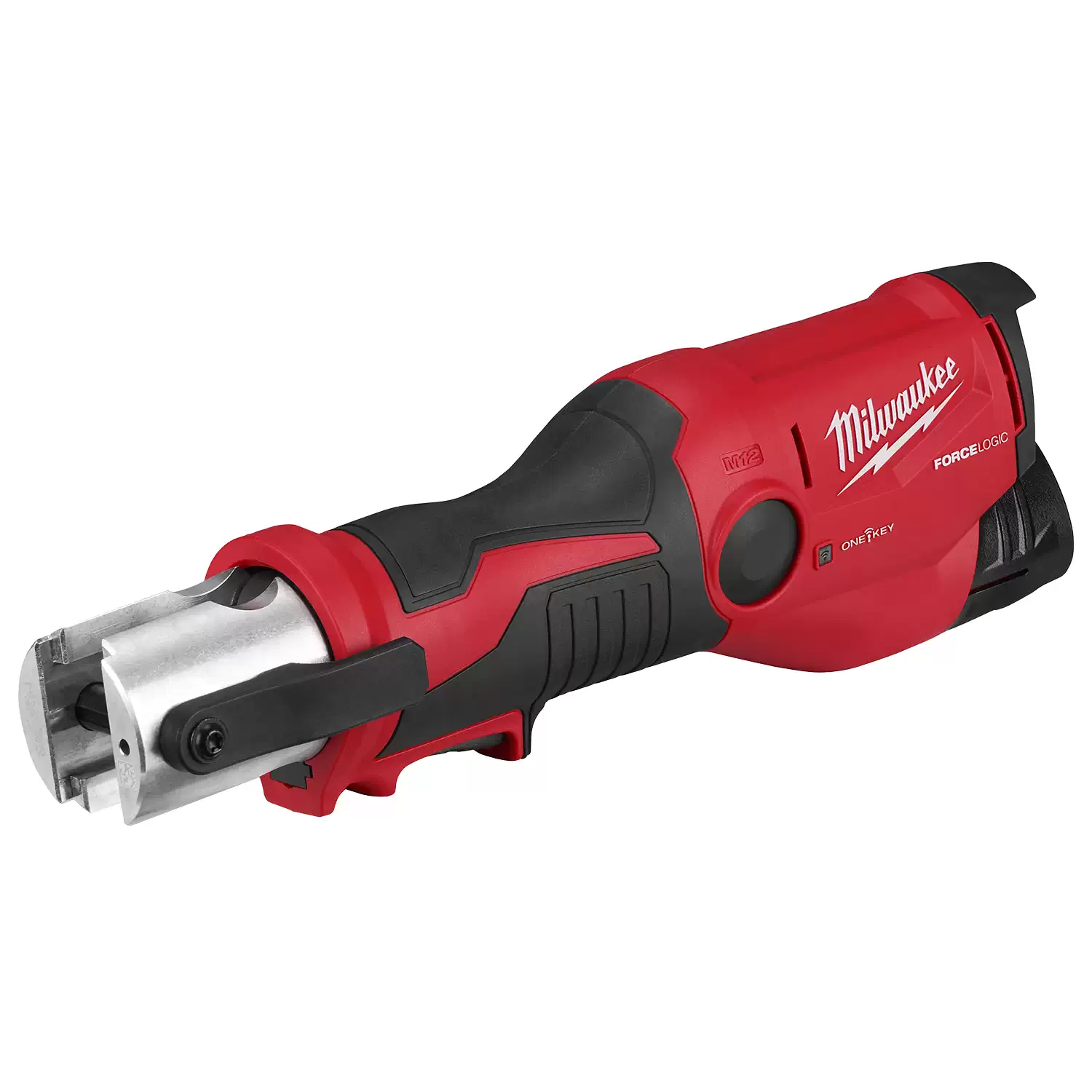

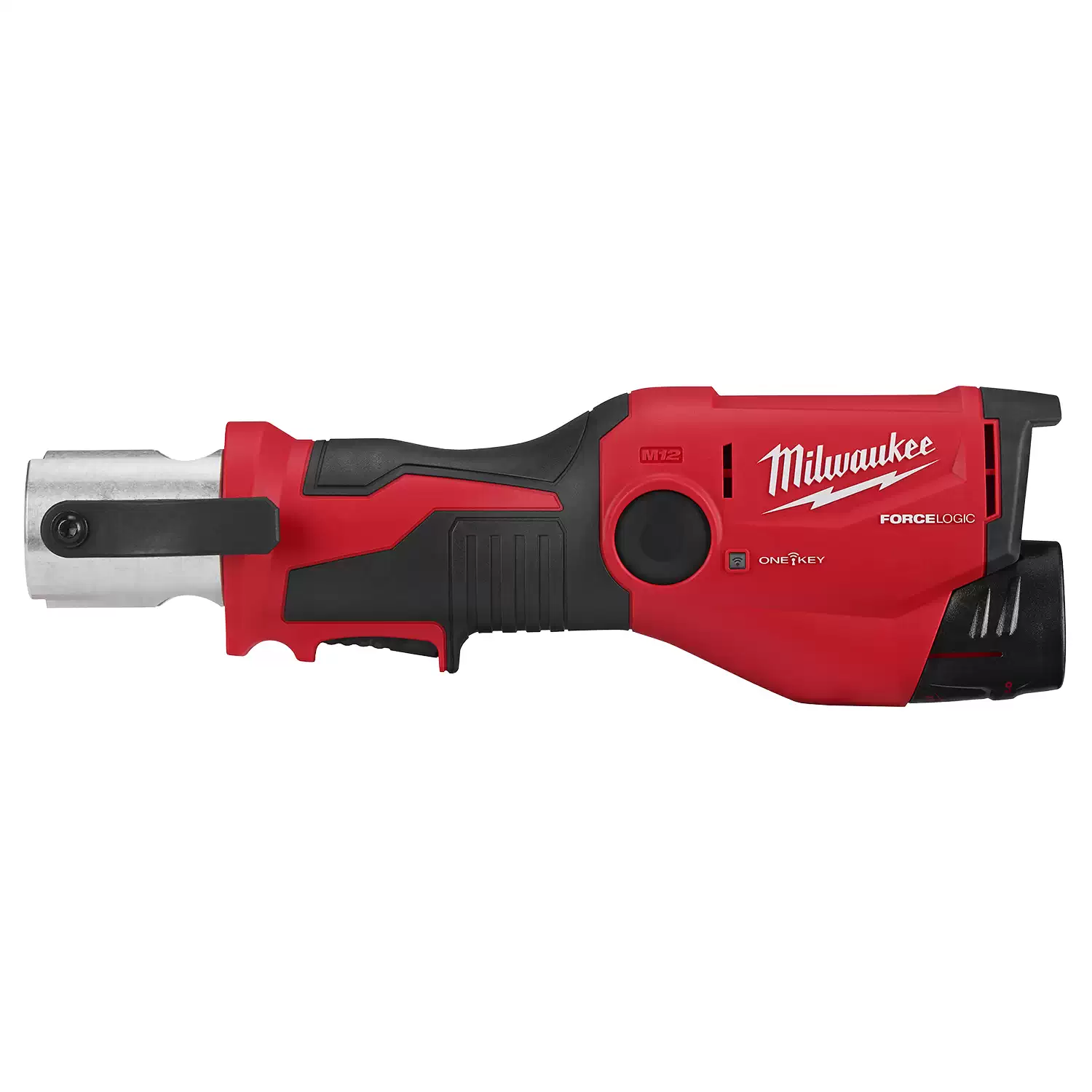

• (1) M12 FORCE LOGIC Press Tool with ONE-KEY: 2573-20
• (1) 1/2 in. CTS-V Press Jaw: 49-16-2450
• (1) 3/4 in. CTS-V Press Jaw: 49-16-2451
• (1) 1 in. CTS-V Press Jaw: 49-16-2452
• (2) M12 REDLITHIUM CP2.0 Batteries: 48-11-2420
• (1) M12 Lithium-Ion Battery Charger: 48-59-2401
• (1) Carrying Case

Milwaukee 2573-22 M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY (2) 2AH Specifications

• Brand: Milwaukee Tool
• Manufacturer Part Number: 2573-22
• UPC: 045242617142
• Product Type: Cordless press tool kit
• Product Line / Series: M12 FORCE LOGIC
• Technology: ONE-KEY
• Power Source: Cordless
• Voltage: 12V
• Battery Platform: Milwaukee M12 REDLITHIUM
• Included Battery Type: M12 REDLITHIUM CP2.0
• Batteries Included: 2
• Battery Charger Input Voltage: 120V
• Motor Type: Brushed
• Brushless Motor: No
• FUEL: No
• Force: 5,400 lbs / 24 kN

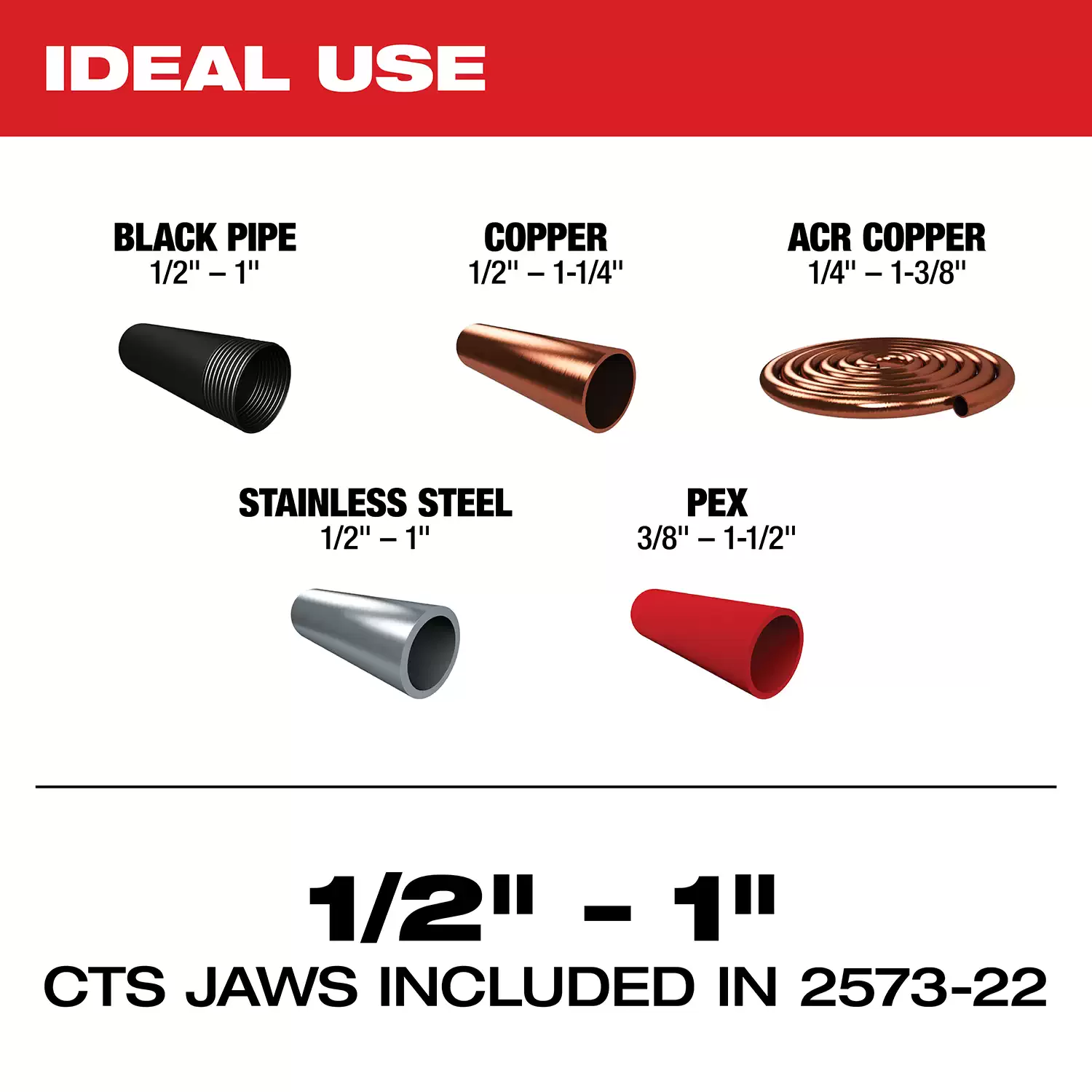

• Capacity: 1/4 in. to 1-1/2 in., varying by material
• CTS Copper Capacity: 1/2 in. to 1-1/4 in.
• IPS Capacity: 1/2 in. to 1 in.
• PEX Capacity: 1/2 in. to 1-1/2 in.
• ACR Capacity: 1/4 in. to 1-3/8 in.
• Included Copper Jaw Sizes: 1/2 in., 3/4 in., and 1 in. CTS-V
• Material Compatibility: Copper, PEX, black iron, stainless steel, and ACR with proper jaws
• Service Interval: 37,000 press cycles between service inspections
• ONE-KEY Enabled: Yes
• Compatible Battery System: Milwaukee M12
• Tool Length: 12.57 in.
• Tool Width: 2.88 in.
• Tool Height: 3.98 in.
• Tool Weight: 3.69 lb
• Color: Red / black
• Package Height: 16.25 in.
• Package Width: 6.00 in.
• Package Depth: 21.50 in.
• Package Weight: 22.80 lb

Milwaukee 2573-22 M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY (2) 2AH Warranty

• Milwaukee’s 5 Year Limited Tool, 2 Year Limited Battery, 2 Year Jaw Warranty

Why Professionals Choose the Milwaukee M12 Cordless FORCE LOGIC Press Tool Kit w/ ONE-KEY

Customers choose the Milwaukee M12 FORCE LOGIC Press Tool Kit for its compact size, one-handed in-line design, and ability to work around installed pipe. It is a practical cordless press tool for plumbing service, commercial maintenance, mechanical work, and HVAC applications where access and documentation matter.

The kit also fits well for teams already using Milwaukee M12 cordless tools. With ONE-KEY tracking and reporting, Auto-Cycle operation, and a long service interval, this press tool helps crews complete consistent press connections while keeping better records for job closeout and quality control.
