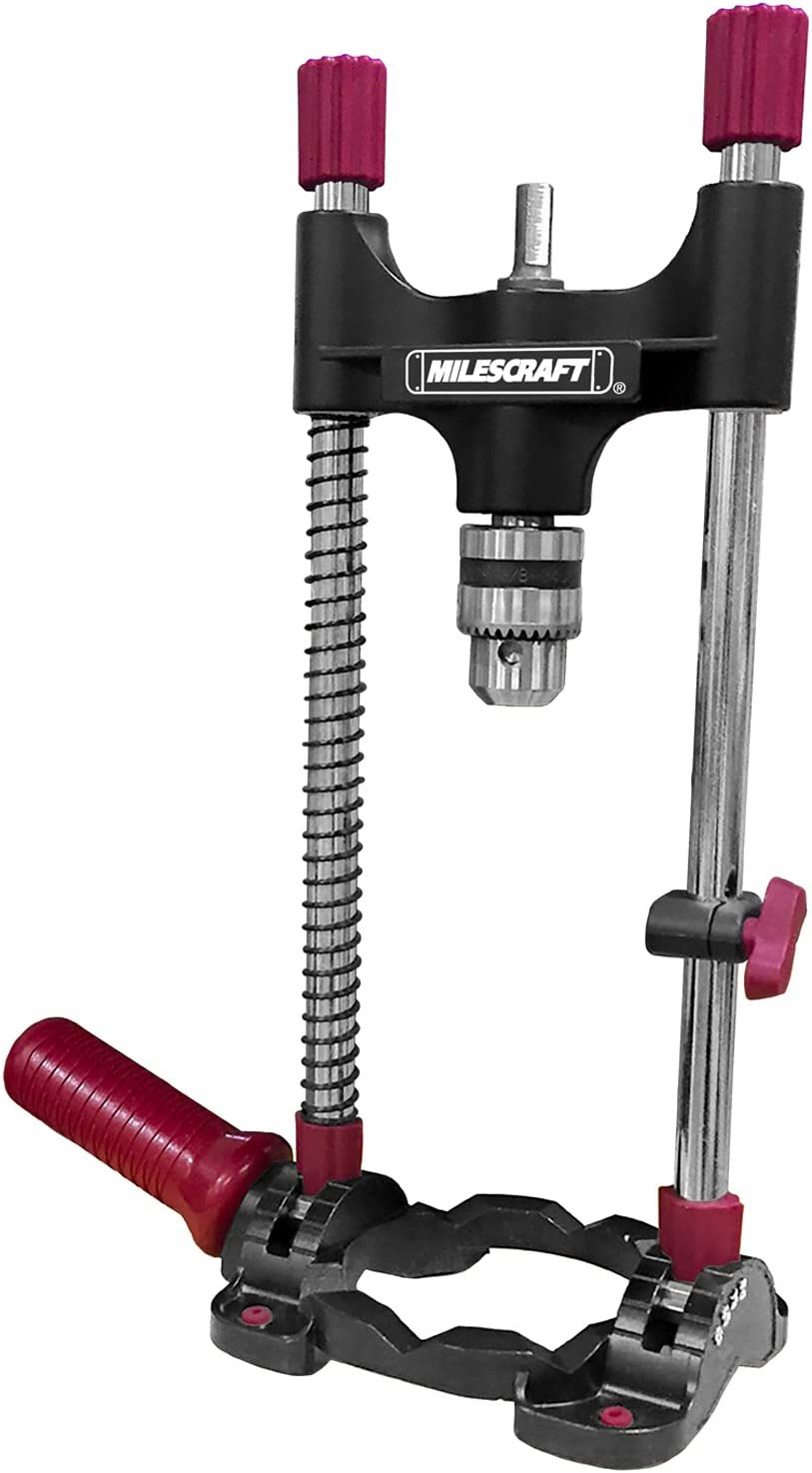

Milescraft 1318 DrillMate Portable Drill Guide with 3/8″ Chuck

The Milescraft 1318 DrillMate portable drill stand by Milescraft is just the tool to provide you the precision and ease of drilling straight, repeatable holes all of the time. Now you can add a whole new level of accuracy with the Milescraft 1318 drill guide jig when drilling holes with your standard hand drill. This the perfect tool for the DIY users! With the Milescraft DrillMate™ portable drill stand, you can drill straight holes, angled holes, on the edge of a board, or even round stock. Everyone knows that the success of many DIY projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling holes with your standard power drill.

Milescraft 1318 DrillMate Portable Drill Guide Metal Head

• Ball bearings for spindle support

Milescraft 1318 DrillMate Portable Drill Guide Innovative Metal Base With Angle Readout

• Self-centering drill guide base
• Angle readout for setting drilling angles to 45°, 60°, 75°, and 90°
• V-groove for drilling on round stock
• Non-slip TPE feet prevent slipping and marring on the work surface
• Mounting holes for mounting with screws when needed

Milescraft 1318 DrillMate Portable Drill Guide  Metal Angle Adjusters

• Allows you to easily lock your selected drilling angle into place

Milescraft 1318 DrillMate Portable Drill Guide  Adjustable Stop Collar

• For repetitive drilling

Milescraft 1318 DrillMate Portable Drill Guide  3/8” Keyed Chuck

• Compatible with most 3/8” drill accessories

Milescraft 1318 DrillMate Portable Drill Guide  Auxiliary Handle

• Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing

*Not intended for use with impact drivers or hammer drills.

Milescraft 1318 DrillMate Portable Drill Guide Specifications

• Material: Metal and plastic
• Chuck: 3/8″ Keyed
• 3/8″ Chuck Thread:  3/8″ x 24 thread
• Spindle Shaft Diameter: .47″ (12mm)
• Spindle Shaft Length: 3.66″ (93mm)
• Drill Bit Clearance: Always: Maximum 7.50″
• Drill Head Clearance with Spring and Depth Stop:  Max Travel: 6.30″ and  Minimum Drill Bit Length: 1.20″
• Drill Head Clearance without Spring and Depth Stop:  Max Travel: 8.23″ and Minimum Drill Bit Clearance: 0.72″
• Base Dimension: 5.5″ (140mm) x 4.25″ (108mm)
• Guide Bar Diameter: .55″ (14mm)
• Base Opening: 3-1/2″ in diameter
• Inside Distance Between Guide Bars: 3.98″ (101.2mm)
• Compatible with: 3/8” and 1/2” power drills (Not for Impact Rated Drills and Drivers)
