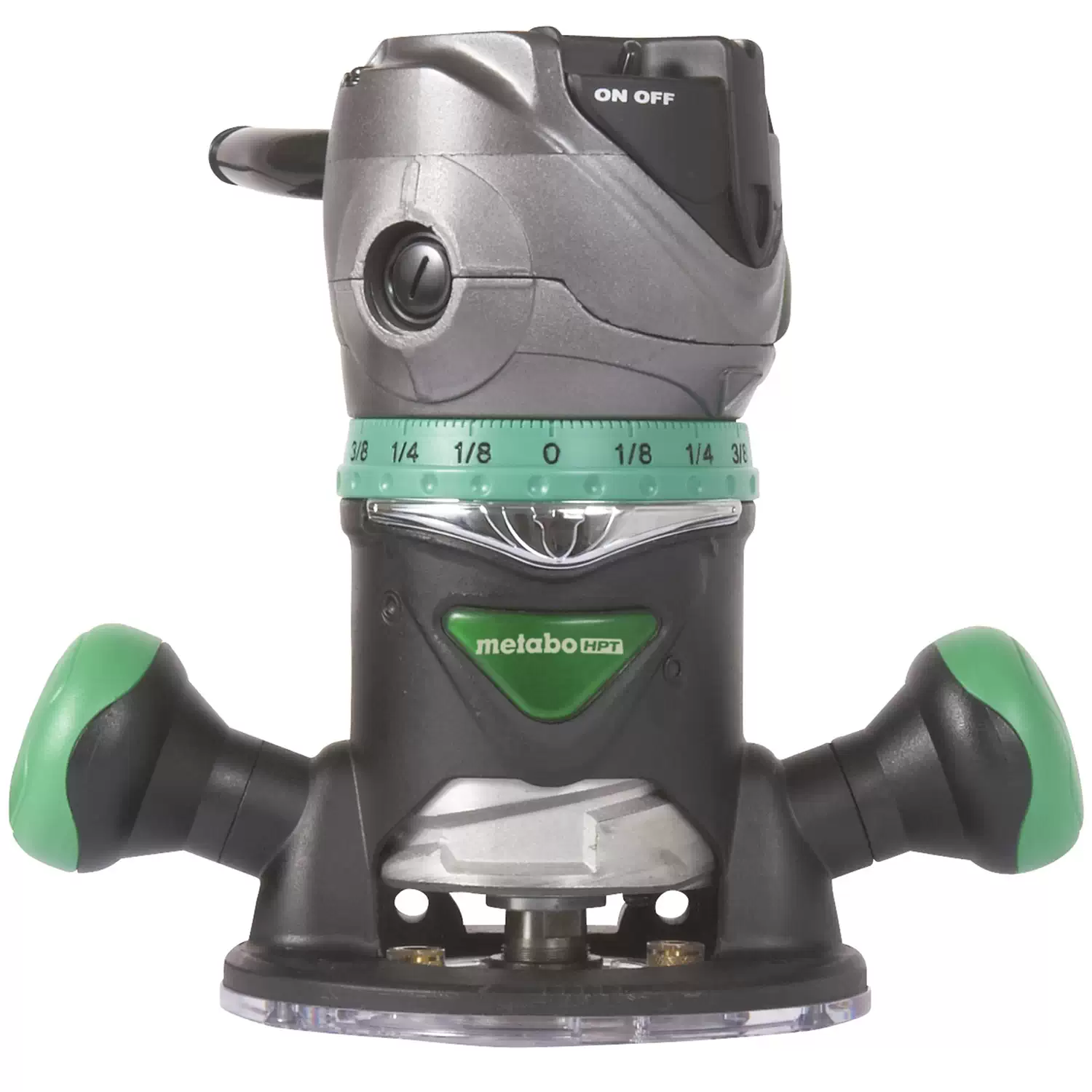

Metabo HPT M12VCM 2.25 Peak HP Variable Speed Fixed Base Router

The Metabo HPT M12VCM fixed base router is a corded woodworking router built for groove cutting, chamfering, trimming, shaping, and pattern cutting. With an 11 amp motor, 2-1/4 peak HP, variable speed control, and support for both 1/4 in. and 1/2 in. router bits, it is a practical choice for cabinet work, finish carpentry, general woodworking, and workshop use.

The Metabo HPT M12VCM variable speed fixed base router is designed for woodworkers and shop users who need accurate depth control, steady cutting performance, and the flexibility to handle a wide range of routing tasks. It is built around an 11 amp motor rated at 2-1/4 peak horsepower and offers a no-load speed range of 8,000 to 24,000 RPM. That speed range helps the router stay useful across lighter edge profiling work and more demanding groove and pattern applications.

This corded router uses a 2-stage motor release clamp for quick depth adjustments and base changes, while the nickel-plated motor housing is designed for smooth adjustment movement. Metabo HPT also lists electronic speed control to help maintain RPM as the load changes, along with a class-leading 79.5 dB noise level for quieter workshop operation. With support for both 1/4 in. and 1/2 in. collets, the M12VCM fits a broad range of router bits for trimming, chamfering, shaping, and template work.

Metabo HPT 2.25 Peak HP Variable Speed Fixed Base Router At a Glance

• 11 Amp Motor: Delivers 2-1/4 peak horsepower for controlled cutting in common woodworking applications.
• Variable Speed Range: Runs from 8,000 to 24,000 RPM to match the bit and material.

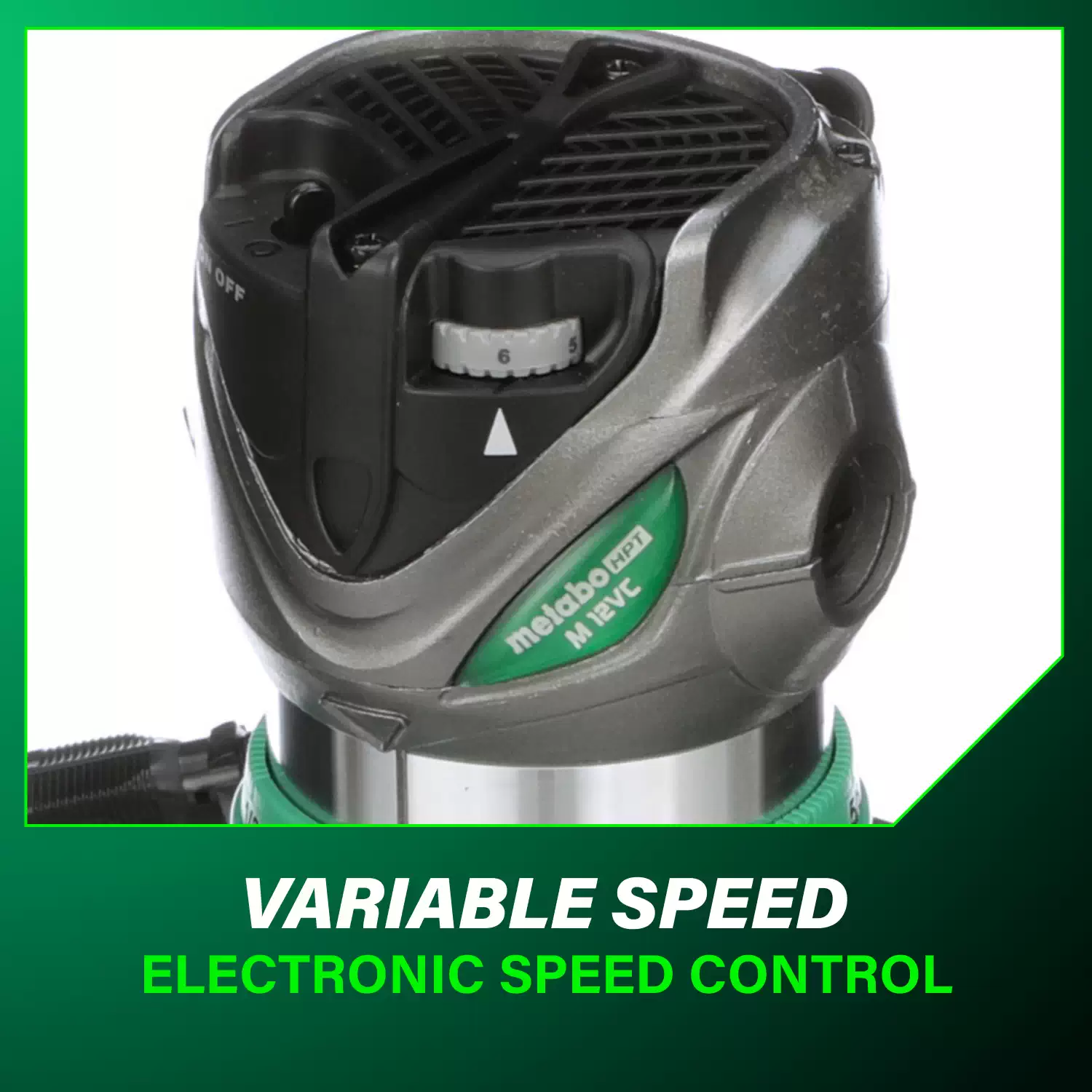

• Electronic Speed Control: Helps maintain consistent RPM as cutting load changes.

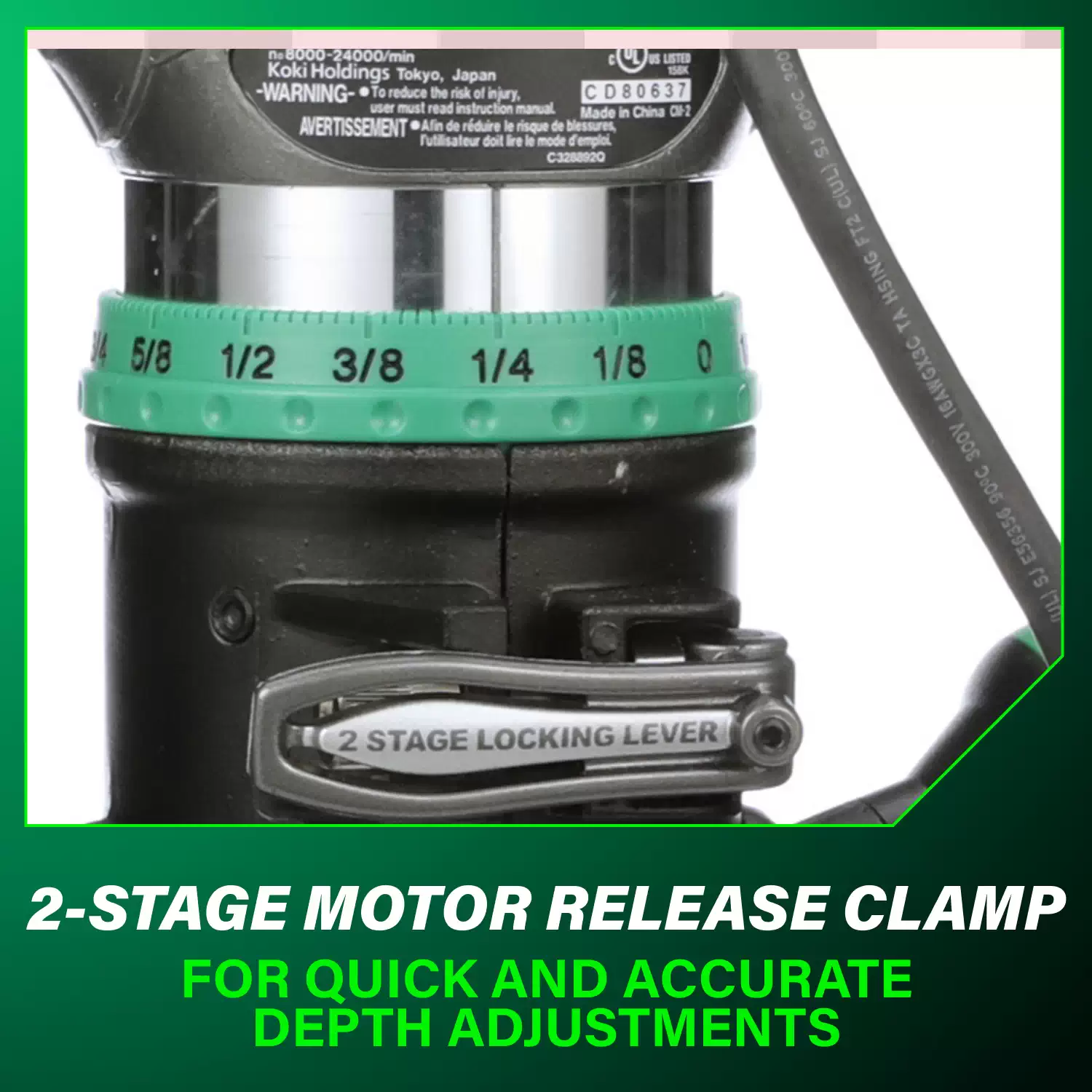

• 2-Stage Motor Release Clamp: Supports quick and accurate depth adjustments and base changes.

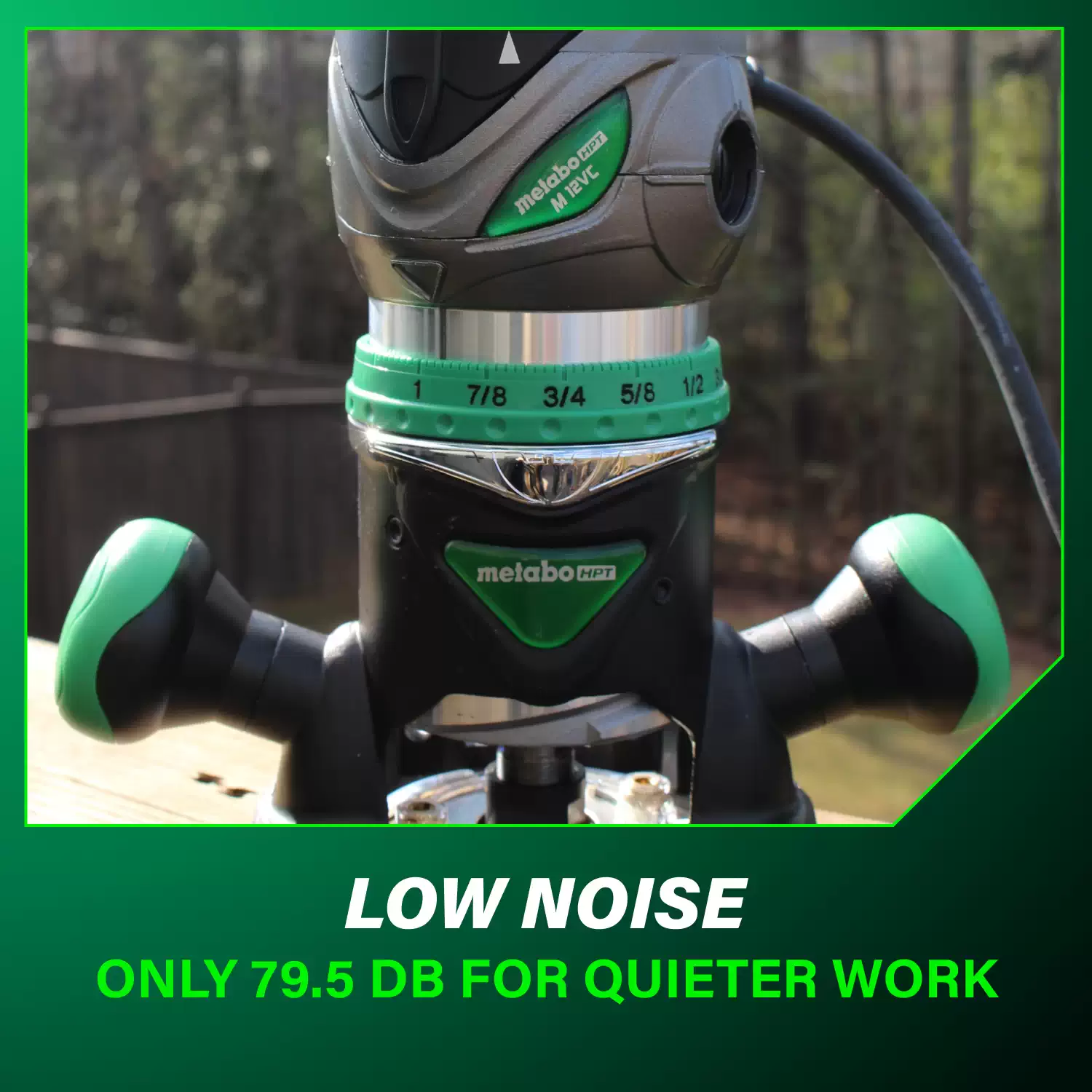

• Low Noise Operation: Rated at 79.5 dB for quieter router use in the shop.
• Dual Collet Capacity: Accepts both 1/4 in. and 1/2 in. collet chucks.
• Nickel-Plated Motor Housing: Allows smoother depth adjustment movement.
• Fixed Base Design: Well suited for edge work, trimming, pattern routing, and bench or table use.

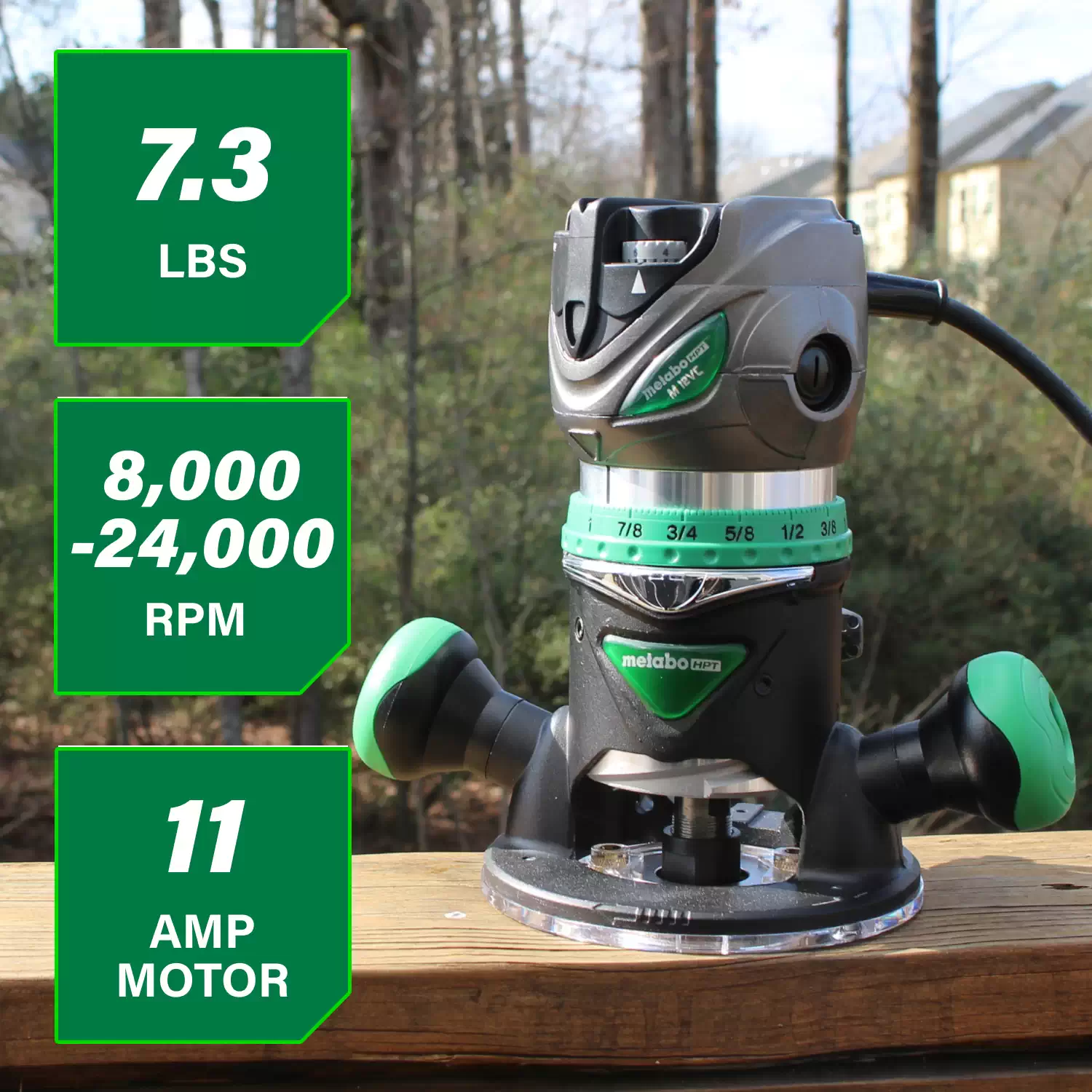

• Tool Weight: Weighs 7.3 lbs. with cord for manageable handling.

Quick Specs

• Brand: Metabo HPT
• Manufacturer Part Number: M12VCM
• UPC: 717709023444
• Power Source: Corded
• Voltage: 120V AC, 60 Hz, single phase
• Amperage: 11 amps
• Main Capacity or Size: 1/2 in. and 1/4 in. collet capacity
• Speed: 8,000 to 24,000 RPM
• Weight: 7.3 lbs. with cord
• Operating Type: Variable speed fixed base router

Markets

• Cabinet Shops: Useful for dadoes, edge work, trimming, and pattern routing.
• Finish Carpentry: Good for detail work, chamfering, and profile cuts.
• Millwork and Fixture Fabrication: Supports repeatable cuts with template-guided routing.
• Maintenance Shops: Practical for general wood repair and fabrication tasks.
• Educational Woodworking Programs: Suitable for trade school and shop instruction environments.
• Advanced DIY Workshops: A solid option for home users who want a corded variable speed router with 1/2 in. and 1/4 in. bit compatibility.

The Metabo HPT M12VCM is a practical fixed base router for buyers who need dependable cutting performance without moving up to a larger, heavier production router. Its 11 amp motor and variable speed range give users the control needed for both edge finishing and deeper routing work, while the 2-stage motor release clamp helps speed up depth changes and setup adjustments.

For shops comparing corded routers for regular woodworking use, this model stands out for its broad bit compatibility, quieter operation, and straightforward fixed-base design. It fits well in cabinet work, trim work, fixture building, and general bench-top routing applications where clean results and repeatable settings matter more than extra bulk or kit-only extras.

Metabo HPT M12VCM 2.25 Peak HP Variable Speed Fixed Base Router Features

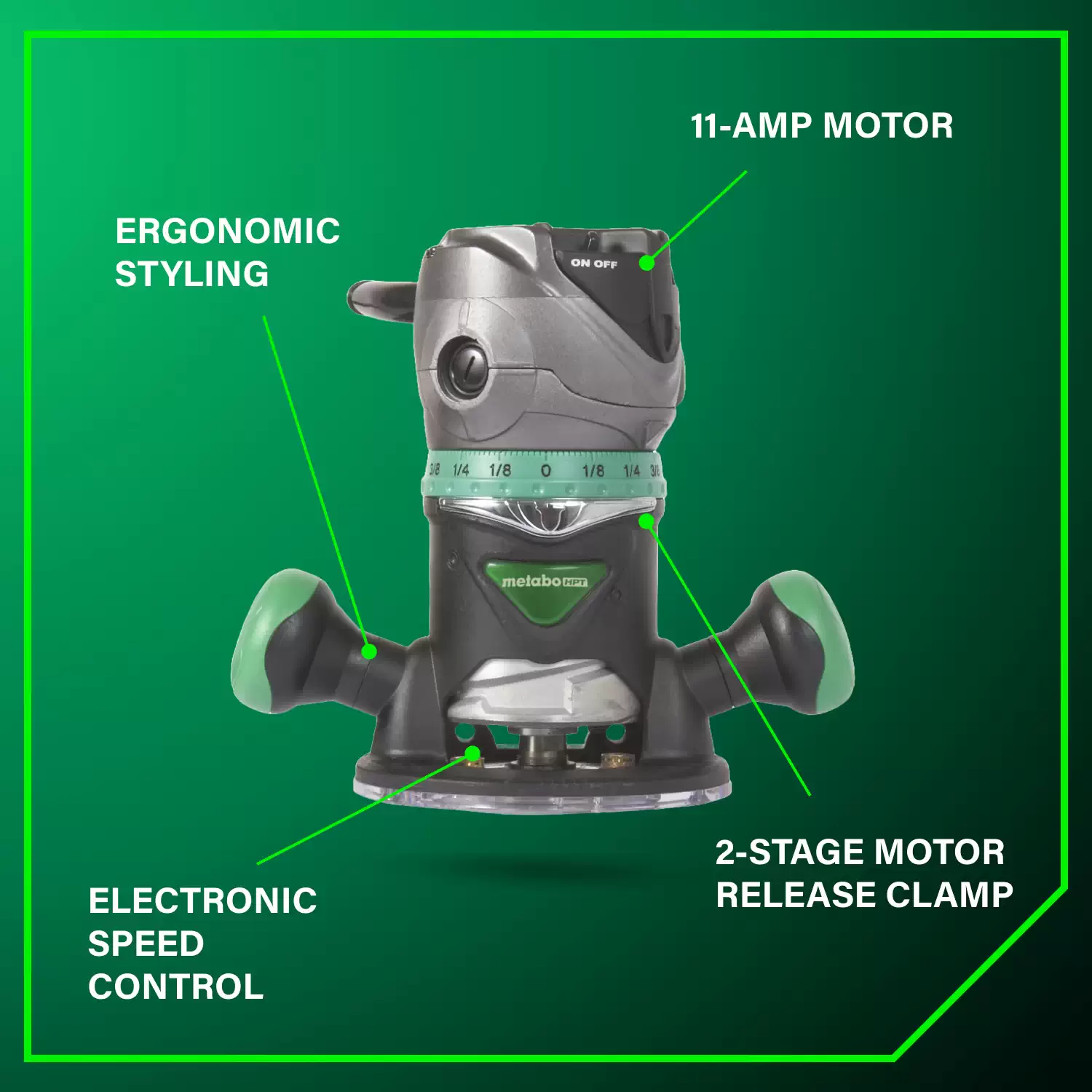

• MOTOR: 11 Amp motor (2-1/4 peak horsepower), for precise, controlled cuts
• DEPTH ADJUSTMENT: 2-Stage motor release clamp, for quick and accurate depth adjustments and base changes
• SPEED CONTROL: Electronic speed control, maintains constant RPM even as load varies
• LOW NOISE: Class leading low noise level, only 79.5dB for a quieter workshop
• HOUSING: Nickel-plated motor housing allows for smooth depth adjustments

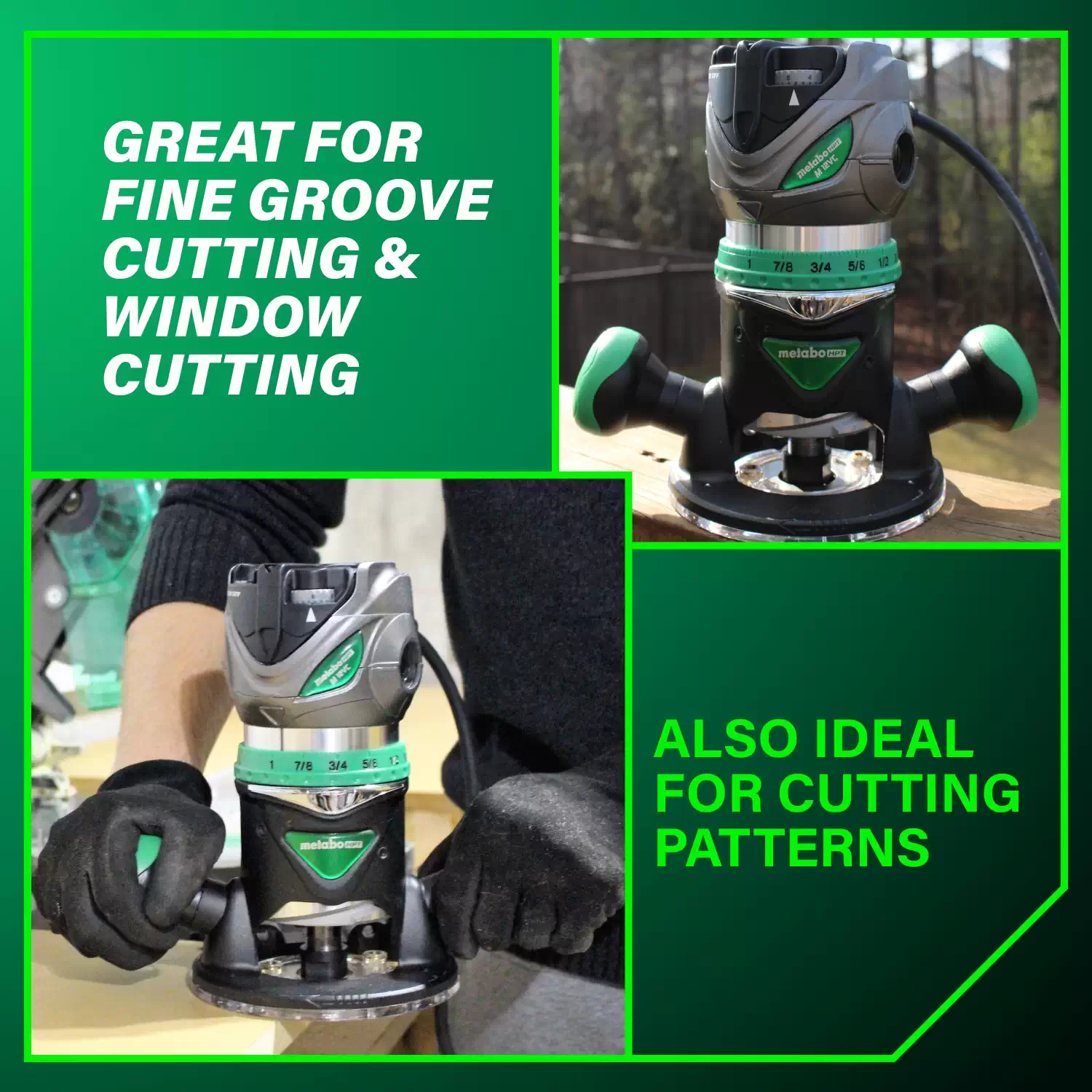

• APPLICATIONS: fine groove cutting, chamfering, window cutting, trimming shaping and cutting patterns

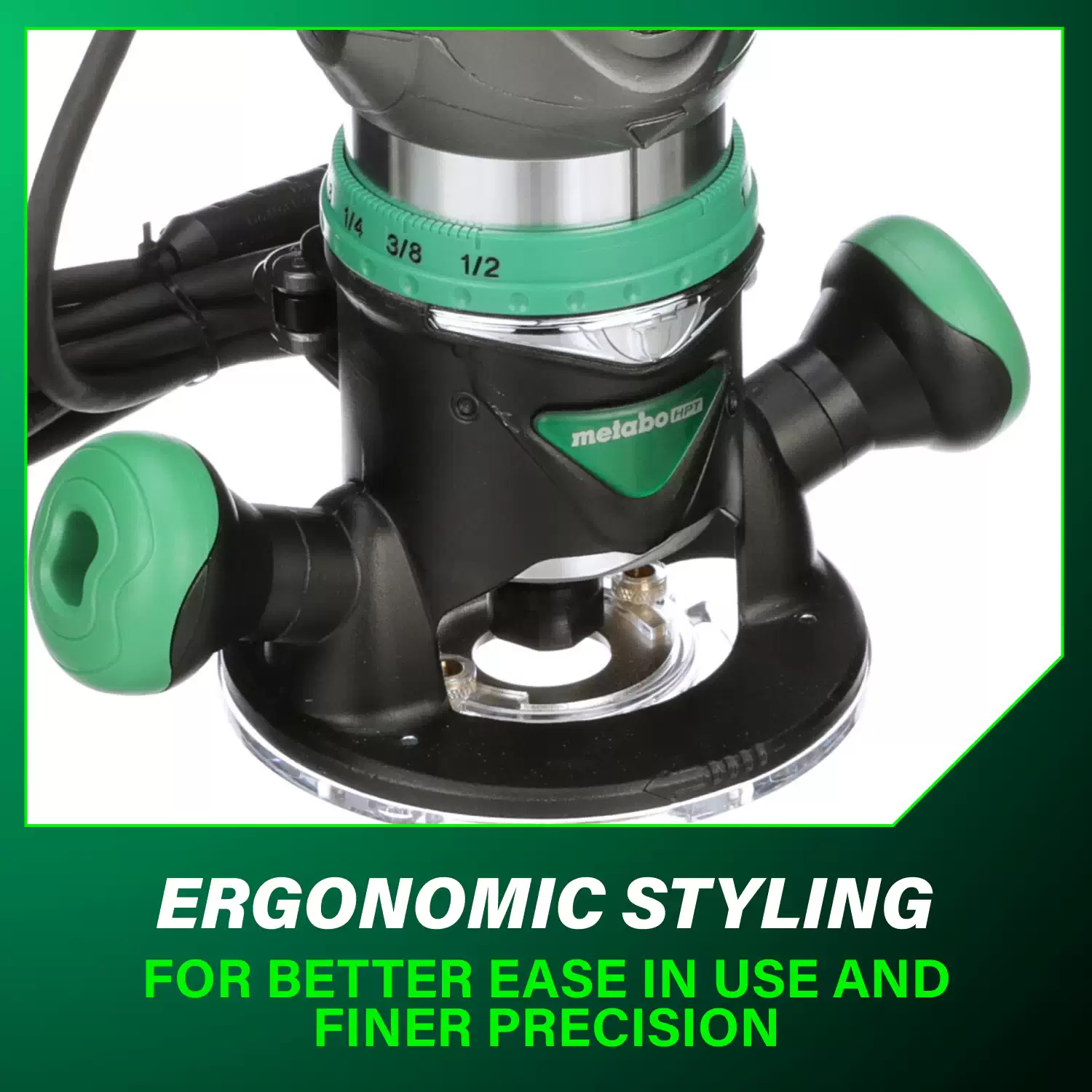

• ERGONOMIC STYLING: For better ease in use and finer precision

Compatible Accessories / Works Well With

• Straight Guide Set, Code No. 323-342
• Bar Holder, Code No. 323-343
• Feed Screw, Code No. 956-793
• Wing Bolt, Code No. 301-806
• Guide Bar, Code No. 323-345
• Straight Guide, Code No. 323-344
• Dust Collector Set, Code No. 323-346

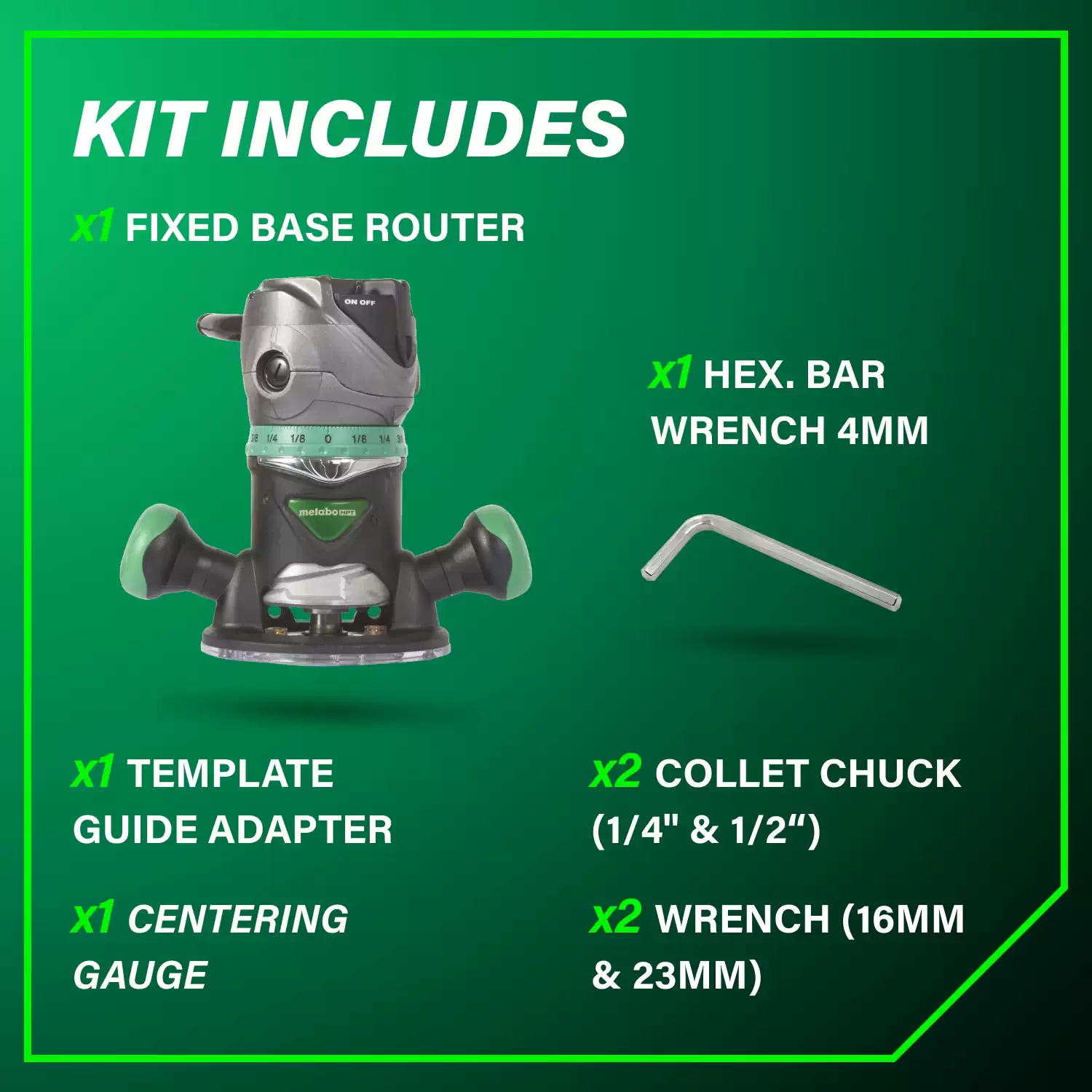

Metabo HPT M12VCM 2.25 Peak HP Variable Speed Fixed Base Router Includes

• Collet Chuck 1/4″ (323293)
• Collet Chuck 1/2″ (323421)
• Template Guide Adapter (323272)
• Centering Gauge (323296)
• Hex. Bar Wrench 4mm (944458)
• Hex. Socket HD. Bolt M5x10 (10 PCS) (949819)
• Wrench 16mm (323294)
• Wrench 23mm (323295)

Metabo HPT M12VCM 2.25 Peak HP Variable Speed Fixed Base Router Specifications

• Brand: Metabo HPT
• Manufacturer Part Number: M12VCM
• Official Tool Model Reference: M12VC
• UPC: 717709023444
• Product Type: Fixed base wood router
• Power Source: Corded
• Voltage: 120V AC, 60 Hz, single phase
• Amperage: 11 amps
• Peak Horsepower: 2-1/4 HP
• Collet Capacity: 1/2 in. and 1/4 in.
• No-Load Speed: 8,000 to 24,000 RPM
• Noise Level: 79.5 dB
• Motor Clamp: 2-stage lever
• Depth Adjustment: Yes
• Above Table Height Adjustment: Yes
• Variable Speed: Yes
• Electronic Speed Control: Yes
• Handle Type: Fixed
• Base Type: Fixed base
• Depth Capacity: 3 in.
• Base Diameter: 2.5 in.
• Dust Collection: No
• Fence Included: No
• Soft Start: No
• Spindle Lock: No
• Case Included: No case included
• Weight: 7.3 lbs. with cord
• Safety Listing: CSA
• Cord Length: 8 ft.

Metabo HPT M12VCM 2.25 Peak HP Variable Speed Fixed Base Router Warranty

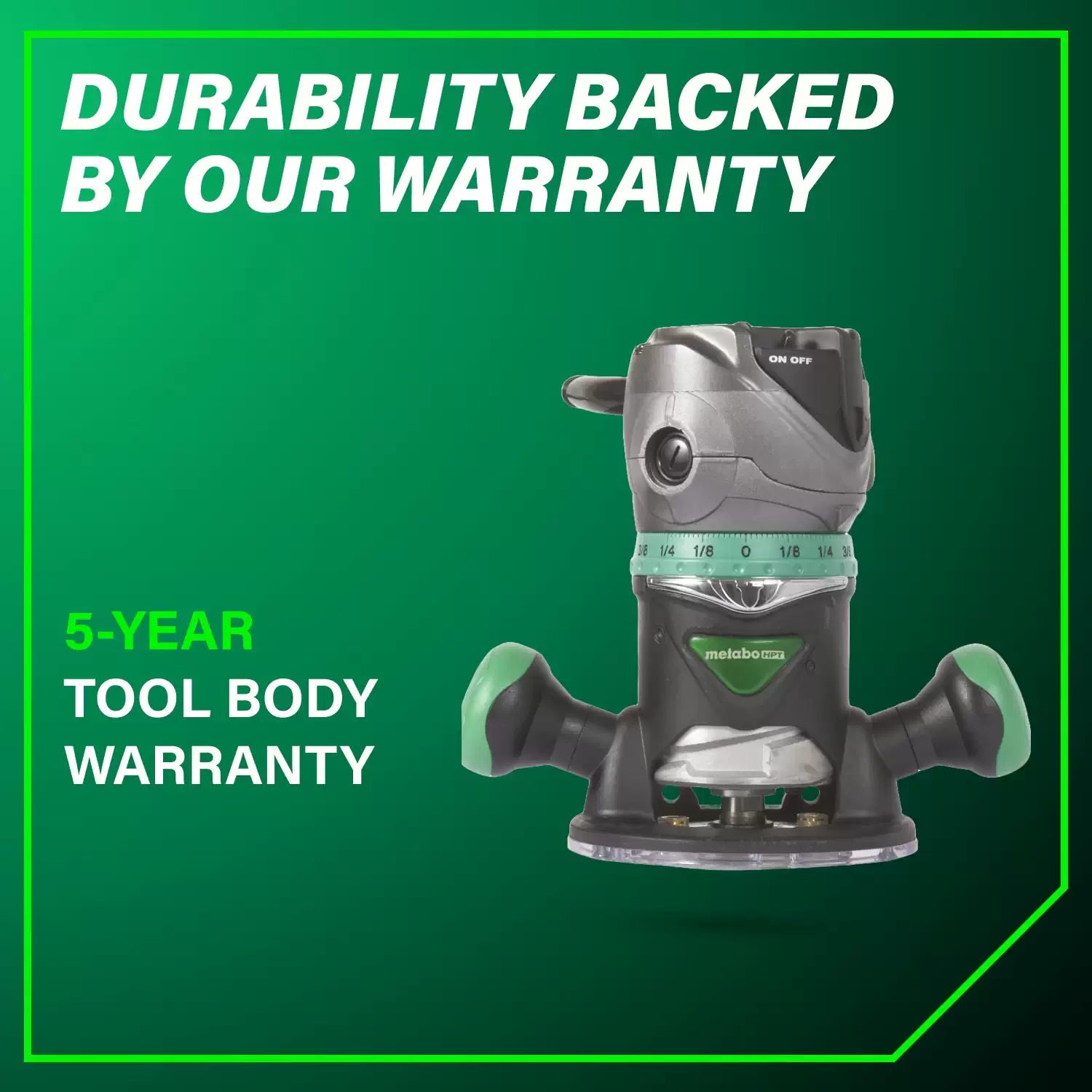

• Metabo’s 5-Year Limited Warranty

Why Woodworkers Choose the Metabo HPT 2.25 Peak HP Variable Speed Fixed Base Router

Buyers choose this Metabo HPT router because it covers the core needs of a corded woodworking router without unnecessary complexity. The 11 amp motor, variable speed range, and support for both 1/4 in. and 1/2 in. bits make it useful for a wide range of routing tasks, from trimming and edge profiling to grooves and pattern work. The fixed base layout also makes setup straightforward for workshop users who want repeatable results.

It is also a strong fit for users searching for a fixed base router that balances power, control, and noise level. For cabinet work, trim applications, and general shop routing, the M12VCM offers practical depth adjustment features, steady speed control, and a proven corded platform that works well in both professional and advanced DIY settings.
