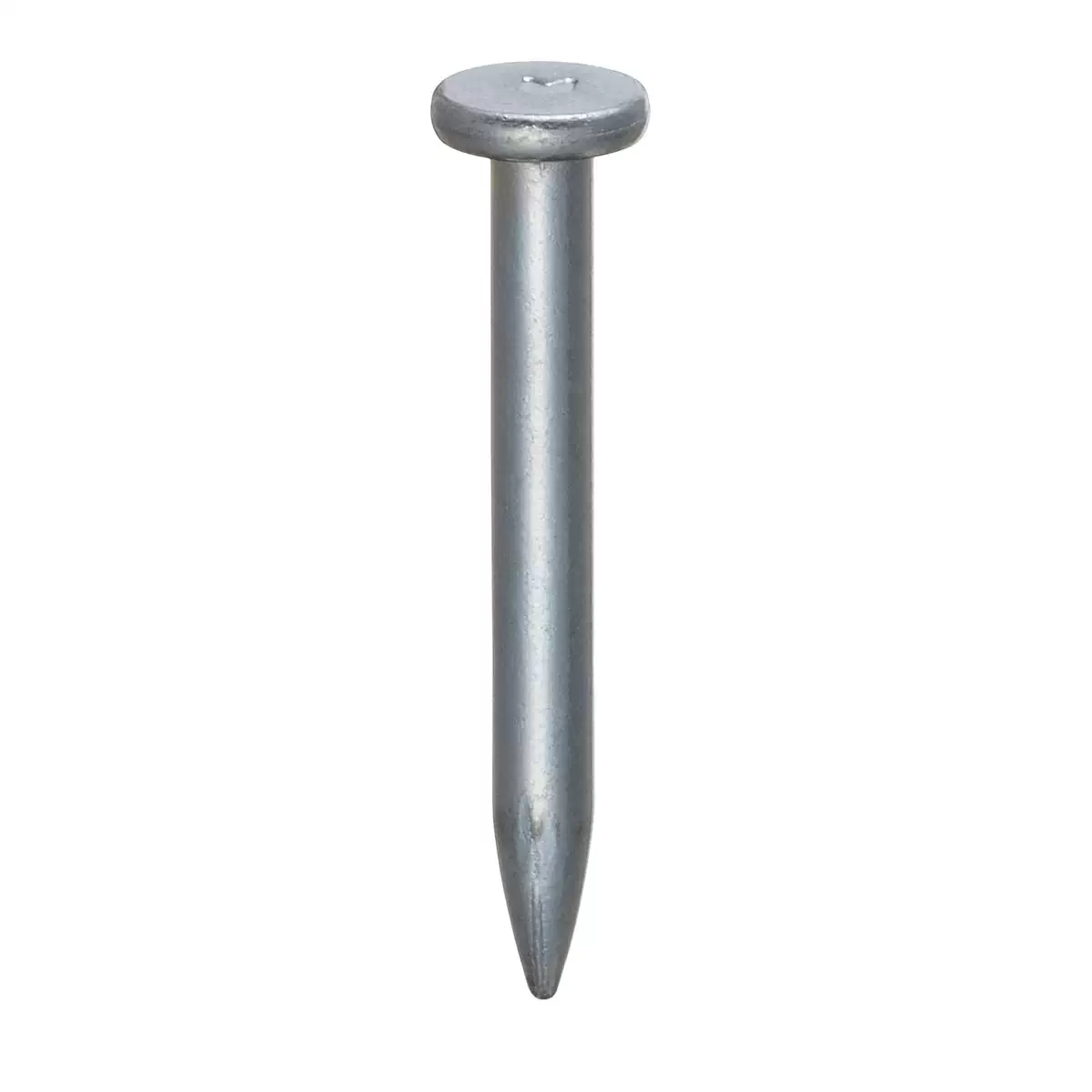

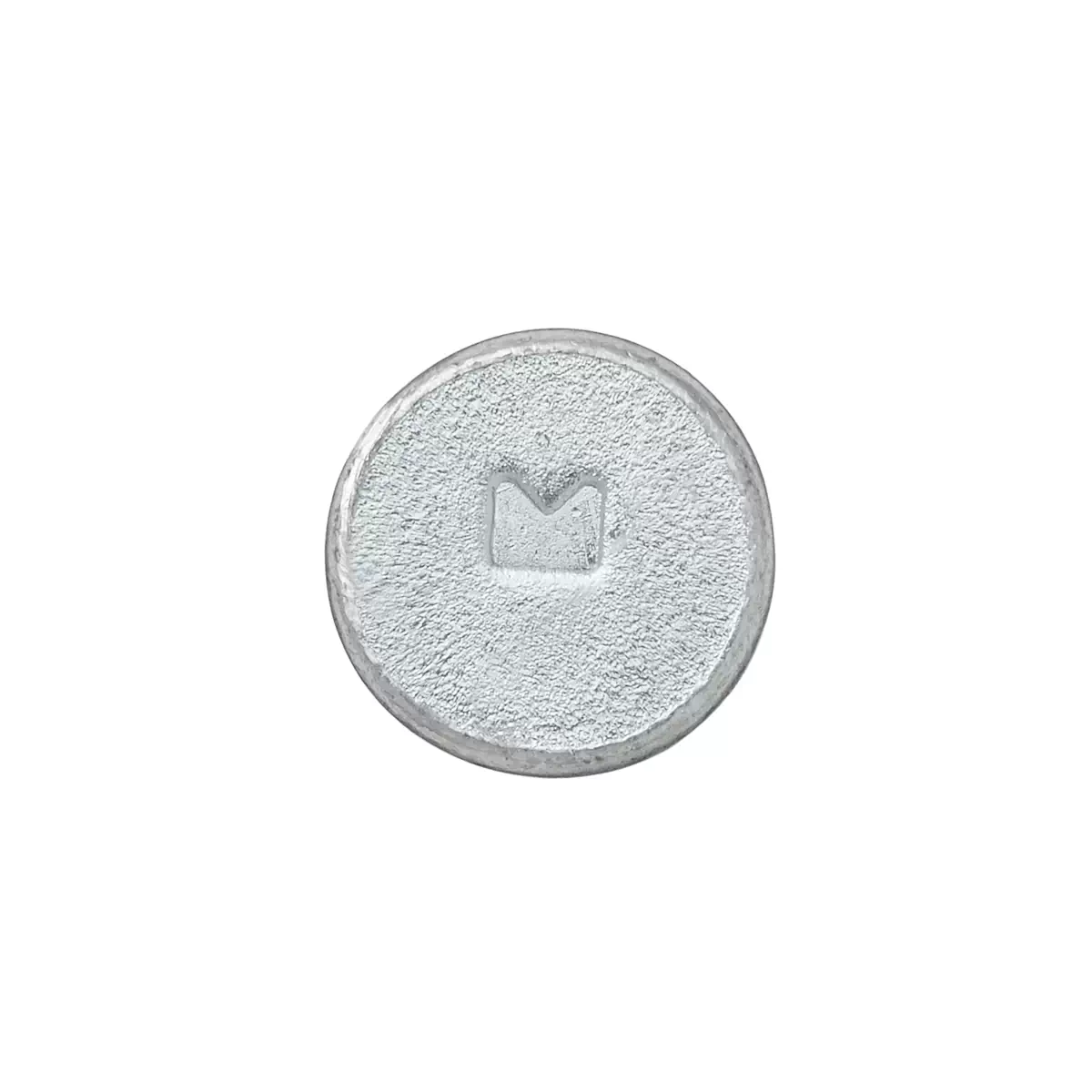

The MAX CP-C832W7-ICC PowerLite 500PSI 1-1/4″ X .145″ Smooth Shank with Washer Coil Nails are specifically designed for use with the MAX PowerLite 500PSI High Pressure systems. The MAX CP-C832W7-ICC were designed for use in regular concrete (6,000 psi or less) to secure a light gauge steel top member (12GA) and 5/8″ plywood.

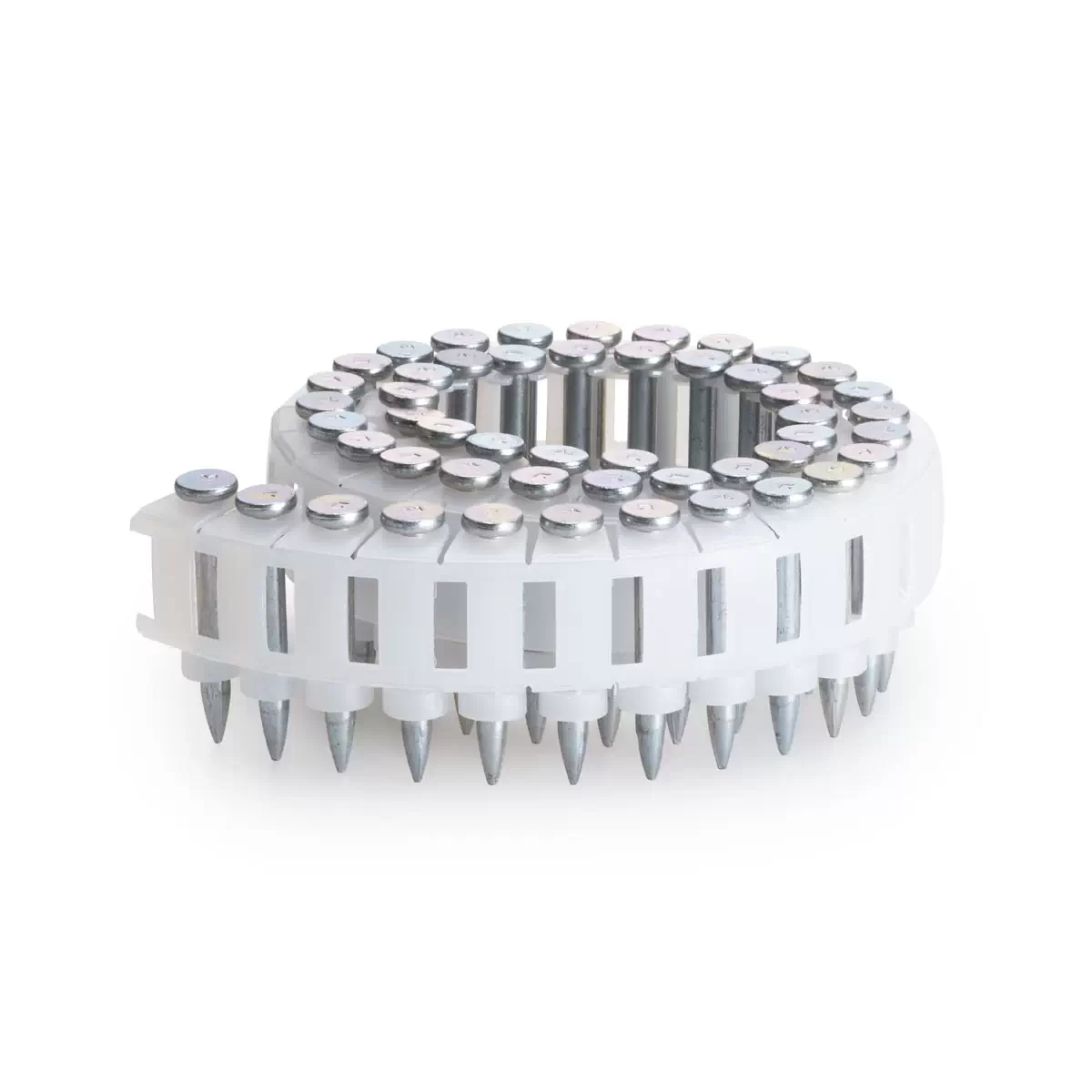

MAX manufactures specialty fasteners for different types of heavy-duty concrete and steel applications to work with the MAX PowerLite® 500PSI system. MAX PowerLite® 500PSI system enables contractors to work more productively and extremely cost effectively at every jobsite where you may have use Gas operated or Powder actuated tools (P.A.T) currently. MAX PowertLite Fasteners come with either 50 pins (For HN120) or 100 pins (For HN25C) in a coil which maximizes efficiency by reducing reloading of tools. The HN120 and the HN25C PowerLite® High Pressure tools are lightweight and compact yet powerful and are the ideal tools for shooting a variety of heavy-duty applications such as Steel I-beam and Concrete in jobsites.
MAX CP-C832W7-ICC PowerLite 500PSI 1-1/4″ X .145″ Smooth Shank / Washer Coil Nail Specifications
- Use: For Regular Concrete (6,000 psi or less)
- Top Member: Light Gauge Steel, 5/8″ Plywood
- Bottom Member: Concrete
- Shank Length: 1-1/4”
- Shank Diameter: .145”
- Item Number: CP-C832W7-ICC
- Guide: Plastic
- Pins/Coil: 50
- Case Quantity: 1,000 Pins
- Shank Type: Smooth w/ Washer
- Material: Carbon Steel
- Hardness: HRC55
- Plate: Electrogalvanized with Zinc Chromate
- Tool: MAX-HN120
MAX CP-C832W7-ICC PowerLite 500PSI 1-1/4″ X .145″ Smooth Shank / Washer Coil Nail Approvals
- ICC-ES
- ESR-2024
- ESR-4320
- ESR-4320 LABC / LARC Supplement
