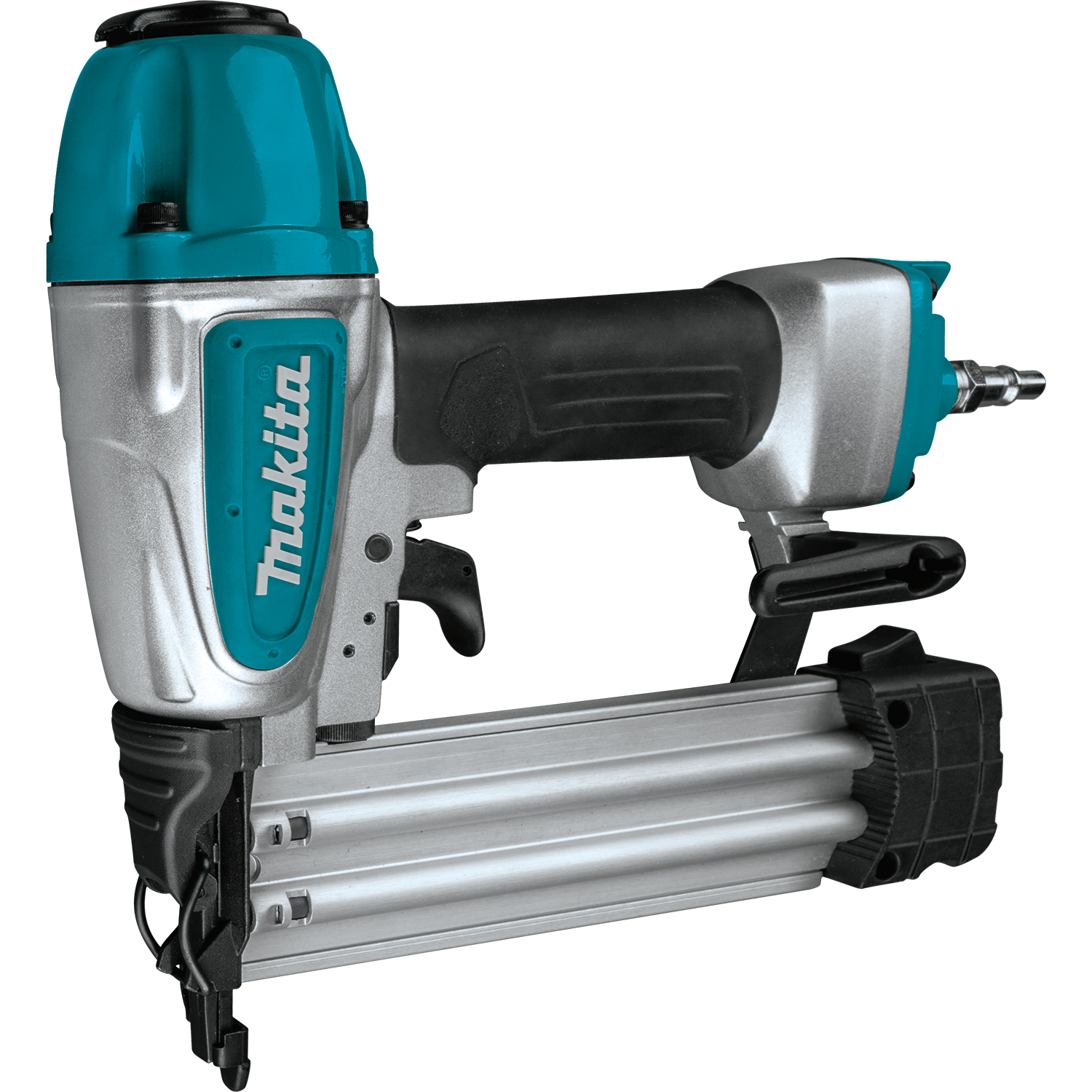

Makita AF506 18G 2″ Air Brad Nailer, Pneumatics, 120PSI

The Makita AF506 18 Gauge 2-inch Brad Nailer features a durable and compact design with ease-of-use features including a narrow-nose design that makes it ideal for a wide variety of finish applications. The AF506 can operate from 70 to 120 PSI, driving a range of 18 gauge brad nails from 5/8” to 2-inch. With a large a magazine capacity up to 100 nails, the AF506 can keep you running for long periods without reload, and the convenient dual windows allow you to quickly identify when your nails are running low. The cast-and-machined nose piece is engineered for precise contact with the workpiece, with a non-marring rubber nose engineered to protect the work surface.  The Makita AF506 2″ Air Brad Nailer includes an ultra-narrow nose design that is ideal for fastening in confined areas, and a convenient “tool-less” depth adjustment dial that can be set for a wide variety of finish applications. For added convenience, the multi-directional exhaust port rotates 360 degrees to direct exhaust air away from the user. For maximum usability the Makita AF506 is engineered for driving a range of 18 gauge brad nails from 5/8″ to 2″ into hard or soft wood applications and is ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications.

Makita AF506 18G 2″ Air Brad Nailer Features

• Powerful motor drives a range of 18 gauge brad nails from 5/8″ to 2″ into hard or soft wood applications
• Aluminum body, magazine and cylinder for strength and durability; weighs only 2.9 lbs.
• Cast and machined nose piece for precise contact
• Air blower feature cleans material of dust and debris
• Quick release nose enables fast and easy clearing of jammed nails
• Quick release, side loading magazine holds up to 100 18-gauge brad nails
• Dual windows enable fast identification of remaining nail capacity
• Convenient, adjustable belt hook for operator convenience
• Non-marring nose and side bumpers protect materials from damage
• Soft rubber grip design for comfortable operation

Makita AF506 18G 2″ Air Brad Nailer Specifications

• Operating Air Pressure: 70 – 120 PSIG
• Operating Air Pressure (Bar): 4.9 – 8.3
• Air Consumption (SCFM): 2
• Nail Size:  (18 ga) 5/8″ – 2″ (15 – 50 mm)
• Nail Type:  18 ga Brad Nails
• Magazine Capacity:  100
• Vibration Level: 2.5 m/s²
• Noise Level: 86 dB(A)
• Dimensions (L x W x H):  9-7/8″ x 2-3/4″ x 10-1/8″ (250 mm x 70 mm x 256 mm)
• Net Weight: 2.9 lbs (1.3 kg)

Makita AF506 18G 2″ Air Brad Nailer Includes

• Makita 2″ Brad Nailer AF506
• Two Nose Adapter (HY00000378)
• Safety Goggles (HY00000951)
• Oil Supply (181434-7)
• Plastic Carrying Case (HY00001107)
• Instruction Manual

Makita AF506 18G 2″ Air Brad Nailer Warranty

• Makita’s 3 Year Limited Warranty
