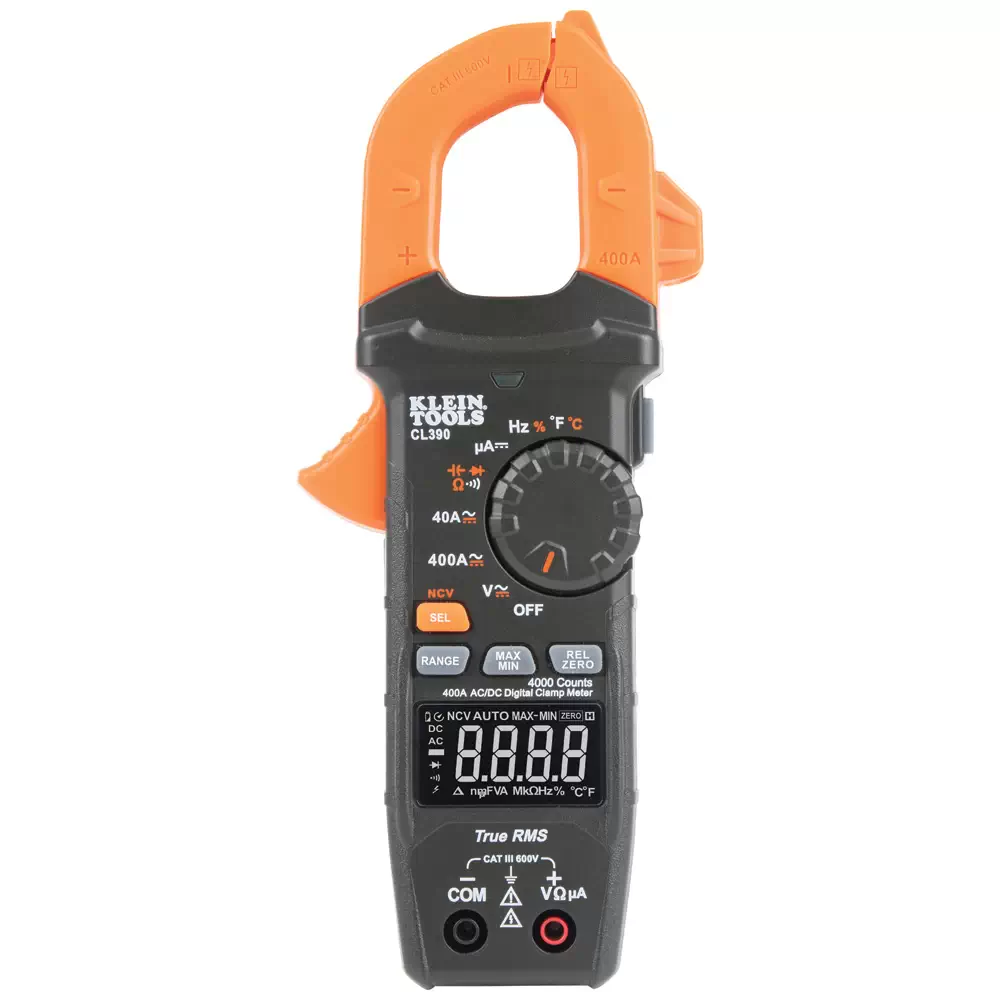

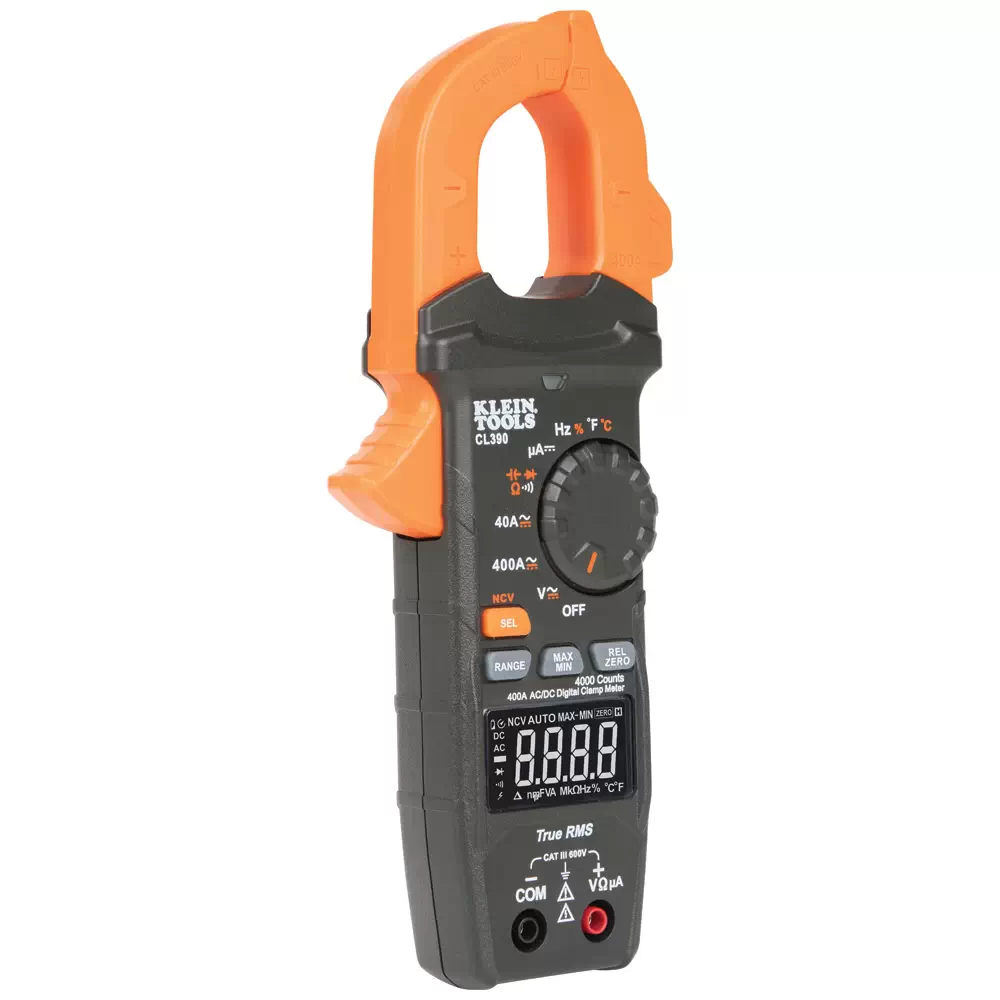

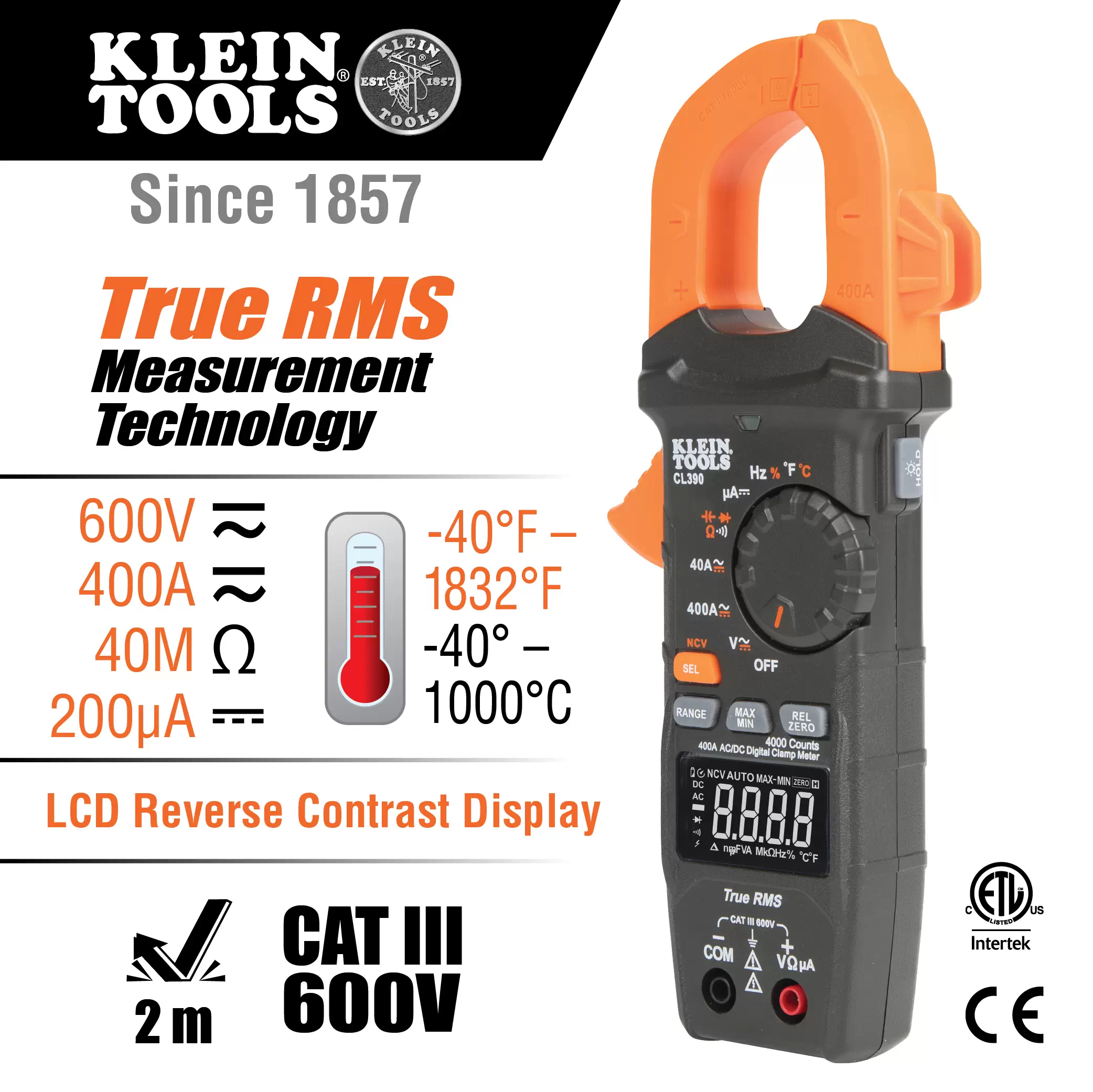

The Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp Features
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp
- Measures AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads
- Measures temperature with a K-Type thermocouple probe
- Max/Min, Rel/Zero and Data Hold capability
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp Applications
- Measures both AC/DC current and NCVT via the clamp and AC/DC voltage
- DC microamp current
- Resistance
- Continuity
- Frequency
- Duty-cycle
- Capacitance
- Tests diodes via the test leads
- Temperature with thermocouple

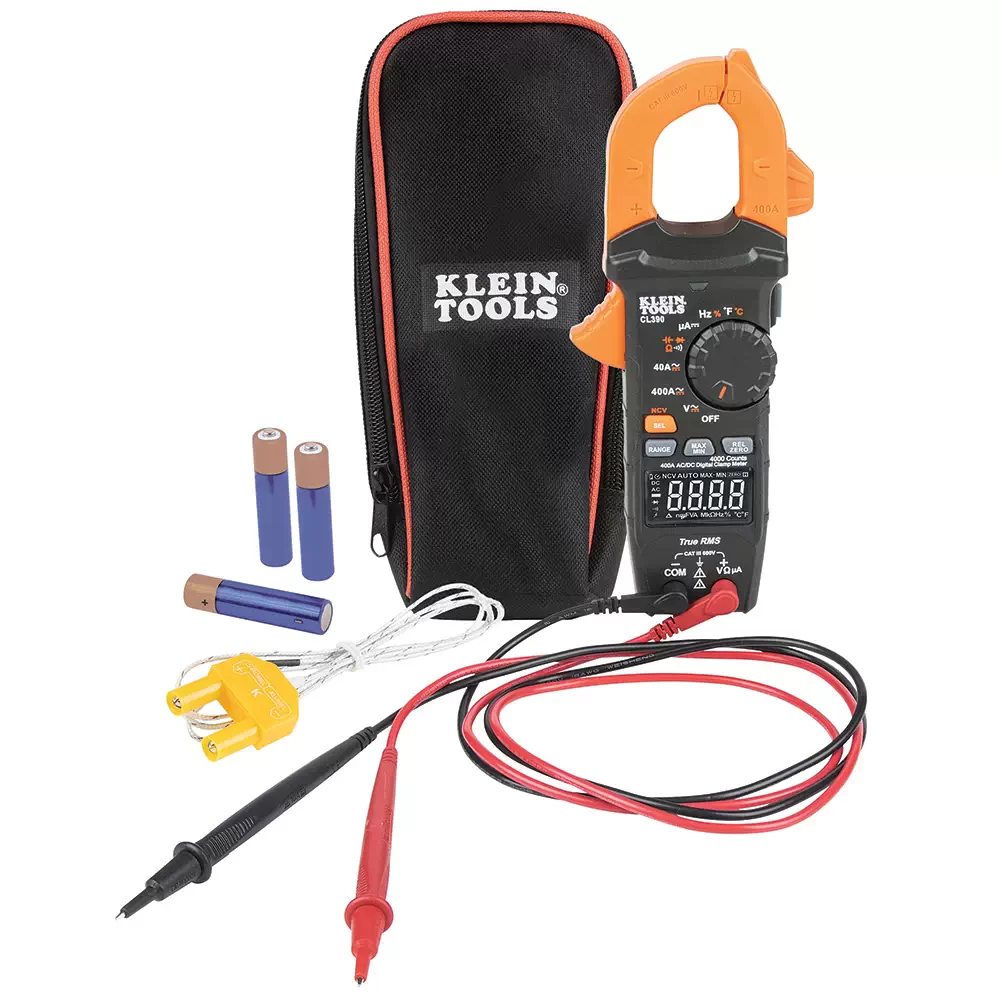

Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp Includes
- (1) Clamp Meter CL390
- (1) Carrying Case 69401
- (1) Test Leads 69410
- (1) Thermocouple 69142
- (1) Instructions
- (3) AAA Batteries
Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp Specifications
- Type: AC/DC Current TRMS Clamp
- Material: ABS/Electronics
- Batteries: 3 x AAA
- Auto-Power Off: Yes
- Jaw Size: 1.6” (4.1 cm)
- Drop Protection: 6.6′ (2 m)
- Display: 4000 Count Reverse Contrast LCD
- Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
- Voltage: 600 V AC/DC
- Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
- Current: 400 A AC/DC
- Capacitance: 4000 µF
- Ohms (Resistance): 40 MΩ
- AC Voltage: 600 V
- DC Voltage: 600 V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 200 µA
- Temperature Range: -40° – 1832°F (-40° – 1000°C)
- Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Overall Length: 8.45” (21.5 cm)
- Overall Height: 1.5” (3.8 cm)
- Overall Width: 3.5” (8.9 cm)
- Weight: 11 oz (314 g)
- UPC: 092644692871
Klein Tools CL390 AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp Warranty
- Klein’s 2 Year Limited Warranty
