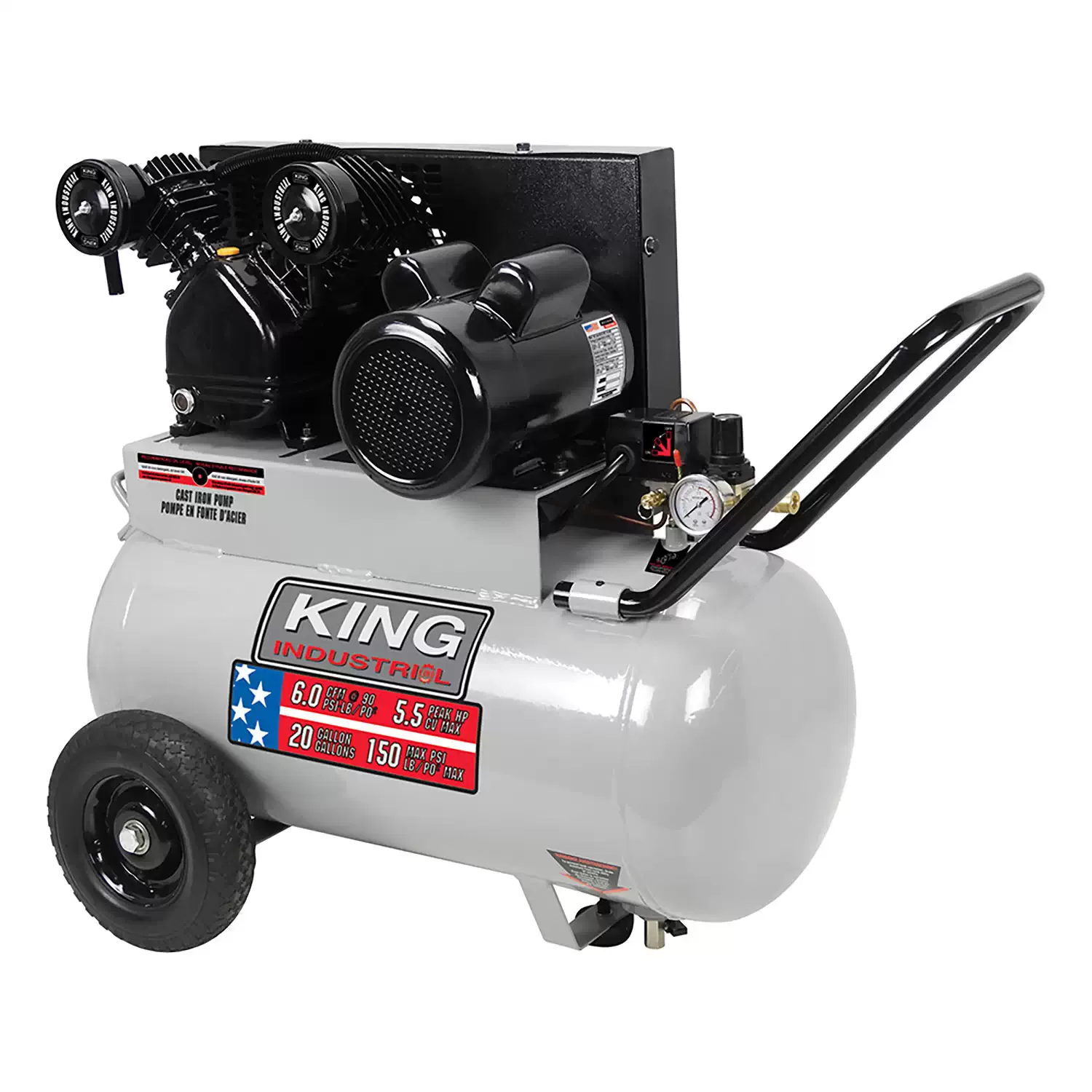

KING INDUSTRIAL KC-2051H2 5.5 HP 20 Gallon Air Compressor

The KING INDUSTRIAL KC-2051H2 is a 20 gallon air compressor with a 5.5 peak HP motor, 150 PSI maximum pressure, and a belt-driven 2-cylinder cast iron single stage oil-lubricated pump. Designed for workshop and jobsite use, it delivers 7.6 CFM at 40 PSI and 6.0 CFM at 90 PSI for inflation, fastening, spraying, and general compressed air tasks.

The KING INDUSTRIAL KC-2051H2 is built for users who need a portable shop air compressor with more output and durability than light-duty oil-free models. Its 2-cylinder cast iron single stage oil-lubricated pump is belt-driven for long service life, and the 20 gallon ASME registered tank supports a wide range of air-powered tasks. With a maximum pressure of 150 PSI, this unit is suited for inflation, blow-off work, light spray applications, and running many common pneumatic tools within its duty range.

This model is powered by a 5.5 peak HP motor and can be run on 120V or 240V single-phase power, with the unit pre-wired for 120V from the factory. The V-style pump design helps reduce vibration and improve cooling, while the regulator and easy-to-read gauges give the operator better control over outlet pressure. Large 10-inch pneumatic wheels and a front handle make it easier to move around a workshop, garage, service bay, or jobsite.

KING INDUSTRIAL 5.5 HP 20 Gallon Air Compressor At a Glance

• 5.5 Peak HP Motor: Provides the power needed for general shop and service air applications.
• 20 Gallon Tank: Gives added air storage for intermittent tool use and routine workshop tasks.
• 150 PSI Maximum Pressure: Supports higher-pressure applications and strong tool performance.
• 2-Cylinder Cast Iron Pump: Oil-lubricated single stage design for durability and consistent compression.
• Belt-Driven System: Helps reduce pump speed and supports longer service life.
• Dual-Voltage Capability: Operates on 120V or 240V, 1 phase, 60 Hz power.
• Factory Pre-Wired for 120V: Ready for common shop power setups out of the box.
• Regulator and Gauges: Lets users monitor and adjust output pressure easily.
• 10 Inch Pneumatic Wheels: Improves portability around the shop or work area.

Quick Specs

• Brand: KING INDUSTRIAL
• Manufacturer Part Number: KC-2051H2
• UPC: 772995010943
• Power Source: Electric corded
• Voltage: 120V / 240V, 1 phase, 60 Hz
• Amperage: 15 / 7.5 Amp.
• Motor Output: 5.5 peak HP
• Tank Capacity: 20 Gallon
• Air Delivery: 7.6 CFM @ 40 PSI; 6.0 CFM @ 90 PSI
• Maximum Pressure: 150 PSI
• RPM: 3,450
• Weight: 145 lbs assembled

Markets

• Automotive Garages: Good for tire service, blow-off work, and light pneumatic tool use within CFM limits.
• Farm and Acreage Maintenance: Useful for inflation, equipment cleanup, and general repair tasks.
• Woodworking Shops: Suitable for brad nailers, staplers, cleanup, and other intermittent compressed air jobs.
• Facility Maintenance: Works well for routine service and maintenance departments needing a portable air source.
• Commercial Workshops: A practical fit for repair benches, small fabrication areas, and assembly work.
• Advanced DIY Users: Well suited for home garages and workshops that need more capacity than compact portable compressors.

The KING INDUSTRIAL KC-2051H2 is a practical choice for buyers who want a heavier-duty portable air compressor with cast iron pump construction and dual-voltage flexibility. Its 20 gallon tank and 150 PSI maximum pressure make it a good fit for day-to-day shop work, especially where portability matters but a small hot-dog or pancake compressor does not provide enough stored air or output.

This model is especially useful for users who value straightforward controls, durable pump design, and the ability to move the compressor easily around the work area. The belt-driven configuration, V-style pump layout, regulator, gauges, and pneumatic wheels all support practical long-term use in garages, maintenance shops, and serious home workshops.

KING INDUSTRIAL KC-2051H2 5.5 HP 20 Gallon Air Compressor Features

• Powerful 5.5 HP Motor: The Winsconsin Electric 5.5 peak HP Motor delivers robust and reliable performance, ensuring your air compressor meets the demands of various tools and applications.
• Durable and efficient pump: The 2 Cylinder cast iron single stage oil-lubricated pump is designed for durability and efficiency, providing consistent air compression for your workshop needs.
• Optimum tool performance: With a 150 PSI max pressure, the KC-2051H2 ensures optimum performance for your tools, allowing you to tackle a variety of tasks with precision and ease.
• Safety-first design: The ASME registered tank and ASME safety valve prioritize safety, providing peace of mind during operation.
• Long-lasting and sturdy: The belt drive with a sturdy metal belt guard enhances the compressor’s longevity, ensuring reliable performance over time.
• Easy maintenance: Large intake “Auto-drop” filters make maintenance a breeze, keeping your air compressor in top condition with minimal effort.
• Precision control: The air pressure regulator and easy-to-read pressure gauges provide precise control over air output, allowing you to tailor the performance to your specific needs.
• Enhanced pump design: The pump’s “V” style design minimizes vibrations, improves cooling, and extends compressor life, contributing to the overall durability of the unit.
• Portability for any job: With 10″ pneumatic wheels and a front handle, the KC-2051H2 is designed for portability, making it easy to move around your workshop or job site.

KING INDUSTRIAL KC-2051H2 5.5 HP 20 Gallon Air Compressor Includes

• (1) KING INDUSTRIAL KC-2051H2 20 Gallon Air Compressor
• (2) 10″ Pneumatic Wheels
• (1) Front Handle

KING INDUSTRIAL KC-2051H2 5.5 HP 20 Gallon Air Compressor Specifications

• Brand: KING INDUSTRIAL
• Manufacturer Part Number: KC-2051H2
• UPC: 772995010943
• Product Type: Air Compressor
• Motor Output: 5.5 Peak HP
• Pump Type: 2-Cylinder Cast Iron Single Stage Oil-Lubricated Pump
• Maximum Pressure: 150 PSI
• Factory Pressure Setting: 95-125 PSI, adjustable up to 150 PSI
• Air Delivery at 40 PSI: 7.6 CFM
• Air Delivery at 90 PSI: 6.0 CFM
• Tank Size: 20 Gallon
• Motor Amperage: 15 / 7.5 Amp.
• RPM: 3,450
• Voltage: 120V / 240V, 1 phase, 60 Hz
• Pre-Wired: 120V
• Assembled Dimensions: 39-1/2″ x 20-1/2″ x 31″
• Assembled Weight: 145 lbs

KING INDUSTRIAL KC-2051H2 5.5 HP 20 Gallon Air Compressor Warranty

• KING Canada’s 1-Year Limited Warranty

Why Professionals Choose the KING INDUSTRIAL 5.5 HP 20 Gallon Air Compressor

Customers choose the KING INDUSTRIAL KC-2051H2 because it offers a good balance of air capacity, portability, and heavier-duty pump construction. The cast iron oil-lubricated pump and belt-drive layout appeal to buyers who want a shop air compressor designed for longer service life than many lighter portable units. Its 20 gallon tank also gives users more stored air for intermittent pneumatic tool use without moving up to a much larger stationary compressor.

It is also a practical fit for buyers searching for a portable air compressor for garage, maintenance, and workshop use. The dual-voltage setup, 150 PSI maximum pressure, regulator, and wheel kit make it easier to install, operate, and move where needed. For users who need a 20 gallon air compressor for inflation, fastening, cleanup, and general service work, this model covers a broad range of common applications.
