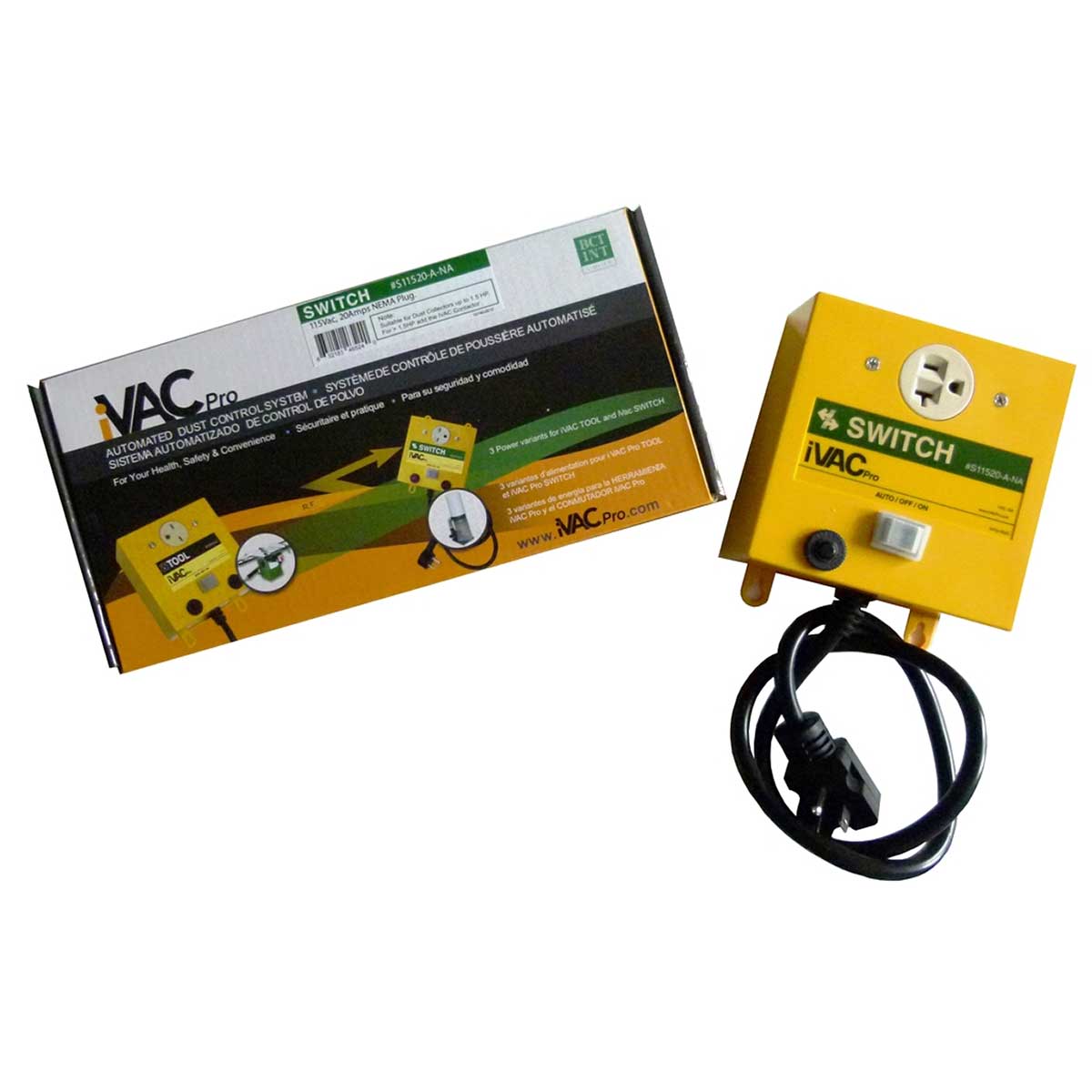

iVAC S11520-A-NA Dust Collector Pro Switch Box 115VAC 20A

The iVACS11520-A-NA Dust Collector Pro Switch Box is the heart of the iVAC Pro automated dust control system. The iVAC S11520-A-NA Dust Collector Pro Switch Box automatically turns on your shop vacuum or dust collector when you turn on a tool that is connected to the iVAC system via an iVAC Pro Tool Plus, or an iVAC Pro Remote. The iVAC S11520-A-NA Dust Collector Pro Switch Box can accept signals from up to 8 different tools to form a system and upp to 4 iVAC Pro systems can operate independently in the same workshop. 115V/20A. Automated dust control for the most demanding workshops.

Each iVAC Pro Switch can accept signals from up to 8 different tools to form a system – more than enough for the typical workshop. And up to 4 iVAC Pro systems can operate independently in the same workshop. Tools can be stationary, such as a cabinet saw, or hand held, such as a sander or router. In fact any tool that has a dust collection port can be used with an iVAC system.

Installation is simple and involves plugging the unit into an outlet and connecting the shop vacuum or dust collector to the iVAC Pro Switch. Each power tool requires an IVAC Pro Tool or iVAC Pro Tool Plus automatic sensor to communicate with the iVAC Pro Switch.

The iVAC S11520-A-NA Dust Collector Pro Switch Box 115VAC 20A is the switch box only, remote and other accessories sold separately.

What tools will the iVAC S11520-A-NA Dust Collector Switch Box work on?

• 115V-20A power tool
• light-duty table saw
• Circular saw
• Hammer drill
• Portable sander
• Dremel tools
• Miter saws
• Portable planers

In fact, any 115V-20A that creates airborne dust can be connected to, and controlled by the iVAC S11520-A-NA Dust Collector Switch Box.

iVAC S11520-A-NA Dust Collector Switch Box Features

• Variable Turn Off time, by means of a Program Switch that can be set to 5 seconds, 15 seconds, or 45 seconds. Allows surface debris to be cleared once the tool is turned off by leaving the vacuum on.
• Turn On Delay of 1.5 seconds to avoid power surges and tripped breakers.
• Multi-Switch Capability allows up to four independent iVAC Pro switches to operate in the same or adjacent workshops. This feature has proved valuable in wood working school environments and professional shops.

Available in several power variants to accommodate 115V-15A, 115V-20A and 240V-20A circuits and shop vacuums up to 2 horsepower (hp). For applications requiring vacuums with higher hp up (to 10 hp), an iVAC Contactor unit is available.

Automated Dust Control for the Demanding Workshops with the iVAC Dust Collector Switch

Each iVAC Pro Switch can accept signals from up to 8 different tools to form a system – more than enough for the typical workshop. And up to 4 iVAC Pro systems can operate independently in the same workshop. Tools can be stationary, such as a cabinet saw, or hand held, such as a sander or router. In fact any tool that has a dust collection port can be used with an iVAC system. Installation is simple and involves plugging the unit into an outlet and connecting the shop vacuum or dust collector to the iVAC Pro Switch. Each power tool requires an IVAC Pro Tool or iVAC Pro Tool Plus automatic sensor to communicate with the iVAC Pro Switch.

iVAC S11520-A-NA Dust Collector Switch Box Specifications

• Maximum number of switches per shop: 4. Each switch accommodates 8 power tool signals, for a total of 32 power tools with 4 dust collectors.
• When cascading iVac systems together so that one dust collector can look after more than 8 machines you are limited to 29 machines if you want the “One blast gate always open” feature to work properly.
• Voltage: 115Vac or 240Vac depending on model
• Current capacity:  20Amps
• Circuit breakers are rated at 20Amps
• Typical Motor drive capability: 1.5HP at 115vac, 2.0HP at 240Vac
• Input power cord is 30” with respective NEMA straight blade plug
• Output power receptacle with respective NEMA straight blade receptacle
• Turn ON Delay 0 or 1.5 seconds, programmable
• Turn Off Time 0, 5, 15 or 45 seconds, programmable
• Range, 40’ line of sight
• Maximum ambient operating temperature, 30C
• Regulatory approval  – TUV certification to UL60950-1 and CSA 60950-1

iVAC Pro Switch technical specifications are subject to change without notice.
