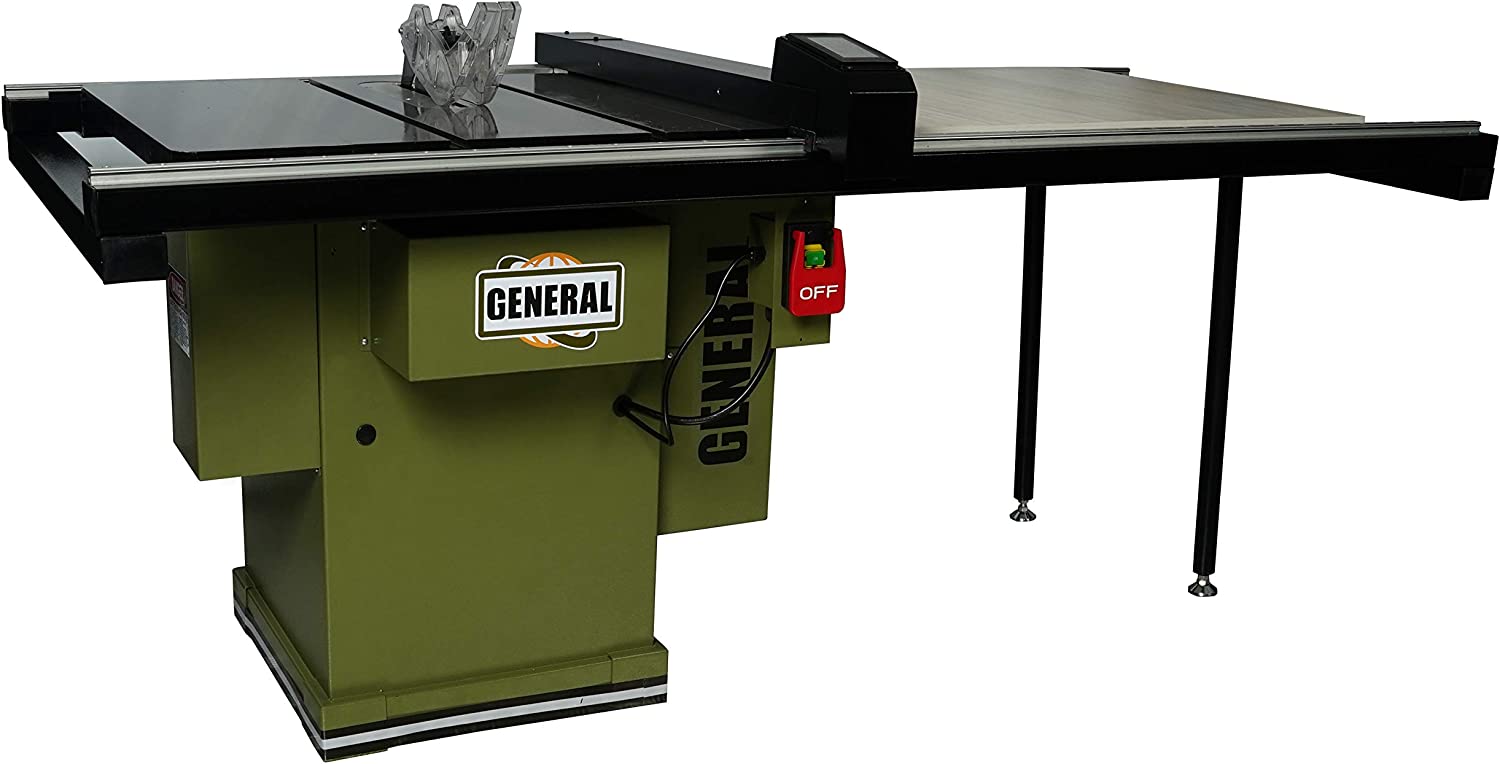

General 850-3-52 Automated 3HP Tablesaw with 52”Rail Set & Table Board, 230V 1PH

The award winning General 850-3-52 Automated 3HP Tablesaw has all the features you need as a professional woodworker and home shop enthusiast,  including 3 HP, 52″ automated fence package and table board. The 850-3-52 features a new AUTO Fence by General Design to achieve electronic movement, auto tilt, and blade lifting by LCD touch control display so your cuts are accurate every time! The auto fence electronic control system is connected to a programmable controller, and the input value includes the Sawblade angle, saw blade height, and cutting width which could achieve accurate horizontal movement and blade tilt and lifting by LCD touch control. The General 850-3-52 3HP Tablesaw has been built based on its predecessor General 650 and features many of the high quality design elements that made General an industry leader such as powder-coated, scratch-resistant, high quality reinforced steel cabinet.  Matching dual V-belt drive, on balanced cast-iron pulleys for smooth vibration-free running. Magnetic emergency stops safety switch to prevent unwanted or unintentional start-up. Precision ground high luster cast iron table. Arbor mounted on heavy-duty trunnion with permanently lubricated, sealed ball-bearings. You really need to see this saw to believe it!

General 850-3-52 Automated 3HP Tablesaw with 52”Rail Set & Table Board Features

• New! AUTO Fence by General Design to achieve electronic movement, auto tilt, and blade lifting by LCD touch control display.
• Totally enclosed, fan-cooled industrial motor 3HP/1PH, SHP/3PH.
• Auto Fence electronic control system is connected to a programmable controller, and the input value includes the Sawblade angle, saw blade height, and cutting width which could achieve accurate horizontal movement and blade tilt and lifting by LCD touch control.
• Powder-coated, scratch-resistant, high quality reinforced steel cabinet.
• High-precision General “T” Fence System with 52″ and 36″ long guide rails.
• Rip Fence and guide rail could be mounted on both left and right sides.
• Melamine extension table and adjustable support legs.
• 2 miter gauge T-slots and deluxe aluminum miter gauge.
• Magnetic emergency stops safety switch to prevent unwanted or unintentional start-up.
• Electronic Retro Fit Fence for other table saws.
• Arbor mounted on heavy-duty trunnion with permanently lubricated, sealed ball-bearings.
• Beveled edge on the front of the table and table wings.
• Independent side safety guard.
• Precision ground high luster cast iron table.
• Hinged motor cover, allows quick access to motor and belts.
• Built-in 4″ dust collection port.
• One-piece box style trunnion.
• Arbor locks to change the blade.
• Matching dual V-belt drive, on balanced cast-iron pulleys for smooth vibration-free running.
• ETL (Electrical Testing Laboratories) certified.

General 850-3-52 Automated 3HP Tablesaw with 52”Rail Set & Table Board Specifications

• ITEM NO : 850 M1 (Left Tilt)
• BLADE DIAMETER : 10″ (254 mm)
• ARBOR DIAMETER : ¾” (16 mm)
• ARBOR TILTING RANGE : o· to 45°
• ARBOR SPEED : 4000 rpm
• MAXIMUM DEPTH OF CUT AT90° : 3 ½” (79 mm)
• MAXIMUM DEPTH OF CUT AT 45 ° : 2 ½” (54 mm)
• MAXIMUM RIPTO LEFT OF BLADE : 12″ (305 mm)
• MAXIMUM RIPTO RIGHT OF BLADE : 52″ (1320 mm)/ 36″(914mm)
• MAXIMUM DADO WIDTH : 13/ 16″ (21 mm)
• DISTANCE AHEAD OF BLADE : 12 ¾” (324 mm)
• TABLE SIZE : 28″ x 36″ (711 x 914 mm)
• TABLE HEIGHT : 34″ (864 mm)
• SIZE OFT-SLOT : ¾” x ¾” (10 x 19 mm)
• MOTOR : 3 H P 230V lPh / SH P 230V/460V 3Ph
• WEIGHT(N.W / G.W ) : 576lbs (261.3 kg)/ 661¾ lb s (300 kg)

General 850-3-52 Automated 3HP Tablesaw with 52”Rail Set & Table Board Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
