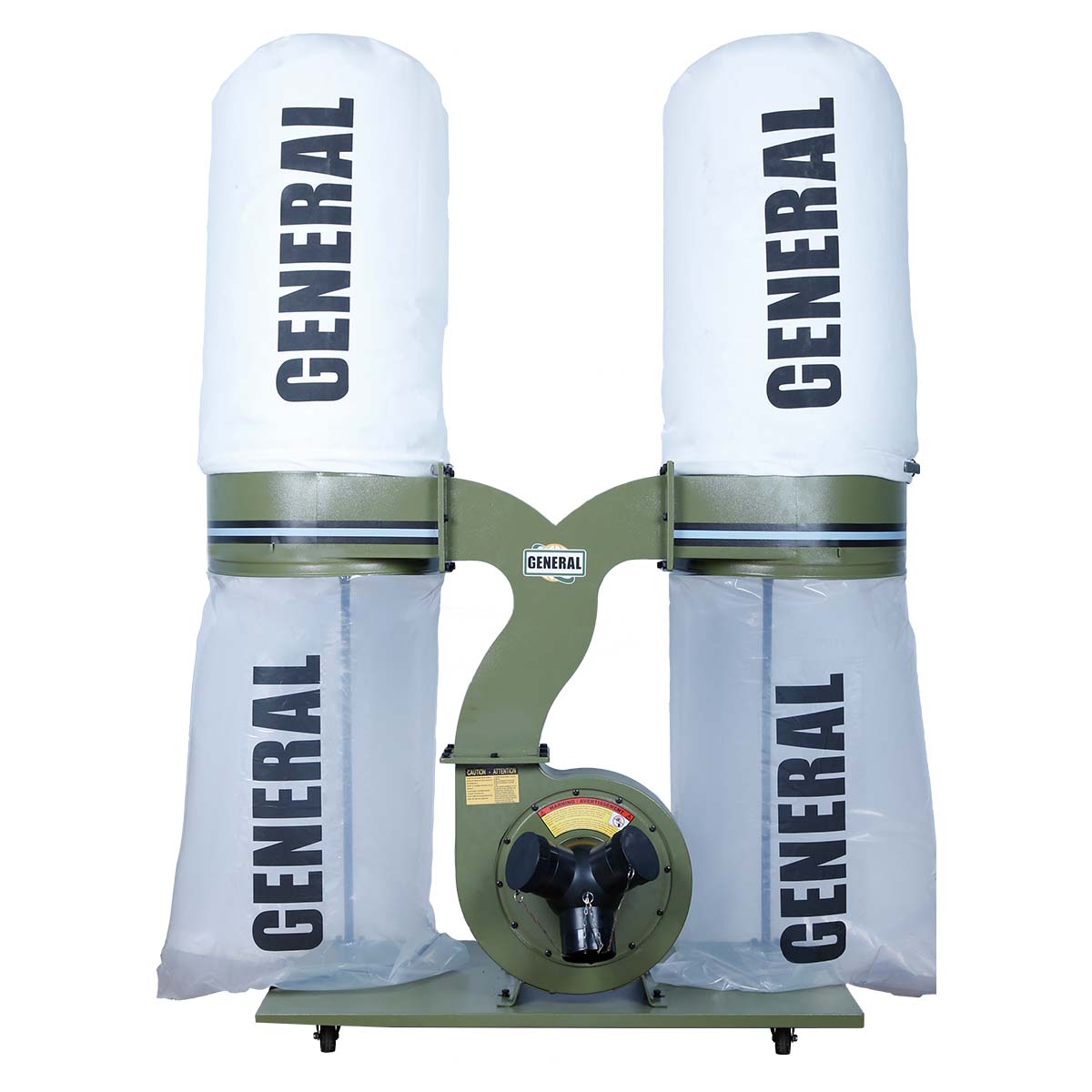

General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector 220V, 1 Ph, 18 A

The General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector has been designed for medium to large shops applications and can help eliminate the clean-up after wood projects. With an amazing  2280 CFM the General 10-210 M1 dust collector has enough suction to take on multiple machines in your workshop, easily handling planers, jointers and table saws at the same time. The General 10-210 M1 woodworking dust collecting system has a totally enclosed, fan cooled, permanently lubricated motor design with a continuous duty rating for industrial applications. General’s 10-210 features a heavy-duty base, mounted on four swivel casters for total mobility and stability. With safety in mind the 10-210 has a precision “SPAR K FREE” spin-balanced impeller for smooth operation, minimal noise and to reduce the risk of sparking. The General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector filters debris down to 2 micron while exhausting the air back into your shop, with debris larger than 1 micron falling into the two heavy duty disposable plastic bottom bags. Auto Switch” where machine can be directly connected, plugged into the dust collector, when the machine is turned ON/OFF the dust collector will be turned ON/OFF automatically. (DAS Units ONLY)

General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector Features

• “Auto Switch” where the machine can be directly connected, plugged into the dust collector, when the machine is turned ON/OFF the dust collector will be turned ON/OFF automatically. (DAS Units ONLY)
• Convenient “Snap Ring” on a lower collection bag.
• Heavy-duty motor design with a continuous duty rating for industrial applications.
• Equipped with a totally enclosed, fan-cooled, permanently lubricated motor. Heavy-duty base mounted on four swivel casters for total mobility and stability. Precision “SPARK FREE”spin-balanced impeller for smooth operation, minimal noise and to reduce the risk of sparking.
• Equipped with 2-micron filter bags (not included in the “CF” canister filter model).
• Safety switch with key prevents the unit from being started when the key is removed.
• Heavy-duty collection bags made from extra-thick, transparent, recyclable plastic. ETL ( Electrical Testing Laboratories) certified

General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector Specifications

• STYLE(TYPE): Filter Bag
• INLET DIAMETER : 1×6″ (152 mm) / 2×4″ (102 mm)
• AIRFLOW CAPACITY : 2280 CFM
• BLOWER WHEEL DIAMETER : 12″ (305 mm)
• SOUND RATING : 80 to 95 dB
• FILTER BAG/CANISTER SIZE : 19⅝” x 34½” (Φ500 x 870 mm)
• BAG CAPACITY : 83 gallon (377 l)
• STATIC PRESSURE : 15½”  of water
• OVERALL DIMENSIONS (L x W x H) : 56¾” x 27½” x 67⅞” (1440 x 700 x 1725 mm)
• MOTOR : 3 HP, 220 V,  1 Ph, 18 A
• WEIGHT (N.W/G.W): 109lbs (49.5 kg)123½lbs(56kg)
• SWITCH : Dual Auto Switch

General 10-210 M1 3HP 2280 CFM 2 Bag Dust Collector Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
