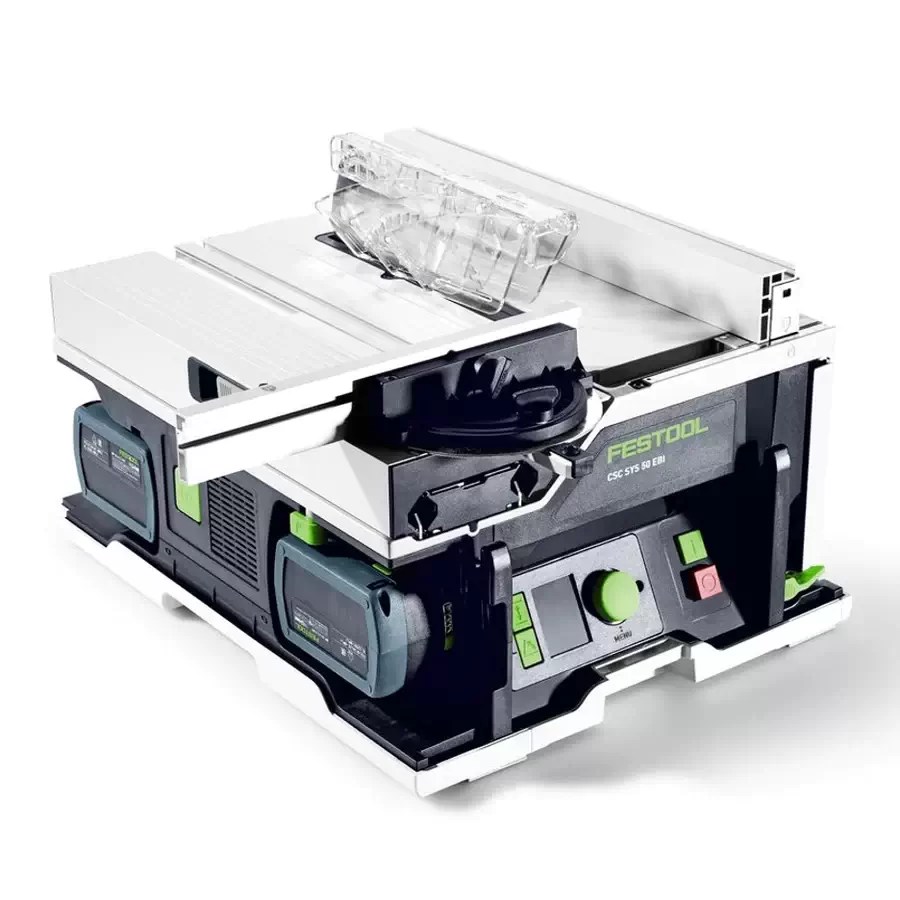

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit

The Festool 577378 CSC SYS Cordless Table Saw is the ultimate in portable precision. The Festool 577378 cordless table saw is extremely compact and is the only saw that fits in a Systainer! The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It’s just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11″ (280 mm), cross-cut widths of up to 17-3/4″ (450 mm) and bevel cuts of -2° to 47°. The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256″). The 2×18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won’t notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.

Please note: Festool offers a 1 Year Limited Warranty but you can add an additional 2 Years when you register your tool within 30 Days of Purchase.

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit Features

• Versatile: Parallel cuts up to 11″ (280 mm); cross cut width of up to 17-3/4″ (450 mm). Bevel cuts from -2° to 47°
• Practical: At a cutting height of up to 1-3/8″ (35 mm), through to bevel cuts down to -10°; ideal for back-beveling filler strips

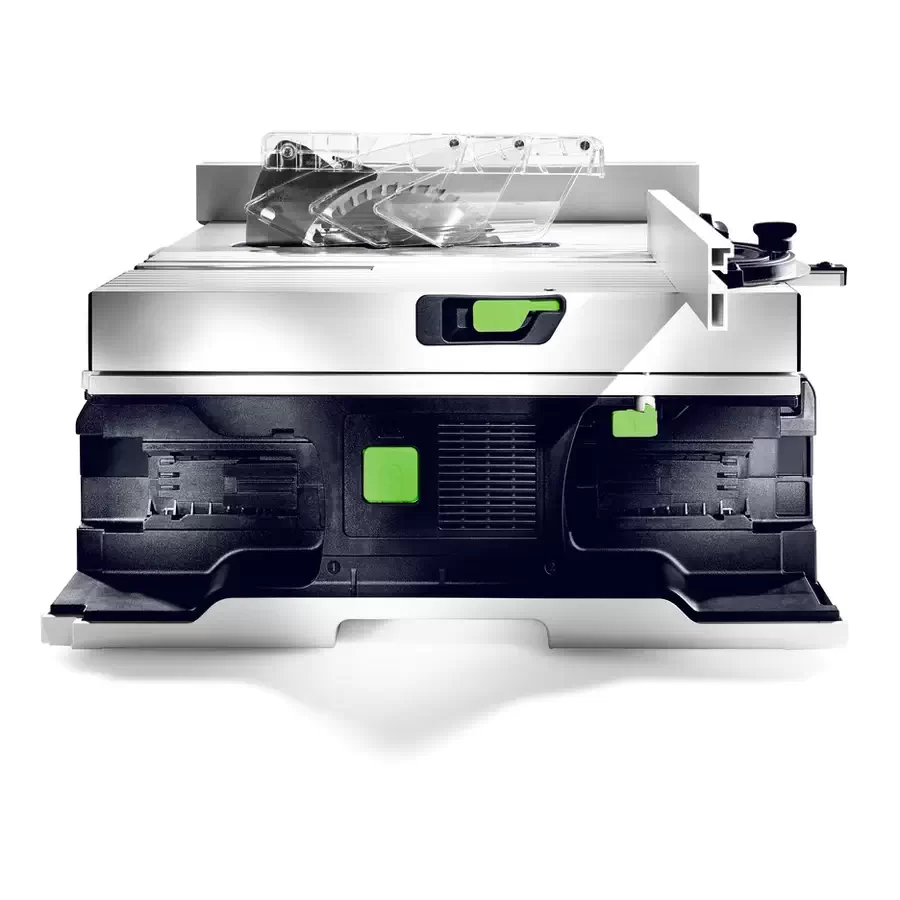

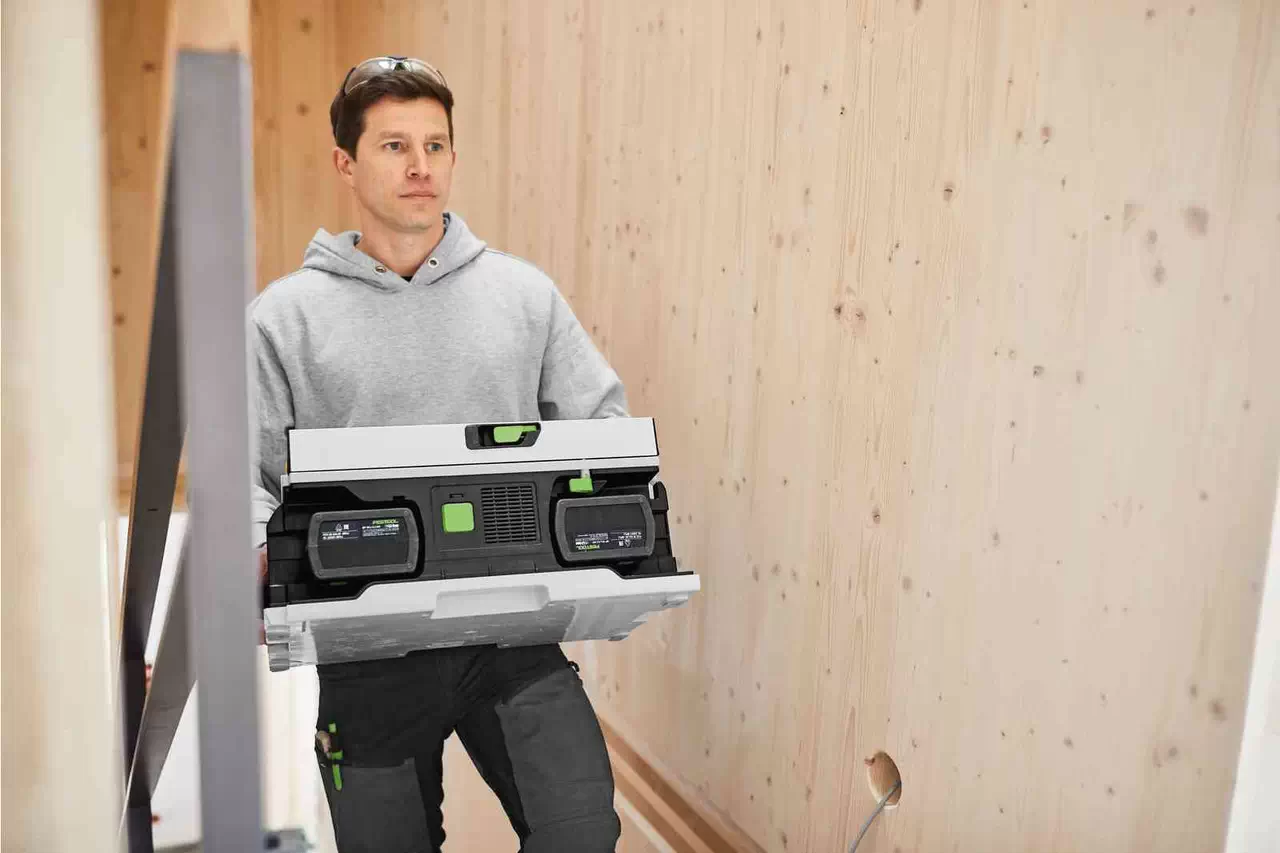

• Compact and mobile: Can be easily carried with one hand neatly stored in a Systainer format. Even easier to transport with the wheeled UG-CSC-SYS underframe

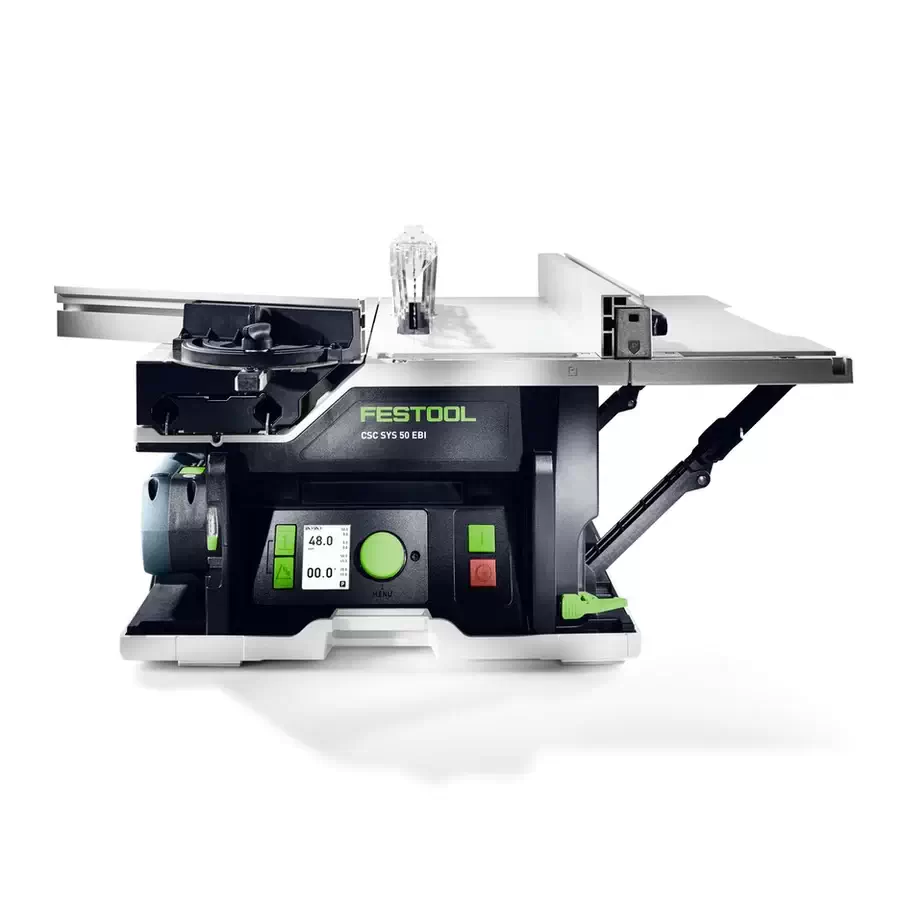

• Extreme precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter (1/256″)
• Repeatable cuts are easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Repeatable cuts are a sure thing
• Convenient: Four saw blade positions can be saved and selected via the digital display
• Highly precise rip fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
• Highly precise angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70° and +70°
• Absolutely smooth-sliding action: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
• Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing and perfect cutting results

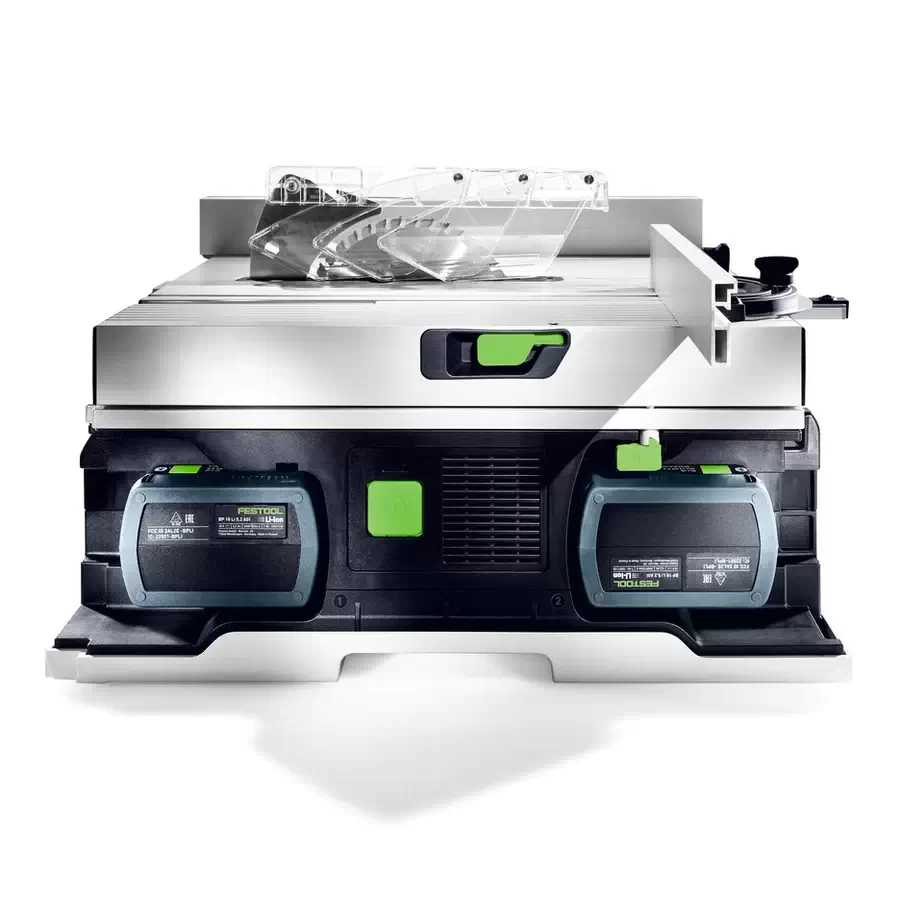

• Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long runtime
• Long-lasting: The brushless EC-TEC motor is long-lasting, durable and maintenance-free
• Work appropriately for the material: With saw blades for nearly every material; speeds appropriate for the material can be preselected via the digital display
• Dust-free: Chip collection bag for practically dust-free work, even without a mobile dust extractor
• Cleaner working with a system: Ideal also in combination with the Festool cordless extractors
• Compatible: Fits together with the entire Festool Systainer system and Systainer Systems van racking equipment

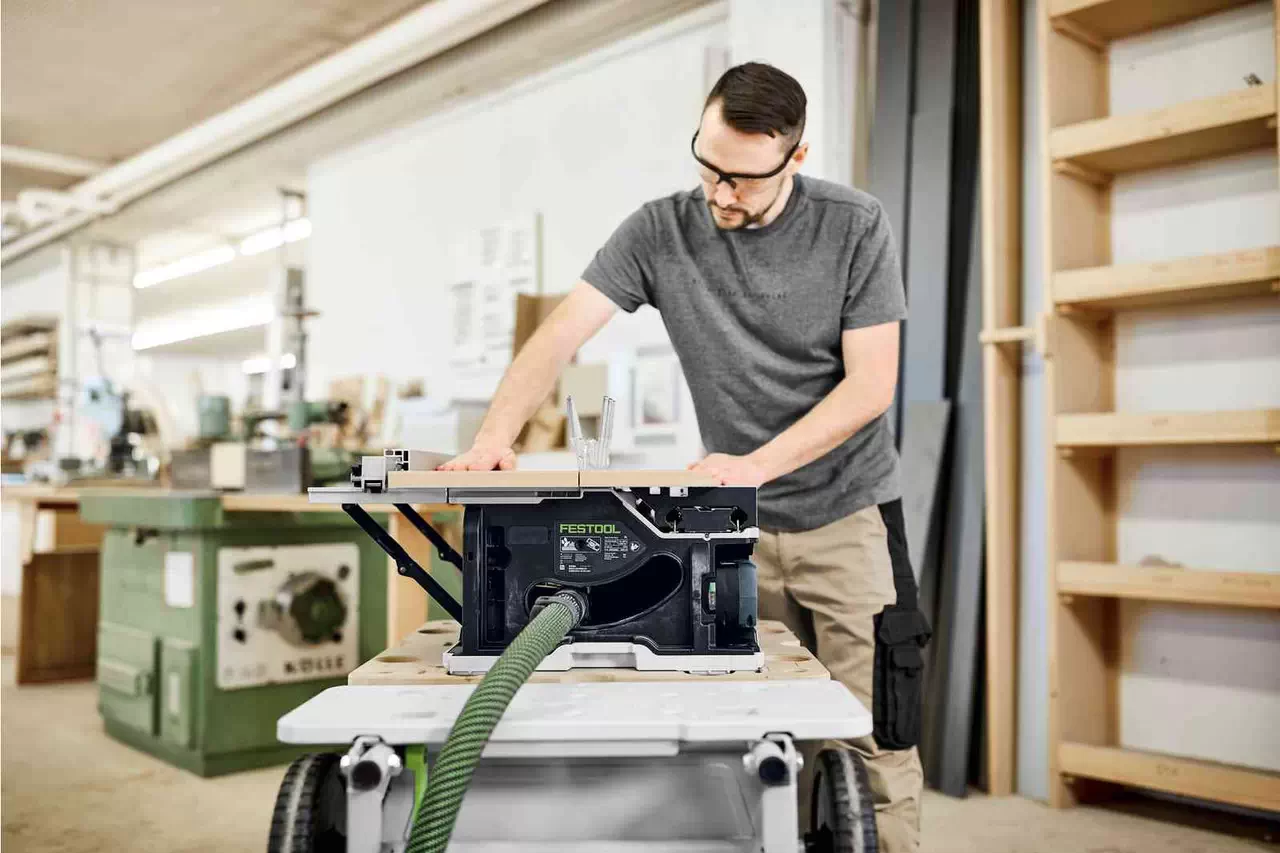

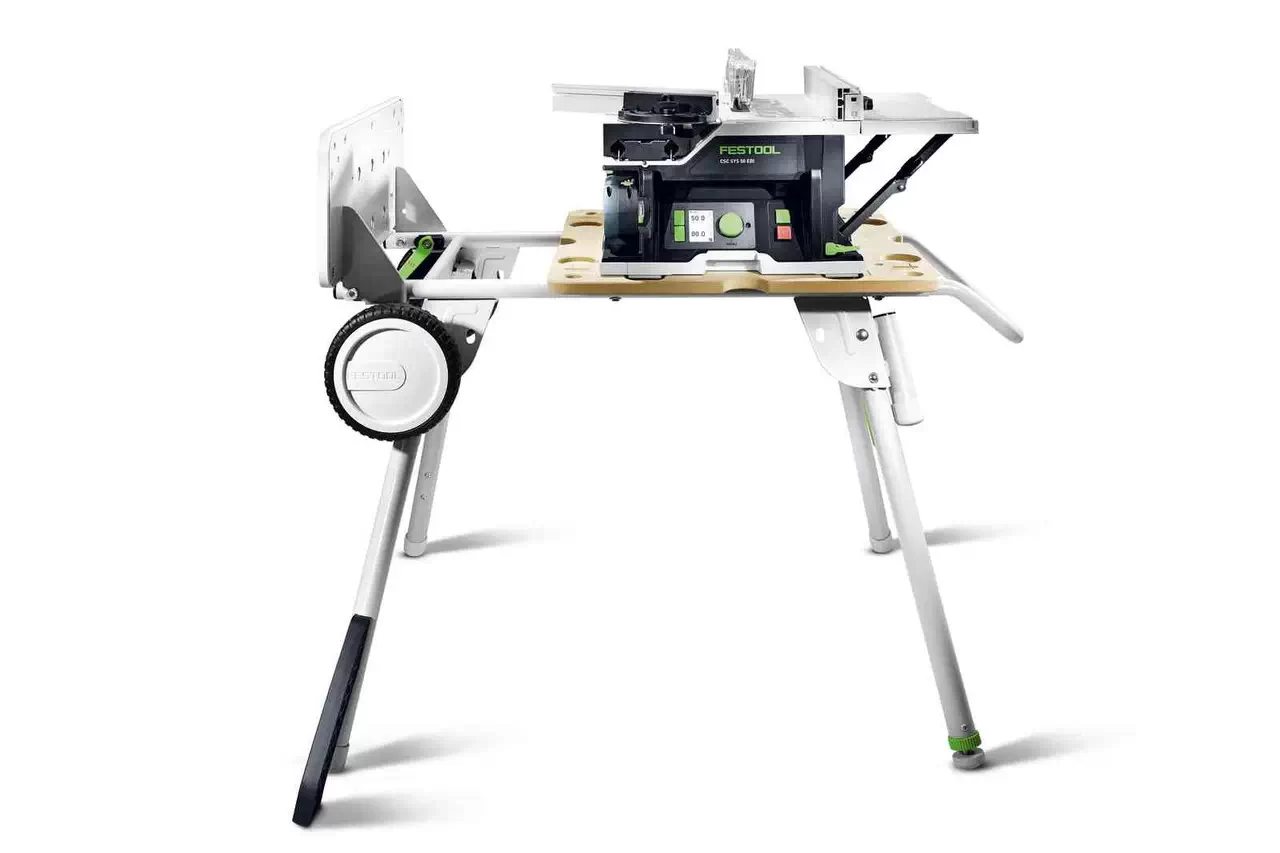

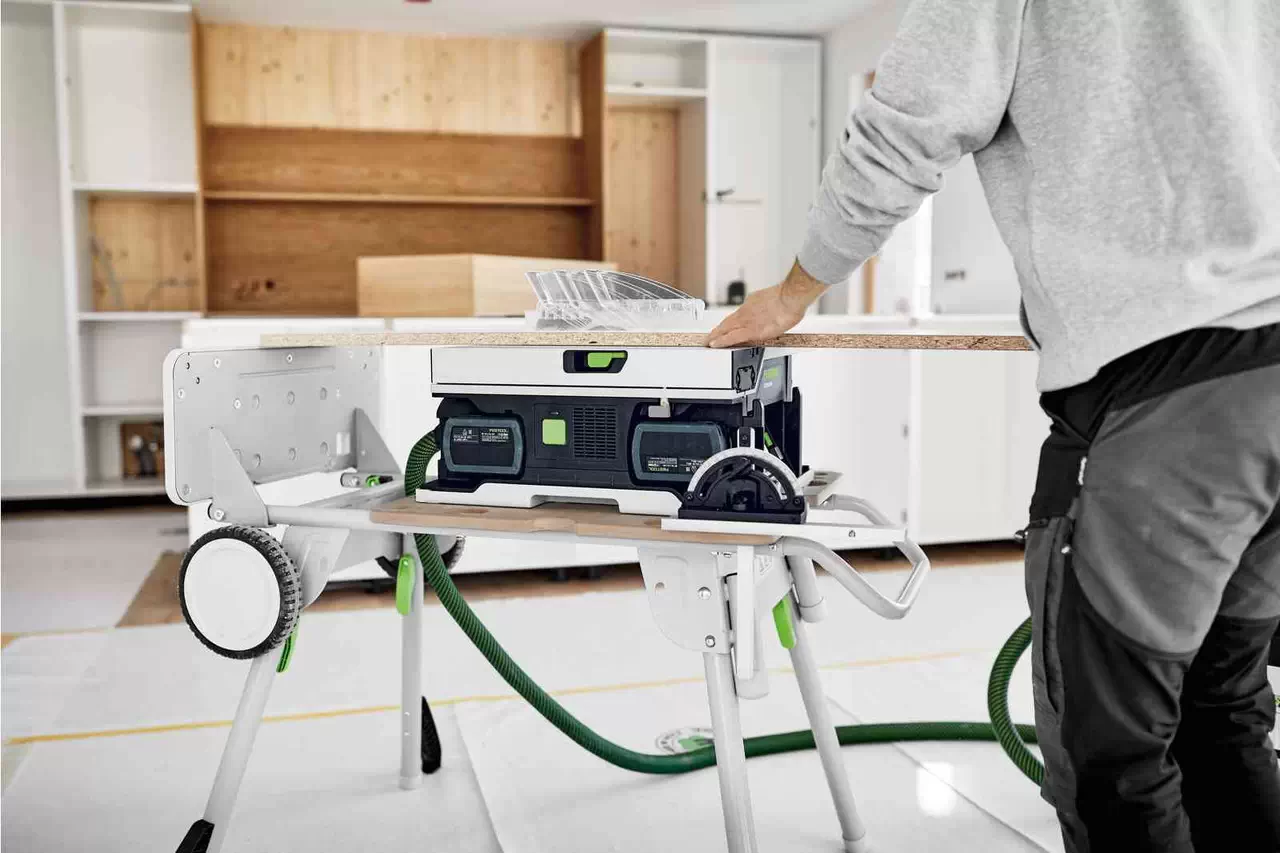

• Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
• Unique: Three-year warranty for battery packs and chargers too
• Incredibly compact. Extremely versatile: So compact, it fits into a Systainer – portable and precise – the CSC SYS 50 cordless table saw. Produce shop-quality cuts on the jobsite. Impressively versatile, with parallel cuts of up to 11″ (280 mm), a cross-cut width of up to 17-3/4″ (450 mm) and bevel cuts of -2° to 47°.
• Precise cuts at the press of a button: You can set the height and angle accurately to a tenth of a millimeter (1/256″) with unique digital operation – more exact than with any tape measure, with 100% repeat accuracy. Even the most demanding cuts are a breeze with unprecedented precision, with the robust guidance system made up of a rip fence, a miter gauge and sliding table.
• As powerful as a corded saw: Even for rip cuts in solid wood, you won’t notice any difference in power compared with corded machines – the 2×18 V dual battery system, in combination with the brushless EC-TEC motor will impress you with maximum power and torque.
• Parallel cuts up to 11″ (280 mm): The folding table ensures compact dimensions during transport and a precise, stable support for materials of up to 11″ (280 mm) when sawing.
• Cross-cuts up to 17-3/4″ (450 mm): An impressive cross-cut width of up to 17-3/4″ (450 mm) is possible.
• Bevel cuts from -2° to 47°: Bevel cuts from -2° to 47°; at a cutting height of up to 1-3/8″ (35 mm), even down to -10°.
• Miter angles from -70° to +70°: The angle can be optimally adjusted via the exact scale; predefined catches also make selecting the most important angles easier.
• Made for interior finishing: With a guaranteed cutting height of 1-7/8″ (48 mm), all applications typical in interior finishing can be carried out.

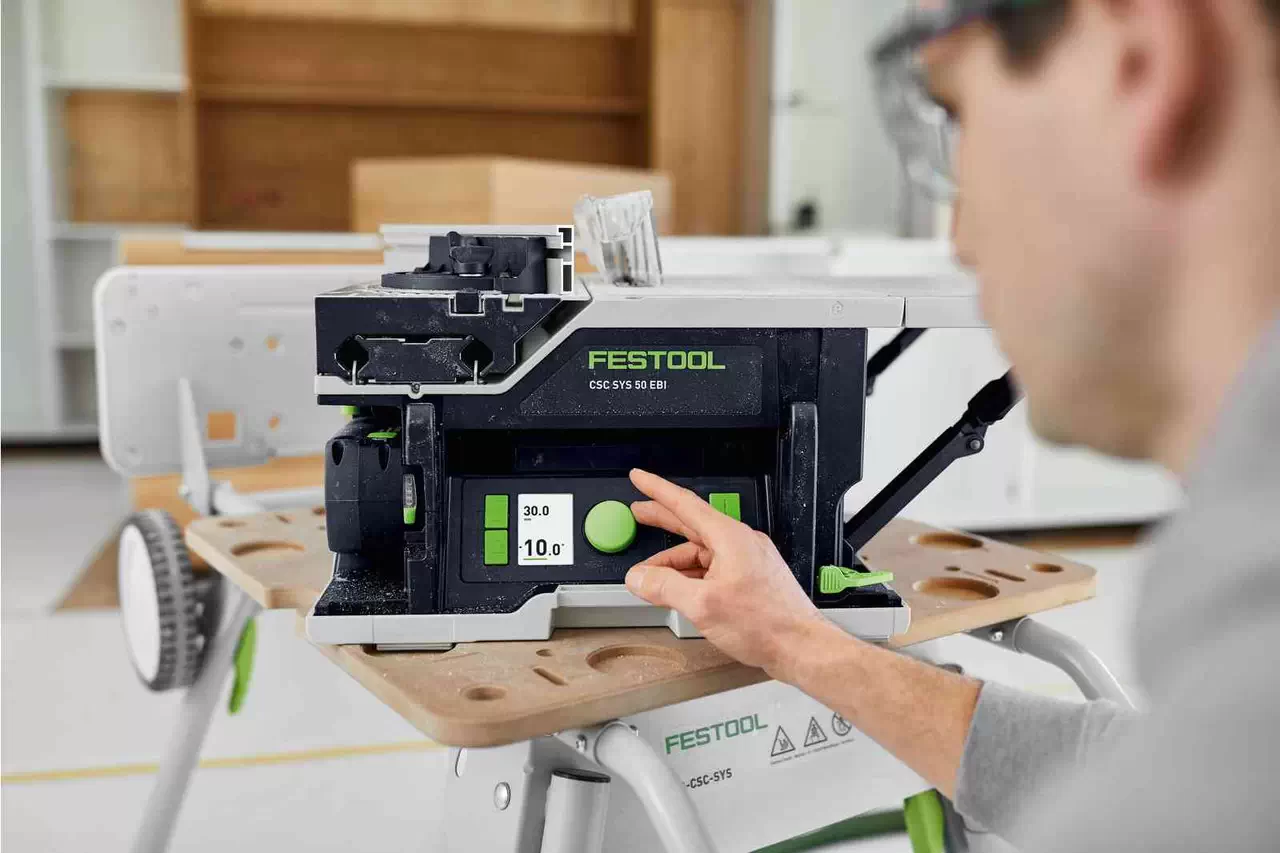

• More precise than any tape measure: The desired sawing height and angles are accurately entered to within 0.1 mm (1/256″) via the digital display and the dial. This adjusts the saw blade automatically.
• Multi-language: The display can be set to your local language.
• Systainer: Transport and protection: The Systainer hood is easily placed over the cordless table saw, allowing easy transportation and protection.

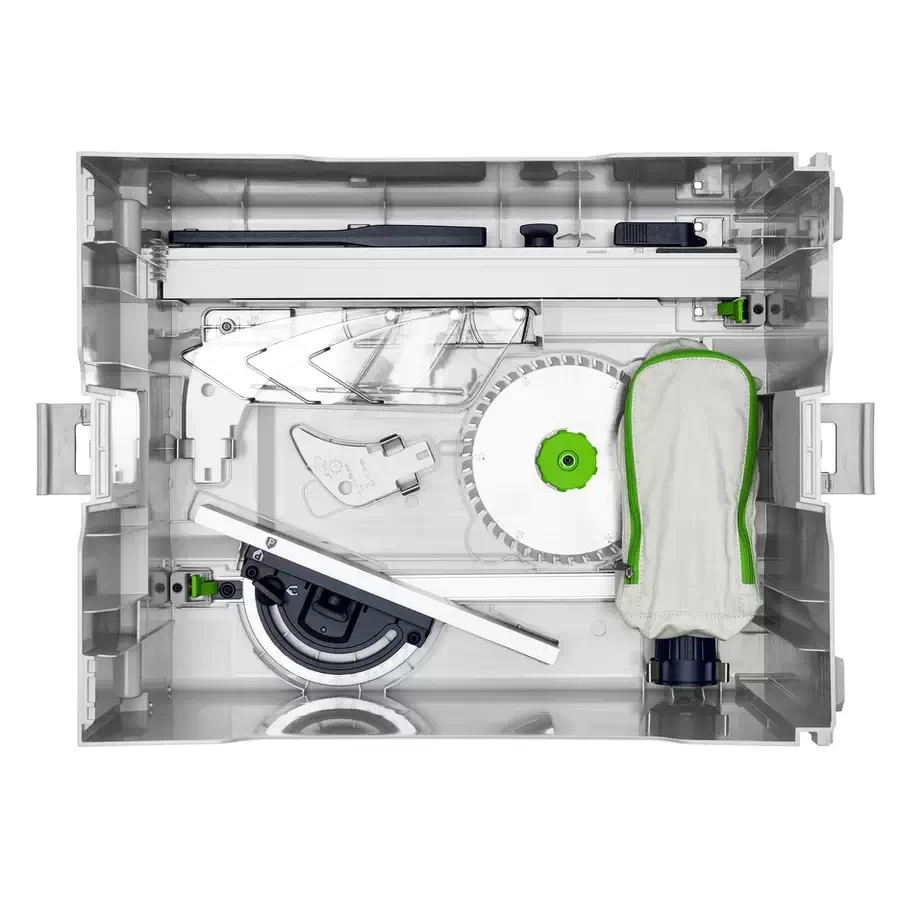

• Efficiently stored: Saw blades, a riving knife and a dust collection bag are securely stored and always available in the lid of the Systainer. Even a miter gauge and rip fence find space here.
• Ideal for grooves: Easy guard and riving knife changes – for hidden cuts and rebates. The riving knife with guard is reinstalled instantly to ensure safe working (both among the items included).
• Rapid changes: The saw blade is changed quickly and easily.
• Secure: Materials can be securely clamped with the clamp clips (FSZ) via the groove in the slide (accessory, not among the items included).
• Capable of long material rips: You can saw long materials exactly, safely and easily with the slide, miter gauge and additional underframe support.

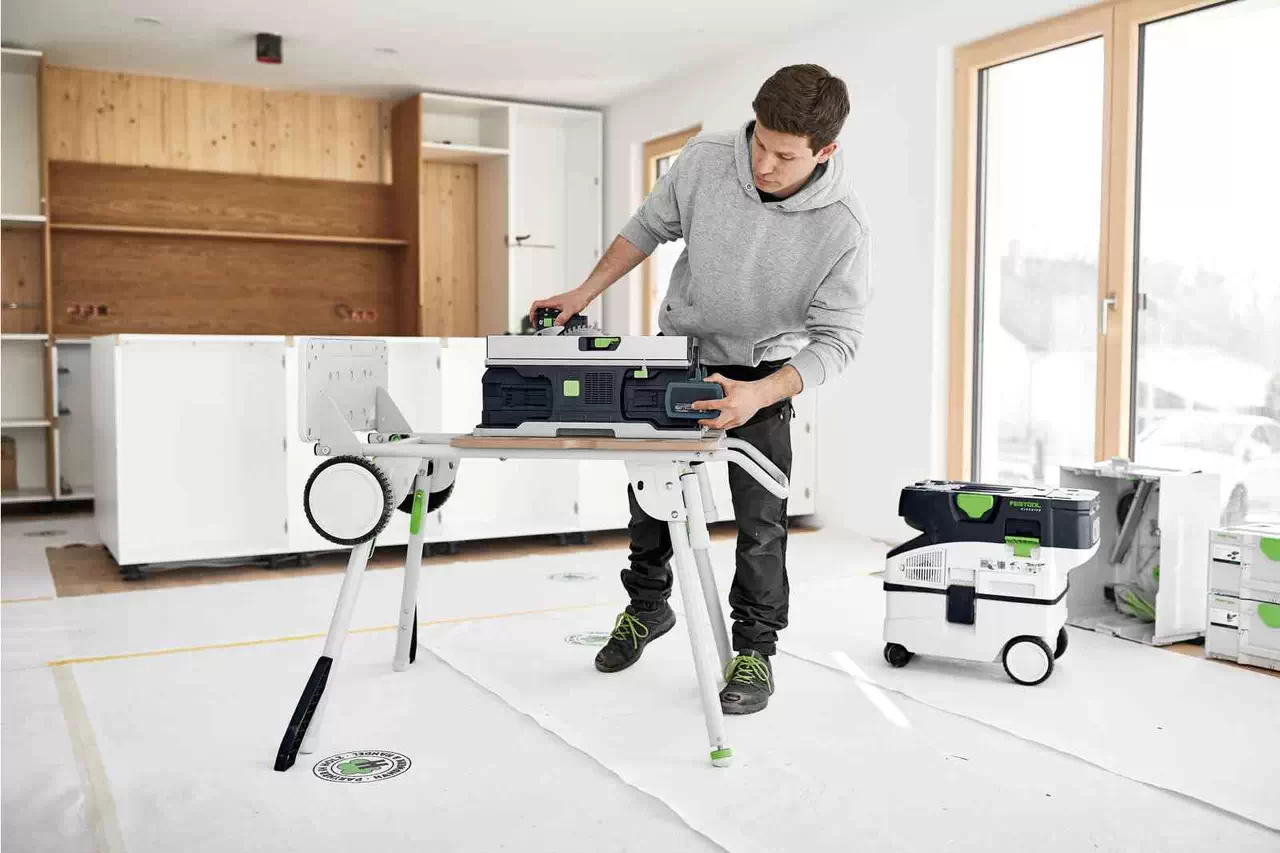

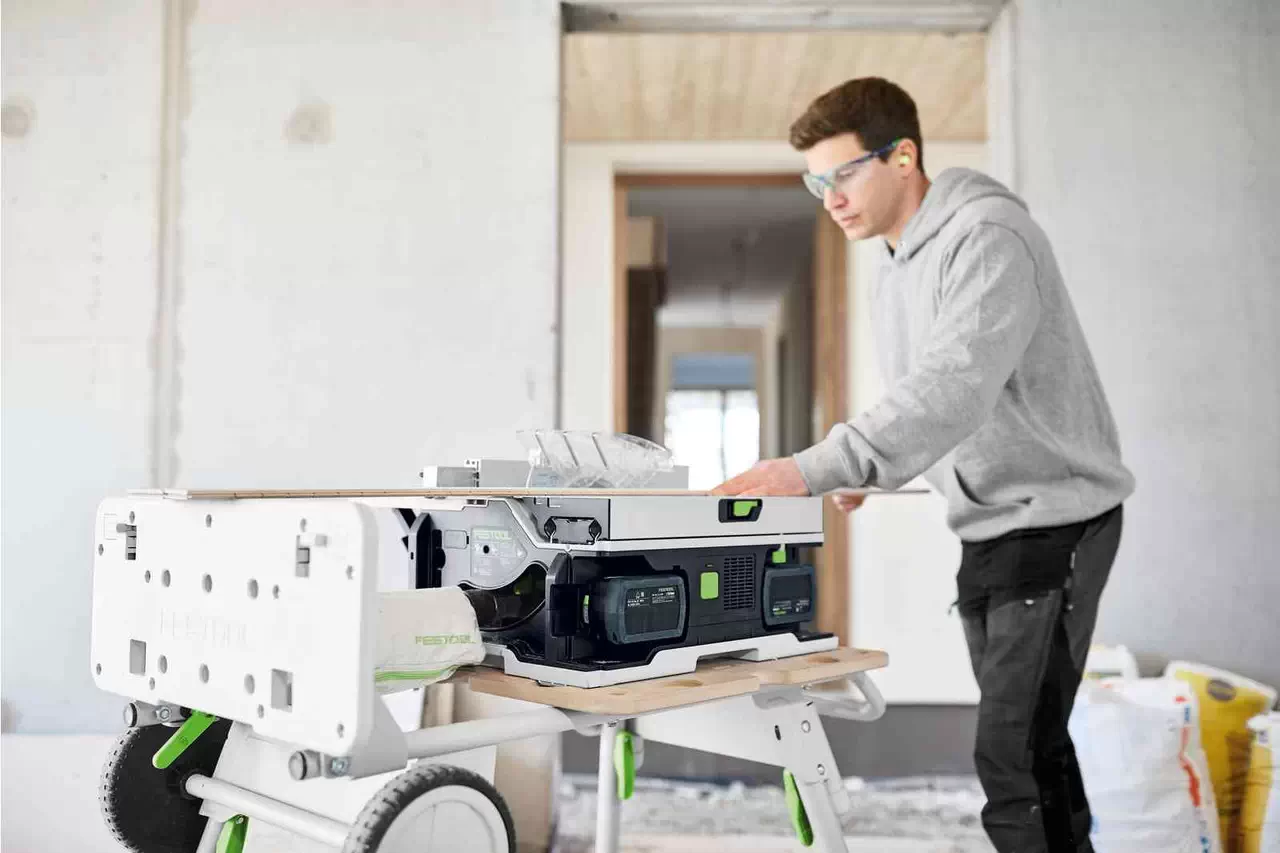

• Working upright: You can set the cordless table saw to the ideal working height with the underframe. It also allows long materials to be safely processed.
• Simple transport: The underframe also serves as the ideal solution for transport from the vehicle to the jobsite.
• Linking with a smartphone: Linking to the Festool Work App enables additional saw blade positions to be saved.

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit Uses

• Cross-cuts up to 17-3/4″ (450 mm) wide, quick and precise with the integrated slide
• Rip cutting up to a cutting height of 1-7/8″ (48 mm) and a width of 11″ (280 mm) with a secure support on the integrated fold-out table
• Bevel cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 13/16″ – 1-1/4″ (21–32 mm) thanks to the tilting saw blade
• Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm (1/256″) and controllable via a display
• Transport easily in the integrated Systainer format

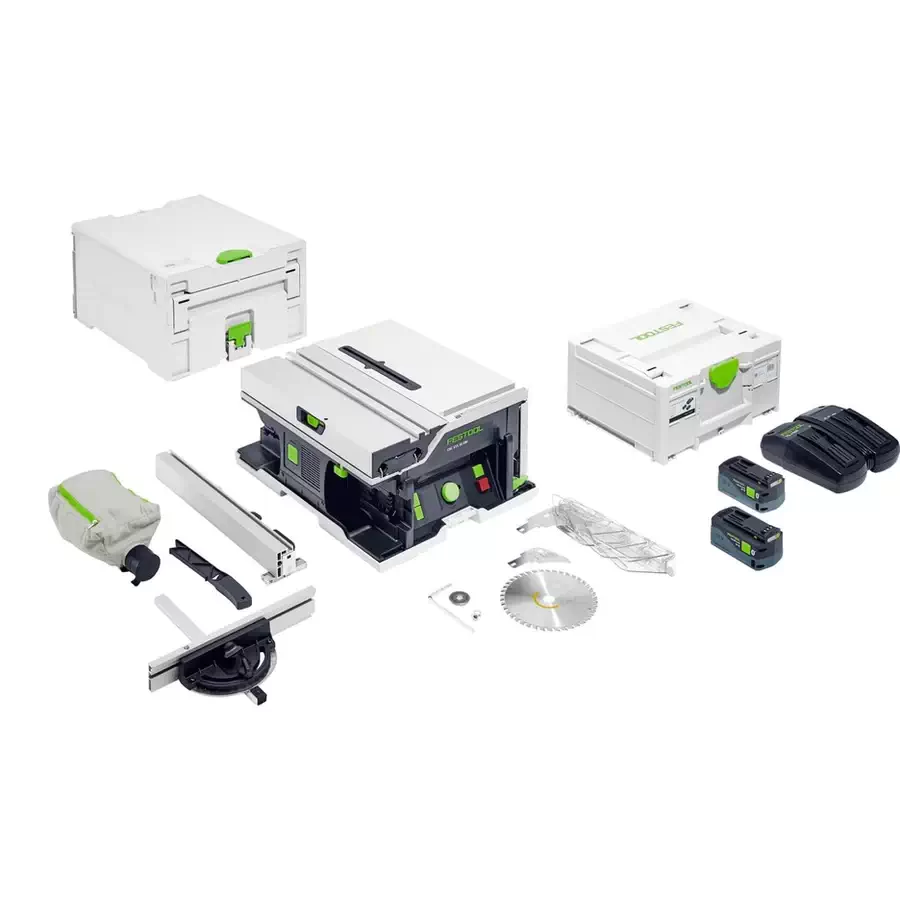

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit Includes

• Blade guard end splitter
• Dust collection bag
• Hex key 8 mm
• HW fine tooth sew blade W42 HW 160×1,8×20 WD42
• Miter gauge
• Push stick
• Rip fence
• Riving knife
• SYS 18 V 2 x 5.O/TCL DUO energy set

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit Specifications

• Battery voltage 2 x 18 V
• Idle engine speed 4 500 – 6 800 RPM
• Inclination angle -10 – +47 °
• Mitre angle 0 – 70 °
• Drive type Battery
• Battery capacity 5.00 Ah
• Weight 33.08 lbs (15 kg)
• Dust extraction connection dia. 1-1/16″ (27 mm)
• Dimensions (L x W x H) 20-5/32″ x 15-19/32″ x 11-21/32″ (512 x 396 x 296 mm)
• Cutting depth 45° 0 – 1-11/32″ (0 – 34 mm)
• Cutting height 0° 0 – 1-7/8″ (0 – 48 mm)
• Saw blade location hole 3/4″ (20 mm)
• Parallel cut width 11″ (280 mm)
• Tabletop height 11″ (228 mm)
• Cutting height -10° 13-16″ – 1-1/4″ (21 – 32 mm)

Festool 577378 Cordless 6″ Table Saw CSC SYS 50 EBI-Plus Kit Warranty

• Festool’s 1 Year Limited Warranty or add 2 Years when Registered within 30 Days of Purchase
