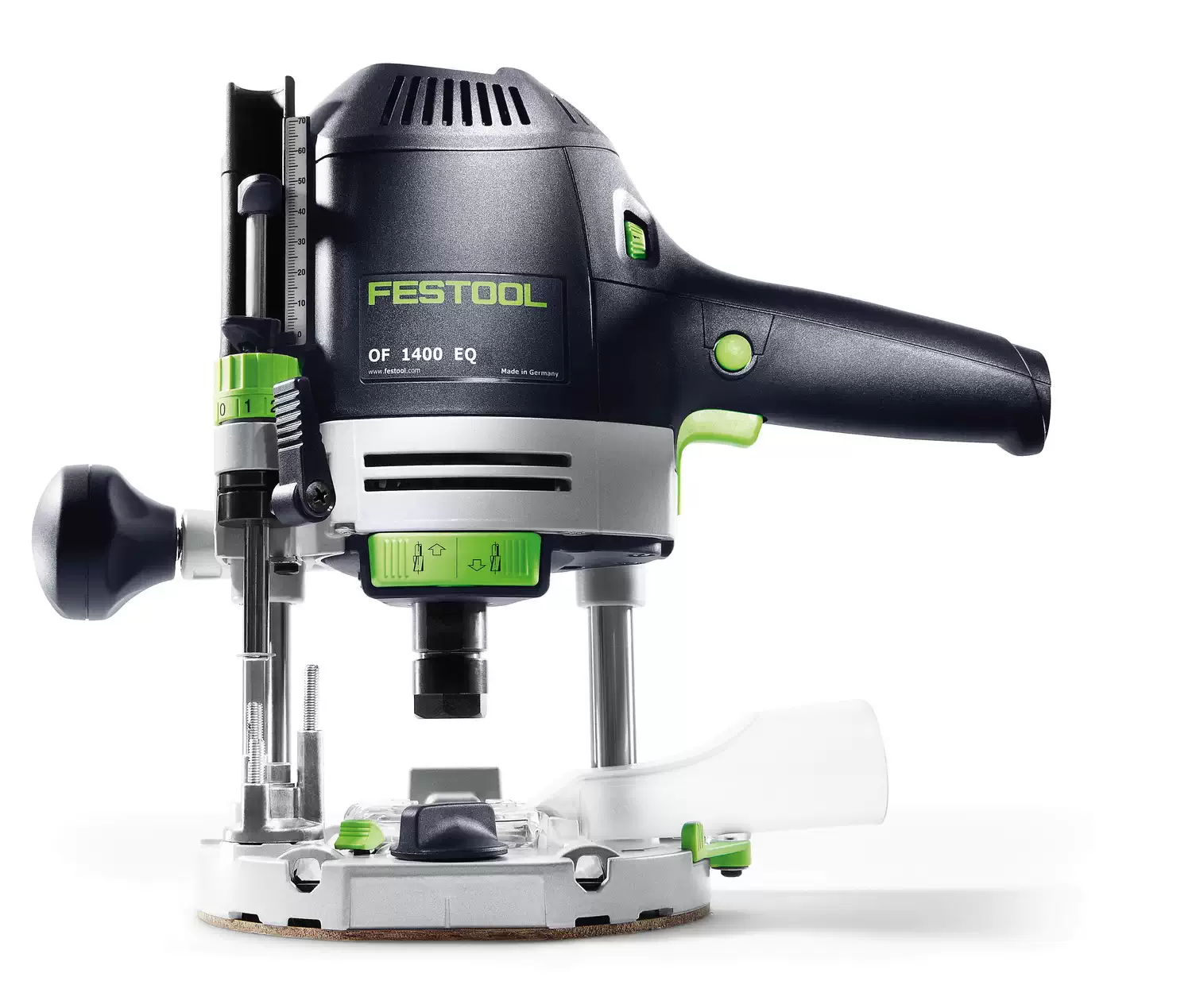

The OF 1400 Router provides 1400 watts of power in a machine that weighs less than 10 lbs. It accepts 1/2″, 1/4″ or 8 mm bits. With enough power to handle most routing tasks and small enough to be extremely maneuverable, the OF 1400 is the one router every tradesperson should own. With a category-leading 2 3/4″ plunge depth, precise to 1/256″ (1/10 mm), this router gives you the power, precision, depth of cut, and dust extraction capabilities that will simplify your routing tasks. The Festool 576213 1/2″ Plunge Router OF 1400 EQ-F-Plus is the new imperial version of this tool. It is identical to the previous version with the exception of the units on the depth scale.*OF Routers produced after 2021 are NOT compatible with the Router Table CMS and all variations.
Please note: Festool offers a 1 Year Limited Warranty but you can add an additional 2 Years when you register your tool within 30 Days of Purchase.
Festool 576213 1/2″ Plunge Router OF 1400 EQ-F-Plus Features
- Ergonomic handle with full-grip is designed for increased control and reduced fatigue with power switch and speed control at the fingertips.
- The OF 1400 EQ Router provides a smooth 2-3/4″ plunge action on precision ground rods and a double column clamp with a quick and secure plunge lock.
- Micro-adjustable depth control to 1/256″ (1/10 mm) with ball detents which allows you to dial in your routing with tremendous precision.
- MMC electronic controls provide constant speed under load for improved cut quality, step-less variable speed, and overload and thermal protection.
- Power: With 1400 watts and MMC electronic controls, the OF 1400 is a mid-sized router with enough power to tackle even your largest projects.
- Ratcheting Spindle: One wrench bit changes with ratcheting action for faster and easier bit changes.

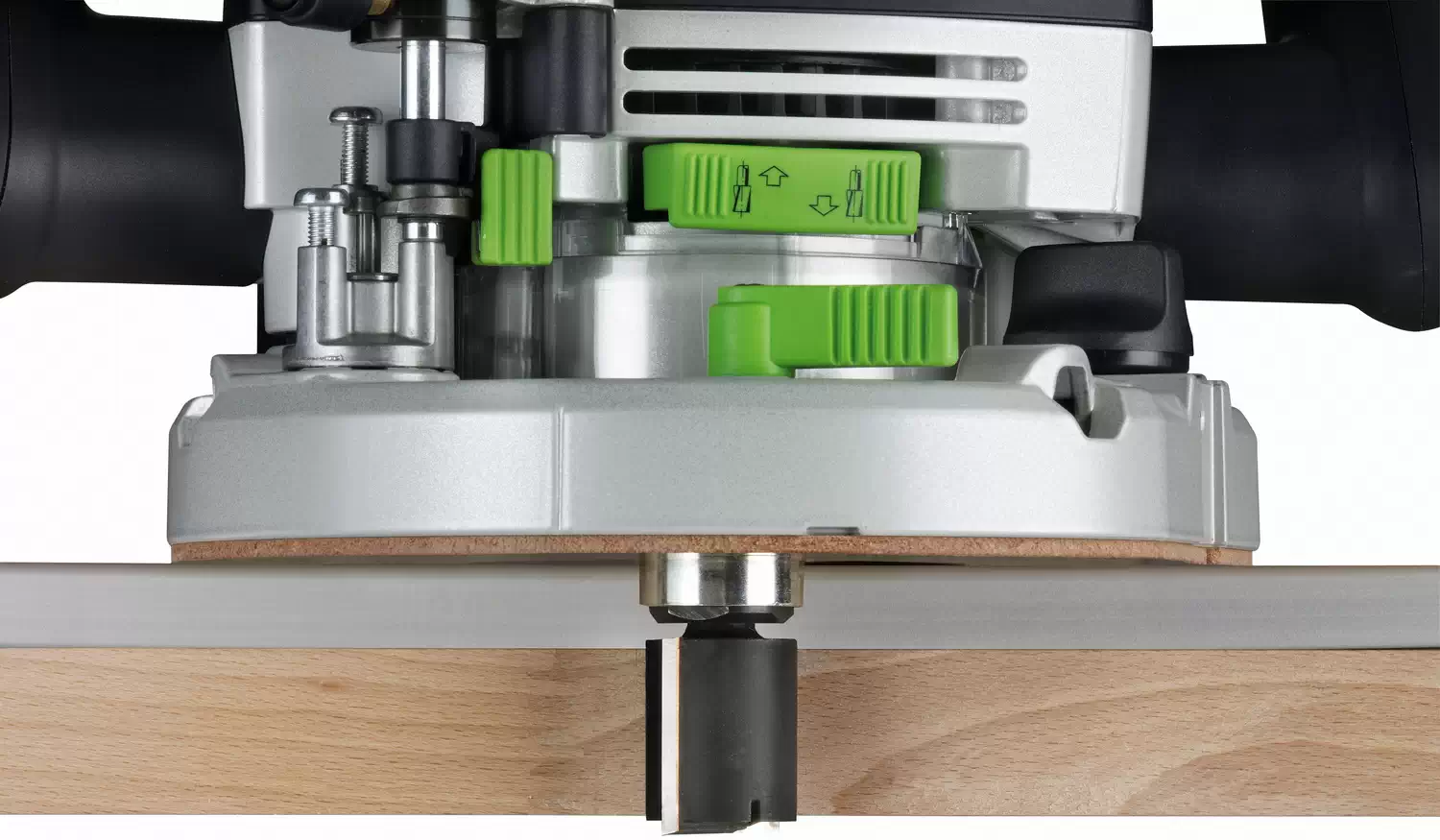

- Double Column Clamping: One knob locks the plunge depth securely, for less motor to plate deflection.

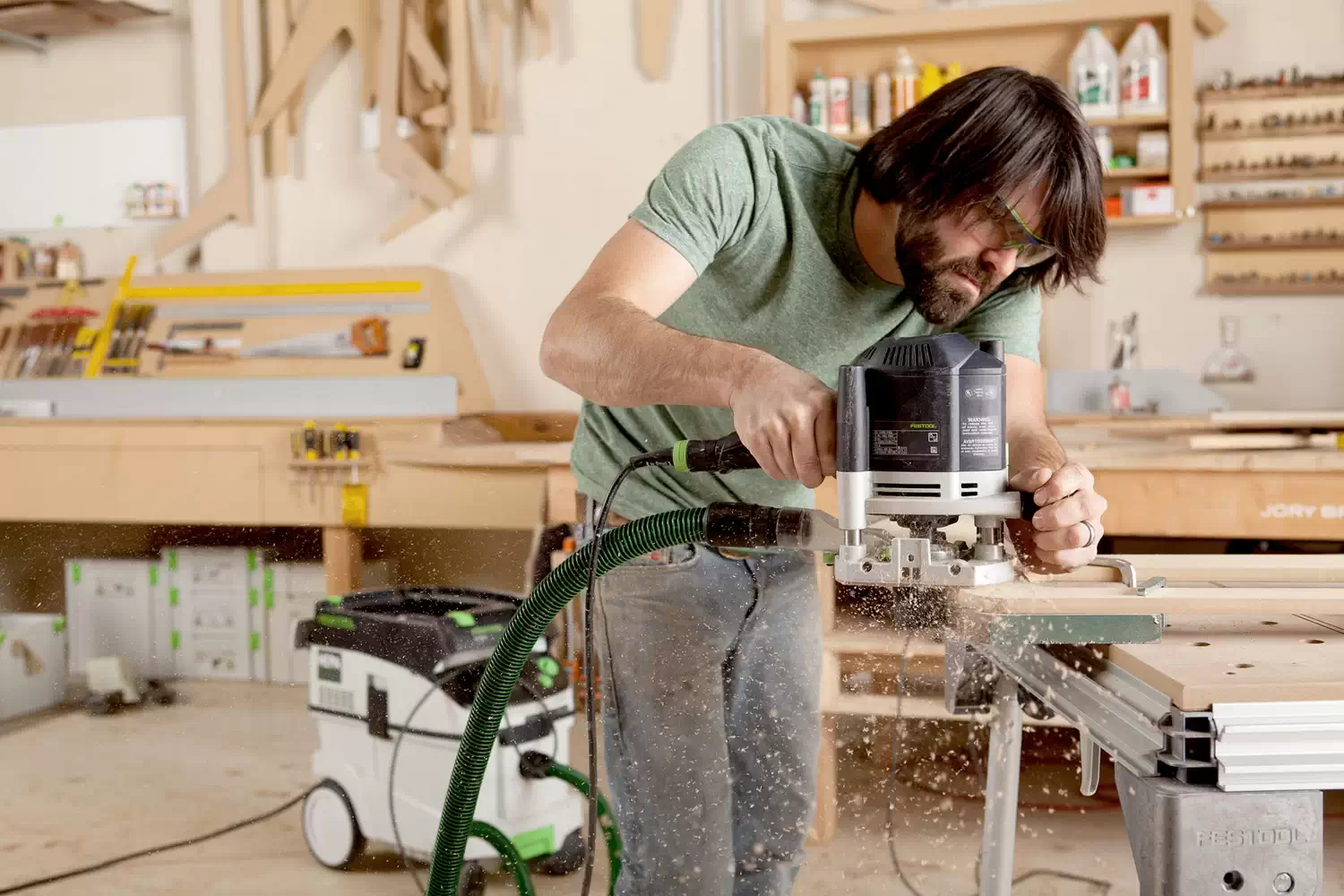

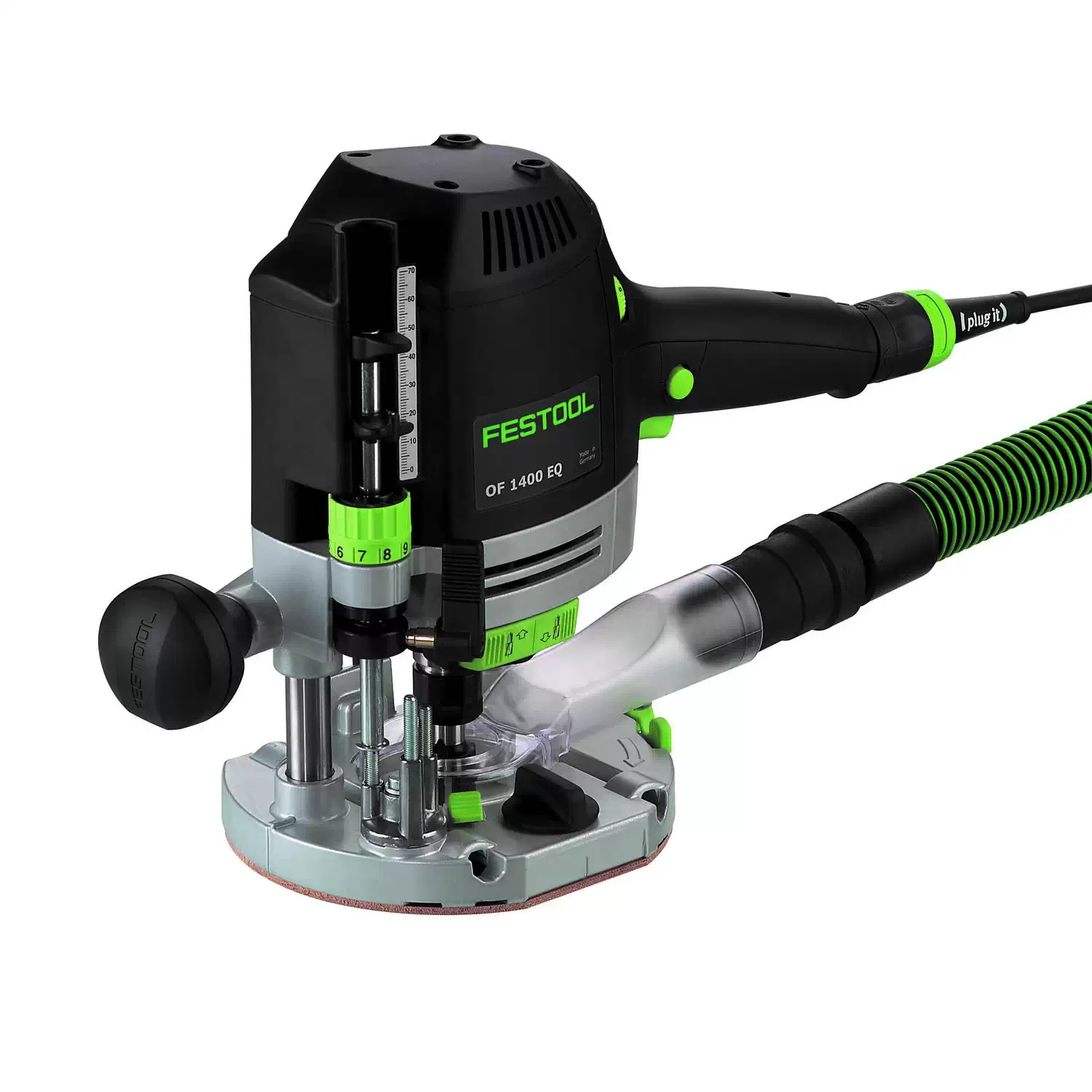

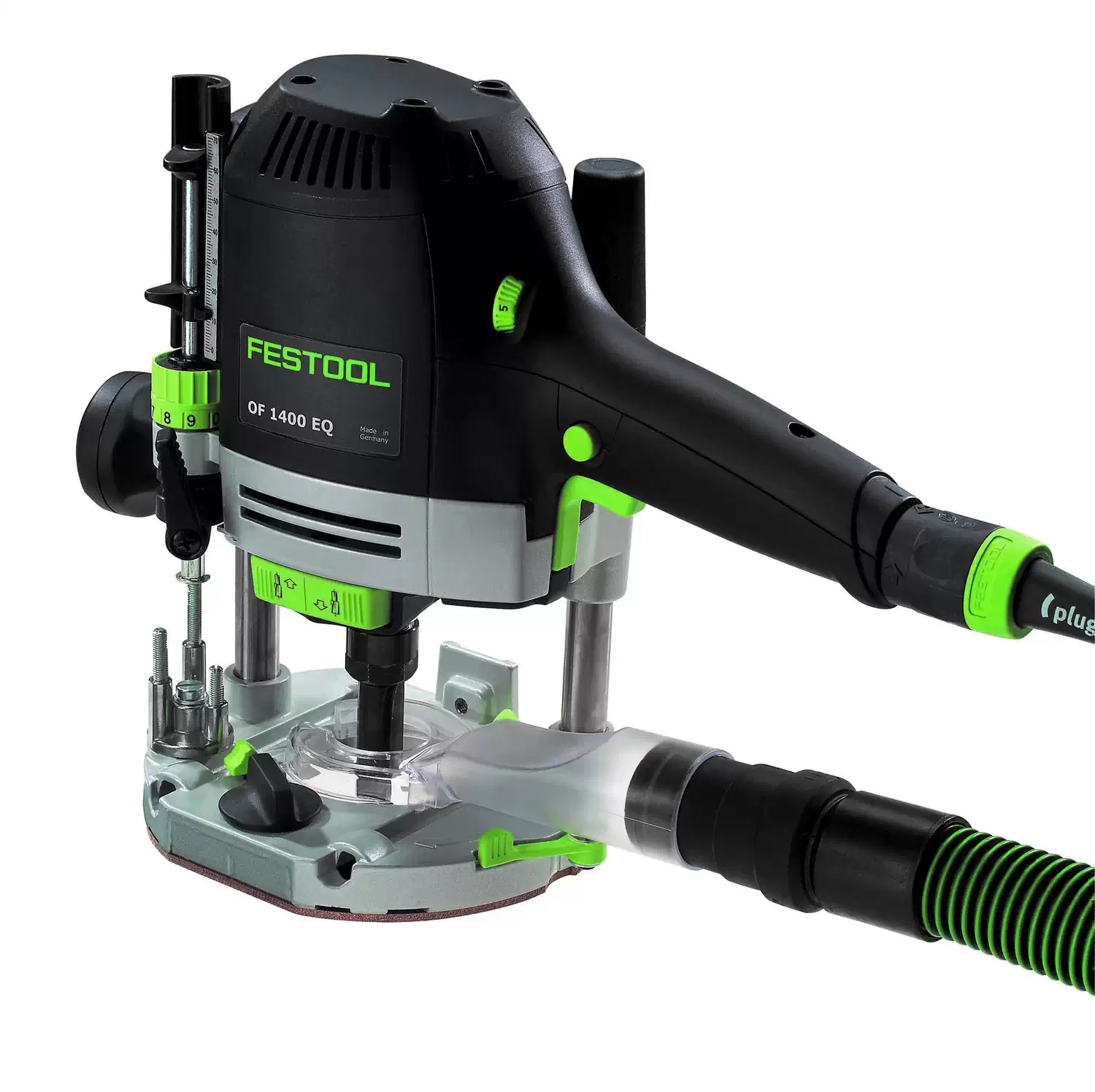

- Dust extraction: Integrated dust extraction port extracts dust from the point of generation, increasing visibility and saving valuable clean-up time. The port is angled so that the hose stays in line with the power cord.

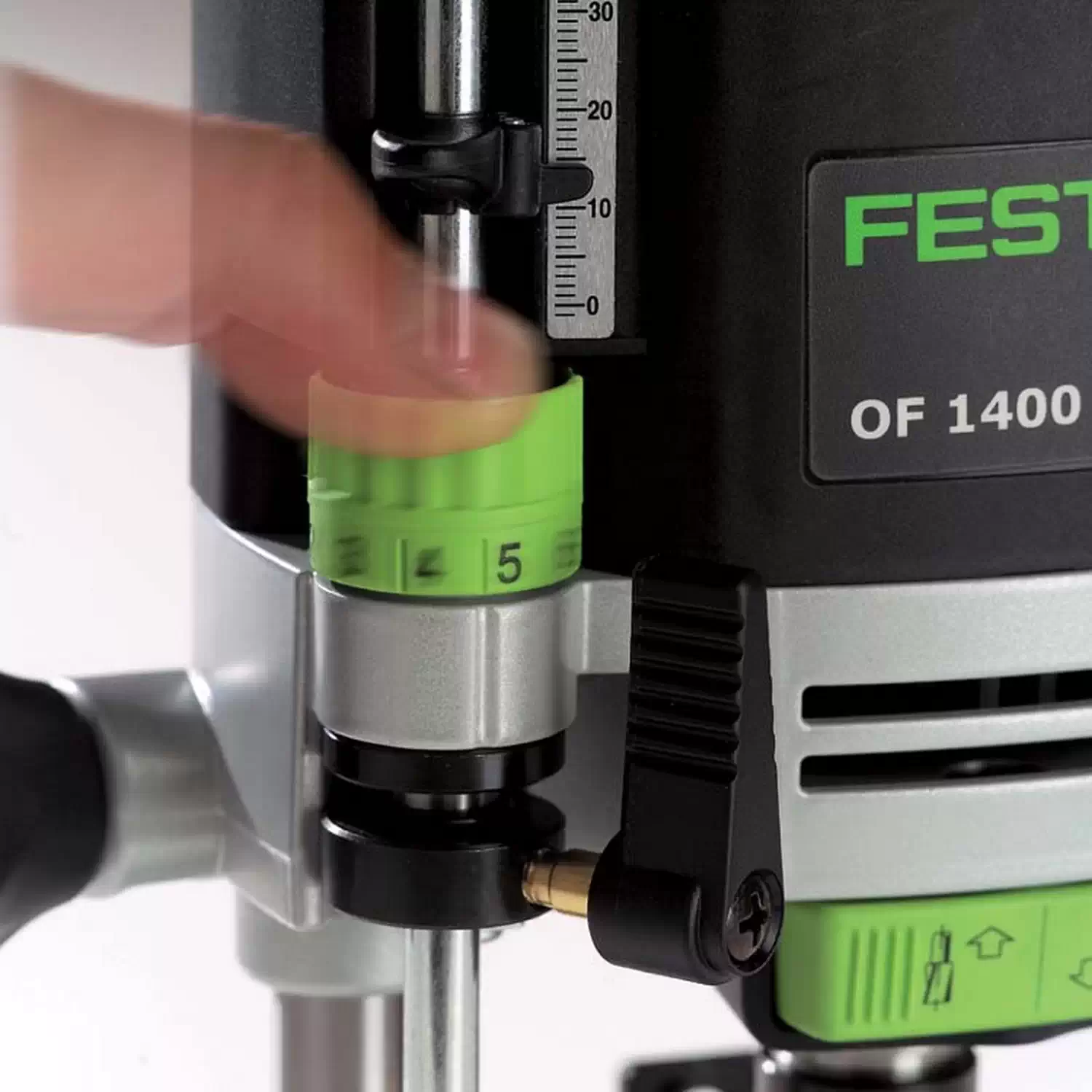

- Precision depth adjustment: Micro-adjustability to 1/256″ (1/10 mm) with detents for each 1/10 mm

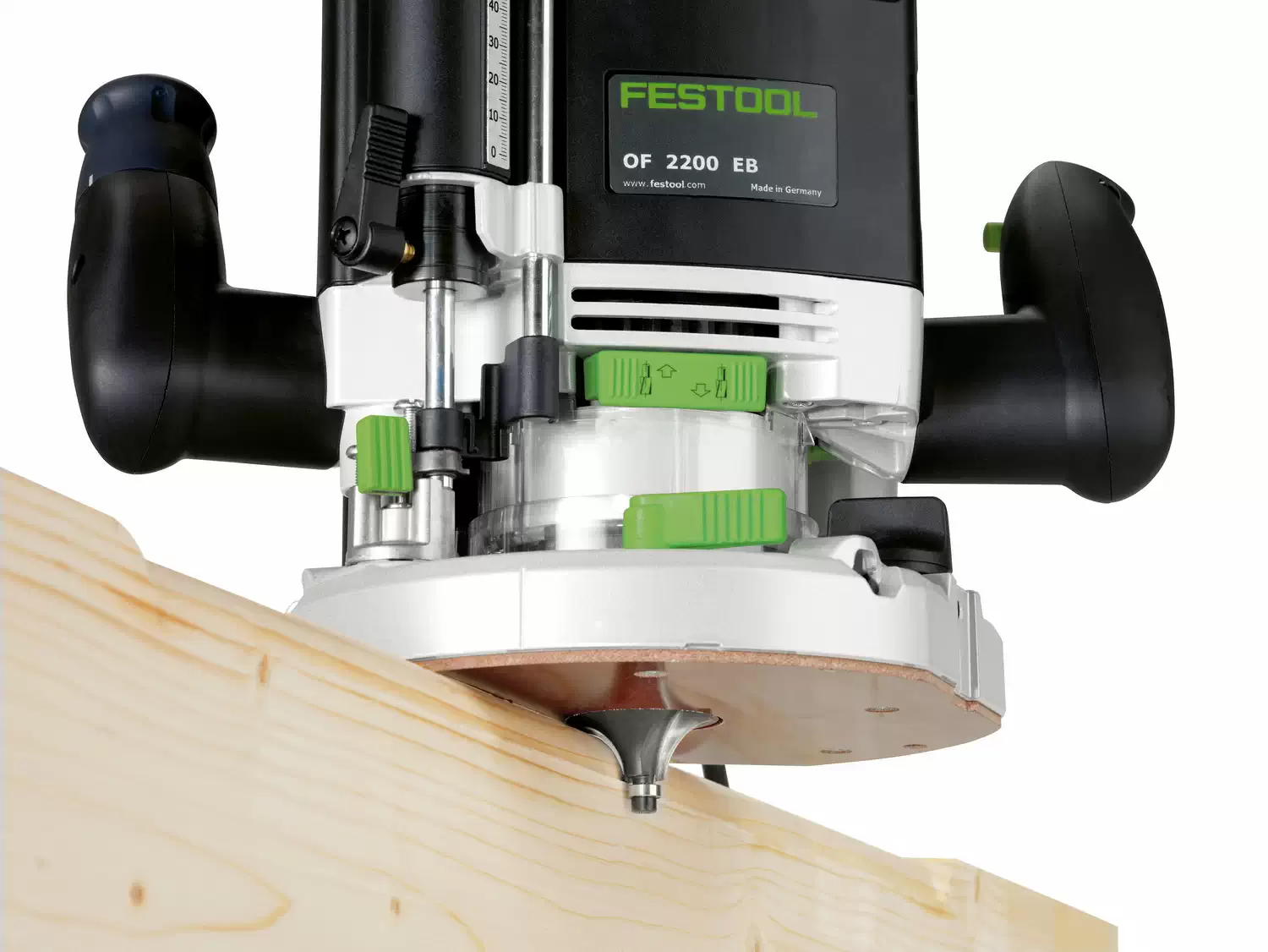

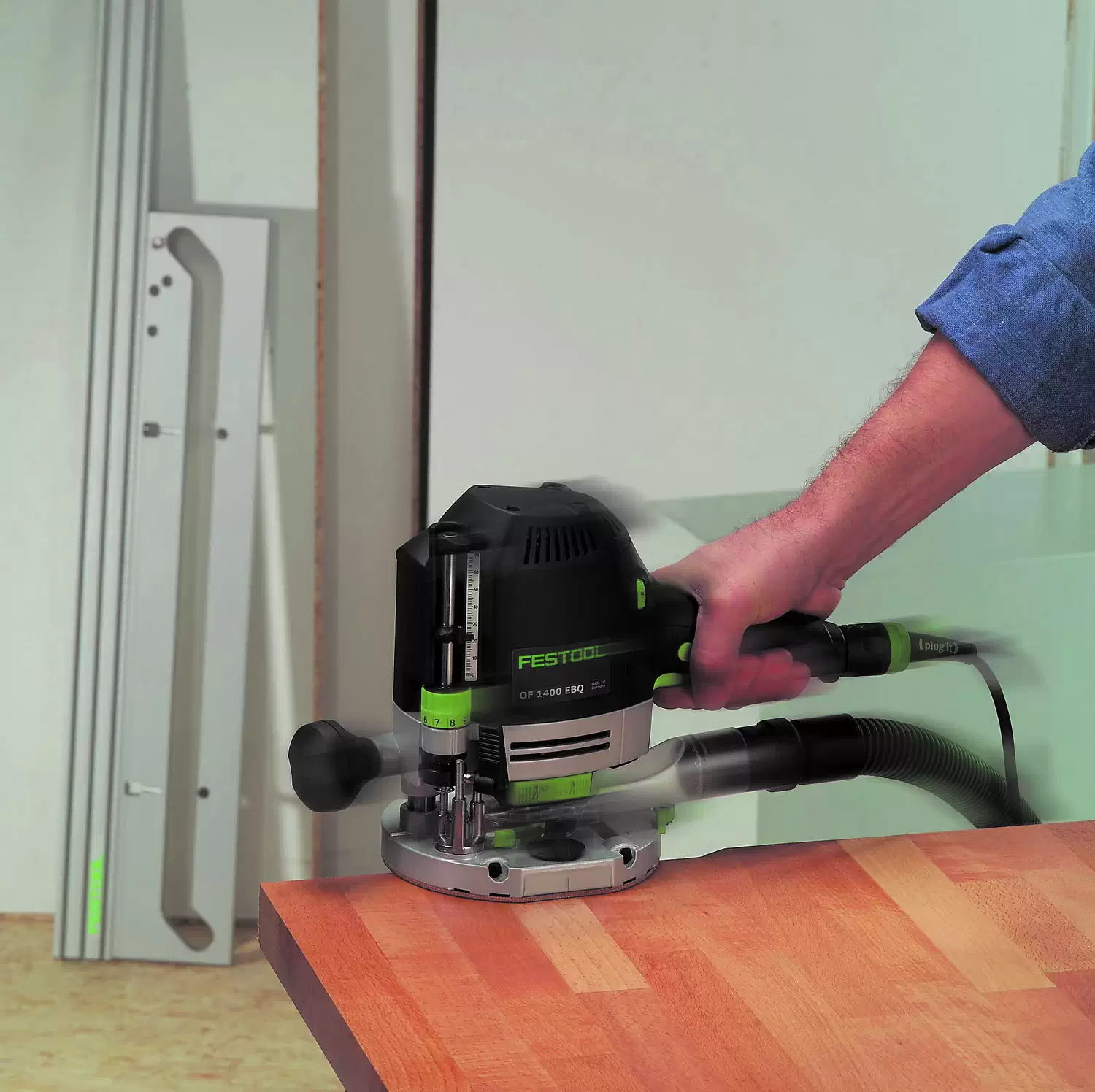

- Swiveling chip deflector: Included chip deflector can be used with edge forming bits, maximizing chip and dust extraction even around curves and corners.

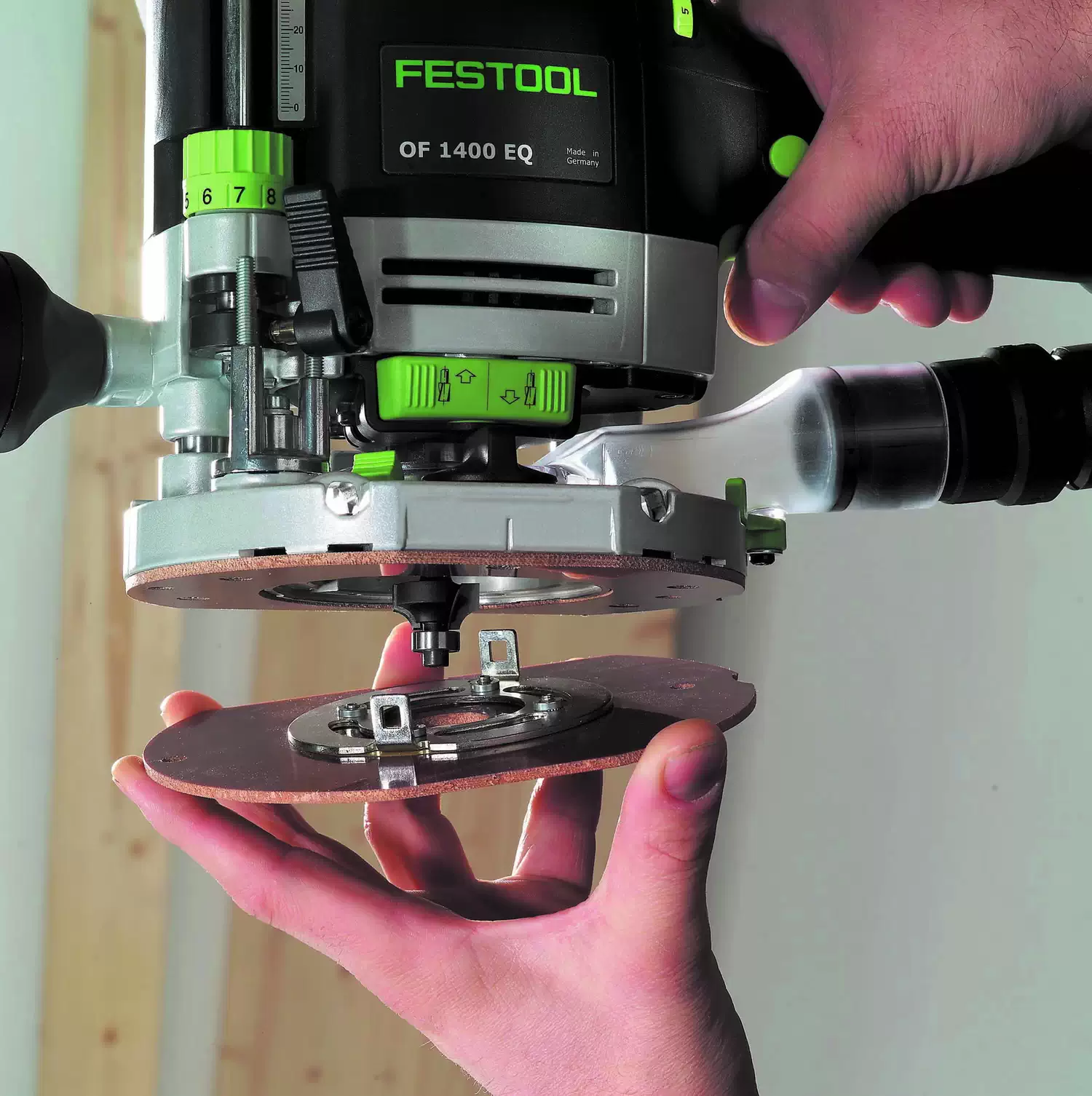

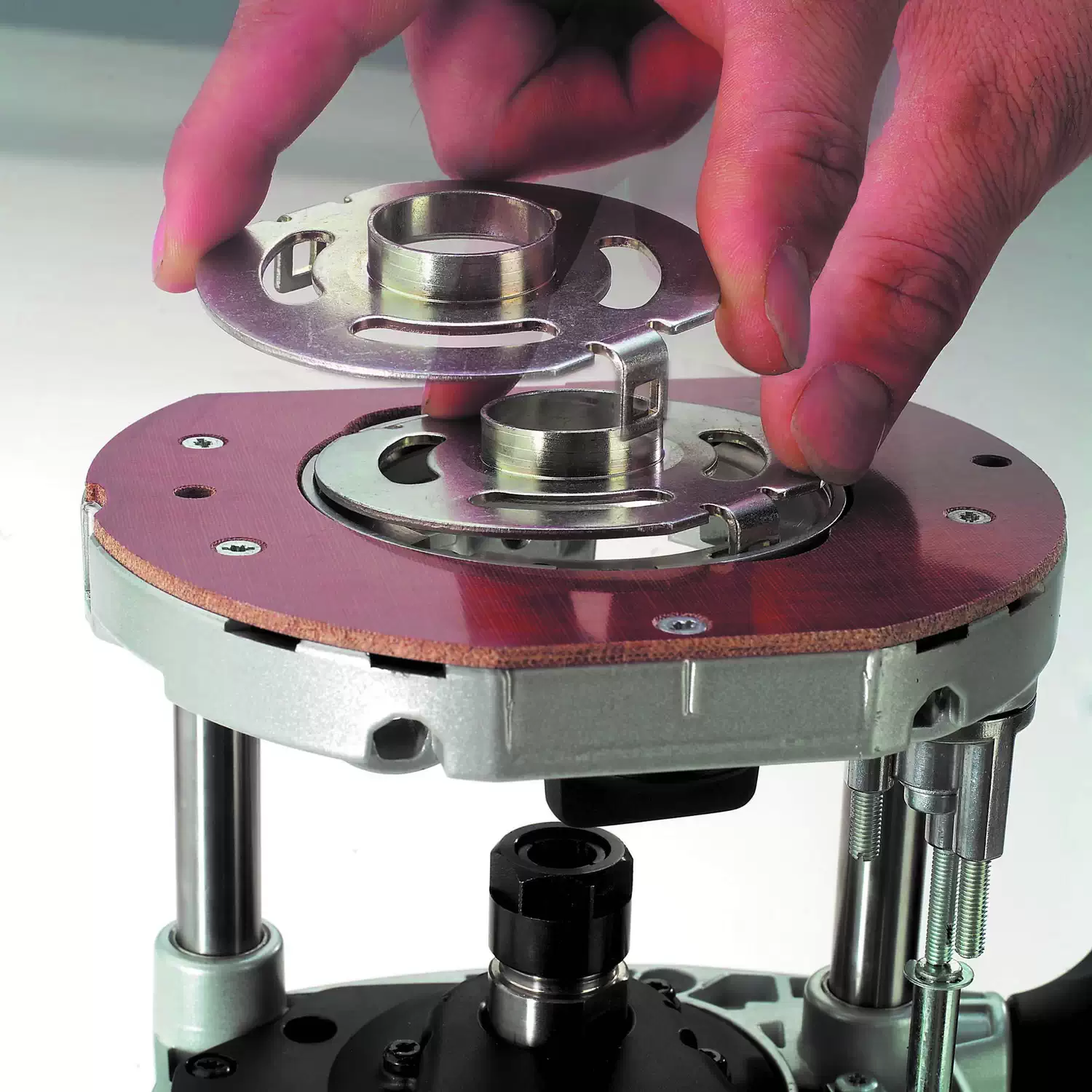

- Tool-Less Inserts: Template guide bushings are self-centering and can be inserted tool-free. The swiveling chip deflector can also be attached and removed without tools.

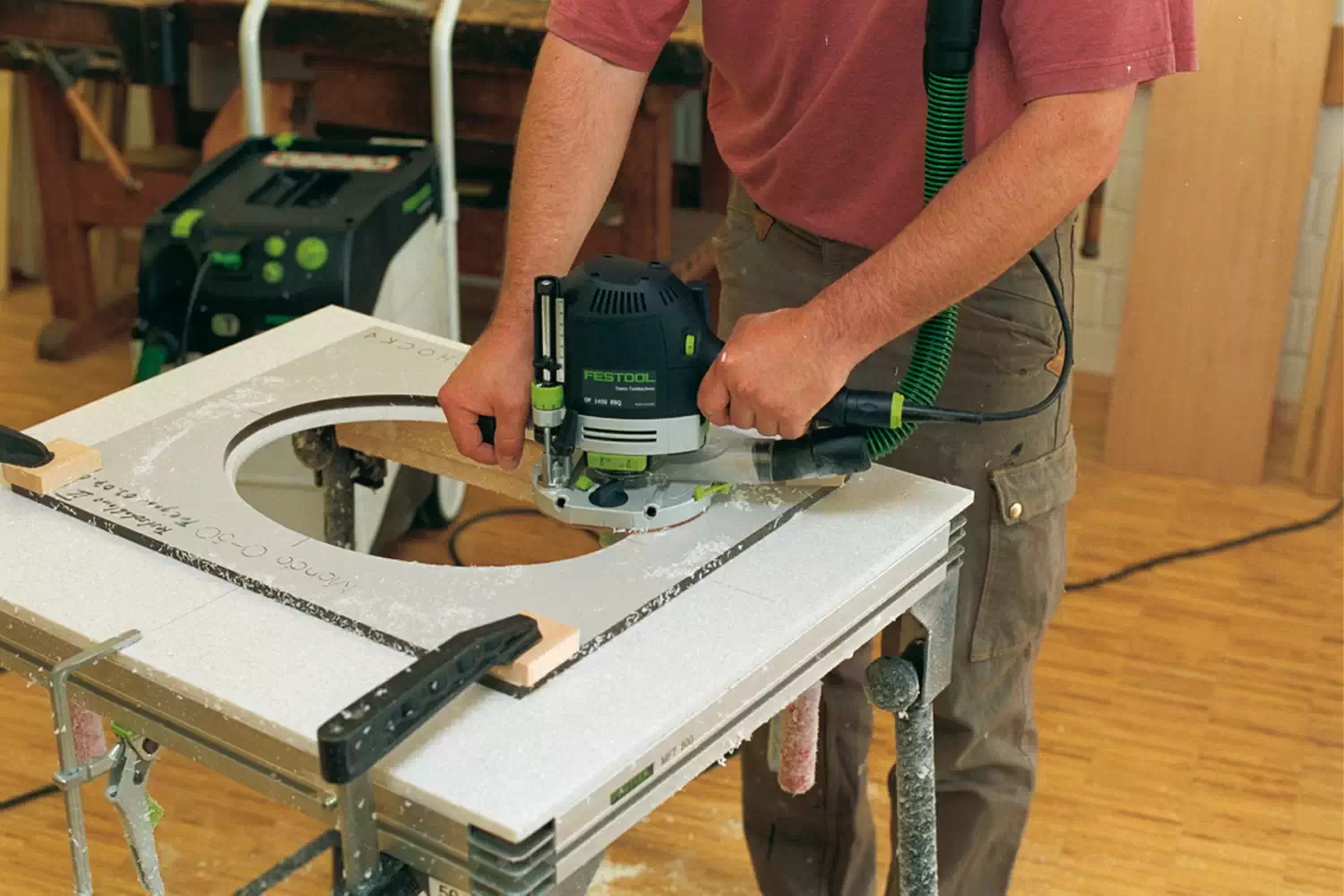

- 2-3/4″ Plunge Depth: Enhanced depth is especially useful when routing on top of a template.

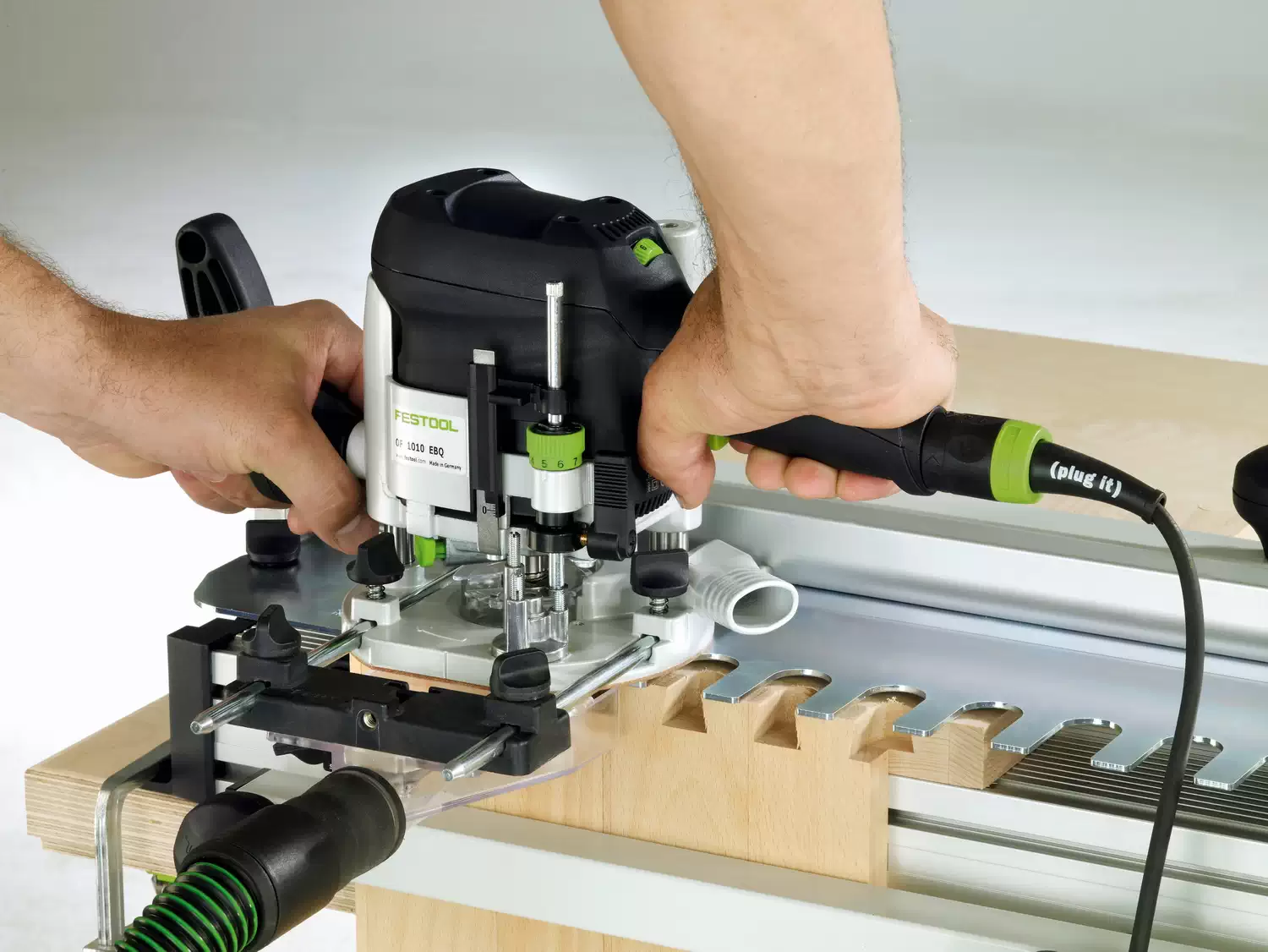

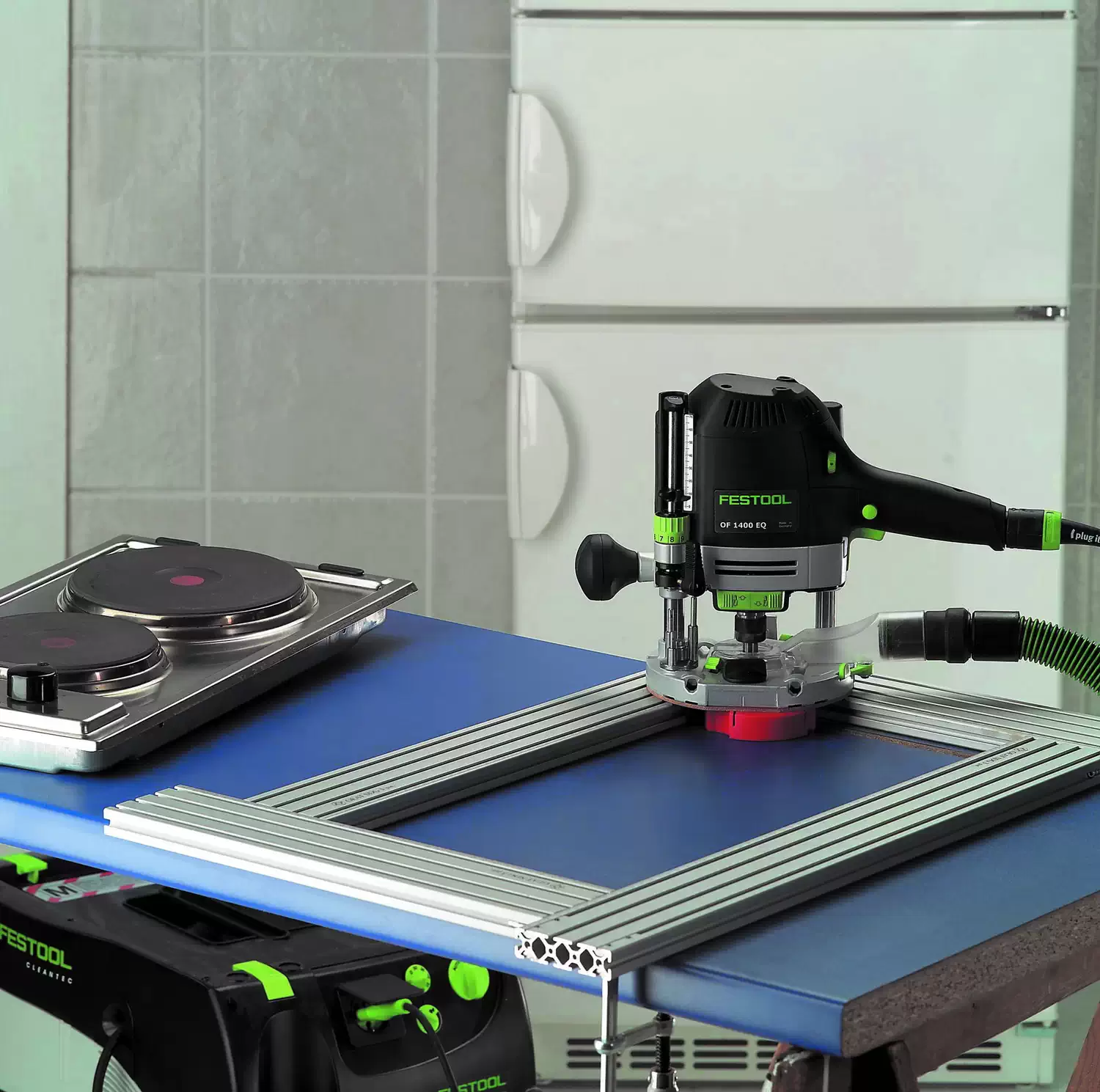

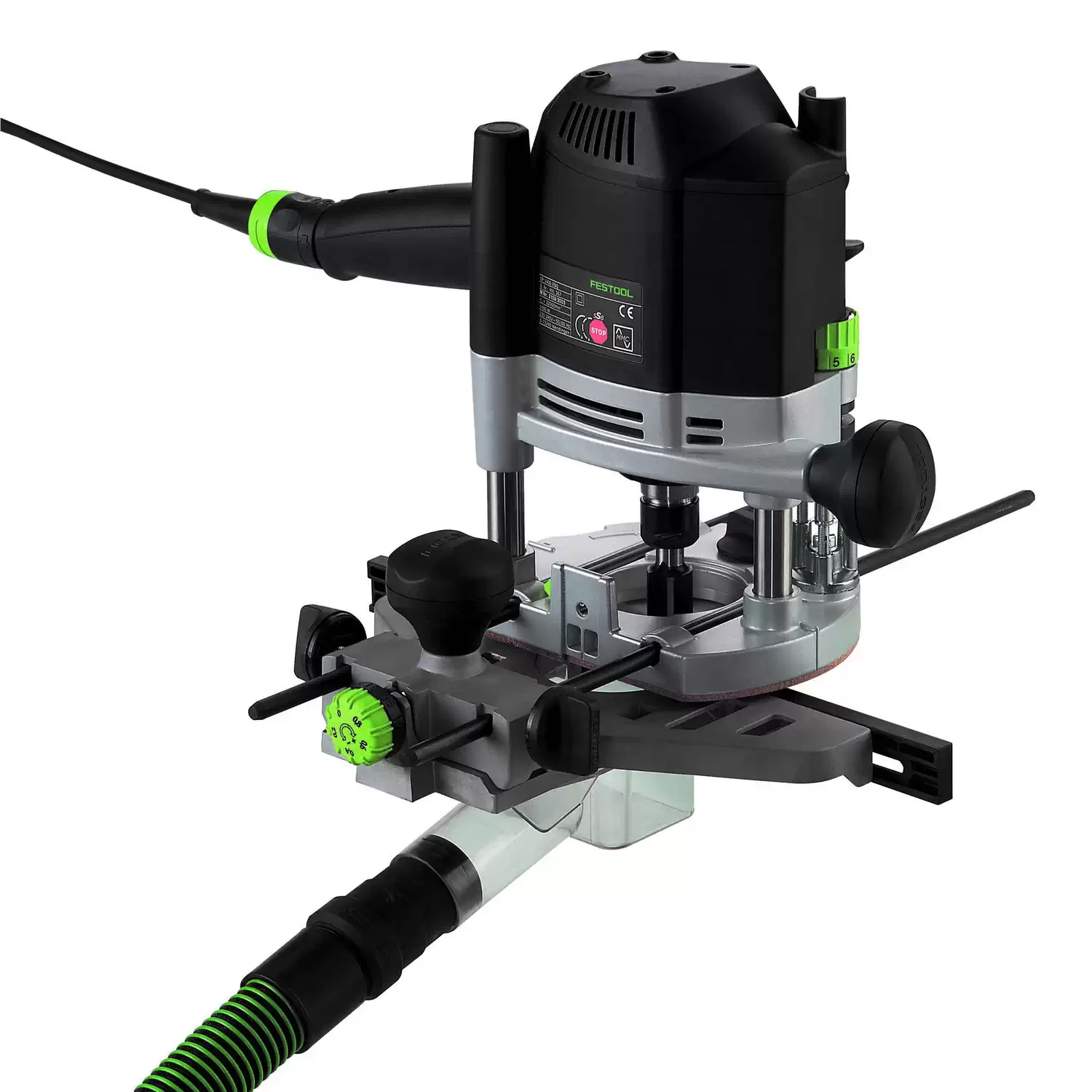

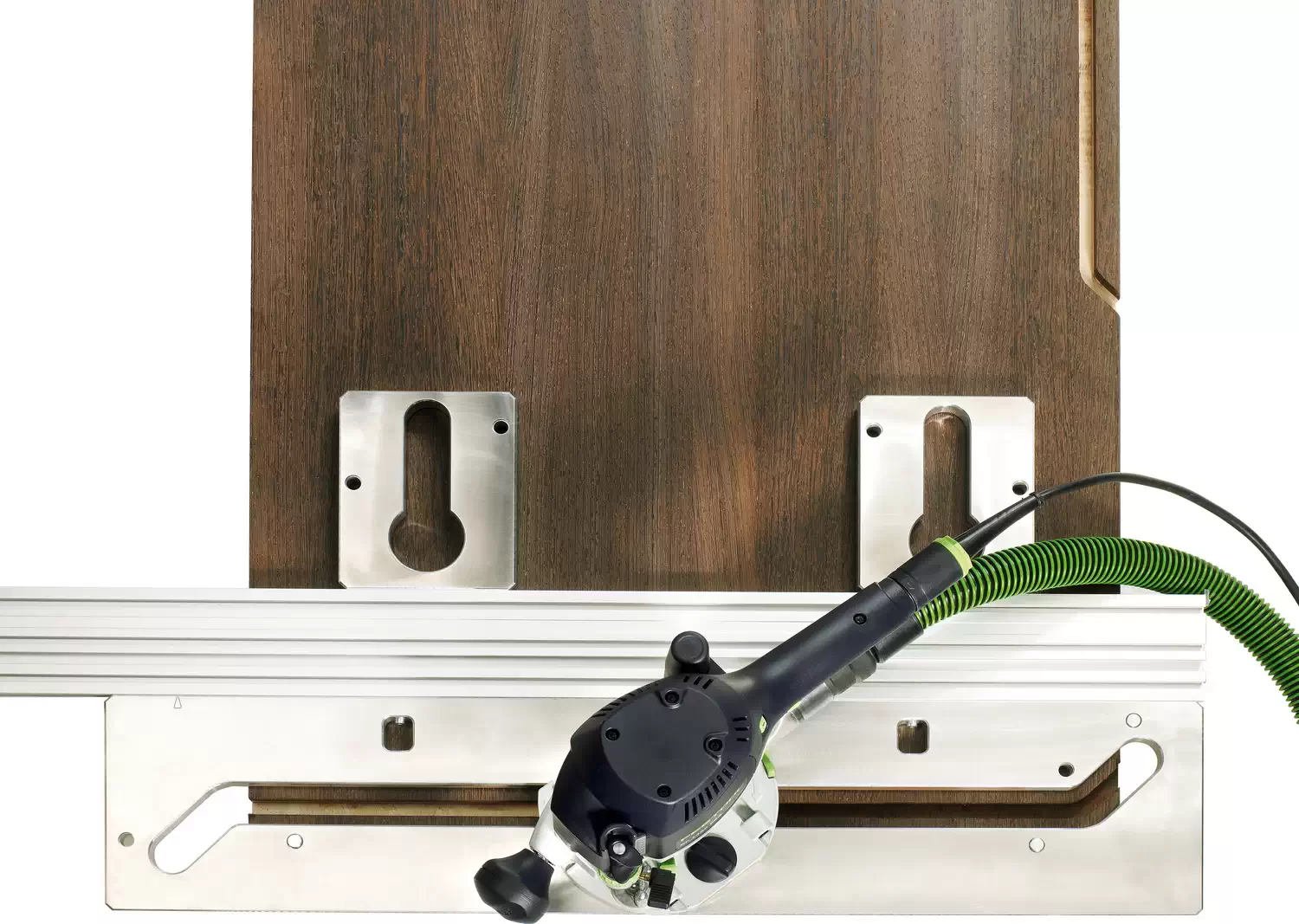

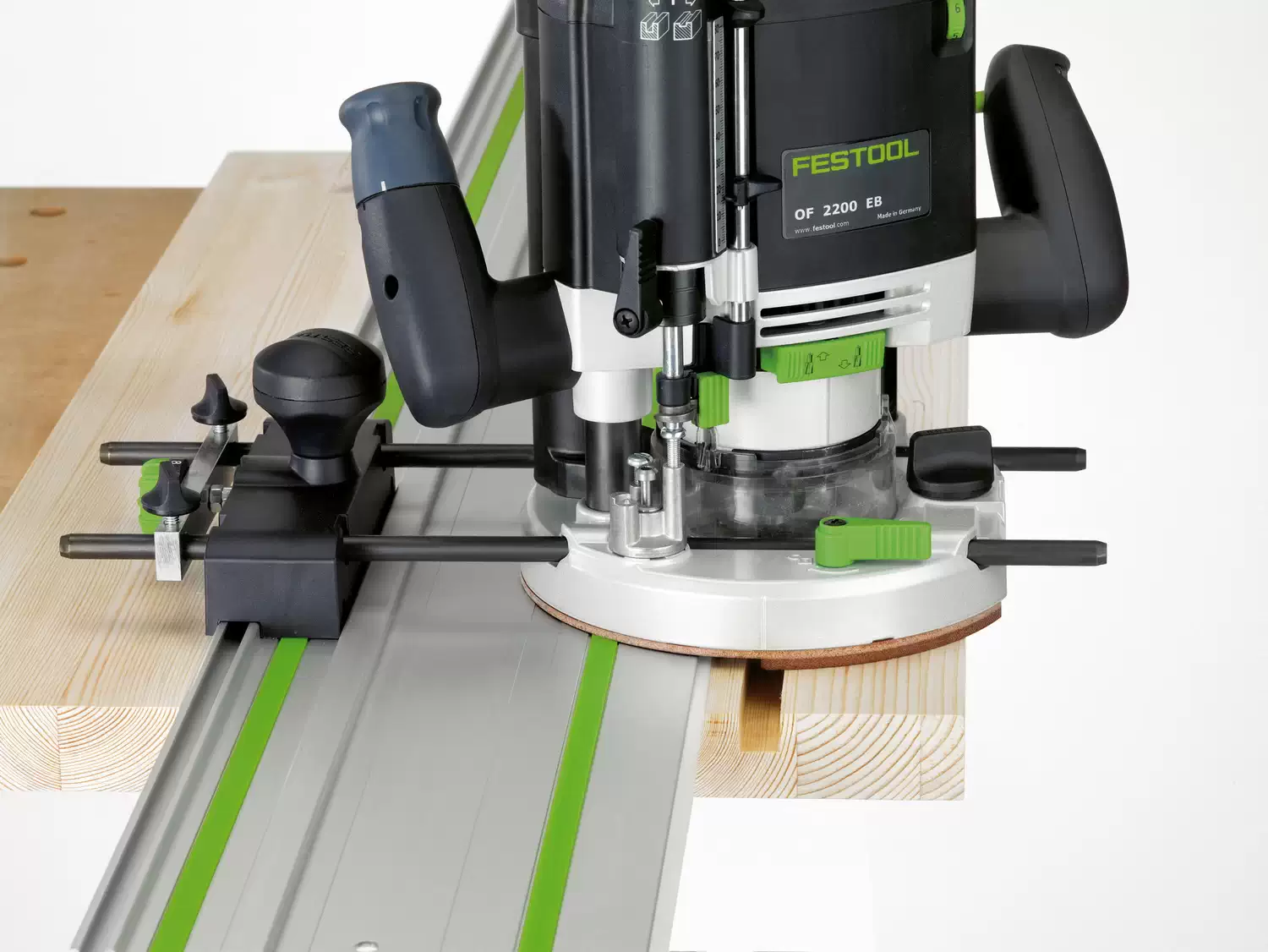

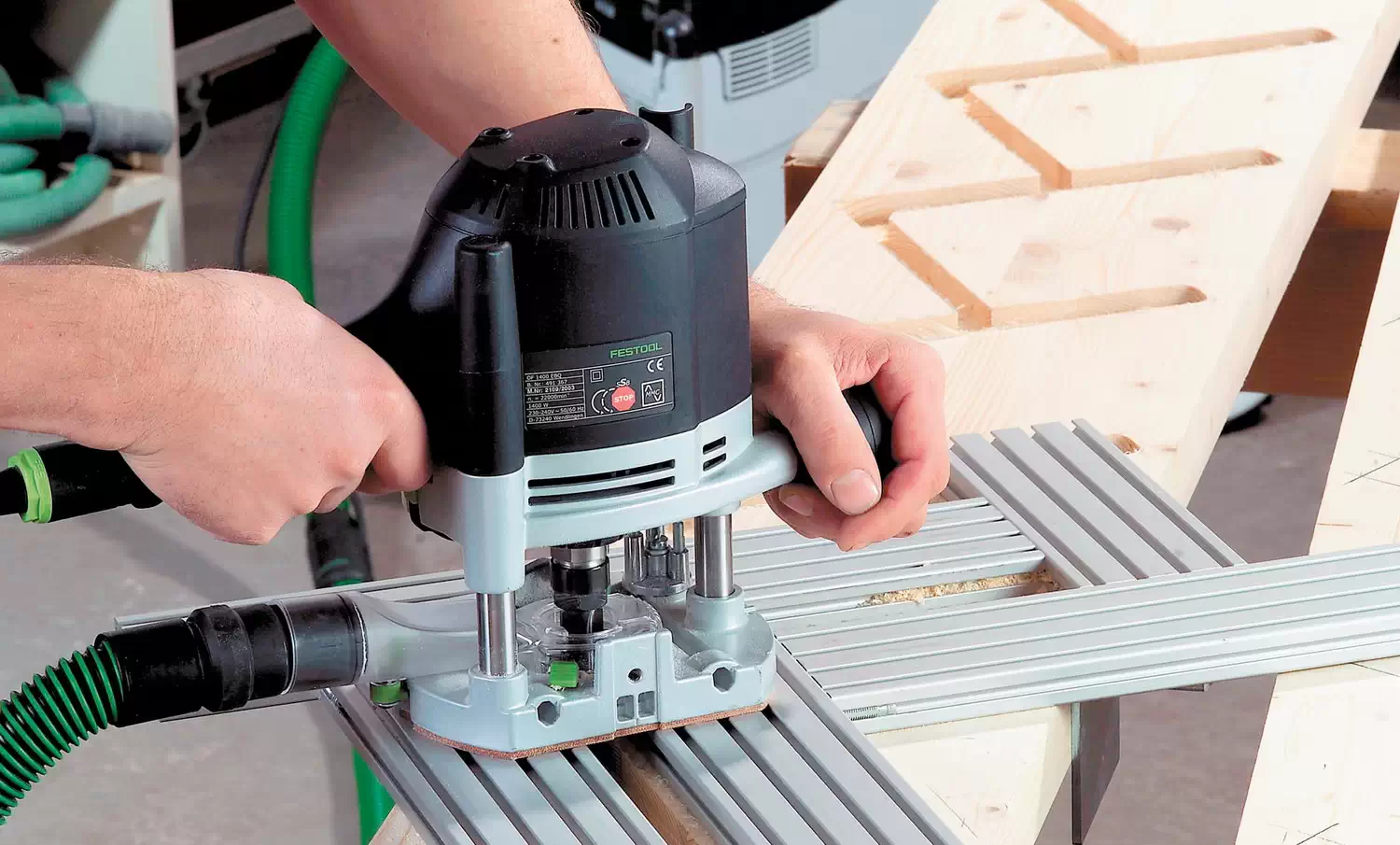

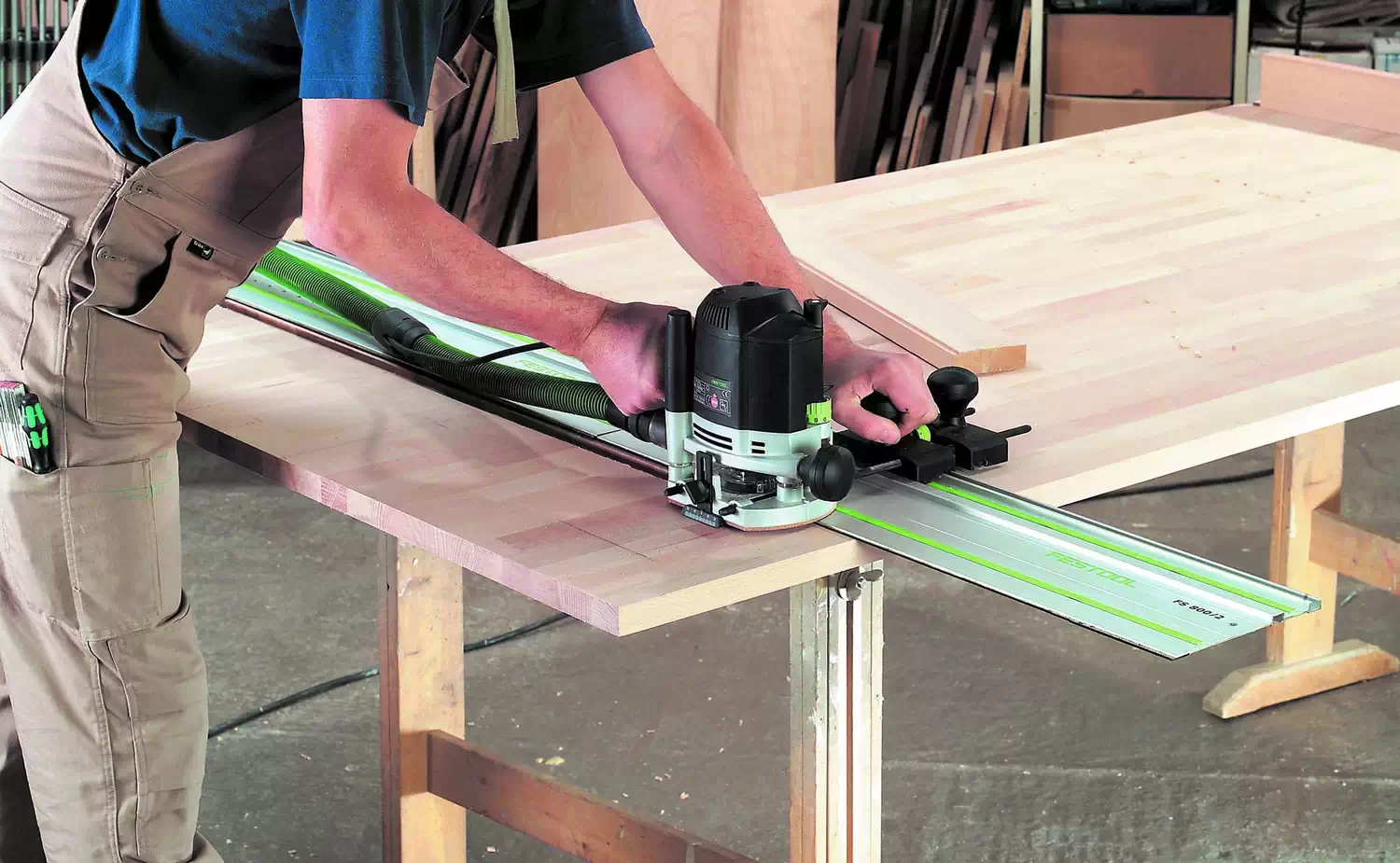

- System integration: Designed for use with the FS guide rail system for guided cutting, VS 600 Dovetail jig for joinery applications, LR32 hole drilling system, MFS multirouting templates, and a wide range of other accessory options.
- Depth Stop Turret: Three adjustable position depth stop turret for repeatable and consistent step cutting.
- Quad Center Line Marks: As with all Festool routers, the OF 1400 EQ has a center line indention on each side of the base. This visual reference point allows you to align the center of the bit with the cut line.
- No more guessing where the center of the bit falls on your workpiece.
- MMC Electronics: Electronic controls provide constant speed under load for improved cut quality, step-less variable speed for different applications, and overload protection for longer life.

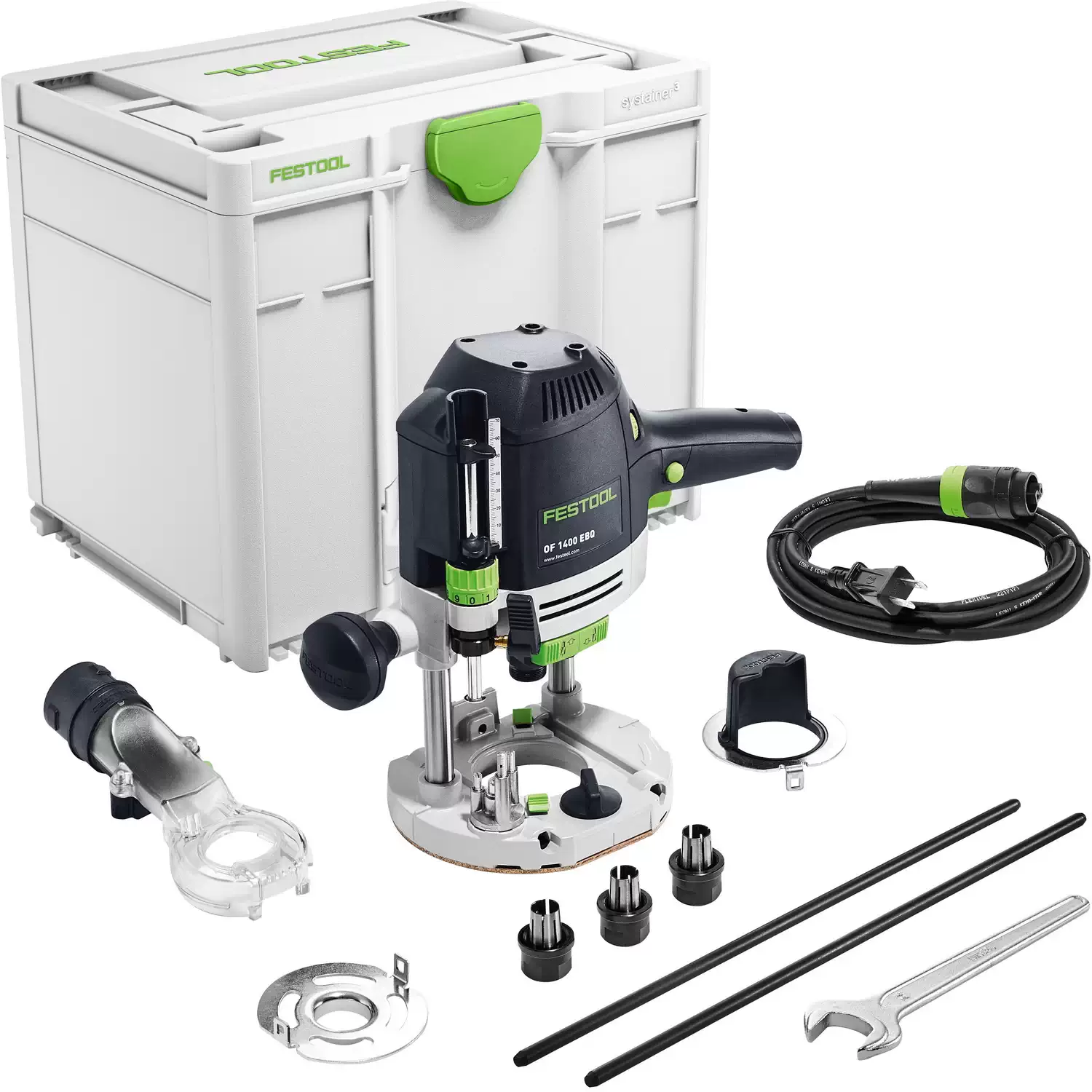

Festool 576213 1/2″ Plunge Router OF 1400 EQ-F-Plus Includes
- chip catcher
- dia. 1/4″ clamping collet (6.35 mm)
- dia. 5/16″ clamping collet (8 mm)
- dia. 1/2″ clamping collet (12.7 mm)
- open ended spanner, WAF 24
- plug it-power cable (4 m)
- Systainer SYS3 M 337
Festool 576213 1/2″ Plunge Router OF 1400 EQ-F-Plus Specifications
- Idle engine speed 10 000 – 22 500 RPM
- Routing stroke 2-3/4″ (70 mm)
- Max. cutter diameter 2-1/2″ (63 mm)
- Weight 10.36 lbs (4.7 kg)
- Routing depth fine adjustment range 5/16″ (8 mm)
- Drive type Mains
- Collet dia. 1/4″ – 1/2″ (6 – 12.7 mm)
- Dust extraction connection dia. 1-1/16″/1-7/16″ (27/36 mm)
- Cable length 13.123 ft (4 m)
- Power consumption 1 400 watt
Festool 576213 1/2″ Plunge Router OF 1400 EQ-F-Plus Warranty
- Festool’s 1 Year Limited Warranty or add 2 Years when Registered within 30 Days of Purchase
