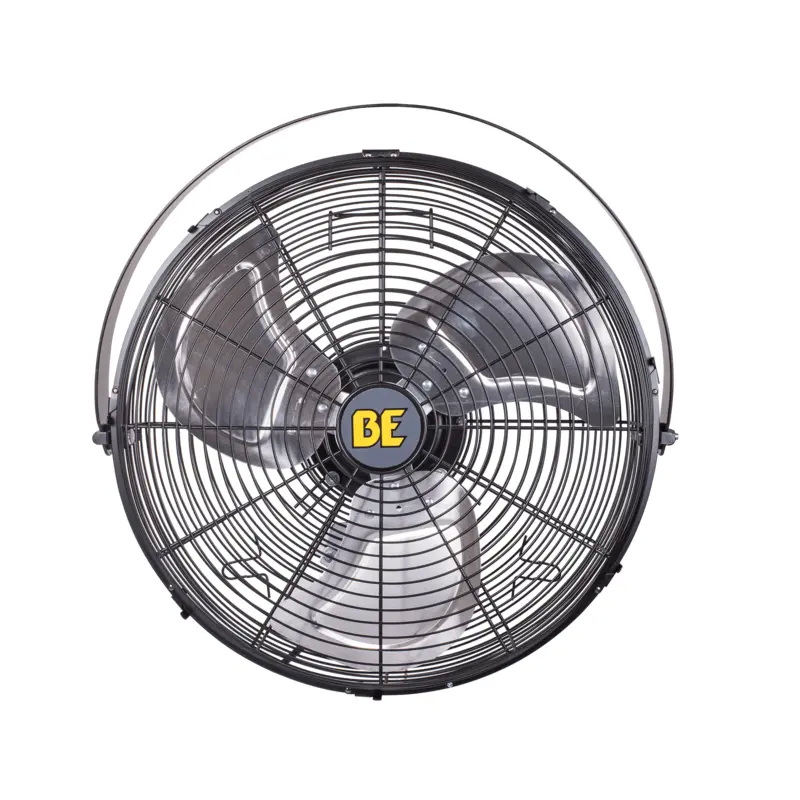

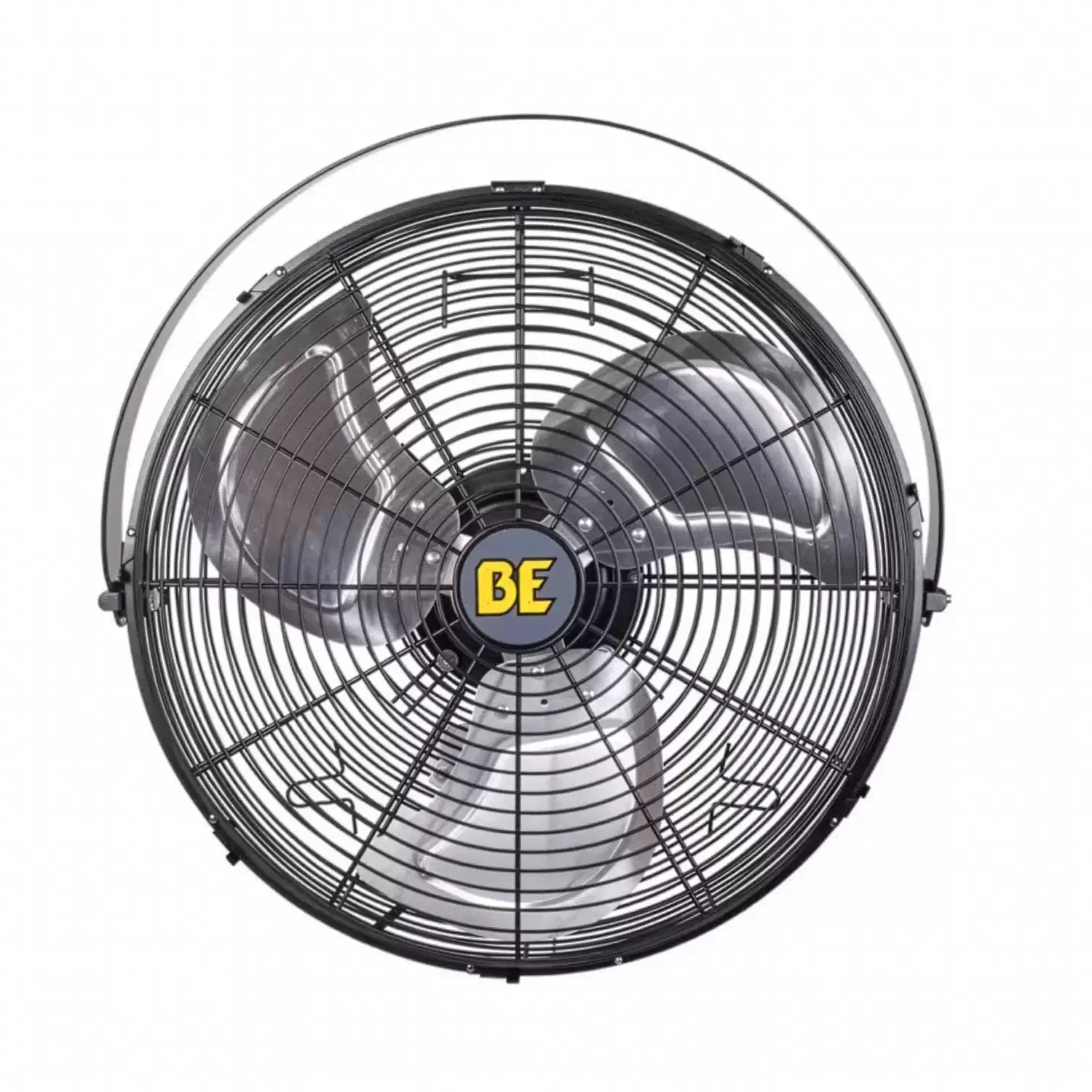

The BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan is an industrial fan that is built with heavier duty materials and components to operate longer and supply greater air flow and pressure. The BE FW18 is excellent for creating ventilation in industrial and agriculture buildings. Two speed motor optimizes air flow capability. Aluminum blades are extra wide and precision balanced to be able to move a high volume of air with low power consumption and noise. The BE FW18 features a steel cage that protects the blades and the bracket which allows it to be mounted to walls or the ceiling and with 100% duty cycle you know you can install it with no need to worry about anything. The FW also has pivot points which allows for 180° direction adjustment.
BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan Features
- Industrial fan that is built with heavier duty materials and components to operate longer and supply greater air flow and pressure.
- Excellent for creating ventilation in industrial and agriculture buildings.
- Two speed motor optimizes air flow capability.
- Aluminum blades are extra wide and precision balanced to be able to move a high volume of air with low power consumption and noise.
- Steel cage protects the blades and the bracket allows it to be mounted to walls or the ceiling.
- Pivot points allow 180° direction adjustment.
BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan Specifications
- AMP: 1.2
- Duty Cycle: 100%
- Diameter: 18″
- Total Blades: 3
- Blade Type: Aluminum
- Volts: 120
- Tilt Angle: 180°
- Series: Workshop
- CORD LENGTH: 10′
- HP: 1/11HP
- RPM: 1,500
- CFM: 4,150
BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan Performance
- SPEEDS: 2
- 1ST SPEED RPM: 1,250
- 1ST SPEED CFM: 3,450
- 2ND SPEED RPM: 1,500
- 2ND SPEED CFM: 4,150
BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan Replacement Parts
- FAN BLADE KIT: 43.048.000
- 2 SPEED SWITCH 43.048.002
- WHEELS: 43.042.001
- AXEL: 43.042.002
BE Equipment FW18 18″ Direct Drive Industrial Ceiling/Wall Fan Dimensions
- Shipping Weight: 19LBS
- Shipping Dimensions (LxWxH): 22″x8″x24″
- Product Weight: 17LBS
- Product Dimensions (LxWxH): 22″x7″x22″
The actual product may vary from the images shown on the website.
