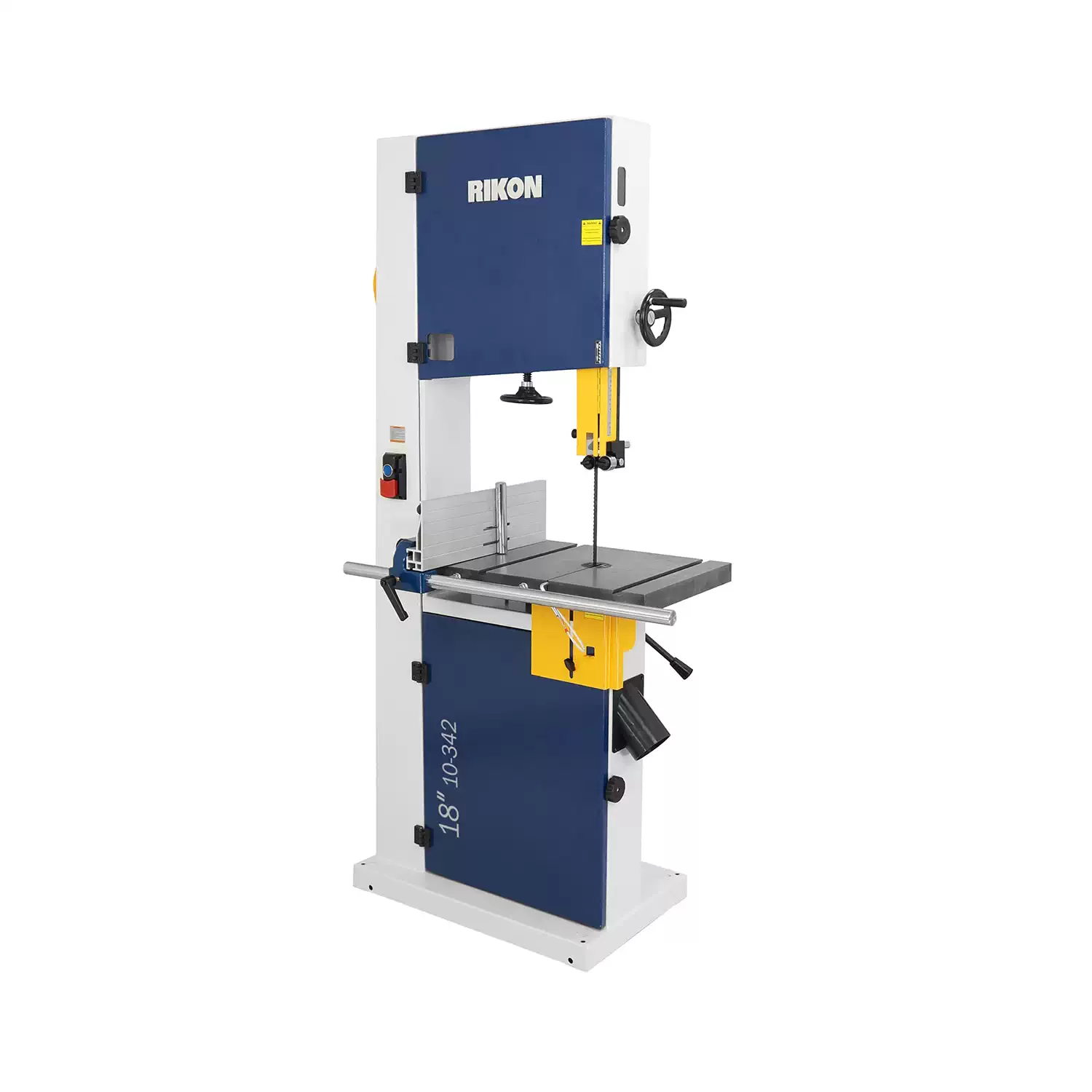

Rikon 10-342 18″ Deluxe Woodworking Bandsaw 2HP 220V 7.5A

The Rikon 10-342 18-inch deluxe woodworking bandsaw is a larger-capacity wood cutting bandsaw built for resawing, ripping, and curved cutting in serious shops. It features a 2 HP TEFC motor, 13-inch cutting height, 17-1/2-inch cutting width, 153-inch blade length, quick-release blade tension, a 6-inch tall quick-adjust fence system, and spring-loaded tool-less blade guides.

The Rikon 10-342 is designed as an entry point into the larger 18-inch bandsaw class, but it still brings the capacity and shop features many buyers want for furniture work, resawing, and general stock preparation. RIKON’s current product page lists a 2 HP TEFC motor, 220V single-phase power, a single blade speed of 3,280 feet per minute, 13 inches of cutting height, and 17-1/2 inches of cutting width. That gives this woodworking bandsaw the reach for wider stock and the height needed for routine resaw work without moving into a much larger industrial machine.

A few details from the manual are worth calling out because customers often want to know them before buying. The machine requires installation of a 220V 4-wire plug, which is not included, and the manual says the saw should be secured to the floor using the holes in the base. The saw also includes a rear 110V convenience outlet for a work light or similar accessory, and the fence system can be adjusted for blade drift, set vertically or horizontally, and used on either side of the blade. Those are practical setup details that matter in a real shop.

Rikon 18″ Deluxe Woodworking Bandsaw At a Glance

• 2 HP TEFC Motor: Provides the power needed for resawing, ripping, and general woodworking cuts.
• 13″ Cutting Height: Gives the saw strong resaw capacity for taller stock.
• 17-1/2″ Cutting Width: Offers more throat capacity for wider workpieces.
• Spring Loaded Tool-less Guide System: Speeds up guide adjustments during setup and blade changes.
• Quick Adjust 6″ Tall Fence System: Supports guided ripping and resawing, and adjusts for drift.
• Quick Adjust Trunnion System: Uses a handwheel and locking handle for table tilt changes.
• Quick Release Blade Tension: Makes it easier to release tension for blade changes or long idle periods.
• Hinged Blade Guard with Sight Window: Helps visibility while maintaining blade guarding.
• Dual 4″ Dust Ports: Supports dust collection above and below the table area.
• 110V Rear Convenience Outlet: Lets users power a work light or similar accessory at the saw.

Quick Specs

• Brand: RIKON
• Manufacturer Part Number: 10-342
• UPC: 814463012810
• Power Source: Corded electric
• Voltage: 220V, 60Hz, 1Ph
• Amperage: 7.5A
• Motor: 2 HP TEFC
• Cutting Capacity: 13″ H x 17-1/2″ W
• Blade Speed: 3,280 FT/MIN
• Blade Length: 153″
• Blade Width Range: 1/4″ to 1-3/8″
• Weight: 324 lbs

Markets

• Furniture Shops: Well suited for resawing, curved cuts, and stock preparation for furniture parts.
• Cabinet Shops: Fence-guided ripping and tall cutting capacity support cabinet components and hardwood stock.
• Millwork and Custom Woodworking: Useful for one-off parts, templates, and shaping wider stock.
• Serious Home Workshops: A practical step up for buyers moving beyond a smaller 14-inch class bandsaw.
• Schools and Training Shops: Suitable in capability, though RIKON limits five-year warranties to two years in commercial, industrial, or educational use.
• General Woodworking Production: Good fit for shops needing a larger-capacity woodworking bandsaw without moving into a heavier industrial platform.

The Rikon 10-342 is a practical option for buyers who want a larger wood cutting bandsaw with serious capacity and a straightforward feature set. Its 13-inch cutting height and 17-1/2-inch throat give it the room for resawing and wider work, while the 2 HP motor and cast iron table support steady cutting performance. For buyers comparing 18-inch woodworking bandsaws, this model covers the basics well and adds several setup features that make daily use easier.

It also has a few details that customers tend to appreciate once the saw is in the shop. The spring-loaded tool-less guides simplify adjustments, the quick-release tension lever makes blade changes easier, and the quick-adjust fence system helps correct drift without a more complicated setup. The built-in 110V outlet on the rear of the machine is also worth noting for shop convenience, especially when adding a magnetic work light.

Rikon 10-342 18″ Deluxe Woodworking Bandsaw 2HP 220V 7.5A Features

• 2 HP TEFC Motor: Delivers power for resawing, ripping, and general woodworking use.
• 13″ Cutting Capacity: Provides the height needed for taller workpieces and resaw operations.
• 17-1/2″ Cutting Width: Gives more room between the blade and frame for wider stock.
• Single 3,280 FT/MIN Blade Speed: Set up for general woodworking cutting performance.

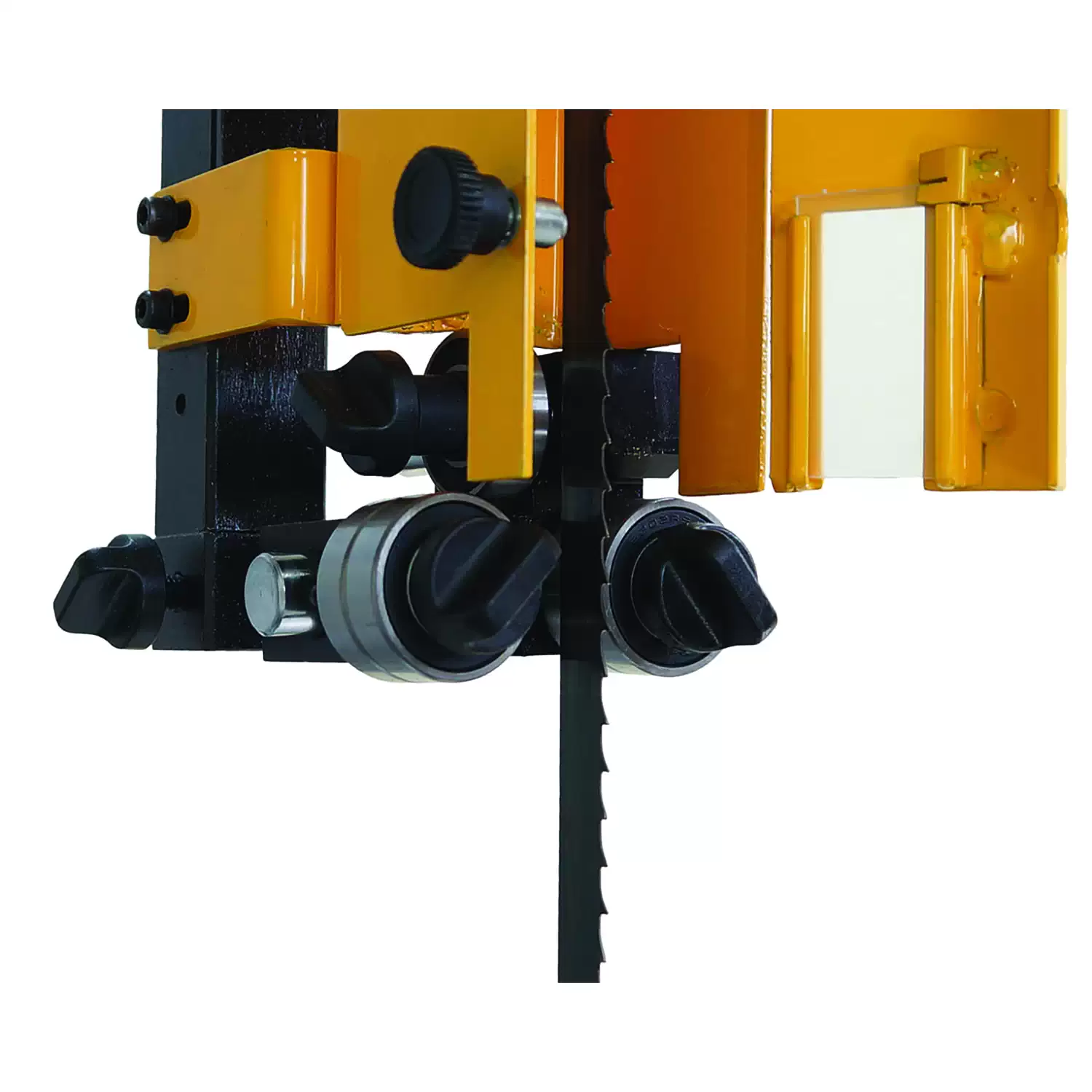

• Patented Spring Loaded Tool-less Guide System: Allows quick guide positioning with ball-bearing blade guides.

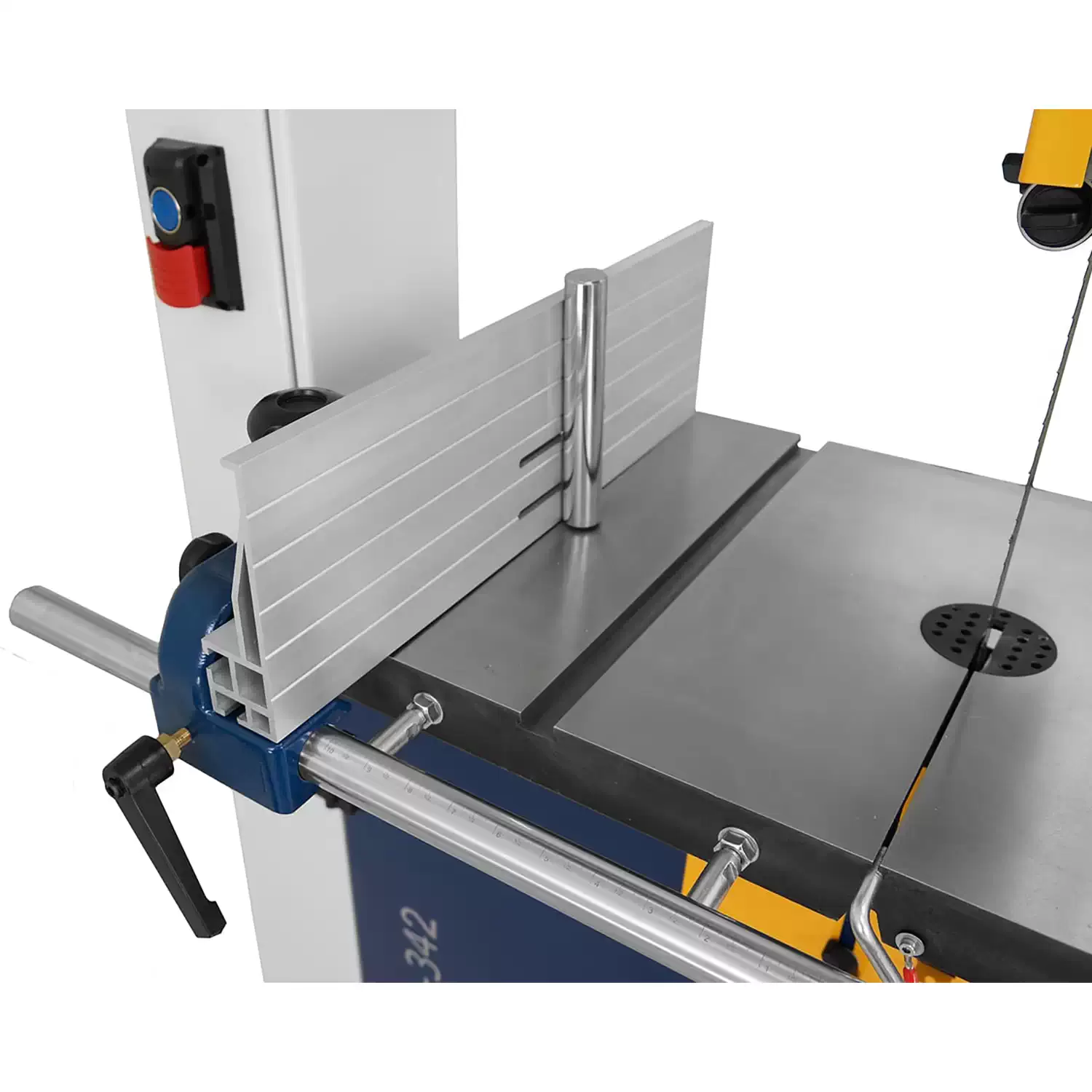

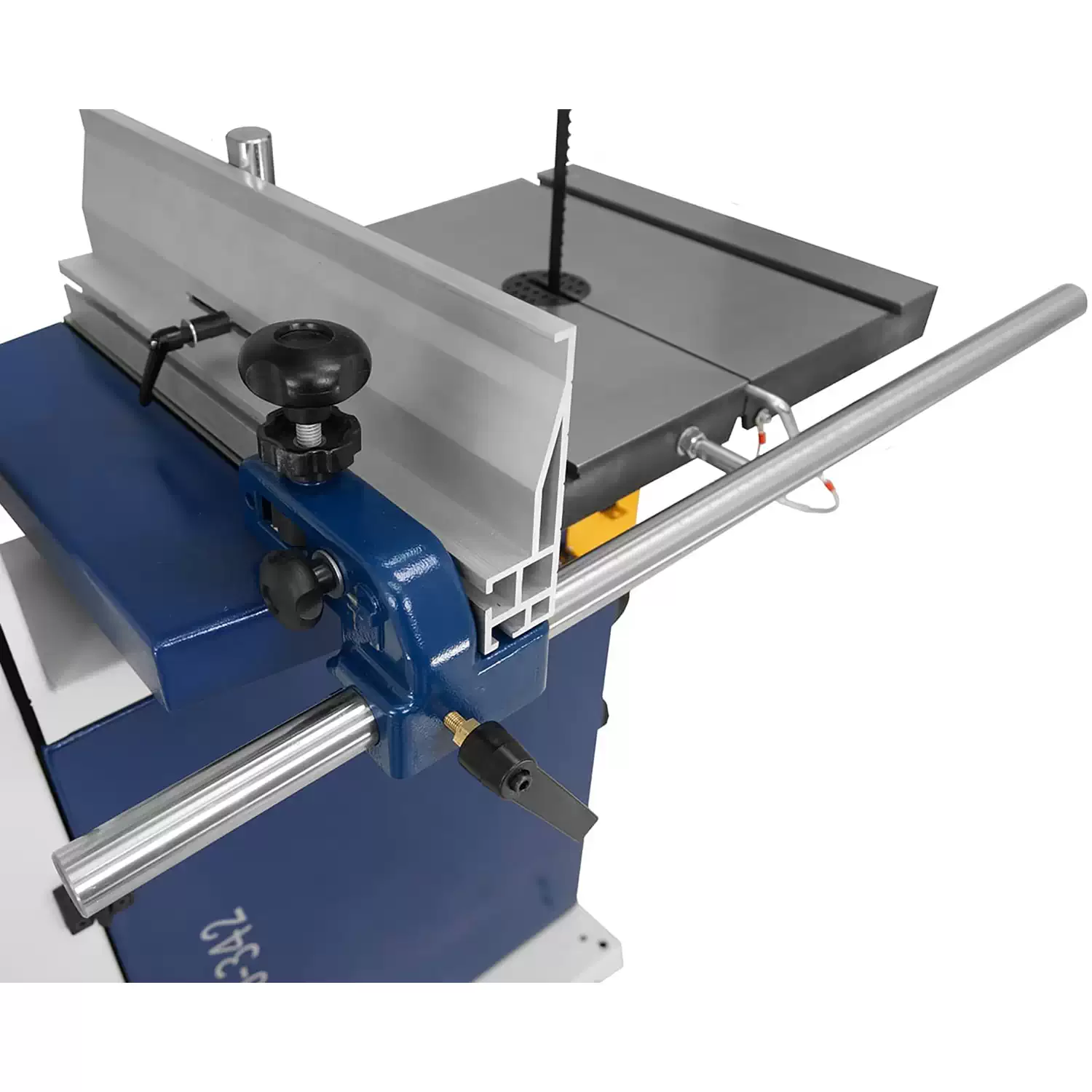

• Patented Quick Adjust 6″ Tall Fence System: Supports ripping and resawing and can be adjusted for drift.
• Patented Quick Adjust Trunnion System: Lets users tilt and lock the table with a handwheel and handle.
• Quick Release Blade Tension: Allows tension release for blade changes and longer idle periods.
• Hinged Blade Guard with Sight Window: Improves visibility and access during blade setup and use.

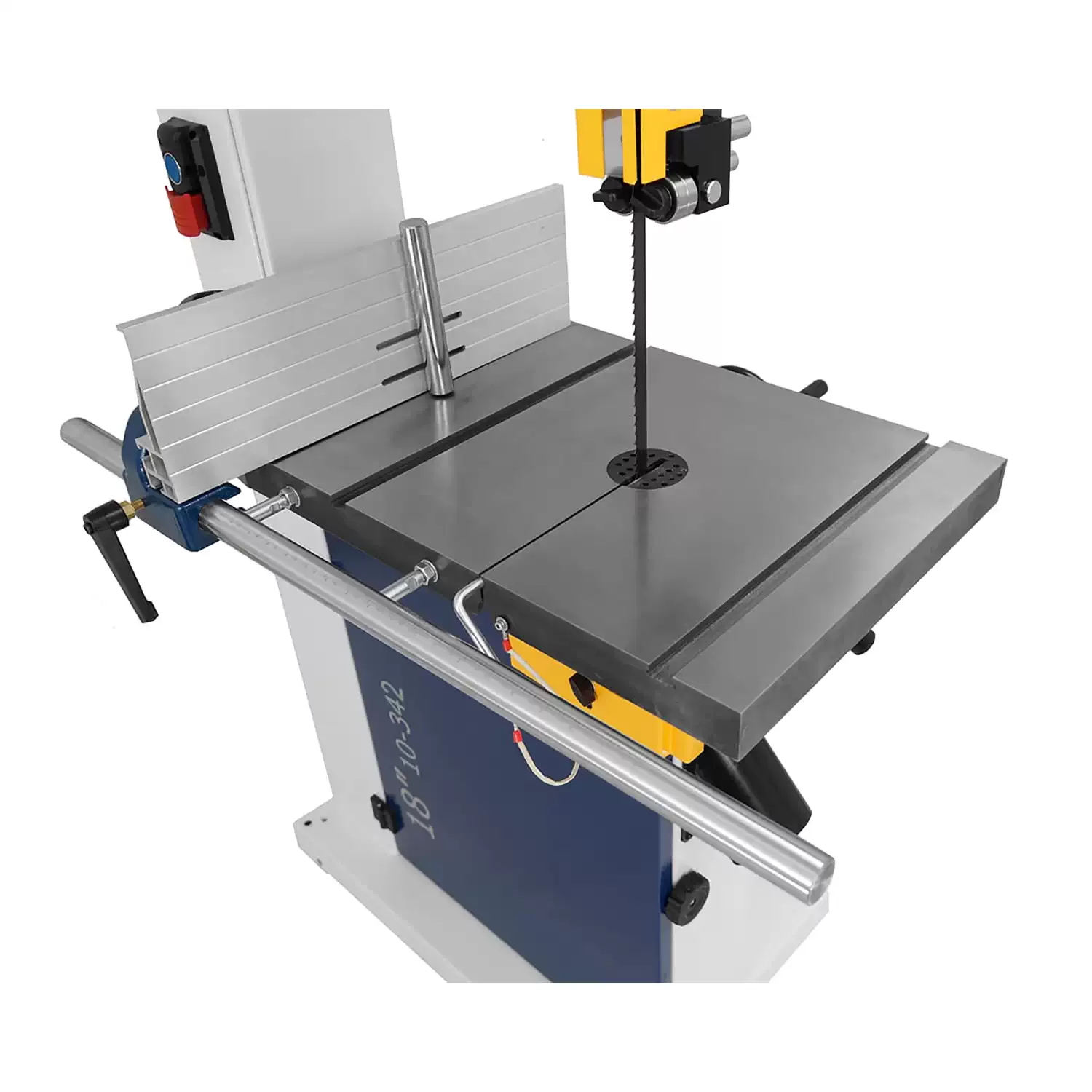

• Cast Iron Table with Side Extension: Provides a stable work surface with added table width on the left side.
• Dual 4″ Dust Ports: Supports better dust collection around the cutting area.
• 110V Electrical Outlet on Rear of Machine: Useful for a work light or other low-demand convenience accessory.
• Re-saw Bar Included: Helps correct blade wandering in certain resawing operations.

Compatible Accessories / Works Well With

• RIKON 13-912 Miter Gauge: Fits the 3/4″ x 3/8″ miter slots
• RIKON 13-345 Mobility Kit: Optional mobility kit for moving the saw around the shop.
• RIKON 12-202 LED Gooseneck Worklight: Official work light option
• RIKON C10-326 Guide Bearings: Replacement guide bearing set for the 10-342.
• RIKON C10-391 Table Inserts: Replacement insert pack for supported 14-inch and 18-inch RIKON bandsaws.
• RIKON C10-392 Zero Clearance Inserts: Helpful for small workpieces, thin strips, inlay, and similar cuts.
• RIKON C10-395 Aluminum Table Insert: Replacement aluminum insert option.
• RIKON C10-988 Multi-vee Belt: Replacement drive belt listed on the current product page.
• RIKON 153″ Bandsaw Blades: Official blade options include 19-1701, 19-1702, 19-1703, 19-1704, and 19-1705.

Rikon 10-342 18″ Deluxe Woodworking Bandsaw 2HP 220V 7.5A Includes

• (1) Bandsaw Frame Assembly
• (1) Table with Extension and Blade Insert
• (1) Rip Fence Front Rail and Hardware
• (1) Table Support Pin with Lanyard
• (1) Table Leveling Bolt and Nut
• (1) Set of Table Mounting Bolts and Washers
• (1) Rip Fence
• (1) Fence Carrier Assembly
• (1) Re-saw Bar Assembly
• (1) Push Stick with Mounting Hardware
• (1) 4″ Dust Port
• (2) Handwheels
• (2) Handles for Handwheels

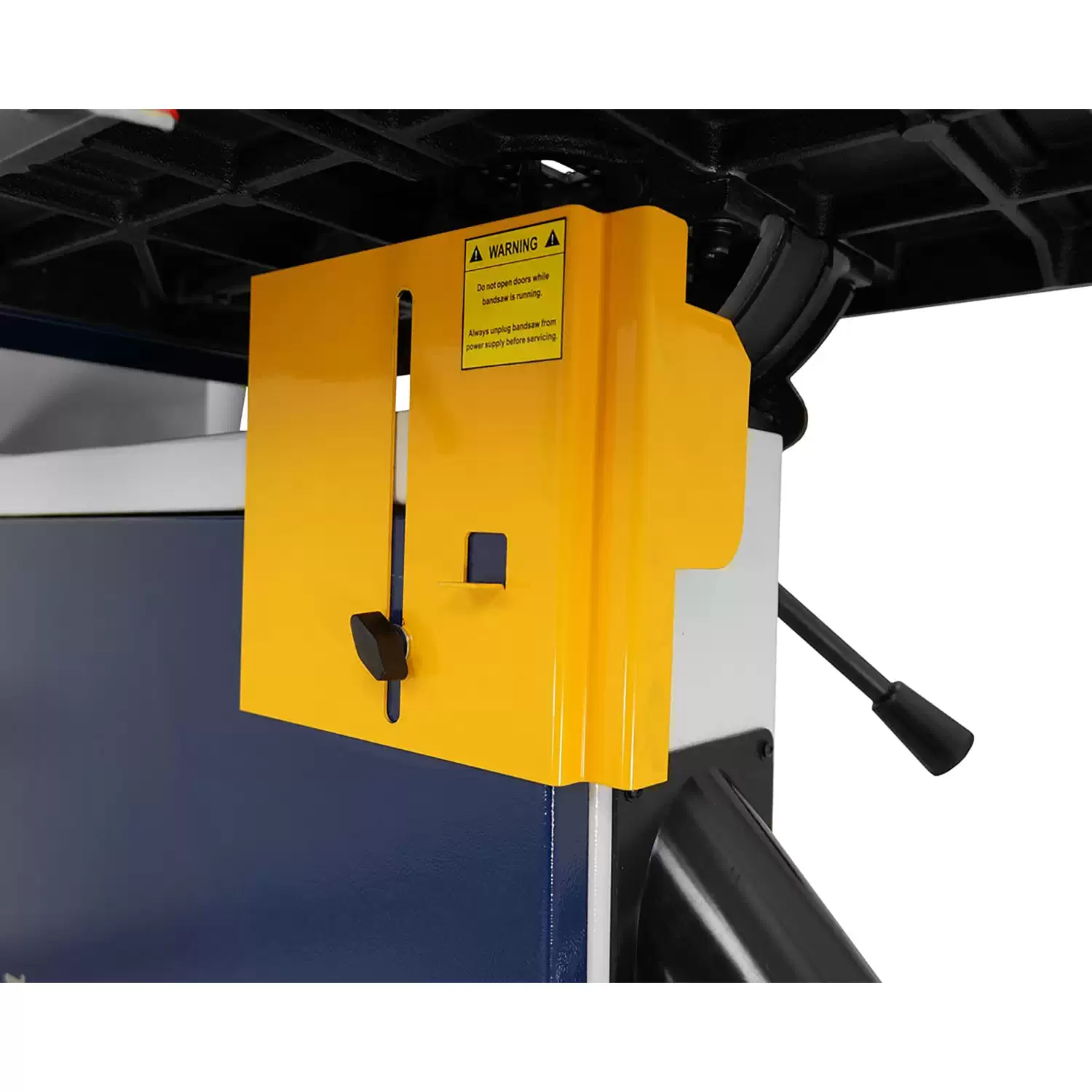

• (1) Lower Blade Guard and Knob
• (2) Open-End Wrenches
• (4) Hex Wrenches
• (1) Tool Holder with Mounting Screws
• (1) Owner’s manual

Rikon 10-342 18″ Deluxe Woodworking Bandsaw 2HP 220V 7.5A Specifications

• Brand: RIKON
• Manufacturer Part Number: 10-342
• UPC: 814463012810
• Product Type: Woodworking bandsaw
• Product Line / Series: Deluxe Bandsaw
• Motor: 2 HP TEFC
• Motor Speed: 1,720 RPM no load
• Voltage: 220V, 60Hz, 1Ph
• Amperage: 7.5A
• Blade Speed: 3,280 FT/MIN
• Cutting Capacity Height: 13″
• Cutting Capacity Width: 17-1/2″
• Blade Width Range: 1/4″ to 1-3/8″
• Blade Length: 153″
• Table Size: 21-1/2″ x 15-3/4″
• Table Left Side Extension: 4-3/8″ x 15-3/4″
• Table Left Tilt: -10°
• Table Right Tilt: 45°
• Miter Gauge T-Slots: (2) 3/4″ x 3/8″
• Table Height to Floor: 35-1/2″
• Fence Size: 18-3/4″ x 1-3/4″ x 6″

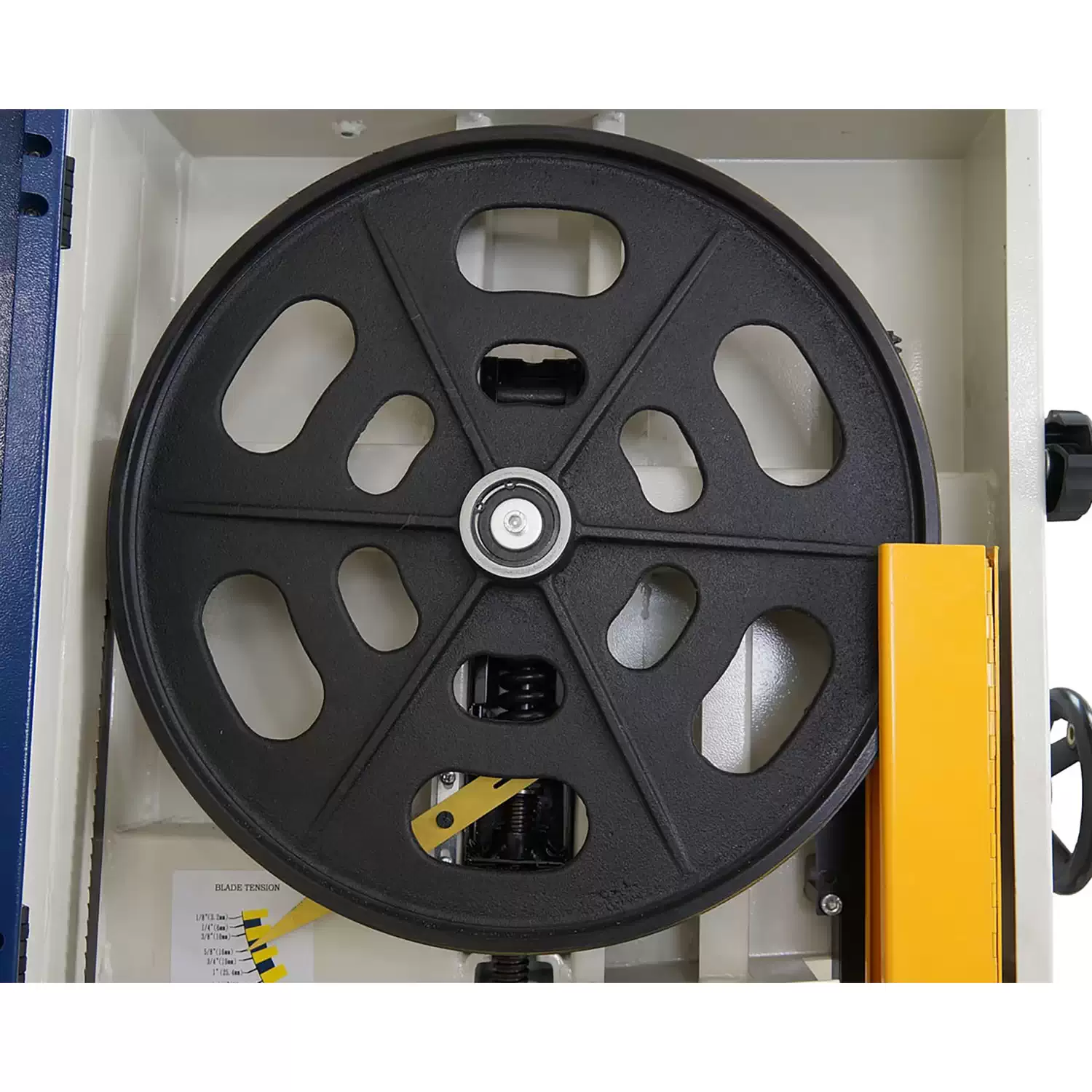

• Wheel Material: Cast Iron
• Blade Guide Type: Tool-less
• Table Trunnion: Cast Iron
• Dust Ports: 2 x 4″
• Overall Height: 72-7/8″
• Overall Width: 38-1/2″
• Overall Depth: 28-1/8″
• Overall Base Size: 29-11/32″ x 18-1/8″ x 2-7/16″.
• Overall Net Weight: 324 lbs

Rikon 10-342 18″ Deluxe Woodworking Bandsaw 2HP 220V 7.5A Warranty

• Rikon’s 5 Year Limited Warranty or 2 Year Limited Warranty for commercial, industrial, or educational use.

Why Woodworking Enthusiasts Choose the Rikon 18″ Deluxe Woodworking Bandsaw

Customers choose the Rikon 10-342 because it gives them larger-capacity bandsaw performance without moving straight into a more complex industrial machine. The 13-inch resaw height, 17-1/2-inch cutting width, 2 HP motor, and 153-inch blade platform make it a practical woodworking bandsaw for resawing, ripping, and curved cutting in a furniture shop, cabinet shop, or serious home workshop.

It also stands out for day-to-day usability. The quick-adjust fence system, spring-loaded tool-less guides, quick-release tension lever, and re-saw bar give users more control over setup and repeated cuts. The rear 110V outlet is a small detail, but it is the kind of thing many shop users appreciate once the machine is in place. For buyers searching for an 18-inch wood cutting bandsaw with strong core capacity and practical shop features, the 10-342 is easy to justify.
