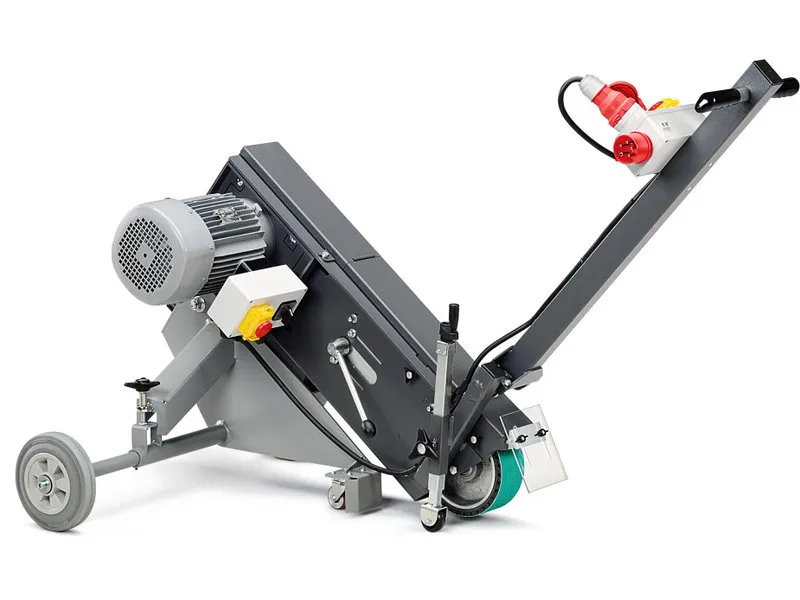

FEIN 79021809573 Mobile Carriage GIMS 75-6

The FEIN GIMS 75-6 Mobile Carriage turns a stationary 75 mm (3″) belt grinder into a guided floor-level processing station for long, straight runs. Built for on-site work, the carriage lets operators grind, hone, or descale welded seams along floors and low horizontal surfaces while standing upright. This improves line-of-sight and body mechanics compared with kneeling or hand-held passes. A continuously adjustable tow bar sets a comfortable reach, while a compact head and small wall-clearance dimension help the unit track close to edges, skids, and base plates.

With a depth stop for repeatable material removal and a rigid guidance frame, crews can produce even, straight finishes on long seams without wandering. The carriage is sized for 75 mm × 2,000 mm (3″ × 78-3/4″) belts and supports high-duty grinding at 3,000 rpm with a 6 kW, 3×575 V, 60 Hz supply. For shops and field teams that need consistent weld-seam conditioning at floor level, the GIMS 75-6 mobile carriage delivers controlled feed, steady contact pressure, and reduced operator fatigue across long shifts.

FEIN GIMS 75-6 Mobile Carriage At a Glance

Floor-Level Weld Processing: Guided grinding and honing of long welded seams without kneeling.
Descaling & Cleanup: Efficient oxide and scale removal on plates, ramps, and structural members.
Upright Operator Stance: Perpendicular working position improves ergonomics and visibility.
Small Wall Clearance: Reach close to walls and obstacles for complete edge coverage.
Continuously Adjustable Tow Bar: Dial in reach and control for different operators and passes.
Depth Stop: Set removal depth for repeatable, uniform results over long runs.
Stable Belt Guidance: Sized for 75 mm × 2,000 mm belts to maintain straight tracking and finish quality.

Markets

Structural & Industrial Fabrication Uniform floor-level weld dressing on platforms, mezzanines, and large plate work.
Shipbuilding & Offshore Long seam conditioning on decks and modules with consistent depth control.
OEM & Heavy Equipment Scaled removal and finish prep on frames, bases, and skid assemblies.
Maintenance & Repair (MRO) On-site descaling and rework in plants without relocating heavy parts.
Municipal & Utilities Smoother, safer walking surfaces on welded plates and ramps after repair.
Trade Schools & Training Demonstrates proper weld-seam grinding technique with guided, repeatable passes.

Teams grinding long, low seams need straight tracking, consistent depth, and better ergonomics than a hand-held grinder can offer. The GIMS 75-6 pairs a guided carriage with an upright stance so operators control feed pressure and path without crouching. The depth stop keeps removal uniform, reducing rework and helping finishes match across shift changes. A small wall-clearance footprint reaches close to edges and around fixtures, while the adjustable tow bar lets different operators set a comfortable position. For fabrication shops, shipyards, and maintenance crews, the GIMS 75-6 increases throughput and finish consistency on floor-level welds and plates.

FEIN 79021809573 Mobile carriage|GIMS 75-6 Features

Highly effective grinding and honing of welded seams at floor level
Grinding over and descaling metal parts
Comfortable operator stance due to perpendicular work position
Small wall clearance dimension
Tow bar continuously adjustable
Depth stop.

FEIN 79021809573 Mobile Carriage GIMS 75-6 Includes

(1) FEIN GIMS 75-6 Mobile Carriage
Grinding drive/belt grinder and abrasives sold separately.

FEIN 79021809573 Mobile carriage|GIMS 75-6 Specifications

Power Consumption: 6 kW
Current / Voltage: 3 × 575 V, 60 Hz
No-Load Speed: 3,000 rpm
Belt Size: 3″ × 78-3/4″ (75 mm × 2,000 mm)
Weight: 266.76 lb (121 kg)

Why Fabricators Choose the FEIN GIMS 75-6 Mobile Carriage

Fabricators choose this mobile carriage to bring belt-grinder accuracy to long, floor-level seams with better ergonomics and consistent results. Guided travel and a depth stop support uniform removal across plates and decks, while the small wall clearance helps finish right up to edges. For on-site grinding—where moving large workpieces is costly—the GIMS 75-6 keeps production on the floor, maintains straight lines, and reduces operator fatigue compared to hand-held methods.
