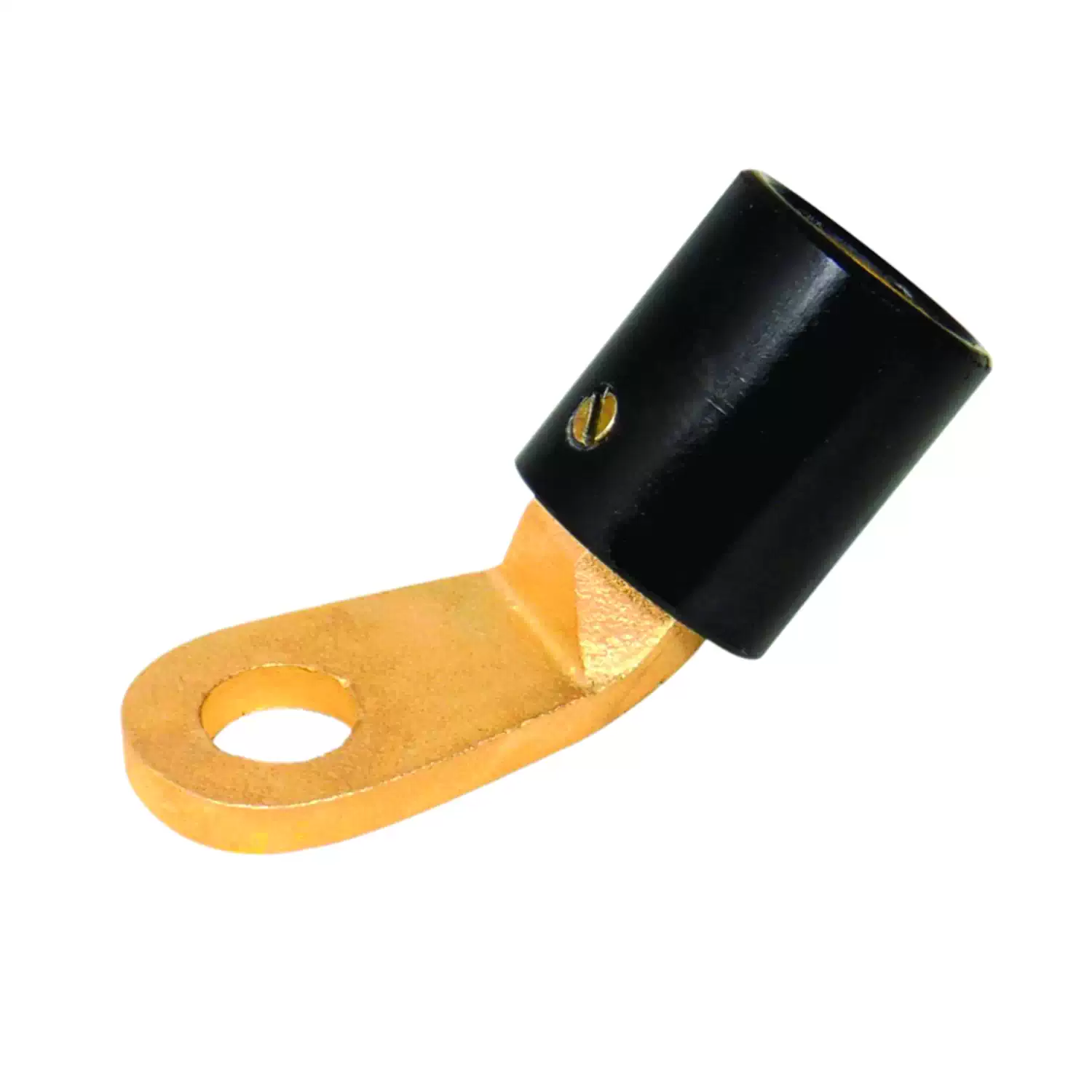

PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector

The PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector is designed to replace traditional cable lugs on welding power sources and fixtures, giving operators a fast, secure way to connect and disconnect welding leads. Instead of soldering lugs or bolting on terminals, this machine adaptor mounts directly to the welder stud and accepts LC-40 style twist-and-lock connectors. The angled 45° body helps route welding cable cleanly away from the machine, which reduces strain on the lead and makes panel layouts easier to manage in tight spaces.

Manufactured from precision-machined brass extrusion, the TE-2AF provides reliable conductivity and long service life in shop and field environments. A positive lock action between the LC-40 male connector and the receptacle keeps the cable firmly in place under load and vibration. The terminal is fully insulated to improve user safety around live studs at the power source. With its 5/8″ stud hole and LC-40 receptacle, this terminal connector fits common industrial welders and power supplies, making it a practical upgrade wherever quick cable changes or modular setups are needed.

PowerWeld 45° LC40 Receptacle Terminal Connector Features

• 45° LC-40 Receptacle: Angled outlet improves cable routing and clearance at the welder.
• Replaces Solder-Type Lugs: Installs directly on the welder stud for quick lead changes.
• Twist-and-Lock Connection: Positive lock tight action holds LC-40 male connectors securely.
• Precision-Machined Brass Body: Heavy, specially shaped brass extrusion supports strong electrical contact.
• Fully Insulated Design: Insulation around the connector helps protect users from accidental contact.
• 5/8″ Stud Hole: Fits common welding power source studs for simple installation.
• Machine Adaptor Style: Allows cables to be connected or removed without tools.
• Supports High-Amperage Welding Leads: Built to work with standard LC-40 welding cable connectors.

Markets

• Fabrication and Manufacturing Shops Used on welders and power sources where operators frequently change cable lengths or polarity.
• Mobile Welding and Field Service Allows quick disconnect of welding cable on service trucks and portable power units.
• Construction and Structural Steel Work Helps crews reconfigure welding leads on large projects with multiple stations.
• Shipyards and Heavy Equipment Repair Supports modular welding setups where machines feed several work areas.
• Municipal and Facility Maintenance Simplifies cable management on in-plant welders and repair equipment.
• Trade Schools and Training Centers Makes it easy for instructors to swap cables and set up different machines for students.
• Rental Fleets and Equipment Dealers Speeds turnaround when preparing welders for different customers and jobs.

Shops and field crews use the PowerWeld TE-2AF when they want faster, cleaner cable management at the power source. Instead of unbolting traditional lugs, technicians simply twist LC-40 connectors in or out of the receptacle, which saves time every time a machine is reconfigured. The 45° angle keeps leads organized and reduces the chance of cables kinking at the panel. In high-use environments such as fabrication cells, construction sites, shipyards, and training labs, this type of machine adaptor helps standardize connections across multiple welders. Maintenance teams and rental fleets gain flexibility, since one set of welding cables can be moved between different power sources with minimal downtime.

PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector Features

• Terminal Connections Replace Cable Lugs: Designed to take the place of fixed lugs and solder-type terminals on welders.
• 45° Terminal Connection: Angled configuration improves access and keeps welding cable away from control panels.
• Positive Lock Tight Action: Twist-and-lock LC-40 interface resists loosening from vibration or cable movement.
• Precision-Machined Brass Parts: Heavy brass extrusion is machined for accurate fit and consistent contact area.
• Fully Insulated Housing: Exterior insulation increases safety when working around energized studs.
• Compatible with LC-40 Male Connectors: Works with standard Lenco-style LC-40 connectors for quick connect and disconnect.
• Direct Stud Mounting: Connects straight to the welder stud using the 5/8″ stud hole, with no extra adaptors required.

PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector Includes

• (1) PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector

PowerWeld TE-2AF 45° LC40 Receptacle Terminal Connector Specifications

• Brand: PowerWeld
• Model: TE-2AF
• Product Name: 45° LC40 Receptacle Terminal Connector
• Product Type: Machine Adaptor / Terminal Connector
• Connection Style: Twist-and-lock LC-40 receptacle
• Terminal Angle: 45°
• Material: Precision-machined brass extrusion
• Stud Hole Size: 5/8″
• Insulation: Fully insulated body
• Replaces: Solder-type lugs and bolt-on cable lugs at power source studs
• Application: Arc welding accessories – machine adaptors for welding cable connections
• MFG Part Number: TE-2AF
• UPC: 775709900639
• Name (Catalog): Terminal Connector, LC40 Receptacle, 45 Degrees

Why Welders Choose the PowerWeld 45° LC40 Receptacle Terminal Connector

Installers and weld supervisors choose the PowerWeld TE-2AF terminal connector because it lets them treat welding leads like quick-change components instead of permanent hardware. The LC40 receptacle gives a standard interface for any LC-40 welding cable lug, so crews can move leads from one welder to another without tools. As a machine adaptor with a 45° body, it keeps the welding cable clear of knobs and switches on crowded front panels. The precision brass construction delivers solid electrical contact, which supports steady output at higher amperage levels. Maintenance teams value the fully insulated design when working around energized studs on busy shop floors. For rental fleets, training labs, and production lines, this PowerWeld terminal connector helps organize welding cable systems, reduce setup time, and keep machines ready for the next job.
