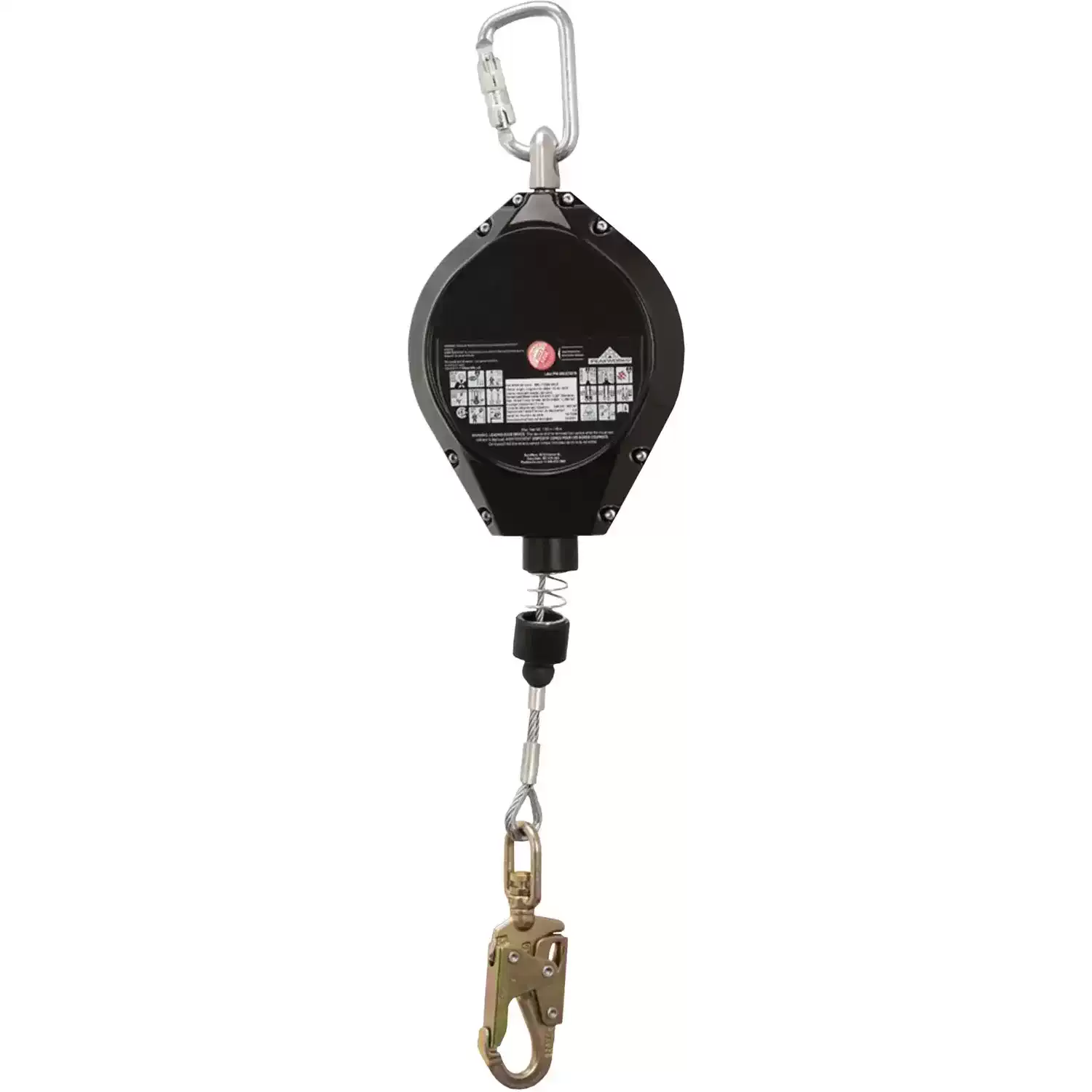

PeakWorks V845633040LE 40′ Leading Edge SRL with Galvanized Steel Cable and Swivel Snap Hook

The PeakWorks V845633040LE is a heavy-duty 40-foot Leading Edge Self-Retracting Lifeline designed to protect workers in both vertical and horizontal fall hazard environments. Built with a rugged galvanized steel cable and a durable aluminum housing, this SRL is certified to meet CSA Z259.2.2-2017 and ANSI Z359.14-2014 Class B standards for leading edge applications. It features a swivel eye anchor point and a double-action locking snap hook with an integrated fall indicator, ensuring secure connection and simplified inspection.

Engineered for jobsites where sharp edges and drop-offs are common—like steel erection, rooftop work, and concrete forming—this SRL offers maximum versatility. It’s lightweight enough to mount directly to the harness for improved mobility, yet strong enough to withstand edge impacts and arrest forces up to 926 lbf. The internal energy management system eliminates the need for external shock absorbers, streamlining setup while maintaining compliance.

PeakWorks 40′ Leading Edge SRL with Galvanized Steel Cable and Swivel Snap Hook At a Glance

• 40 ft Galvanized Steel Cable: Provides extended reach and high abrasion resistance on active construction sites.
• Leading Edge Rated: Certified to CSA Z259.2.2-2017 and ANSI Z359.14-2014 Class B for sharp-edge fall arrest.
• Swivel Eye Anchor Point: Allows smooth rotation to reduce lifeline twisting and improve user movement.
• Snap Hook with Fall Indicator: Alerts safety personnel to potential fall events; secures quickly to standard D-rings.
• Aluminum Housing: Durable yet lightweight housing resists corrosion and can handle rough jobsite conditions.
• Harness-Mountable: Lightweight enough for direct use on worker’s back, improving access in confined areas.
• No External Shock Absorber: Internal braking and energy absorption for a compact, efficient fall arrest system.
• Safety Built-In: Sewn-in lifeline indicator and CSA/ANSI labels provide clear visual confirmation of compliance.

Markets

• Construction Ideal for elevated framing, steel decking, or concrete formwork where edges are exposed and fall risks are present.
• Municipal/Public Infrastructure Reliable for bridge work, road overpasses, and elevated inspection platforms common in civic engineering projects.
• Roofing & Sheet Metal Durable steel cable handles abrasive edges on metal decking and flat commercial roofs.
• Industrial Maintenance Supports rooftop HVAC, plant maintenance, or high-elevation service platforms with easy D-ring mounting.
• Utility & Power Generation Trusted by linemen and energy workers where anchor points may sit below the D-ring and edge hazards exist.
• Telecom Installations Assists tower crews and technicians operating near edges or on structures without perimeter protection.

The PeakWorks V845633040LE Leading Edge Self-Retracting Lifeline Features Performance You Can Trust at the Edge. When workers operate near roof edges, concrete forms, or elevated platforms, the risk of lifeline abrasion is real. That’s where the PeakWorks LE SRL shines. It’s designed to be used where other SRLs might fail—below the D-ring, on rough surfaces, or in horizontal configurations. With a built-in swivel anchor point and a reliable carabiner lifeline connector, this unit keeps workers mobile, secure, and compliant.

PeakWorks V845633040LE 40′ Leading Edge SRL with Galvanized Steel Cable and Swivel Snap Hook Features

• Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists
• They provide additional protection against sharp or abrasive surfaces found on many construction sites
• The lightweight, durable, aluminum housing unit is approved for use in vertical and horizontal applications

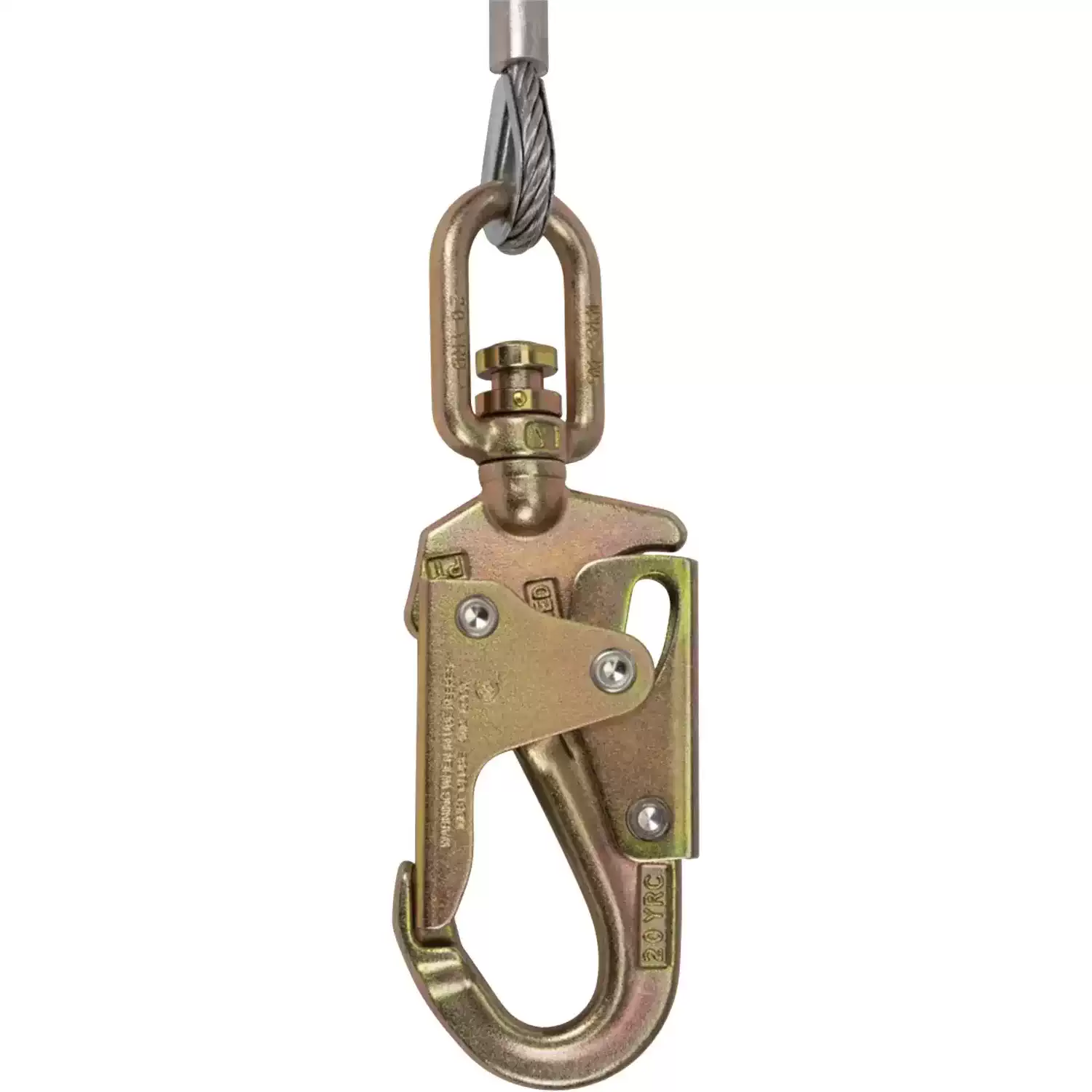

• The attachment points include a swivel eye on housing and double action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring
• Designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge
• Leading Edge SRLs provide additional protection against sharp or abrasive surfaces found on many construction sites
• A Leading Edge SRL can be mounted below a worker’s fall arrest D-Ring (please refer to instruction manual for details)
• All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications
• The anchor point incorporates a heavy-duty, durable, and convenient swivel eye
• SRLs with webbing feature a sewn-in indicator on the lifeline itself for maximum safety
• Rescue units come with release pins and a two-way winding handle to engage the rescue/recovery mode
• 310 lbs. (136 kg) capacity for 1 worker (combined weight of person, tools, clothing, etc.)
• Lightweight units can be mounted on a worker’s harness for better mobility and range of motion
• Features a sewn-in indicator on the lifeline itself for maximum safety

PeakWorks V845633040LE 40′ Leading Edge SRL with Galvanized Steel Cable and Swivel Snap Hook Specifications

• Lifeline Length: 40 ft (12.2 m)
• Lifeline Material: Galvanized Steel, 3/16″ (5 mm)
• Swivel or Stationary: Swivel
• Unit Connector: Snap Hook (Aluminum)
• Lifeline Connector: Carabiner (Steel)
• Weight Capacity: 310 lbs (141 kg) including person, tools, and gear
• Average Arrest Force: 4.12 kN (926 lbf)
• Class Type: B
• Standards Met: CSA Z259.2.2-2017, ANSI Z359.14-2014, OSHA Compliant
• Max Arrest Distance (Non-LE): 12 ft
• Min. Fall Clearance (LE): 16 ft
• Min. Fall Clearance (Non-LE): 9 ft
• Min. Set Back Distance (LE): 50 ft
• Gate Opening: 3/4″ (19 mm)
• UPC: 626053638313

Why Professionals Choose the PeakWorks 40′ Leading Edge SRL with Galvanized Steel Cable and Swivel Snap Hook

On the site, it’s often called a “40-foot yo-yo” or “steel cable SRL”—a go-to choice when edge work can’t be avoided. Crews appreciate its solid construction, visible indicators, and freedom of movement. It’s the type of gear that sees daily use in high-risk environments because it works simply and reliably. When you’re tied off at height, confidence matters—and this unit delivers.
