Milwaukee 49-22-5600 17PC SAE Tap and Die Set

The Milwaukee 49-22-5600 17PC SAE Tap and Die Set is designed for cutting and repairing common standard threads in metal applications. This SAE tap and die set includes precision machined plug taps, 1″ hex dies, matching drill bits, and threading handles to support the most frequently used coarse and fine thread sizes. Manufactured from high carbon steel and finished with a Black Oxide coating, the taps and dies resist corrosion while maintaining clean, consistent thread profiles in brass, aluminum, mild steel, and similar materials. Long-lasting laser-etched size markings remain clearly visible, helping users quickly identify the correct tool during service or fabrication work.

The plug taps are designed for through-hole threading and feature a square shank that fits standard tap handles and tap wrenches. The 1″ hex dies are compatible with the included die stock as well as the Milwaukee Hex-LOK™ 2-in-1 Handle (sold separately) and other standard 1″ hex die stocks. The set also includes correctly sized twist drill bits for pilot drilling, designed for use with drill drivers. For best results, hand taps should be used manually with cutting fluid to produce accurate threads and extend tool life.

Milwaukee 17PC SAE Tap and Die Set At a Glance

• High Carbon Steel Construction: Built for durability in general-purpose metal threading.
• Black Oxide Finish: Resists corrosion and supports smooth cutting action.
• Laser-Etched Markings: Clear, long-lasting size identification.

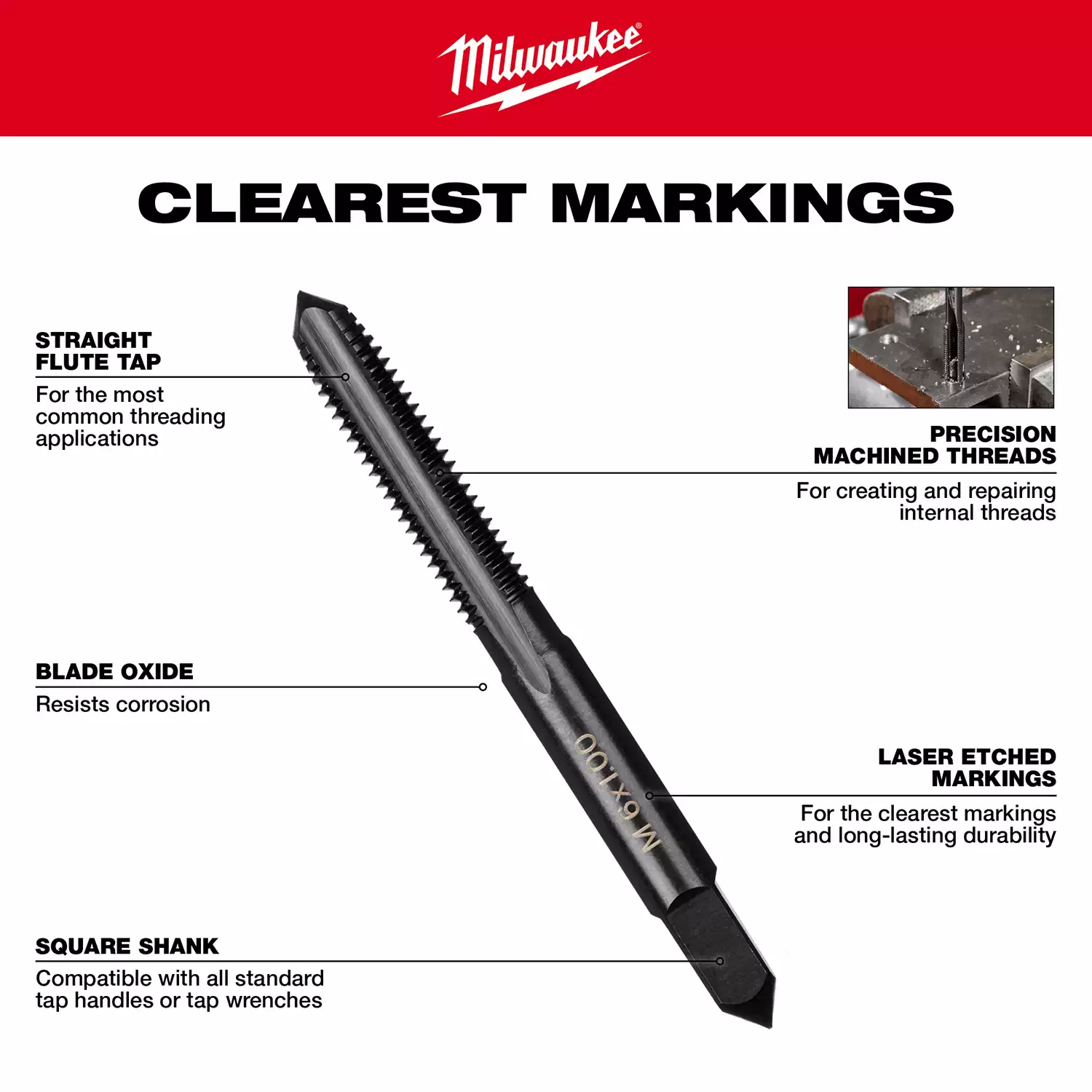

• Plug Style Taps: Designed for through-hole threading in common SAE sizes.

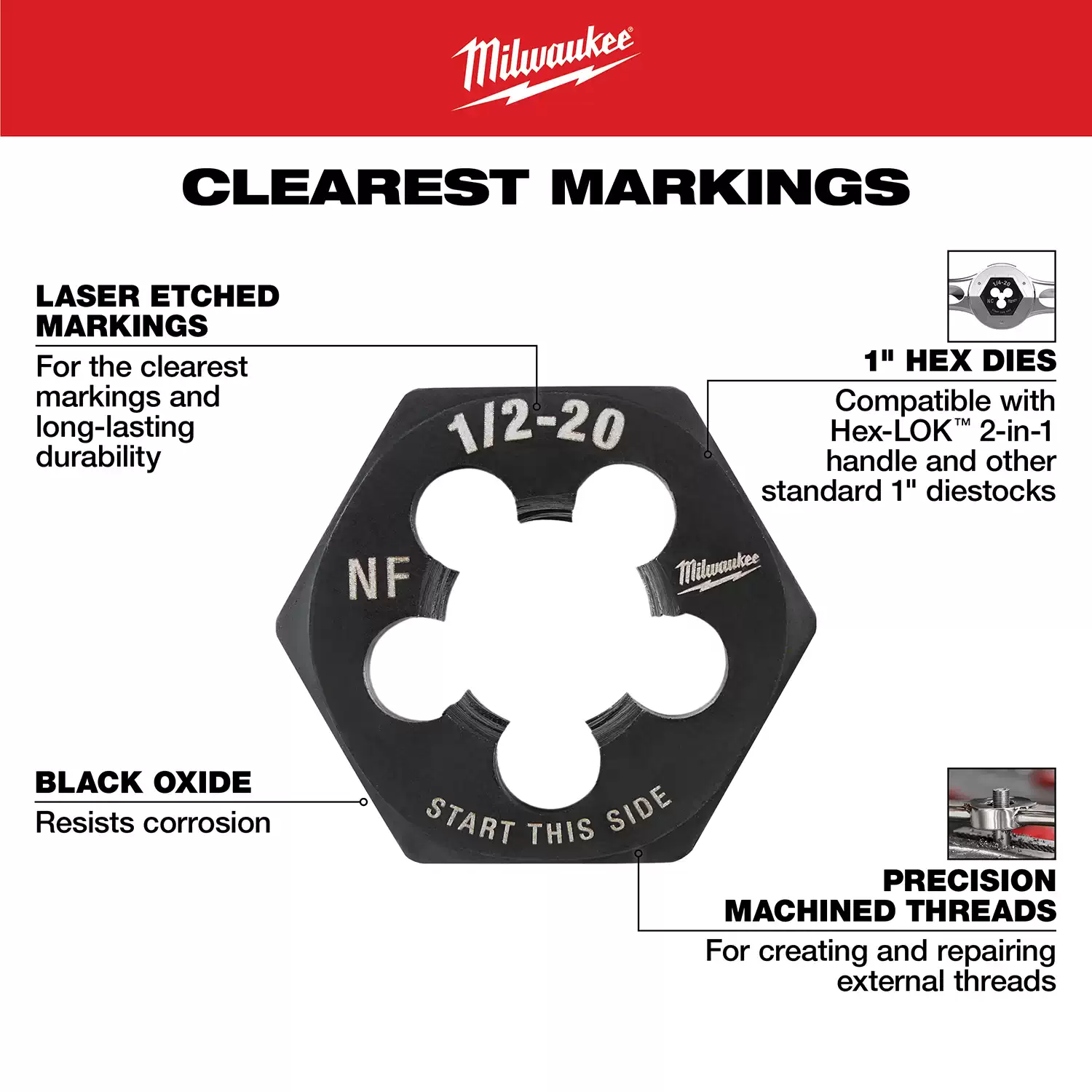

• 1″ Hex Dies: Compatible with standard die stocks and Milwaukee Hex-LOK™ handle system.
• Included Pilot Drill Bits: Proper sizes for accurate thread preparation.
• Die Stock and T-Handle Included: Ready for manual threading applications.
• Common SAE Coverage: Supports 6-32 through 1/4″-20 thread repair and creation.

Markets

• Automotive Repair: Ideal for restoring damaged standard threads on brackets, panels, and light mechanical components.
• Maintenance and Facility Service: Supports in-house thread repair on equipment and fixtures.
• Metal Fabrication Shops: Useful for creating or chasing threads during custom fabrication.
• HVAC and Mechanical Contractors: Assists with field repairs involving standard fasteners.
• Municipal Maintenance Departments: Practical for fleet and facility service tasks using SAE hardware.
• Trade Schools and Technical Programs: Provides hands-on instruction for standard thread cutting and repair techniques.

Technicians across these industries rely on an organized taps and die set to handle common thread repair tasks quickly. In automotive and mechanical service, restoring threads with an SAE tap set can reduce downtime and avoid part replacement. Fabricators benefit from having both coarse and fine thread options when building brackets or modifying components. Maintenance teams appreciate the included pilot drill bits, which simplify hole preparation when using a drill driver. For training environments, this SAE die set helps students understand proper drilling, tapping, and threading procedures using clearly marked, durable tools.

Milwaukee 49-22-5600 17PC SAE Tap and Die Set Features

• Includes precision machined threading accessories and handles for the most common applications
• High Carbon Steel for durability
• Taps and dies feature long lasting laser etch for the clearest markings
• Black Oxide coated taps and dies for corrosion resistance
• Plug Style tap is designed for through hole threading
• Hex Dies can be used to create or repair threads

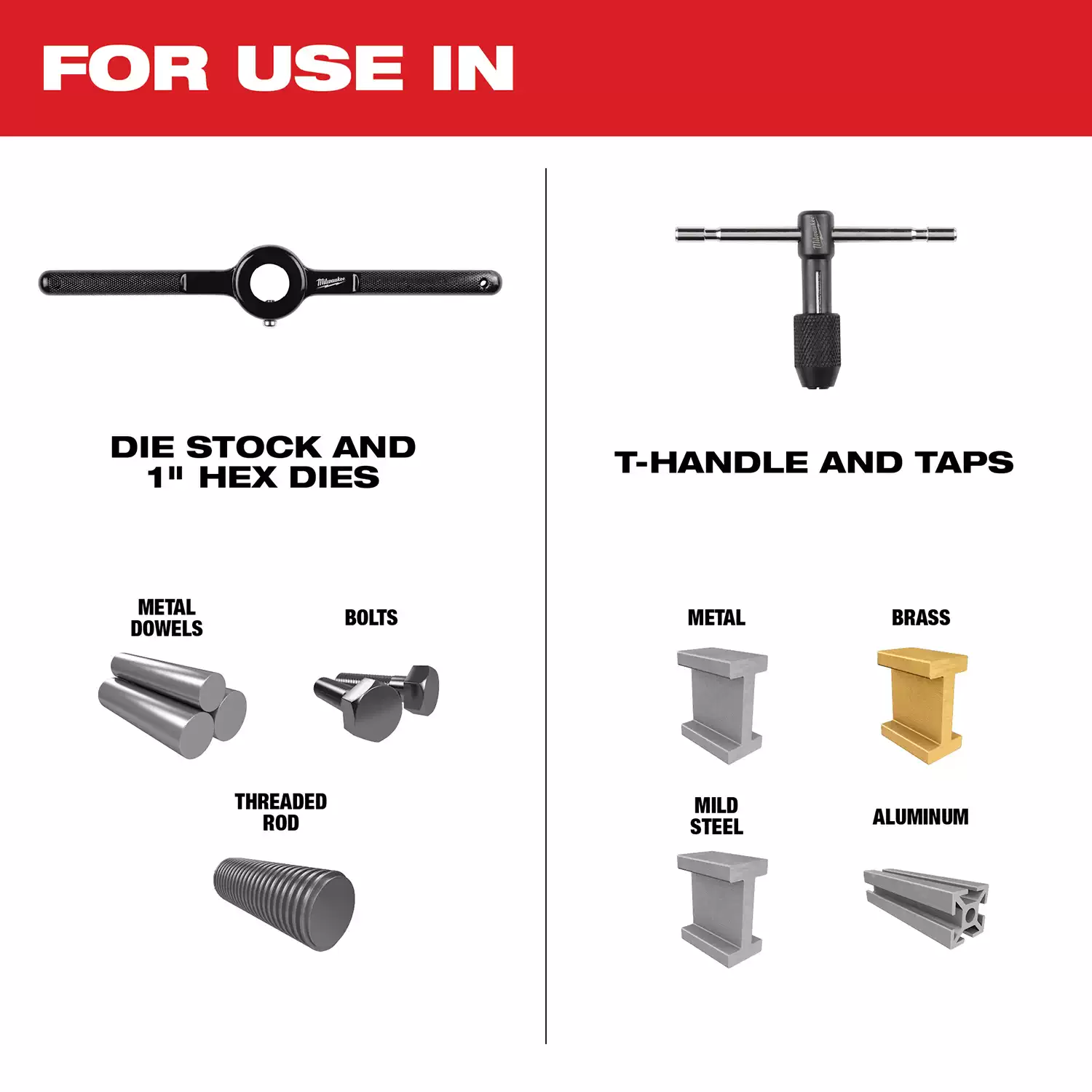

• Designed for use in metal materials including brass, aluminum, mild steel, and more
• Includes Die Stock, compatible with all 1” Hex Dies & T-Handle for use with taps up to ¼”
• Includes accompanying drill bits for pre-drilling holes
• Drill bits are designed for use with Drill Drivers
• Hand taps are not recommended for use with power tools
• For best results use with cutting fluid

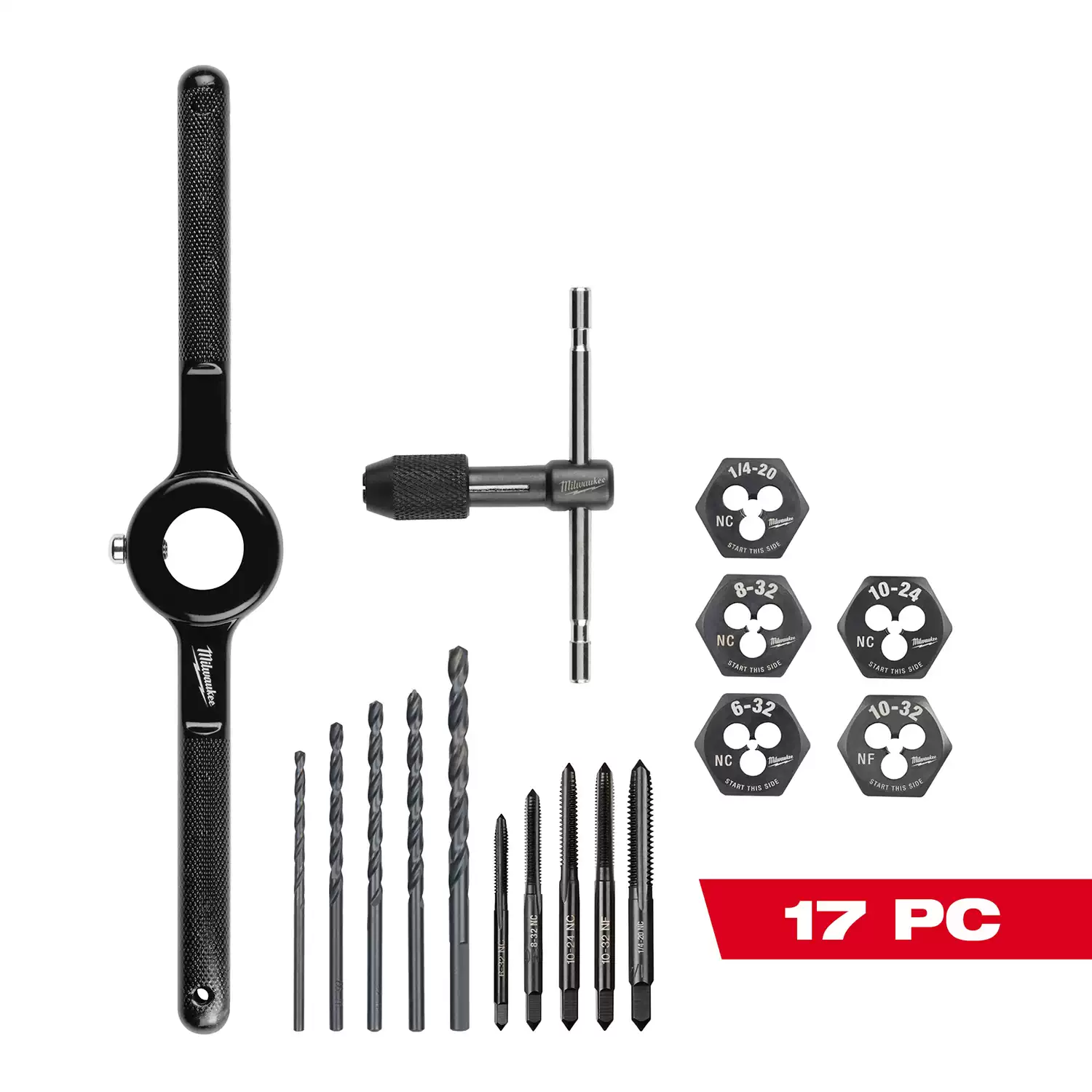

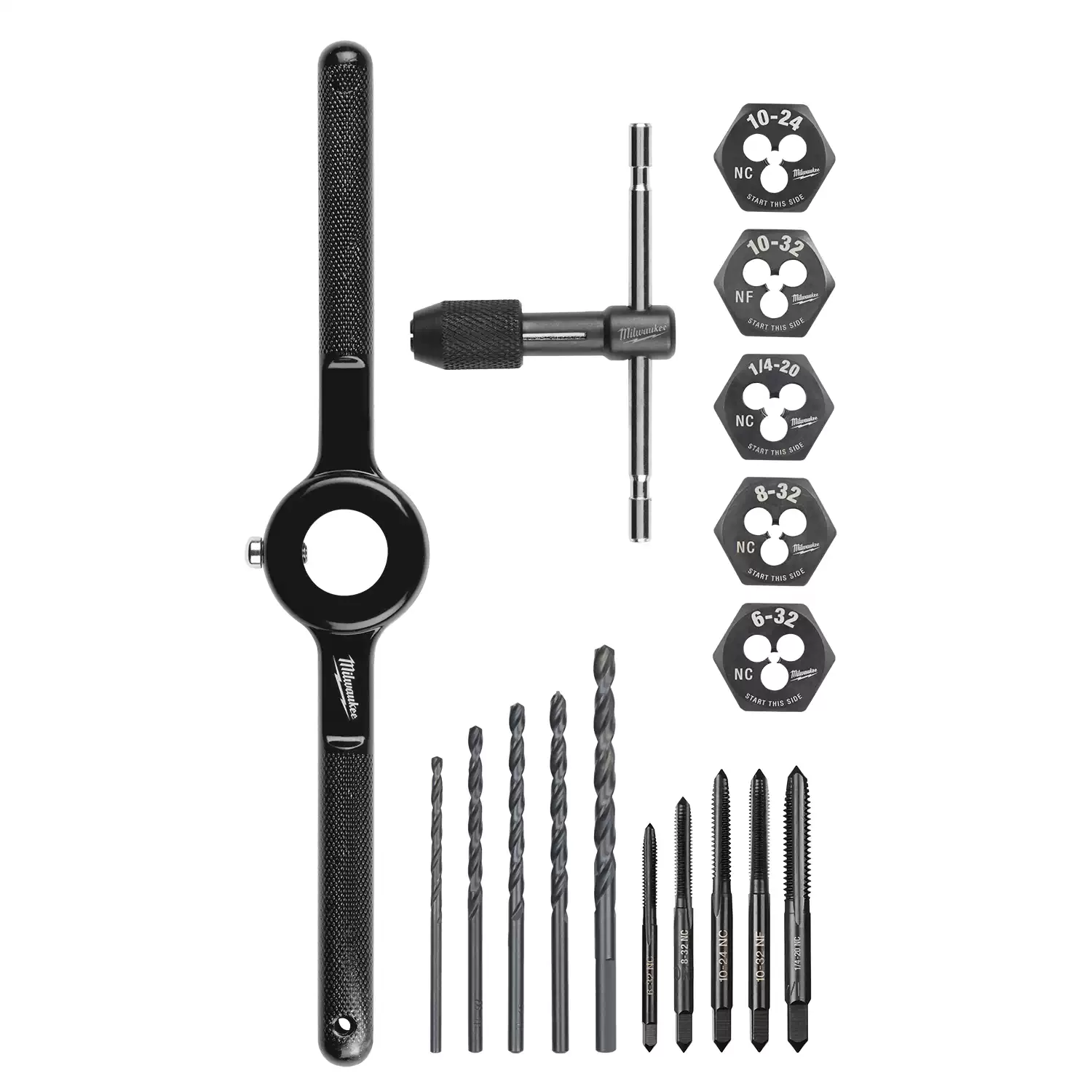

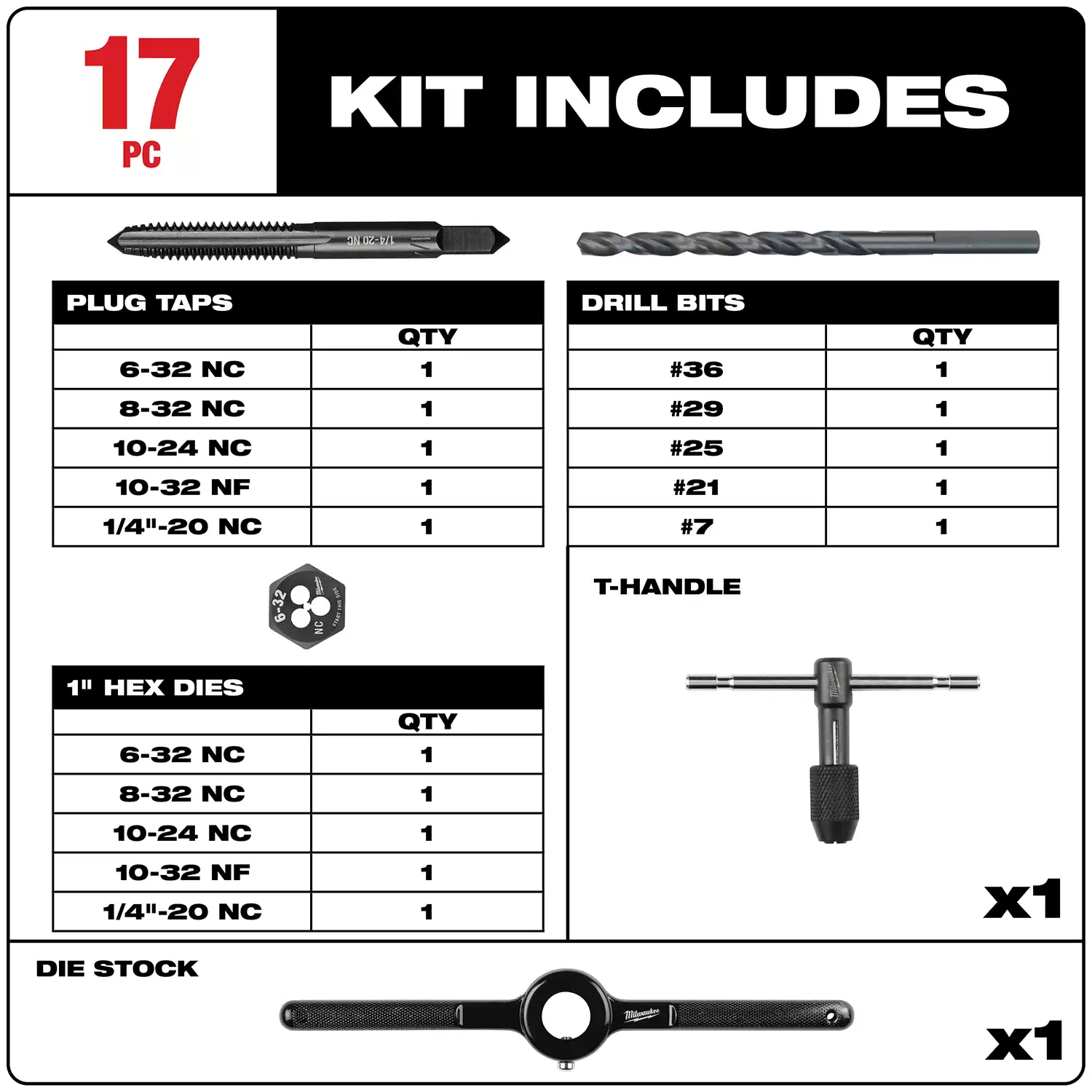

Milwaukee 49-22-5600 17PC SAE Tap and Die Set Includes

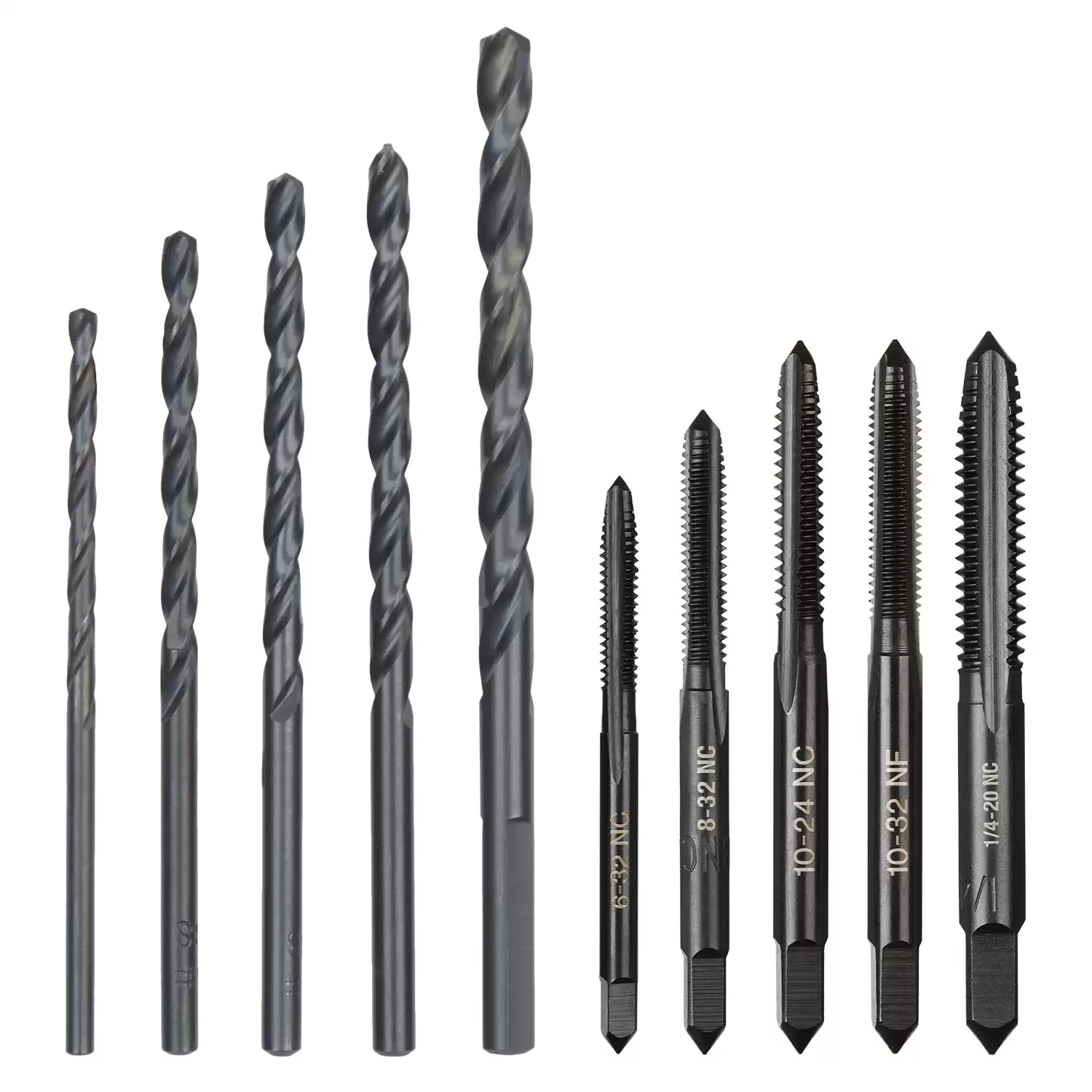

• (1) 6-32 NC Plug Tap
• (1) 8-32 NC Plug Tap
• (1) 10-24 NC Plug Tap
• (1) 10-32 NF Plug Tap
• (1) 1/4″-20 NC Plug Tap
• (1) 6-32 NC Hex Die
• (1) 8-32 NC Hex Die
• (1) 10-24 NC Hex Die
• (1) 10-32 NF Hex Die
• (1) 1/4″-20 NC Hex Die
• (1) #36 Drill Bit
• (1) #29 Drill Bit
• (1) #25 Drill Bit
• (1) #21 Drill Bit
• (1) #7 Drill Bit

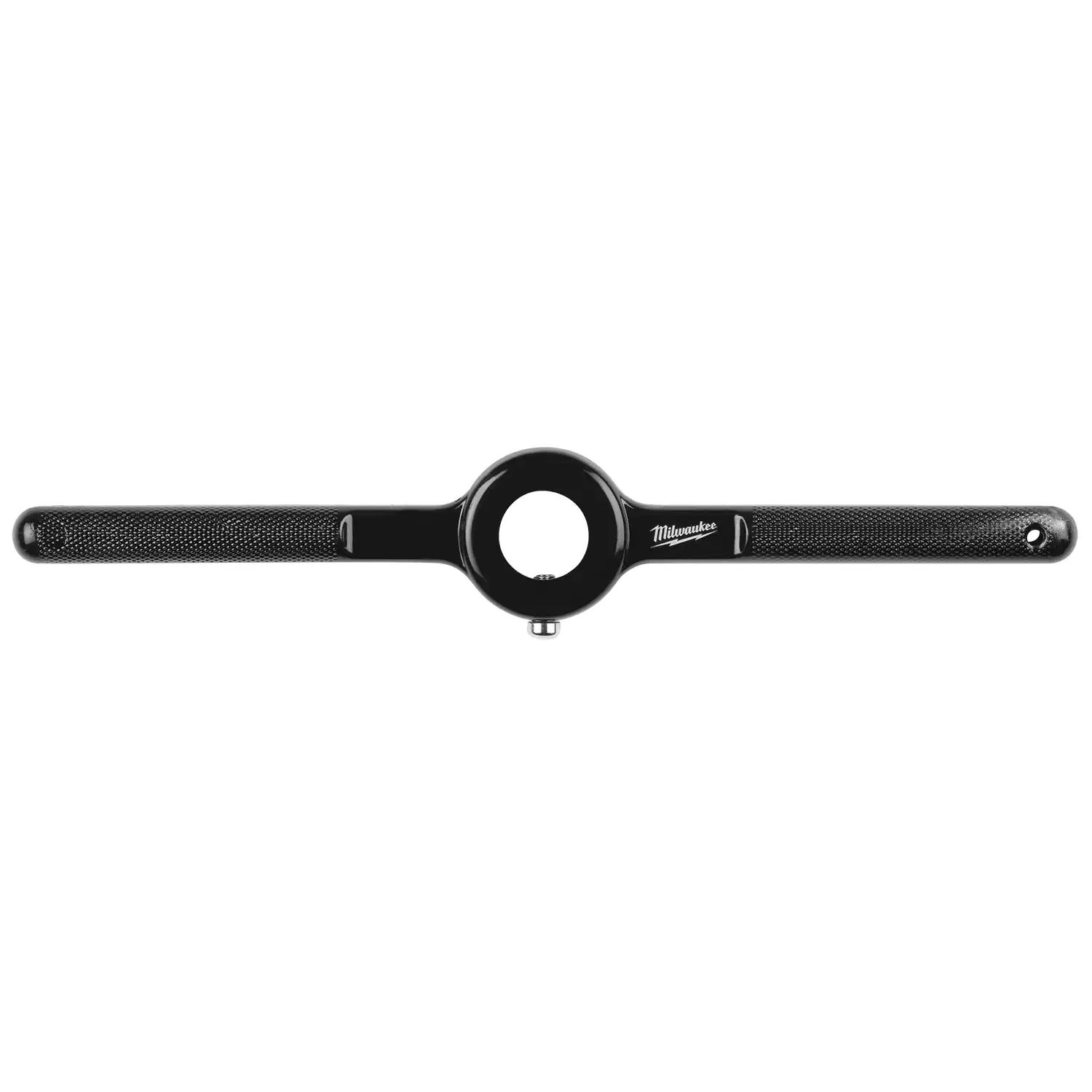

• (1) 1″ Hex Die Stock

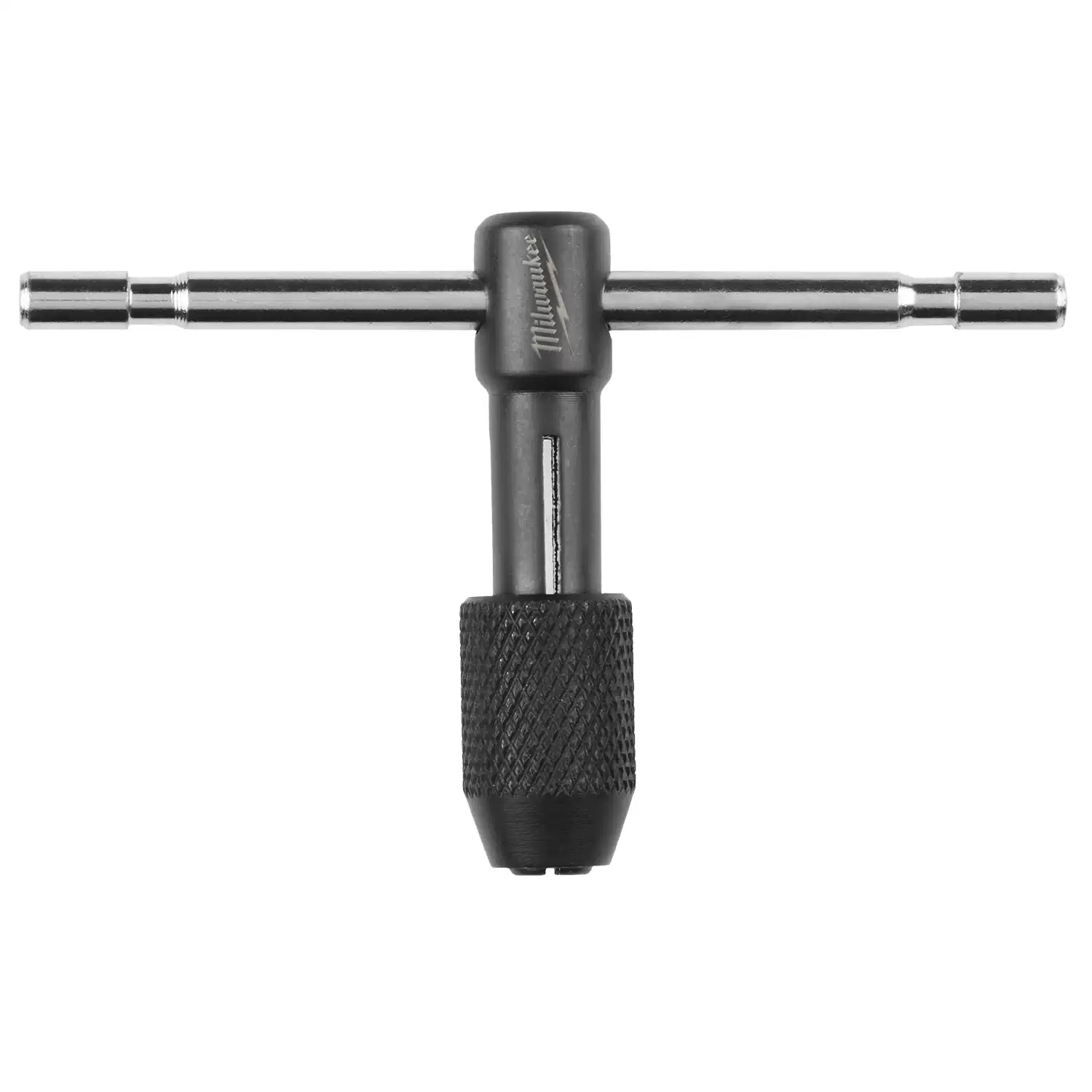

• (1) T-Handle

Milwaukee 49-22-5600 17PC SAE Tap and Die Set Specifications

• Model Number: 49-22-5600
• GTIN: 00045242779574
• Set Piece Count: 17
• Material: High Carbon Steel
• Finish: Black Oxide
• Drill Bit Type: Twist
• Bit Material: Black Oxide
• Shank Style: 3-Flat
• Bit Sizes: #36, #29, #25, #21, #7
• Material Application: General Purpose – Metal
• Set / Individual: Set

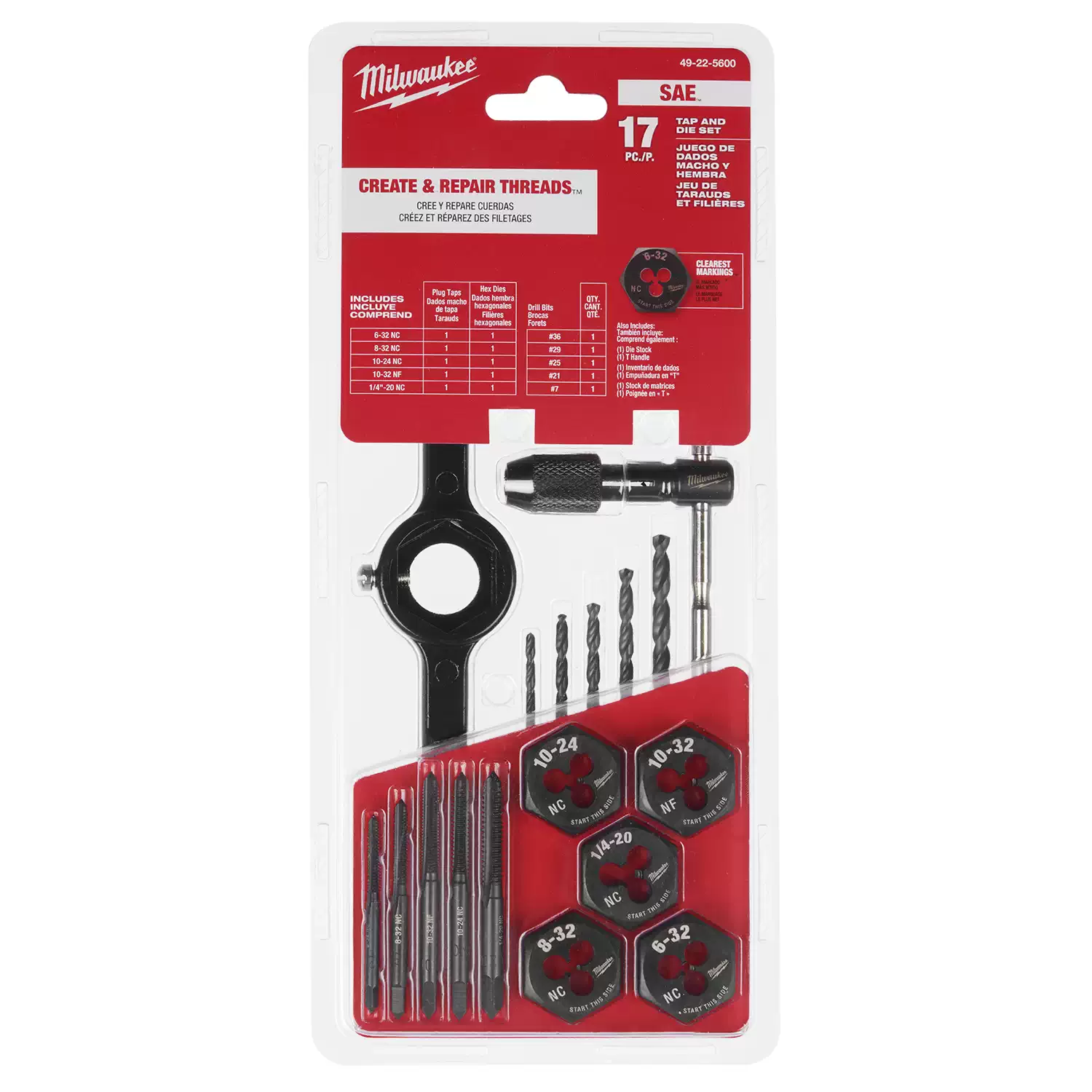

• Case Included: Yes

Milwaukee 49-22-5600 17PC SAE Tap and Die Set Warranty

• No Warranty

Why Customers Choose the Milwaukee 17PC SAE Tap and Die Set

Installers, mechanics, and maintenance crews choose the Milwaukee 49-22-5600 SAE tap and die set because it covers the most common standard thread sizes in one compact kit. Whether restoring damaged threads on 1/4″-20 bolts or chasing fine threads like 10-32 NF, this taps and die set provides the correct plug tap, matching hex die, and properly sized drill bit for accurate results.

The Black Oxide finish supports corrosion resistance in shop and field conditions, while laser-etched markings help users quickly select the right SAE tap set or SAE die set component. With a 1″ hex die stock and T-handle included, technicians can perform controlled manual threading without additional accessories. For automotive repair, facility maintenance, and light fabrication, this SAE tap and die set offers practical coverage for everyday metal threading tasks.
