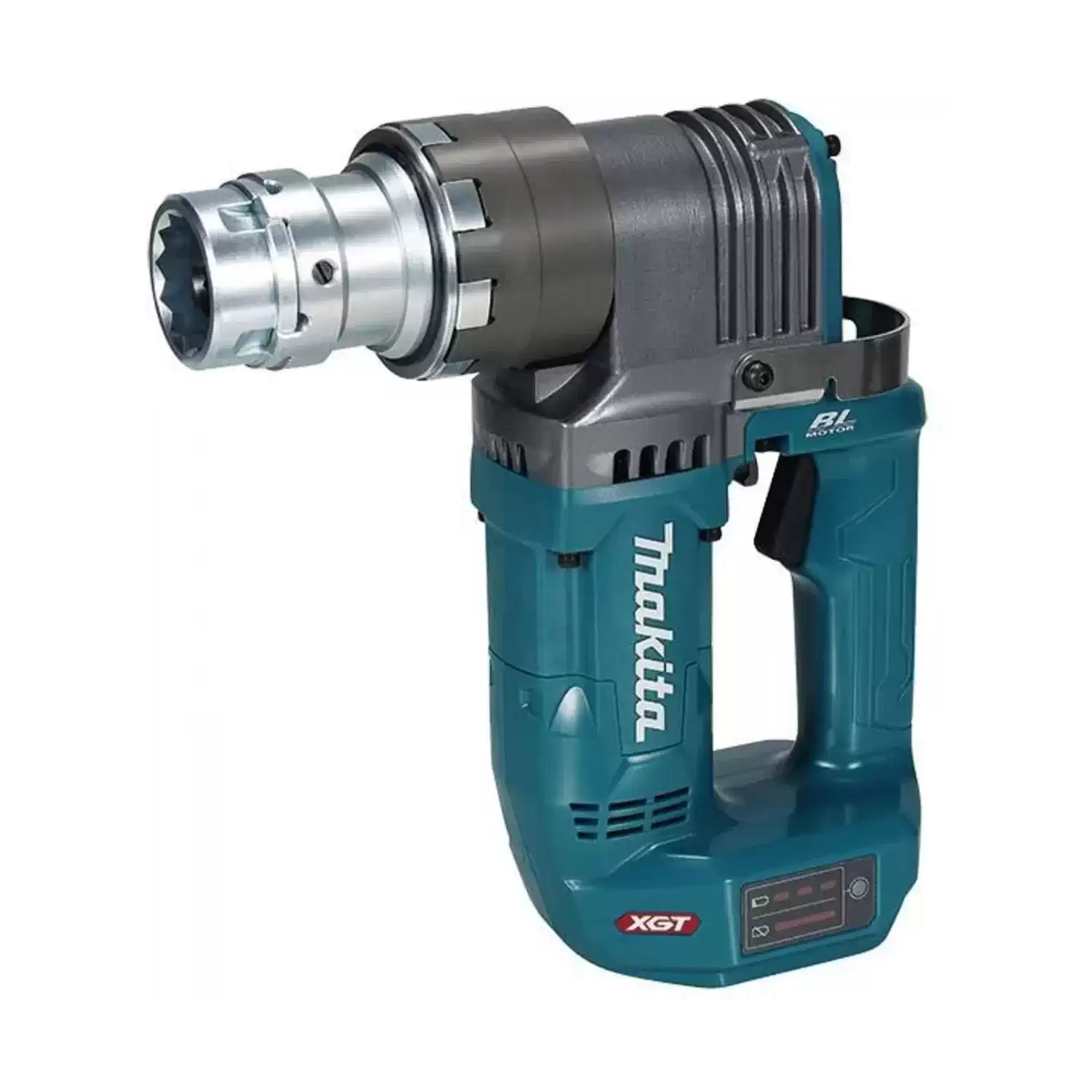

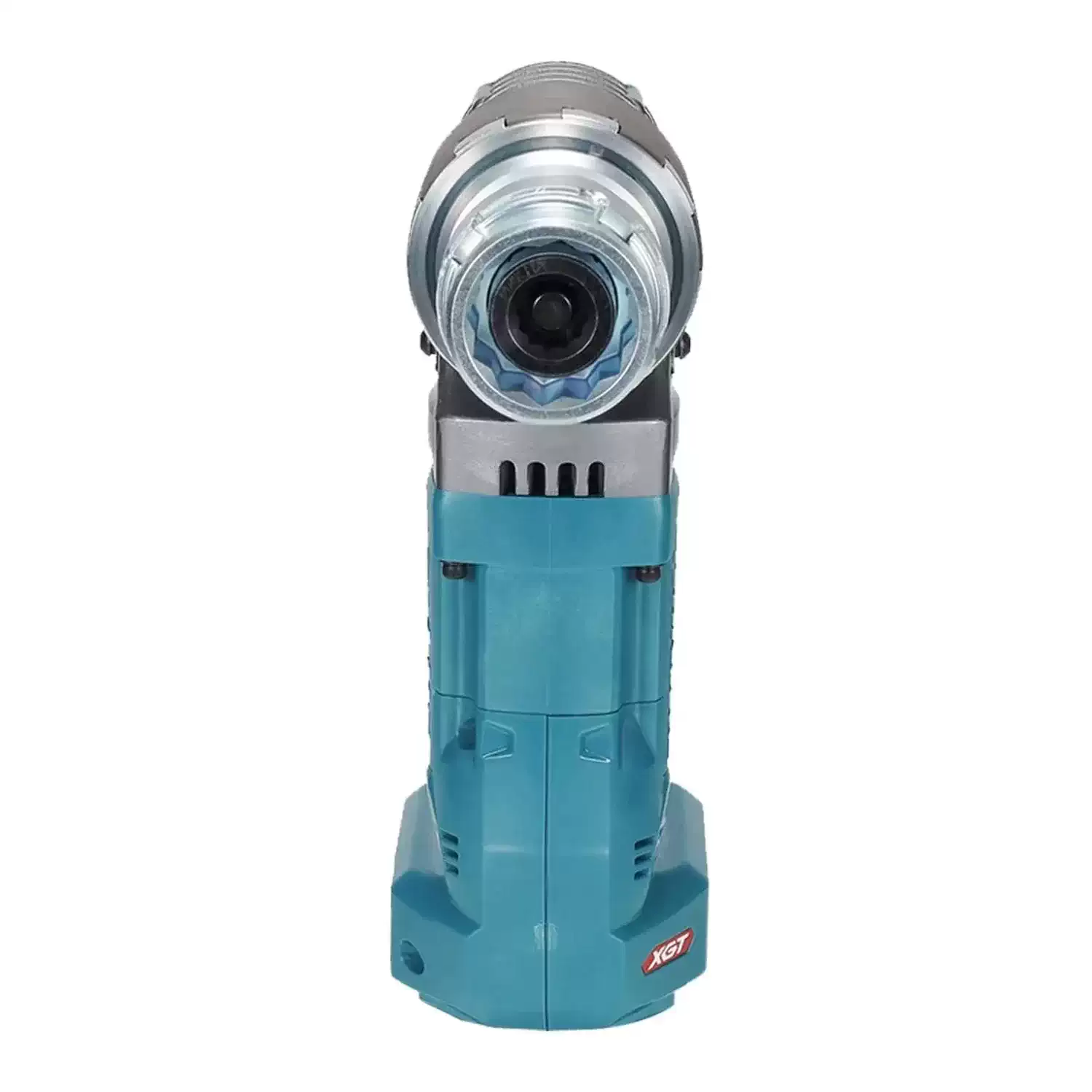

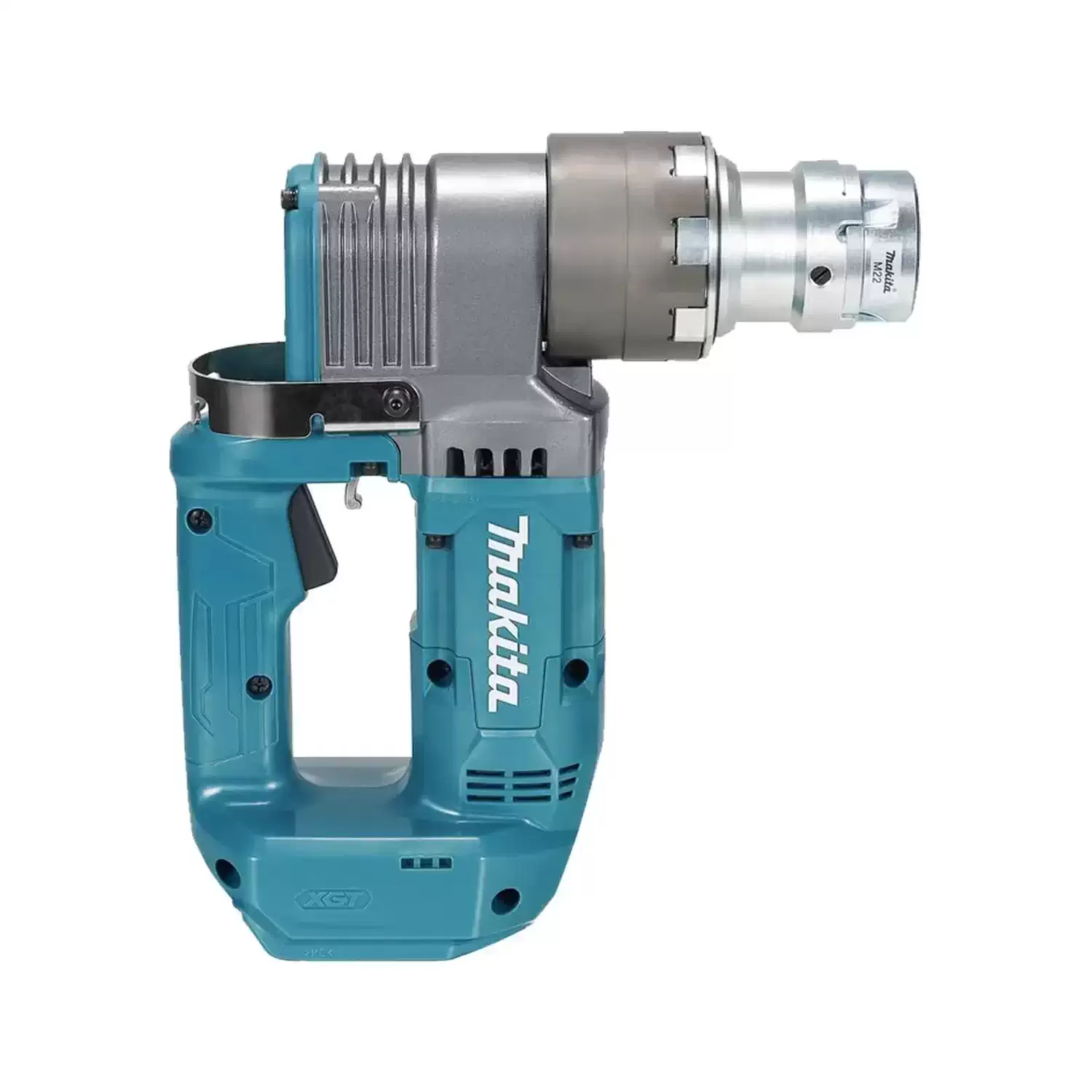

Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench – Tool Only

The Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench is a next-generation tool built for high-strength steel construction and industrial bolting applications. Running on Makita’s advanced 40Vmax XGT battery platform, this cordless shear wrench delivers 804 Nm (593 ft-lbs) of fastening torque, while weighing up to 20% less than previous 18V X2 models—making it ideal for overhead bolting under beams, in field steel assembly, or in confined job site conditions. With the ability to fasten approximately 250 M22 torque shear bolts on a single BL4040 battery (sold separately), it’s engineered for productivity in high-output environments.

Designed to handle HTB, SHTB, A325, and A490 shear bolts, the WT001GZ offers true versatility for structural connections, including M16, M20, and M22 sizes, with no sacrifice in strength. A bolt-tip ejection lever ensures fast removal of sheared tips, helping crews stay productive with fewer interruptions. The unit features eXtreme Protection Technology (XPT™) to safeguard against dust and moisture, making it a job site-ready tool for demanding outdoor and fabrication work.

Makita 40Vmax XGT Cordless Brushless Shear Wrench At a Glance

• 804 Nm (593 ft-lbs) Fastening Torque: High-output torque for fastening up to M22 high-strength shear bolts with confidence.
• XGT 40Vmax Battery Platform: Provides extended runtime and increased performance for heavy-duty bolting jobs (battery sold separately).

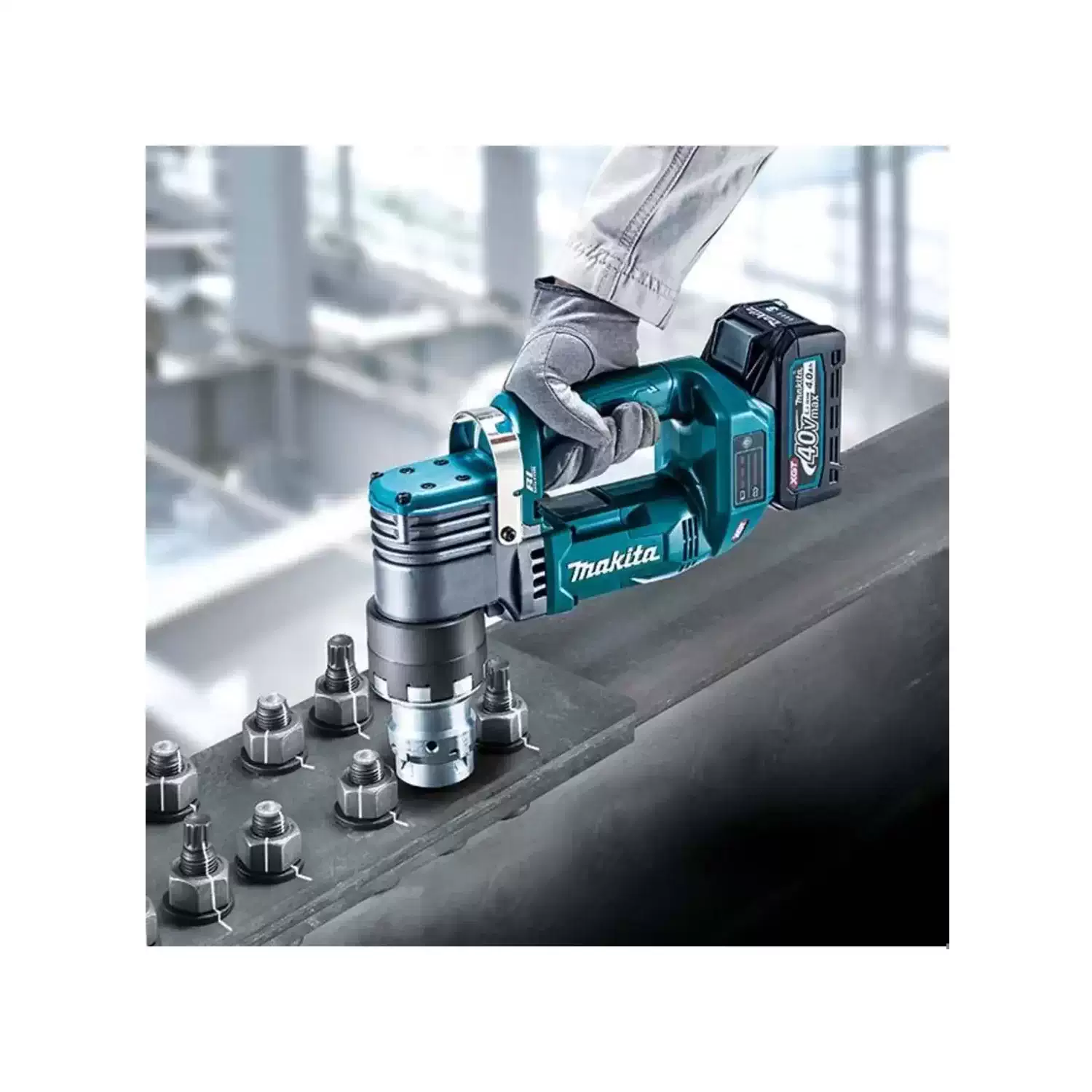

• Up to 20% Lighter than 18V X2 Models: Reduces fatigue during prolonged or overhead use, such as tightening under steel beams.

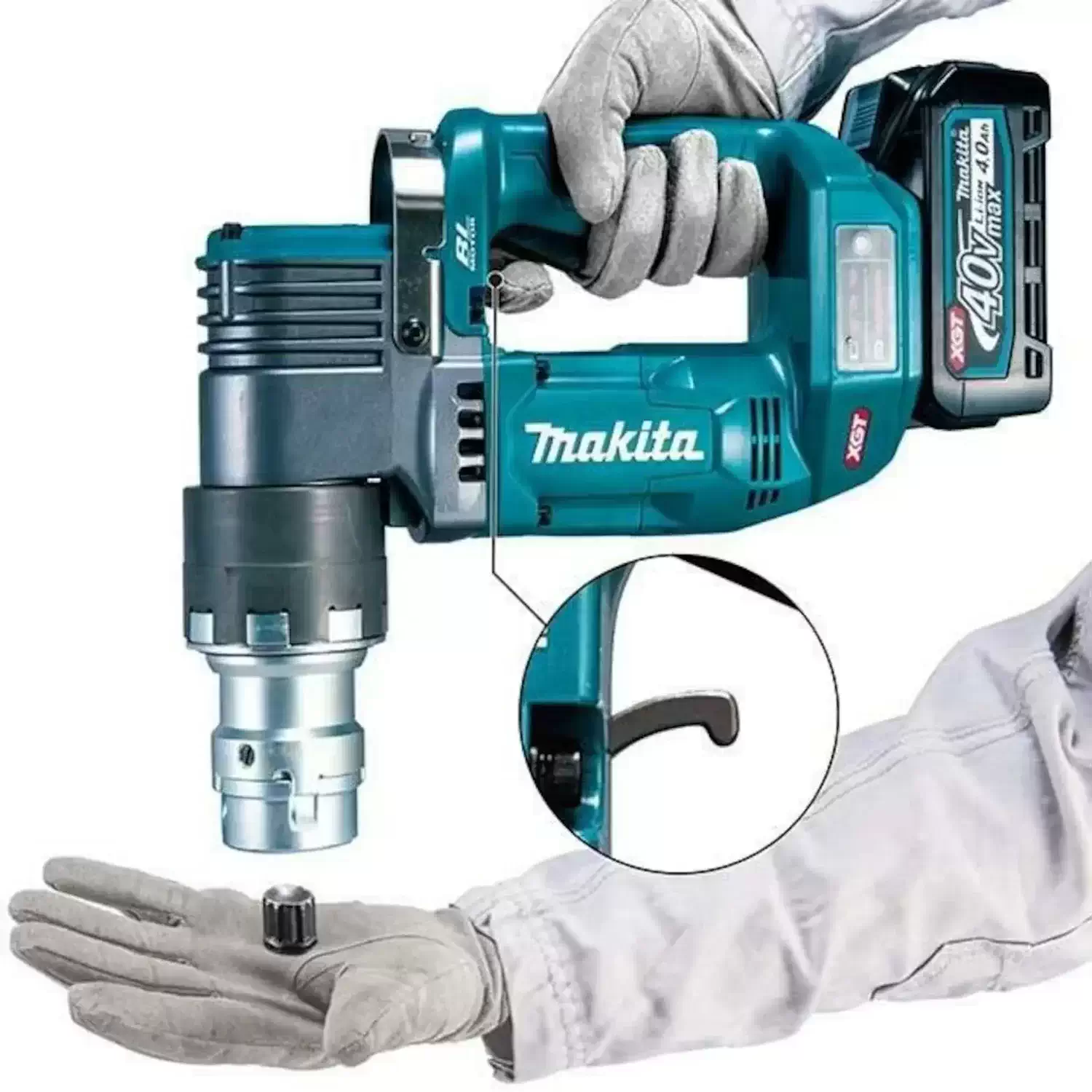

• Bolt Tip Ejection Lever: Quickly ejects sheared bolt tips from the socket to keep the workflow smooth and uninterrupted.
• Fastening Capacity: Approx. 250 bolts (M22) on BL4040 battery and 150 on BL4025—ideal for high-volume bolting.

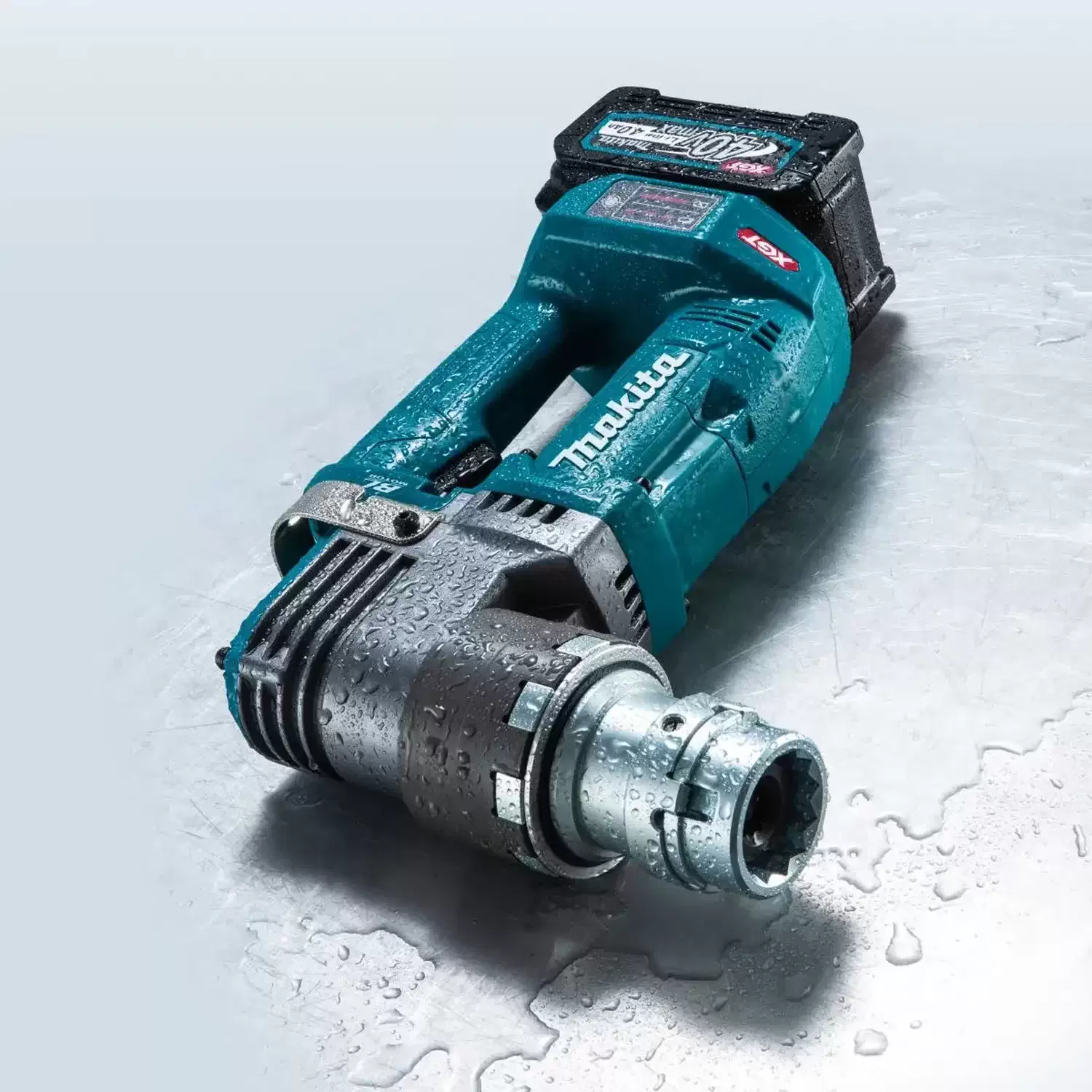

• eXtreme Protection Technology (XPT™): Seals internal components from dust, water, and debris for enhanced durability.
• Ergonomic Compact Design: Easy to maneuver in tight structural joints or overhead positions.
• Battery Indicator Lamp: Alerts operator when battery charge is low to prevent incomplete bolt fastening.

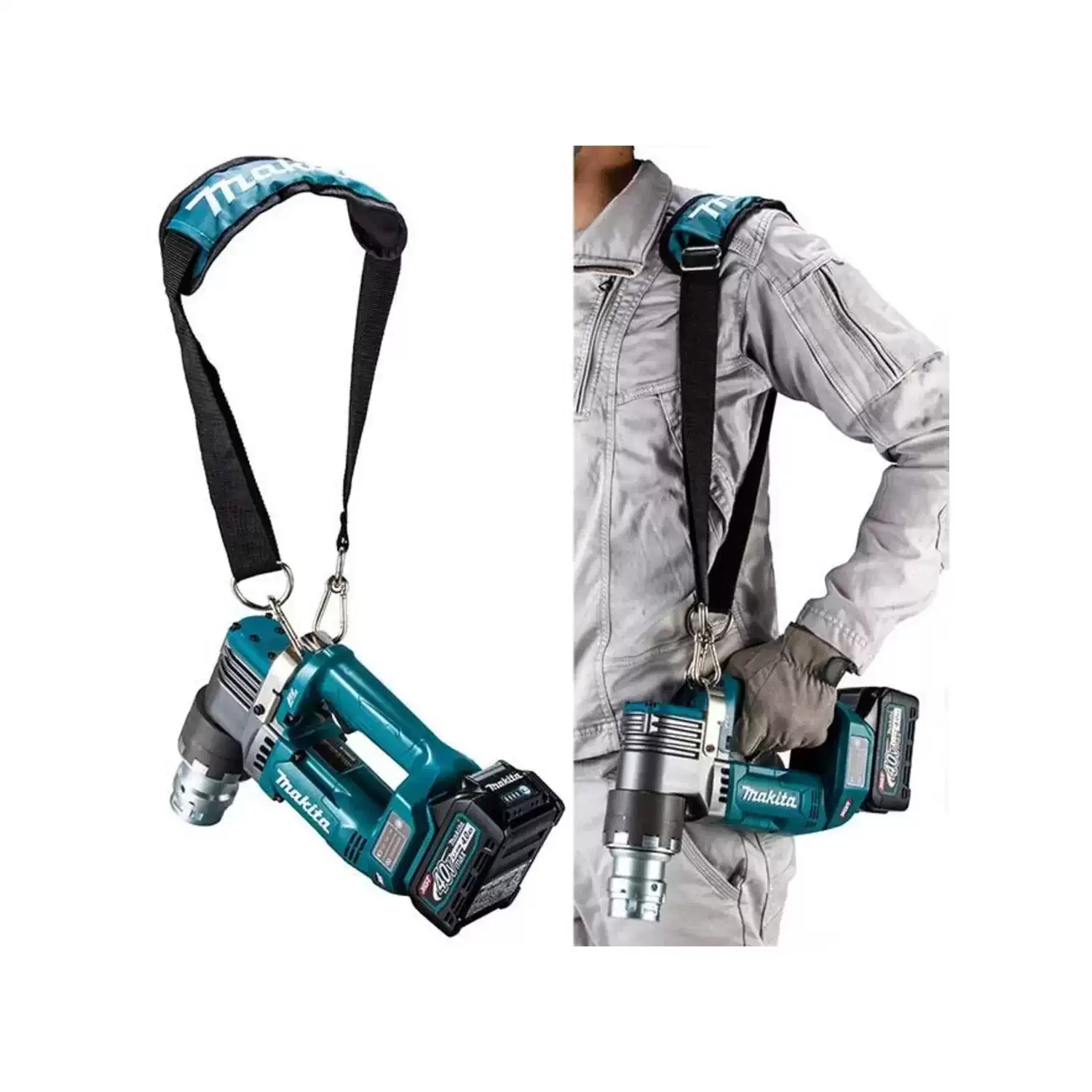

• Integrated Shoulder Harness Hook: Compatible with included strap for safe transport and reduced strain during movement.

Markets

• Steel Erection and Structural Ironwork Perfect for field assembly of beams, columns, and steel plates using high-strength torque shear bolts.
• Bridge and Infrastructure Construction Reliable torque delivery and cordless operation simplify work on elevated structures and connection zones.
• Commercial and Industrial Construction Versatile tool for metal building frames and fastening base plates, cross-bracing, and structural supports.
• Utility and Energy Projects Ideal for power transmission towers, wind turbines, and substation builds where steel bolting is standard.
• Fabrication and Steel Assembly Shops Efficient for repetitive bolted joint setups in production environments requiring consistent torque.
• Municipal Public Works and Infrastructure Crews Trusted for bolting structural components in bridges, civic infrastructure, and heavy equipment maintenance.
• Trade Schools and Technical Programs Enables students to train with cutting-edge tools used in field and industrial bolting applications.

Whether you’re bolting steel for a bridge, frame, or tower, or working on pre-engineered metal buildings or industrial machinery foundations, this tool provides high torque output in a compact, ergonomic format that reduces fatigue during repetitive or overhead tasks. Tradespeople who need cordless freedom without sacrificing fastening power will benefit from the consistent torque and tool life this Makita XGT shear wrench offers.

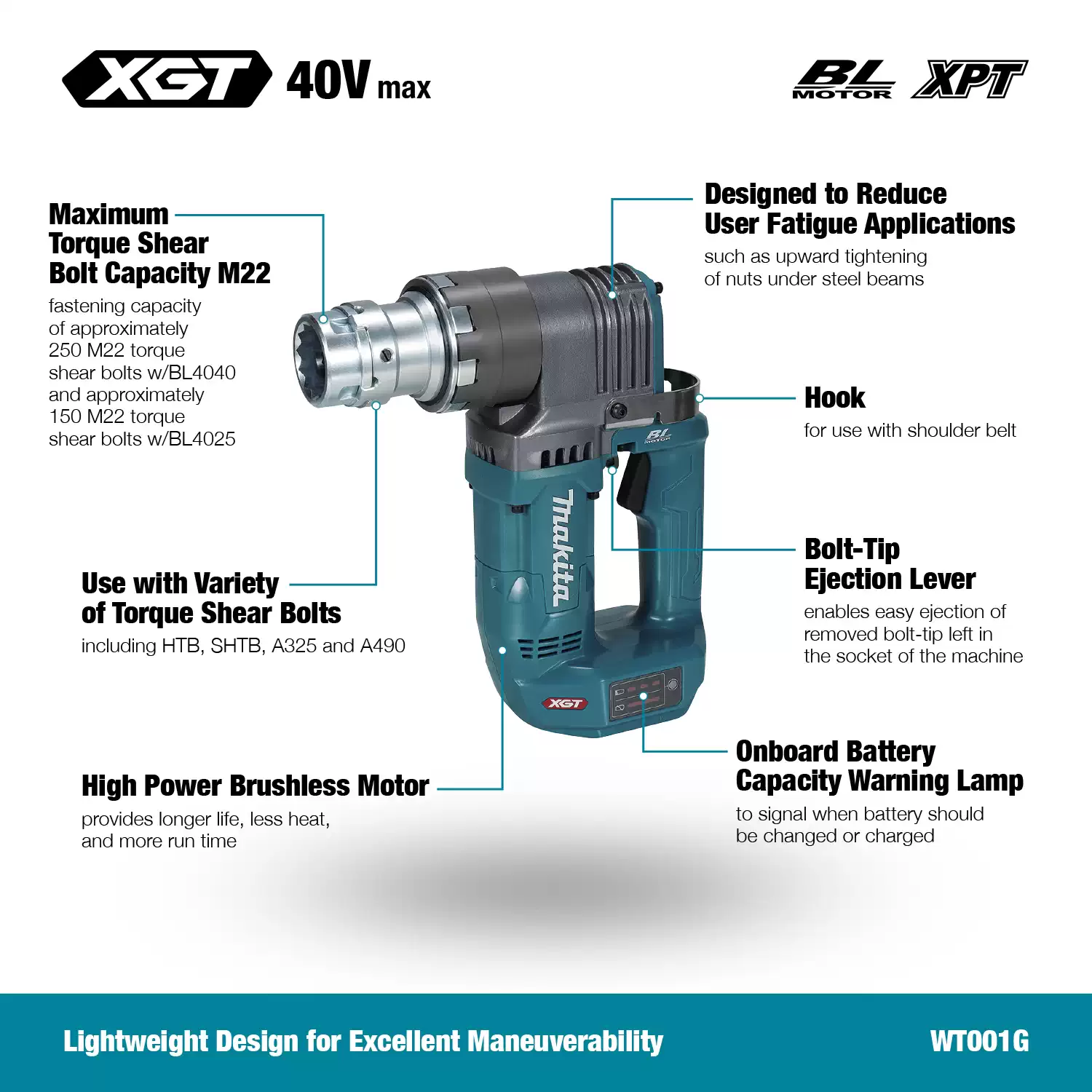

Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench – Tool Only Features

• For use with a variety of torque shear bolts including HTB, SHTB, A325 and A490.
• Maximum torque shear bolt capacity M22.

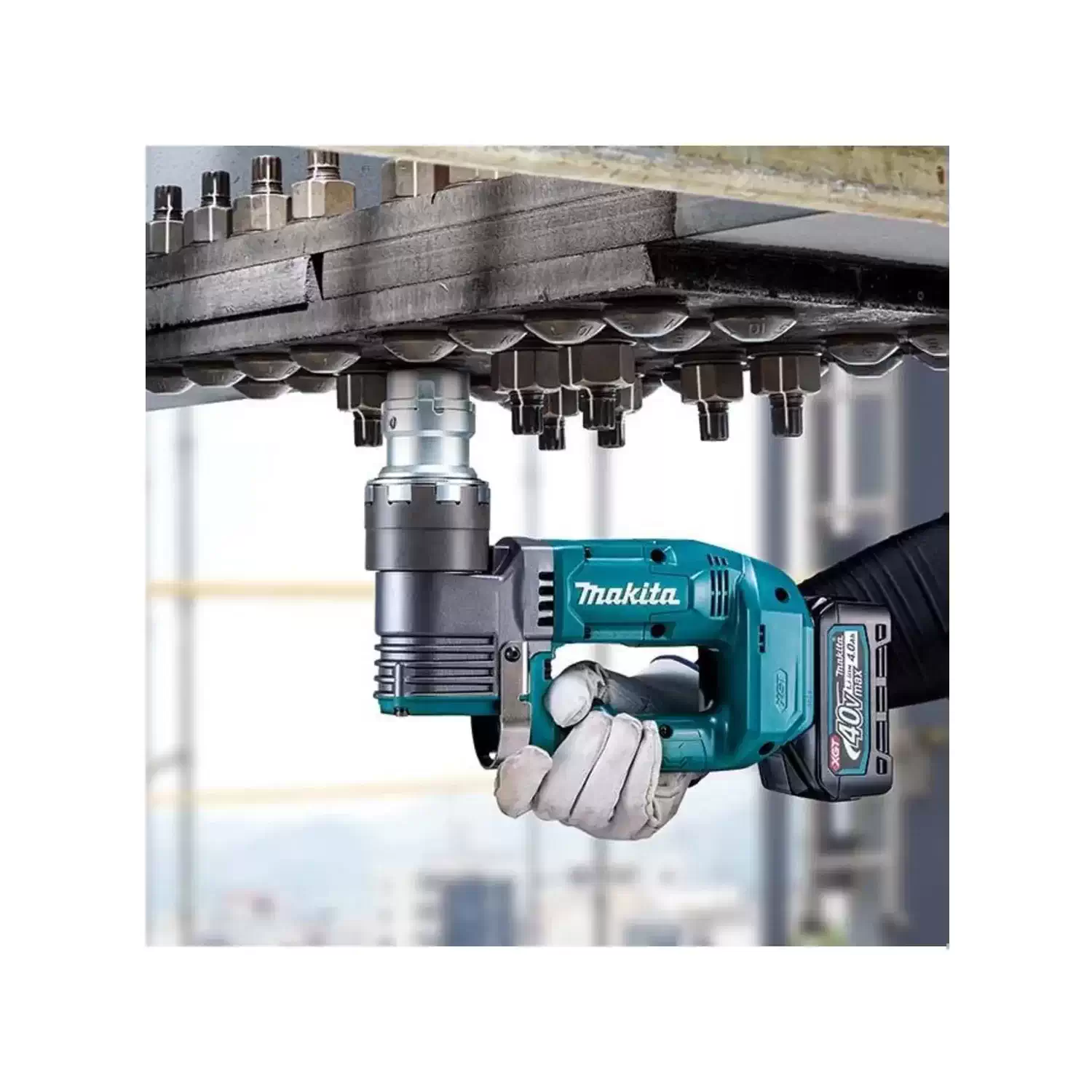

• Designed to reduce user fatigue in applications such as upward tightening of nuts under steel beams.
• Bolt-tip ejection lever enables easy ejection of removed bolt-tip left in the socket of the machine.
• Up to 20% lighter tool weight compared to previous 18Vx2 LXT model.
• Fastening capacity of approximately 250 M22 torque shear bolts (with BL4040) and approximately 150 M22 torque shear bolts (with BL4025).
• Hook designed for use with shoulder belt to conveniently carry the tool.
• High strength torque shear bolt (HTB): M16, M20 and M22.
• Super high strength toque shear bolt (SHTB): M16 and M20.
• A325 torque shear bolt: 5/8″, 3/4″ and 7/8″.
• A490 torque shear bolt: 5/8″, 3/4″.
• Onboard battery capacity warning lamp to signal when battery should be changed or charged.
• eXtreme Protection Technology (XPT) offers maximum protection against dust debris and liquids for optimal performance in extreme conditions.

Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench – Tool Only Includes

• Batteries and Charger Sold Separately
• Outer Sleeve 20-37 (764361-9)
• Inner Sleeve 3/4-38 (764419-4)
• Outer Sleeve 22-39 (153909-6)
• Inner Sleeve 22-39 (764418-6)
• Screwdriver (783001-0)
• Shoulder Harness (161347-8)
• Plastic Carrying Case

Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench – Tool Only Specifications

• Battery Platform: 40Vmax XGT (Battery and Charger Sold Separately)
• Bolt Types: HTB (M16–M22), SHTB (M16, M20), A325 (5/8″, 3/4″, 7/8″), A490 (5/8″, 3/4″)
• No Load Speed: 17 RPM
• Max Fastening Torque: 804 Nm (593 ft-lbs)
• Fastening Capacity: ~250 bolts (M22) with BL4040, ~150 bolts with BL4025
• Vibration Level: 2.5 m/s²
• Noise Level: 82 dB(A)
• Dimensions (L x W x H): 10″ x 3-3/4″ x 11-1/4″ (254 x 95 x 285 mm)
• Net Tool Weight: 10.2 lbs (4.6 kg)
• Shipping Dimensions: 25.94″ x 6.26″ x 19.21″
• Shipping Weight: 23.8 lbs
• Included Accessories:
  • Outer Sleeve 20-37 (764361-9)
  • Inner Sleeve 3/4-38 (764419-4)
  • Outer Sleeve 22-39 (153909-6)
  • Inner Sleeve 22-39 (764418-6)
  • Screwdriver (783001-0)
  • Shoulder Harness (161347-8)
  • Plastic Carrying Case
• Warranty: Makita 3-Year Limited Warranty
• UPC: 197050001252

Makita WT001GZ 40Vmax XGT Cordless Brushless Shear Wrench – Tool Only Warranty

• Makita’s 3 Year Limited Warranty

Why Professionals Choose the Makita 40Vmax XGT Cordless Brushless Shear Wrench w/Case

Often referred to as a cordless steel torque wrench, shear bolt gun, or A325 bolt tool, the Makita WT001GZ stands out for its lightweight build, long-lasting torque, and job-ready portability. Professionals looking for cordless performance in a steel-frame-ready package will find this Makita XGT tool a dependable choice for on-site bolting and structural fastening work.
