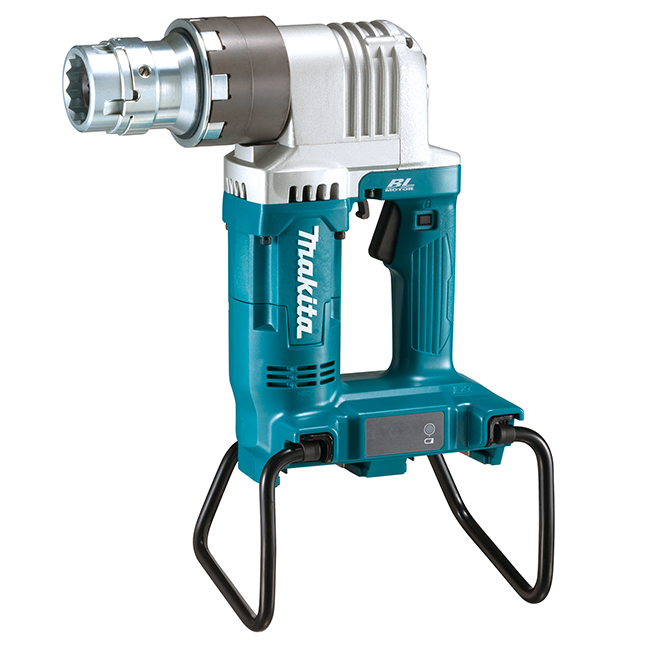

Makita DWT310ZK 18Vx2 (36V) LX Brushless Shear Wrench w/Case – Tool Only

The Makita DWT310ZK 18V X2 (36V) LXT Cordless Brushless Shear Wrench delivers powerful, reliable torque for heavy-duty bolting tasks in structural steel, commercial construction, and industrial manufacturing. Powered by two 18V LXT batteries (sold separately), this cordless shear wrench produces an impressive 593 ft-lbs (804 Nm) of fastening torque—ideal for tightening M16, M20, and M22 tension control bolts in I-beams, steel columns, or fabricated assemblies. Its brushless motor runs cooler and more efficiently under load, supporting extended use in repetitive production environments, while Makita’s XPT™ (Extreme Protection Technology) offers superior resistance to dust, debris, and moisture.

The tool’s cast aluminum gear housing withstands the rigors of high-torque operation, and a D-handle with trigger lock-off provides secure, ergonomic handling. Designed for both safety and productivity, it features an LED battery capacity indicator and a handy tip lever that ejects sheared tips for faster workflow. The included plastic carrying case and shoulder strap improve portability for workers moving across job sites or between tasks. Whether you’re working steel erection on high-rise builds or installing structural connections in a shop setting, this tool helps speed up installation while maintaining consistent bolt tension.

Makita 18Vx2 (36V) LX Cordless Brushless Shear Wrench At a Glance

• 804 Nm (593 ft-lbs) Fastening Torque: Delivers the force needed for tightening M16–M22 tension control bolts on steel connections.
• Brushless DC Motor: Generates less heat and extends tool life, making it ideal for continuous use in production settings.
• XPT™ – eXtreme Protection Technology: Defends internal components from dust, debris, and moisture in tough environments.
• LED Battery Capacity Warning: Notifies the operator when fewer than 10 bolts can be fastened or battery is depleted.
• Cast Aluminum Gear Housing: Provides strength to handle the high torque of planetary gearing systems.
• D-Handle with Lock-Off Switch: Enhances operator safety and control during operation.
• Tip Ejection Lever: Quickly removes sheared bolt tips to reduce cycle times on-site.
• Battery Guard: Protects batteries from shock, vibration, and impact damage.
• Plastic Carrying Case & Shoulder Belt: Supports portability and reduces fatigue on large-scale job sites.

Markets

• Structural Steel & Ironwork Delivers reliable tensioning for high-strength bolted connections in columns, beams, and girders.
• Commercial & Industrial Construction Ideal for bolting applications on high-rise frames, bridges, or large mechanical infrastructure.
• Steel Fabrication Shops Efficient for repetitive bolted connections during assembly of modular or custom steel structures.
• Maintenance & Repair Operations (MRO) Reliable tool for tightening or replacing structural bolts on equipment or infrastructure during shutdowns.
• Utility and Energy Sector Used in assembling towers, supports, and substation structures where cordless flexibility is crucial.
• Municipal Construction Crews Helps install or maintain structural elements in public infrastructure without needing external power.
• Trade Schools & Technical Training Provides students with hands-on experience using industry-grade bolting tools in structural applications.

From structural ironworkers on skyscraper frames to industrial maintenance crews replacing bolted joints in pressure vessels or towers, this shear wrench offers serious torque in a cordless design. Steel fabrication shops benefit from its brushless efficiency and clean performance. Contractors on remote job sites can get through multiple beam connections without power cords or compressors, making it a go-to for bolted steel assembly work in the field.

Makita DWT310ZK 18Vx2 (36V) LX Cordless Brushless Shear Wrench w/Case – Tool Only Features

• eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
• Brushless DC motor with high power to weight and size ratio
• Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
• LED battery capacity warning lamp warns operator when the number of bolts that can be tightened is less than 10 and when the battery is fully drained
• Cast aluminum gear housing to withstand high torque levels of planetary gears (804 Nm)
• Trigger lock-off feature prevents accidental start-up for increased operator safety
• Easy to grip D-handle
• Handy tip lever for ejecting sheared tips
• Battery guard protects batteries from shocks, (e.g. fall damage, bumps, etc.)
• Shoulder belt for maximum portability and reduced operator fatigue

Makita DWT310ZK 18Vx2 (36V) LX Cordless Brushless Shear Wrench w/Case – Tool Only Includes

• Tool Only. Batteries and Charger Sold Separately
• Outer Sleeve 20-37 (764361-9)
• Inner Sleeve (764419-4)
• Outer Sleeve 22-39 (153909-6)
• Inner Sleeve (764418-6)
• Screwdriver (783001-0)
• Shoulder Belt (161347-8)
• Plastic Carrying Case (821748-9)

Makita DWT310ZK 18Vx2 (36V) LX Cordless Brushless Shear Wrench w/Case – Tool Only Specifications

• Power Platform: Makita 18V X2 LXT (36V)
• Motor: Brushless DC
• Fastening Torque: 593 ft-lbs (804 Nm)
• No Load Speed: 14 RPM
• Bolt Capacity: M16 (5/8″), M20 (3/4″), M22 (7/8″)
• Vibration Level: 2.5 m/s²
• Noise Level: 83 dB(A)
• Overall Length: 11-5/8″ (296 mm)
• Overall Height: 14-7/8″ (377 mm)
• Net Tool Weight: 12.8 lbs (5.8 kg)
• Shipping Dimensions: 25.98″ x 7.97″ x 19.37″
• Assembled Dimensions (L x W x H): 23.38″ x 7.17″ x 17.43″
• Assembled Weight: 24.21 lbs
• Power Type: Cordless, Manual Operation
• Battery Type: Lithium-Ion (18V x2 = 36V total)
• Tool Warranty: 3-Year Limited
• Included Accessories:
  • Plastic Carrying Case (821748-9)
  • Shoulder Belt (161347-8)
  • Outer Sleeves (20-37 & 22-39)
  • Inner Sleeves (764418-6 & 764419-4)
  • Screwdriver (783001-0)
• UPC: 088381855792

Makita DWT310ZK 18Vx2 (36V) LX Cordless Brushless Shear Wrench w/Case – Tool Only Warranty

• Makita’s 3 Year Limited Warranty

Why Professionals Choose the Makita 18Vx2 (36V) LX Brushless Shear Wrench w/Case

Commonly searched under terms like cordless shear wrench, Makita M22 bolt gun, or high torque steel erection wrench, the DWT310ZK gives crews the ability to tension bolts with precision and speed—without the trip hazards or noise of pneumatic systems. It’s a serious upgrade for job sites looking to go cordless without sacrificing power, control, or tool life.
