Makita DLX2412TX1 2PC 18V Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit (2) 5Ah

Makita DLX2412TX1 2PC 18V LXT Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Driver Combo Kit (2) 5.0Ah Batteries

The Makita DLX2412TX1 2-piece 18V LXT brushless combo kit is designed for tradespeople who want serious power in compact, easy-to-handle tools. This cordless hammer drill and impact driver kit pairs the DHP486Z 1/2″ hammer drill/driver with the ultra-compact DTD154Z 1/4″ impact driver, both running on Makita’s proven 18V LXT platform. With (2) 5.0Ah Li-Ion batteries and a rapid charger included, crews get long runtime, quick turnaround between charges, and full compatibility with other 18V LXT tools already in the van or on the site.

The DTD154Z impact driver delivers up to 1,550 in. lbs of torque in a body only 4-5/8″ long, making it ideal for overhead work, tight framing, and assembly. The DHP486Z hammer drill provides up to 1,250 in. lbs of torque and high-speed hammer drilling for concrete, masonry, and larger diameter bits in wood and steel. Both tools use efficient brushless DC motors that run cooler for prolonged use in manufacturing, construction, and renovation work. Makita’s XPT (eXtreme Protection Technology) and Battery Protection System help shield the tools and batteries from dust, debris, temperature, and overload, so the kit stands up to demanding jobsite conditions while staying compact, comfortable, and precise.

Makita 2PC 18V Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit At a Glance

• Complete 2-Tool Combo: Includes 18V LXT brushless 1/2″ hammer drill and 1/4″ impact driver plus (2) 5.0Ah batteries, rapid charger, and tool bag.
• Sub-Compact Impact Driver: DTD154Z measures just 4-5/8″ long yet delivers up to 1,550 in. lbs of torque for fastening in tight spaces.
• High-Torque Hammer Drill: DHP486Z produces up to 1,250 in. lbs of torque for drilling into concrete, steel, and wood with hammer and drill modes.
• Brushless Motor Technology: Brushless DC motors in both tools run cooler, use power efficiently, and are suitable for extended use.
• XPT Dust and Water Protection: eXtreme Protection Technology helps protect tools from dust, debris, and moisture in harsh site conditions.
• Battery Protection System: Monitors over-discharge, temperature, and current for better performance and battery life.
• Fast Charging 18V LXT System: DC18RC charger quickly charges 18V LXT Li-Ion batteries, getting 5.0Ah packs back to work in under an hour.
• Ergonomic Design & LED Lights: Soft rubber grips, compact bodies, and twin LED work lights improve comfort and visibility in real-world tasks.

Markets

• Construction and Renovation: Ideal for framing, drilling anchor holes, fastening structural hardware, and general interior and exterior work.
• Electrical, HVAC, and Plumbing Trades: Suitable for drilling in studs, metal, and masonry and driving screws, anchors, and fasteners on service and install jobs.
• Industrial and Manufacturing: Designed for repetitive fastening and drilling tasks where brushless motors and long runtime support production needs.
• Automotive and Equipment Maintenance: Handy for bracket installs, accessory mounting, and general repair tasks requiring a cordless drill and impact driver.
• Municipal and Facility Maintenance: Useful for building upkeep, fixture installs, and upgrades where portable, cordless hammer drilling and fastening are required.
• Trade Schools and Technical Programs: A solid example of modern 18V LXT brushless cordless tools for training new technicians and apprentices.
• Serious DIY and Home Workshop Users: A long-term cordless drill and impact driver combo kit for renovations, deck builds, and garage projects.

Contractors and maintenance crews appreciate that this combo kit covers most everyday drilling and fastening tasks with just two cordless tools. The hammer drill handles concrete anchors, large wood bits, and metal drilling, while the impact driver takes care of screws, lags, and hardware without cam-out or constant bit changes. Industrial and manufacturing users benefit from the brushless motors and 5.0Ah batteries that support longer duty cycles and cooler operation during continuous use. Facility managers and municipal workers value the portability of an 18V LXT cordless hammer drill and impact driver when working across large sites without easy access to power outlets. For advanced DIY users, the kit provides a professional-grade combo that can handle renovations and builds without needing separate specialty drills and drivers.

Makita DLX2412TX1 2PC 18V Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit (2) 5Ah Features

• DTD154Z 18V LXT Brushless 1/4″ Impact Driver: Ultra-compact 4-5/8″ body with variable 3-speed, reversible operation for controlled fastening.
• Impact Power Selection + TEK Mode: Three impact power levels plus TEK mode help prevent over-tightening and snapping fasteners during final seating.
• High-Power Brushless Impact Driver Motor: Brushless DC motor delivers high power-to-weight ratio and generates less heat for prolonged use.
• Twin LED Job Lights (Impact Driver): Pre-glow and afterglow features improve visibility around fasteners and work surfaces.
• Ergonomic Soft Rubber Grip (Impact Driver): Designed for vibration absorption and comfortable operation in repetitive tasks.
• DHP486Z 18V LXT Brushless 1/2″ Hammer Drill/Driver: Compact 7″ long hammer drill with 21 clutch settings plus drill mode for applications from delicate fastening to heavy drilling.
• High Torque & All-Metal Gears: Delivers up to 1,250 in. lbs of torque with all-metal gears for efficient power transfer and durability.
• High-Speed Hammer Action: Up to 31,500 BPM in high range for drilling into concrete and masonry.
• Dual LED Job Lights (Hammer Drill): Afterglow feature keeps the work area lit for bit changes and inspection.
• Refined Ergonomic Grip: Re-contoured rear grip and ribbed rubber surface provide a secure, comfortable hold.
• XPT – eXtreme Protection Technology: Helps both tools resist dust, debris, and liquids for reliable operation in harsh environments.
• Battery Protection System: Over-discharge, temperature, and circuit protection support tool performance and extend overall battery life.
• 196675-2 5.0Ah Batteries (BL1850B): High-capacity 18V LXT Li-Ion batteries with LED charge level indicators and built-in memory chips for optimized charging.
• DC18RC Rapid Charger: Uses current, voltage, and temperature controls plus forced air cooling to charge 18V Li-Ion slide batteries quickly and safely.

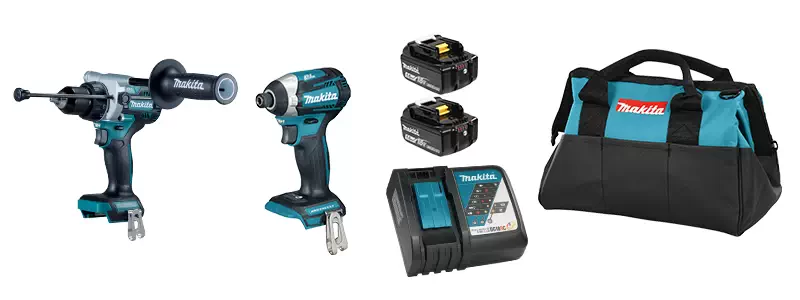

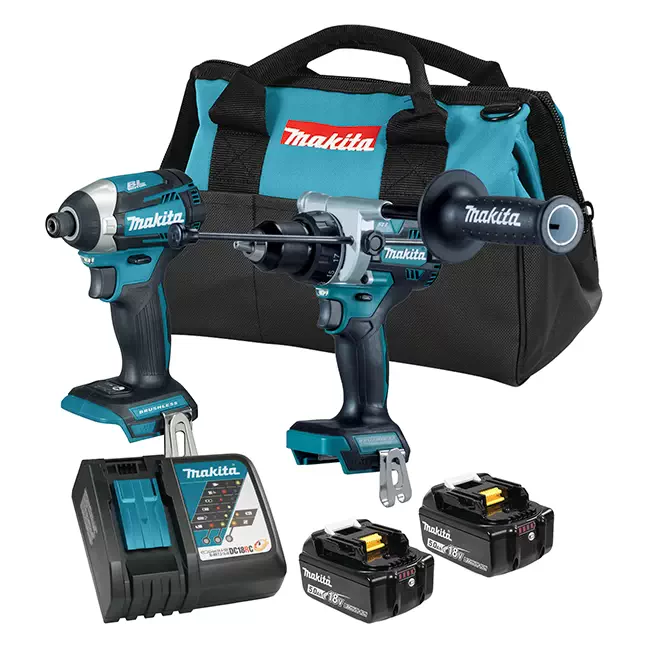

Makita DLX2412TX1 18V Cordless 2pc Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo (5.0 Ah x2 Kit) Includes

• (1) 18V LXT Brushless 1/4″ Impact Driver (DTD154Z – Tool Only)
• (1) 18V LXT Brushless 1/2″ Hammer Drill/Driver (DHP486Z – Tool Only)
• (2) 18V LXT 5.0Ah Li-Ion Batteries BL1850B (196675-2)
• (1) 18V Rapid Charger (DC18RC)
• (1) Tool Bag (821010-X)
• (1) Side Handle (126413-8) for Hammer Drill
• (2) Double Ended Bits 2-45 (784637-8)
• (1) Bit Holder (452947-8)
• (1) Stopper Pole (122576-8)
• (2) Hooks (346449-3)

Makita DLX2412TX1 2PC 18V Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit (2) 5Ah Specifications

• Kit Model Number: DLX2412TX1
• Platform: 18V LXT Li-Ion

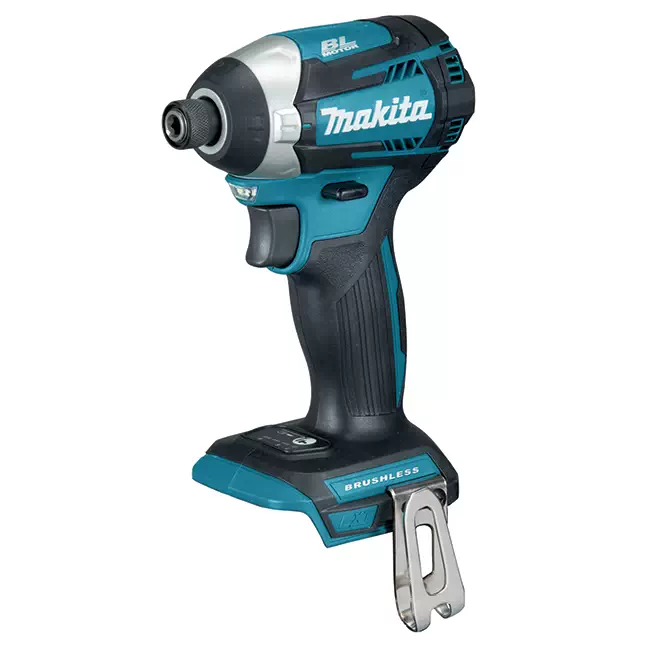

Impact Driver – DTD154Z

• Tool Type: 18V LXT Brushless 1/4″ Impact Driver (Tool Only)
• Hex Shank: 1/4″
• No Load Speed: 0–1,100 / 0–2,100 / 0–3,600 RPM
• Impacts per Minute: 0–1,100 / 0–2,600 / 0–3,800 IPM
• Maximum Torque: 1,550 in. lbs (175 Nm)
• Overall Length: 4-5/8″ (117 mm)
• Net Weight: 2.2 lbs (0.9 kg)
• Vibration Level: 12.5 m/s²
• Noise Level: 96 dB(A)
• Lighting: Twin LED job lights with pre-glow and afterglow

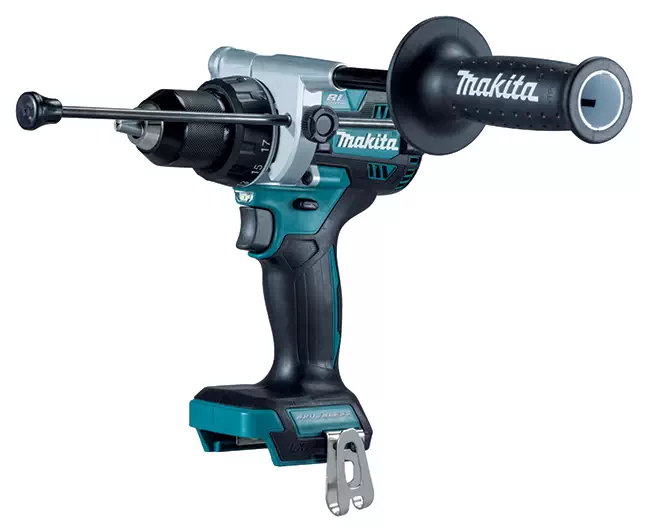

Hammer Drill – DHP486Z

• Tool Type: 18V LXT Brushless 1/2″ Hammer Drill/Driver (Tool Only)
• Capacities – Concrete: 5/8″ (16 mm)
• Capacities – Steel: 1/2″ (13 mm)
• Capacities – Wood: Auger bit 2″ (50 mm), Self-feeding bit 3″ (76 mm), Hole saw 6″ (152 mm)
• No Load Speed – Low: 0–550 RPM
• No Load Speed – High: 0–2,100 RPM
• Blows per Minute – Low: 0–8,250 BPM
• Blows per Minute – High: 0–31,500 BPM
• Maximum Torque: 1,250 in. lbs (141 Nm)
• Overall Length: 7″ (178 mm)
• Net Weight: 4.5 lbs (2.0 kg)
• Vibration Level: 8.0 m/s²
• Noise Level: 84 dB(A)
• Lighting: Dual LED job lights with afterglow

Batteries – 196675-2 (BL1850B 5.0Ah)

• Voltage: 18V LXT
• Capacity: 5.0Ah
• Battery Type: Lithium-Ion
• Charge Level Indicator: LED display
• Protection: Over-discharge, temperature, and current protection when used with STAR marked tools

Charger – DC18RC

• Supported Voltages: 7.2V–18V Ni-Cad, Ni-MH, and Li-Ion slide-style batteries
• Charge Time – 18V 3.0Ah (BL1830): Approx. 22 minutes
• Charge Time – 18V 4.0Ah (BL1840B): Approx. 36 minutes
• Charge Time – 18V 5.0Ah (BL1850B): Approx. 45 minutes
• Cooling: Forced air cooling fan
• Controls: Three active controls (current, voltage, temperature) with CPU communication

Makita DLX2412TX1 2PC 18V Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit (2) 5Ah Warranty

• Makita’s 3 Year Limited Warranty

Why Customers Choose the Makita 2PC 18V Brushless Sub-Compact 1/2″ Hammer Drill & 1/4″ Impact Combo Kit

Crews choose the Makita DLX2412TX1 because it delivers a powerful 18V LXT cordless hammer drill and a compact impact driver in one kit that is ready for daily site work. The DHP486Z cordless hammer drill can handle anchor holes in concrete, large wood bits, and metal drilling without swapping to a separate rotary tool, while the DTD154Z impact driver manages structural screws, lags, and hardware quickly and consistently. With (2) 5.0Ah Li-Ion batteries and the DC18RC rapid charger, users keep one pack in the tools and one on charge, reducing downtime and keeping the combo kit in constant rotation. Technicians like the balance of sub-compact size with high torque, especially when working overhead, in stairwells, or inside cabinets. For installers and maintenance teams who rely on a cordless drill and impact driver every day, this Makita 2-piece kit provides a practical mix of power, runtime, and size on the 18V LXT platform.
