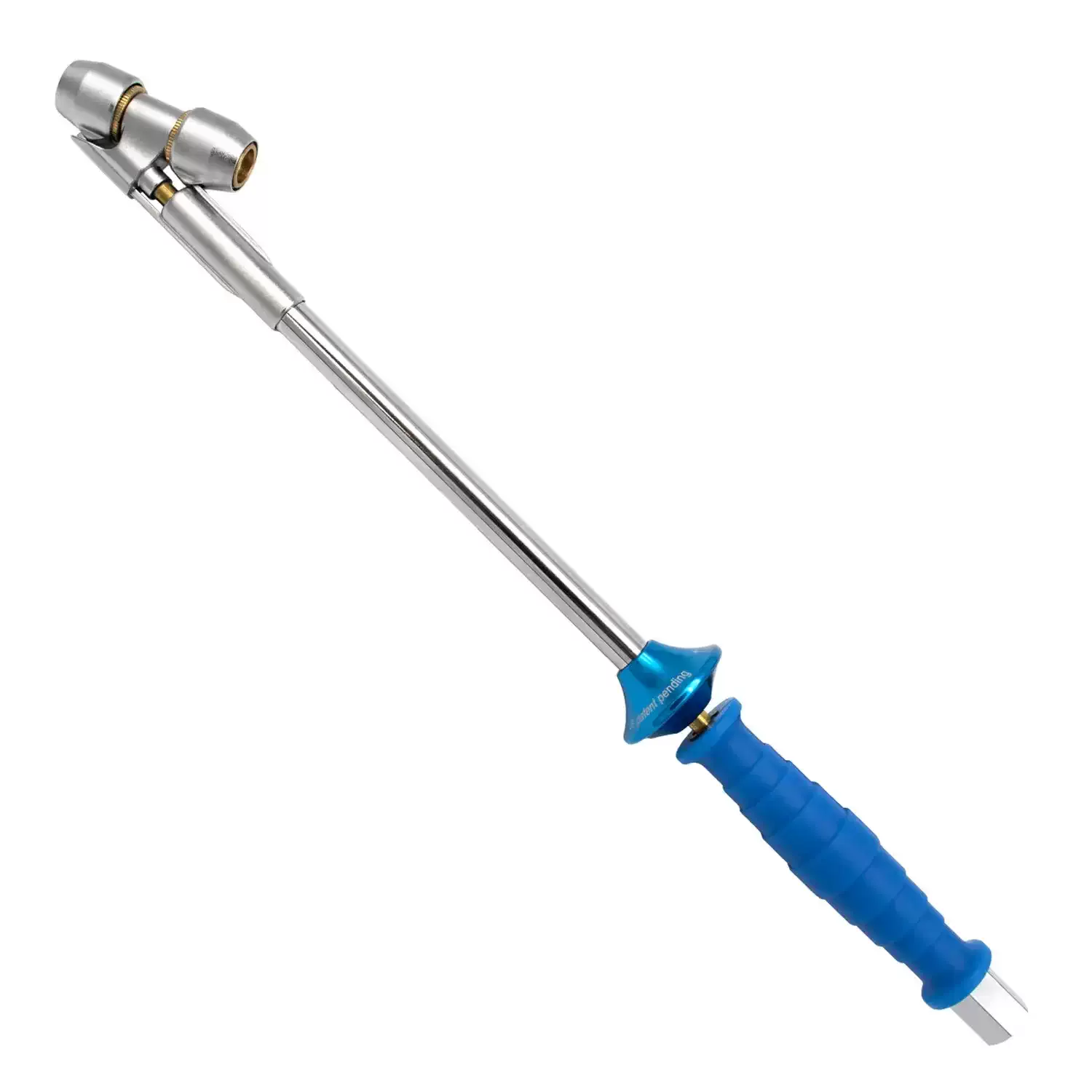

LockNFlate LNL65108 15-1/2″ Angled Locking Dual Wheel Air Chuck

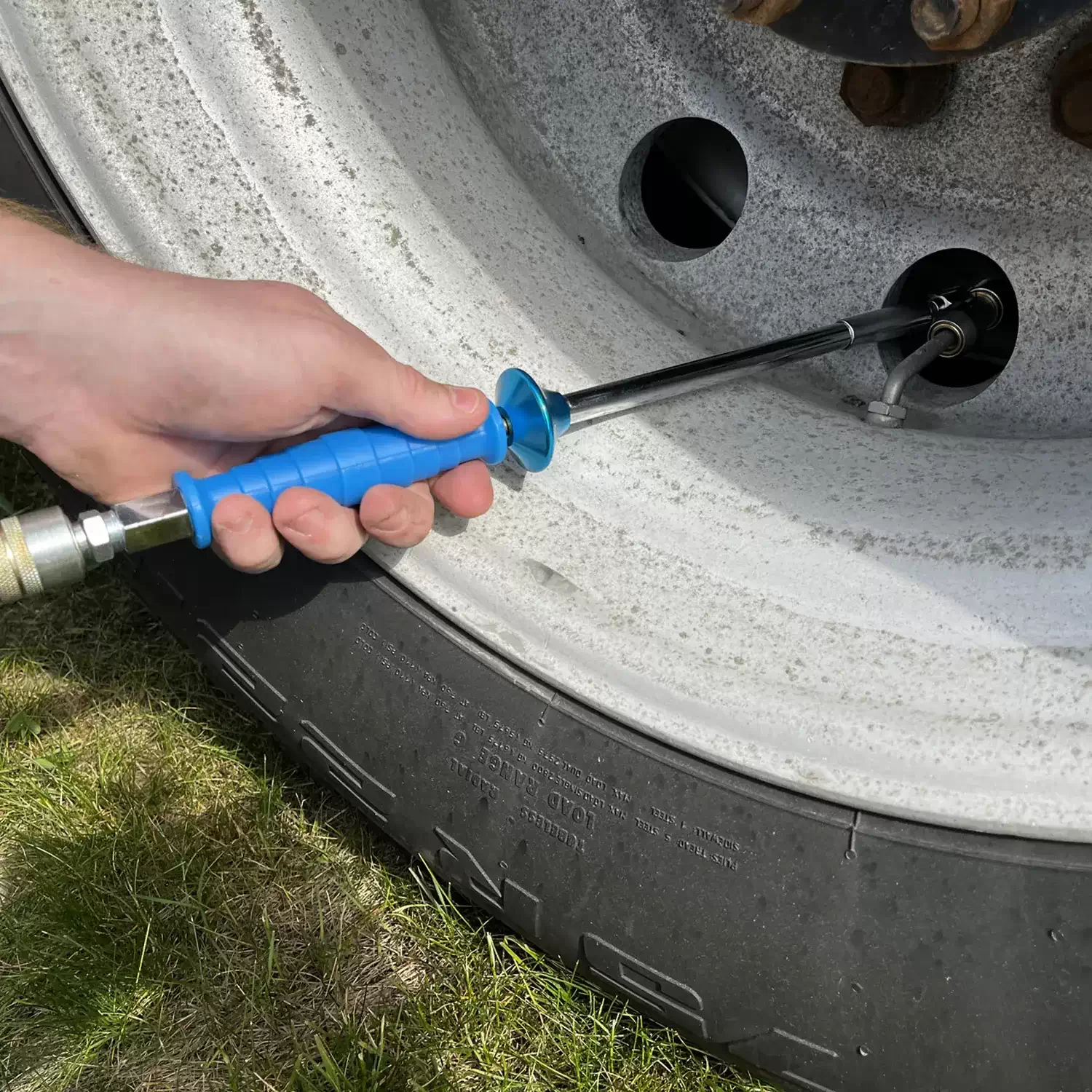

The LockNFlate LNL65108 is a purpose-built dual-wheel air chuck that locks on securely and lets you release it without reaching between wheel pairs. Its two-jaw locking head grips the Schrader valve stem, and a patented remote actuator collar at the handle opens either the front or rear jaws on command. That means you can connect to an inner dual through the hand hole, stand safely clear while the tire inflates, and pop the chuck off with a pull or push of the actuator—no fingertip fishing, no hot sidewall contact, and no accidental pop-offs. A fixed 20° angled head lines the chuck up square to inner and outer stems, while the long, plated shaft and blue silicone grip give you control in tight spaces. Rated to 150 PSI, the LNL65108 is built for continuous use in tire shops, fleet yards, and roadside service where speed, access, and safety matter.

For semi tractors, box trucks, buses, RVs, and heavy service trailers, duals can slow a simple pressure check. The LNL65108 solves that with extended reach, a positive lock on the valve, and tool-side release. The result is repeatable hookups, accurate gauge readings, and clean disconnects—saving time on each wheel position across a full tire round.

LockNFlate 15-1/2″ Angled Locking Dual Wheel Air Chuck At a Glance

• Two-jaw locking head: Holds the Schrader stem securely for hands-free, leak-free inflation.

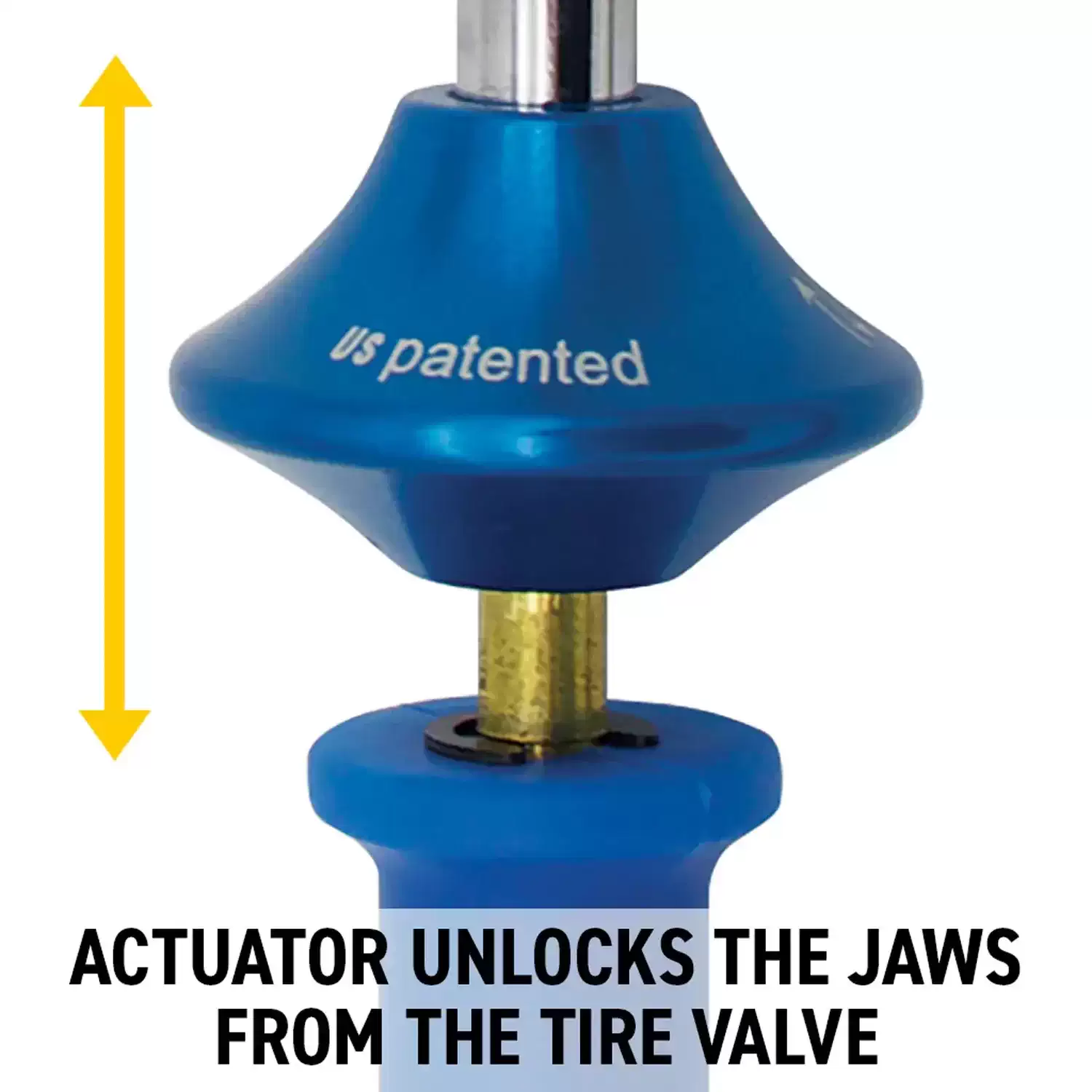

• Remote actuator collar: Pull to release the front jaws; push to release the rear jaws—no reaching into the dual set.

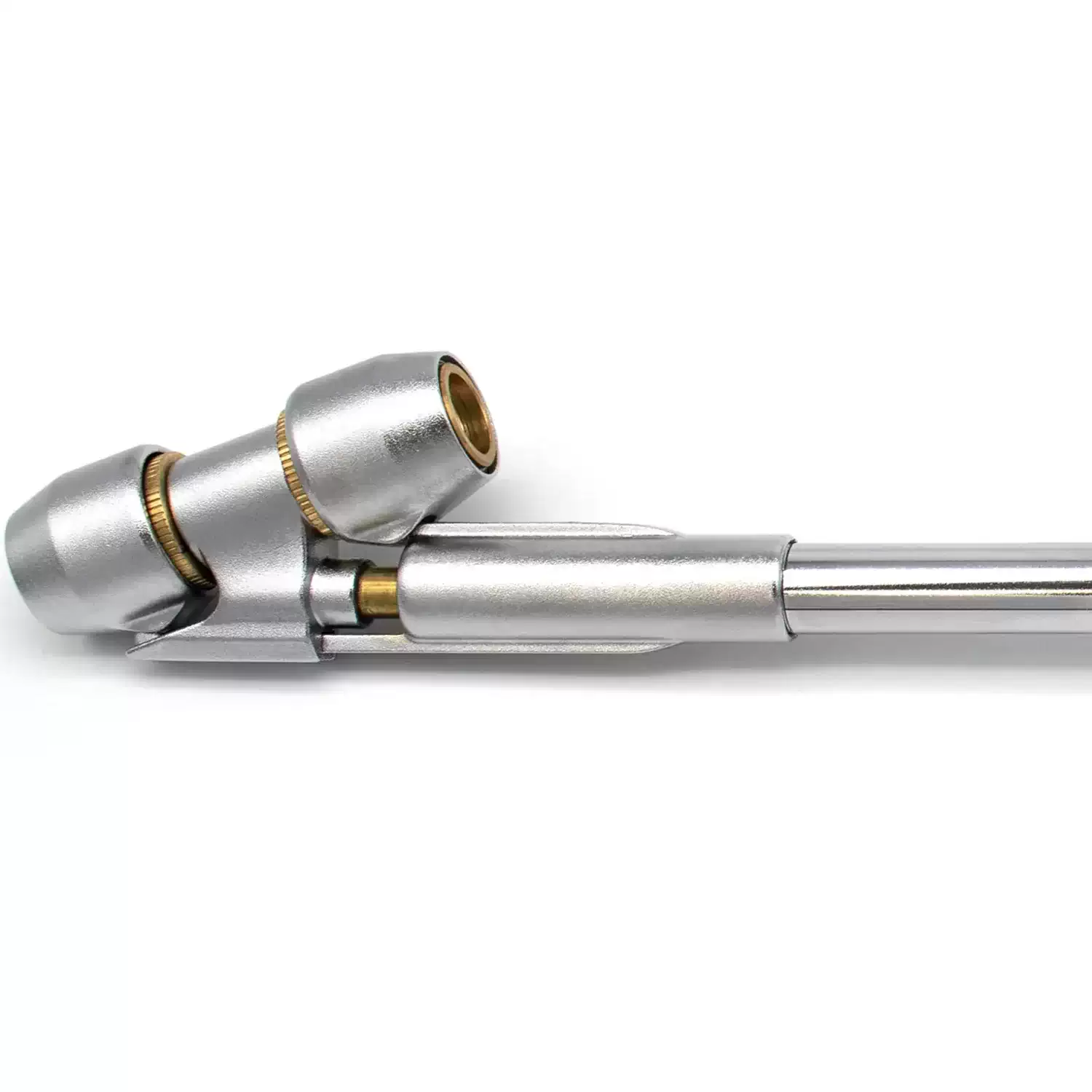

• 20° fixed angled head: Optimized approach for both inner and outer dual stems.
• Extended 15.5″ reach: Access through hand holes and deep dish wheels with control.
• 150 PSI max rating: Suitable for shop and roadside airline systems.
• Blue silicone grip: Heat-resistant, non-slip handle for confident control.
• Service-ready build: Metal body and long shaft designed for daily professional use.

Markets

• Tire Shops & Service Bays Faster, safer hookups on commercial duals and RV wheels.
• Fleet & Truck Maintenance Standardizes inflation across tractors, box trucks, and trailers.
• Bus & Transit Efficient checks on inner wheels without removing covers.
• Emergency & Roadside Service Quick connect/release when time and safety are critical.
• RV & Motorcoach Secure access to recessed stems on duals and tag axles.
• Municipal & Public Works Consistent tool for mixed heavy vehicle fleets.

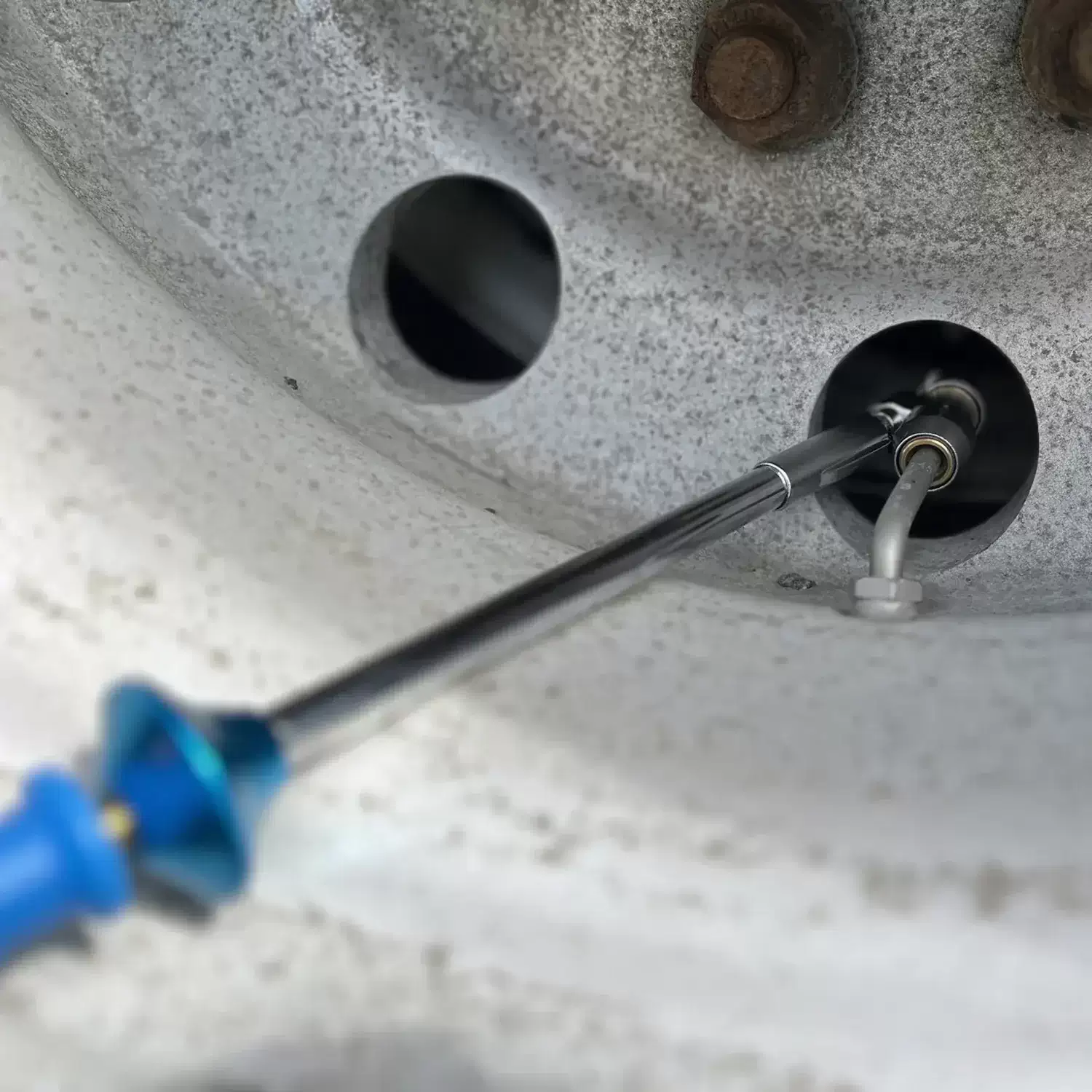

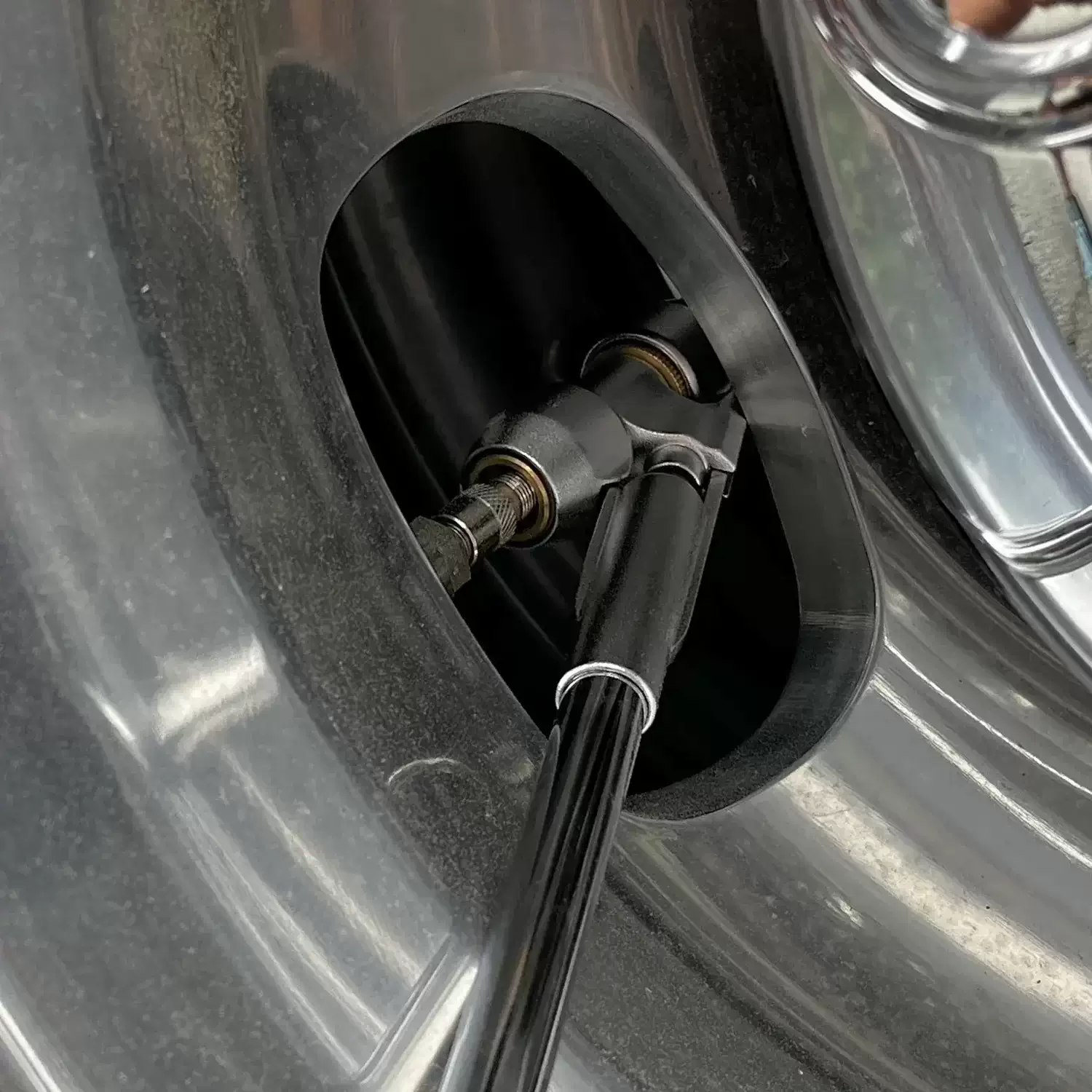

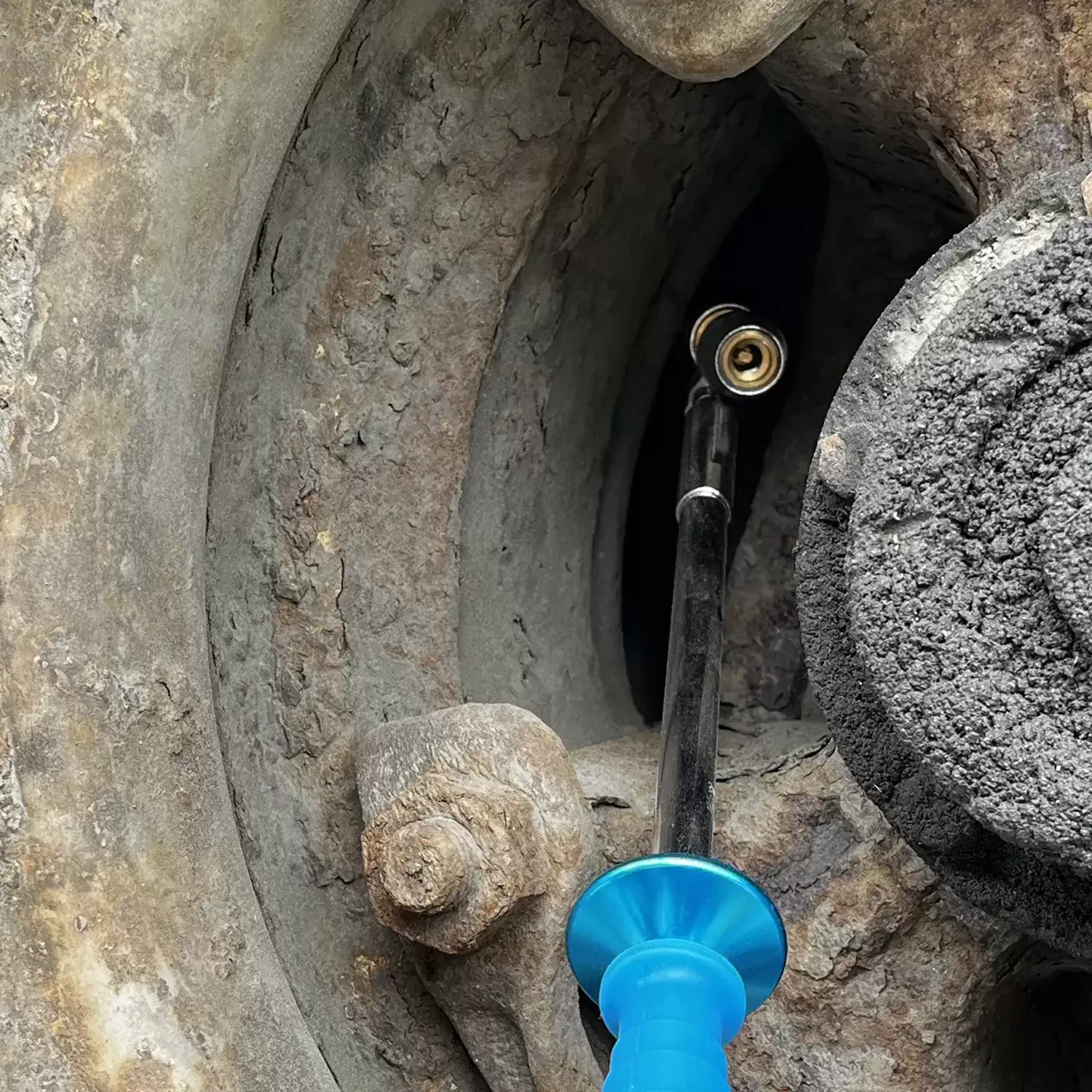

Technicians in these settings need an air chuck that reaches inner stems, locks solidly, and lets them disconnect without wrestling hot sidewalls. The LNL65108 addresses each of those points. The long shaft and 20° head get the chuck square to the stem; the locking jaws stop hissing and stabilize pressure readings; and the actuator collar at the handle releases the connection without reaching into the wheel cavity. Over a full set of duals, these small gains add up to faster inspections, cleaner fills, and fewer callbacks due to under-inflated inner tires that were hard to reach.

LockNFlate LNL65108 15-1/2″ Angled Locking Dual Wheel Air Chuck Features

• Patented Remote Actuation: Tool-side collar controls the jaws for effortless disconnect.
• Positive Locking Jaws: Two-jaw mechanism grips evenly to protect stems and prevent blow-offs.
• Angled Head Geometry: 20° fixed angle aligns with common dual wheel layouts.
• Extended Steel Shaft: Provides reach and rigidity for precise positioning.
• High-Visibility Grip: Blue silicone handle resists heat and improves control with gloves.
• Professional Duty: Designed for frequent, repeated cycles in commercial service

LockNFlate LNL65108 15-1/2″ Angled Locking Dual Wheel Air Chuck Includes

• (1) LNL65108 Angled Locking Dual Wheel Air Chuck

LockNFlate LNL65108 15-1/2″ Angled Locking Dual Wheel Air Chuck Specifications

• Model: LNL65108
• Overall Length (A): 15.5 in (400 mm)
• Head Length (B): 3.64 in (92.5 mm)
• Head Diameter (C): 0.88 in (22.4 mm)
• Head Height (D): 1.32 in (33.5 mm)
• Shaft Length (E): 8.25 in (209.5 mm)
• Actuator Diameter (F): 1.57 in (39.9 mm)
• Grip Length (G): 4.27 in (108.5 mm)
• Head Angle: 20° fixed
• Valve Interface: Schrader valve stems
• Maximum Operating Pressure: 150 PSI (10.3 bar)
• Lock/Release Method: Two-jaw head with remote actuator collar (pull = front release; push = rear release)
• Primary Use: Inner/outer dual wheel inflation on heavy vehicles

Why Professionals Choose the LockNFlate 15-1/2″ Angled Locking Dual Wheel Air Chuck

Fleet techs and tire pros choose the LNL65108 because it speeds up a task that usually eats time—servicing inner duals. The long shaft and 20° head put the chuck square on stems that sit deep behind hand holes. Once locked, the two-jaw head holds pressure steady so inflator gauges read accurately. When the tire reaches spec, the actuator collar releases the front or rear jaws from the handle end, eliminating awkward reach-ins and reducing burn and pinch hazards. Across a day of tractor-trailer PMs or RV service, the LNL65108 helps crews move faster with fewer do-overs, cleaner connections, and safer stand-back operation.
