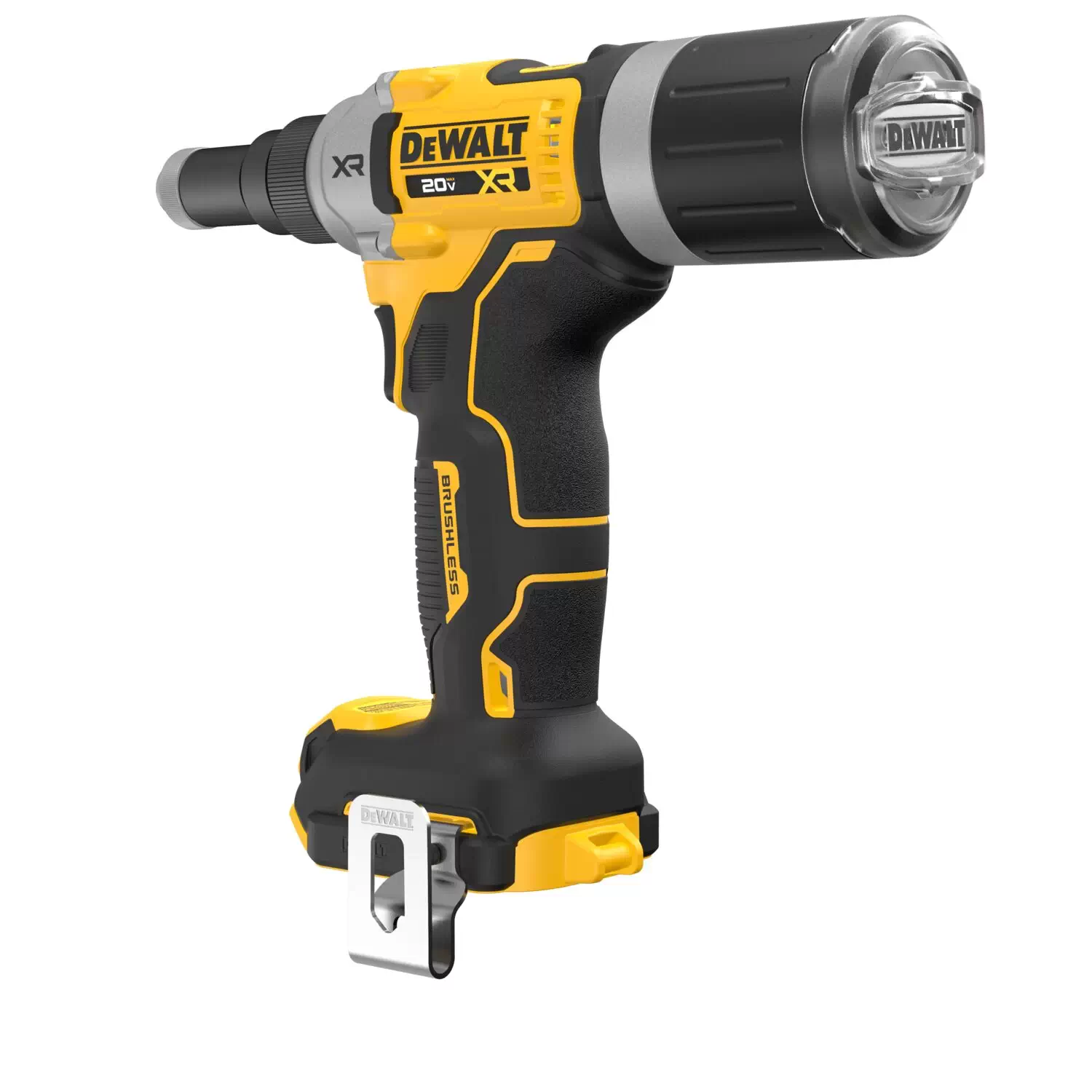

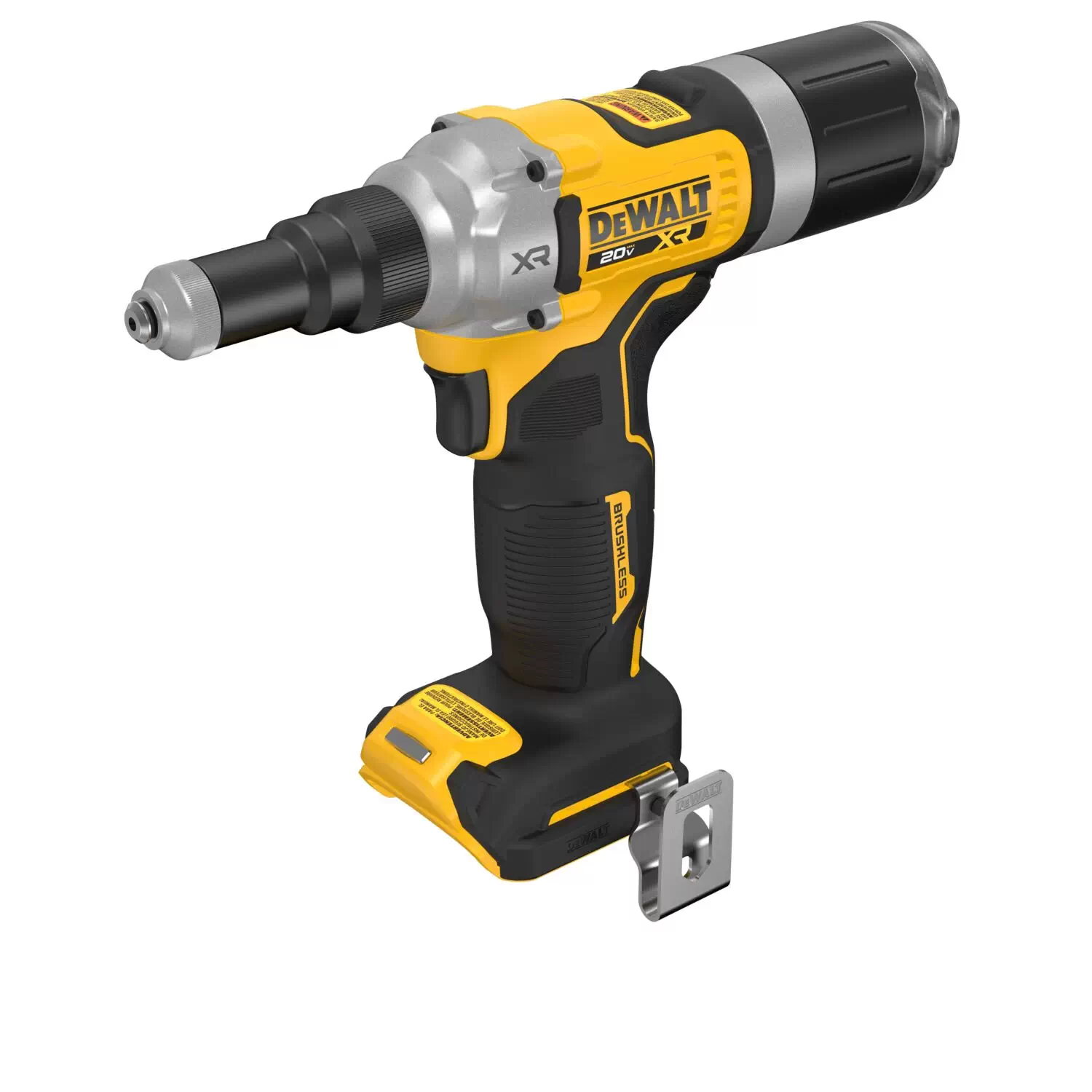

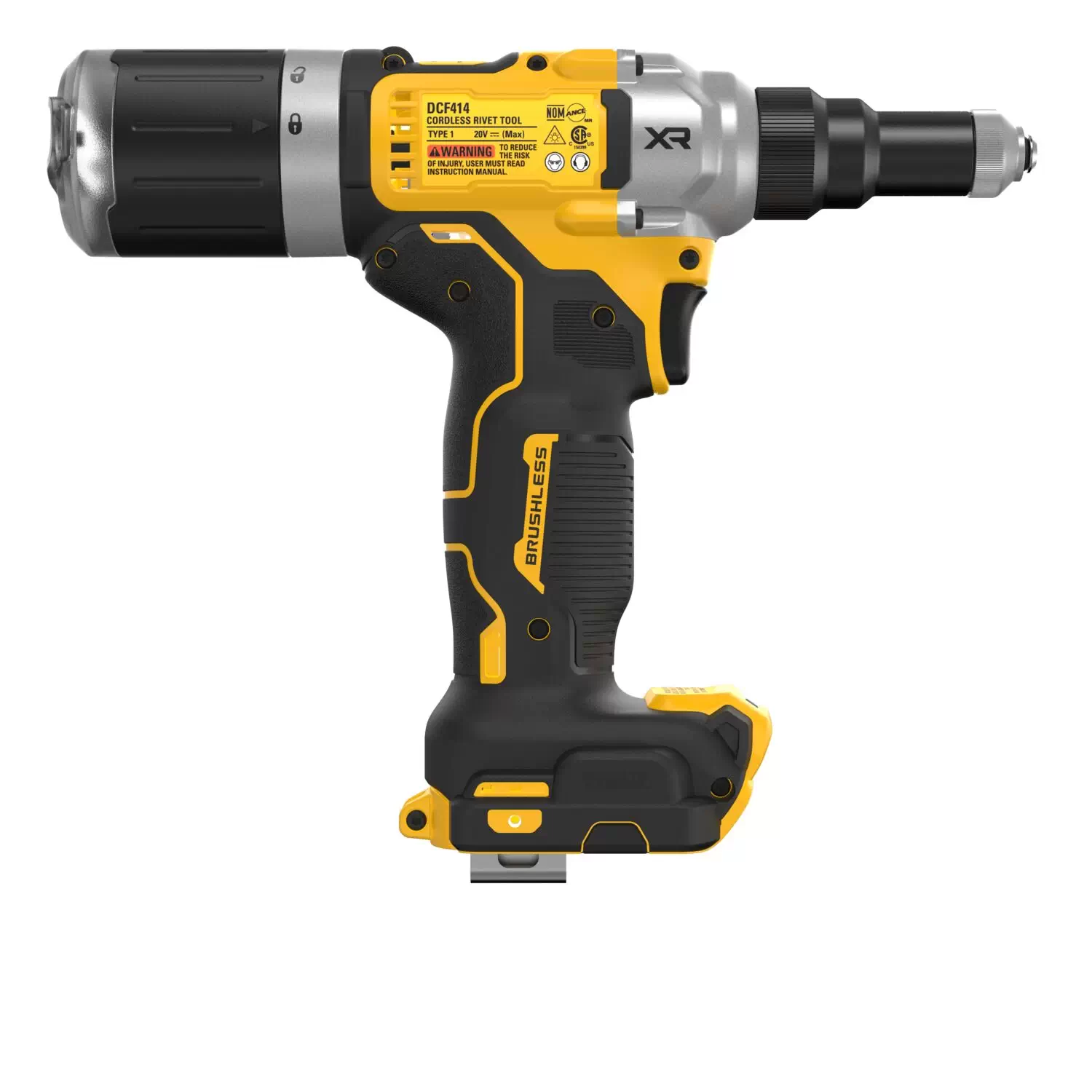

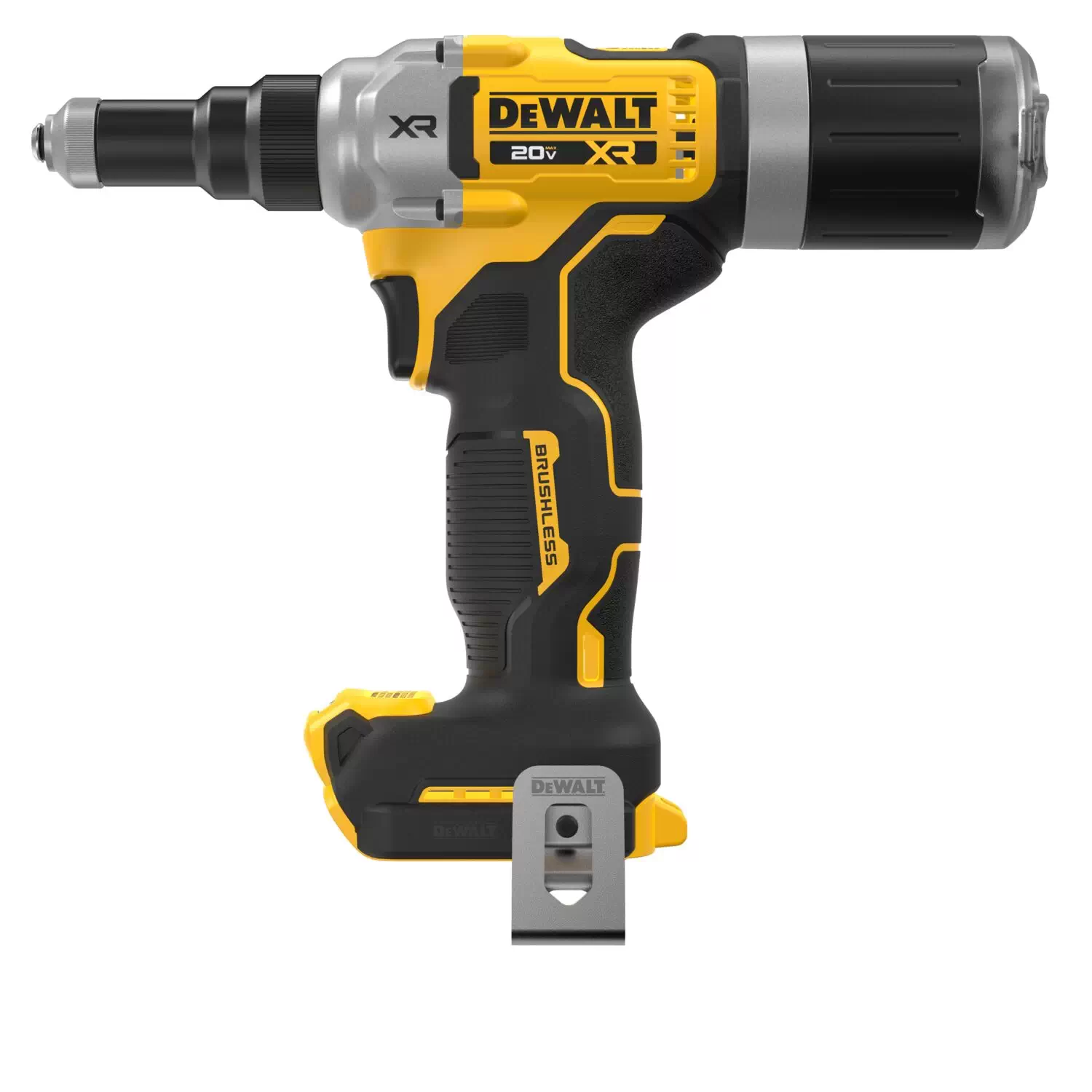

Dewalt DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only

The DEWALT DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool is built for fast, consistent installation of blind rivets in aluminum, steel, and stainless steel up to 1/4″. Driven by a brushless motor delivering up to 4,500 lbf of pulling force, this cordless rivet tool gives installers power and control for demanding fastening work without the need for hoses, compressors, or separate power sources. With the capacity to install up to 300 rivets per charge (battery dependent), it supports high-volume production, repair, and fabrication tasks where productivity and repeatable results are expected.

Designed around everyday jobsite needs, the DCF414B uses tool-free nose piece changes with onboard nose piece storage for quick switching between 3/16″, 15/64″, and 1/4″ rivet sizes. A 1.18″ stroke length helps set rivets in a single pull, cutting cycle time and reducing fatigue over long runs. The integrated mandrel collector keeps spent mandrels contained for a cleaner, safer work area, while the built-in LED work light improves visibility in tight or poorly lit spaces. As part of the DEWALT 20V MAX platform, this tool-only version is ideal for users who already own compatible batteries and chargers and want a cordless rivet tool that fits into their existing system.

Dewalt 20V MAX XR Brushless 1/4″ Rivet Tool At a Glance

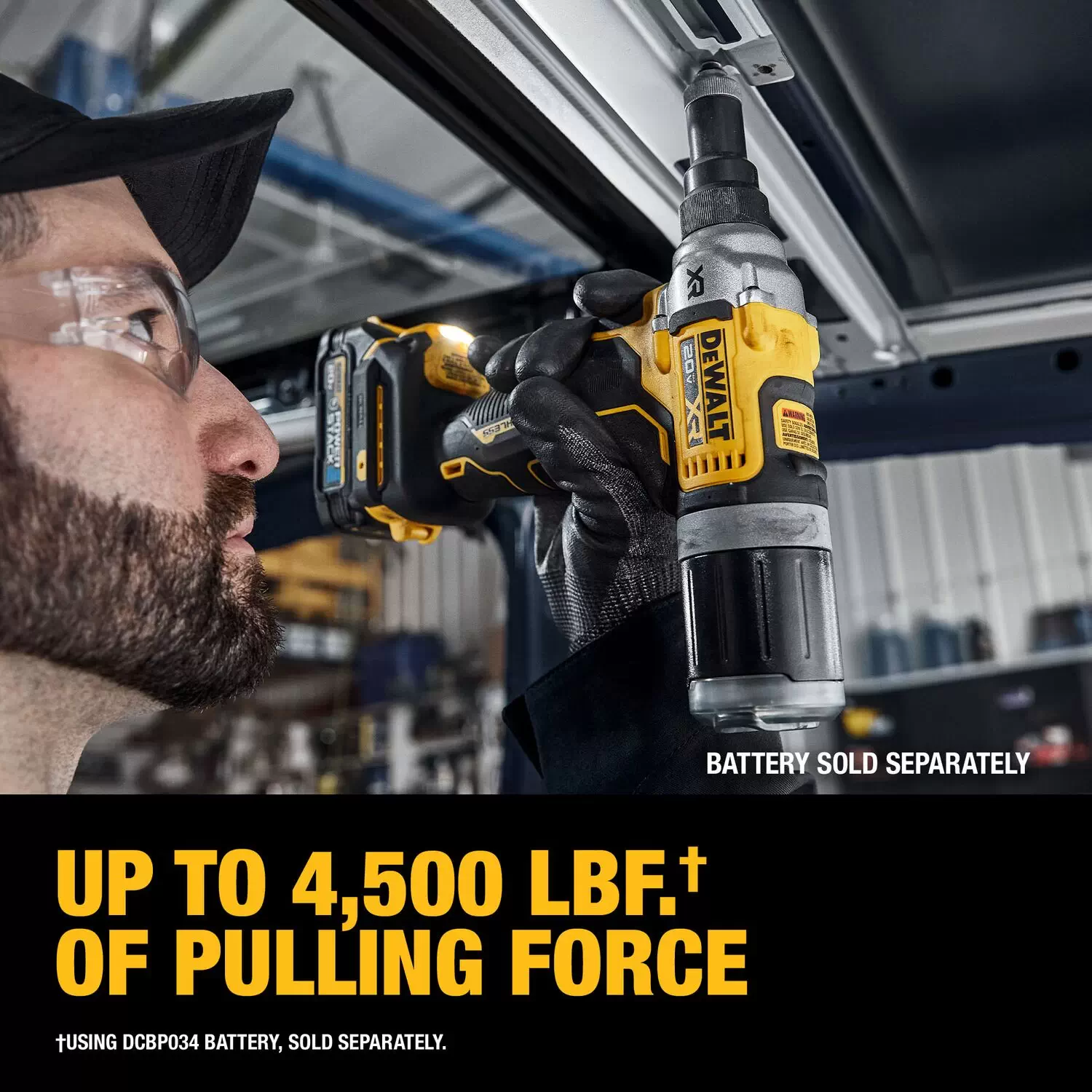

• High pulling force: Up to 4,500 lbf of pulling force for installing aluminum, steel, and stainless steel blind rivets up to 1/4″.

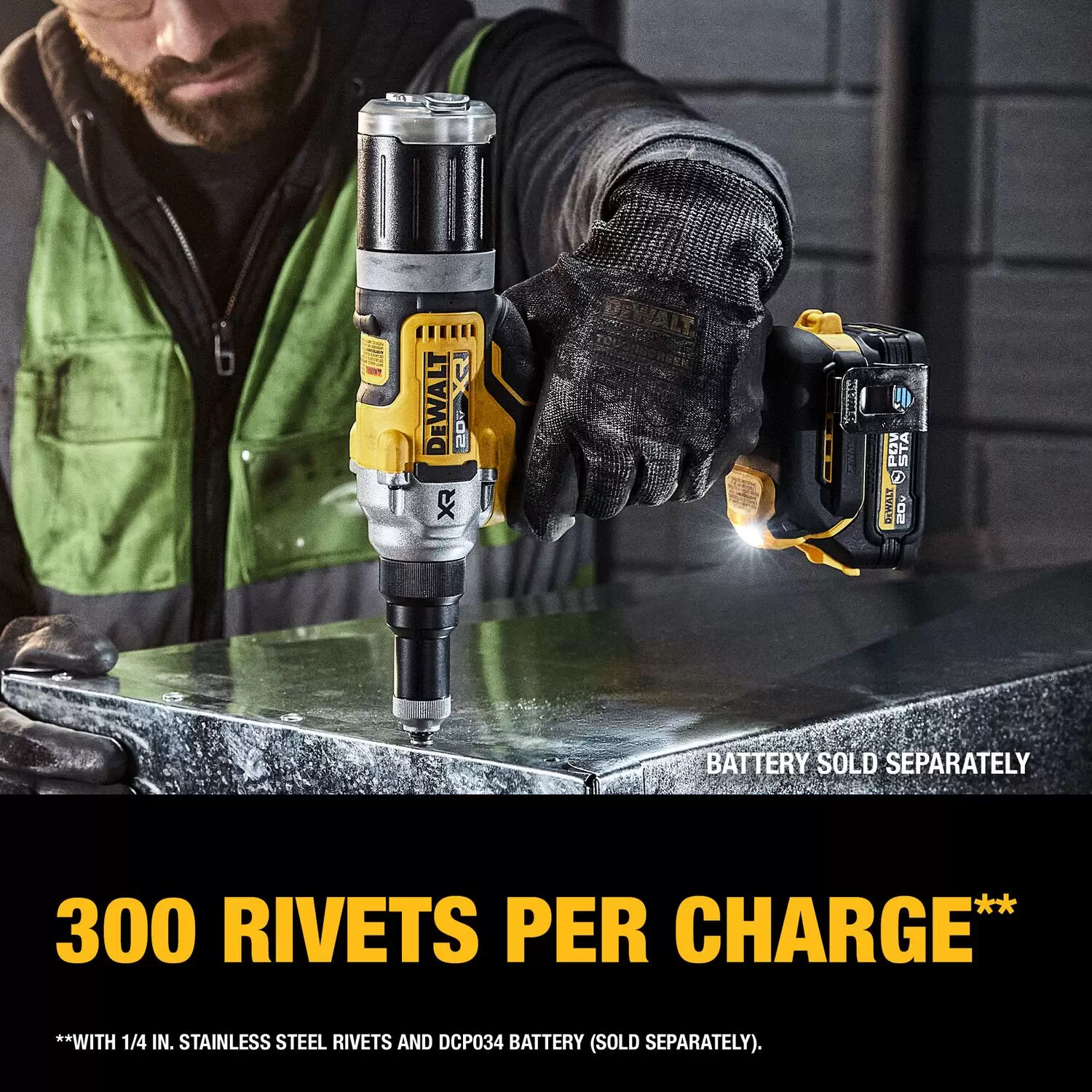

• Efficient cordless productivity: Installs up to 300 rivets per charge (battery dependent), helping reduce downtime on busy jobs.

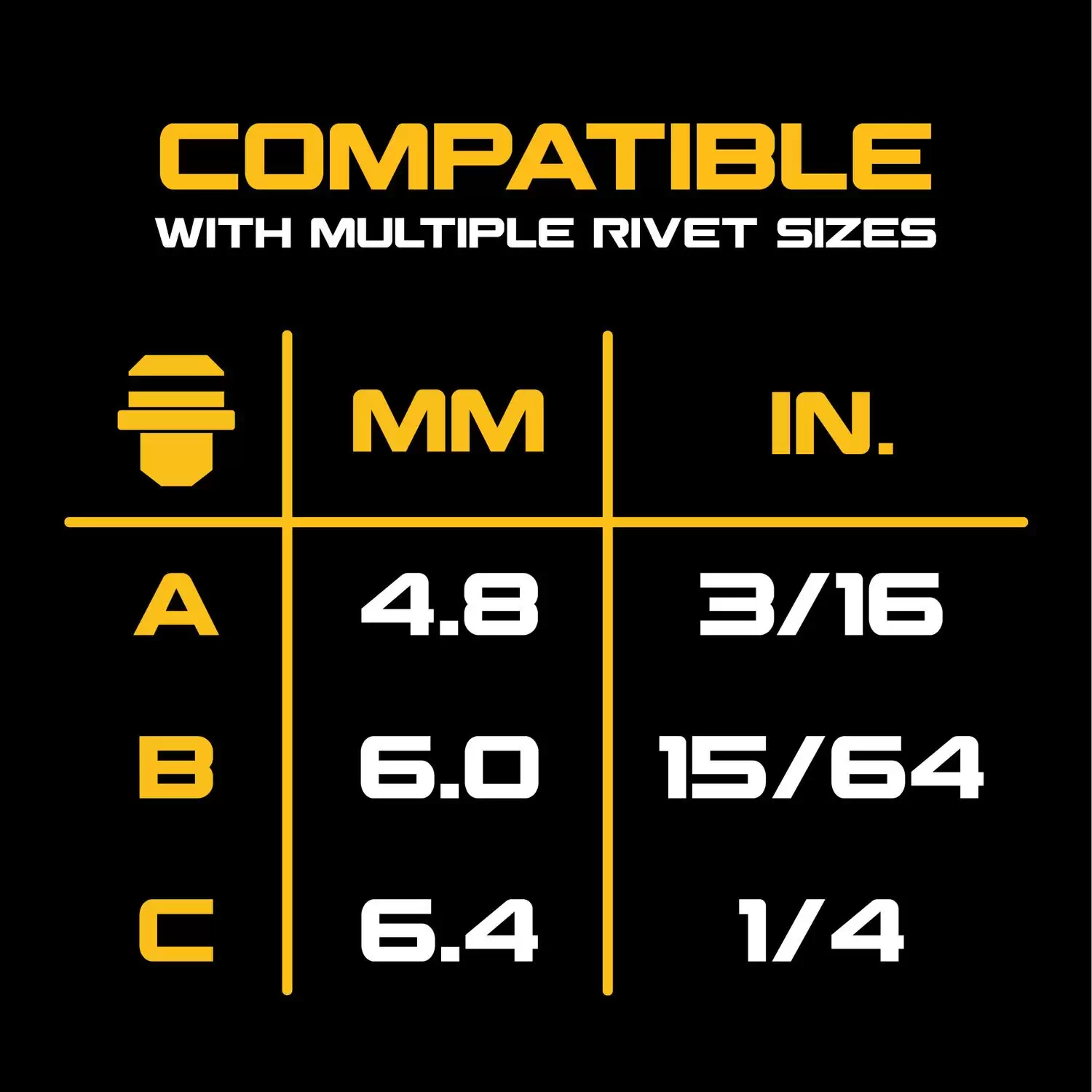

• Versatile rivet capacity: Works with 3/16″, 15/64″, and 1/4″ rivets to cover common construction, automotive, and metalworking tasks.

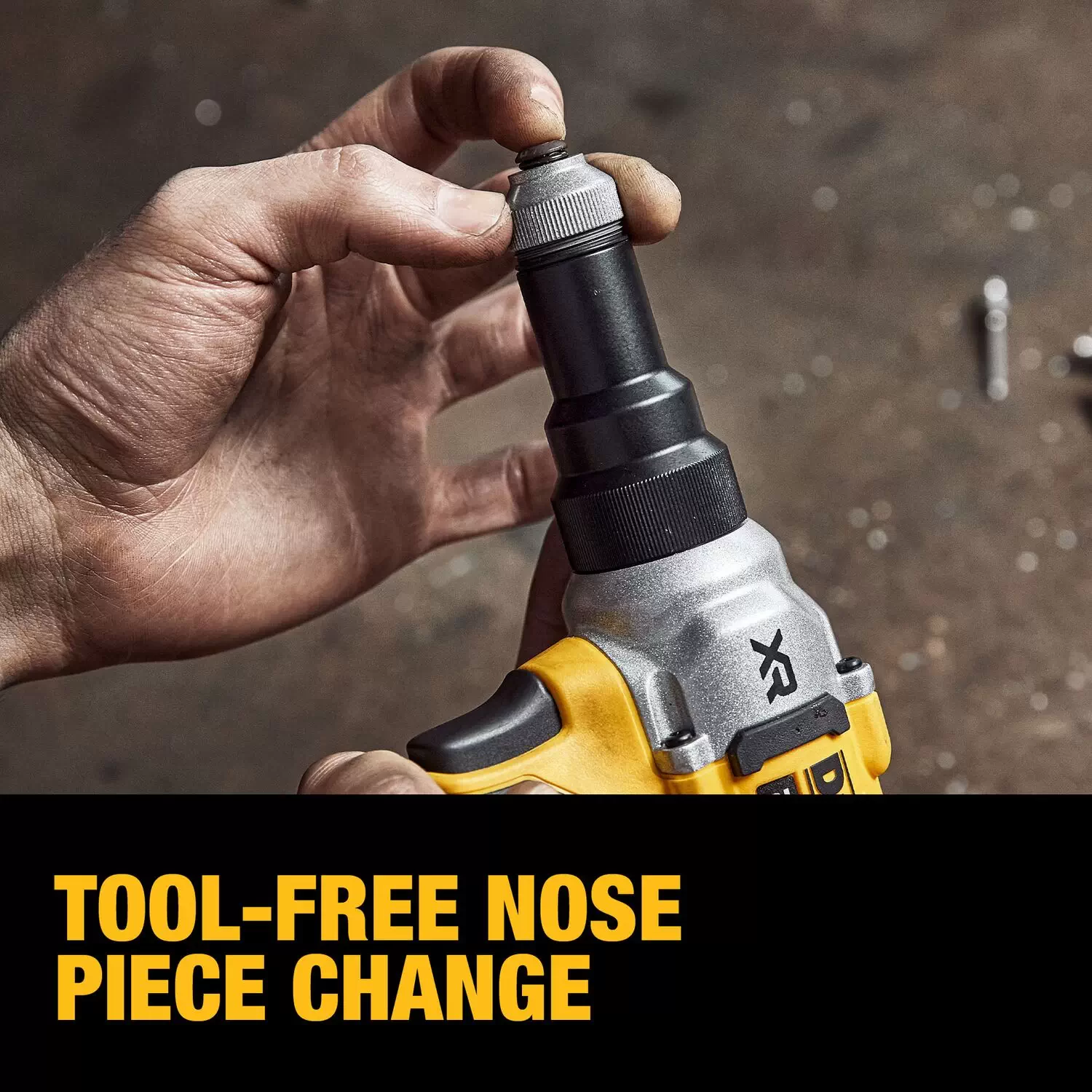

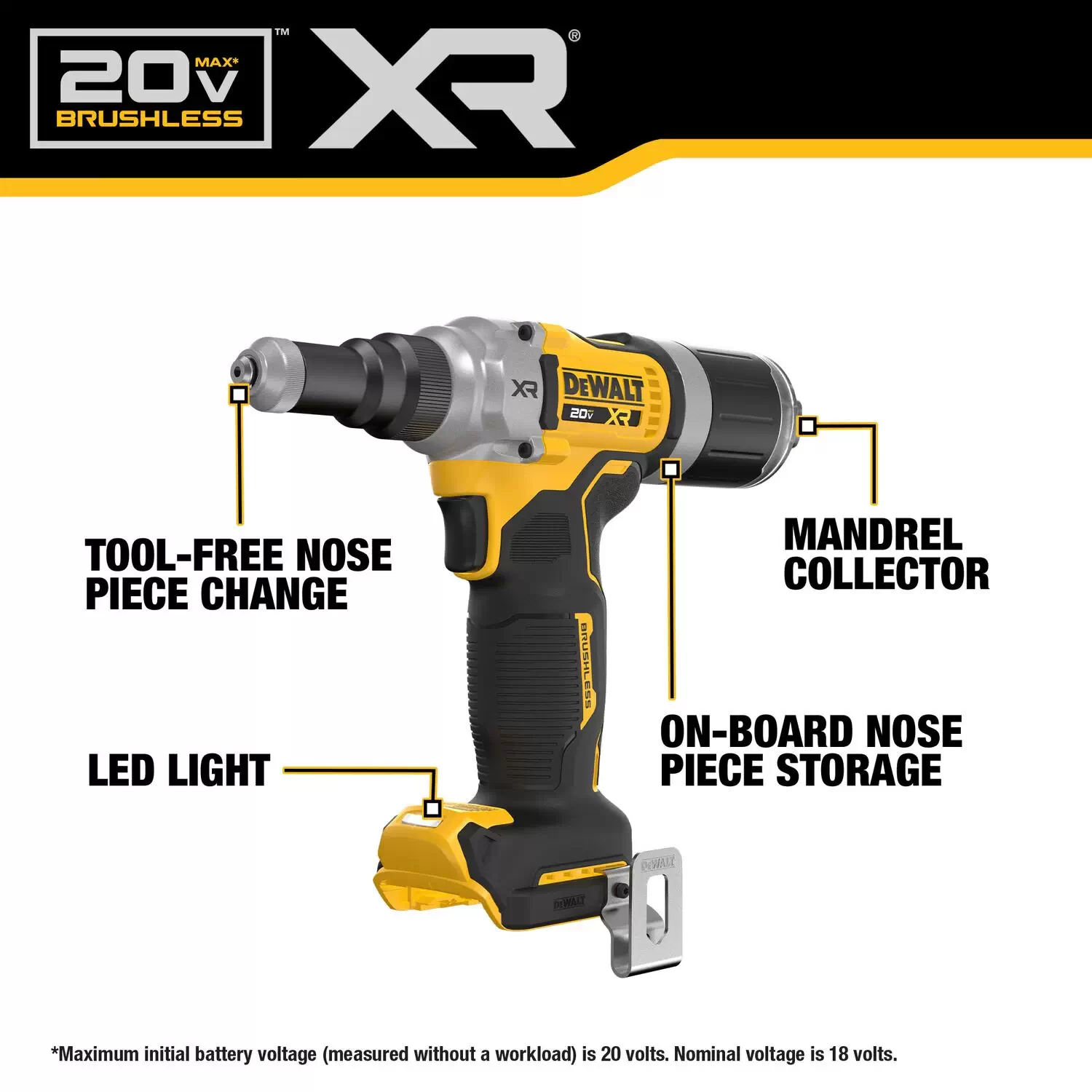

• Tool-free nose piece changes: Quick nose piece swaps with on-board storage to keep setup changes fast and organized.
• On-board mandrel collector: Captures spent mandrels to keep floors and work surfaces cleaner and safer.

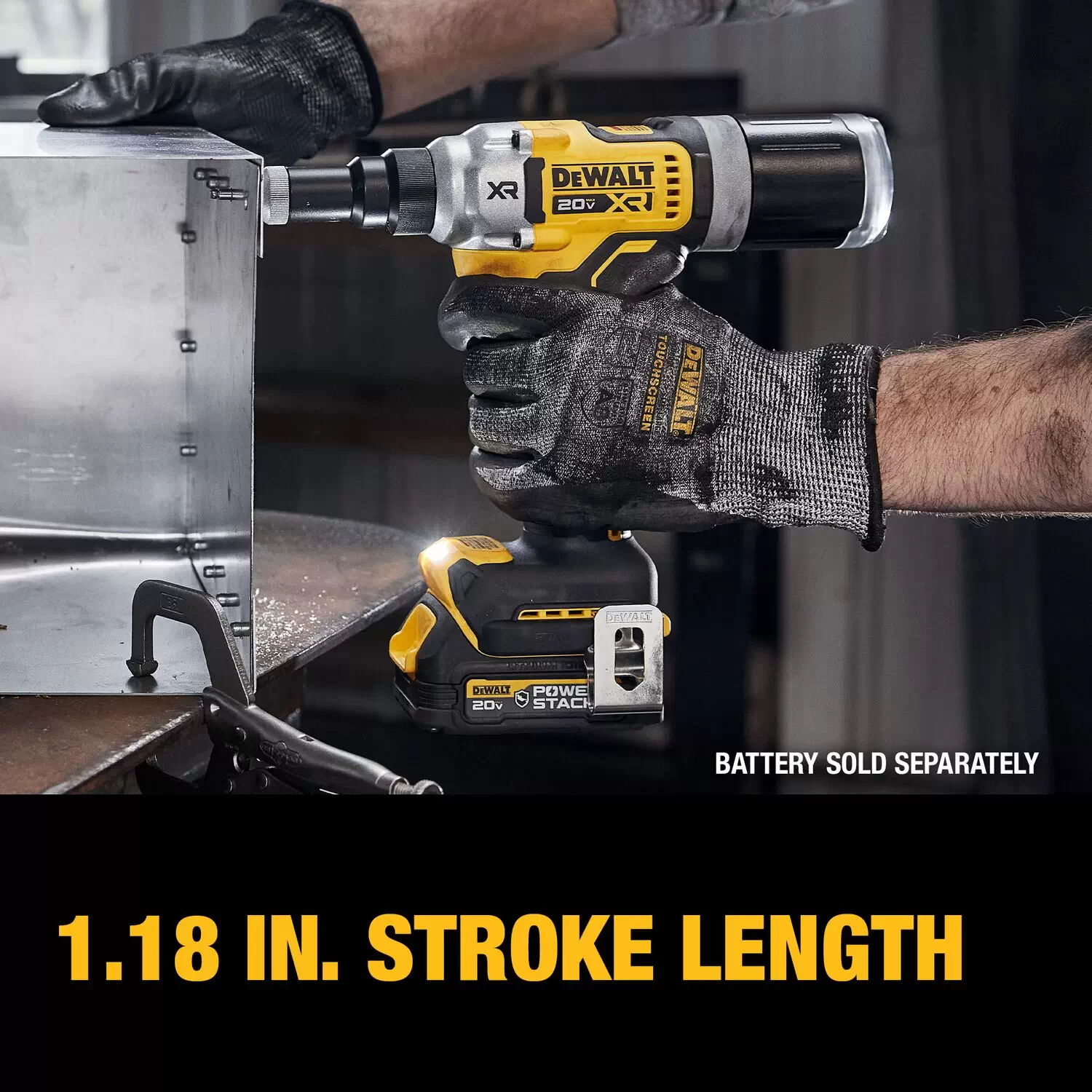

• 1.18″ stroke length: Sets rivets in one stroke for faster cycle times and consistent installation.
• LED work light: Illuminates the work area to support accurate placement in dim or confined spaces.
• 20V MAX platform compatible: Runs on DEWALT 20V MAX lithium-ion batteries; tool is sold as Tool Only (no battery or charger).

Markets

• Construction and Renovation: Used for attaching metal panels, facades, framing components, and hardware where blind access is required.
• Metalworking and Fabrication: Helps join sheet metal, brackets, and structural components in shops and field installations.
• Automotive and Truck Repair: Supports body panel, interior, and accessory fastening on vehicles, trailers, and fleet units.
• Manufacturing and Assembly: Fits into production lines and workstation setups that require repeatable riveted joints.
• Maintenance and Repair Operations (MRO): Handy for plant, facility, and equipment repairs where a portable rivet tool is needed.
• Trade Schools and Training Centers: Provides students with a modern cordless rivet tool for hands-on fastening instruction.
• Municipal and Public Works Projects: Useful for infrastructure repairs, signage, and facility upgrades where access and speed are important.

Professionals in these markets depend on the DEWALT DCF414B to handle high volumes of blind rivets with consistent pull strength and reliable performance. Construction and metalworking crews get a cordless rivet tool that moves easily between lifts, scaffolds, and workstations without air hoses or cords limiting their reach. Automotive and fleet technicians can work around vehicles and equipment more freely, using the 20V MAX battery system they likely already own. Maintenance teams and municipal staff benefit from the clean, contained mandrel collection and the ability to switch rivet sizes quickly, making it easier to complete a wide variety of fastening tasks in one shift.

Dewalt DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only Features

• Brushless Motor Power: Delivers up to 4,500 lbf of pulling force to handle aluminum, steel, and stainless steel blind rivets up to 1/4″.
• High-Volume Performance: Capable of installing up to 300 rivets per charge (battery dependent), supporting continuous production and repair work.
• Tool-Free Nose Piece Changes: Allows fast nose piece swaps with on-board storage so common sizes are always within reach.
• Wide Rivet Size Compatibility: Accepts 3/16″, 15/64″, and 1/4″ blind rivets to cover many structural and sheet metal applications.
• On-Board Mandrel Collector: Collects loose mandrels as they are pulled, helping maintain a cleaner and safer work area.
• 1.18″ Stroke Length: Provides a long stroke to set rivets in a single pull, improving speed and installation consistency.
• Integrated LED Work Light: Lights up the work area to support accurate rivet placement in dark corners and low-light environments.
• Cordless 20V MAX Design: Operates on the DEWALT 20V MAX battery platform for shared batteries across tools (battery and charger sold separately).

Dewalt DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only Includes

• (1) DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only
• (1) On-board mandrel collector (integrated)
• Note: Battery and charger are sold separately.

Dewalt DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only Specifications

• Model: DCF414B
• UPC: 885911896283
• Pulling Force: 20,000 N (4,500 lbf)
• Stroke Length: 30 mm (1.18 in)
• Number of Pieces: (6)
• Product Length: 268 mm (10.5 in)
• Product Height: 219 mm (8.6 in)
• Product Weight: 1.65 kg (3.6 lbs)
• Assembled Depth: 9.46 in
• Assembled Height: 8.2 in
• Assembled Width: 3.24 in
• Assembled Weight: 3.96 lbs
• Packaged Depth: 9.567 in
• Packaged Height: 8.307 in
• Packaged Width: 3.346 in
• Packaged Weight: 4.156 lbs
• Cordless/Corded: Cordless
• Battery Platform: DEWALT 20V MAX
• Battery Power Type: Lithium-ion
• Battery Voltage: 20V
• Battery Amp Hours: 0 (Tool Only)
• Number of Batteries Included: (0)
• Handheld or Stationary: Handheld
• Specialty Power Tool Type: Rivet Tool
• Motor Type: Brushless
• Power Tool Features: Compact, cordless rivet installation
• Included Accessories: Tool Only (battery and charger sold separately)

Dewalt DCF414B 20V MAX XR Brushless Cordless 1/4″ Rivet Tool – Tool Only Warranty

• Dewalts Guaranteed Tough 3/1/90 Limited Warranty

Why Customers Prefer the Dewalt 20V MAX XR Cordless 1/4″ Rivet Tool

Installers and technicians choose the DEWALT DCF414B because it brings the pulling strength of a dedicated rivet station into a cordless rivet tool that travels anywhere on the job. The 20V MAX XR brushless motor delivers consistent pulling force on stainless steel blind rivets, while the 1.18″ stroke length sets most rivets in a single pull. This combination helps crews move faster from joint to joint without fighting hoses or cords, especially when working on lifts, scaffolding, or around vehicles.

Users also value how this cordless rivet tool handles everyday details that impact productivity. Tool-free nose piece changes and on-board storage make it simple to switch between 3/16″, 15/64″, and 1/4″ rivets, and the mandrel collector keeps spent mandrels out of walkways and work surfaces. Because it runs on the DEWALT 20V MAX platform, many professionals can use the batteries they already own, turning this rivet tool into a cost-effective upgrade for construction, metalworking, and automotive applications where speed and consistent fastening matter.
