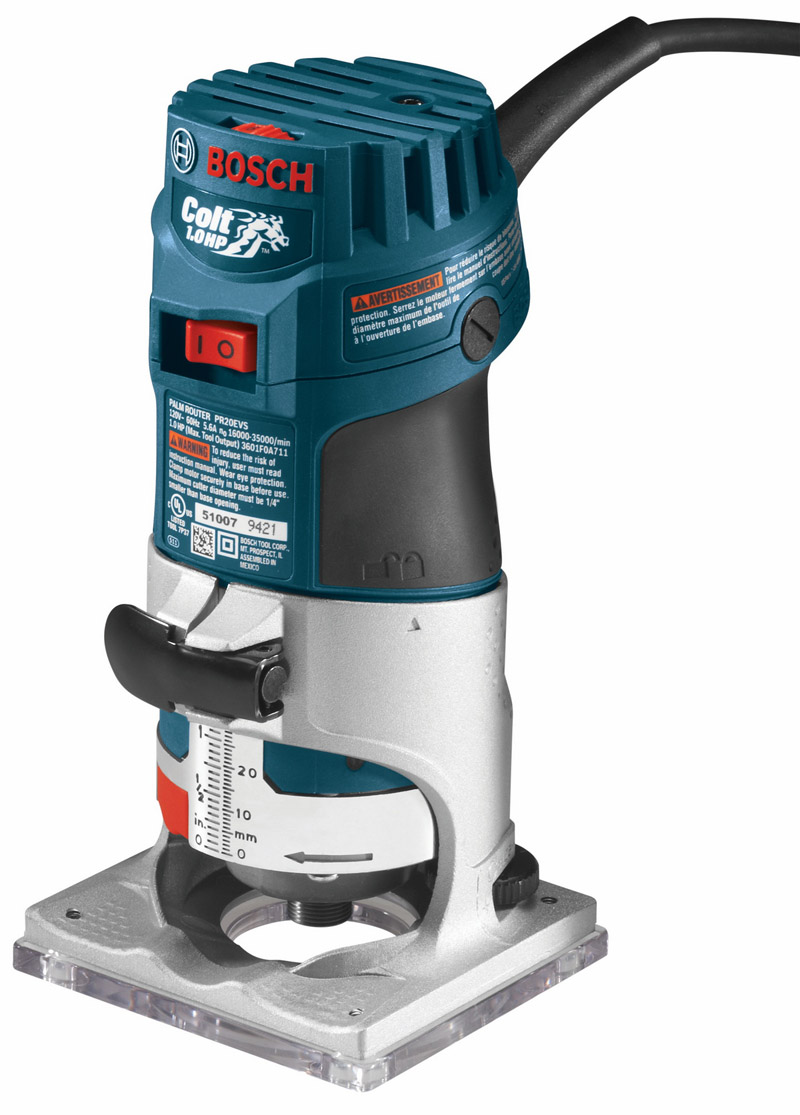

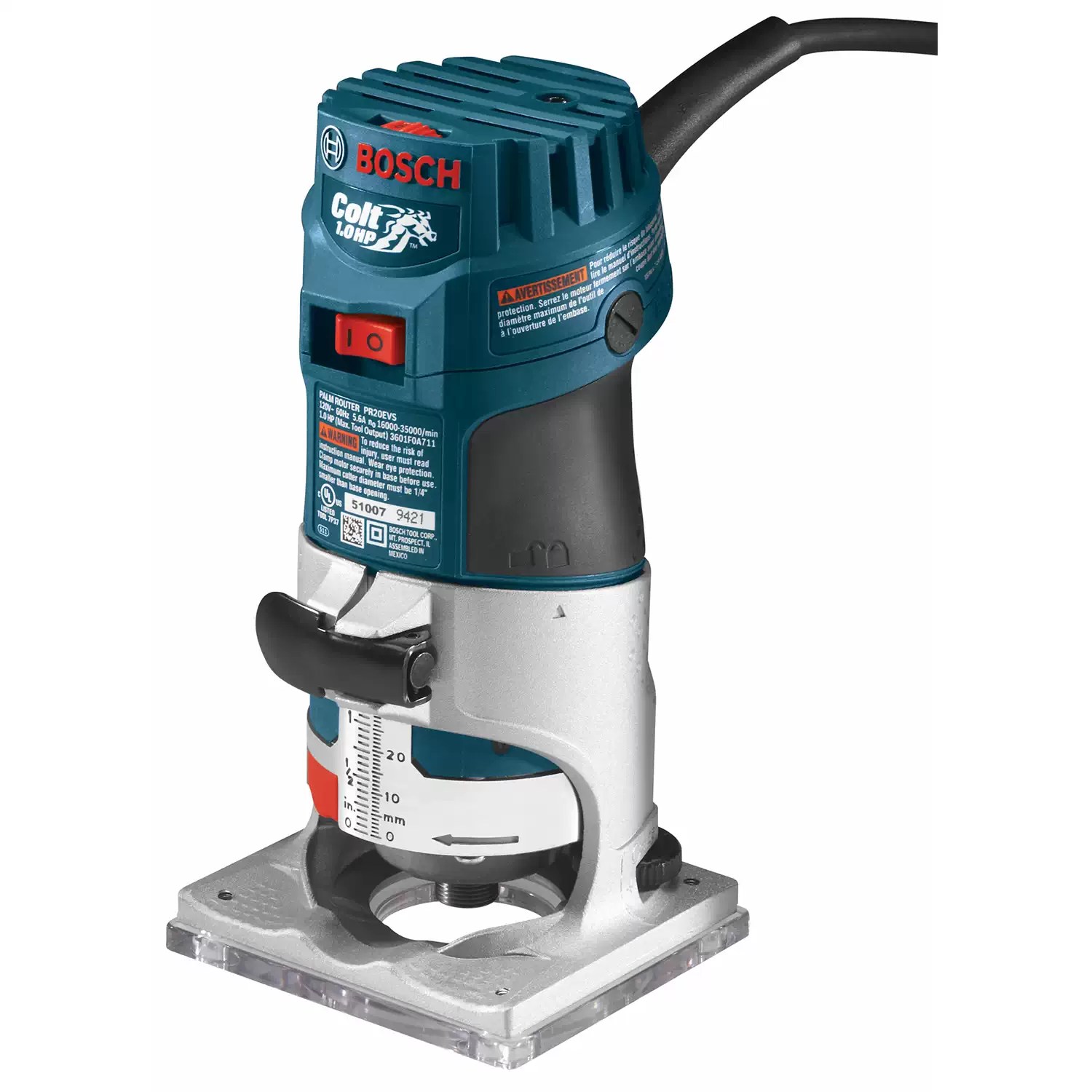

Bosch PR20EVS Corded 1HP Colt Electronic Variable-Speed Palm Router 120V 5.6A

The Bosch PR20EVS Colt is a corded 1 HP palm router with a 5.6 amp motor, variable speed from 16,000 to 35,000 RPM, and a durable aluminum fixed base for trimming, edge profiling, and detail routing. Designed for woodworking and laminate work, this Bosch palm router includes a 1/4 in. self-releasing collet chuck, fixed base, and wrenches for fast setup and precise depth adjustment.

The Bosch PR20EVS Colt is built for users who need routing control in a compact, easy-to-handle tool. Its 1 HP, 5.6 amp motor delivers variable speed from 16,000 to 35,000 RPM, allowing the user to match cutter speed to the bit and material. The top-mounted speed dial keeps adjustments accessible, while Constant Response circuitry helps the router maintain speed under load and soft-start circuitry reduces startup torque for smoother operation.

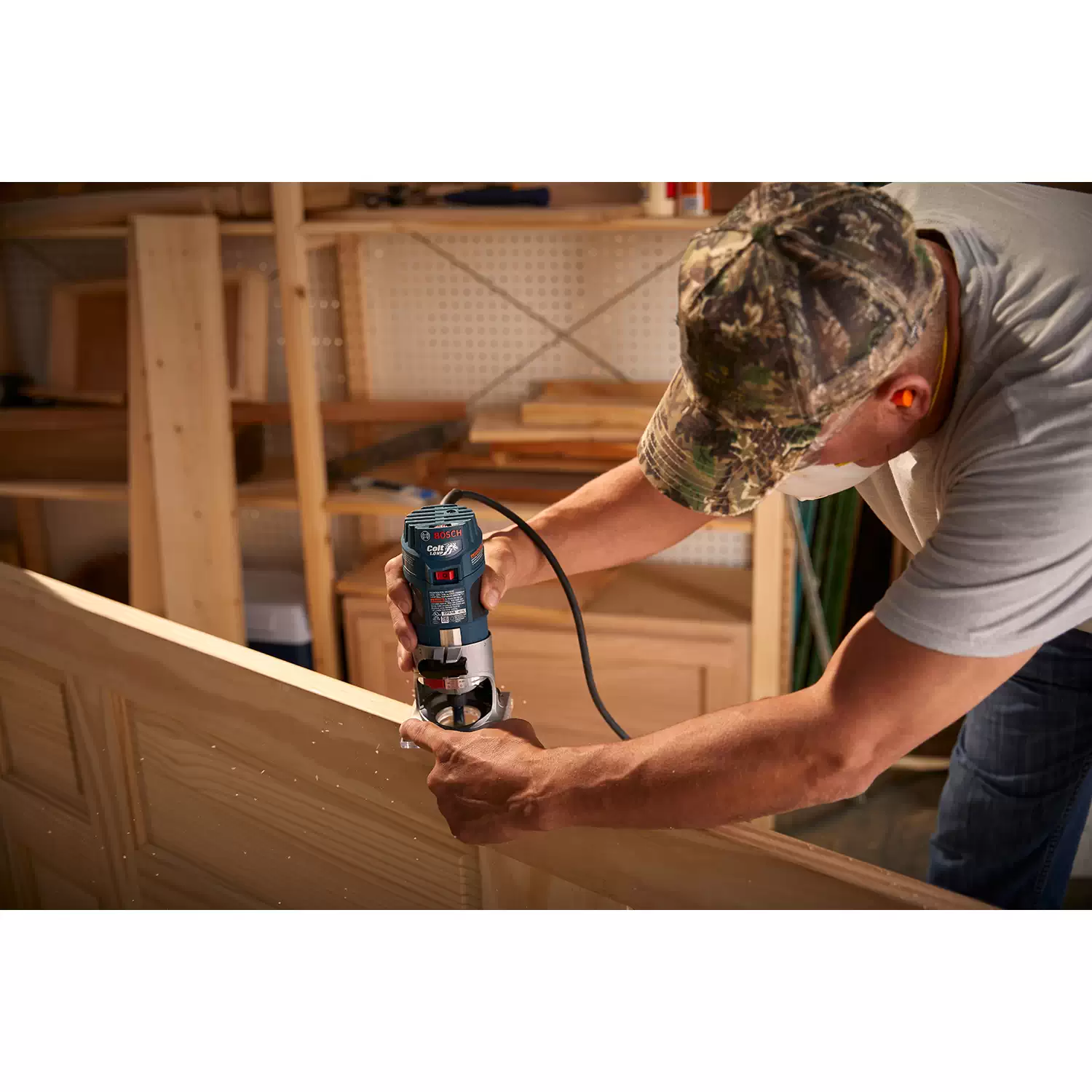

Bosch designed the PR20EVS for trimming, edge work, laminate tasks, and other detail routing applications where visibility and control matter. The router uses a rugged aluminum fixed base and a fast depth-adjustment system that supports both macro and microfine changes. Its palm-shaped motor housing with rubber over-molded grip and finger-support pockets helps improve control, especially during edge trimming. The fixed base accepts standard 1/4 in. router bits and supports cutters up to 1-5/16 in. in diameter.

Bosch 1HP Colt Electronic Variable-Speed Palm Router At a Glance

• 1 HP Motor: Provides compact routing power for trimming and detail work.
• 5.6 Amp Corded Performance: Delivers steady power for repeated shop or jobsite use.
• Variable Speed Dial: Adjusts from 16,000 to 35,000 RPM.
• Rugged Aluminum Fixed Base: Supports durability and cut control.

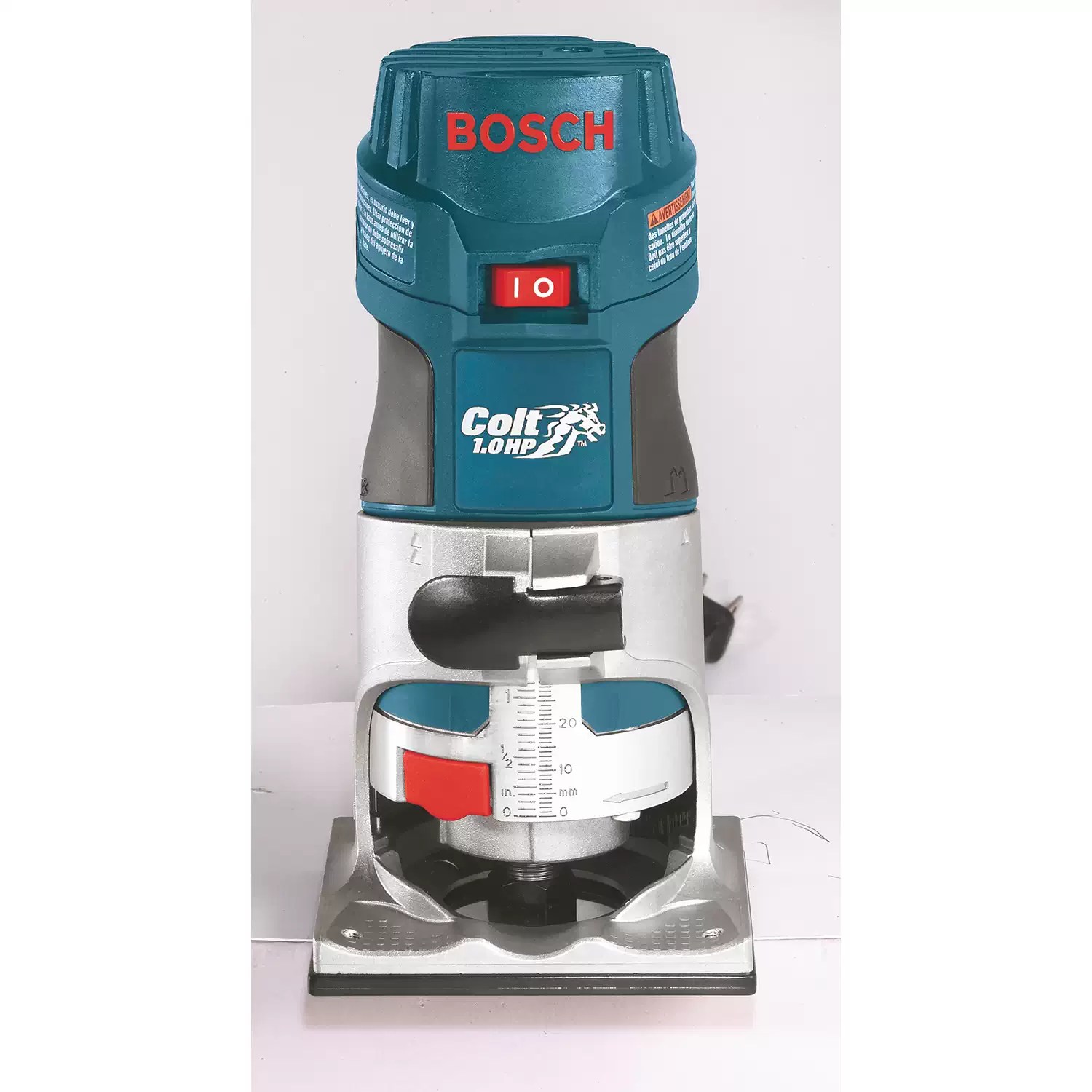

• Macro and Microfine Depth Adjustment: Allows quick setup and more precise routing changes.
• Constant Response Circuitry: Helps maintain speed under load.
• Soft-Start Circuitry: Reduces startup torque.

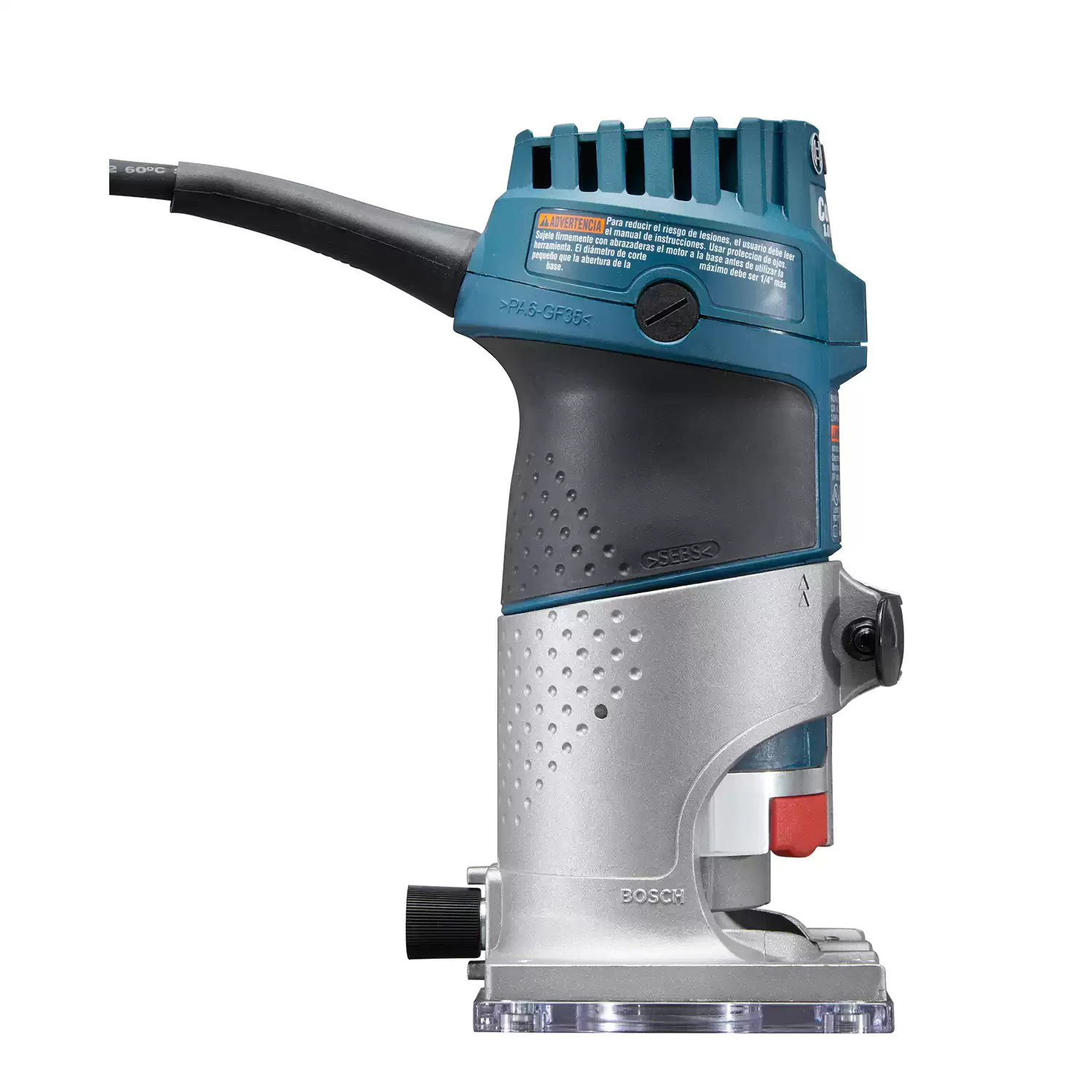

• Palm-Grip Body: Designed for comfort and control during edge work.
• 1/4 In. Collet Capacity: Fits standard 1/4 in. router bits.
• Quick-Clamp System: Lets the motor move easily between compatible bases.

Quick Specs

• Brand: Bosch
• Manufacturer Part Number: PR20EVS
• UPC: 000346471045
• Power Source: Corded
• Voltage: 120V
• Amperage: 5.6A
• Horsepower: 1 HP
• No-Load Speed: 16,000-35,000 RPM
• Collet Capacity: 1/4 in.
• Weight: 3.3 lb

Markets

• Finish Carpentry: Useful for trim routing, edge detailing, and light profiling.
• Cabinet and Millwork Shops: Good for laminate trimming and detail routing tasks.

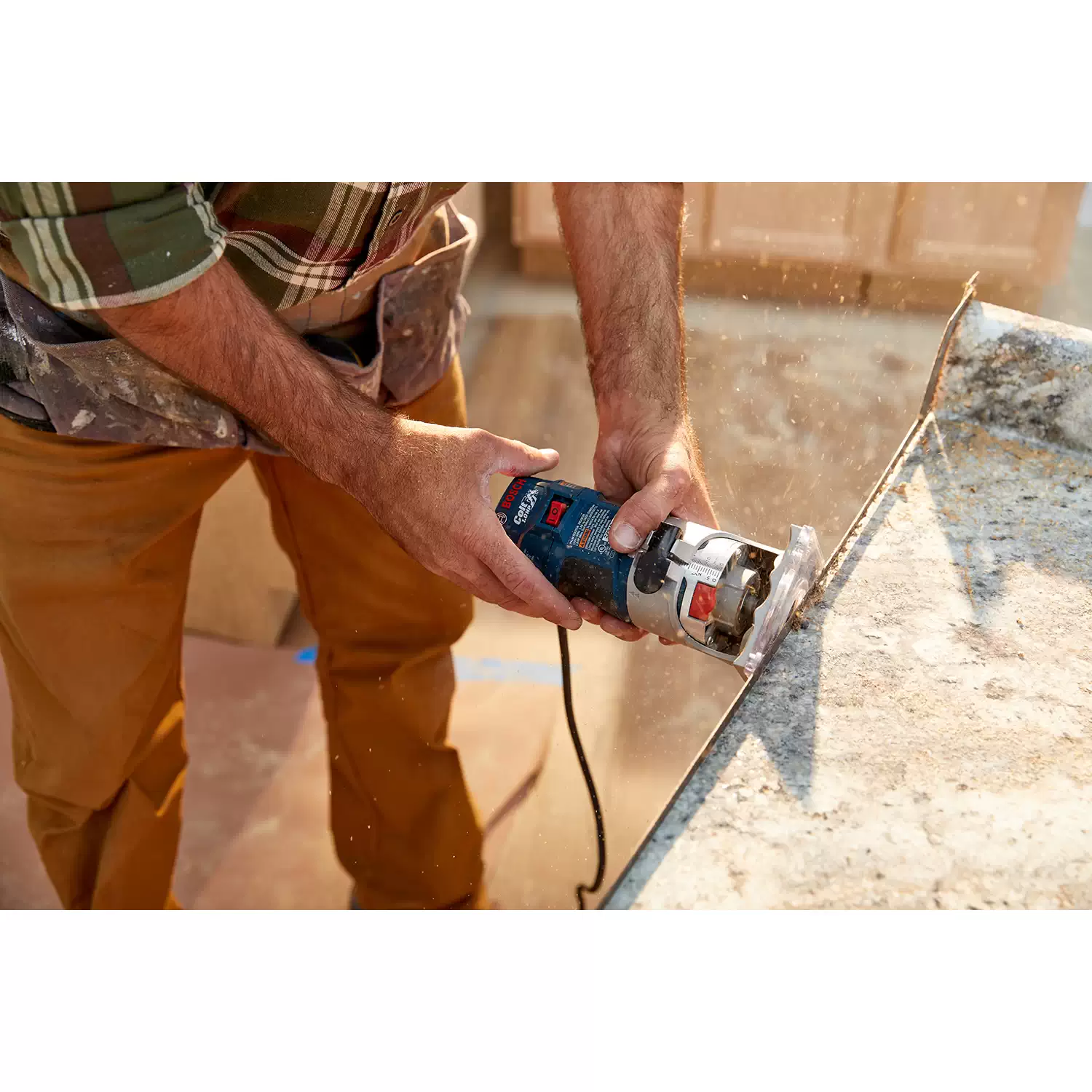

• Countertop and Laminate Work: Well suited for laminate trimming and finishing.
• Furniture and Custom Woodworking: Supports small-scale routing with strong hand control.
• Remodeling Contractors: Practical for punch-list routing and on-site adjustments.
• Sign and Detail Fabrication: Useful where compact size and clear bit control matter.
• Advanced DIY Woodworking: A good fit for users who want a professional palm router in a compact format.

The Bosch PR20EVS is a practical choice for buyers who want a compact corded palm router that still delivers precise depth control and variable-speed flexibility. Its small body and palm-grip design make it easier to guide along edges, laminates, and fine-detail cuts than a larger full-size router. That makes it a strong fit for trim carpenters, cabinet installers, shop users, and woodworkers who need a compact trim router that still feels solid in hand.

It also gives buyers room to expand the router beyond the included fixed base. Bosch lists compatibility with accessories such as plunge, offset, tilt, and guide attachments, so users can adapt the same motor for different routing tasks over time. For buyers searching for a Bosch Colt palm router with variable speed and 1/4 in. bit capacity, the PR20EVS remains a straightforward option for trim routing, laminate work, and detail applications.

Bosch PR20EVS Corded 1HP Colt Electronic Variable-Speed Palm Router 120V 5.6A Features

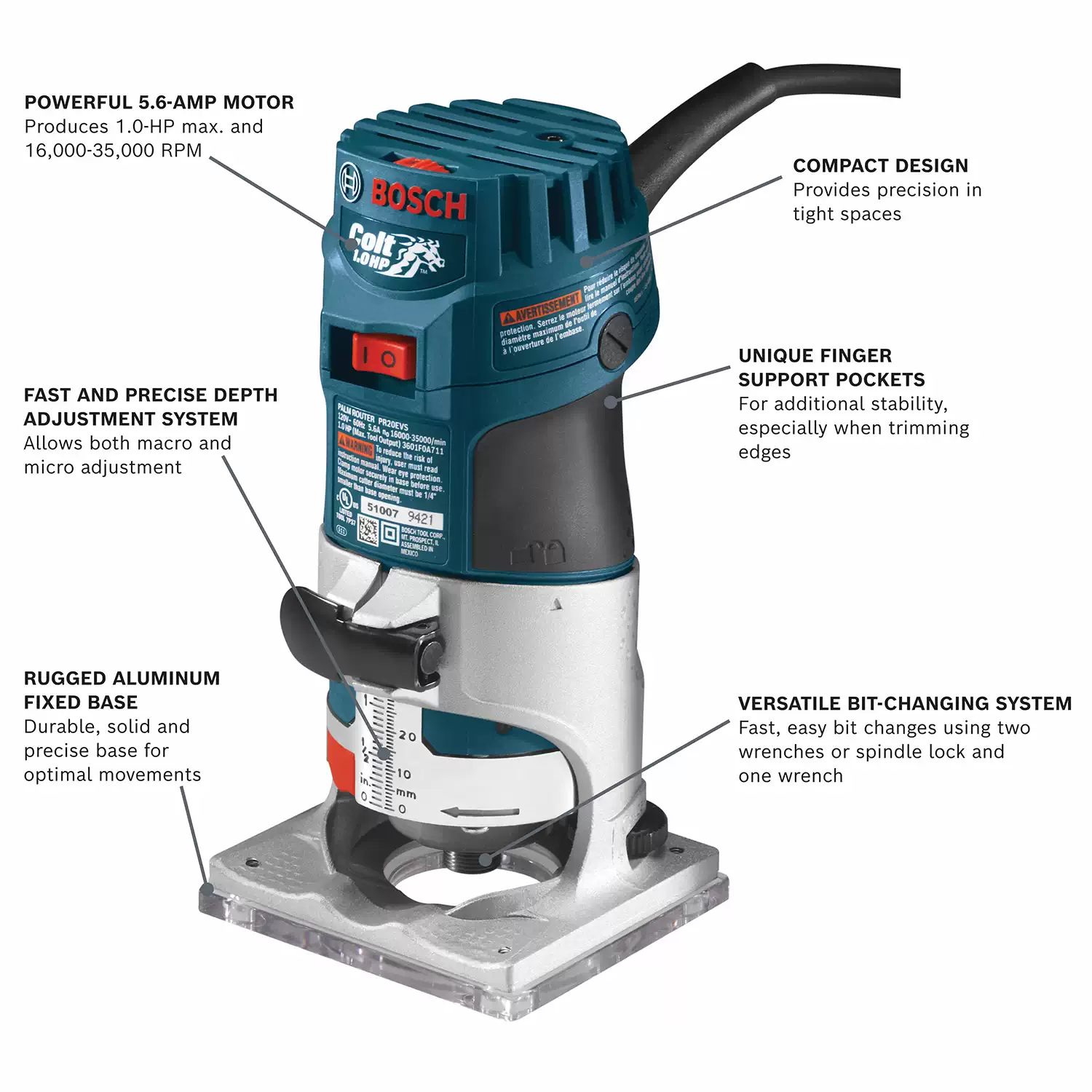

• Powerful 5.6 Amp motor – produces 1.0-hp max. and 16,000 to 35,000 RPM
• Rugged aluminum fixed base — durable, solid and precise
• Fast and precise depth adjustment system — allows both macro and micro adjustment

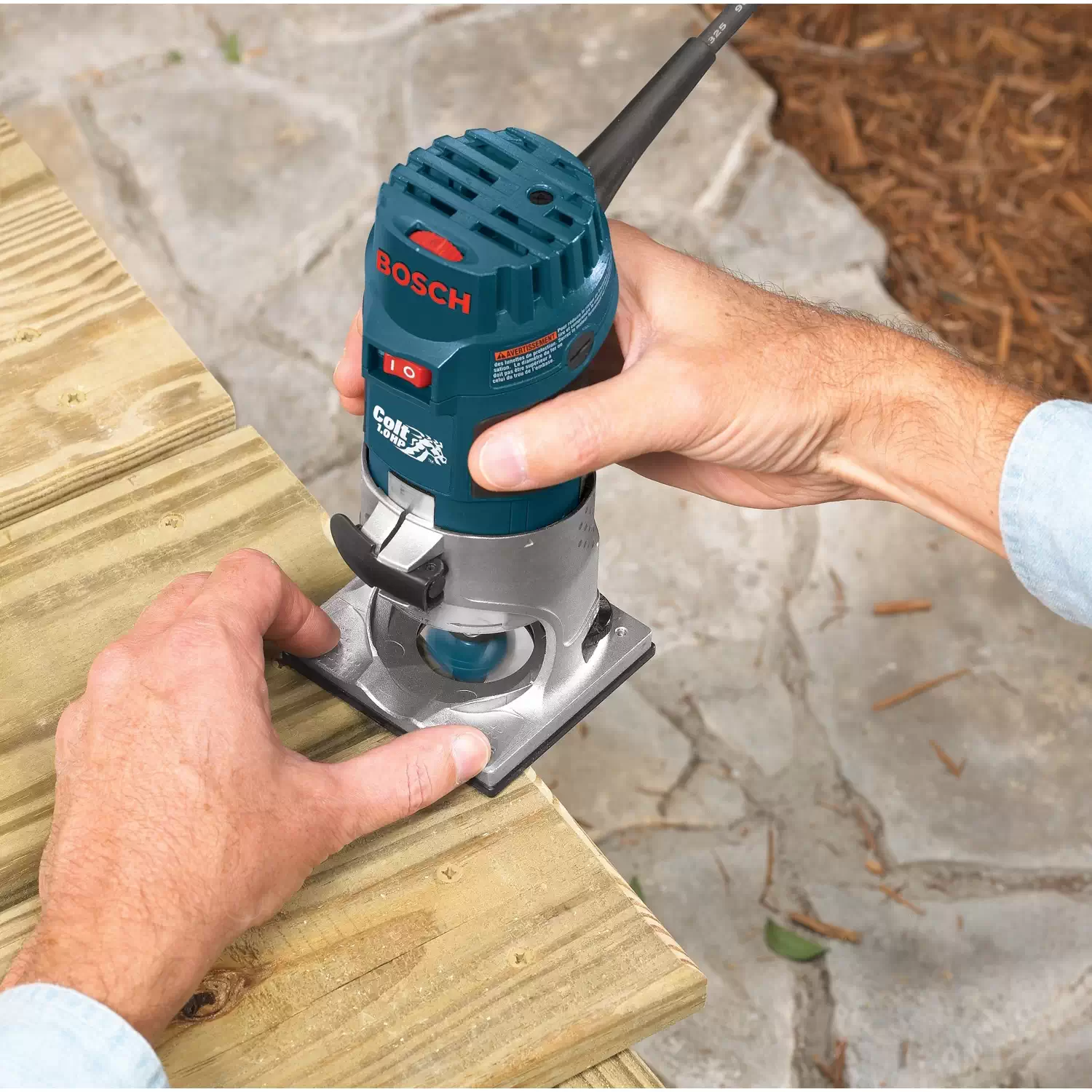

• Unique finger support pockets — for additional stability, especially when trimming edges

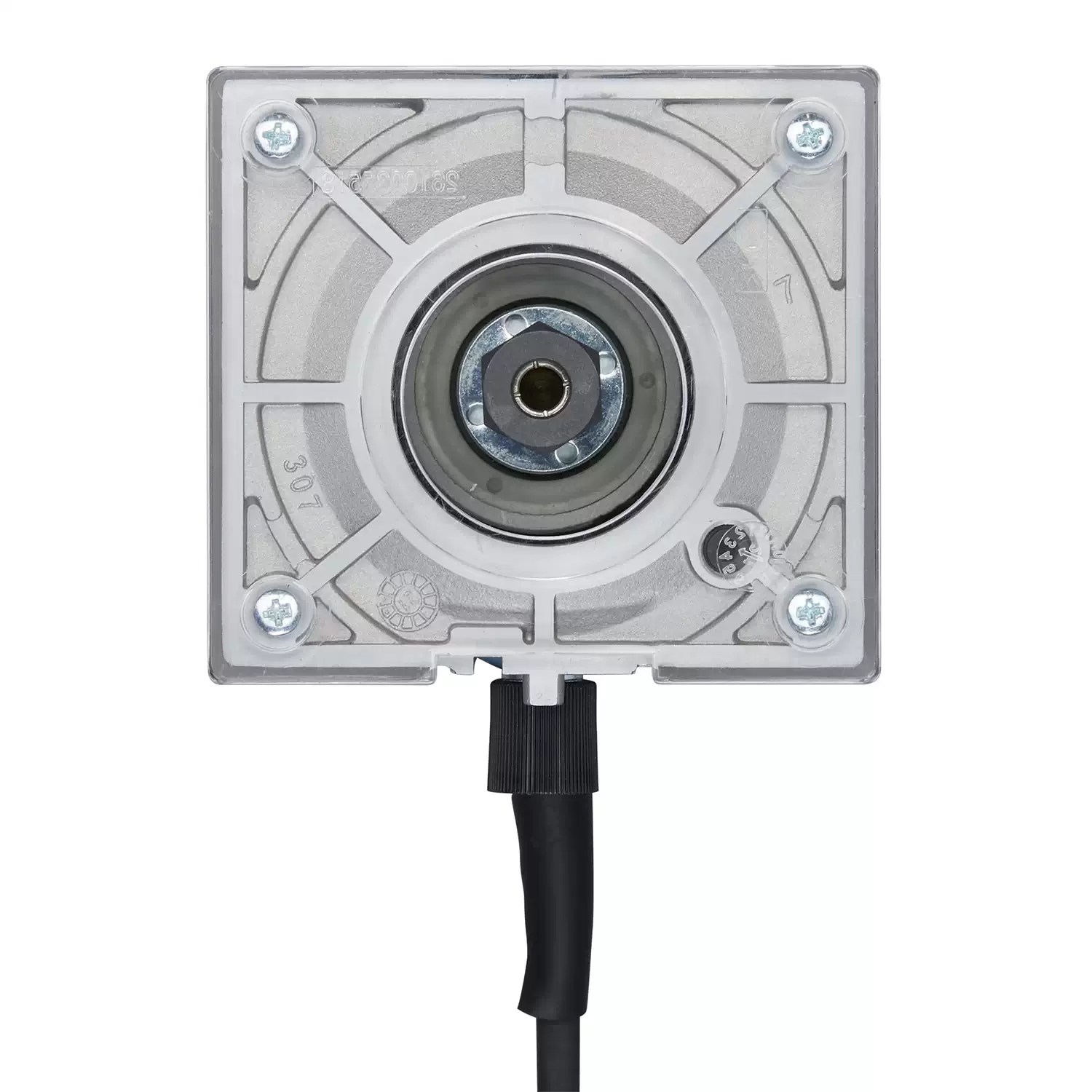

• Enhanced bit capacity — fixed base accepts bits up to 1-5/16 In. in diameter
• Soft-start circuitry — reduces start-up torque
• Constant Response circuitry — monitors and maintains speed under load for consistent performance
• Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench
• Quick-clamp system — allows motor to be easily adjusted or moved from base to base
• Palm-grip design with soft grip — the most comfortable router in its class
• Angled cord exit — helps keep cord out of the way
• Variable speed dial — for matching speed to workpiece and task

Compatible Accessories / Works Well With

• Bosch PR102 Edge Guide: Compatible with the PR20EVS.
• Bosch PR003 Roller Guide: Compatible with the PR20EVS for guided edge work.
• Bosch PR004 Offset Base: Expands access in tighter routing situations.
• Bosch PR005 Tilt Base: Supports angled routing applications.
• Bosch PR006 Underscribe Attachment: Works with the PR20EVS for scribing tasks.
• Bosch PR007 Side Handle Subbase and Dust Collection Attachment: Compatible with the PR20EVS.
• Bosch PR008 Plastic Cover for Fixed Base: Compatible with the fixed base setup.
• Bosch PR009 Subbase for RA-Series Template Guides: Compatible with PR20EVS and PR001 fixed base.
• Bosch PR110 Subbase for Threaded Template Guides:  Compatible with PR20EVS.
• Bosch PR011 Plunge Base: Compatibility with the PR20EVS motor.

Bosch PR20EVS Corded 1HP Colt Electronic Variable-Speed Palm Router 120V 5.6A Includes

• (1) PR20EVS Palm Router
• (1) PR001 Fixed Base
• (1) 1/4 In. Self-Releasing Collet Chuck
• (1) Shaft Wrench
• (1) Collet Wrench
• (1) Owner’s manual

Bosch PR20EVS Corded 1HP Colt Electronic Variable-Speed Palm Router 120V 5.6A Specifications

• Brand: Bosch
• Manufacturer Part Number: PR20EVS
• UPC: 000346471045
• Product Type: Corded palm router
• Product Line or Series: Colt
• Voltage: 120V
• Amperage: 5.6
• Max. Tool HP: 1
• No-Load Speed: 16,000-35,000 RPM
• Variable Speed: Yes
• Collet Capacity: 1/4 in.
• Base Opening: 1-9/16 in.
• Fixed-Base Depth Range: 1-3/16 in.
• Plunge Depth: 1-3/16 in.
• Max. Cutter Diameter: 1-5/16 in.
• Dust Collection: No
• Case Type: No Case Included
• Subbase Length: 3-1/2 in.
• Subbase Width: 3-3/4 in.
• Length: 3.5 in.
• Width: 3.75 in.
• Height: 7.5 in.
• Weight: 3.3 lb

Bosch PR20EVS Corded 1HP Colt Electronic Variable-Speed Palm Router 120V 5.6A Warranty

• Bosch’s 1-year Limited Warranty For Corded Portable Power Tools

Why Customers Choose the Bosch Corded 1HP Colt Electronic Variable-Speed Palm Router

Customers choose the Bosch PR20EVS because it combines compact size with the speed control and cut consistency needed for detail routing. For users doing laminate trimming, edge profiling, and light finish work, a palm router has to stay comfortable in hand while still delivering predictable bit speed, and the PR20EVS is built around that type of work. The variable-speed dial, Constant Response circuitry, and microfine adjustment system all support more controlled routing in visible finish applications.

It also stands out because the Bosch Colt platform can grow with the user. With compatible plunge, offset, tilt, and guide accessories, the PR20EVS can handle more than simple trim routing. For buyers searching for a trim router, laminate trimmer, or compact Bosch palm router, this model remains a practical choice for shop work, installation, and detailed woodworking.
