Bosch MRC23EVSK Corded 2.3 HP Electronic Modular Router Combo Kit (1) Fixed Base (1) Plunge Base, 120V 15A

The Bosch JS470E is a professional 120V top-handle jig saw with a 7.0 amp motor, variable-speed control, 500 to 3,100 SPM, and four orbital-action settings for clean or aggressive cuts. Built for finish carpentry, kitchen and bath installation, and general woodworking, this corded jig saw includes a carrying case, anti-splinter insert, non-marring overshoe, bevel wrench, and T-shank blade.

The Bosch JS470E is built for users who need precise curve-cutting, controlled plunge cutting, and smooth handling in a corded jig saw. Its 7.0 amp motor, variable-speed trigger, and rear speed dial allow the user to match blade speed to the material and cut style. With a no-load speed range of 500 to 3,100 strokes per minute and four orbital-action settings, the saw can be adjusted for smoother finish cuts or faster, more aggressive material removal.

Bosch designed the JS470E with features that matter on finish work and installation jobs. The precision-machined plunging system and low-vibration design help improve cut accuracy, while Constant Response circuitry helps maintain speed under load. The tool also includes a large die-cast aluminum footplate with steel insert, a multi-directional blade clamp for T-shank blades, a toolless blade-change system with blade ejection lever, and a dust blower with on/off control for better cut-line visibility.

Bosch 2.3 HP Electronic Modular Router Combo Kit At a Glance

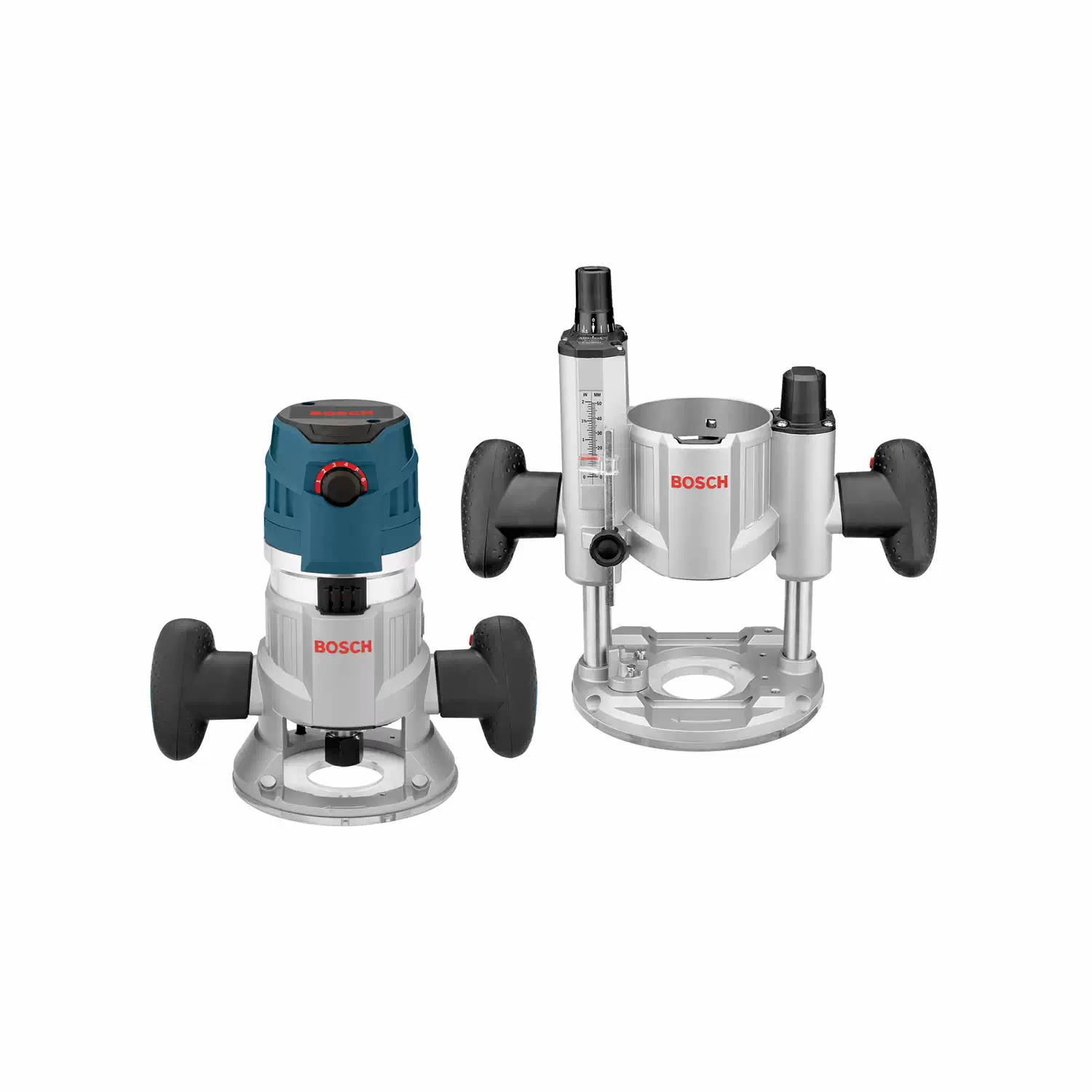

• 2.3 HP Modular Router System: Includes one motor with both fixed and plunge bases.
• 15 Amp Motor: Delivers strong corded routing power for demanding work.
• Variable Speed: Adjustable from 10,000 to 25,000 RPM to match bit and material.
• Fixed and Plunge Base Included: Gives users more flexibility for shop and field routing tasks.
• Microfine Depth Adjustment: Supports more precise setup in both bases.
• Trigger-Control System: Places the power switch in the handle for added control.
• Constant Response Circuitry: Helps keep speed more consistent under load.
• Soft-Start Function: Reduces startup torque.
• Always-On LED Lighting: Improves visibility at the bit area.
• Router-Table Ready Fixed Base: Includes threaded mounting holes in a common three-hole pattern.

Quick Specs

• Brand: Bosch
• Manufacturer Part Number: MRC23EVSK
• UPC: 000346391503
• Power Source: Corded
• Voltage: 120V
• Amperage: 15A
• Horsepower Rating: 2.3 HP
• No-Load Speed: 10,000-25,000 RPM
• Collet Capacity: 1/4 in., 3/8 in., 1/2 in., 8 mm
• Weight: 12.6 lb

Markets

• Finish Carpentry: Useful for trim shaping, edge work, and detail routing.
• Cabinet and Millwork Shops: Supports dadoes, profiling, template work, and repeat cuts.
• Furniture Manufacturing: Practical for joinery, edge treatment, and guided cuts.
• Remodeling Contractors: Covers both handheld plunge routing and fixed-base work.
• Custom Fabrication Shops: Useful where bit changes, depth control, and routing flexibility matter.
• Educational Woodshops: A good fit for training environments that need both base styles in one kit.
• Advanced DIY Workshops: Suitable for serious woodworkers who want one router system for multiple applications.

The Bosch MRC23EVSK is a practical choice for buyers who want one corded router system that can move between handheld routing, plunge work, and router-table setups without requiring separate motors. By combining the MR23EVS motor with both a fixed base and a plunge base, Bosch gives users a more flexible setup for profiling edges, cutting grooves, making plunge cuts, and following templates. That makes the kit especially useful for woodworkers, finish carpenters, cabinet shops, and remodeling professionals who need a router that can handle more than one type of task.

It also includes the setup details many buyers look for in a professional router combo kit: trigger-handle control, microfine depth adjustment, soft-start, Constant Response circuitry, and table-mounting support in the fixed base. For buyers searching for a Bosch fixed-base and plunge router combo with 2.3 HP output and variable speed, the MRC23EVSK remains a strong fit for shop accuracy and jobsite versatility.

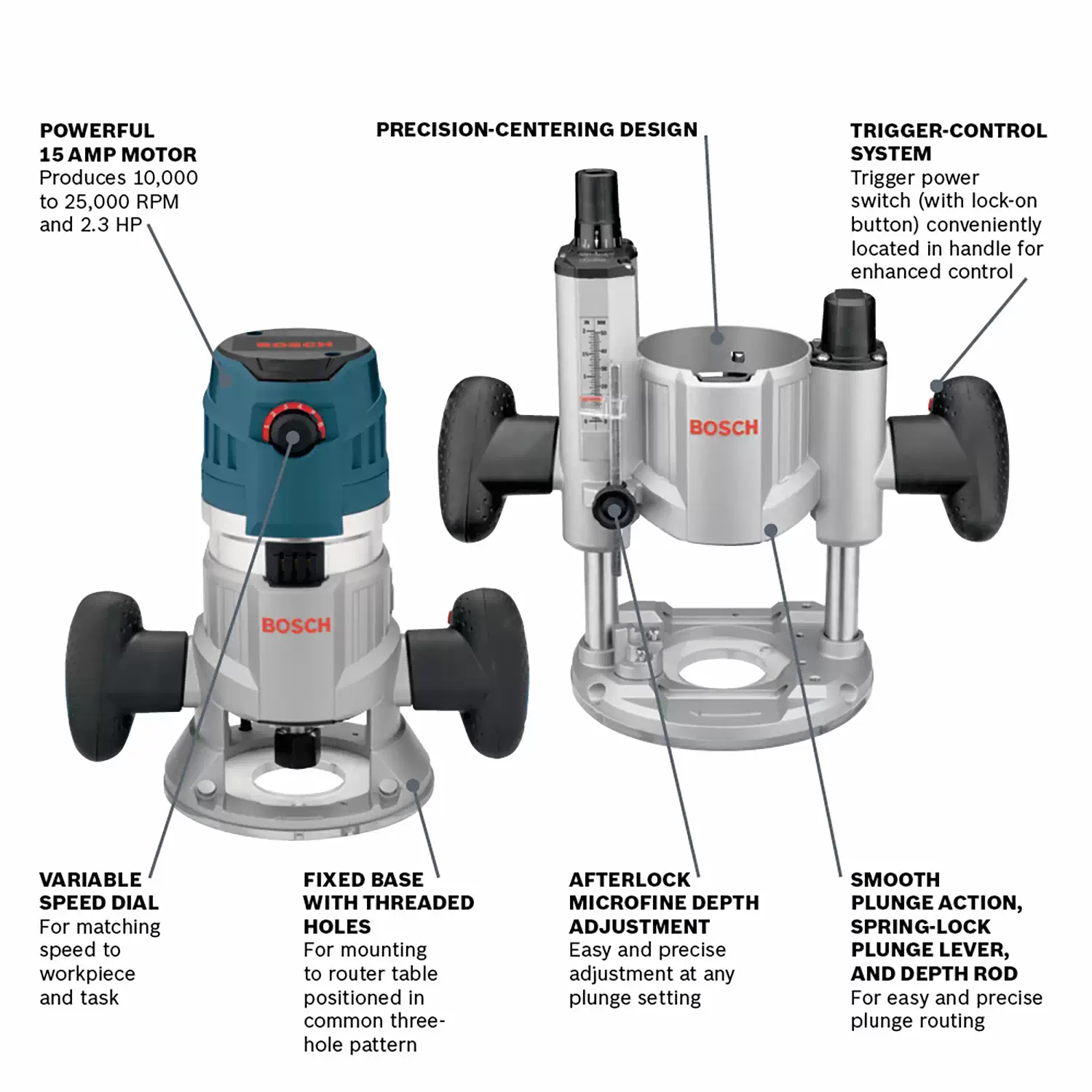

Bosch MRC23EVSK Corded 2.3 HP Electronic Modular Router Combo Kit (1) Fixed Base (1) Plunge Base, 120V 15A Features

• Trigger-control system – trigger power switch located in handle for enhanced control
• Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
• Precision-centering design – makes it easy to keep bit on cut line

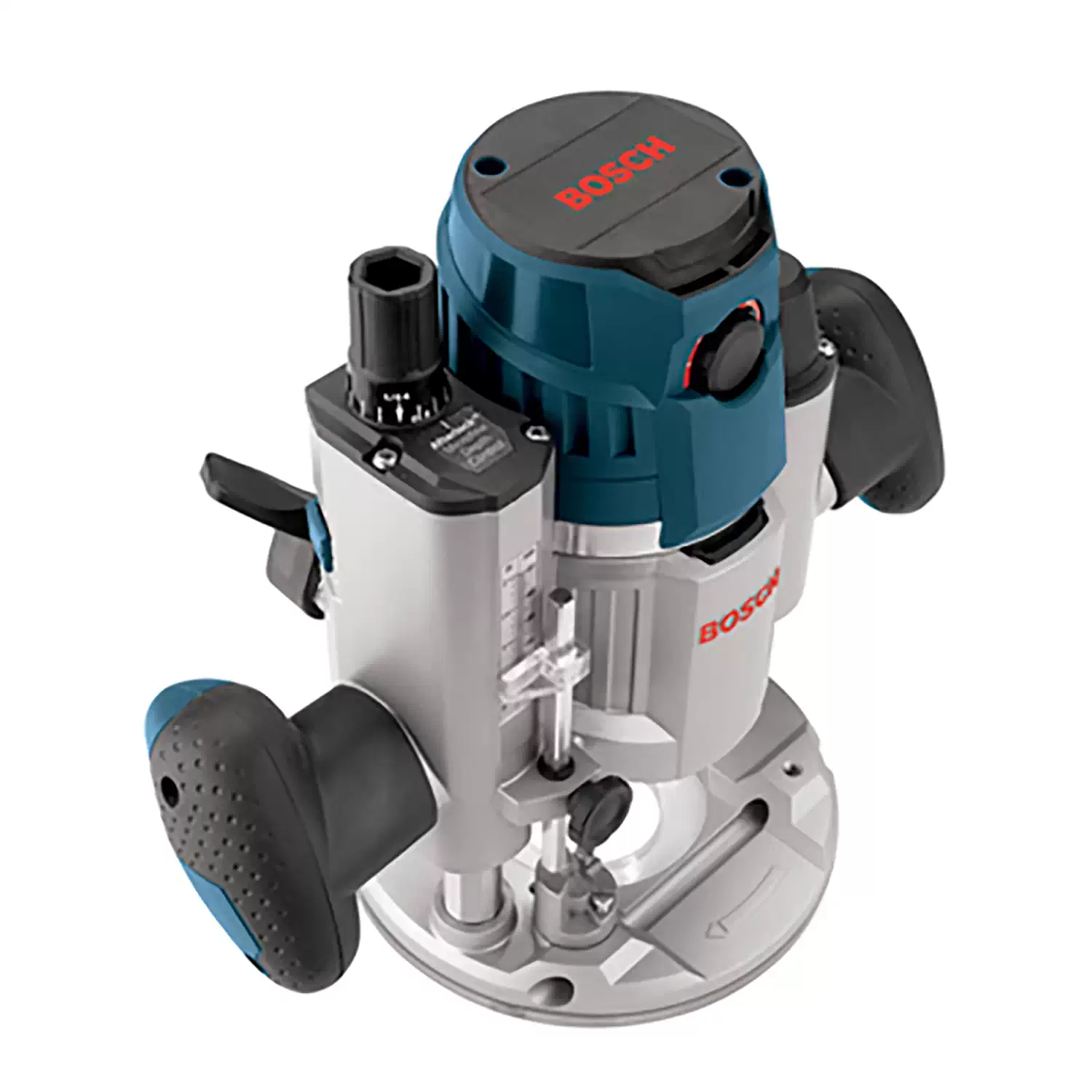

• Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting

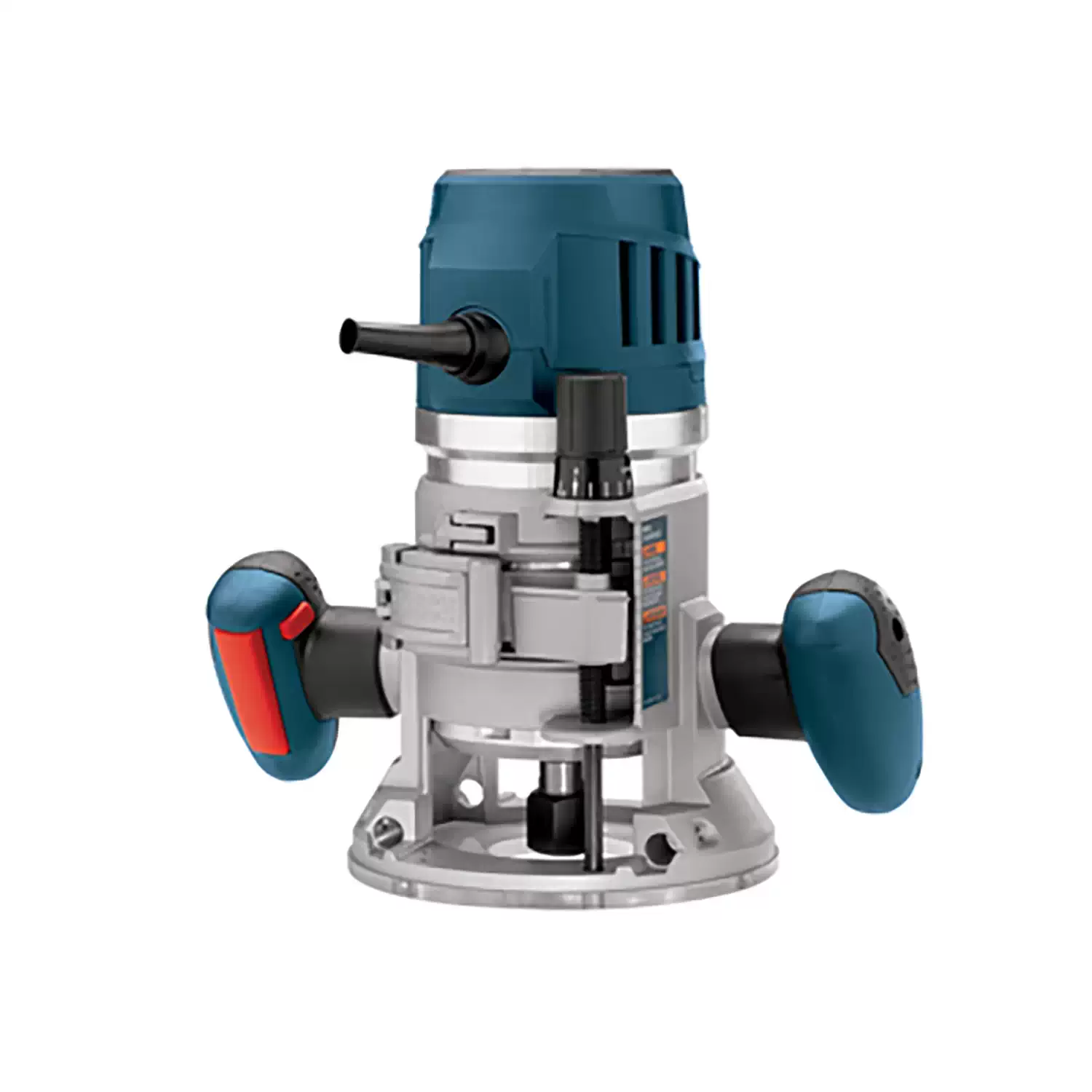

• Versatile fixed-base depth adjustment – features 1-5/8 In. continuous microfine adjustment range
• Above-table depth adjustment when fixed base is installed in router table
• Constant Response circuitry – maintains constant speed under load
• Soft-start function – reduces start-up torque
• Always-on LED lighting – for enhanced visibility in bit area
• Two-stage quick clamp system – for fast tool-free conversion
• Variable speed dial – for matching speed to workpiece and task
• Contoured soft grip handles – for enhanced control and comfort
• Fixed base has threaded holes for mounting to router table positioned in common three-hole pattern
• Cord swivel – for added mobility
• Rugged carrying case has compartments for all included items
• Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides

Compatible Accessories / Works Well With

• Bosch RA1171 Cabinet-Style Router Table: Router table system.
• Bosch RA1181 Router Table: Router table system
• Bosch RA1152 Offset Bit-Change Wrench Set: Wrench set.
• Bosch RA1054 Router Guide: Router guide.
• Bosch RA1128 Template Guide Set: Template-guided routing applications.
• Bosch RA1129 Template Guide Adapter Set: Template guide adapter set
• Bosch RA1051 Centering Device: Works with subbases and attached template guides.
• Bosch RA1175 Edge-Forming Dust Hood: Dust collection attachment
• Bosch RA1177AT Three-Hood Dust Hood Set: Dust hood set

Bosch MRC23EVSK Corded 2.3 HP Electronic Modular Router Combo Kit (1) Fixed Base (1) Plunge Base, 120V 15A Includes

• (1) Motor

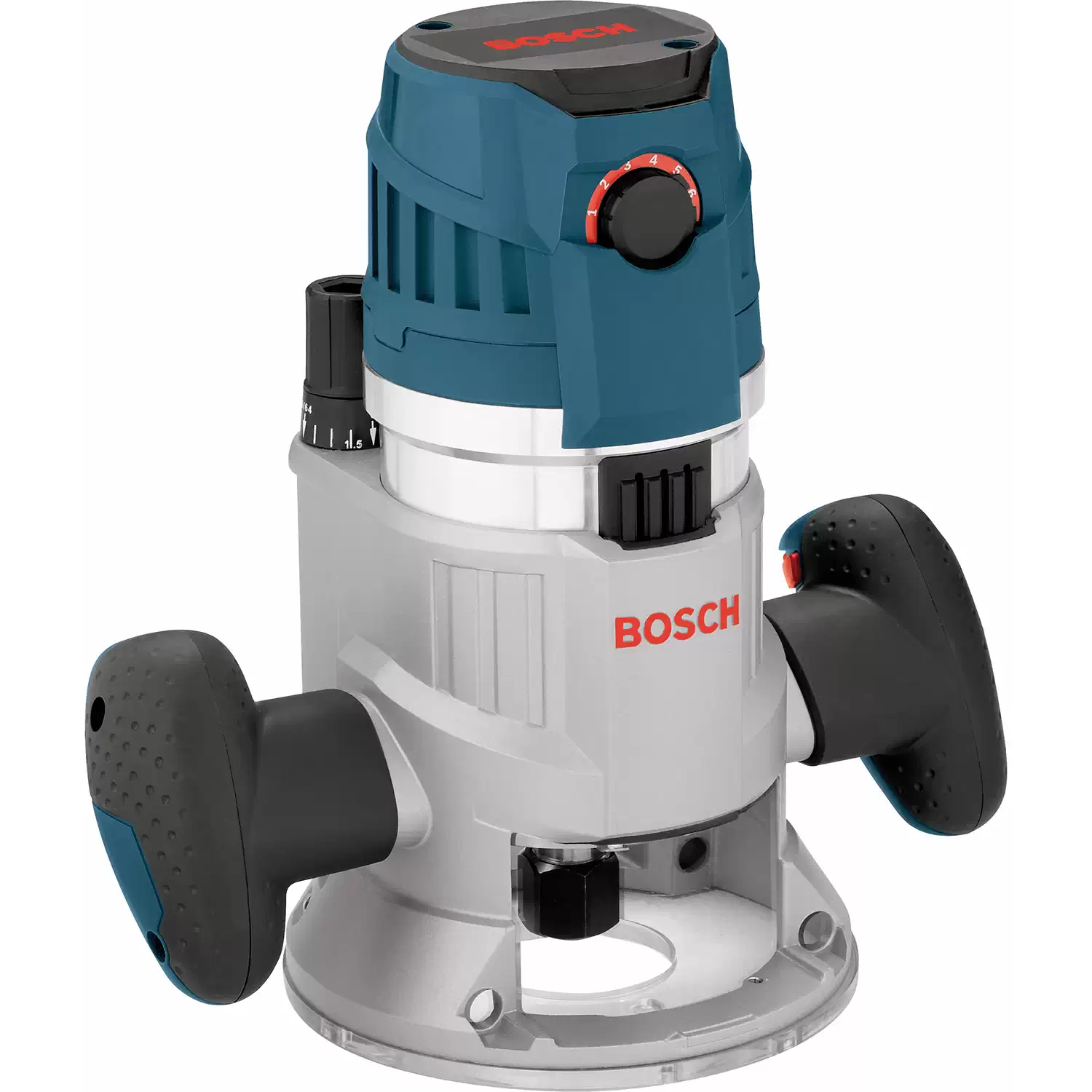

• (1) Fixed Base, MRF01
• (1) Plunge Base, MRP01
• (1) 1/4 in. Self-Releasing Collet Chuck, 2 610 906 283
• (1) 1/2 in. Self-Releasing Collet Chuck, 2 610 906 284
• (1) 16 mm Shaft Wrench, 2 610 991 388
• (1) 24 mm Collet Nut Wrench, 2 610 992 417
• (1) T-Handle Hex Height Adjustment Wrench, 2610923193
• (1) Carrying Case, 2 610 004 484
• (1) Pack of 3 M4 Screws for Table Mounting, 2610005966
• (1) Owner’s manual

Bosch MRC23EVSK Corded 2.3 HP Electronic Modular Router Combo Kit (1) Fixed Base (1) Plunge Base, 120V 15A Specifications

• Brand: Bosch
• Manufacturer Part Number: MRC23EVSK
• UPC: 000346391503
• Product Type: Corded modular router combo kit
• Product Line or Series: Electronic Modular Router System
• Voltage: 120V
• Amperage: 15
• Horsepower Rating: 2.3
• No-Load Speed: 10,000-25,000 RPM
• Variable Speed: Yes
• Collet Capacity: 1/4 in., 3/8 in., 1/2 in., 8 mm
• Base Diameter: 6 in. fixed / 7 in. plunge
• Fixed-Base Depth Range: 1-5/8 in.

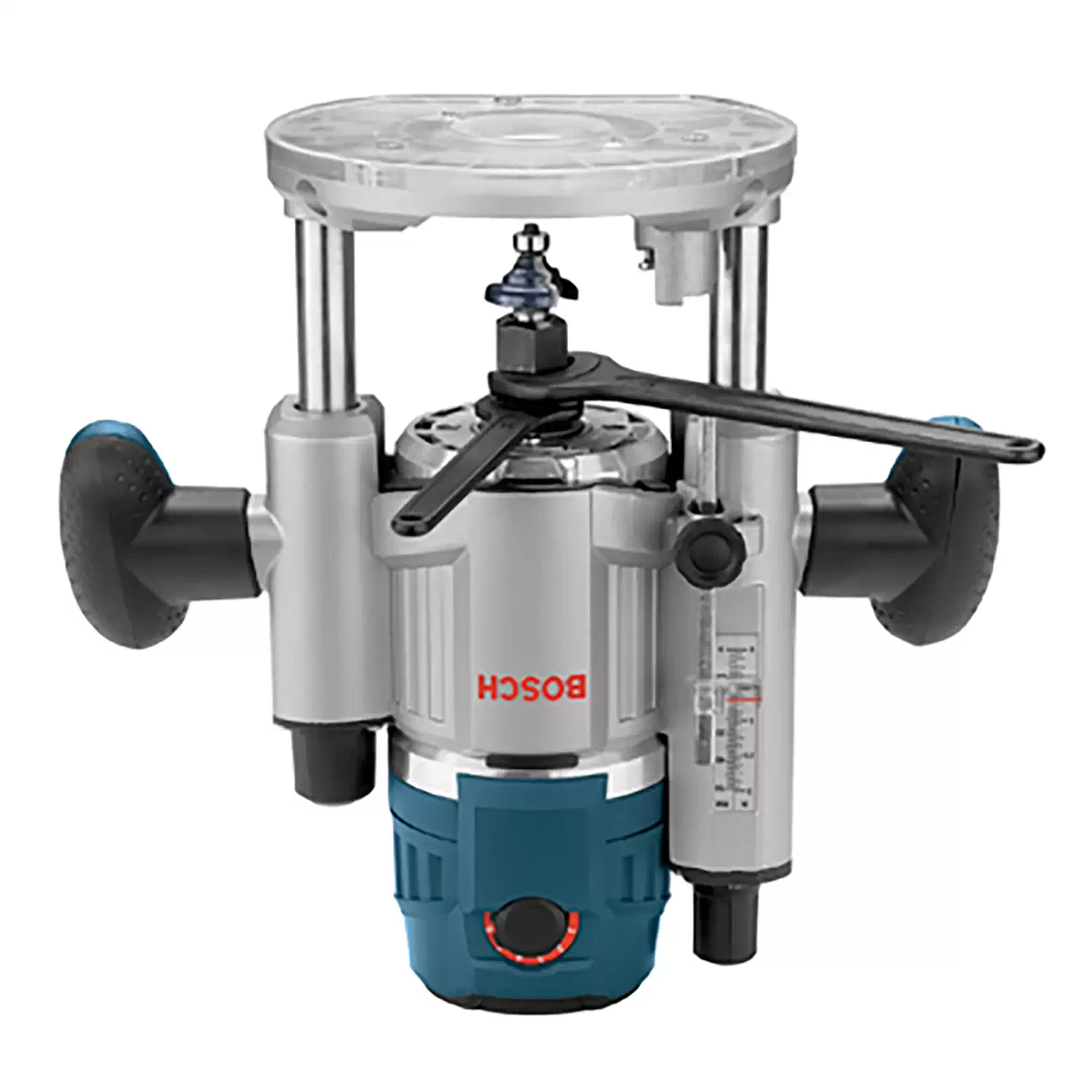

• Plunge Depth: 3 in. (75 mm)
• Subbase Opening: 2 in.
• Dust Collection: No
• Case Type: Hard plastic
• Length: 6.75 in.
• Width: 12.6 in.
• Height: 9.5 in.
• Weight: 12.6 lb

Bosch MRC23EVSK Corded 2.3 HP Electronic Modular Router Combo Kit (1) Fixed Base (1) Plunge Base, 120V 15A Warranty

• Bosch’s 1-year Limited Warranty For Corded Portable Power Tools

Why Customers Choose the Bosch Corded 2.3 HP Electronic Modular Router Combo Kit

Customers choose the Bosch MRC23EVSK because it gives them both fixed-base and plunge-base routing in one system without giving up the control features expected in a professional corded router. The combination of a 15 amp motor, variable speed, soft-start, and Constant Response circuitry makes it suitable for a wide range of routing tasks, from edge profiling and template work to groove cutting and plunge applications. For buyers who want a router that can move from bench work to handheld use and into a router table, this modular design is a major advantage.

It also appeals to users who want setup precision rather than just raw power. Microfine depth adjustment in both bases, handle-based trigger control, and compatibility with router tables and template guide systems make it a practical fit for cabinetry, finish work, furniture making, and general woodworking. For anyone searching for a Bosch router combo kit with fixed and plunge bases, the MRC23EVSK covers a broad range of routing needs in one case.
