Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit – Accuracy ±1/16″ at 100′

The Bosch GRL2000-40HVK REVOLVE2000 rotary laser kit is built for indoor and outdoor leveling, alignment, and grading work. With manual dual slope, self-leveling horizontal and vertical operation, ±1/16″ accuracy at 100 ft., and up to a 2,000 ft. range with receiver, it gives contractors a complete rotary laser level kit for layout and site work.

The Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit is designed for contractors and layout crews who need a complete solution for precise leveling and alignment on the jobsite. This rotary laser features horizontal and vertical self-leveling operation for layout, squaring, and plumb applications, while Manual Dual Slope allows the user to adjust slope angles on both the X- and Y-axes for grading and site work. Bosch rates the tool at ±1/16″ accuracy at 100 ft., and with the included LR20 receiver, it provides a working range of up to 2,000 ft. for large indoor and outdoor jobs.

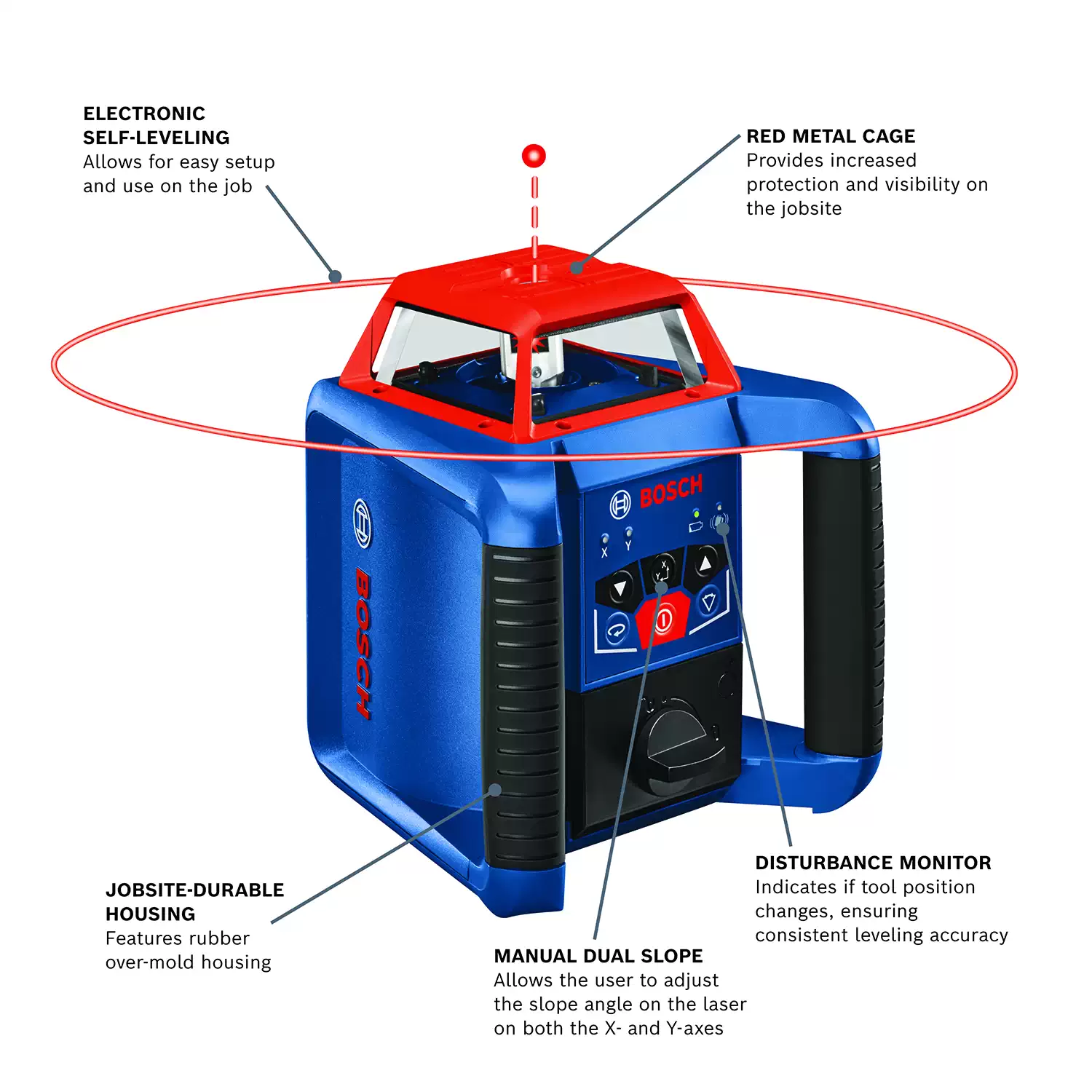

This kit is built for field use with an electronic self-leveling system, a disturbance monitor that alerts users if the tool position changes, and a durable red metal cage for jobsite protection. The GRL2000-40HVK also includes an all-in-one hard carrying case designed to hold the included accessories, making transport and storage easier for crews moving between jobs. With the LR20 receiver and bracket, tripod, grade rod, remote control, wall mount, batteries, and accessories included, it gives users a complete rotary laser setup for leveling and grading work.

Bosch REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit At a Glance

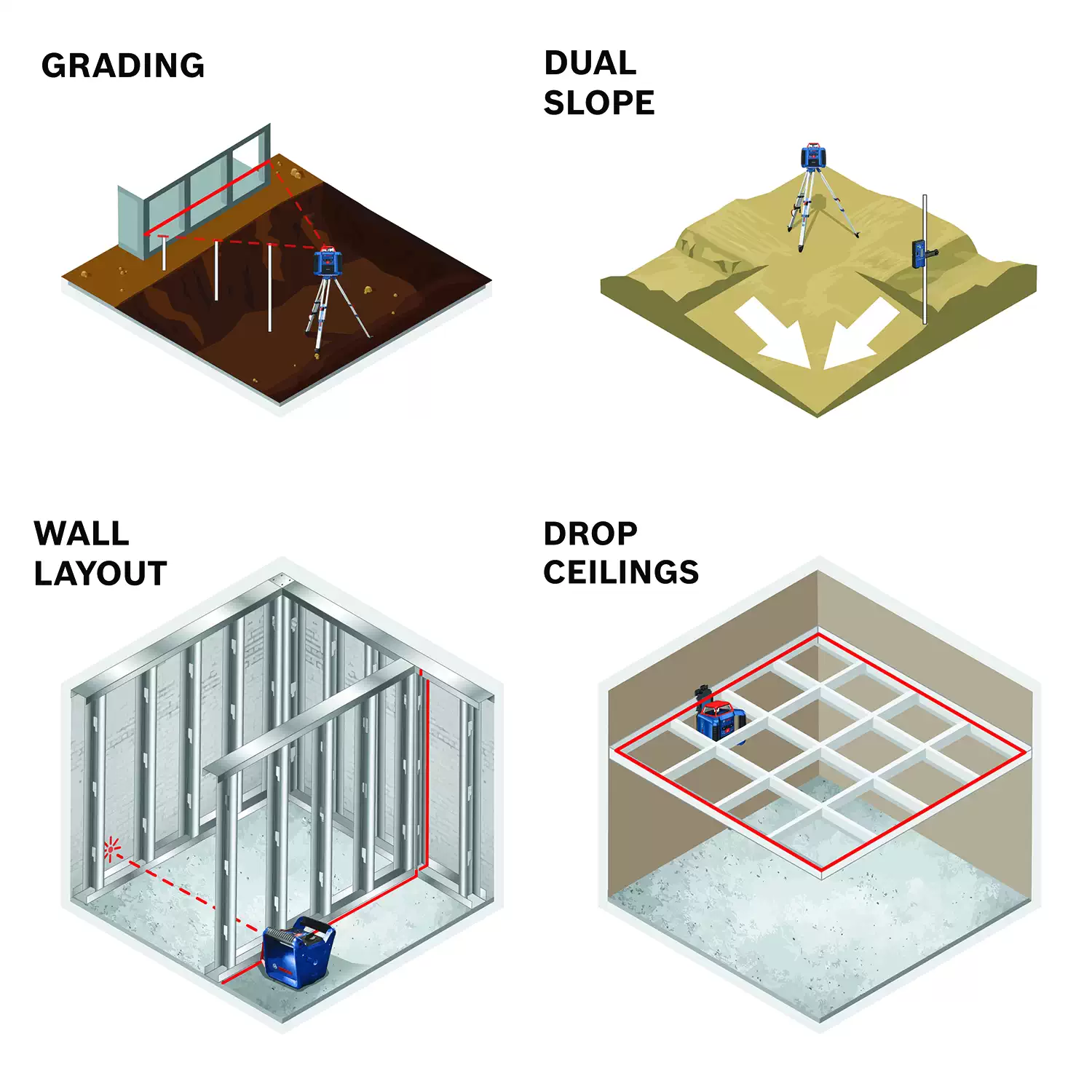

• Manual Dual Slope: Allows slope adjustment on both the X- and Y-axes for grading and alignment work.
• ±1/16″ Accuracy at 100 Ft.: Delivers precise jobsite measurements for layout and leveling.
• Up to 2,000 Ft. Range with Receiver: Supports long-range outdoor and indoor applications.
• Horizontal and Vertical Self-Leveling: Handles leveling, alignment, squaring, and plumb tasks.

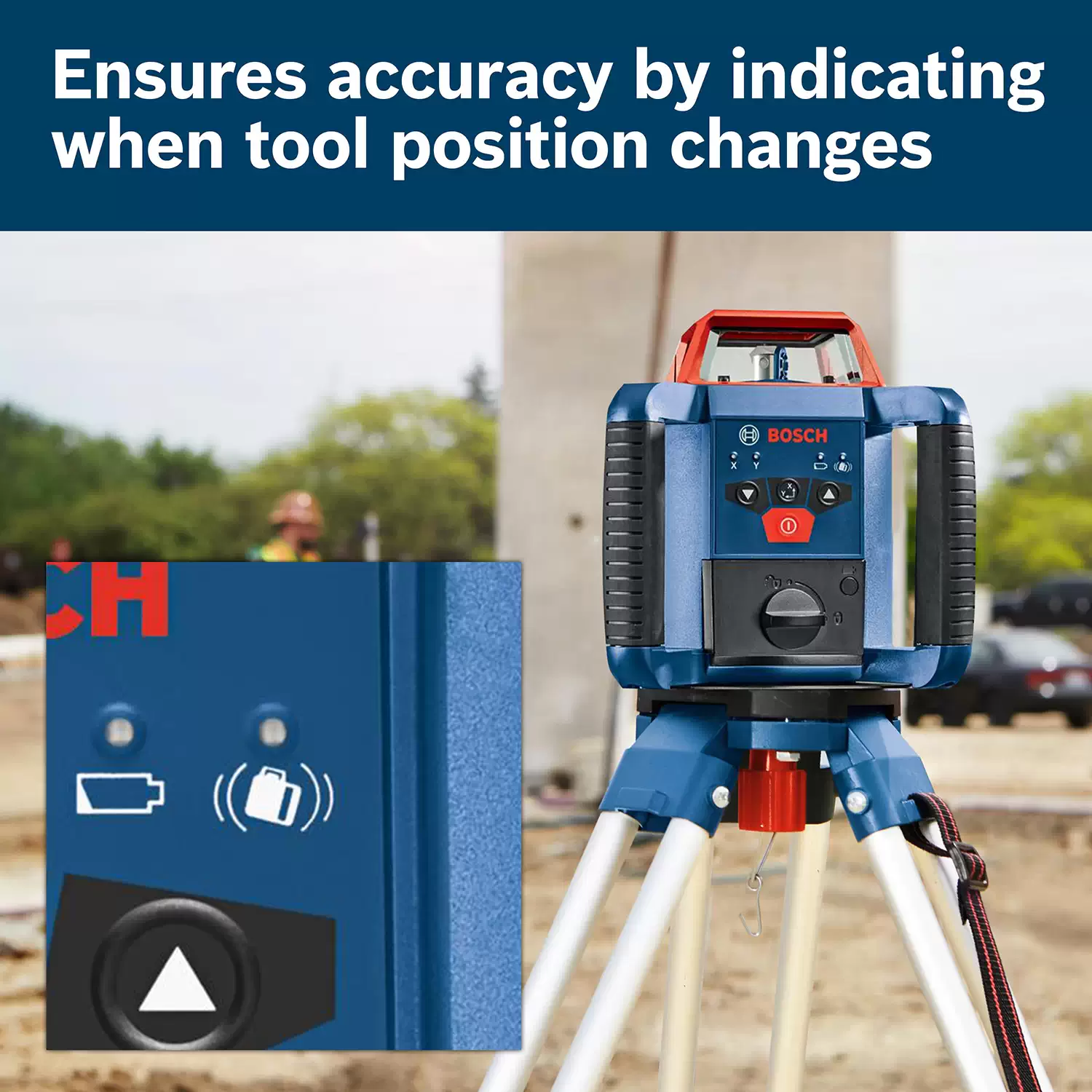

• Disturbance Monitor: Indicates if the tool position changes to help maintain accuracy.
• Vertical Beam Functionality: Provides a vertical beam and 90° point for layout and plumb applications.
• All-In-One Hard Carrying Case: Stores the laser and key accessories in one organized case.
• IP56 Rated Design: Built for jobsite durability against dust and water exposure.

Quick Specs

• Brand: Bosch Power Tools
• Manufacturer Part Number: GRL2000-40HVK
• UPC: 000346643060
• Product Type: Self-Leveling Horizontal / Vertical Rotary Laser Kit
• Laser Beam Color: Red
• Accuracy: ±1/16″ at 100 ft.
• Range: Up to 2,000 ft. with receiver
• Leveling Type: Self-Leveling, up to 5°
• Laser Diode: Class 3R, <5mW @ 630 ~ 670 nm
• IP Rating: IP56
• Mount Threading: 5/8-11
• Tool Weight: 3.9 lb

Markets

• Concrete and Site Prep Contractors: Useful for grading, excavation layout, and foundation reference work.
• General Construction Crews: Supports framing layout, elevation transfer, and alignment across large jobsites.
• Landscape and Hardscape Contractors: Helps with slope work, retaining walls, drainage layout, and outdoor grading.
• Municipal Workers: Practical for public works layout, roadwork preparation, and infrastructure measurement tasks.
• Civil Engineering and Survey Support Crews: Useful for site control, leveling checks, and long-range reference work.
• Agricultural and Land Improvement Contractors: Suitable for land leveling, irrigation layout, and site planning.
• Trade Schools and Training Programs: Supports instruction in rotary laser setup, grading, and layout practices.

For crews that need more range and tighter accuracy than an entry-level rotary laser can provide, the Bosch GRL2000-40HVK offers a complete jobsite-ready solution. Its manual dual slope capability makes it especially useful for grading and drainage work, while the horizontal and vertical self-leveling operation supports alignment and layout across a wide range of construction tasks. Because the kit includes the receiver, remote, tripod, grade rod, and wall mount, users can put it to work right out of the case.

Contractors and municipal crews will also appreciate the practical design details. The disturbance monitor helps protect setup accuracy if the unit is bumped, and the all-in-one hard carrying case keeps the full system organized during transport. For users looking for a self-leveling rotary laser level with slope capability, long range, and a complete accessory package, this Bosch REVOLVE2000 kit is a strong fit for demanding indoor and outdoor leveling work.

Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit – Accuracy ±1/16″ at 100′ Features

• Complete kit – features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
• All-in-one hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod and more

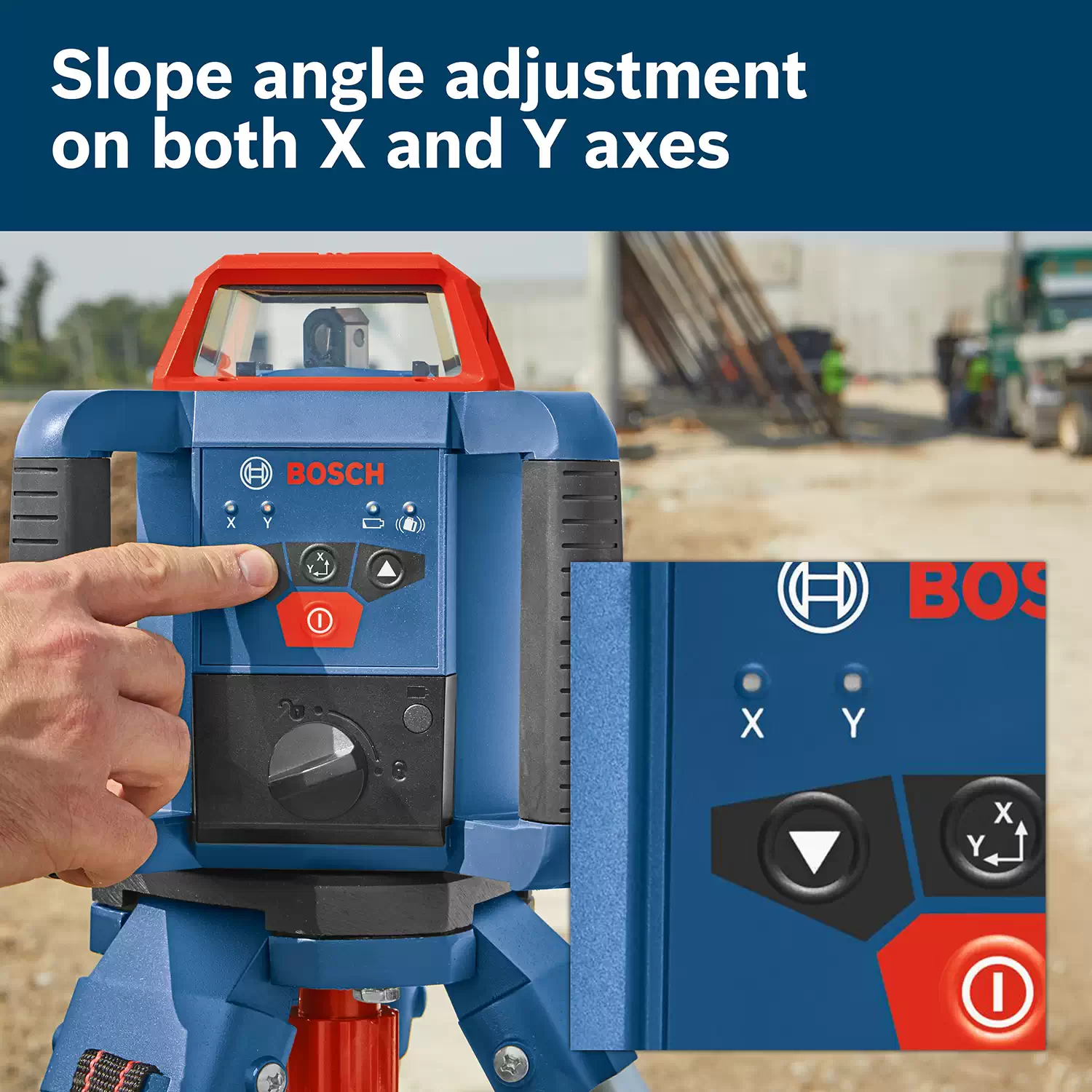

• Manual Dual Slope – allows the user to adjust the slope angle on the laser on both the X- and Y-axes

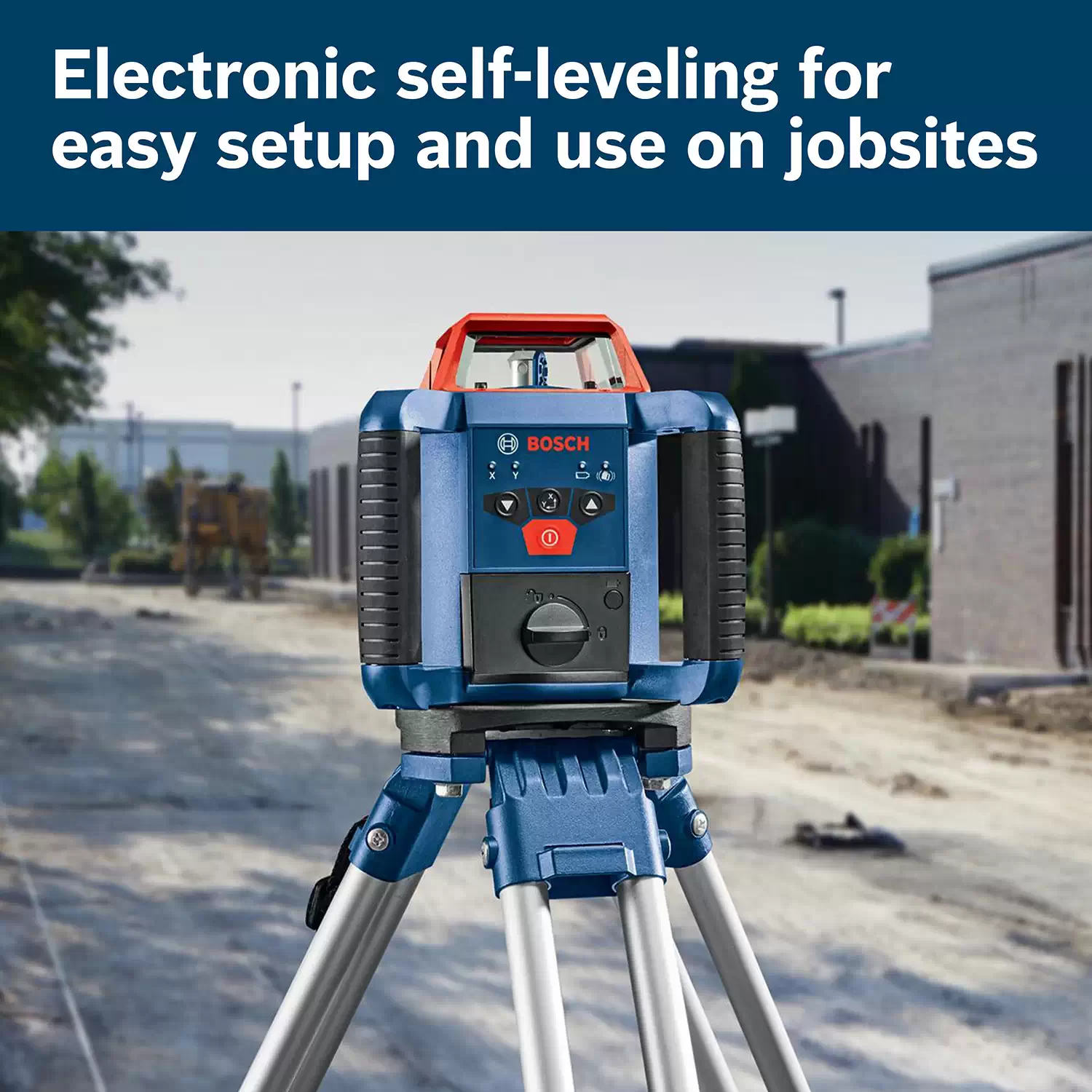

• Electronic self-leveling – allows for easy setup and use on the job
• Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
• Reliable accuracy – delivers ±1/16 In. accuracy at 100 Ft.
• Long working-range capability – provides up to 2,000 Ft. working range

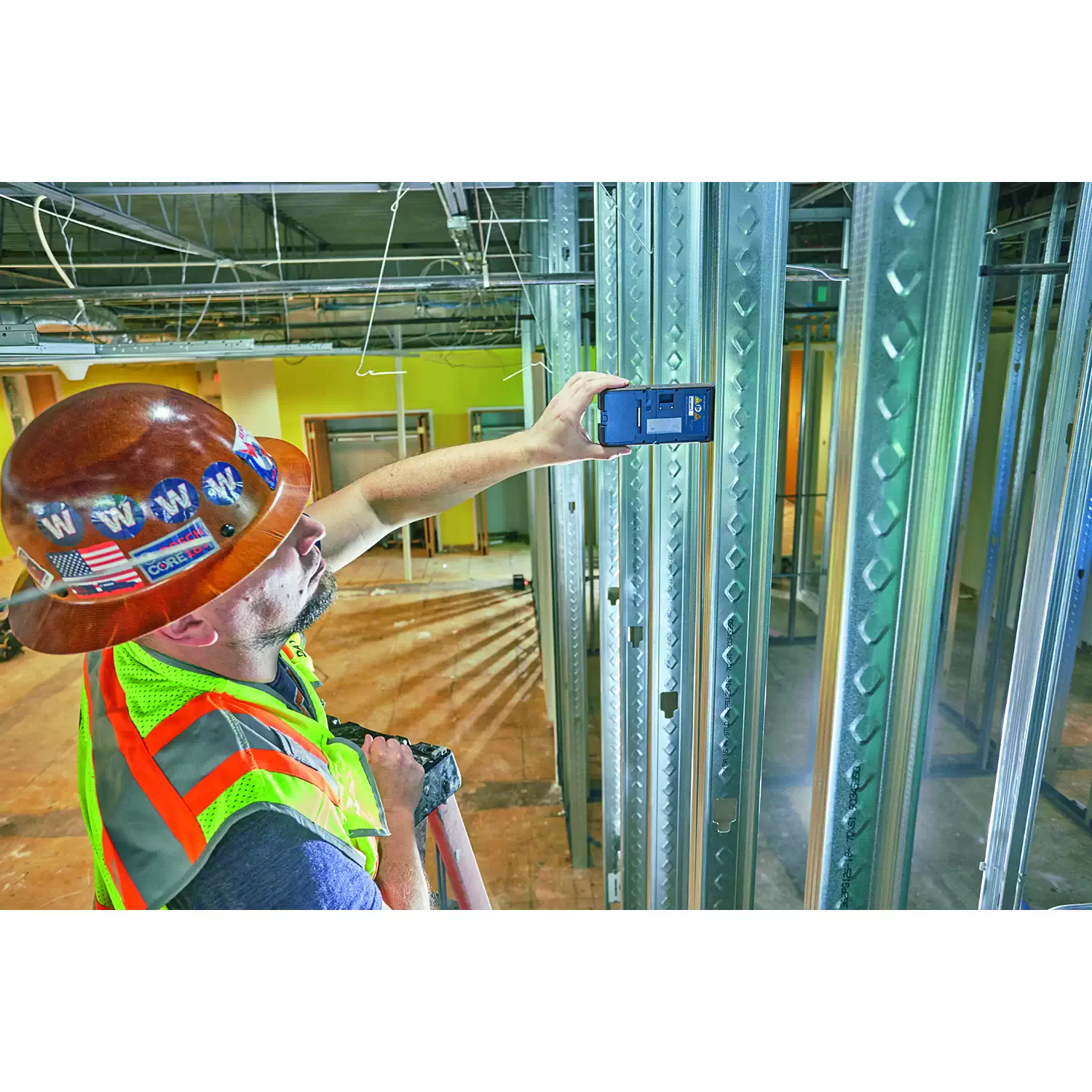

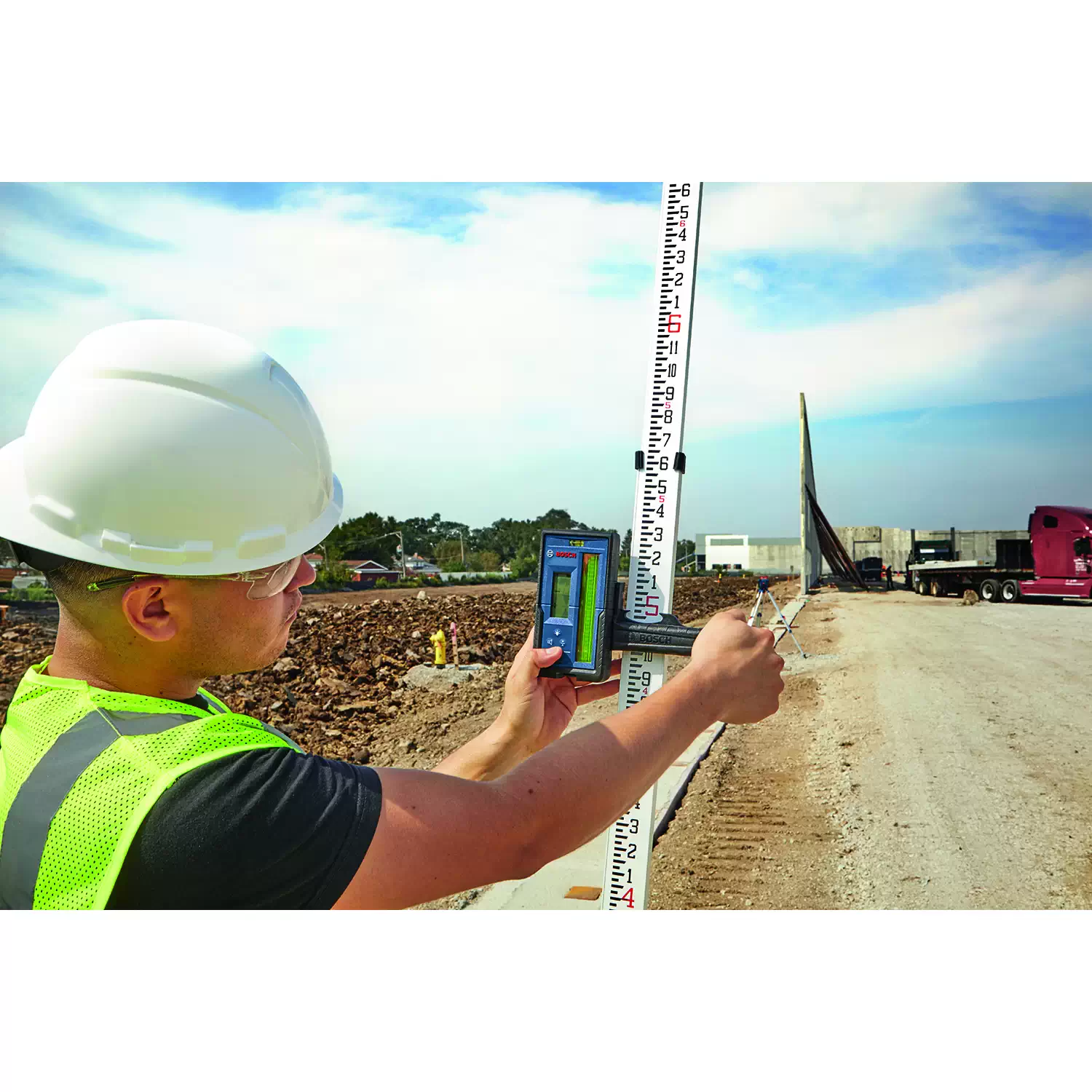

• Laser receiver with mounting bracket – allows for easy-to-read LCD dual display and easy attachment to leveling rod
• Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
• Lightweight aluminum tripod – features quick-clad release on legs and durable finish
• Robust design – features cage overmold and two large easy-to-grip carrying handles for convenience and additional drop protection
• Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase

Compatible Accessories / Works Well With

• Bosch LR20 Laser Receiver
• Bosch BT160 Tripod
• Bosch BT170HD Tripod
• Bosch BT300HD Tripod
• Bosch GR500 Grade Rod
• Bosch GR16 Grade Rod
• Bosch WM4 Mount and Positioning Device

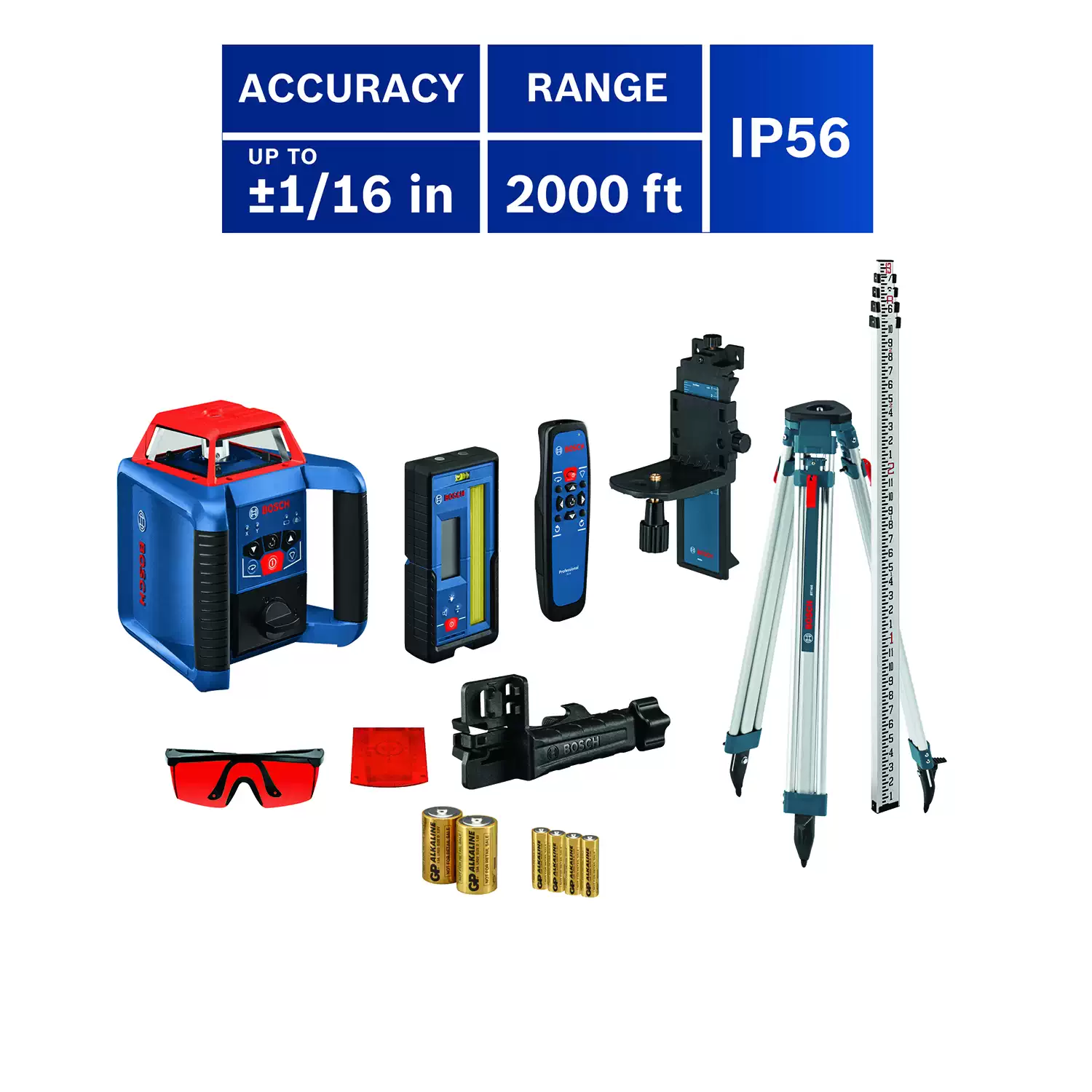

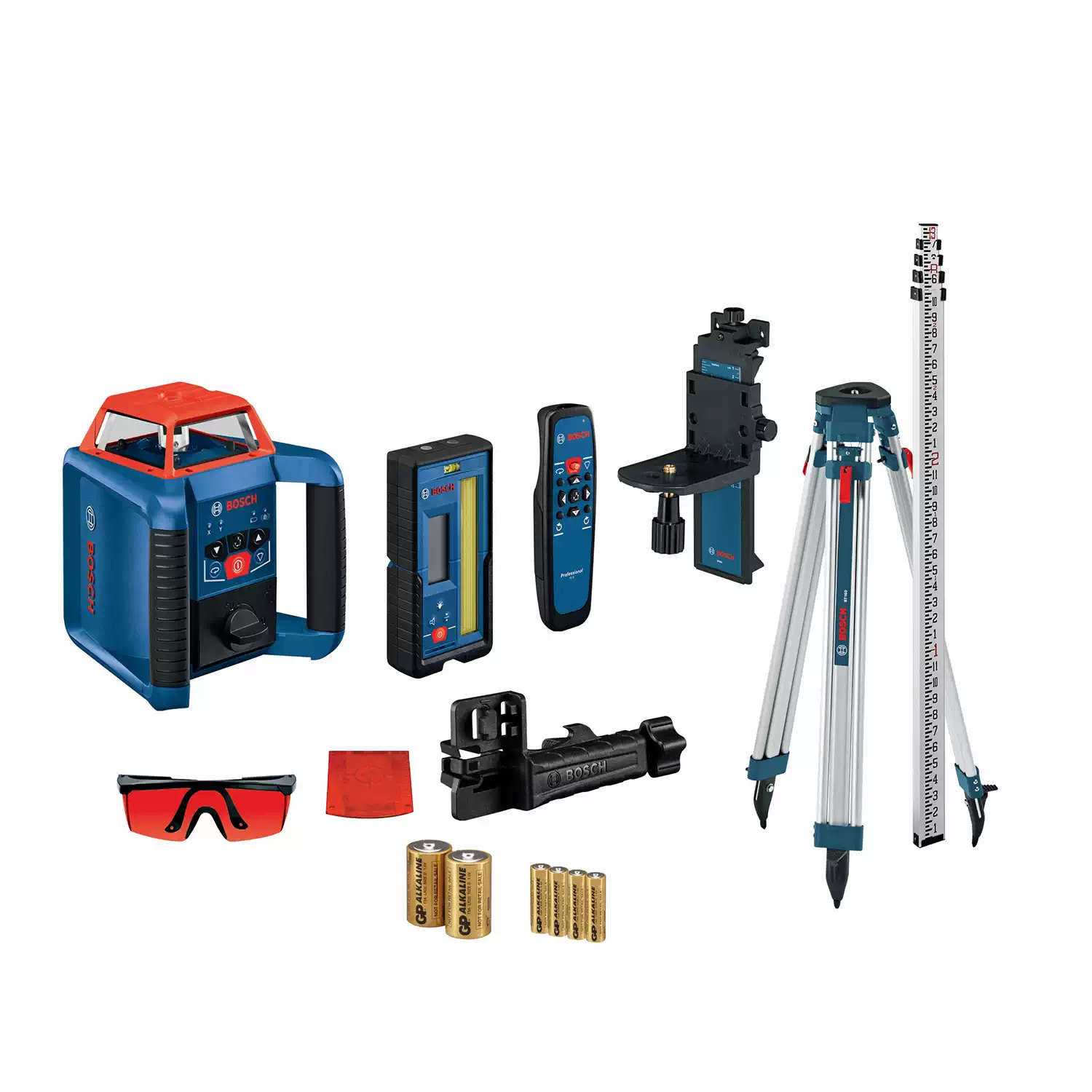

Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit – Accuracy ±1/16″ at 100′ Includes

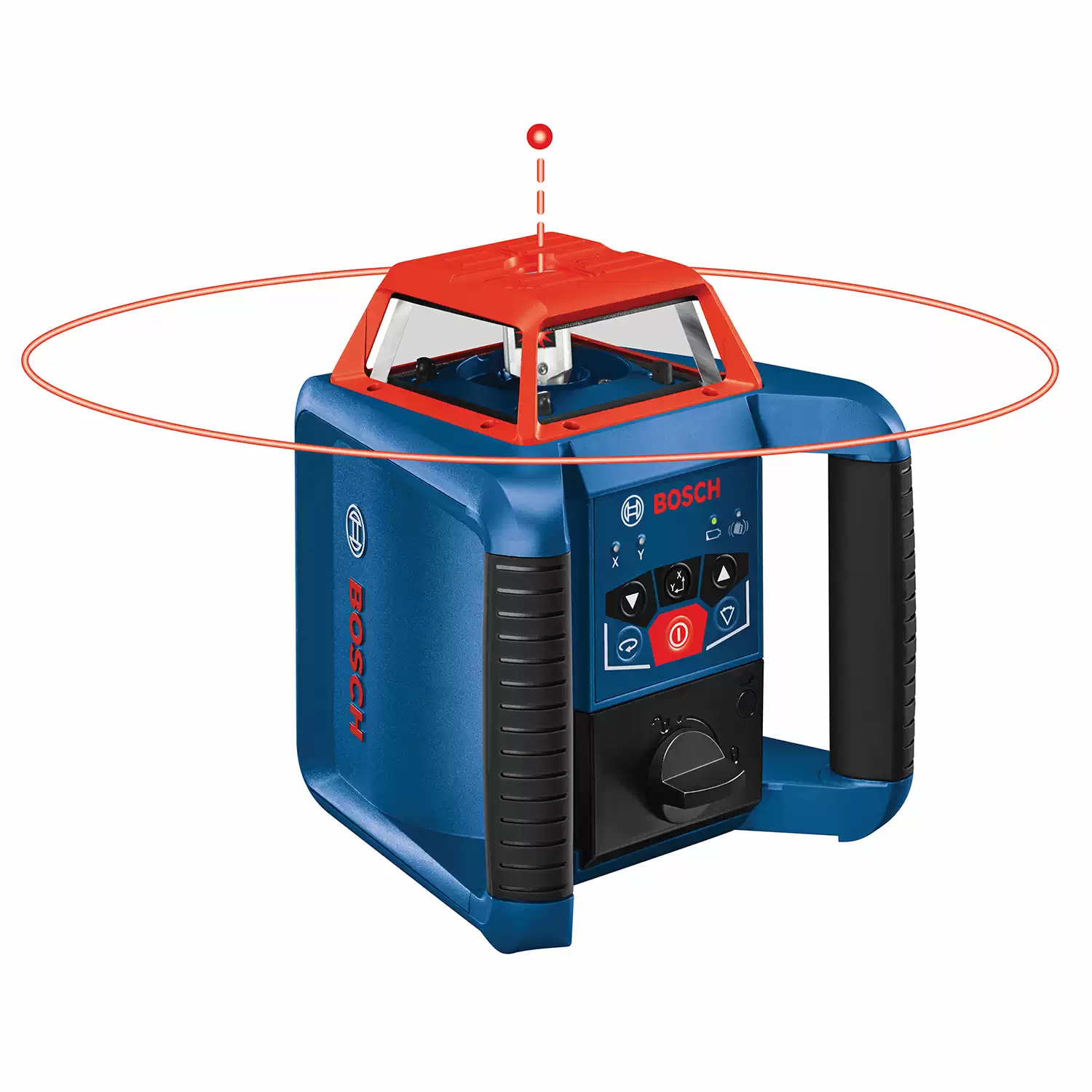

• (1) GRL2000-40HV REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser
• (1) LR20 Laser Receiver with Bracket
• (1) BT160 Aluminum Contractor Tripod
• (1) GR13 13 Ft. Grade Rod
• (1) Red Laser Glasses
• (1) Red Target Plate
• (1) RC4 Remote Control
• (1) WM4 Wall Mount
• (4) AA Batteries
• (2) D Batteries
• (1) All-In-One Hard Carrying Case

Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit – Accuracy ±1/16″ at 100′ Specifications

• Brand: Bosch Power Tools
• Manufacturer Part Number: GRL2000-40HVK
• UPC: 000346643060
• Product Type: Self-Leveling Horizontal / Vertical Rotary Laser Kit
• Laser Beam Color: Red
• Laser Diode: Class 3R <5mW @ 630 ~ 670nm
• Accuracy: ±1/16″ at 100 ft.
• Working Range: Up to 2,000 ft.
• Leveling Type: Self-Leveling, Up to 5°
• IP Rating: IP56
• Mount Threading: 5/8-11
• Operating Temperature: 14°F / -10°C to 122°F / 50°C
• Height: 7.5″
• Length: 7″
• Width: 6.7″
• Weight: 3.9 lb
• Material: Plastic Composite

Bosch GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit – Accuracy ±1/16″ at 100′ Warranty

• Bosch’s 1 Year Limited Warranty for Bosch measuring tool products, extended to 2 years when the product is registered within 8 weeks of purchase

Why Professionals Choose the Bosch REVOLVE2000 Self-Leveling Horizontal / Vertical Rotary Laser Kit

Contractors choose the Bosch GRL2000-40HVK because it gives them a rotary laser level kit that is ready for long-range layout and grading work. The self-leveling horizontal and vertical operation supports leveling, alignment, and plumb applications, while Manual Dual Slope makes it more useful for drainage, site prep, and elevation control. For crews that want a self-leveling rotary laser level with slope capability, receiver, remote, tripod, and grade rod in one package, this kit reduces setup gaps and helps keep work moving.

Users also choose this Bosch laser level because it combines precise accuracy with a complete field-ready accessory package. The ±1/16″ accuracy at 100 ft. supports dependable layout work, and the 2,000 ft. range with receiver makes it practical for larger outdoor jobs. Whether the work involves hardscape grading, foundation layout, municipal site work, or general construction leveling, this rotary laser kit gives crews a dependable measuring and layout tool for demanding applications.
