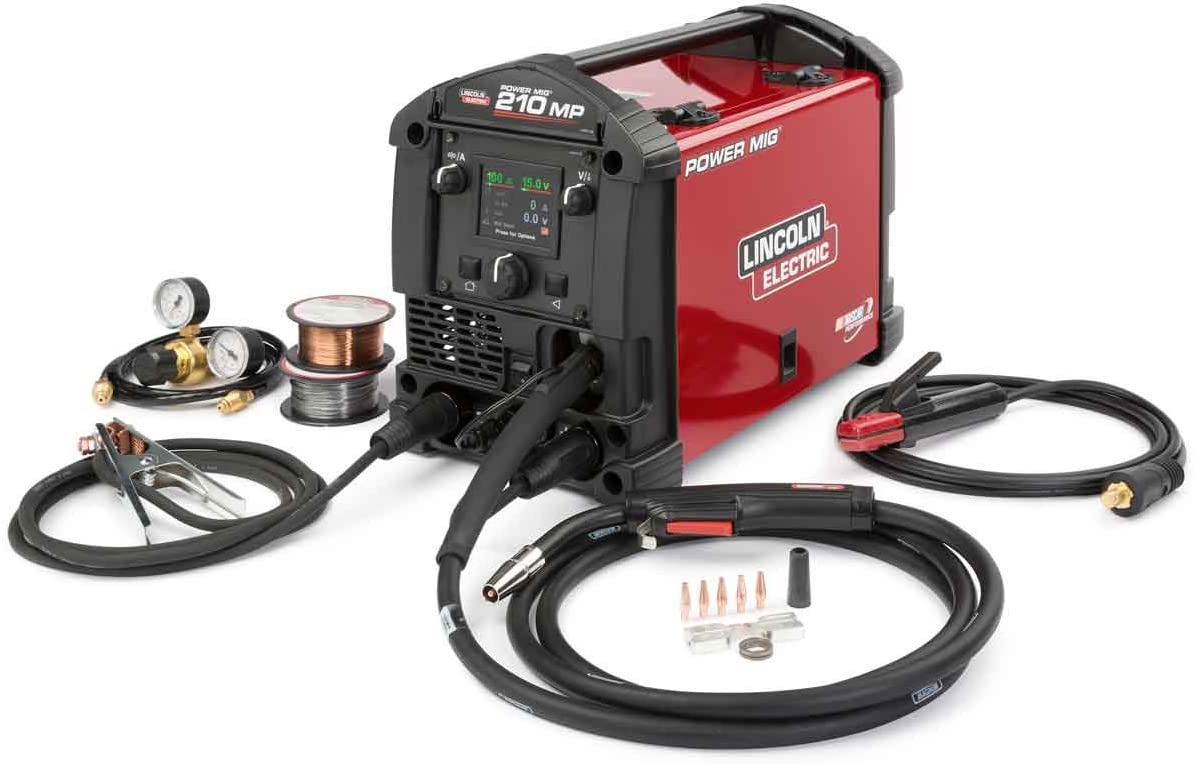

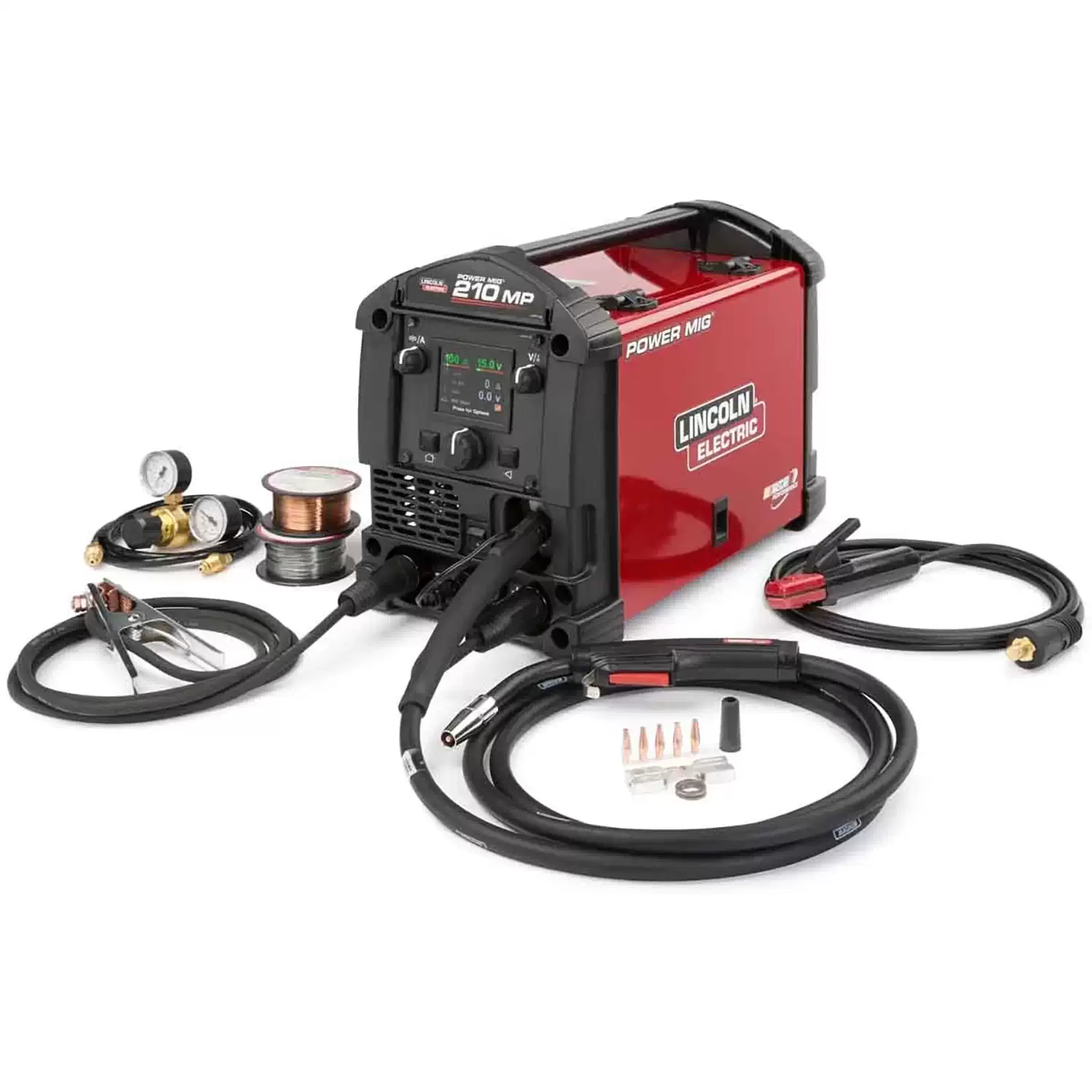

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder

Add to Wishlist
Add to Wishlist
Home » Shop » Lincoln Electric » Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder
Adams SKU: LNC-U39631
Manufacturer Part#: Lincoln Electric U3963-1 Categories: , , , ,
Lincoln Electric Global manufacturer of welding products, arc welding equipment, welding consumables, plasma and oxy-fuel cutting equipment and robotic welding systems

The Lincoln U3963-1 (K3963-1)  POWER MIG® 210 MP® power supply is a factory reconditioned and factory certified multi-process welder for the hobbyist, educator or small contractor who wants to do MIG welding and a lot more, including stick, TIG and flux-cored welding. The push-and-turn digital controls and color display screen make setup and operation intuitive and easy, while the all-metal wire drive and sturdy sheet-metal construction make it rugged and ready for any job in the home or small shop. The POWER MIG® 210 MP® power supply is the ideal MIG machine for the welding novice, with plenty of room to grow as you gain more experience.

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Features

  • Lightweight and portable – just 40 lbs.!
  • Dual Voltage Inputs (120V or 230V) means you can plug into any common power supply
  • Intuitive push-and-turn digital controls make setup a breeze
  • Large color display guides you through the setup process
  • Advanced options and settings are simple to access
  • MIG: Weld up to 5/16 in. mild or stainless steel or aluminum* up to 3/16 in.
  • Flux-Cored (Self- and Gas-shielded): Tackle the biggest jobs
  • DC Stick: Handles up to 5/32 in. stick electrodes
  • DC TIG: Enabled by Touch Start TIG® technology

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Specifications

  • Product Name: Power Mig 210 MP
  • Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 120/1/60
  • Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) MIG: 100A/19V/40% 75A/17.75V/100%
  • Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) TIG: 125A/15V/40% 90A/13.6V/100%
  • Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) Stick: 80A/23.2V/40% 60A/22.4V/100%
  • Phase 1: Input Current at Max Rated Ouput #1 (Current) 15A
  • Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) 230/1/60
  • Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) MIG: 200A/24V/25% 110A/19.5V/100%
  • Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) TIG: 175A/17V/30% 100A/14V/100%
  • Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) Stick: 175A/27V/25% 100A/24V/100%
  • Phase 1: Input Current at MAX Rated Output #2 (Current) 14.7A
  • Max Rating 220A
  • Output Range by Mode: 20-220A
  • Number of Operators per Machine: 1
  • Machines Communication Technology: analog
  • Work Lead Connector Type: Dinse
  • Welding Gun Cable Assembly Length: Magnum PRO 175L
  • Work Cable Length: 10 FT
  • Spool Gun Compatible (Duty): Light

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Applications

  • Brewery
  • Distillery
  • General Fabrication
  • Maintenance & Repair
  • Metal Fabrication
  • Autobody / Automotive
  • Farm / Agricultural

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Machines Processes

  • Stick (SMAW)
  • Flux-Cored (FCAW)
  • TIG (GTAW)
  • MIG (GMAW)

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Common Parts

  • Welding Cart (80 cu ft Bottle Capacity): K2275-1
  • Welding Cart (150 cu ft Bottle Capacity): K520
  • Replacement Screen Shield: KP4140-1
  • Small Canvas Cover: K2377-1
  • Accessory Bag: K3071-1
  • Magnum® PRO 100SG Spool Gun: K3269-1
  • PTA-17V Ultra-Flex™ TIG Torch 12.5 ft. (3.8 m): K1782-6
  • Twist Mate™ TIG Torch Adapter: K960-1
  • Foot Amptrol™ Adapter: K4104-1
  • Foot Amptrol™: K870

Lincoln U3963-1 (K3963-1) Power Mig 210 MP 120V/230V Multi-Process Welder Includes

  • Magnum® PRO 175L Gun – 10 ft. (3.0 m) (K4076-1)
  • 120V and 230V Input Cables
  • Work Cable and Clamp
  • Electrode Holder and Lead Assembly
  • Adjustable Gas Regulator and Hose
  • Gas and Gasless Nozzles
  • Gun Cable Liner (pre-installed in gun)
  • Spindle Adapter
  • Sample 1 lb (0.45 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire
  • Sample 0.5 lb (0.22 kg) Spool Innershield® NR®-211-MP Flux-Cored Wire
  • 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips<
  • 0.025 – 0.030 in. (0.6 – 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
  • 0.030 – 0.045 in. (0.8 – 1.1 mm) Knurled Drive Rolls
  • 0.025 – 0.035 in. (0.6 – 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides
  • Manual

Additional information

Weight 40 lbs
Dimensions 14 × 10.75 × 19 in
